Summary

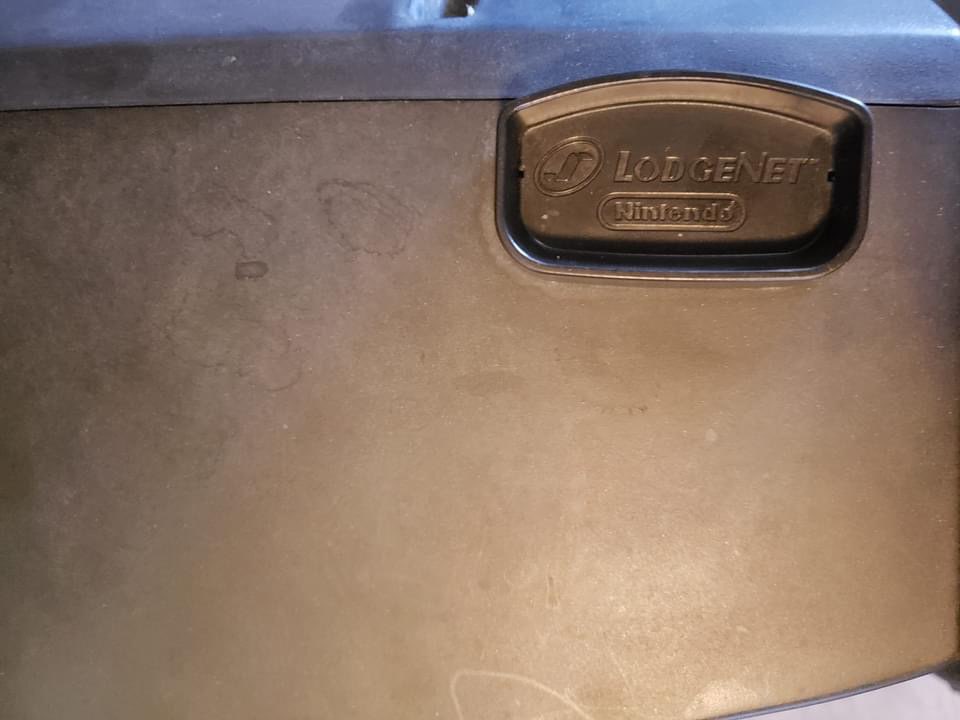

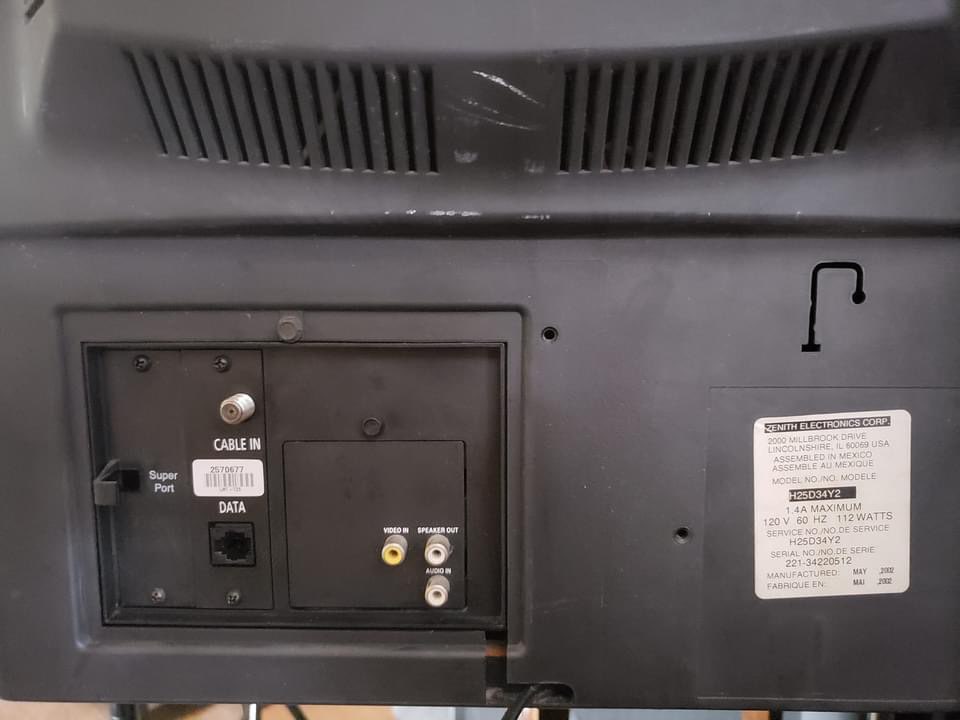

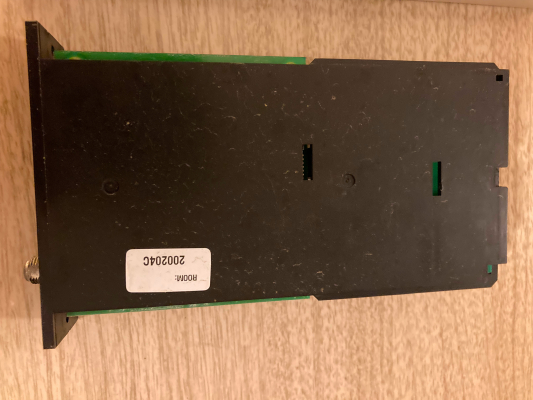

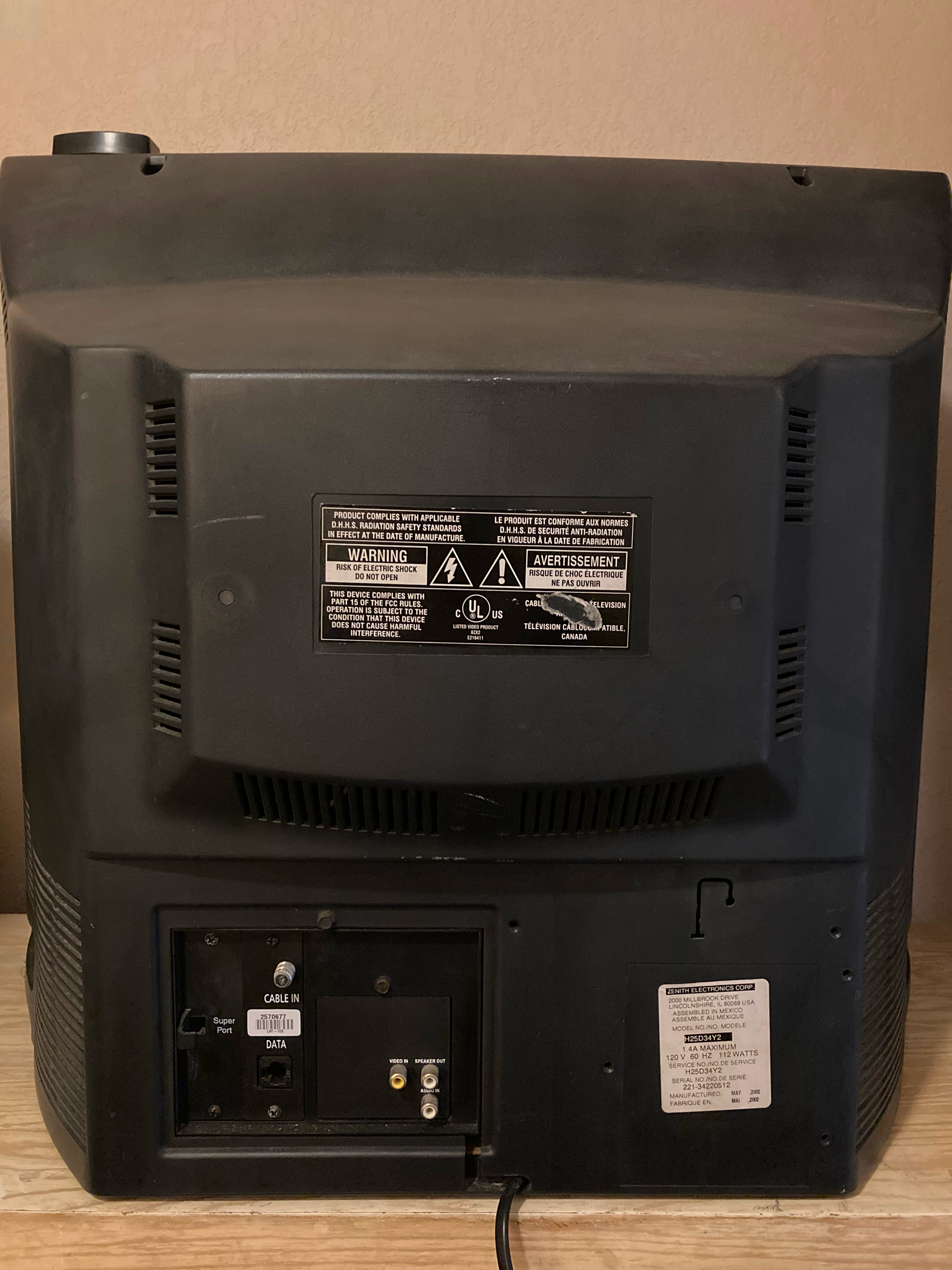

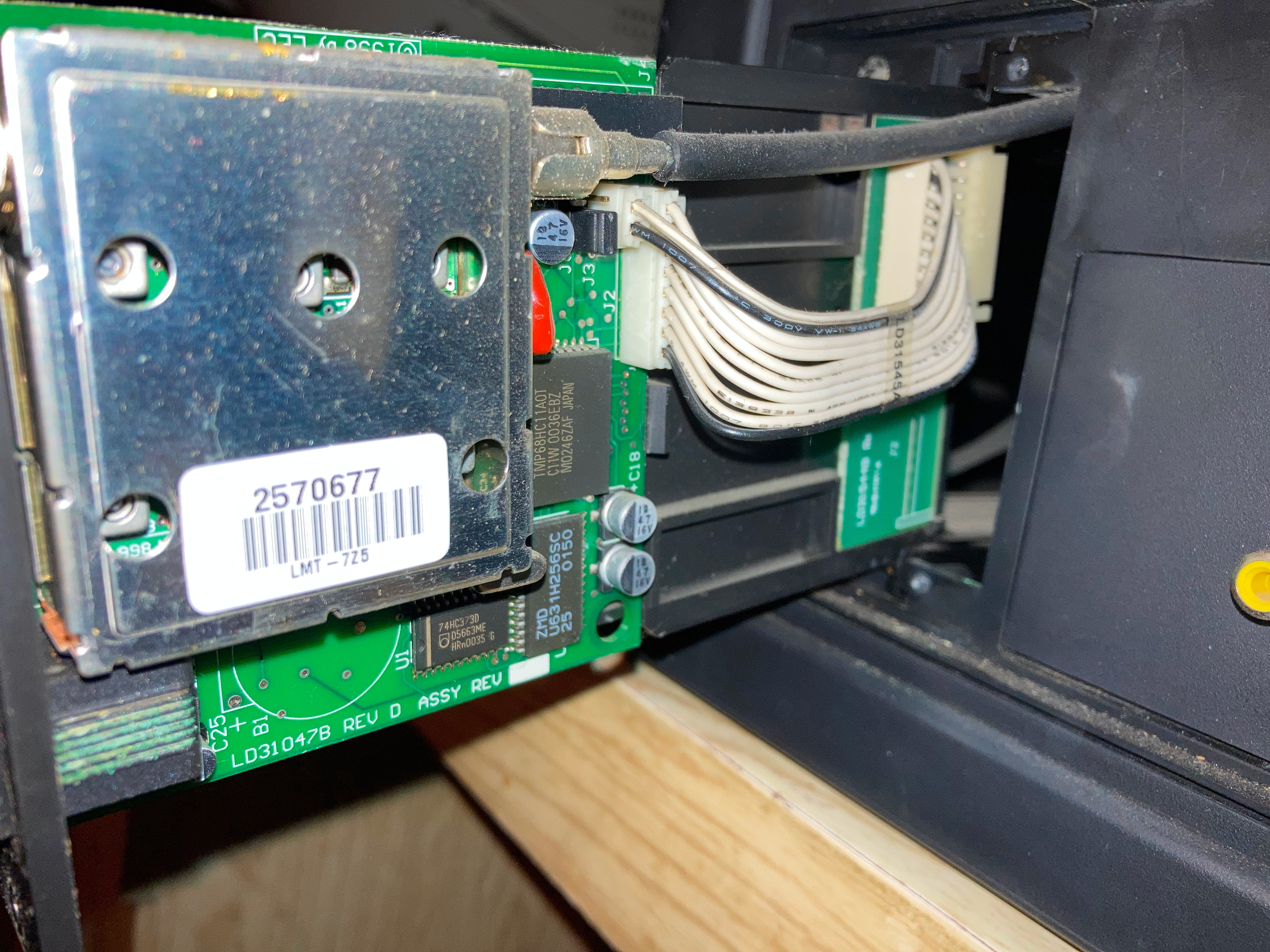

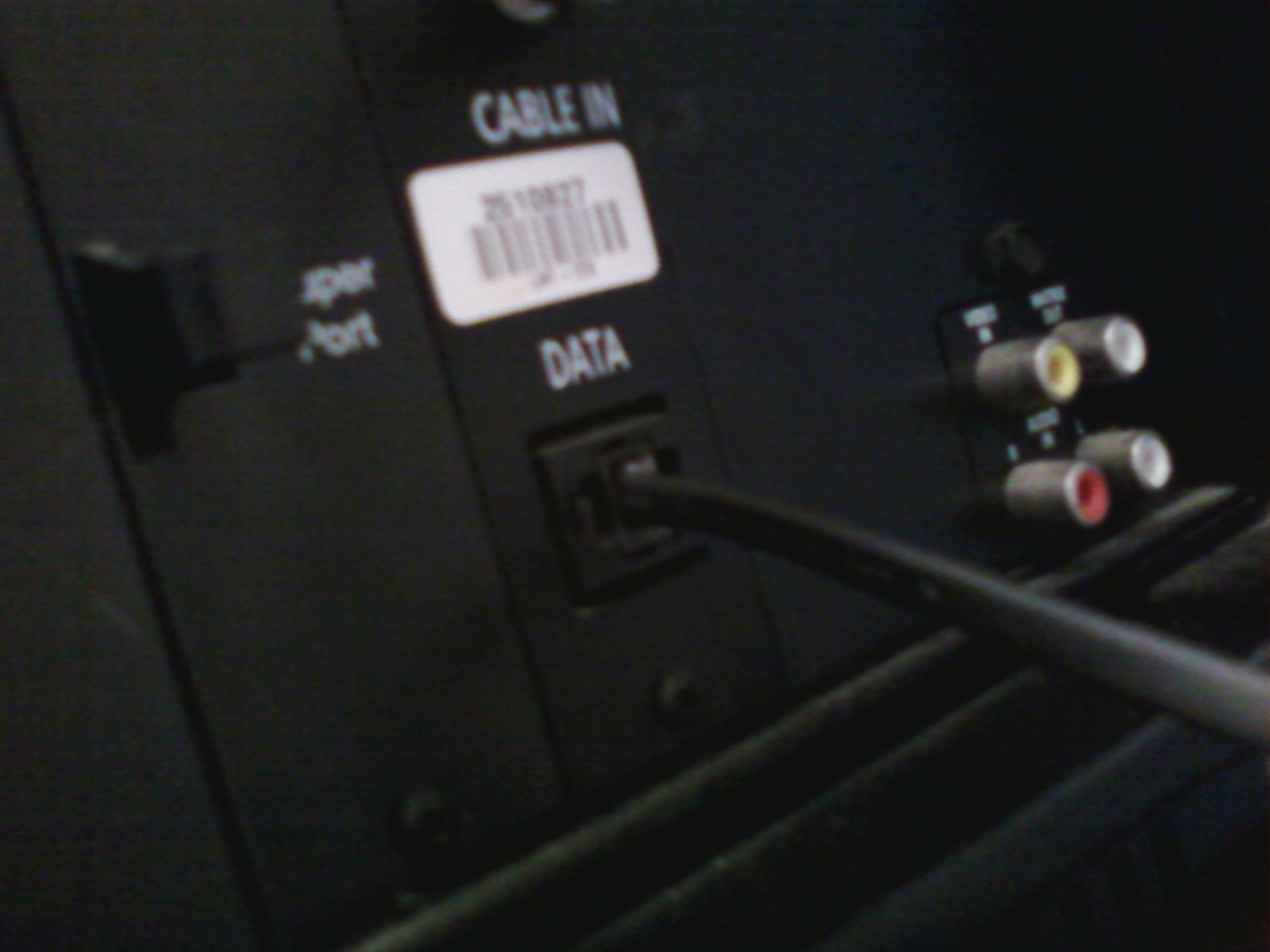

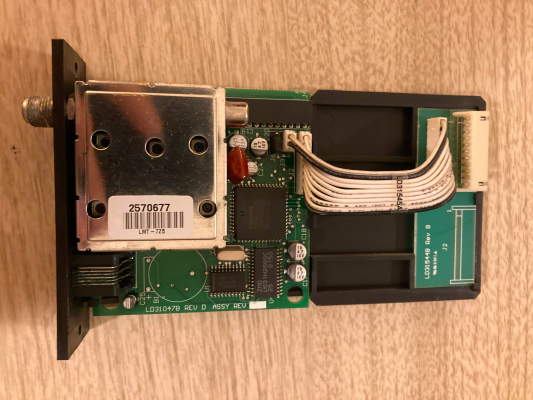

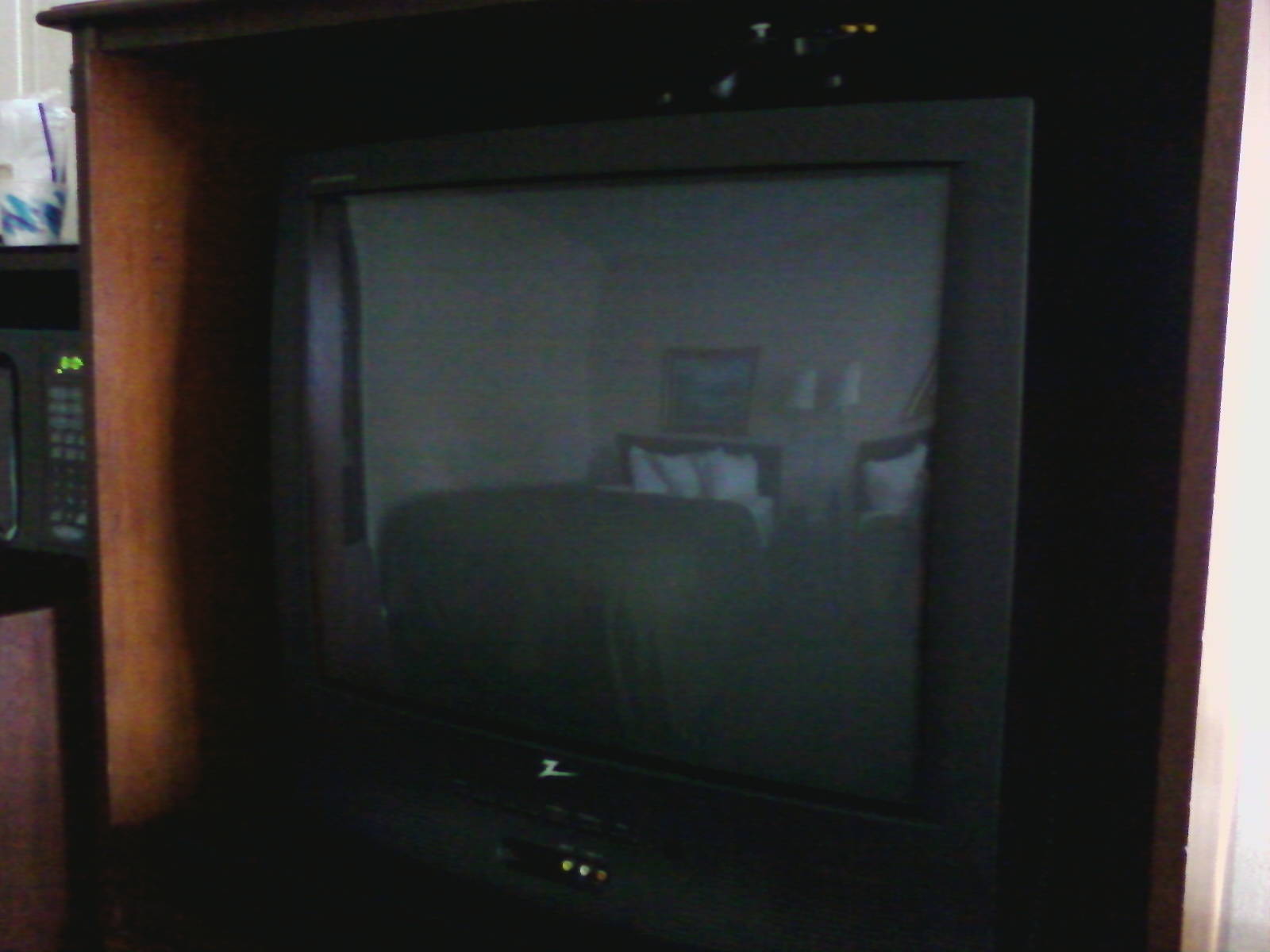

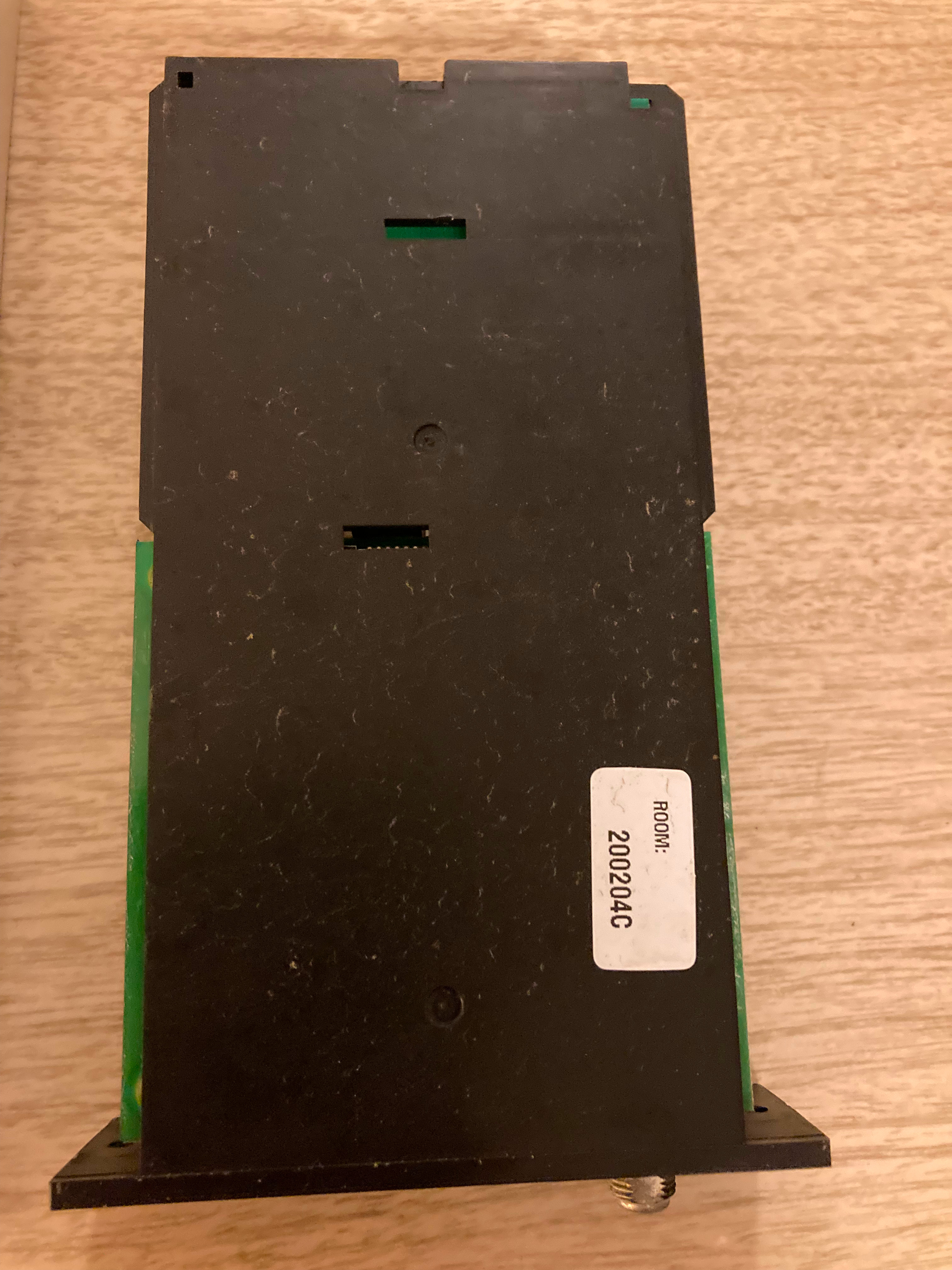

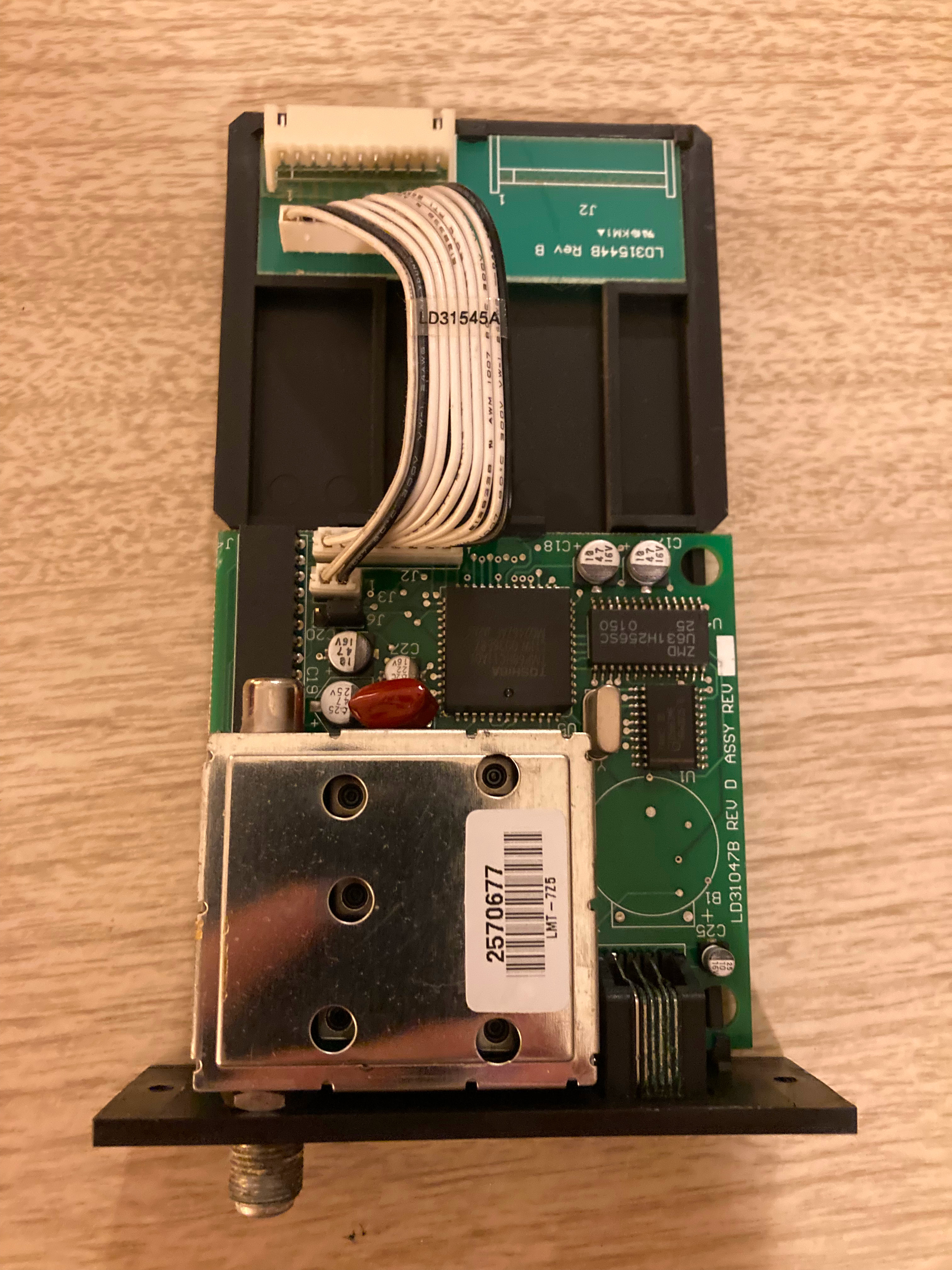

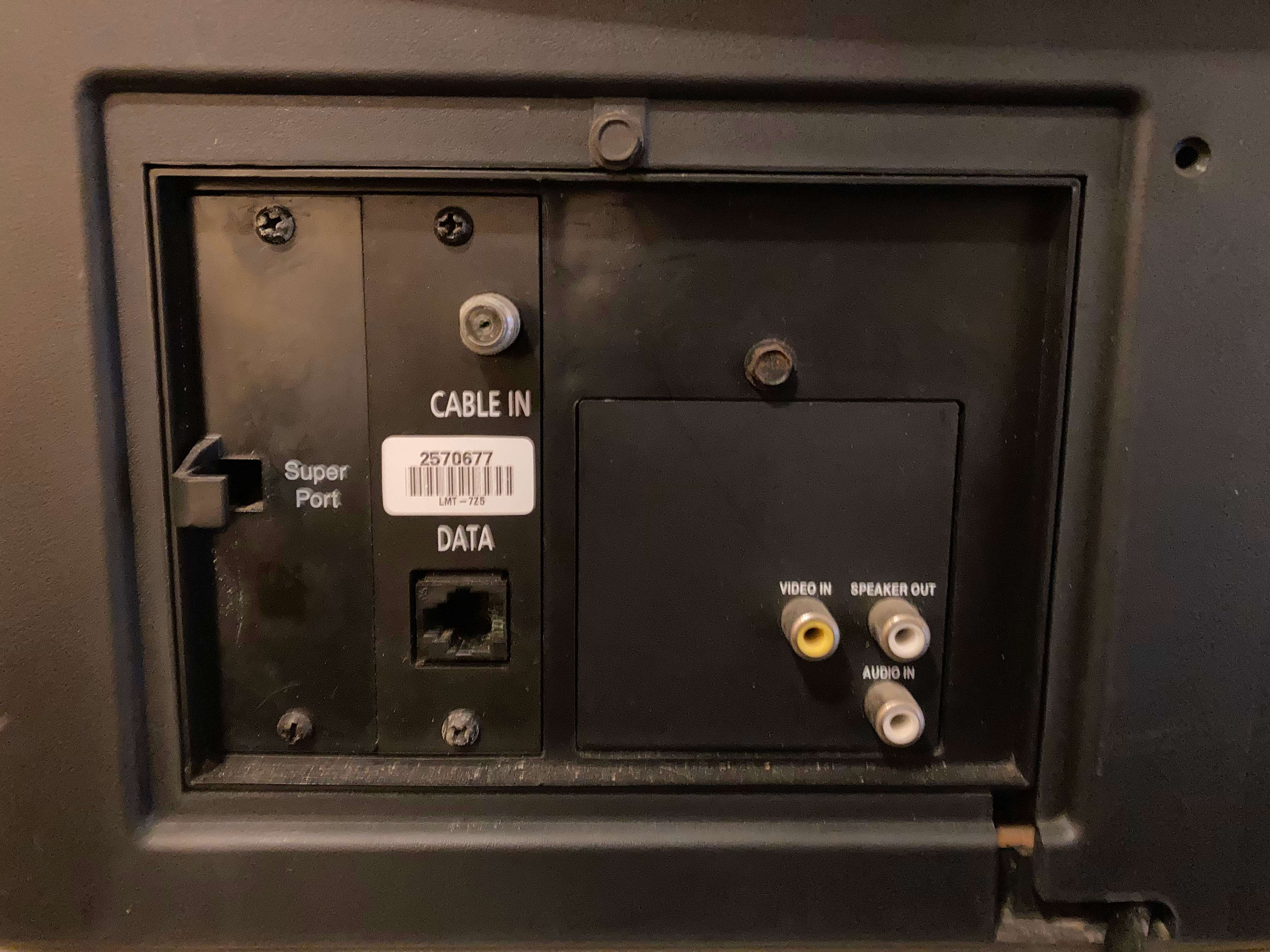

25" Zenith CRT TV used in hotels with Nintendo LodgeNet. Features a special board with an RJ11 jack in the rear for plugging in a Nintendo LodgeNet game controller.
Notes
I found this set sitting in a front yard for free in my neighborhood, and donated it to LodgeNet Oasis (shipped via uShip).
This model may have also been sold as a regular consumer set[1] without the LodgeNet features.
Gallery
| Specifications | |
|---|---|

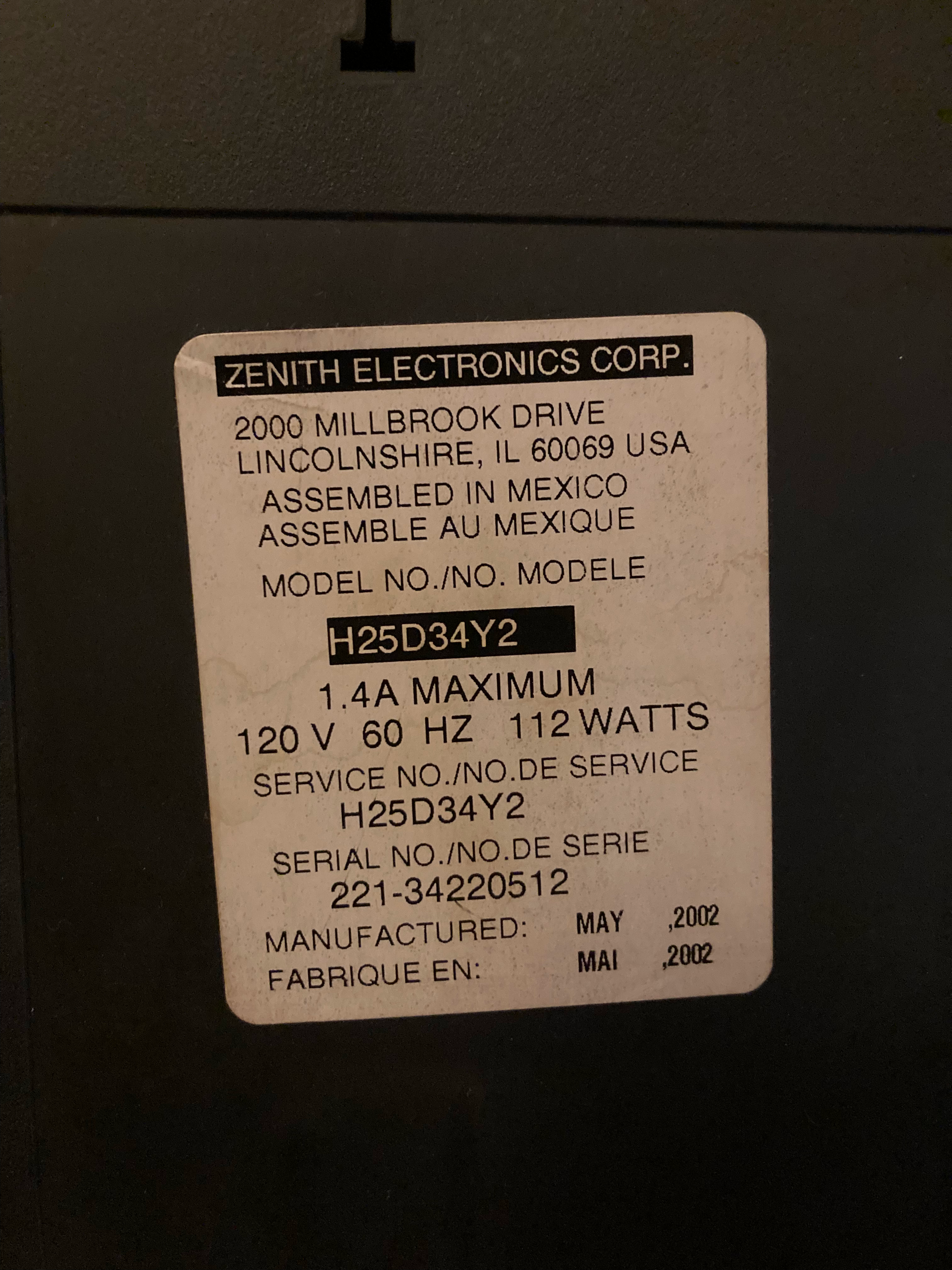

| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | H25D34Y2 |
| Series: | Nintendo Lodgenet |
| Viewable Size: | 25" |

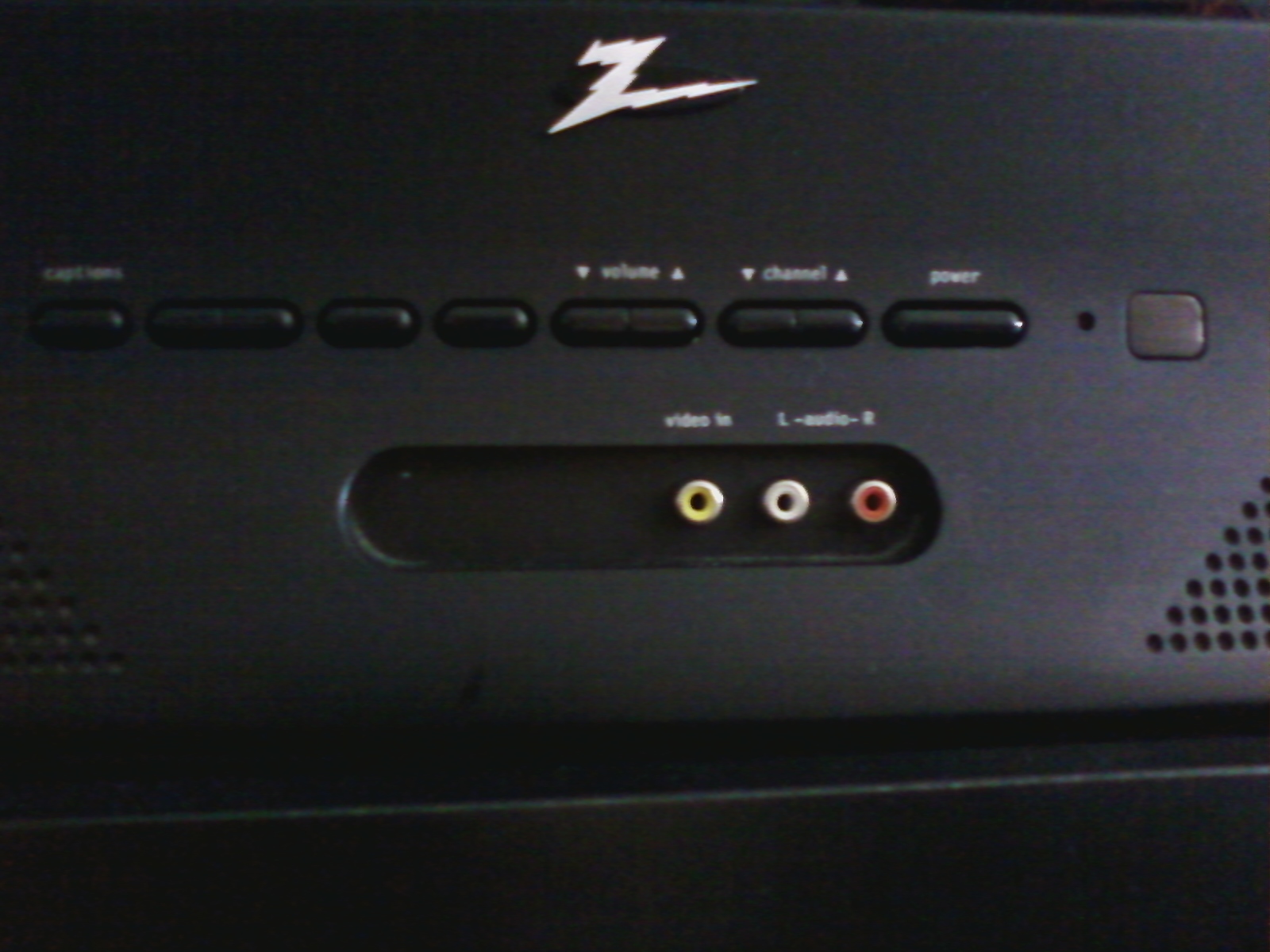

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Stereo |
| Application: | Consumer |

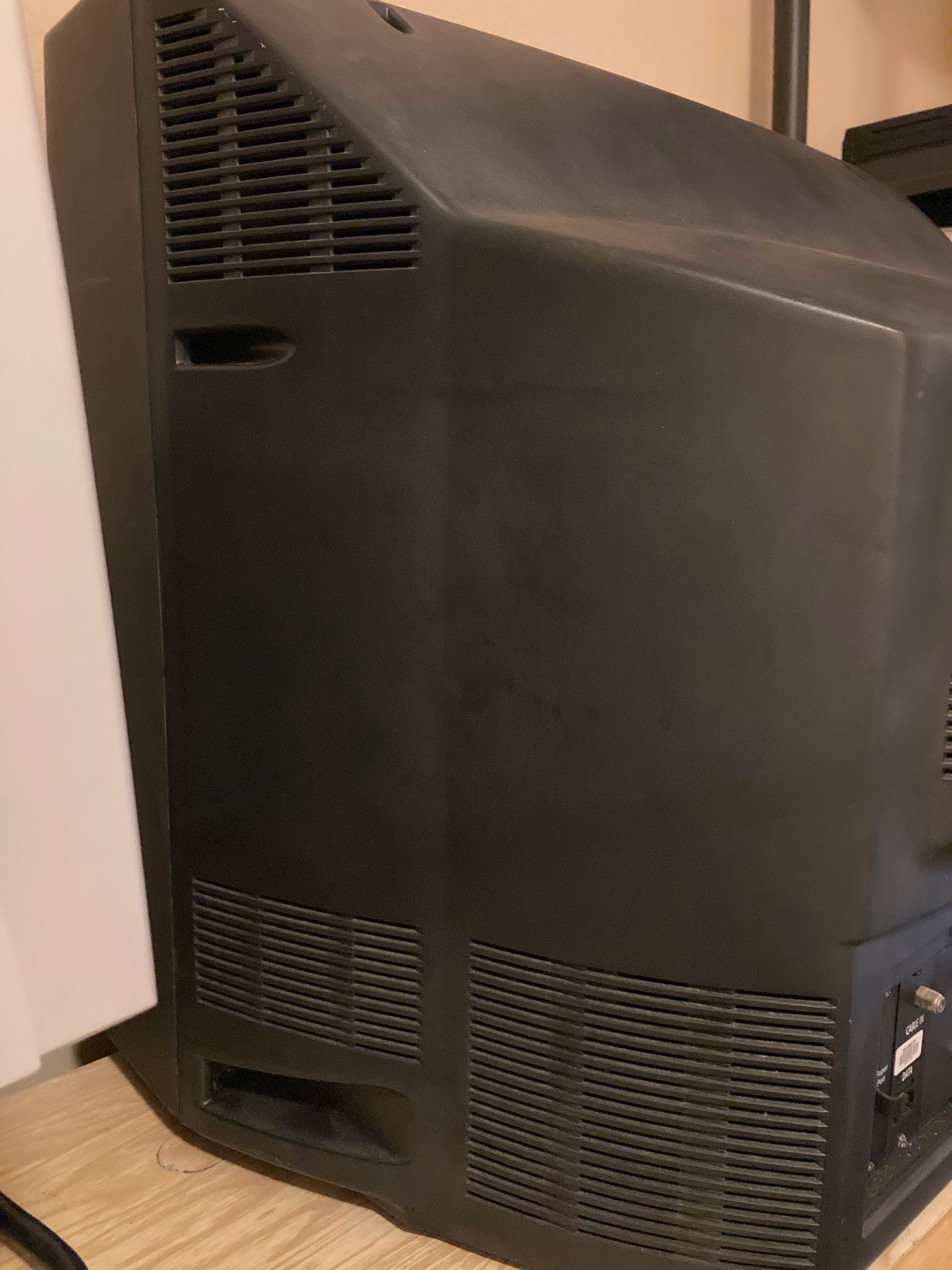

| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info, Needs Pictures, Needs Tube Info |
