Summary

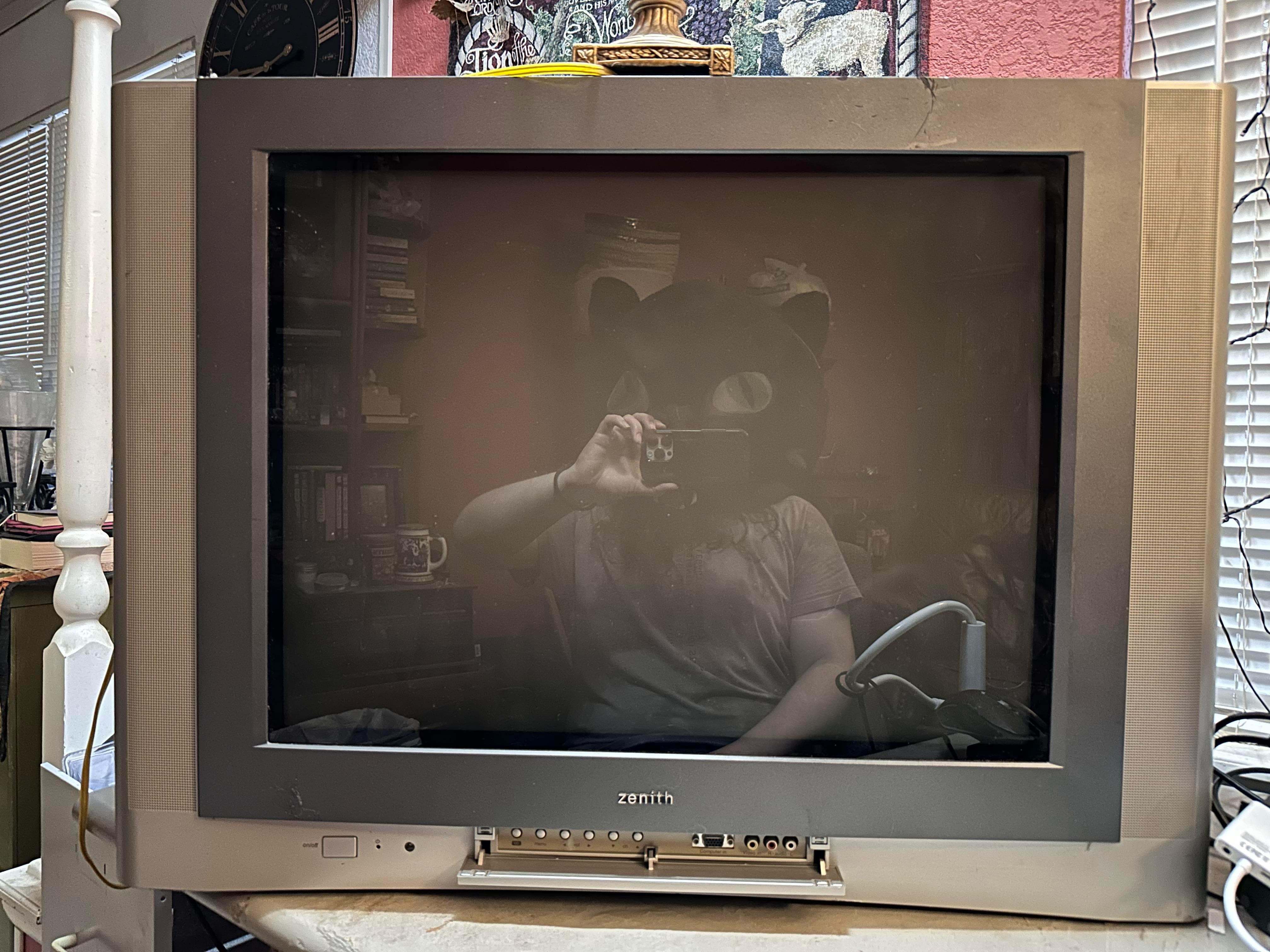

27" flat multimedia display by Zenith. Has RF, composite, s-video, component and VGA inputs. Originally manufactured by LG in 2004.
(Special thanks to JJay Hogan for the pics!)
Manuals
Notes

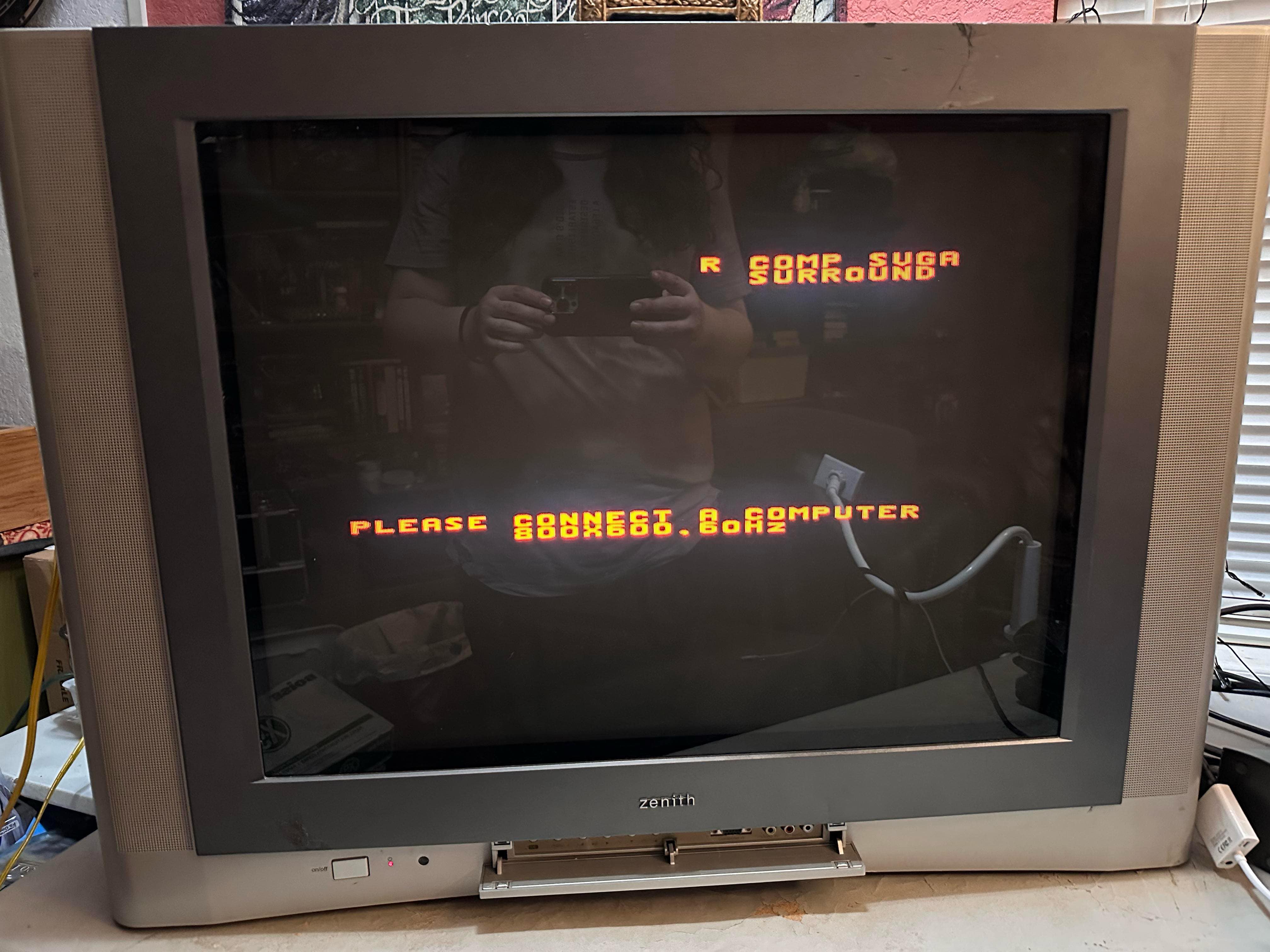

This set is essentially an HD CRT, with all signals scaled up to 37.9 scan range. It is natively 800x600p at 60hz, and lower resolutions are upconverted with laggy processing.
The set has picture controls in the menu to adjust raster shape and size, which is convenient.

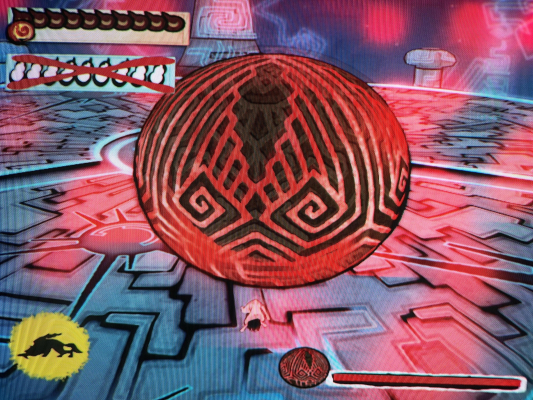

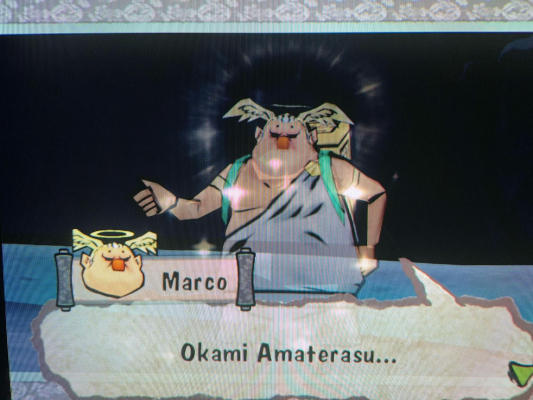

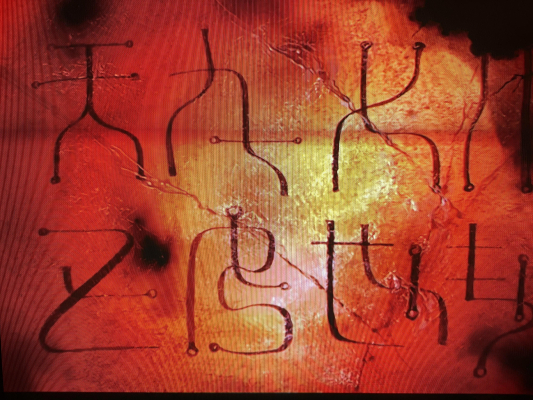

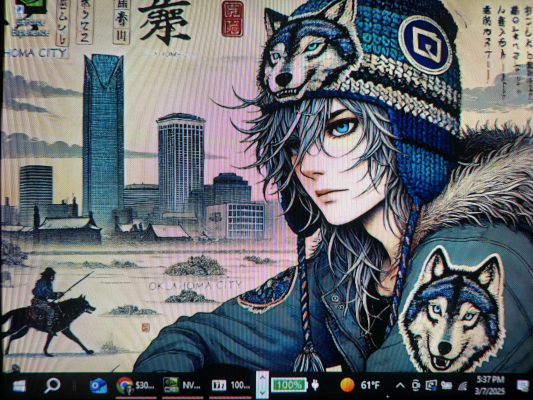

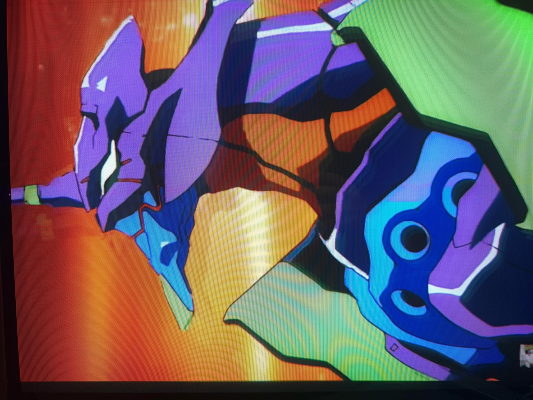

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |

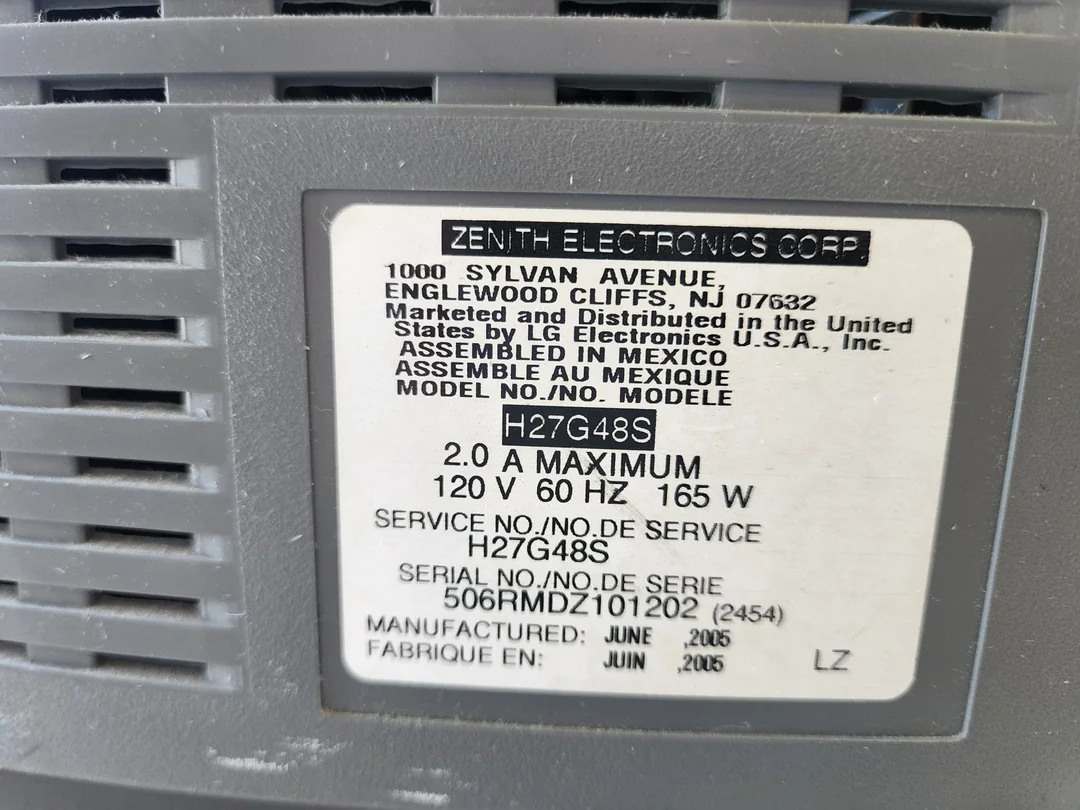

| Model: | H27G48S |
| Series: | Presentation Series |
| Viewable Size: | 27" |

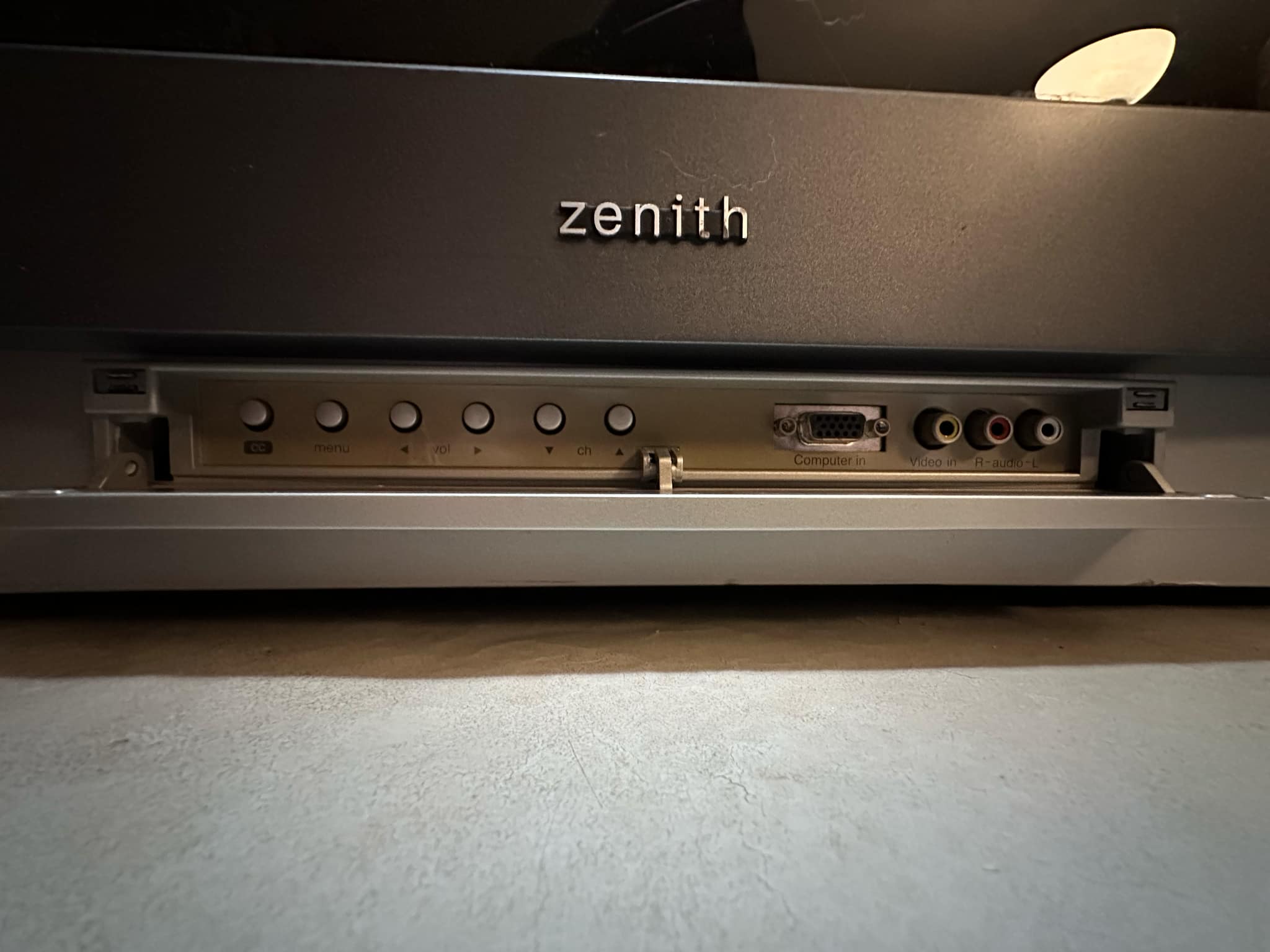

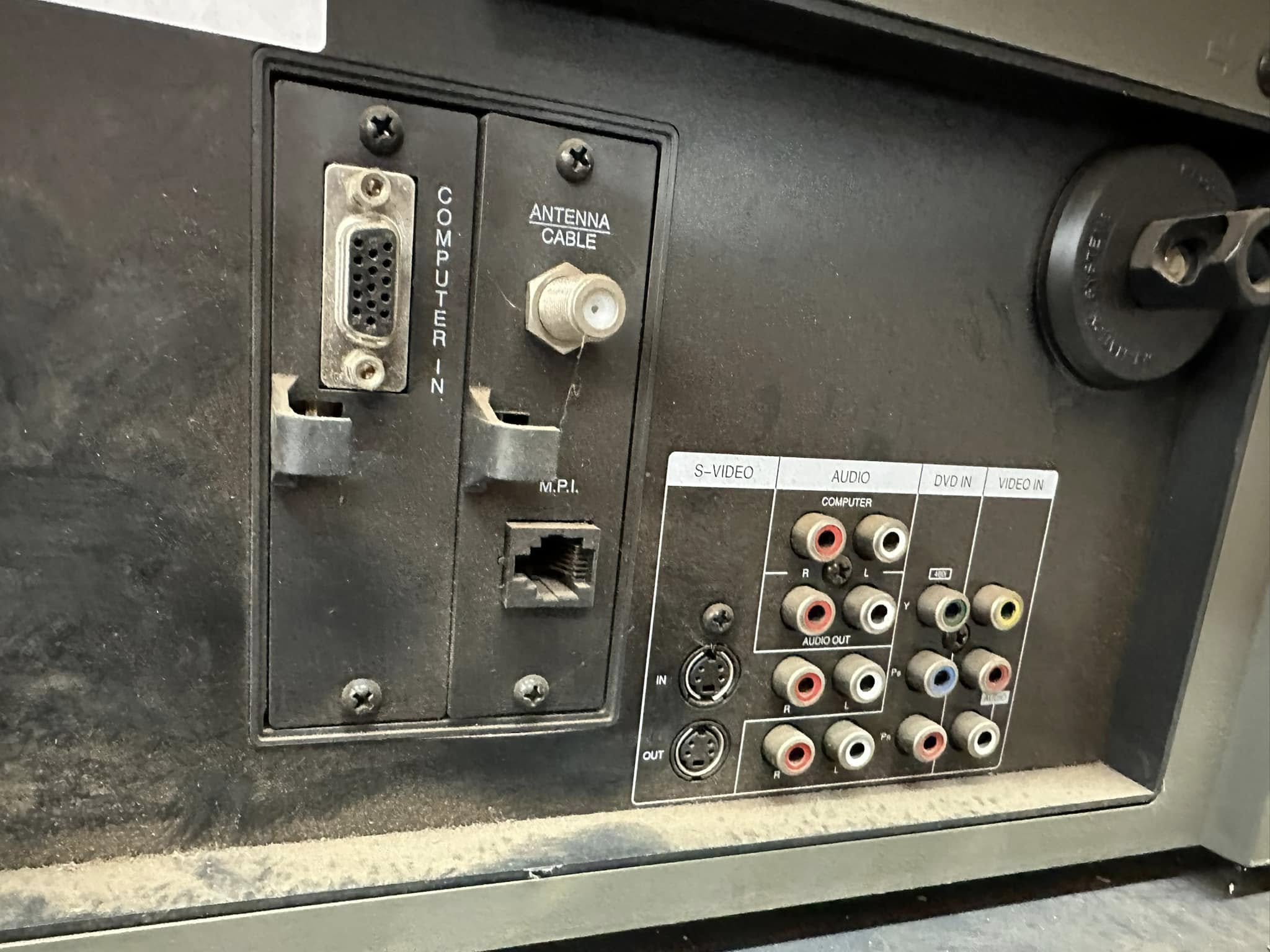

| Inputs: | VGA, Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 600p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 37.9 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA2150Q |
| Flyback: | LG, 6174V-6012M |
| Focus Type: | Single |
| Tube: | 6335929007A |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Stereo |
| Remote: | 6710V00108D |
| Chassis: | DIGITAL FCS |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
