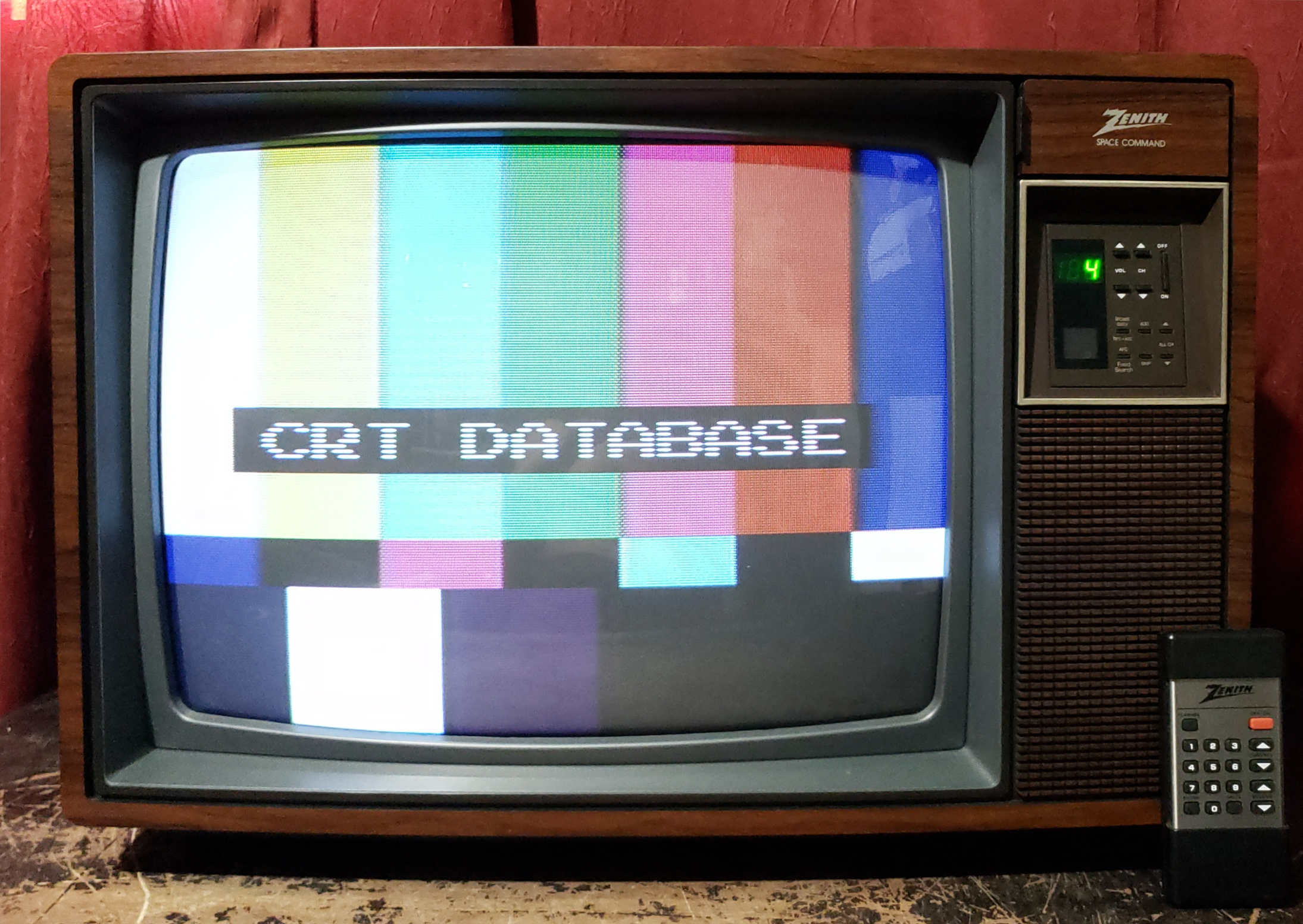

Zenith SE1911W
Eli Krause
November 21, 2024, 6:14 pm
November 21, 2025, 4:07 pm
November 21, 2024, 6:14 pm
November 21, 2025, 4:07 pm
Summary
Color TV With Crisp, Contemporary Design. Chromacolor Contrast Picture Tube for exceptional contrast and color fidelity. Reliant chassis with 100% modular design. Electronic tuning. Automatic color control. Computer Space Command Remote Control SC3300. Eastern Walnut finish.
Manuals

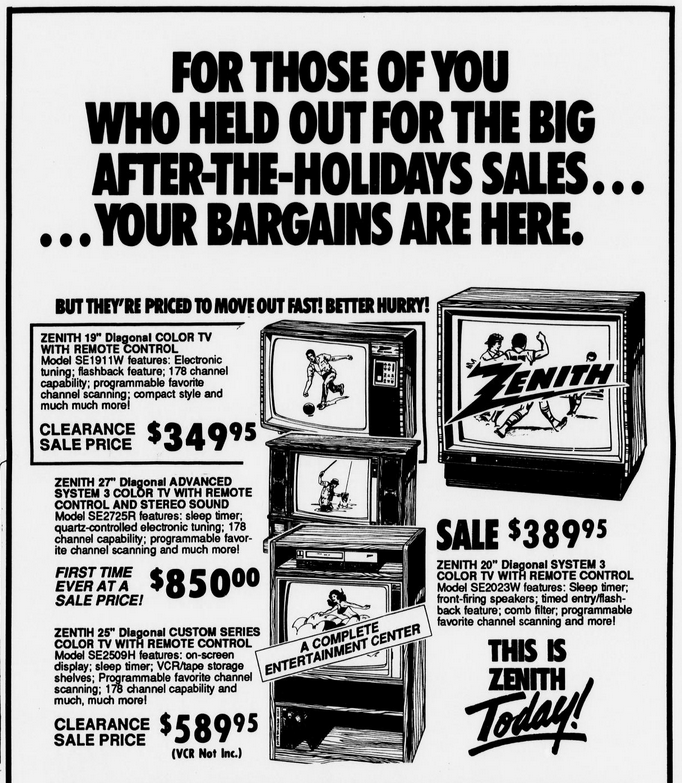

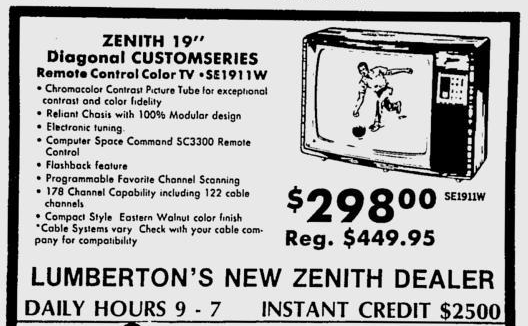

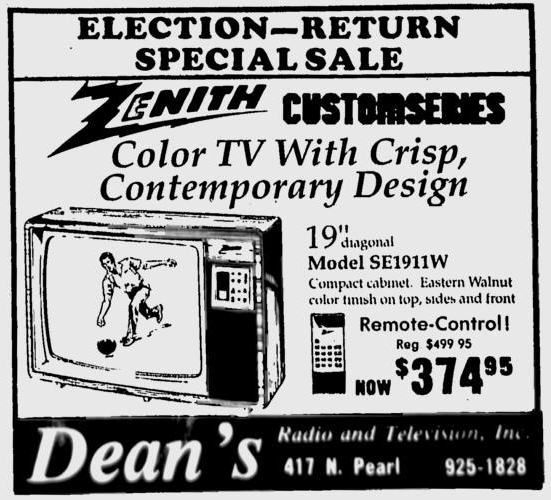

Media & Promo Materials
Notes

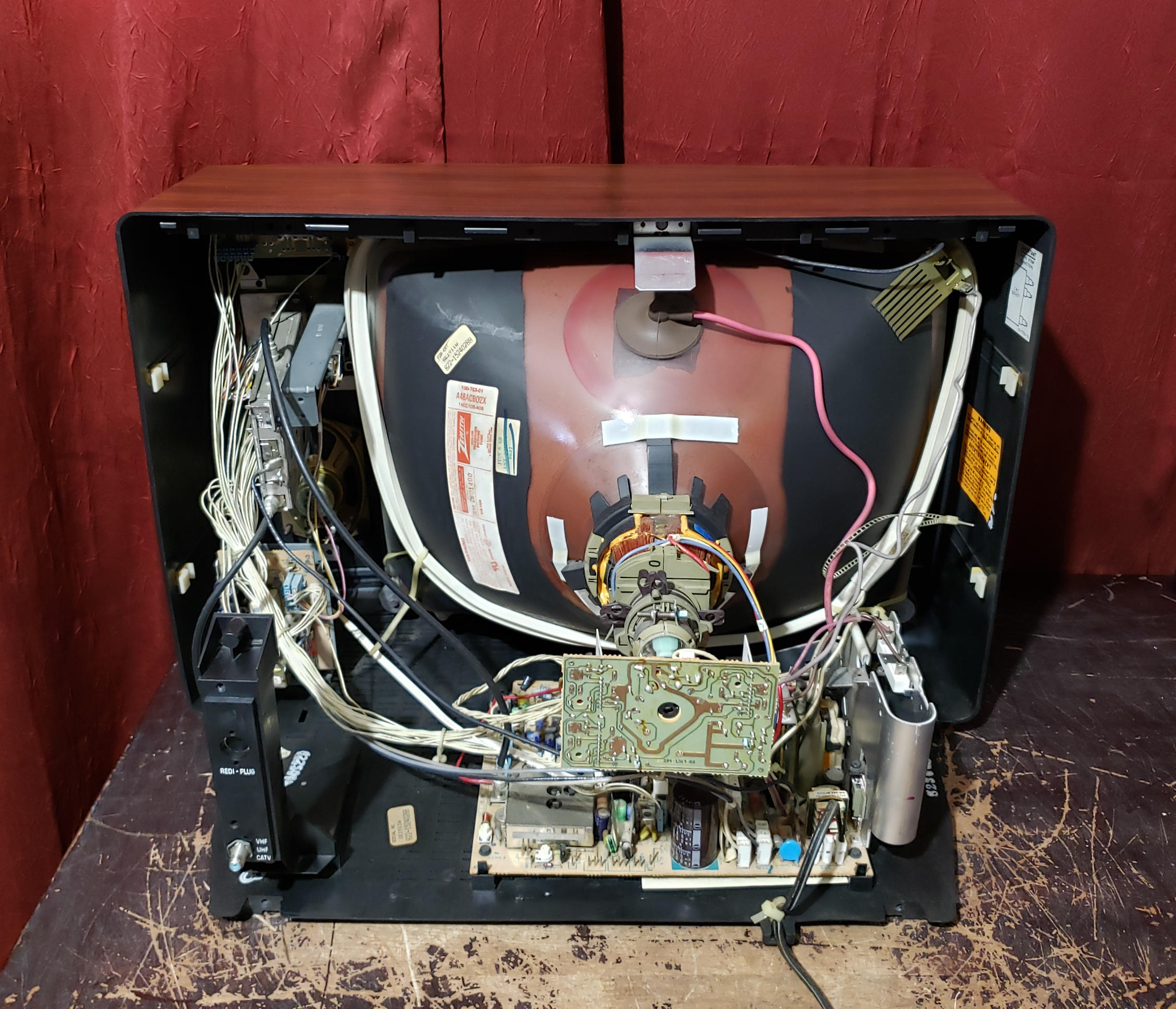

This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

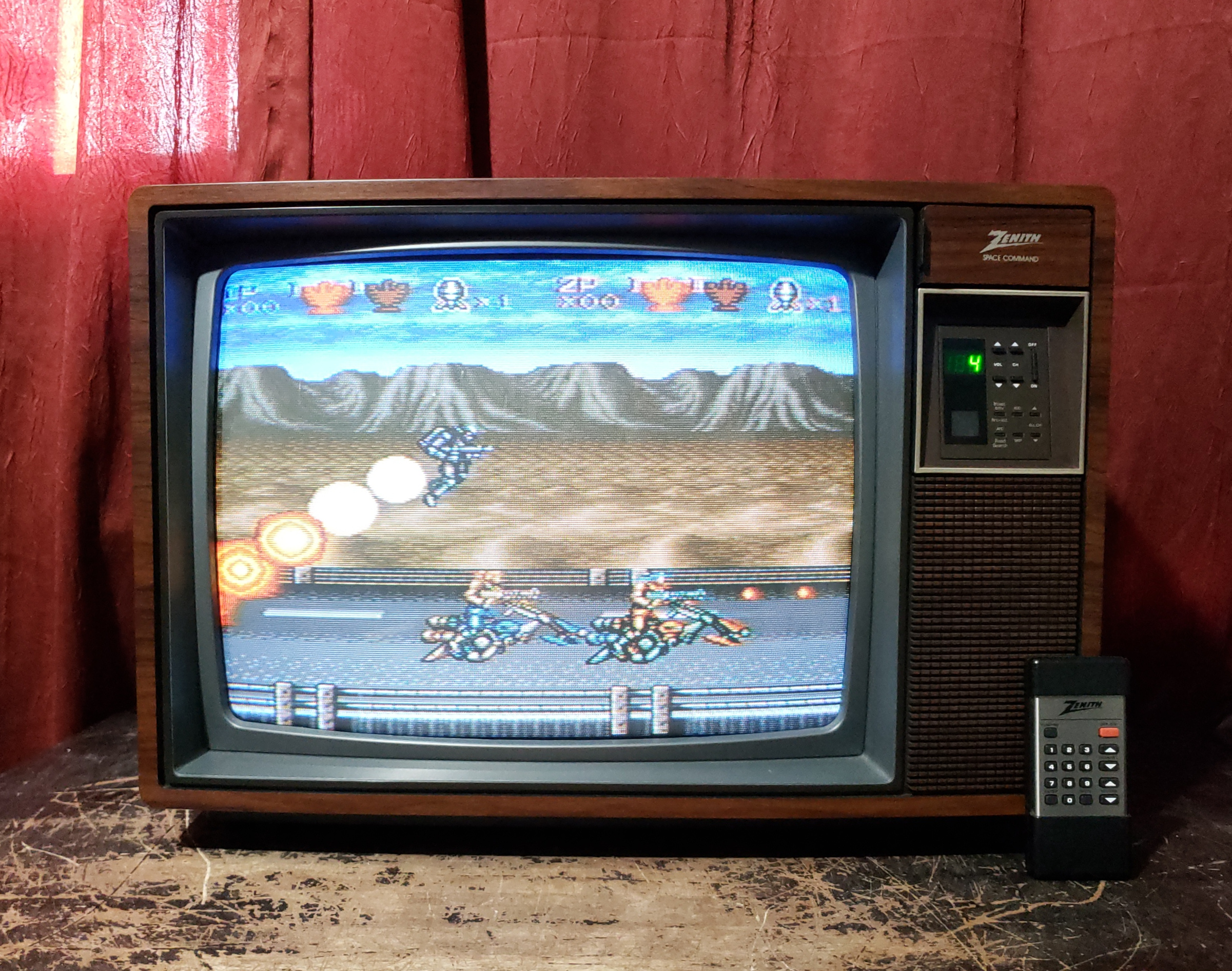

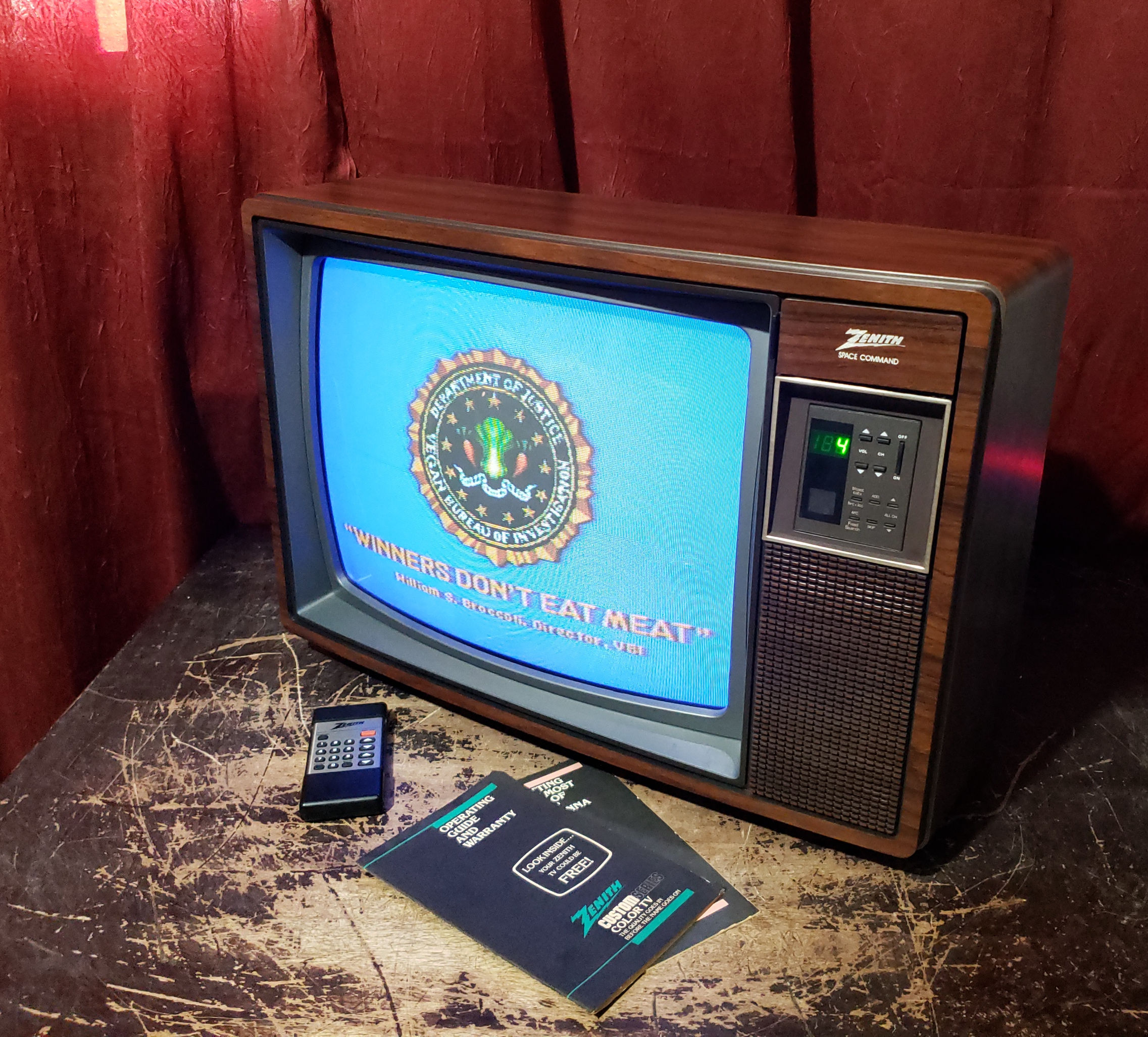

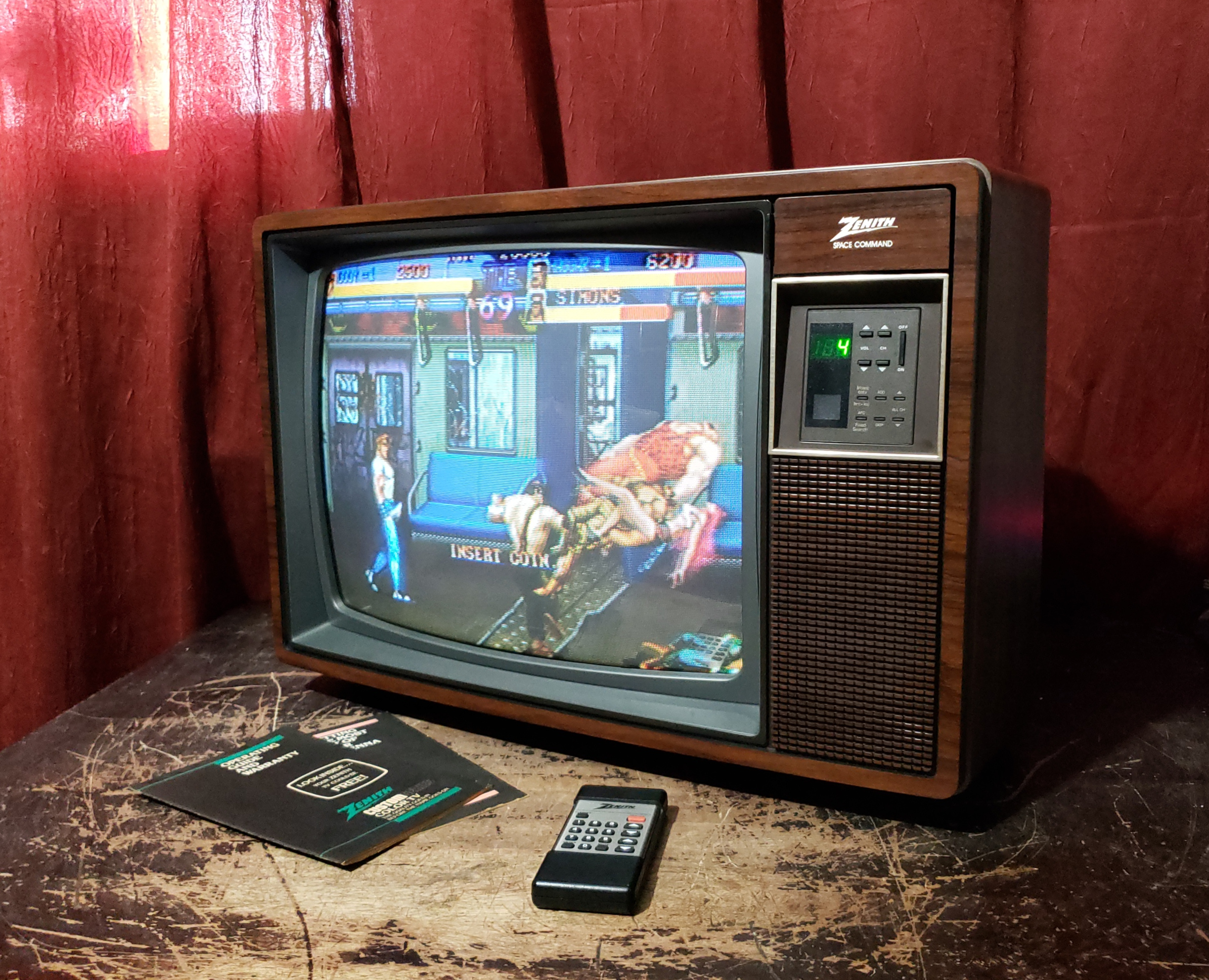

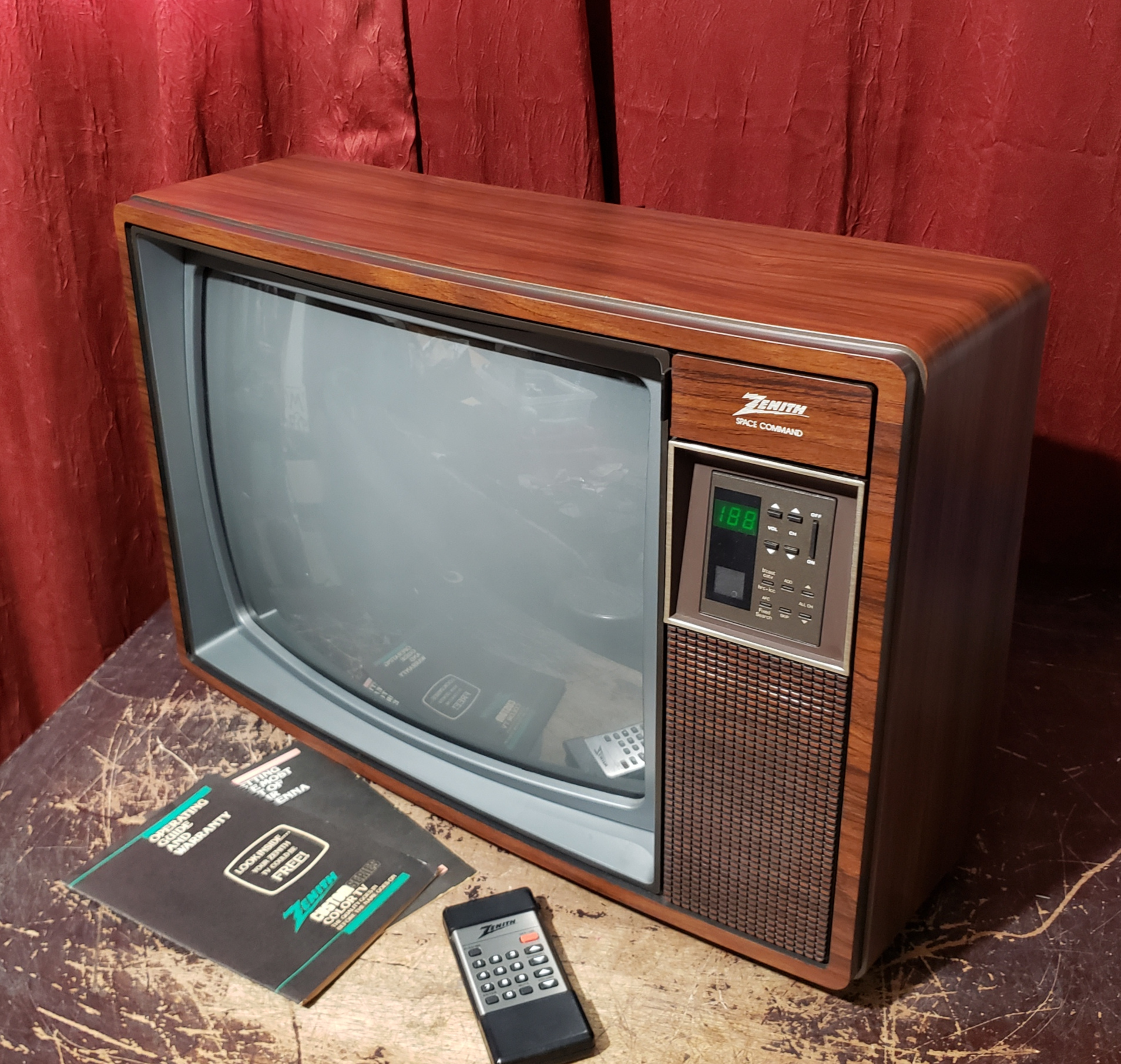

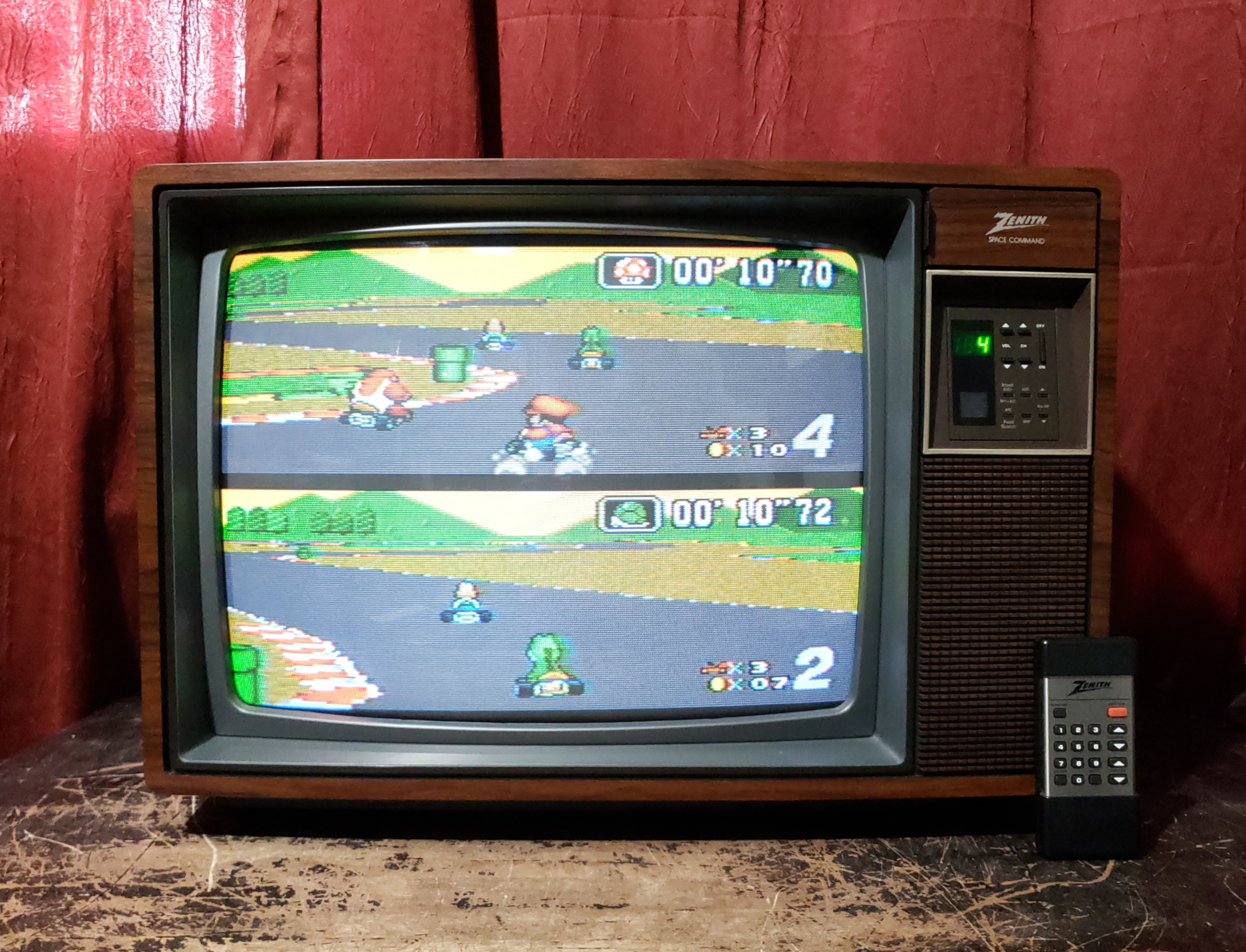

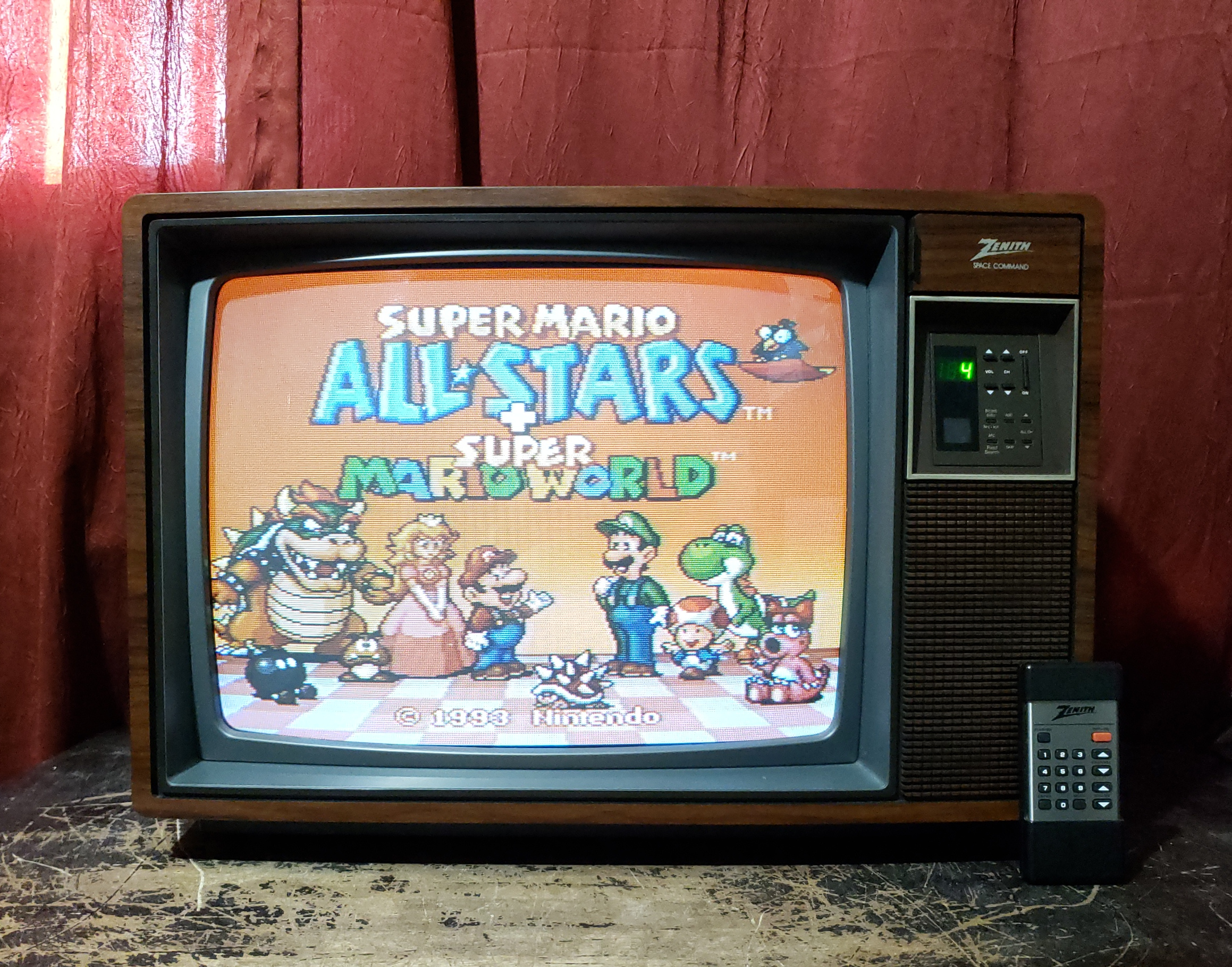

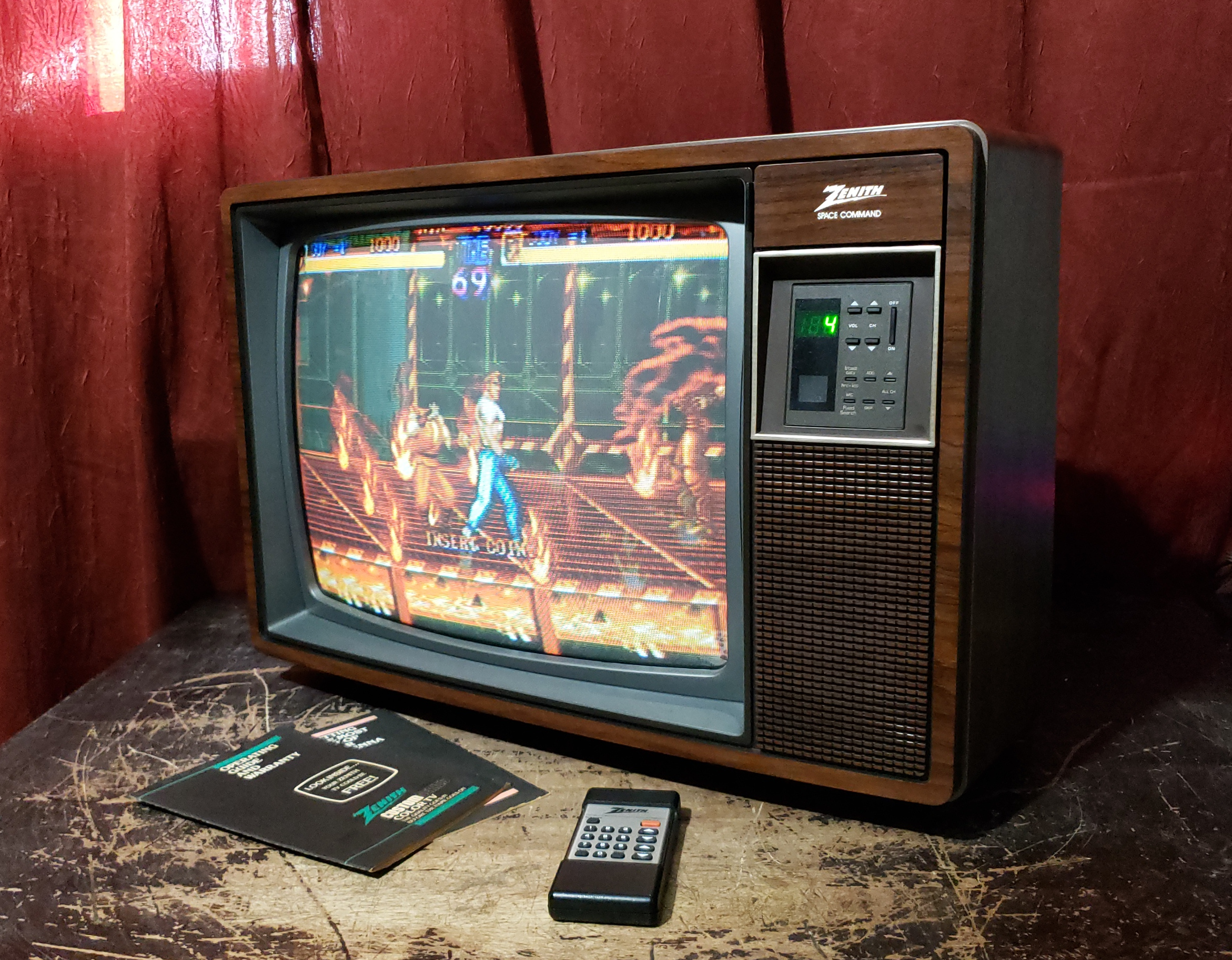

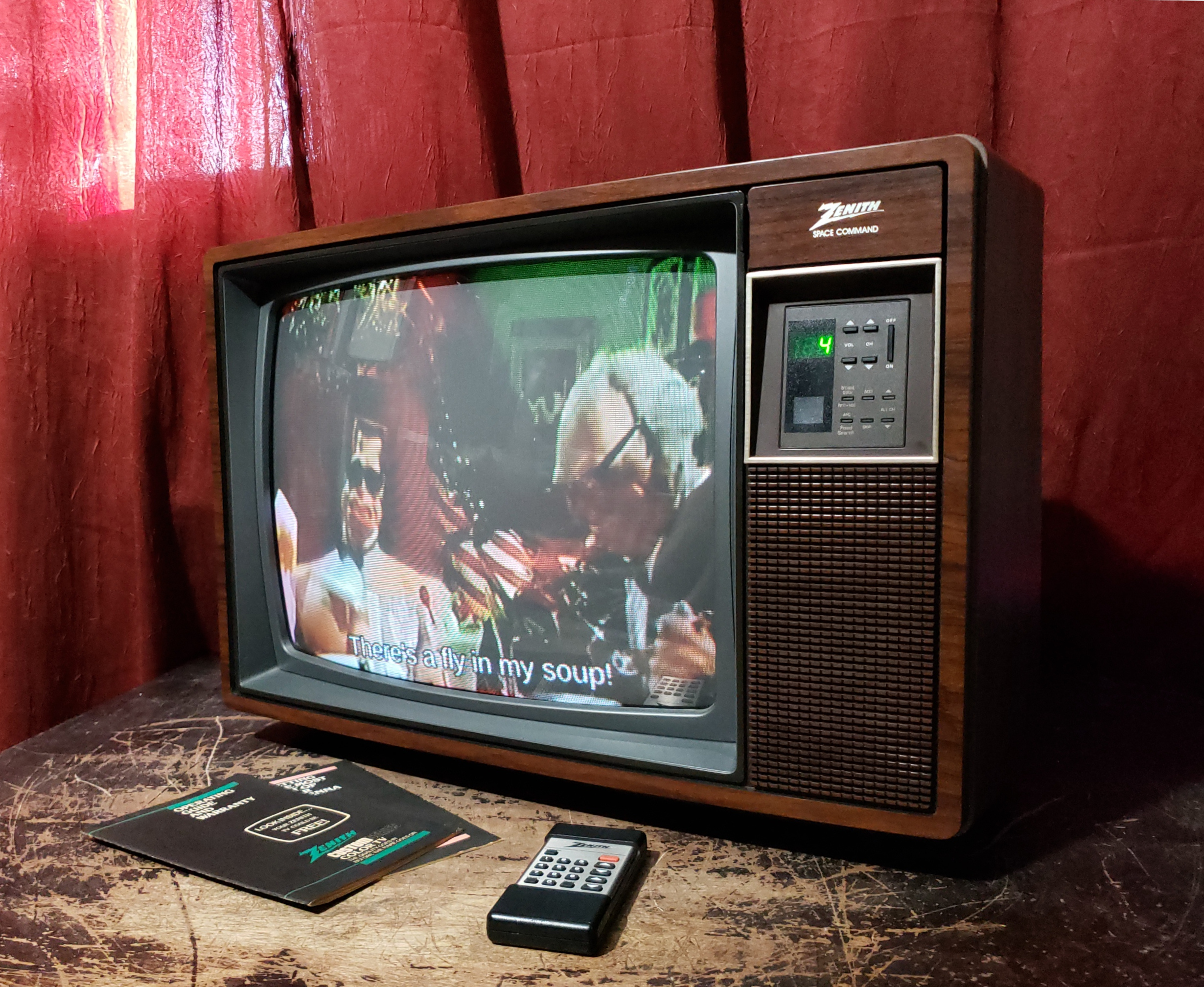

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | SE1911W |
| Series: | Custom Series |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Hitachi, 221-473 |
| Comb Filtering: | None |

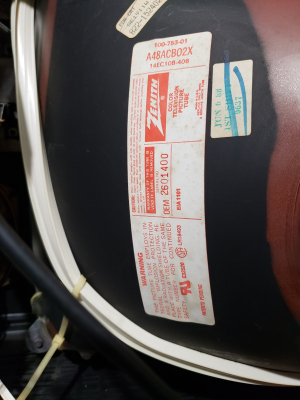

| Tube: | Zenith , Chromacolor Contrast , A48ACB02X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .81 mm |
| Tint: | Dark |

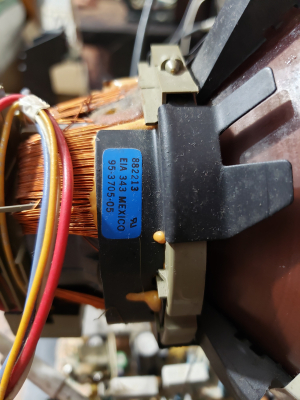

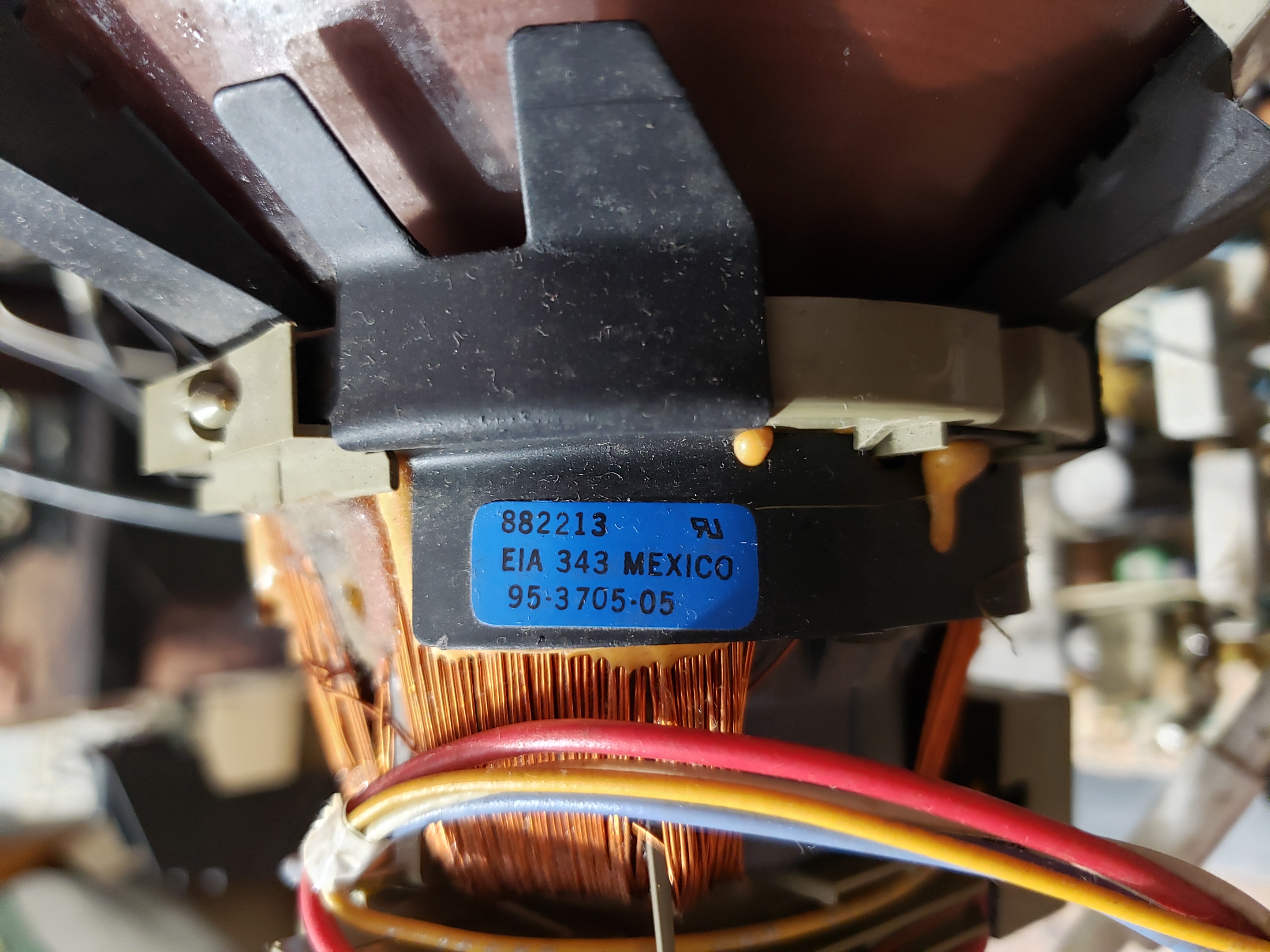

| Yoke: | 95-3705-05 |
| Yoke Horz. Inductance: | 2.2 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 33.5 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.1 ohm |
| Yoke Vert. Resistance: | 8.6 ohm |
| Speakers: | Mono |
| Remote: | SC3300 |
| Application: | Consumer |
| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1988 |
| MSRP: | 499 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements |
