Zenith TVBR1342Z
John S, Eli Krause
August 4, 2025, 3:45 pm
August 12, 2025, 2:50 pm
August 4, 2025, 3:45 pm
August 12, 2025, 2:50 pm
Summary

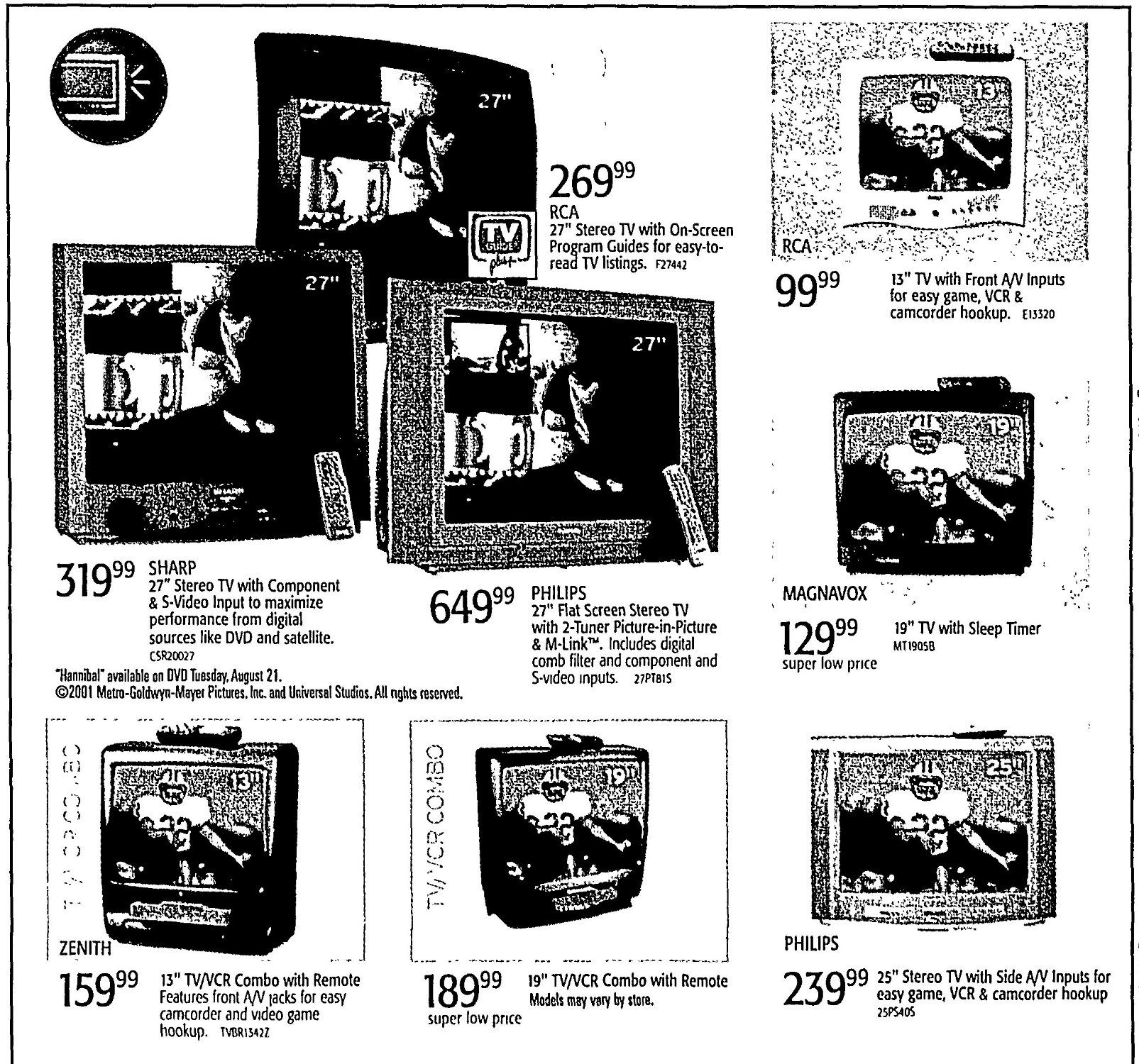

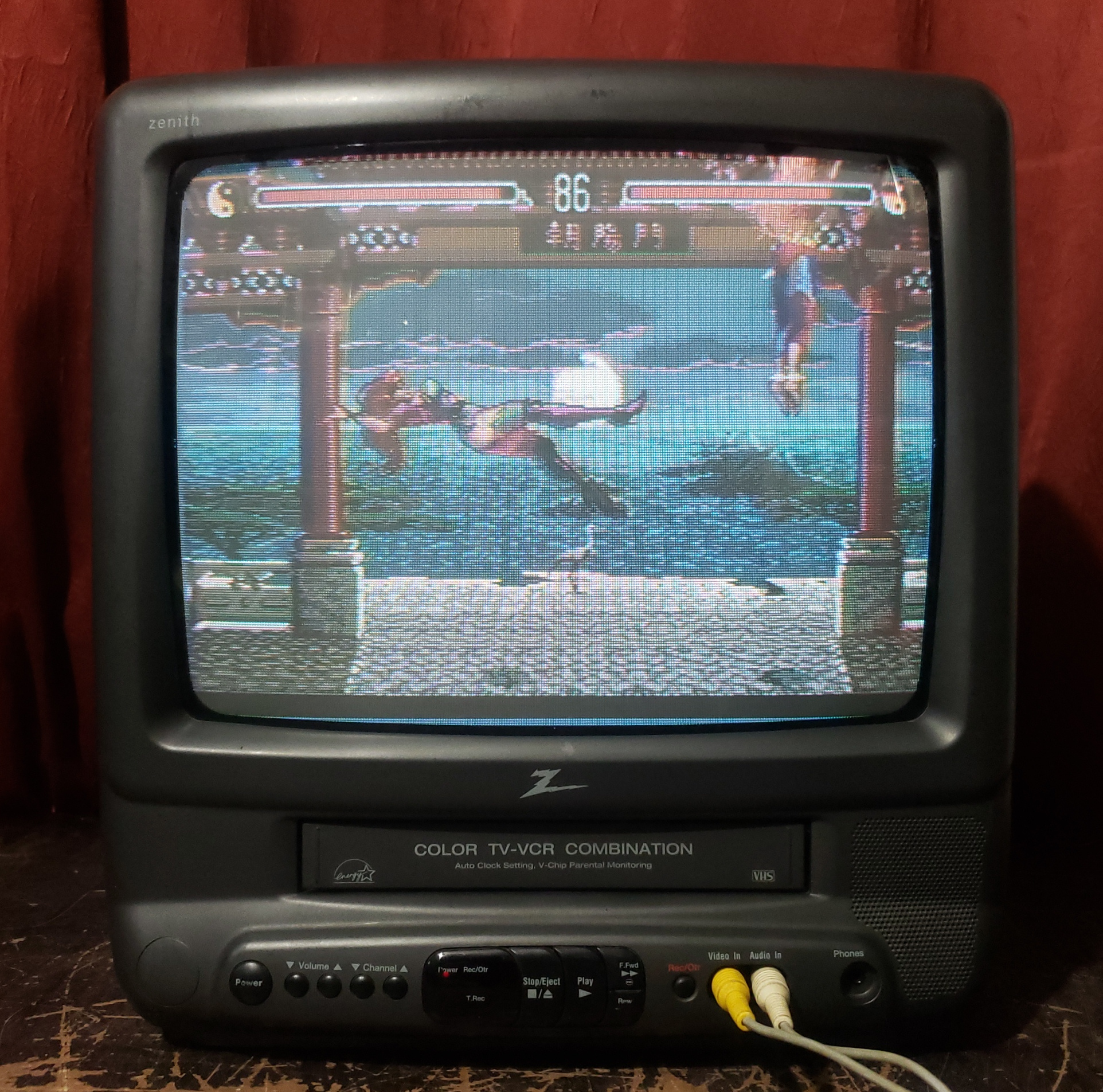

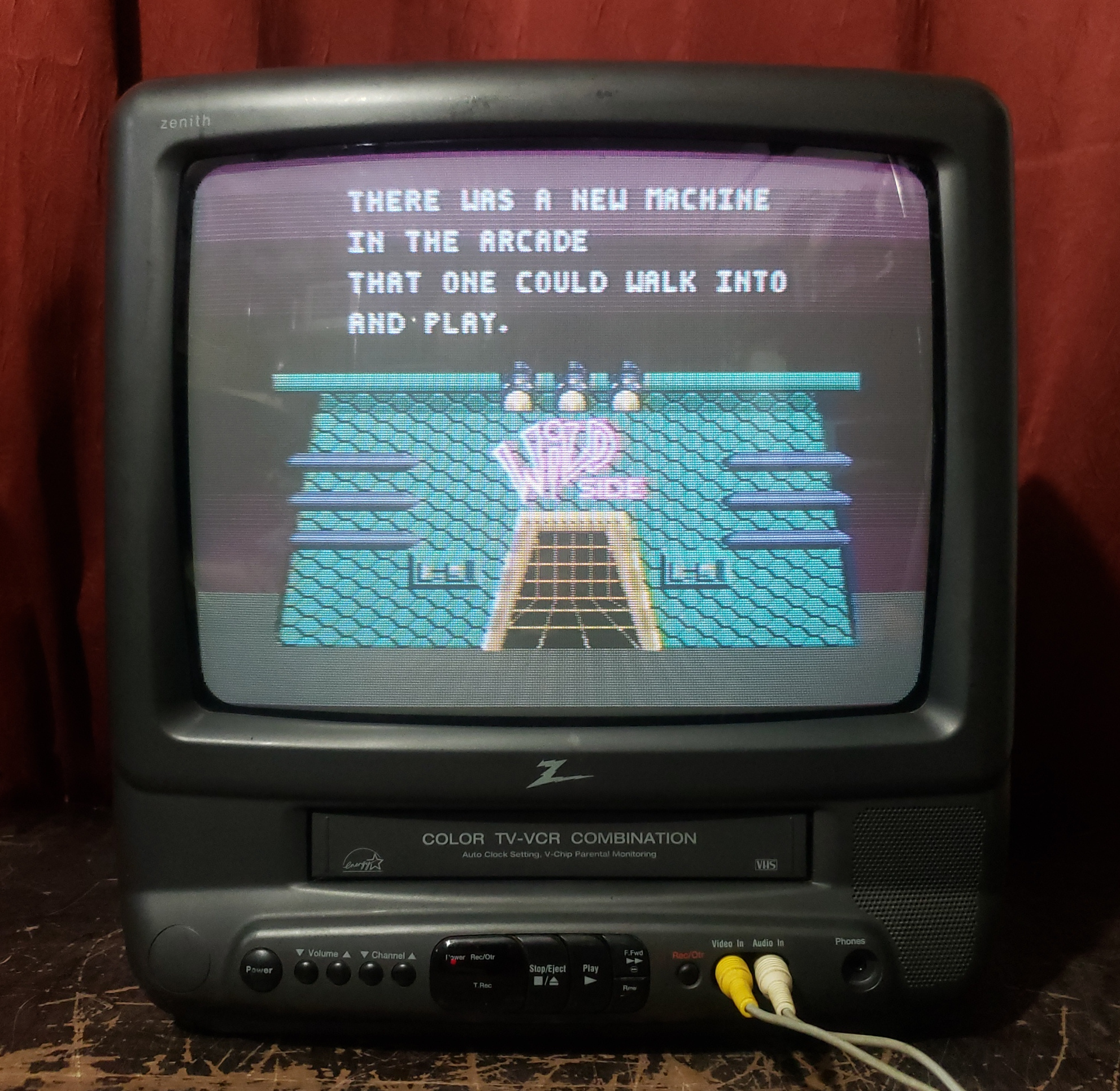

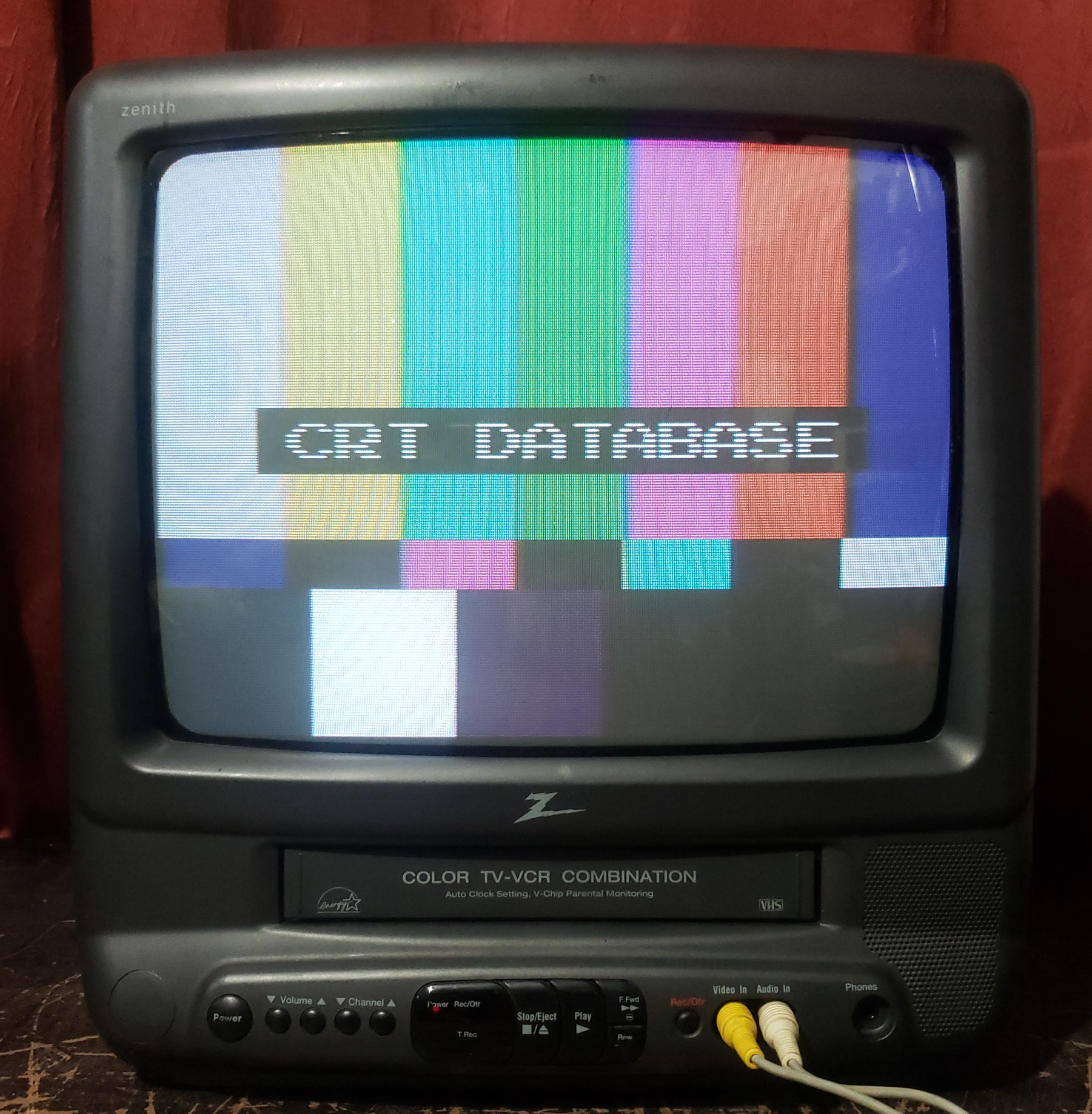

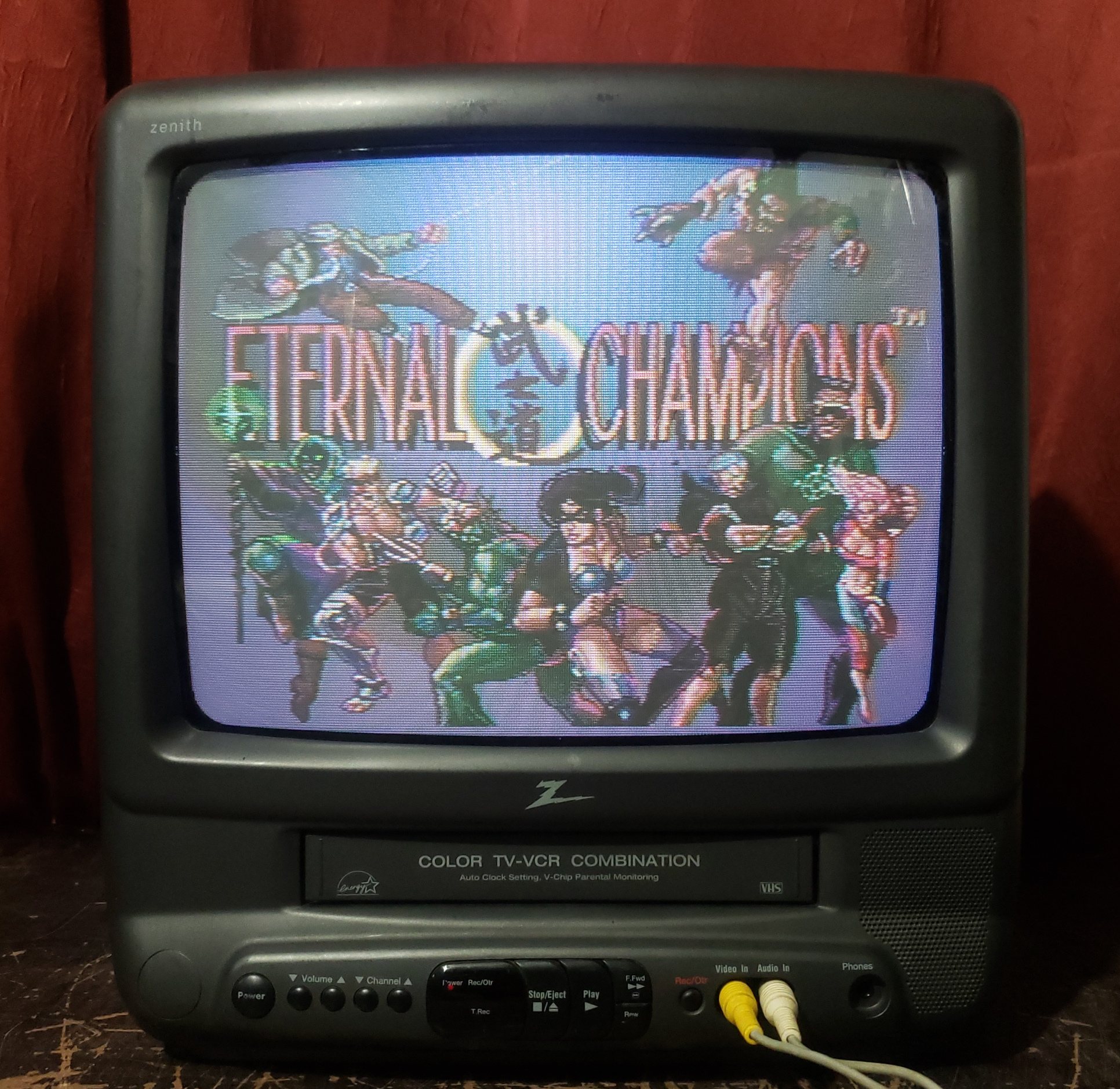

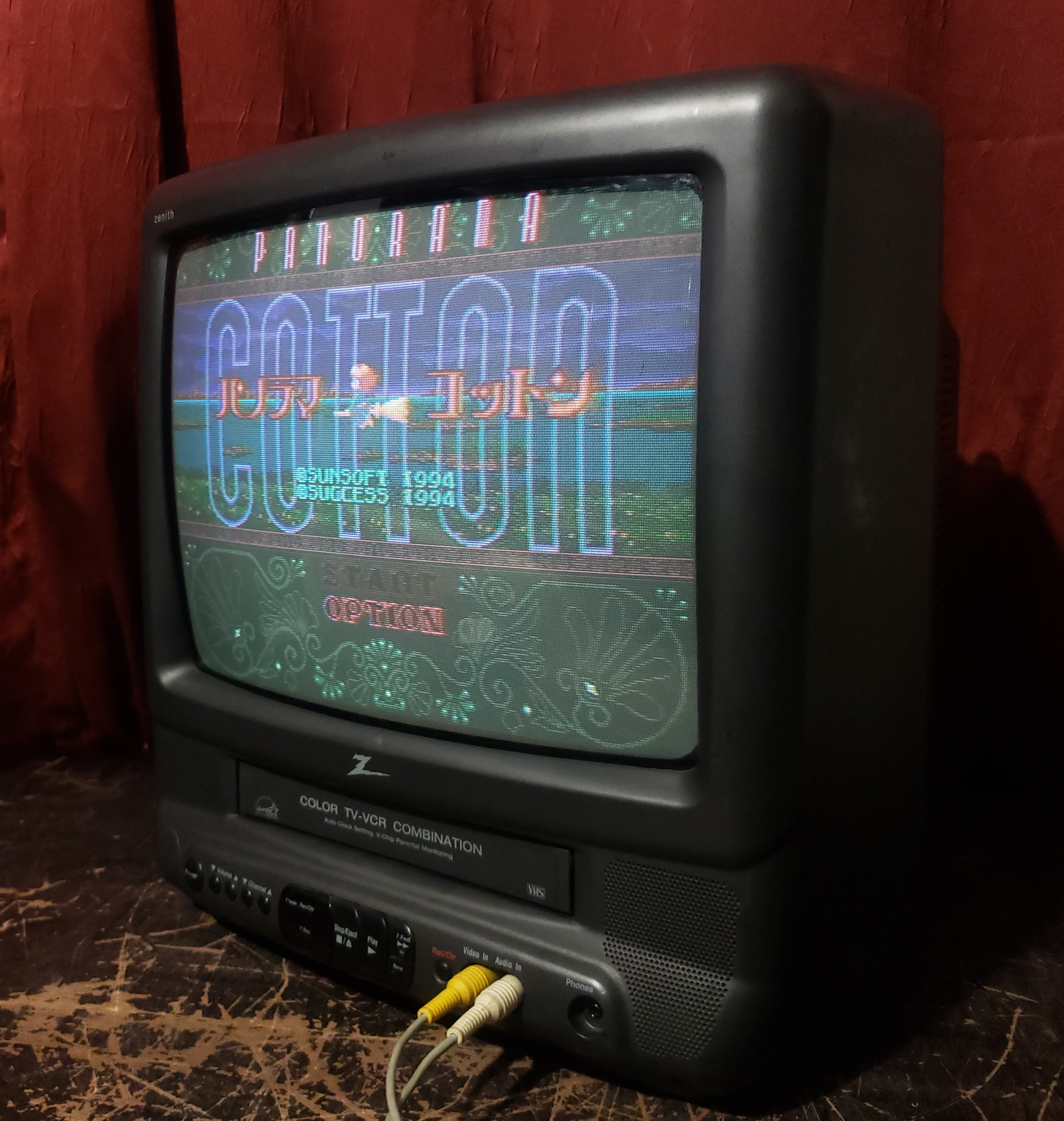

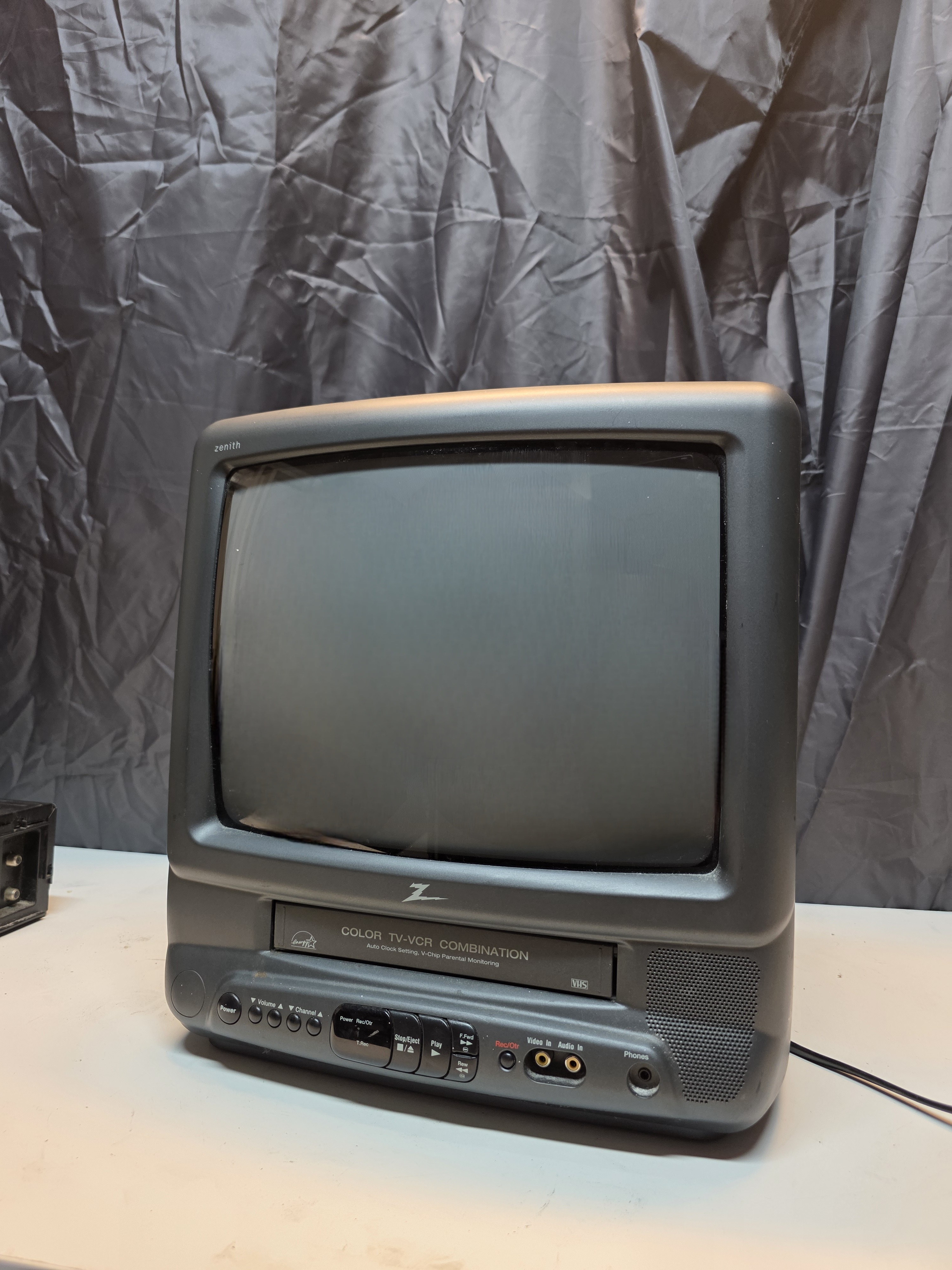

Zenith 13" TV/VCR Combo with Remote. Features front A/V jacks for easy camcorder and video game hookup.
13" VCR combo unlike many sets by Zenith as it was made by Orion as opposed to Zenith themselves.
Manuals
Media & Promo Materials
Notes

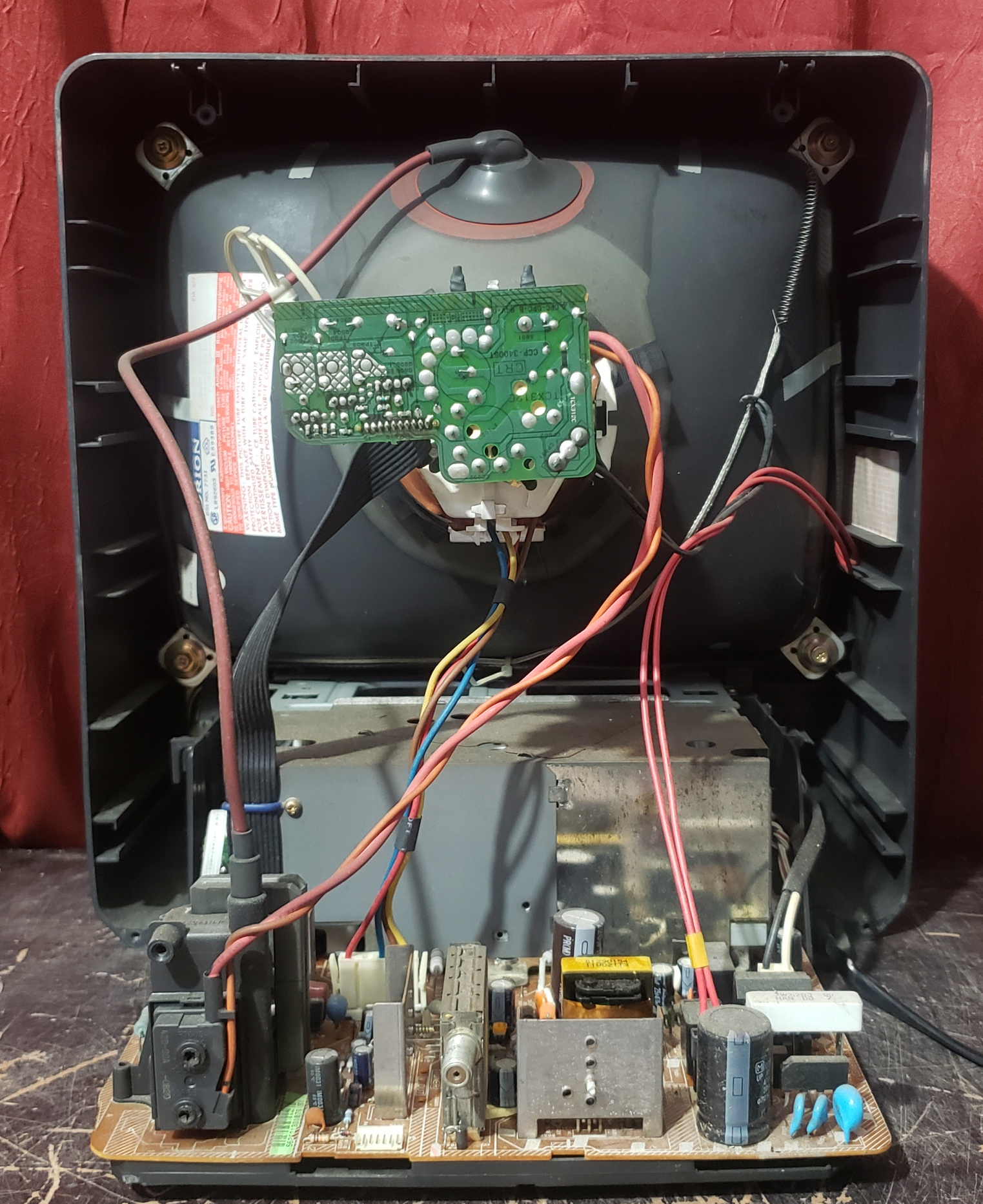

The OSD RGB lines do not get processed by the jungle chip. On this set the chroma chip is not using separate input pins for luma and chroma.

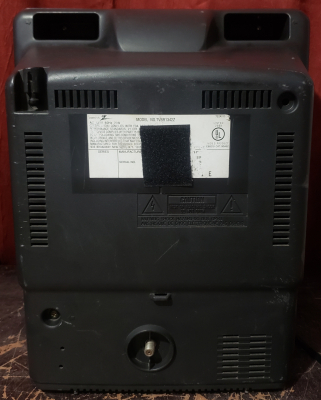

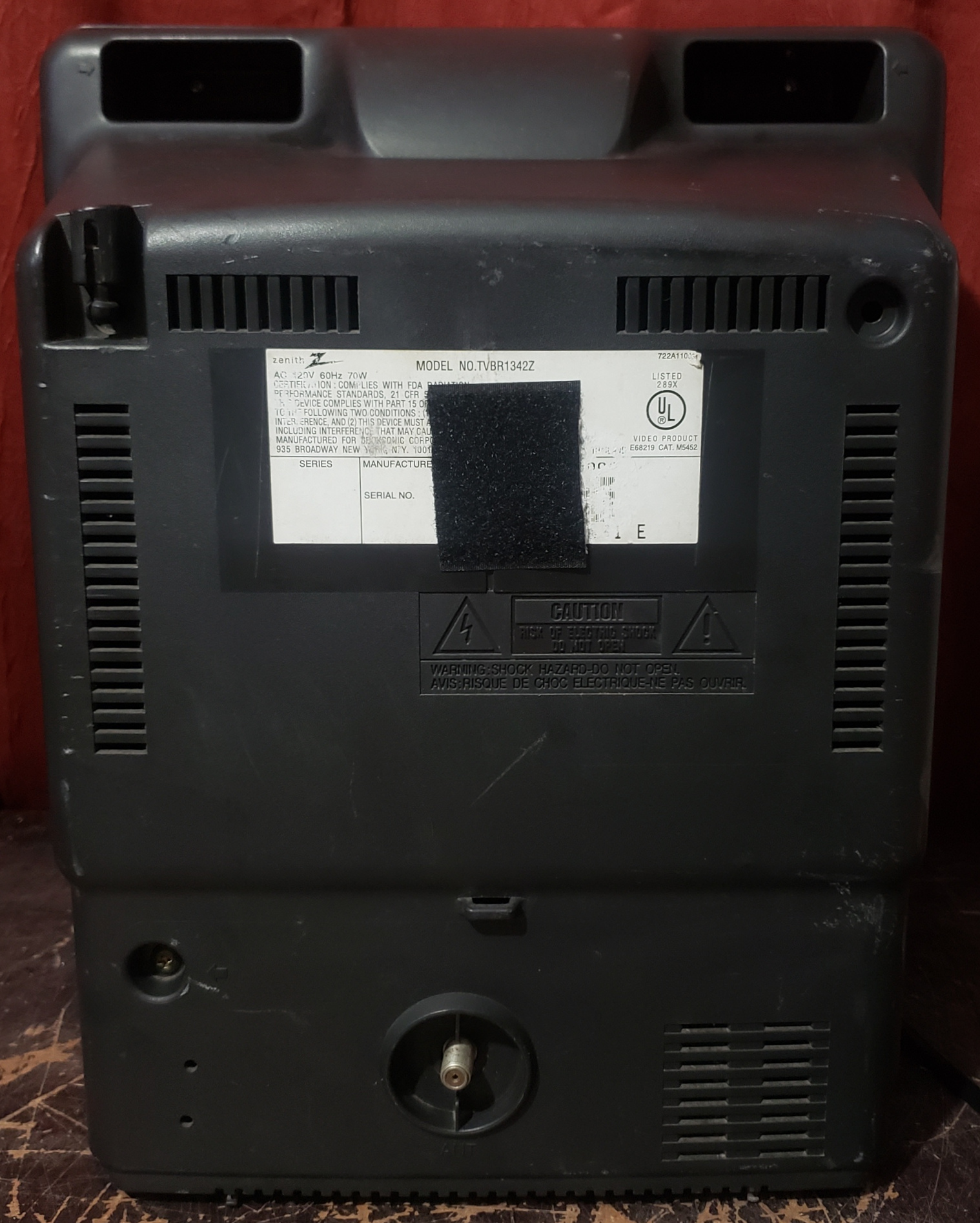

Gallery















Specifications | |
---|---|
Brand: | Zenith |
Manufacturer: | Orion |
Model: | TVBR1342Z |
Series: | TV/VCR Combo |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2627LS-CBC11 |
Vertical Output IC: | LA78040 |
Jungle: | M61203BFP |
Comb Filtering: | None |

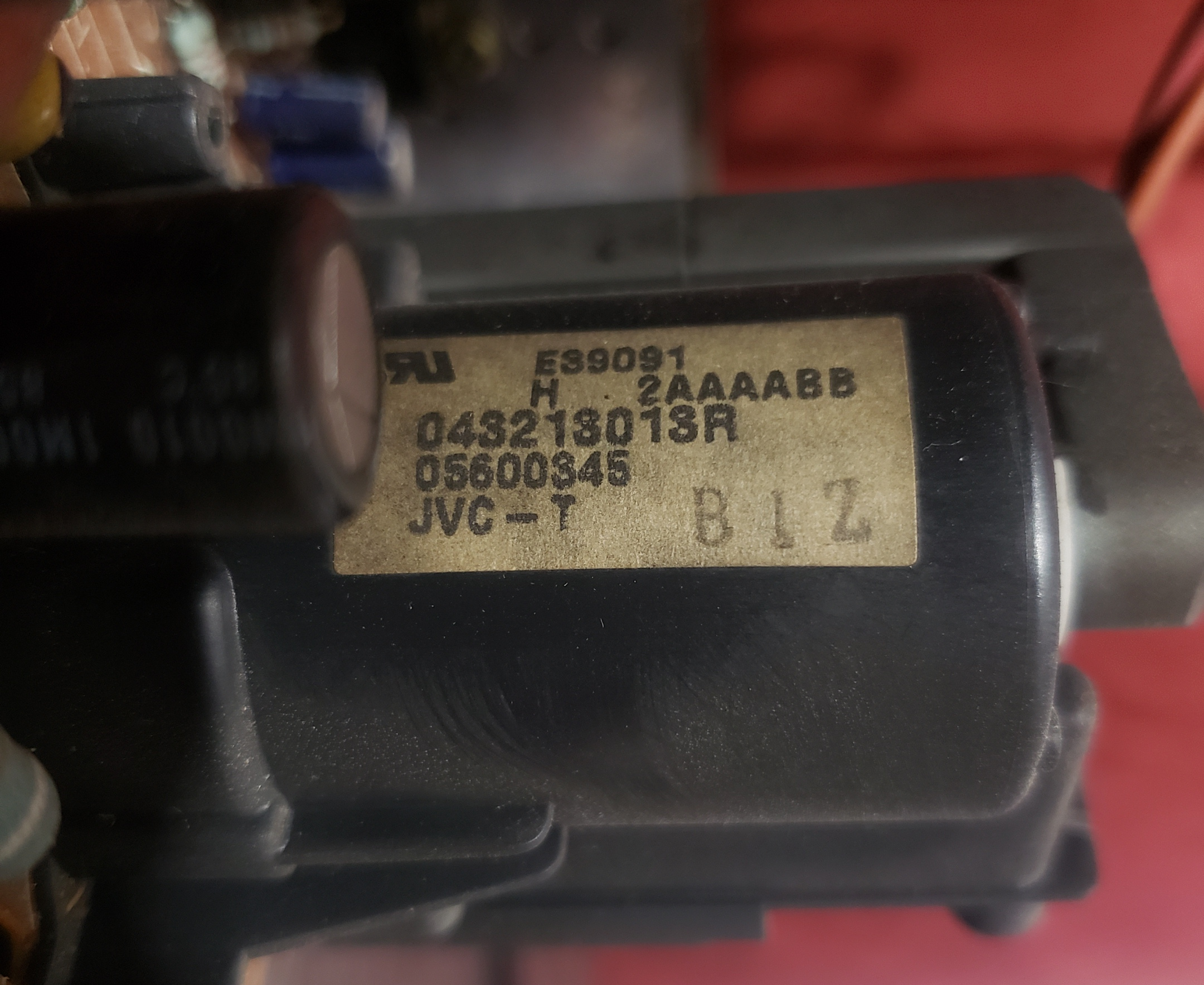

Flyback: | 3213013R, 043213013R |
Focus Type: | Single |

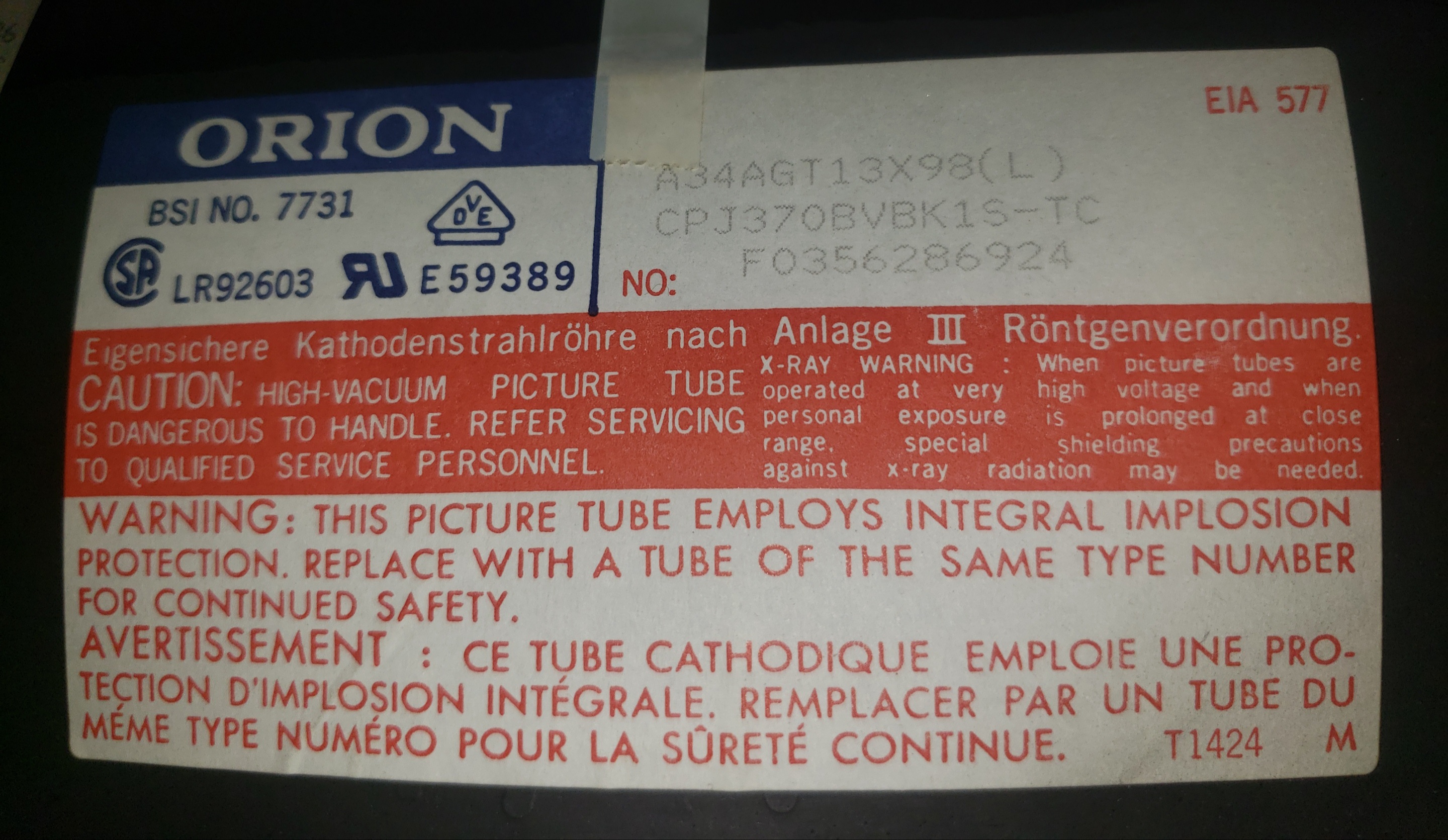

Tube: | Chunghwa , A34AGT13X98 , A34AGT13X94 , A34AGT13X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

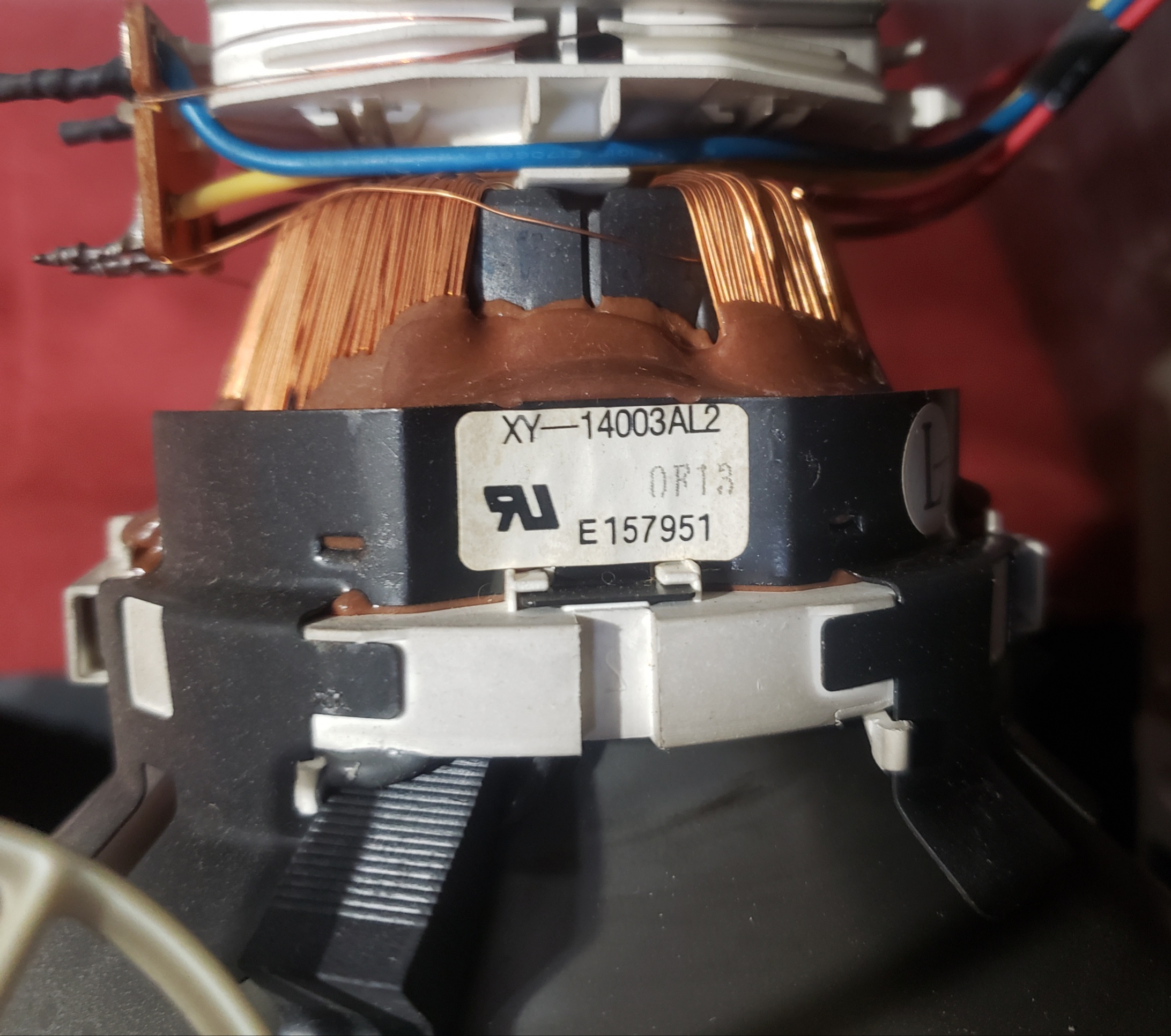

Yoke: | E157951 |
Yoke Horz. Inductance: | 3.986 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 30.68 mH (@ 100 Hz) |
Speakers: | Mono |
Remote: | SC1322 |
Chassis: | CC-002 |
Weight: | 27.56 lbs (12.5 kg) |
Dimensions (W/H/D): |
386 x 402 x 375 mm
(15.2 x 15.8 x 14.7") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2000 |
MSRP: | 159 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Pictures |
