| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Orion |

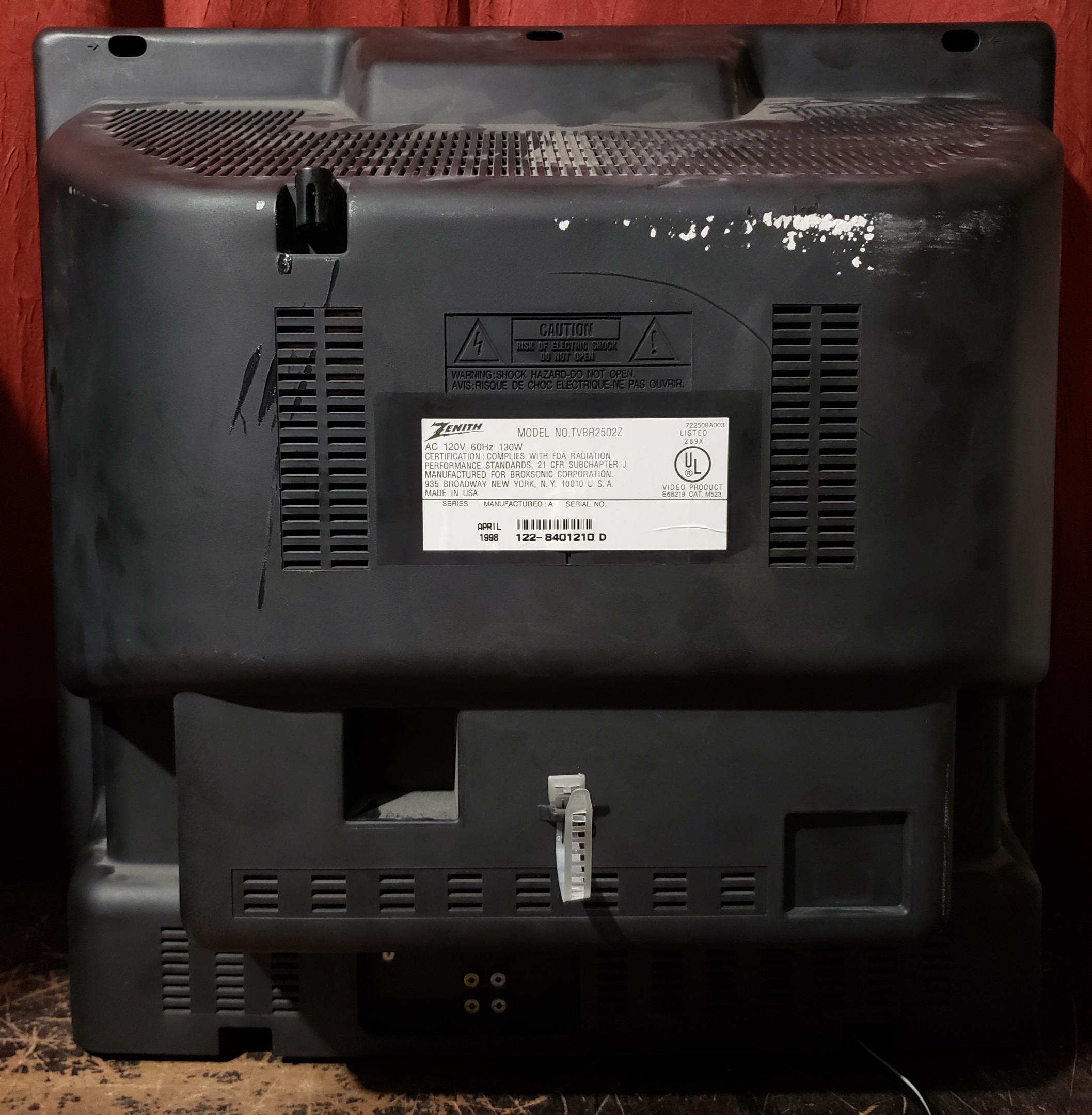

| Model: | TVBR2502Z |
| Series: | TV/VCR Combo |
| Viewable Size: | 25" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |
| Focus Type: | Single |

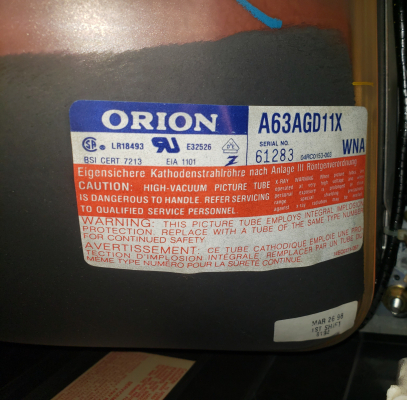

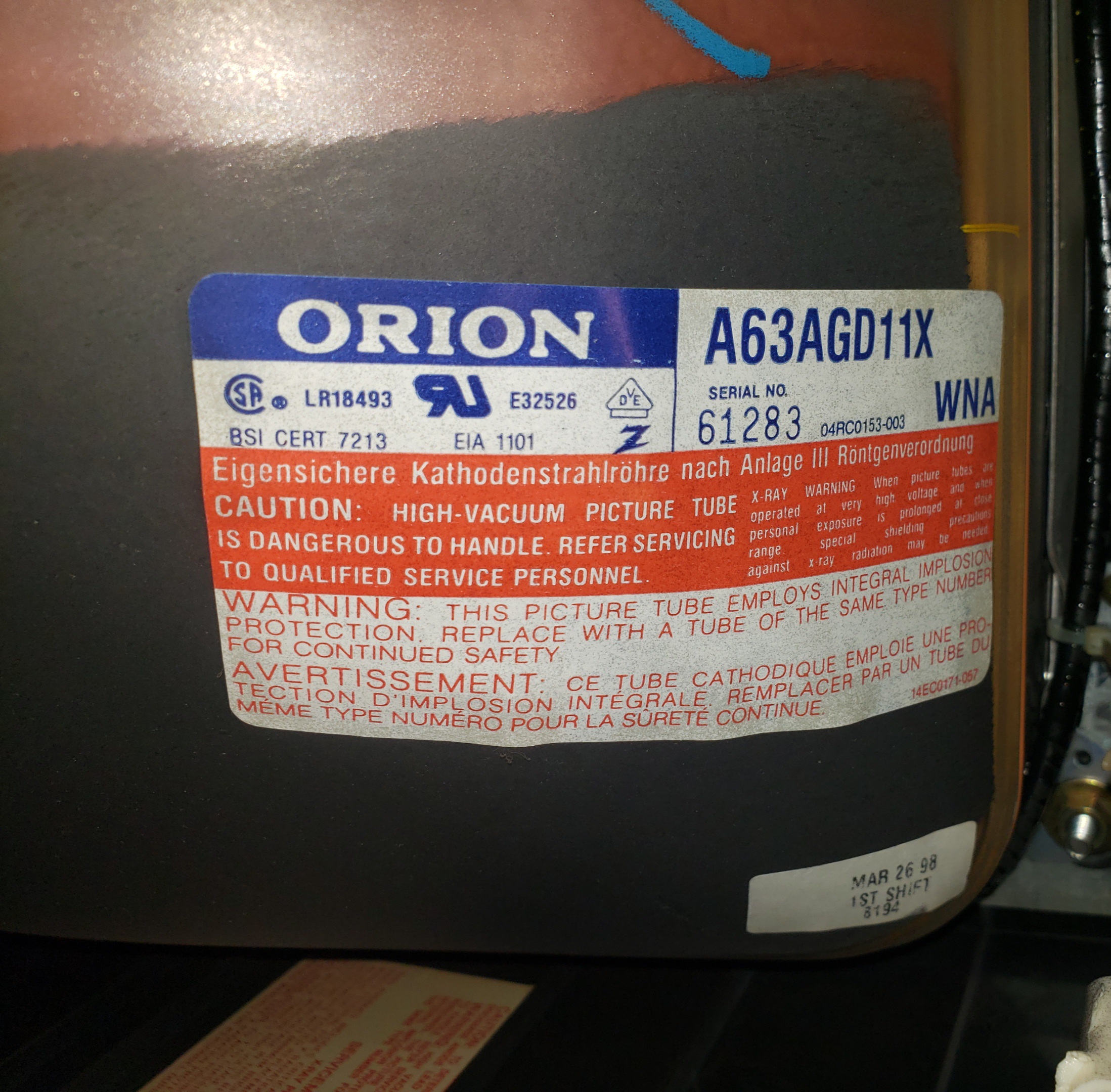

| Tube: | A63AGD11X |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

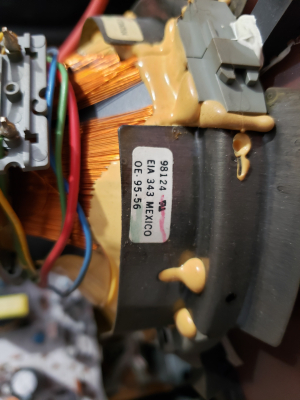

| Yoke: | 95-4456, OE-95-56 |
| Yoke Horz. Inductance: | 1.452 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 18.35 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.998 ohm |
| Yoke Vert. Resistance: | 7.054 ohm |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs IC Info |
