Zenith Z1310A
Eli Krause
July 3, 2026, 11:05 am
July 3, 2026, 9:31 pm
Edit Page
July 3, 2026, 11:05 am
July 3, 2026, 9:31 pm
Edit Page
Summary

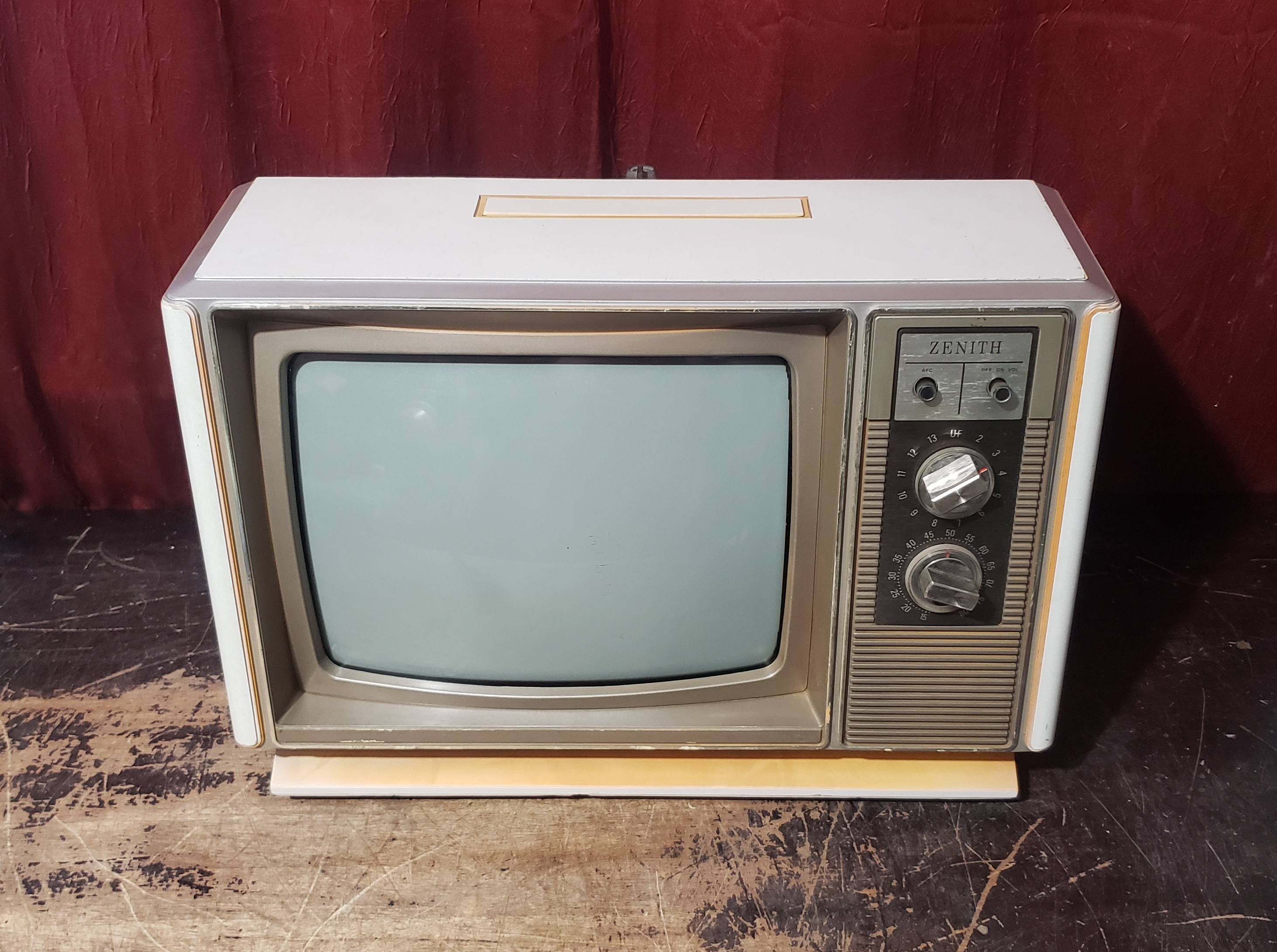

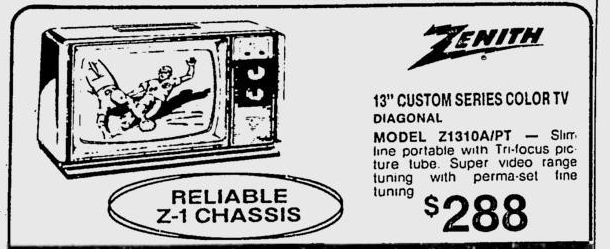

Top quality in a small TV! Slim-line portable with Tri-Focus Picture Tube for outstanding sharpness. Dependable 100% Modular Z-1 Chassis for long life reliability. Almond textured finish with bright Nickel color trim. Almond pedestal base.
Media & Promo Materials
- 1984 Zenith Catalog

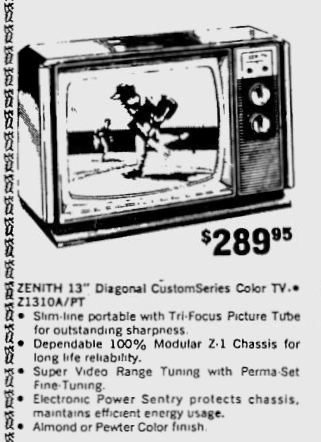

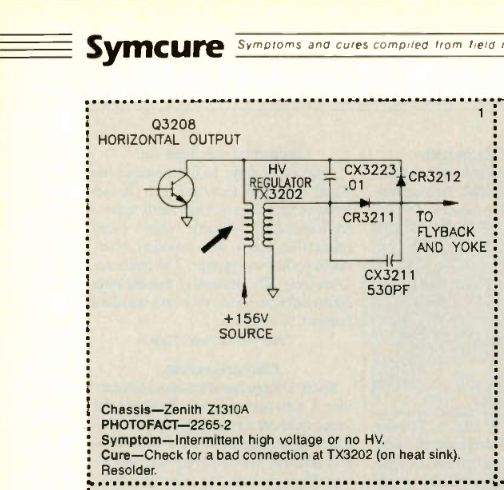

- No high voltage repair in Electronic Servicing & Technology June 1988
Notes
The 'A' at the end of the model number stands for 'almond' as in the color of the cabinet. There was also PT for pewter.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.

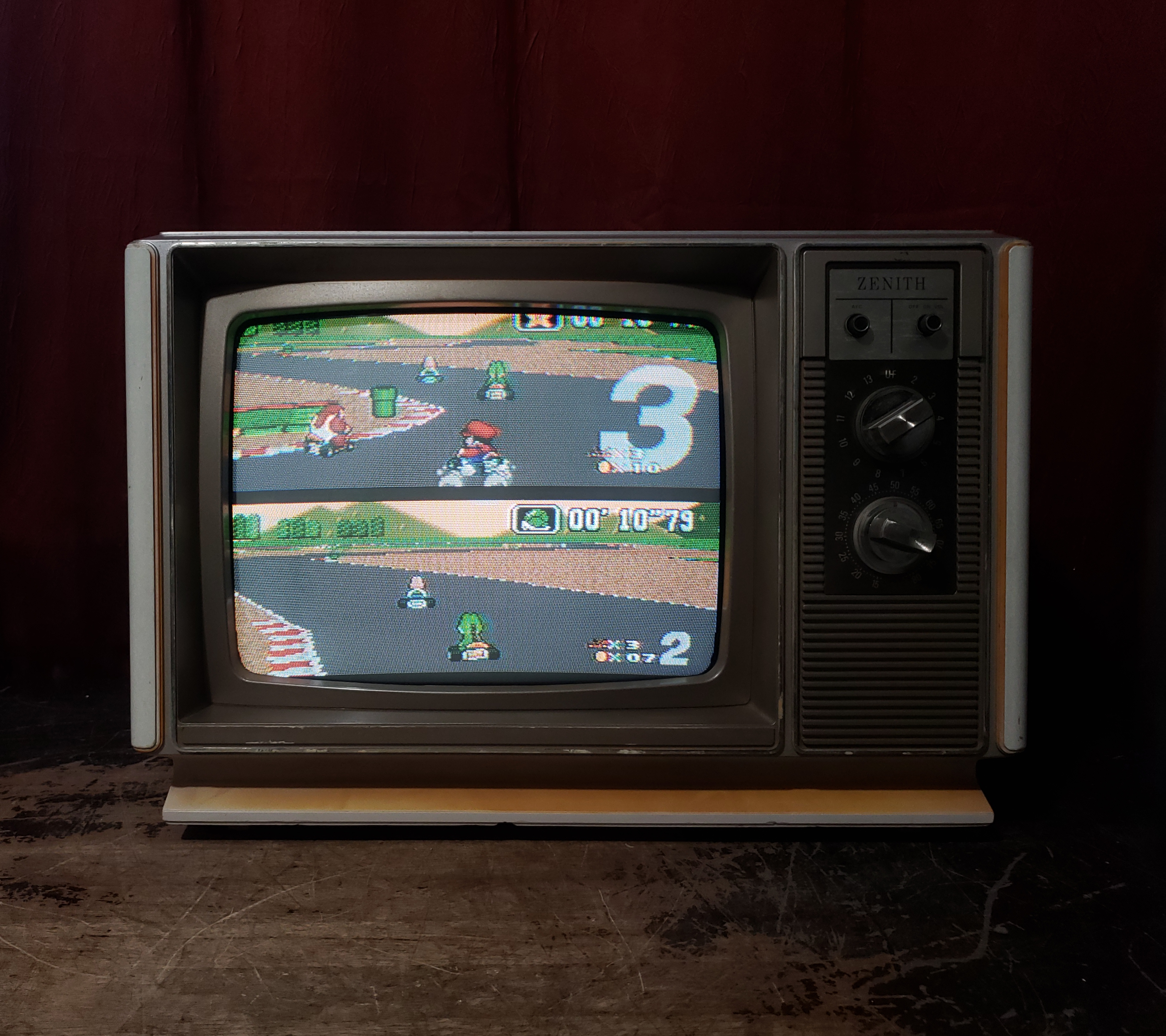

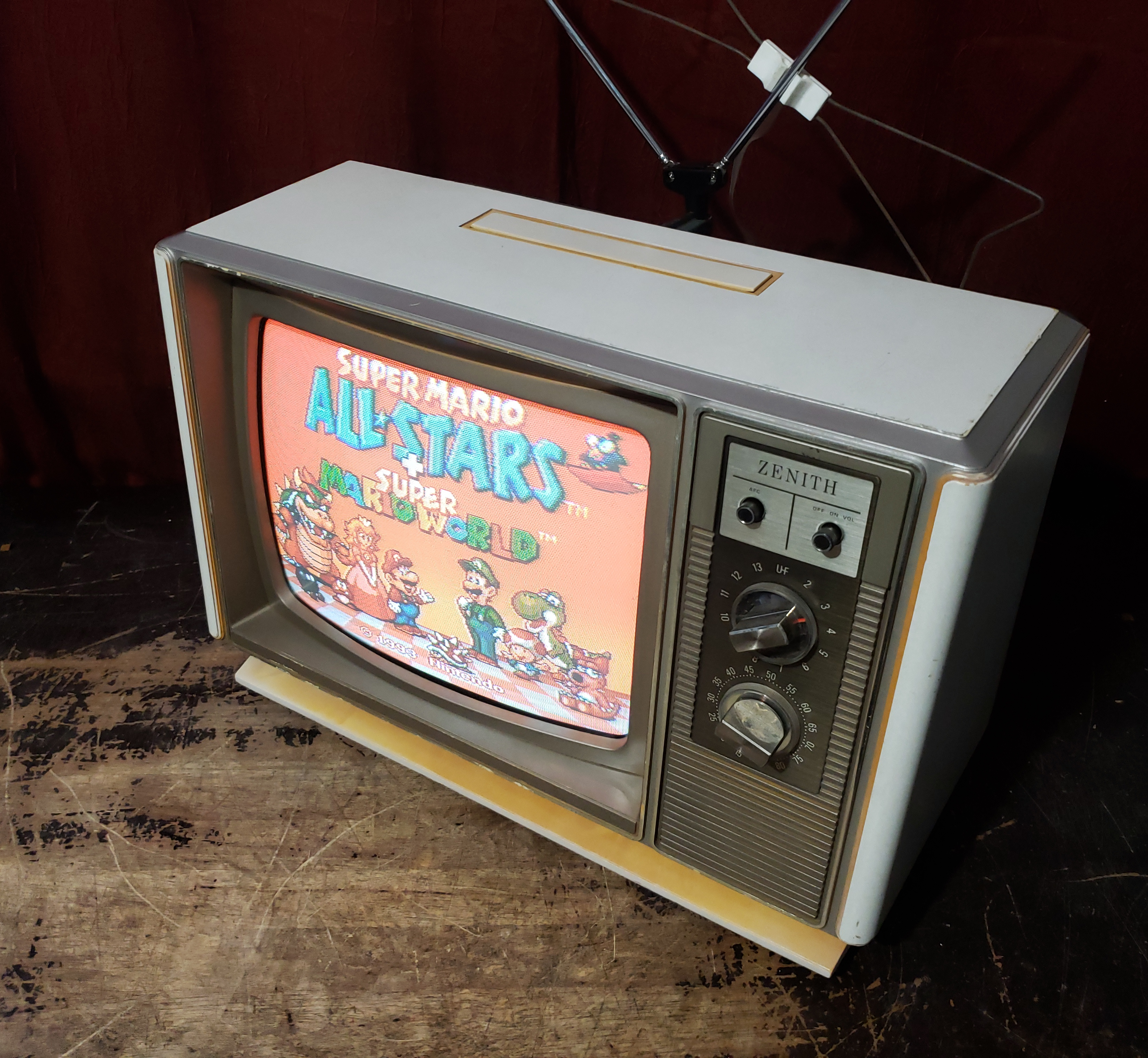

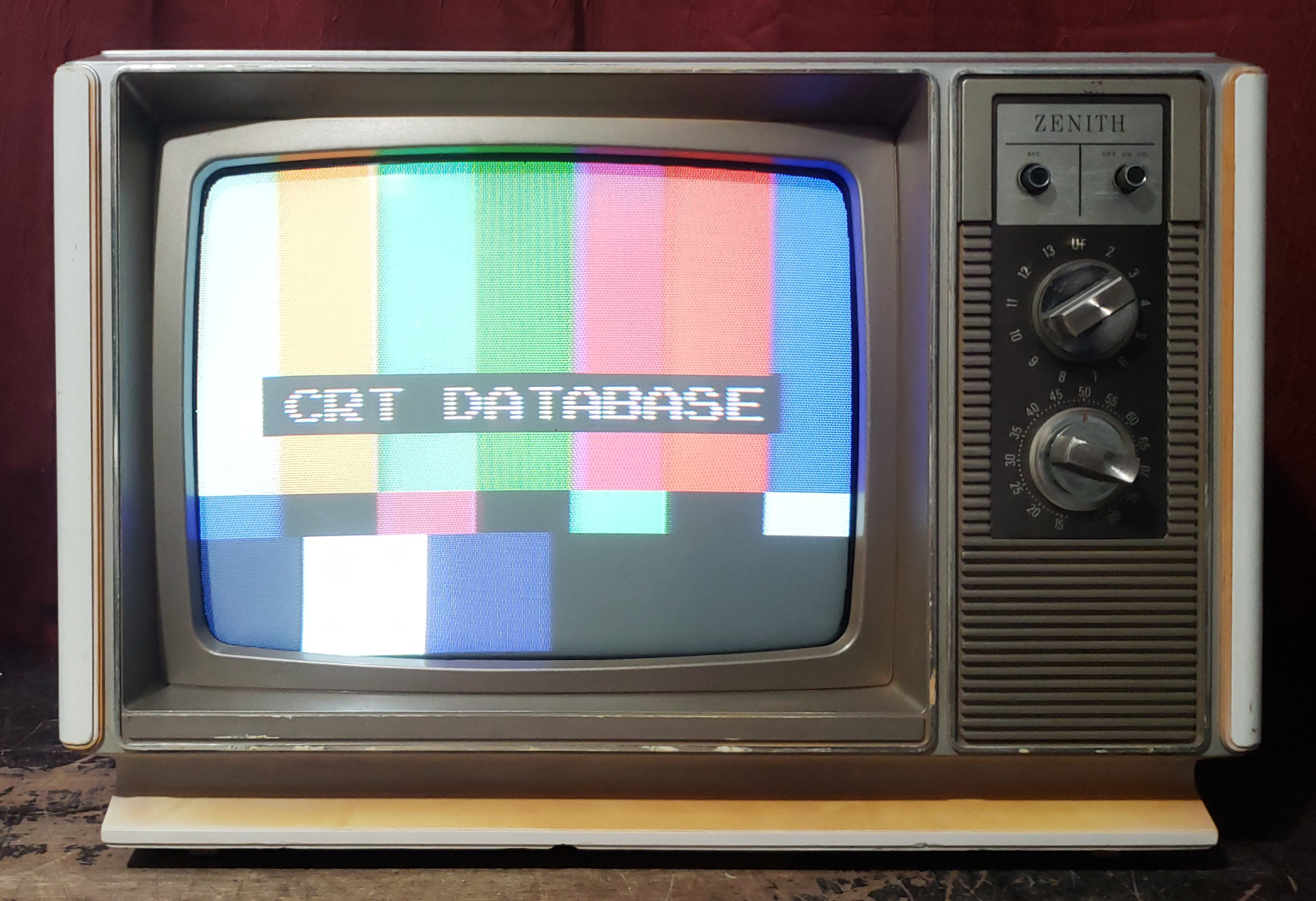

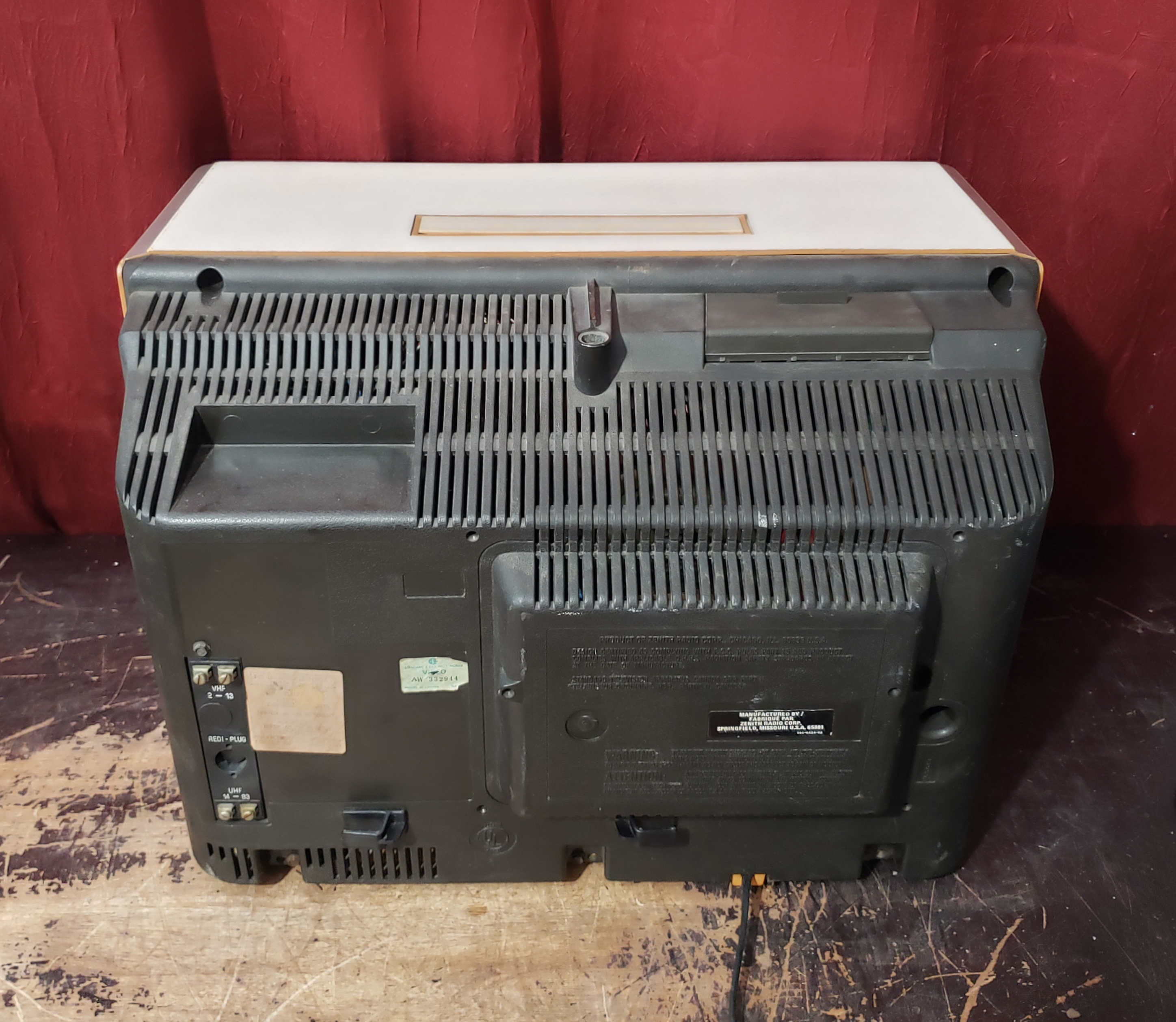

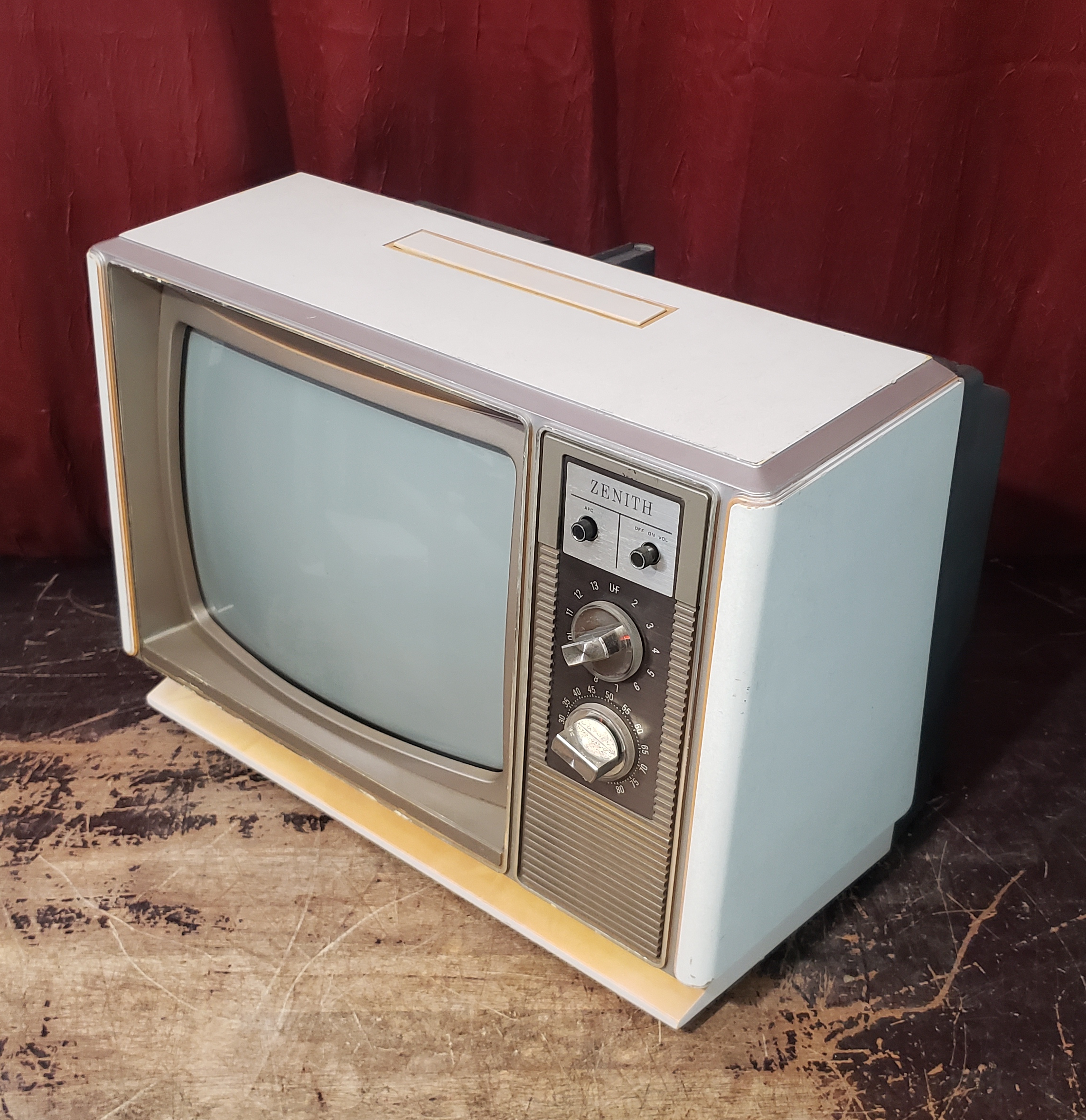

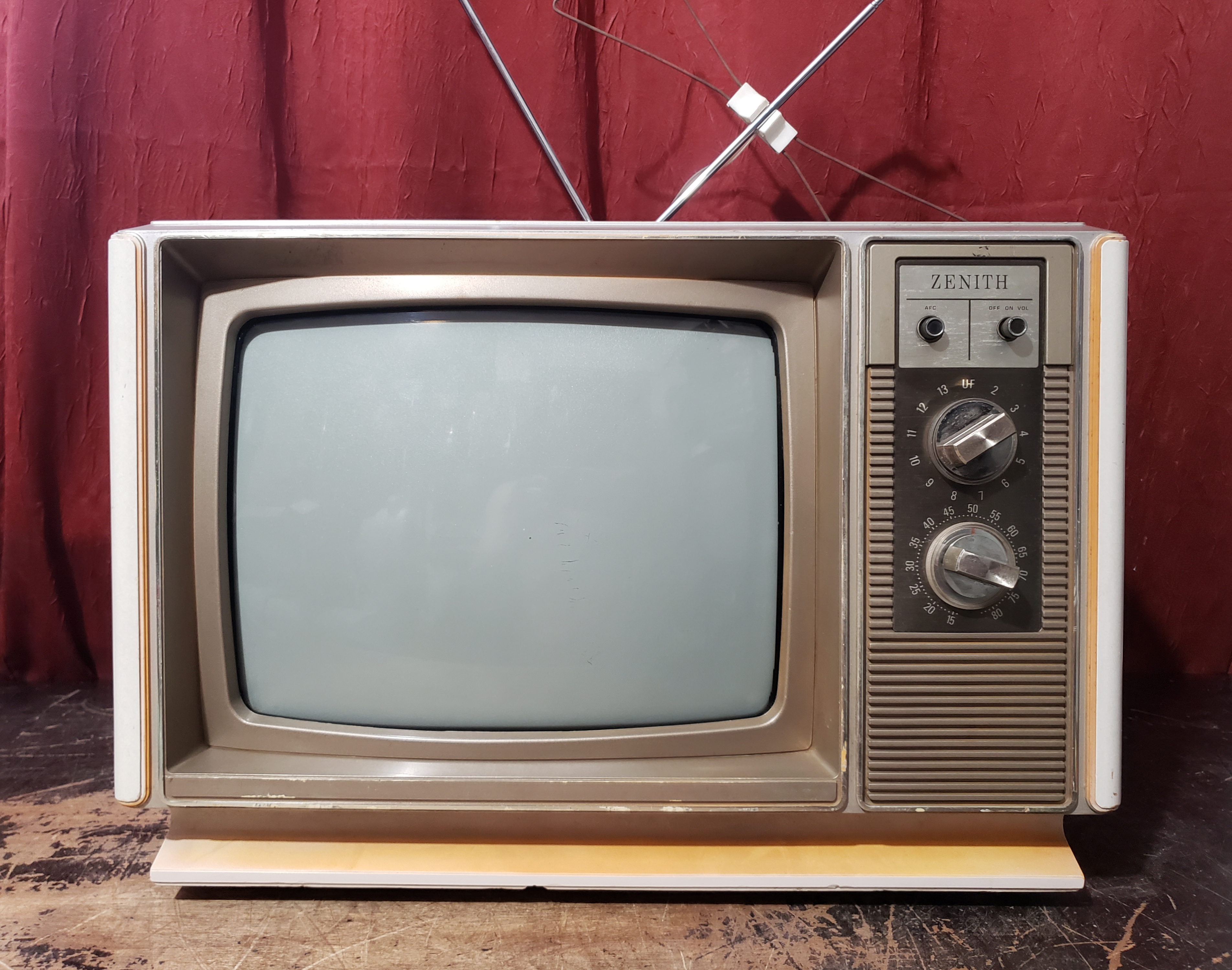

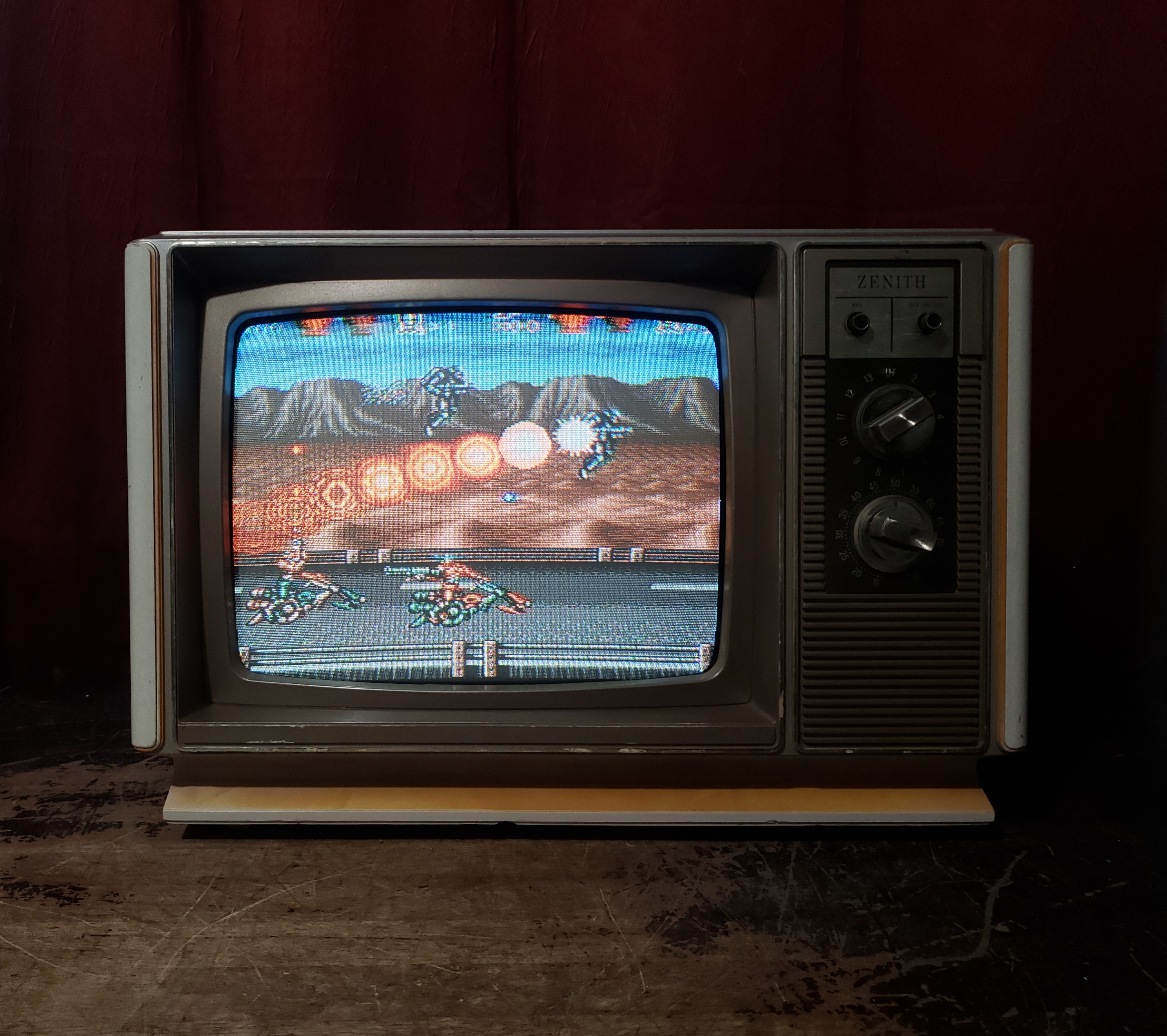

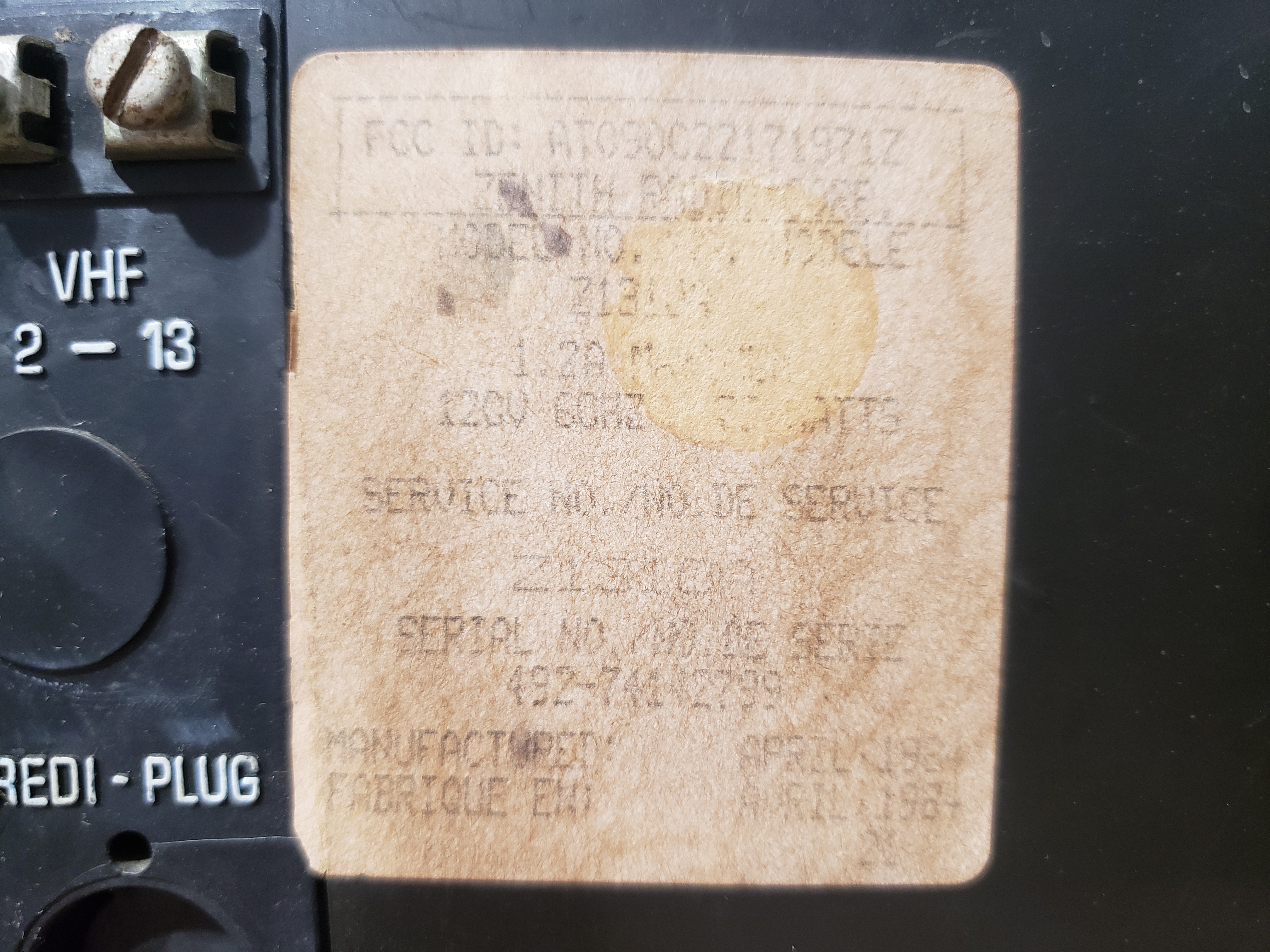

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | Z1310A |
| Series: | Custom Series |
| Viewable Size: | 13" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

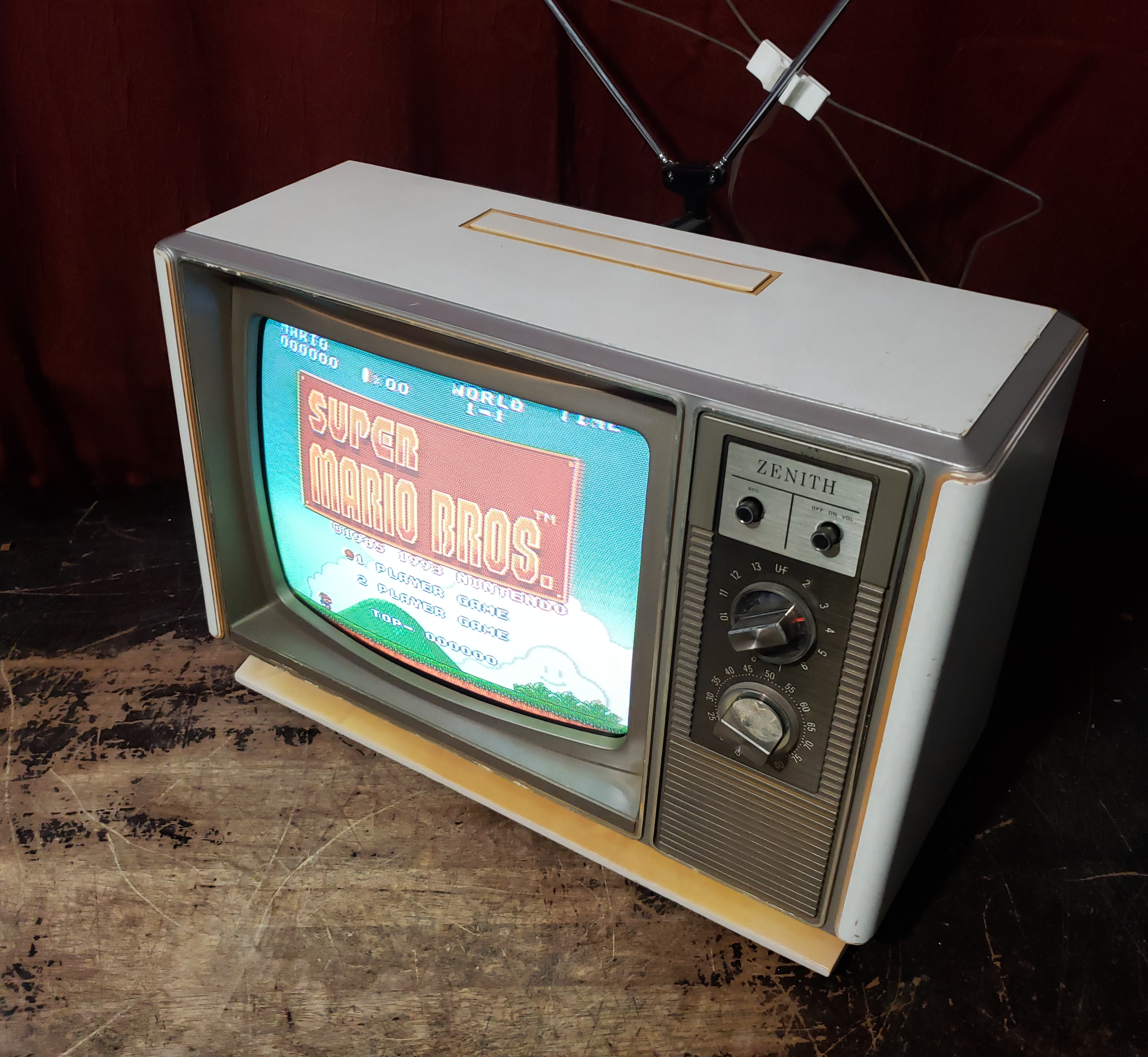

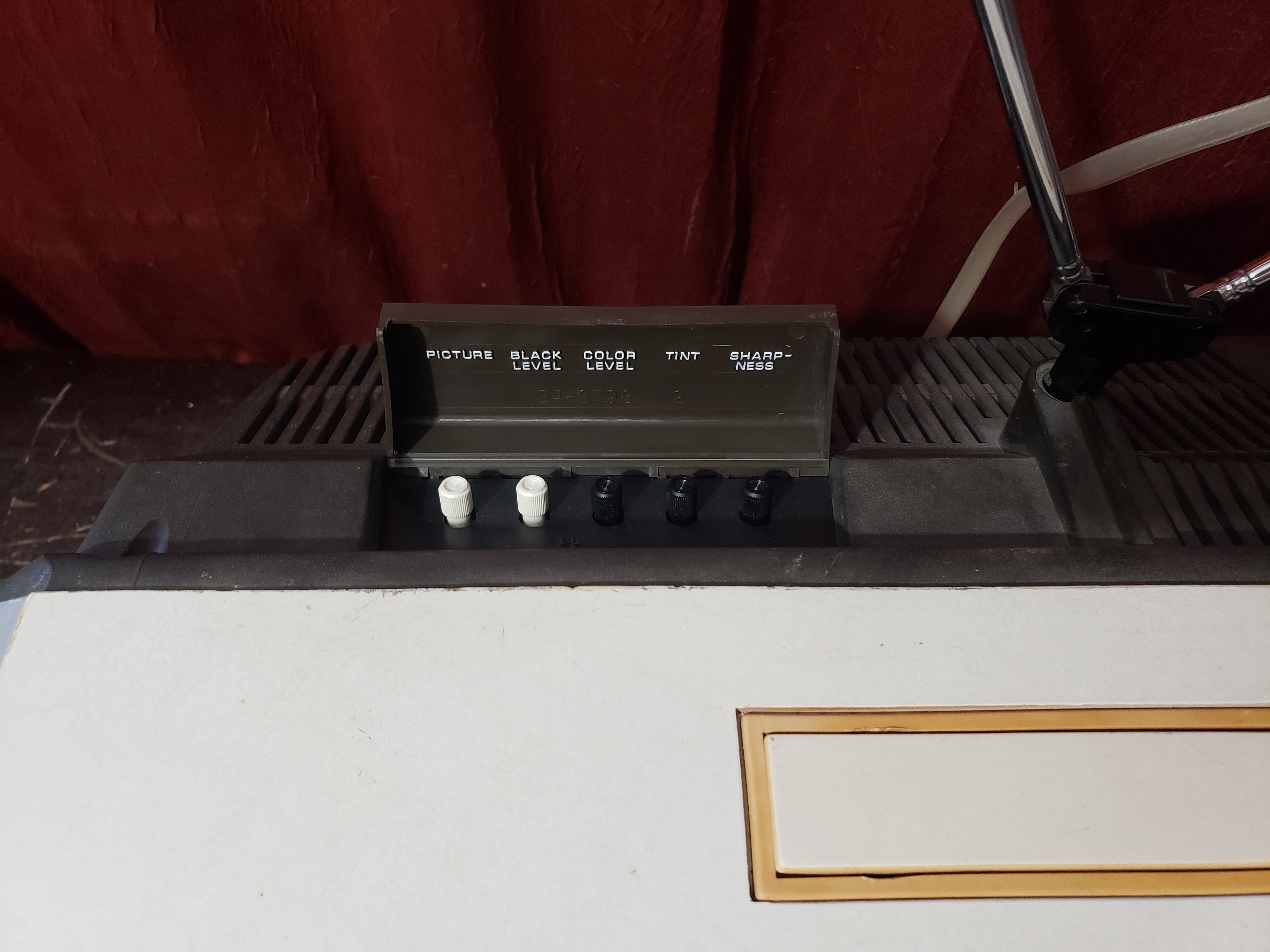

| Adjustments: | Internal Potentiometers, External Potentiometers |

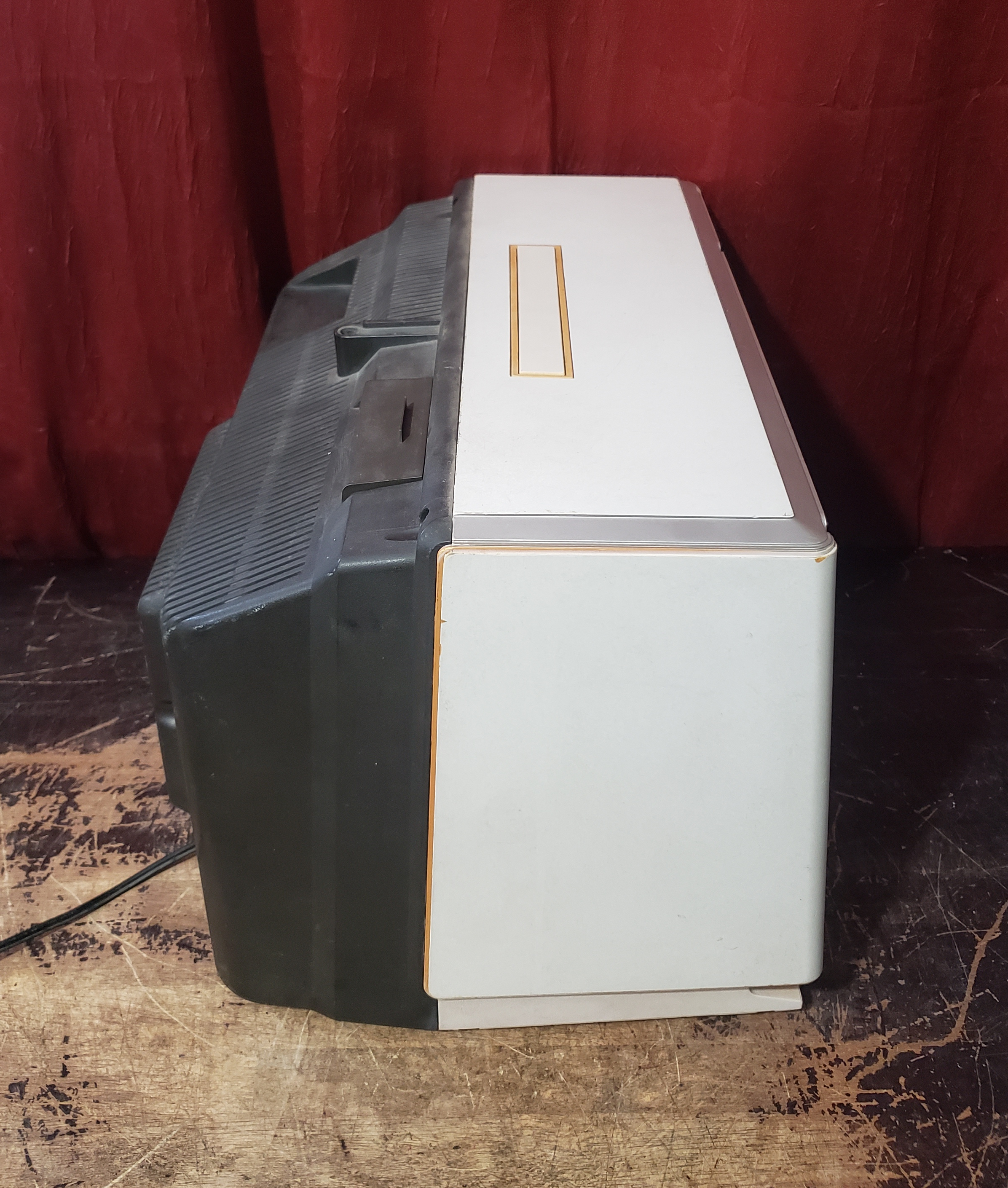

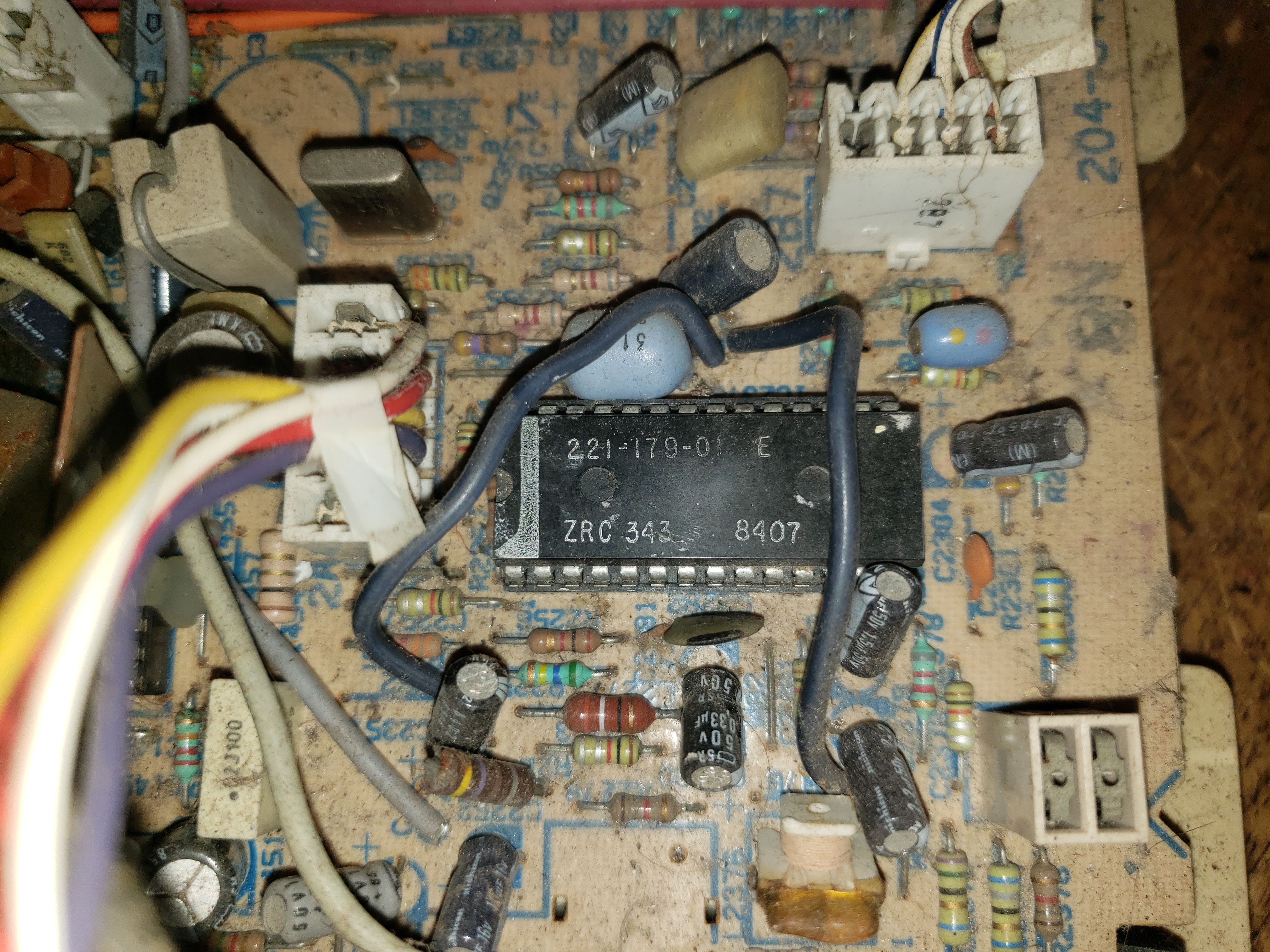

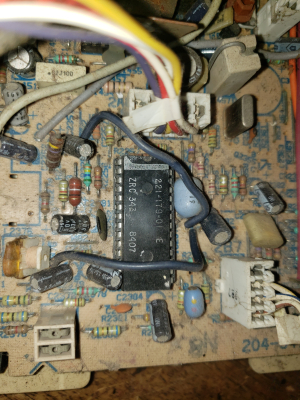

| Jungle IC: | 221-179-01 |
| Focus Type: | Single |

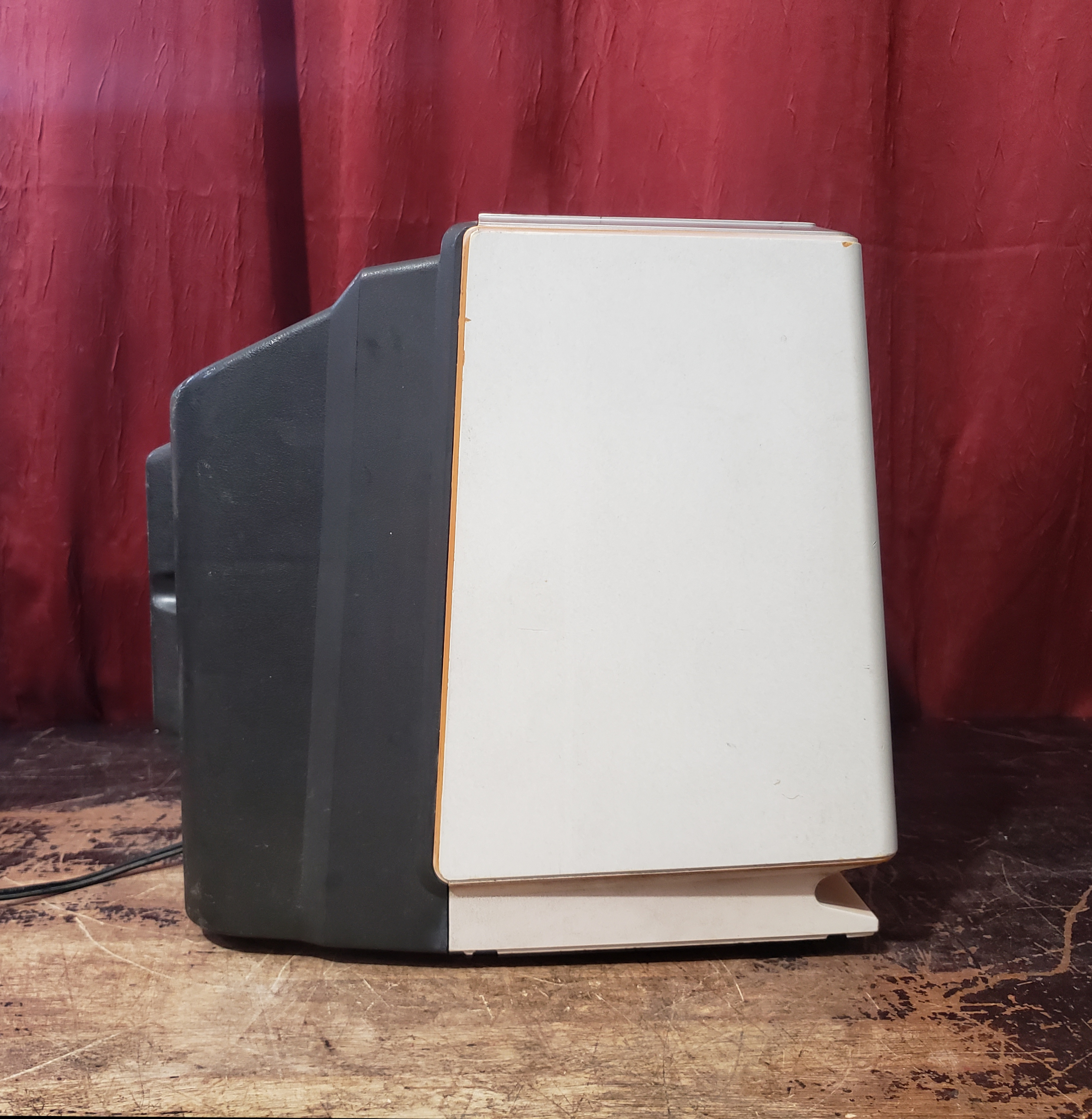

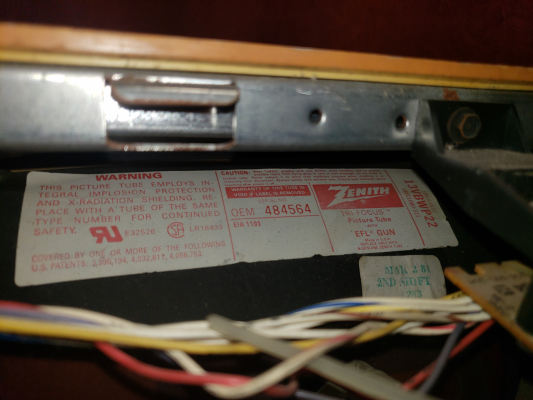

| Tube: | TRI-FOCUS , EFL GUN , 13VBWP22 |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Pitch: | .71 mm |
| Tint: | Light |
| Removable Glare Film: | No |

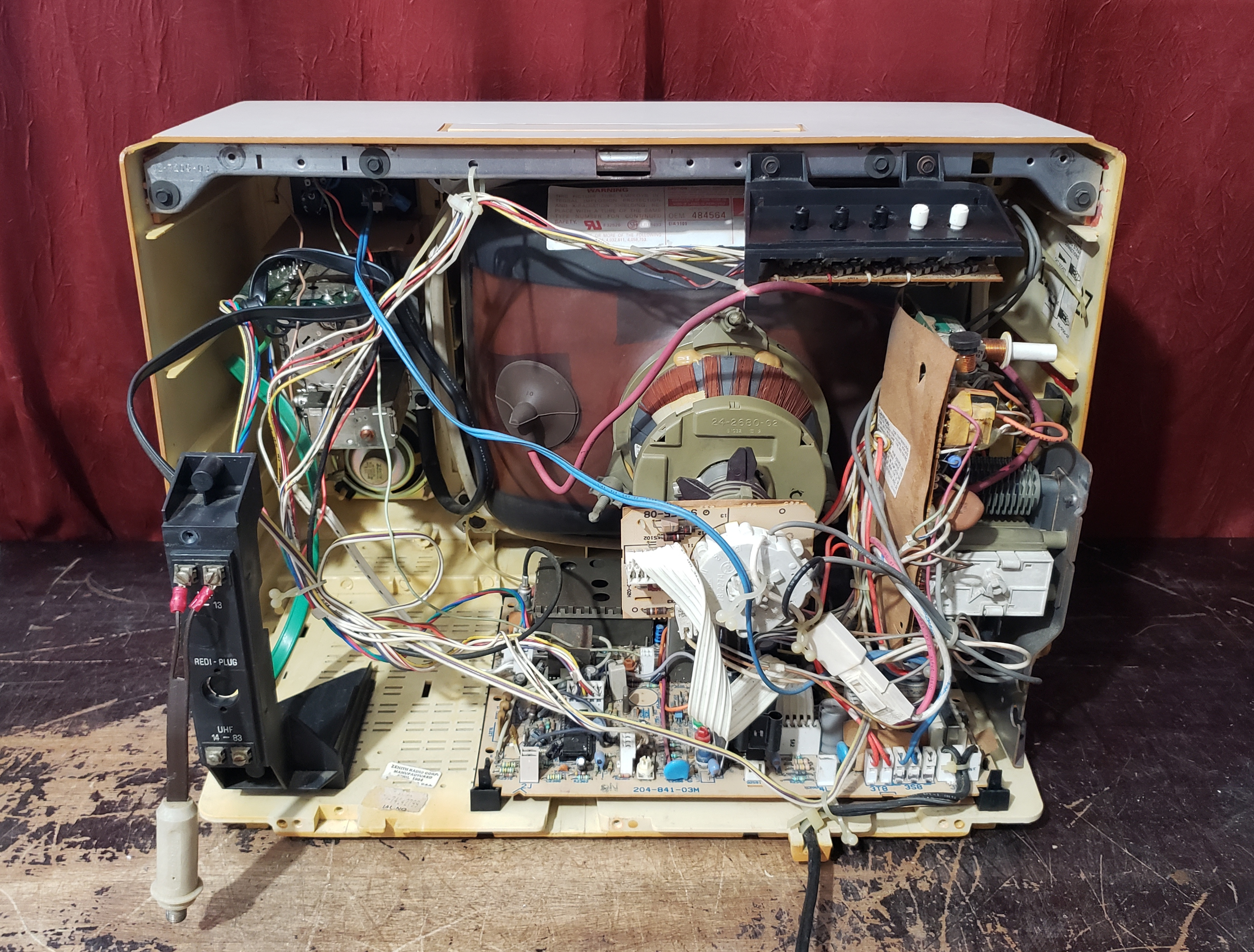

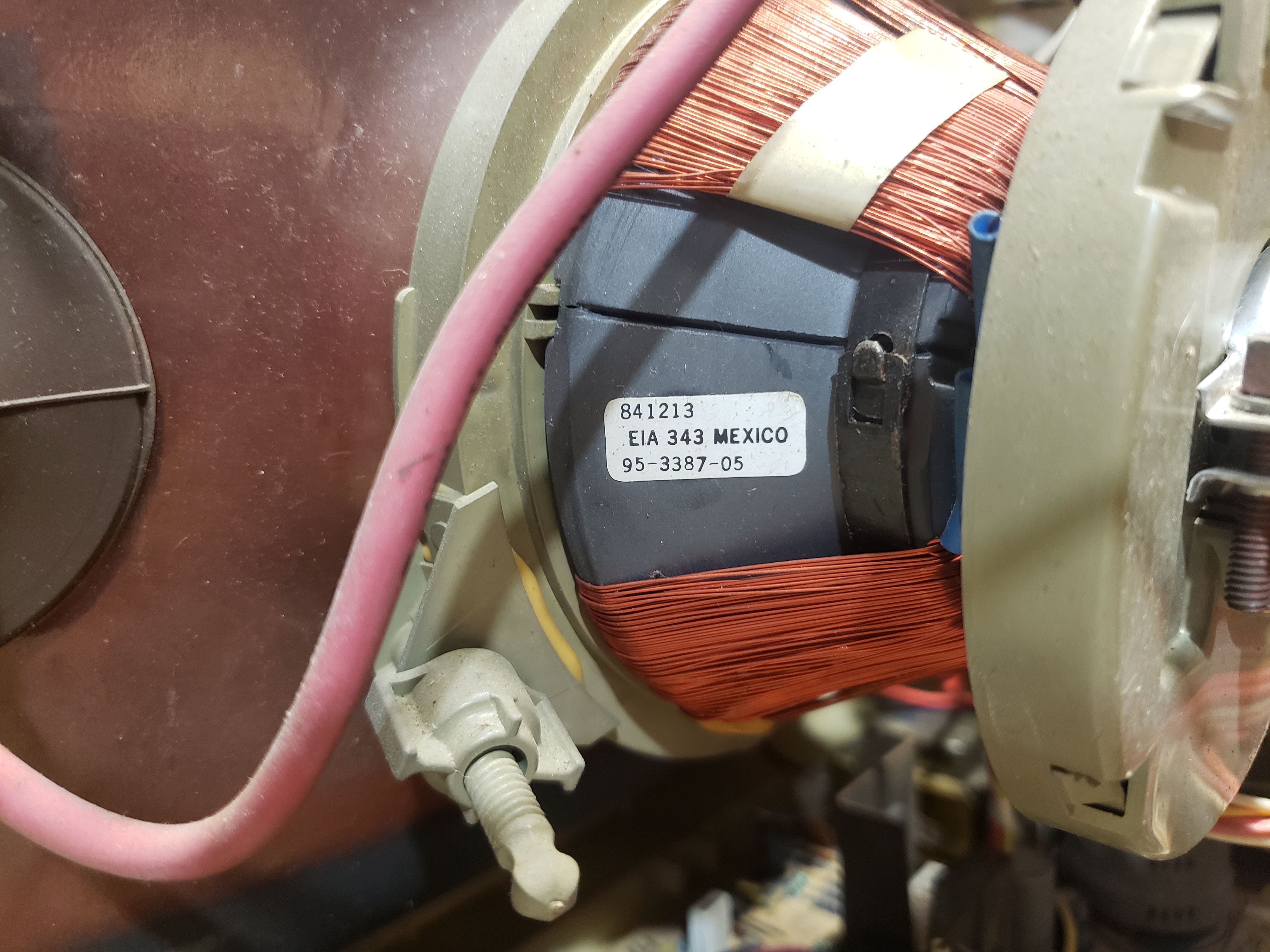

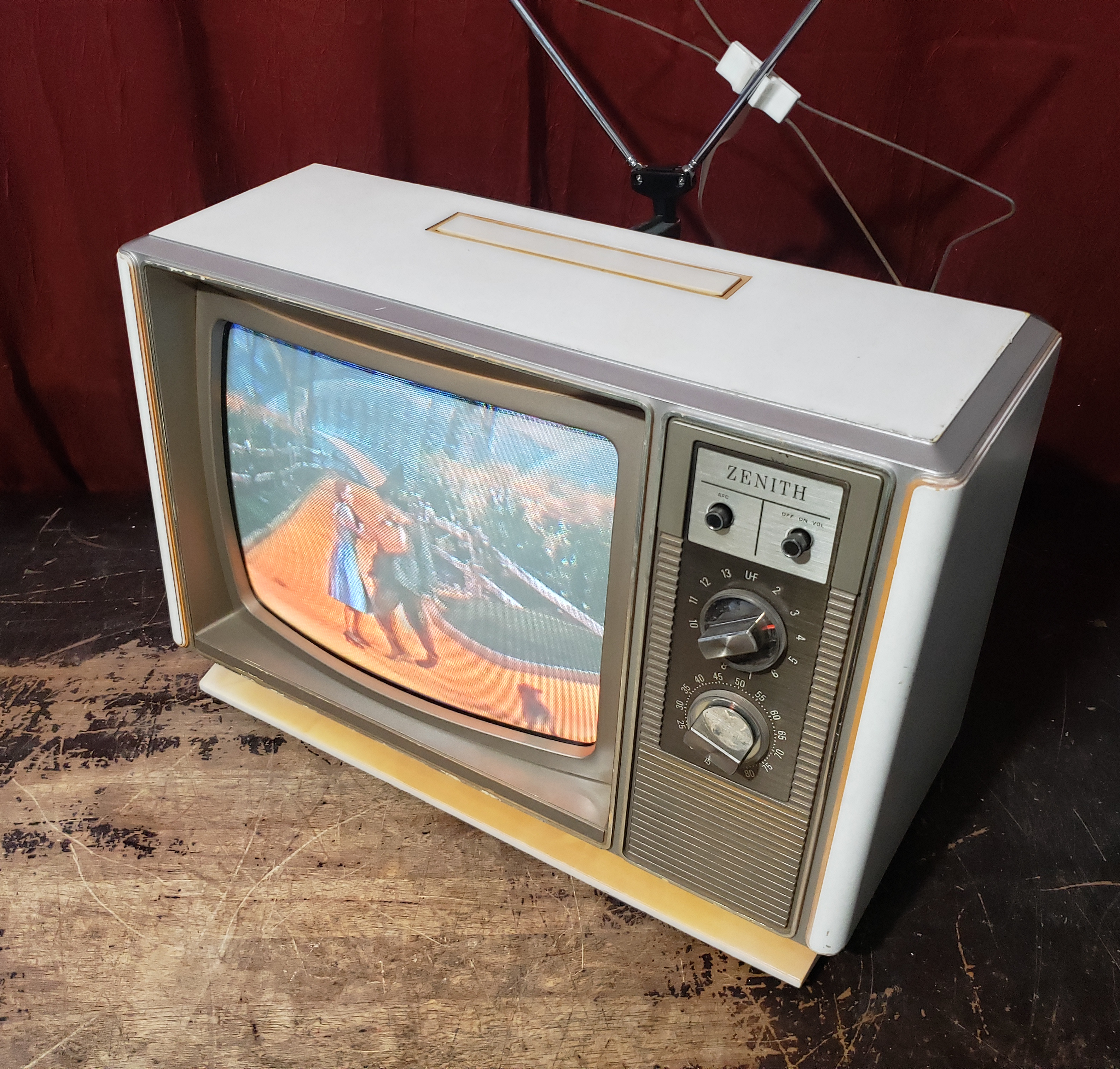

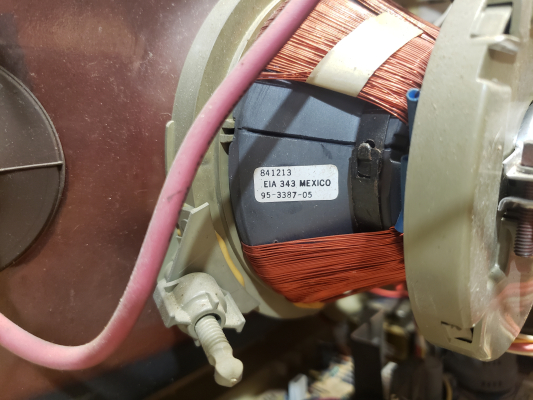

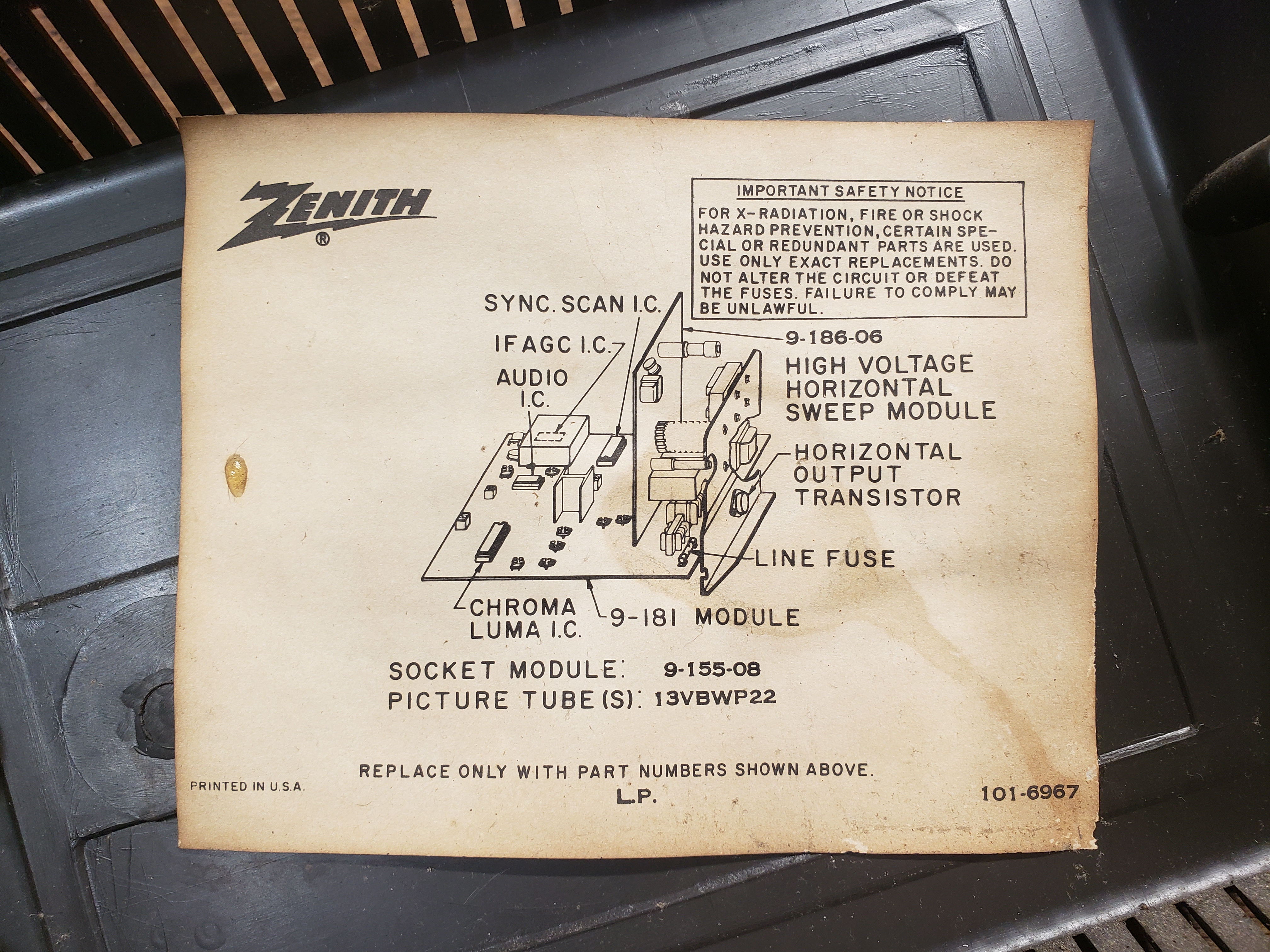

| Yoke: | 95-3387-05 |
| Yoke Horz. Inductance: | .852 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 21.0 mH (@ 100 Hz) |
| Speakers: | Mono |
| Chassis: | Z-1 |
| Dimensions (W/H/D): |
511 x 349 x 378 mm
(20.1 x 13.7 x 14.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1983 |
| MSRP: | 329 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
