Zenith Z1926W
Eli Krause
September 30, 2025, 12:07 am
September 30, 2025, 11:43 pm
September 30, 2025, 12:07 am
September 30, 2025, 11:43 pm
Summary

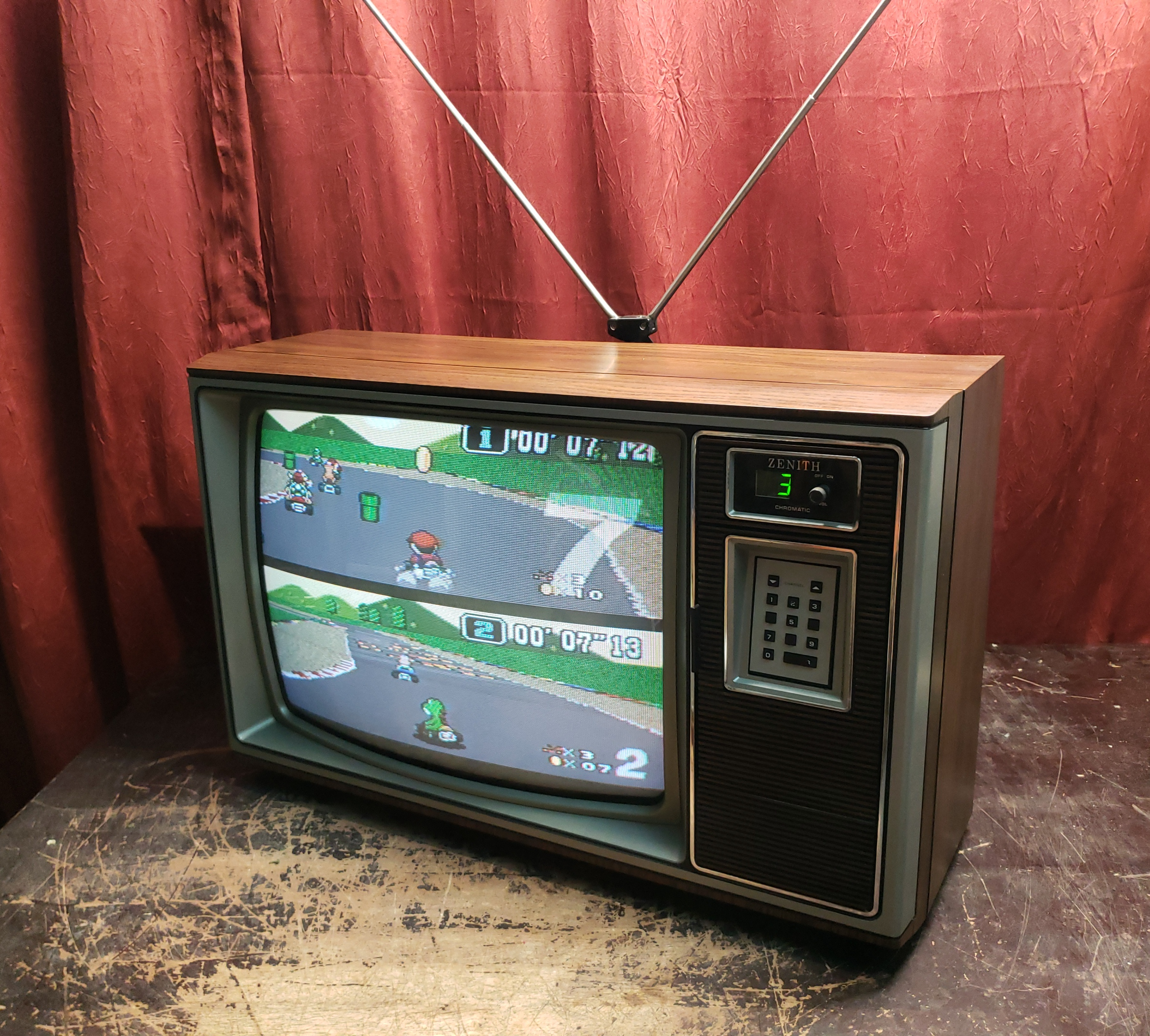

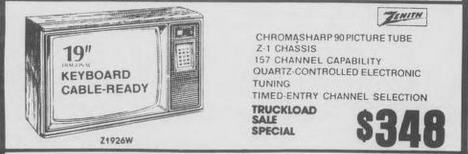

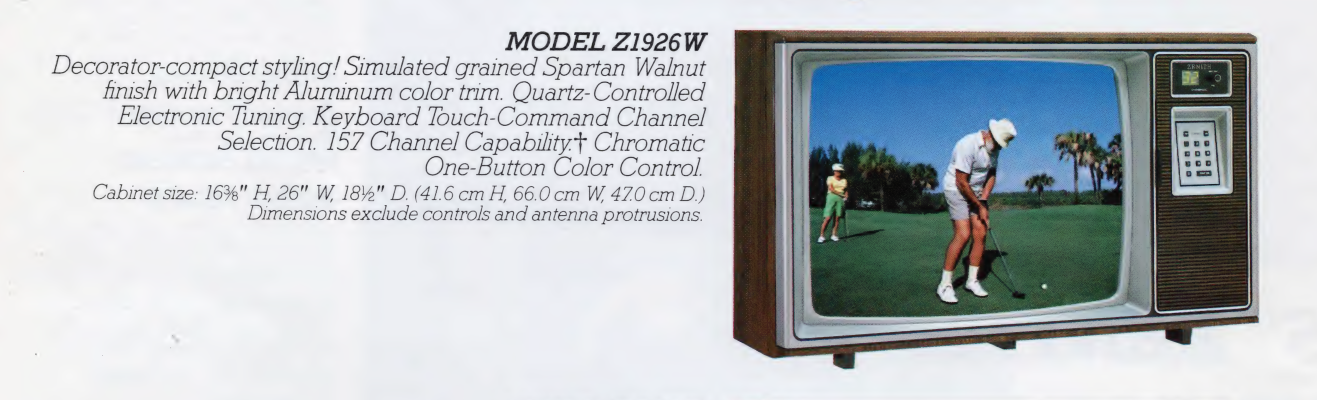

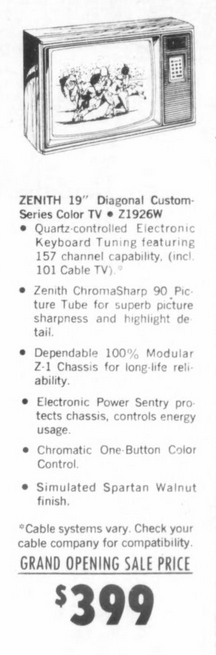

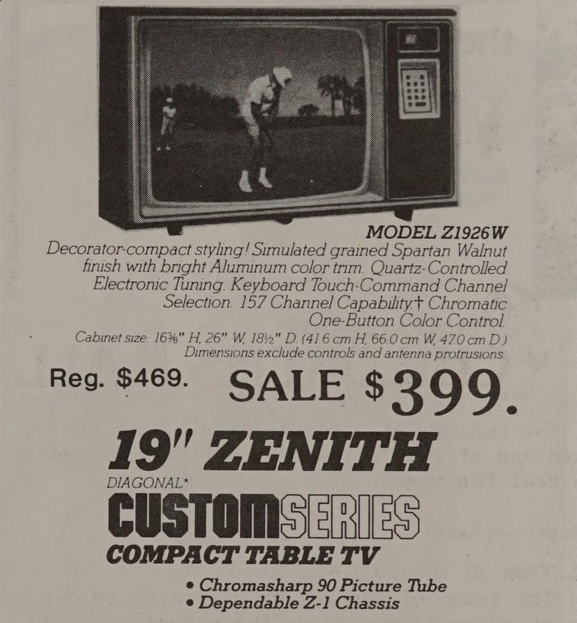

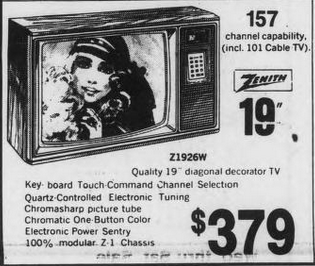

Decorator-compact Styling! Simulated grained Spartan Walnut finish with bright Aluminum color trim. Zenith ChromaSharp 90 Picture Tube for superb picture sharpness and highlight detail. Dependable 100% Modular Z-1 Chassis for ling-life reliability. Electronic Power Sentry protects chassis, controls energy usage.
Manuals
(None at this time)
Notes
This model does not have a vertical position adjustment.
Repair Notes

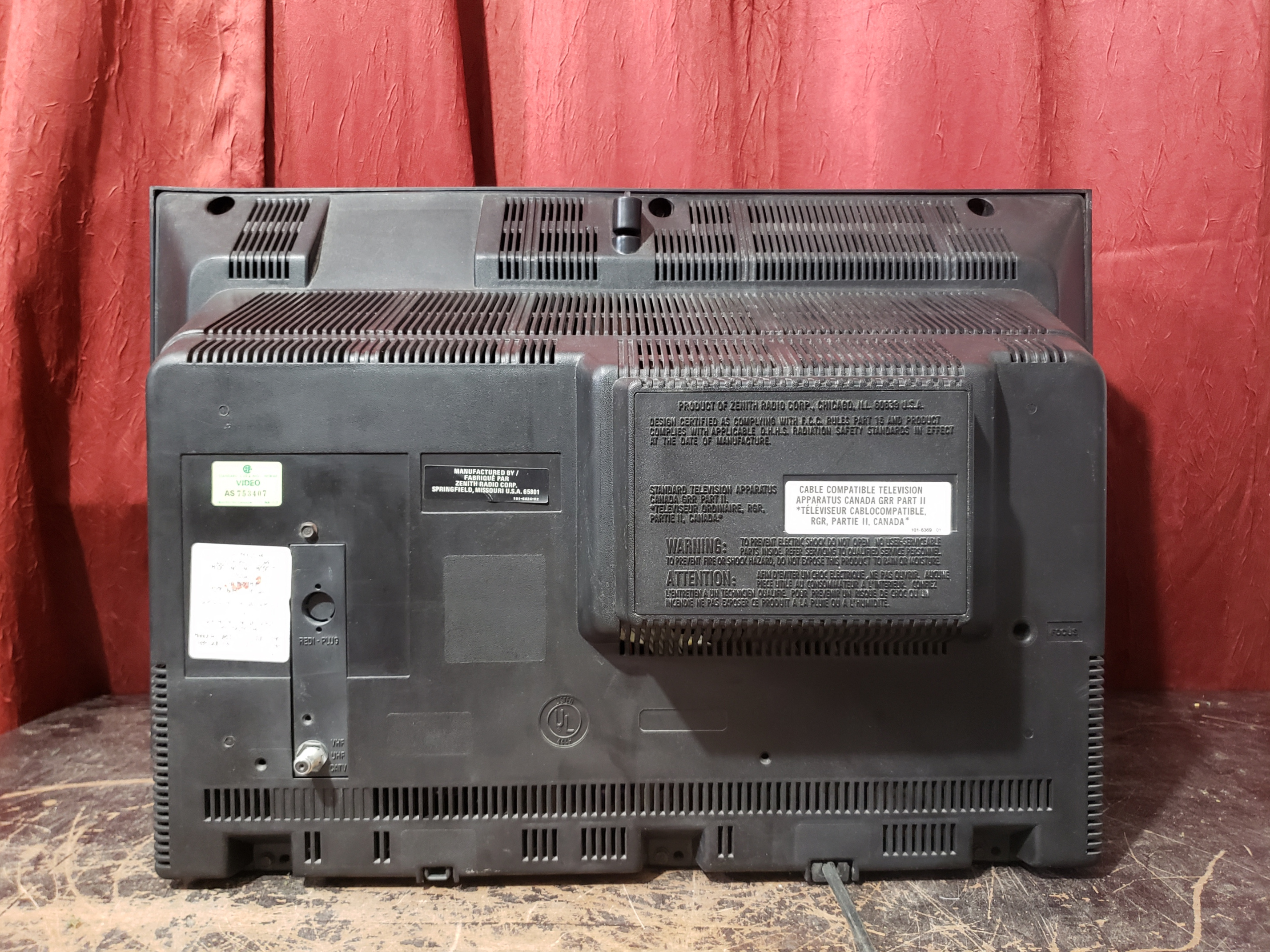

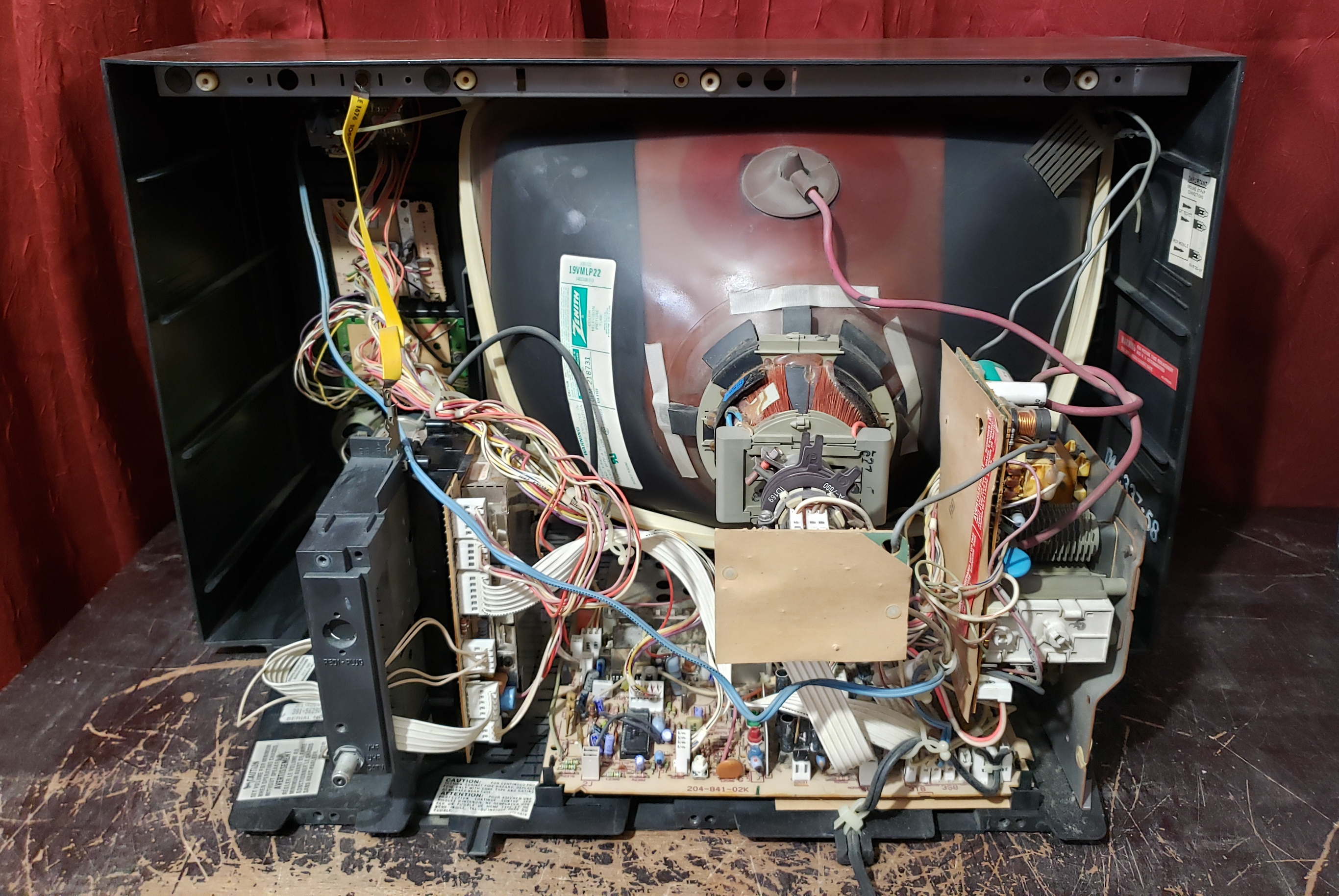

Unit pictured had a very subtle slow upward moving 60Hz wave. This was fixed on the prior revision Y1926W by replacing high ESR caps on the center and right side of the main PCB when viewed from the rear.

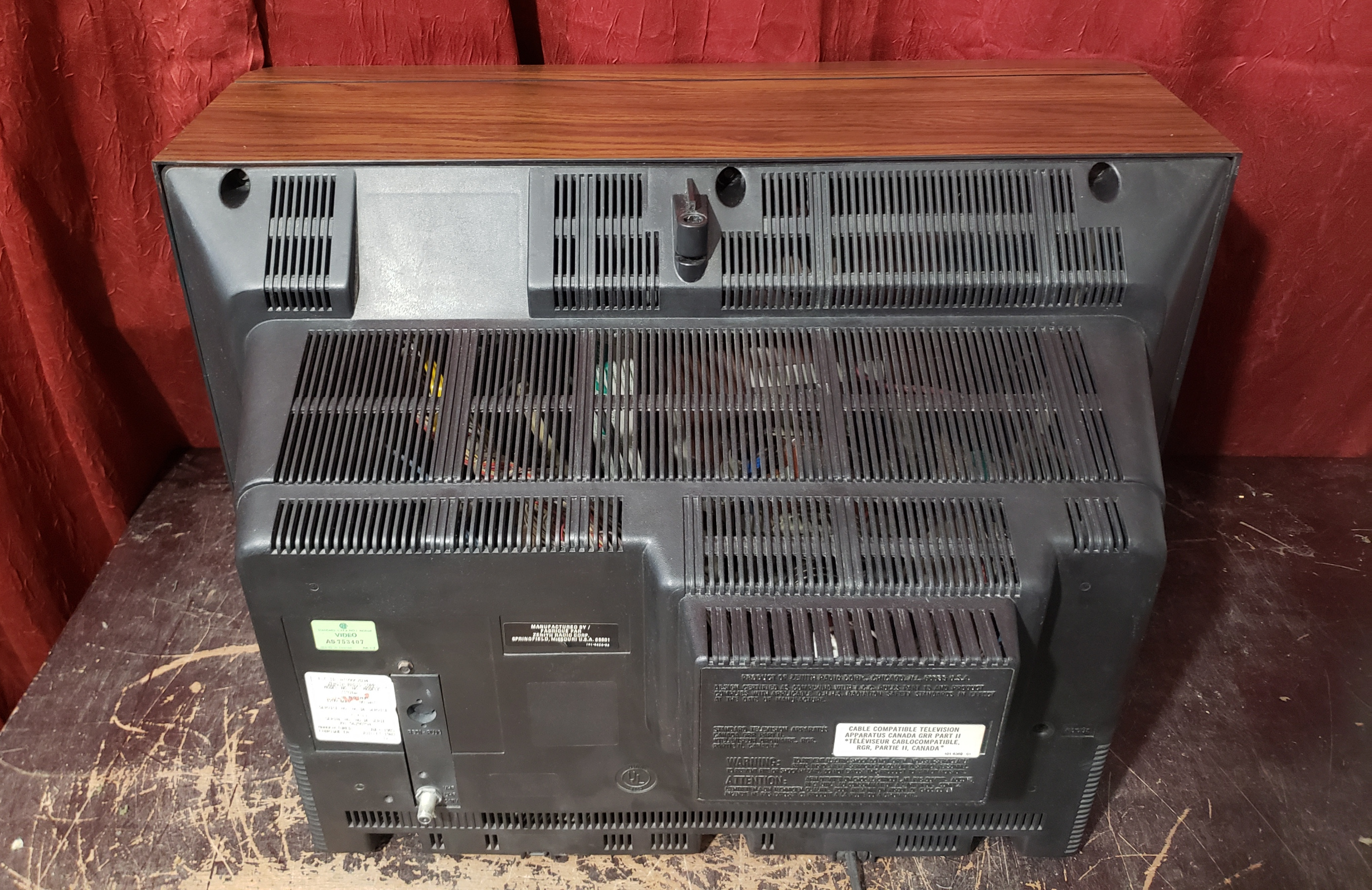

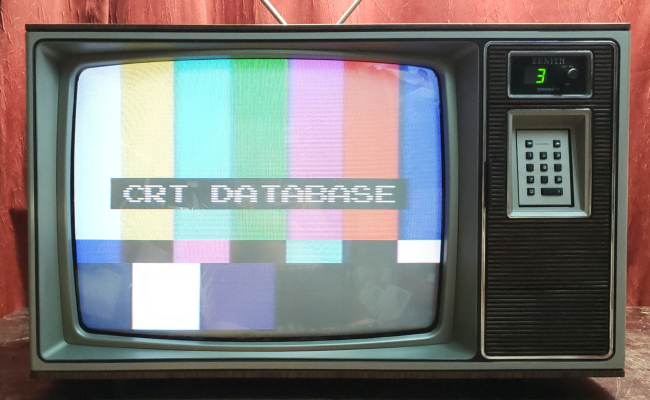

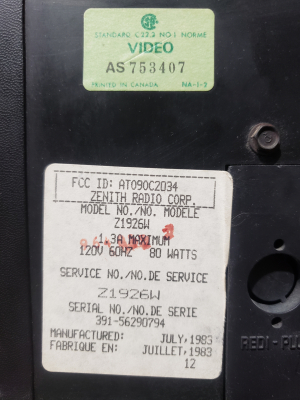

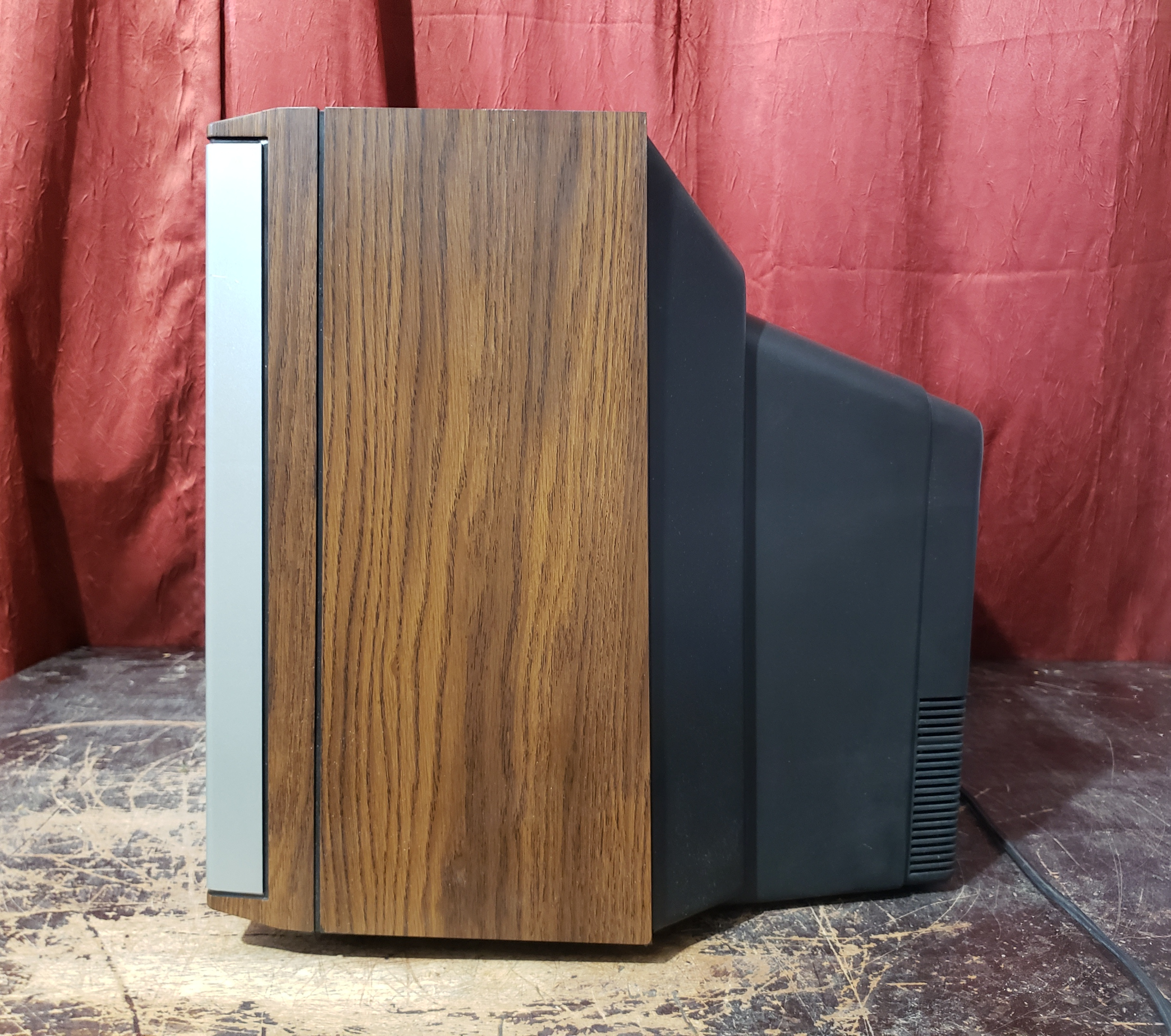

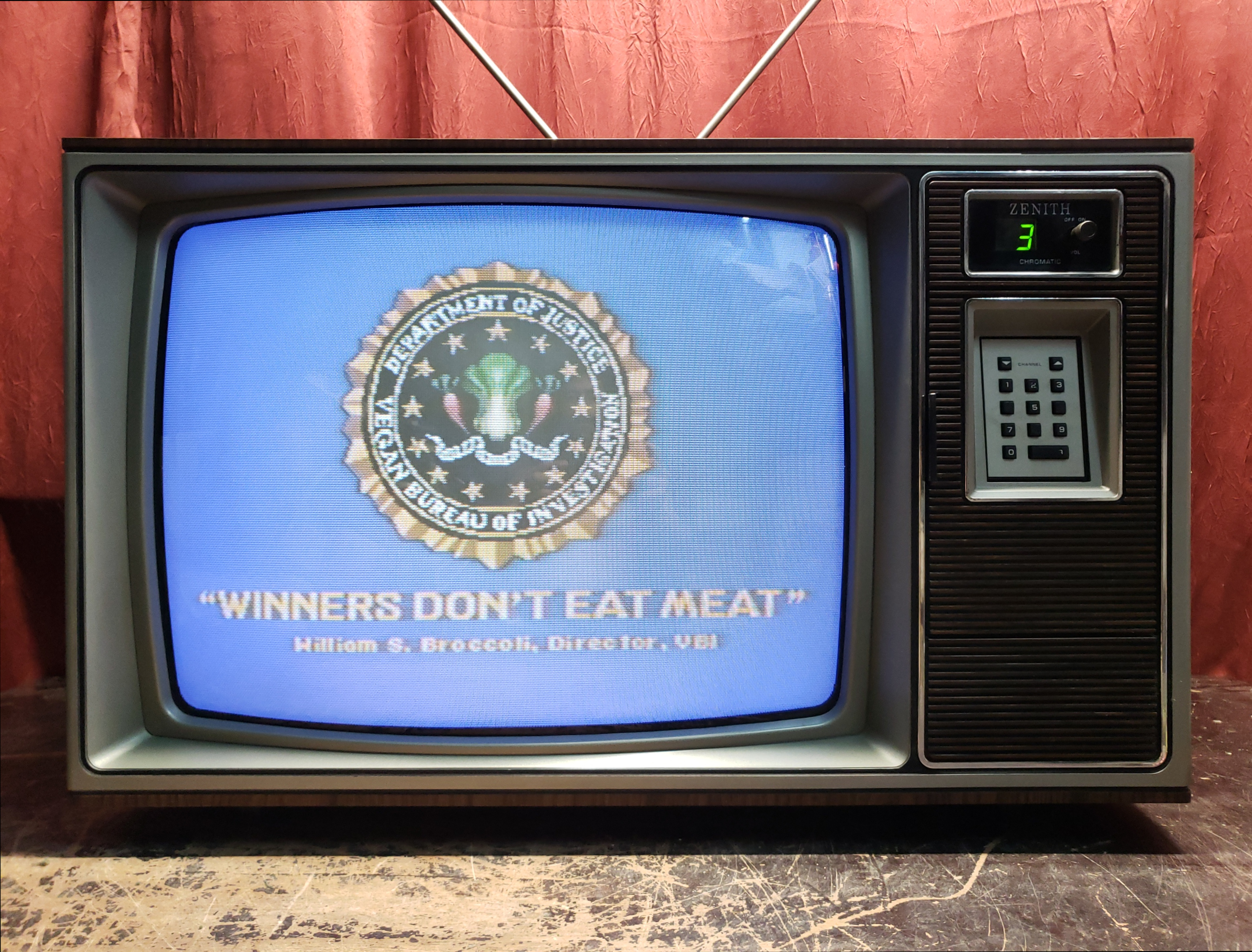

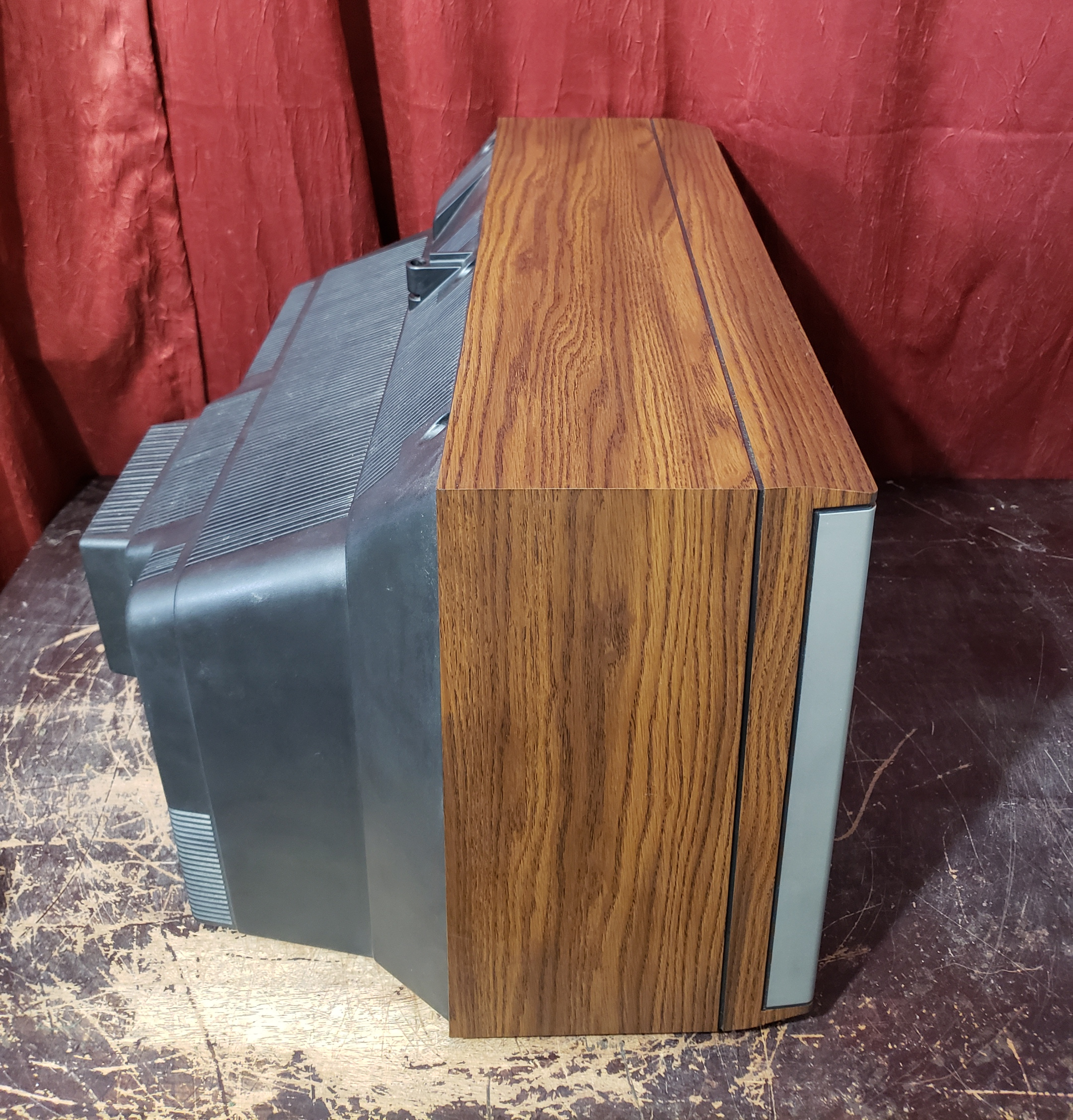

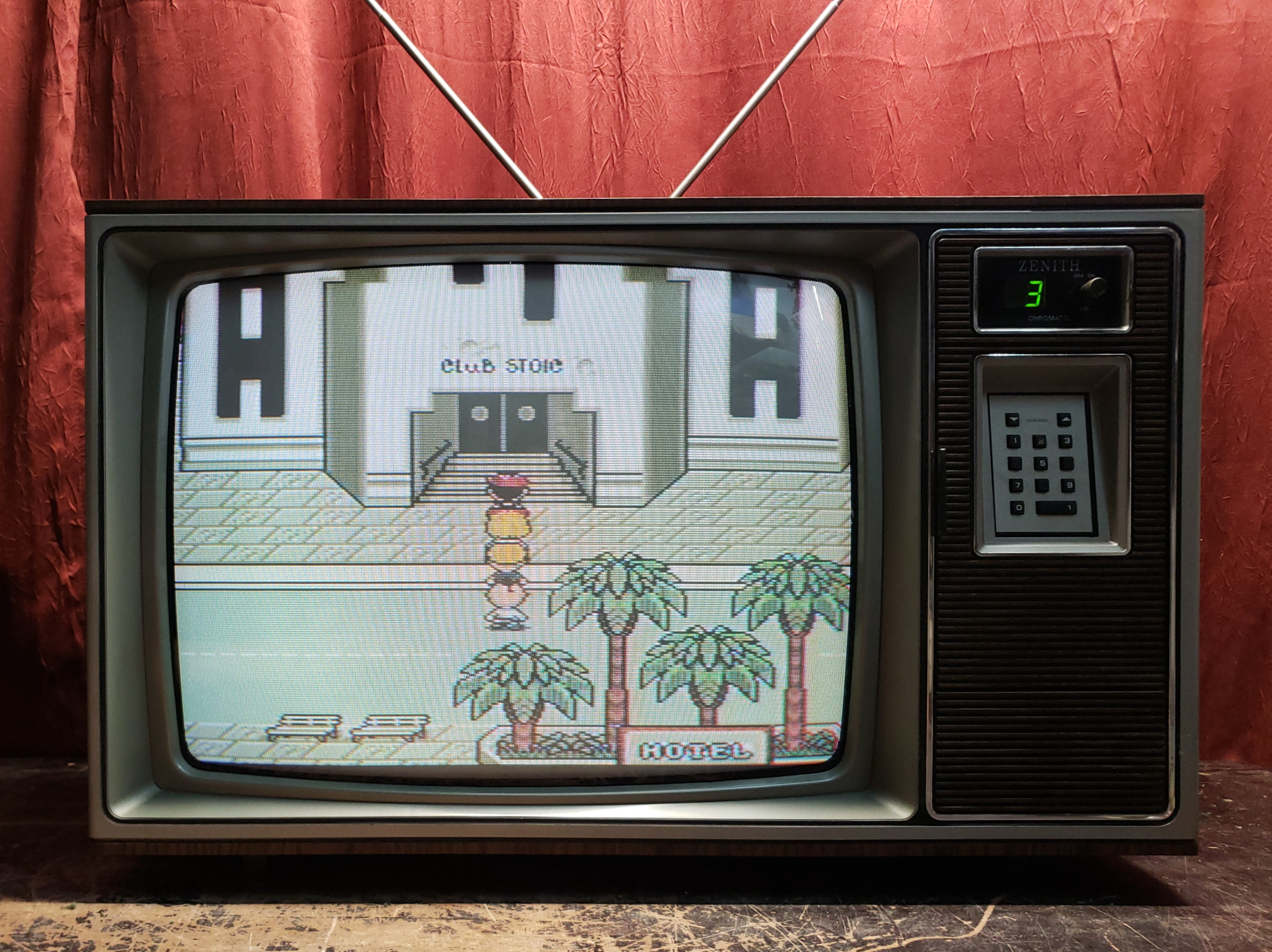

Gallery





















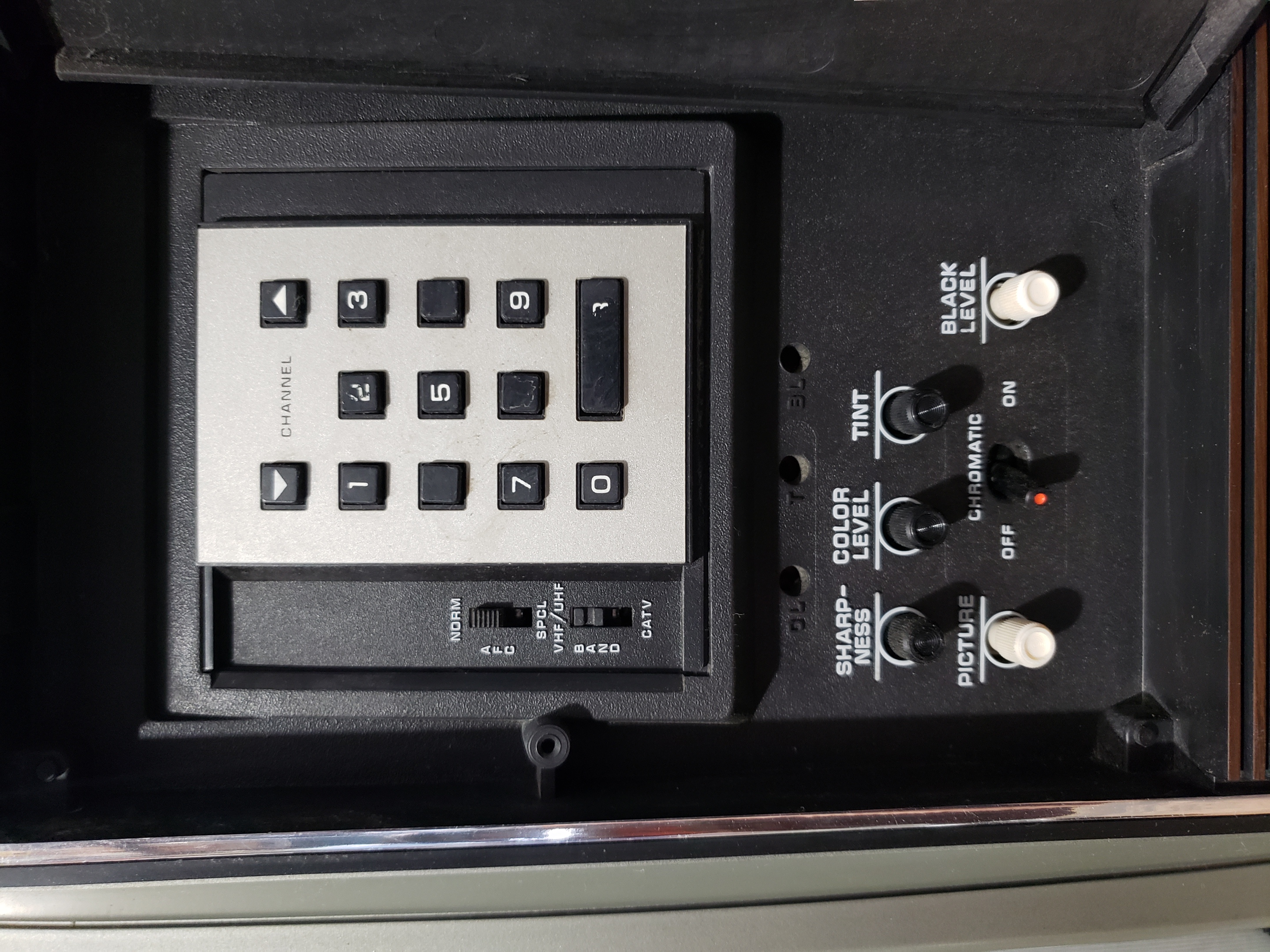

Specifications | |
---|---|
Brand: | Zenith |
Manufacturer: | Zenith |
Model: | Z1926W |
Series: | Custom Series |
Viewable Size: | 19" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Jungle: | 103-142-01 |
Comb Filtering: | None |
Focus Type: | Single |

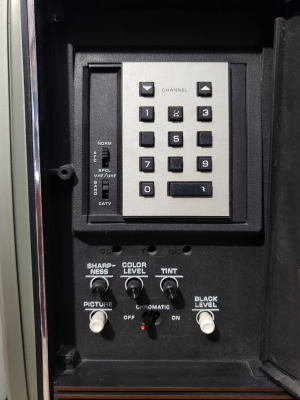

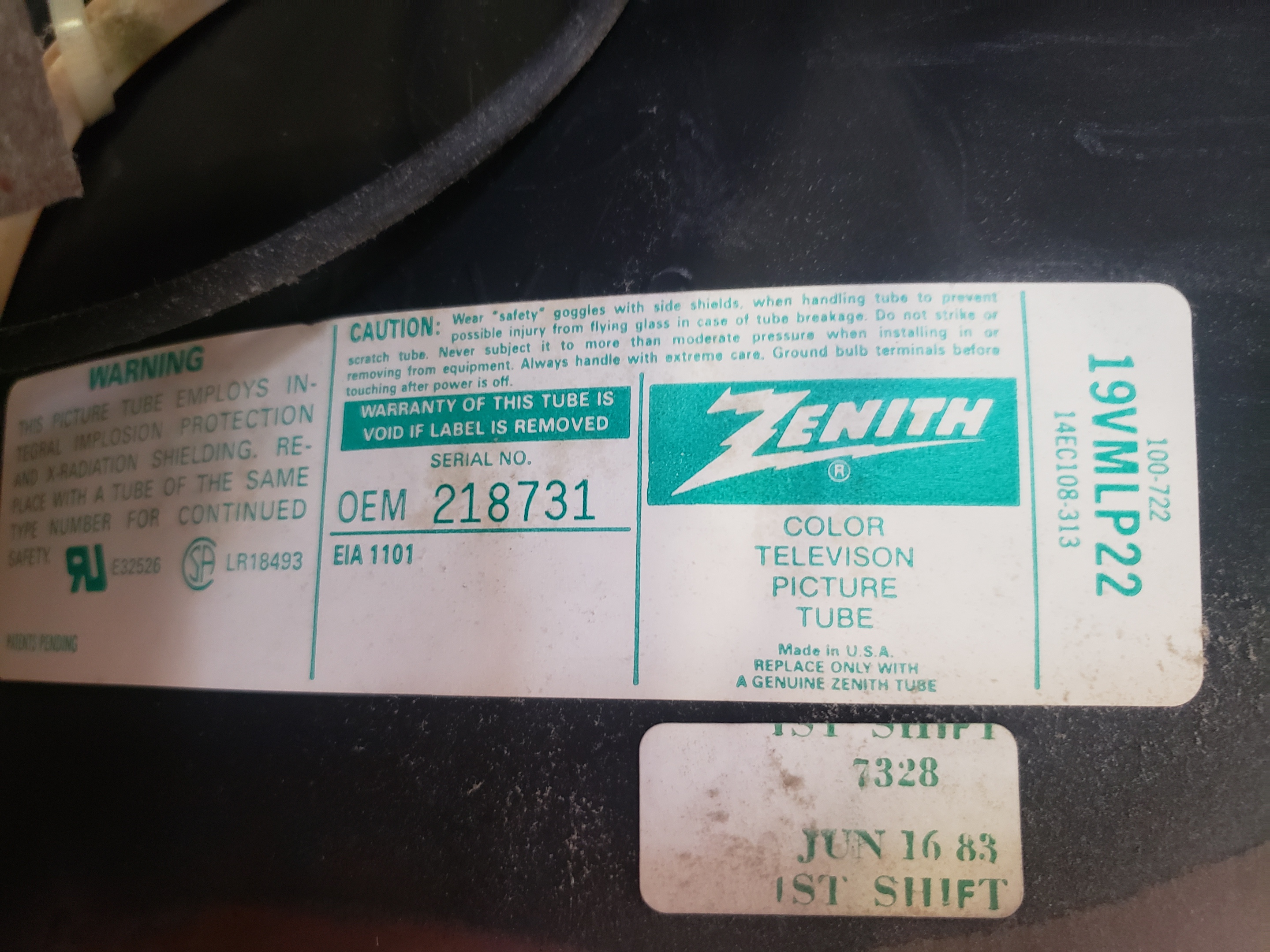

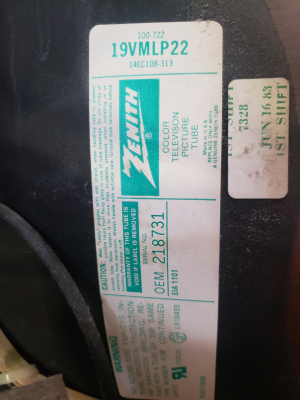

Tube: | Zenith , 19VMLP22 , ChromaSharp |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | .81 mm |
Tint: | Light |

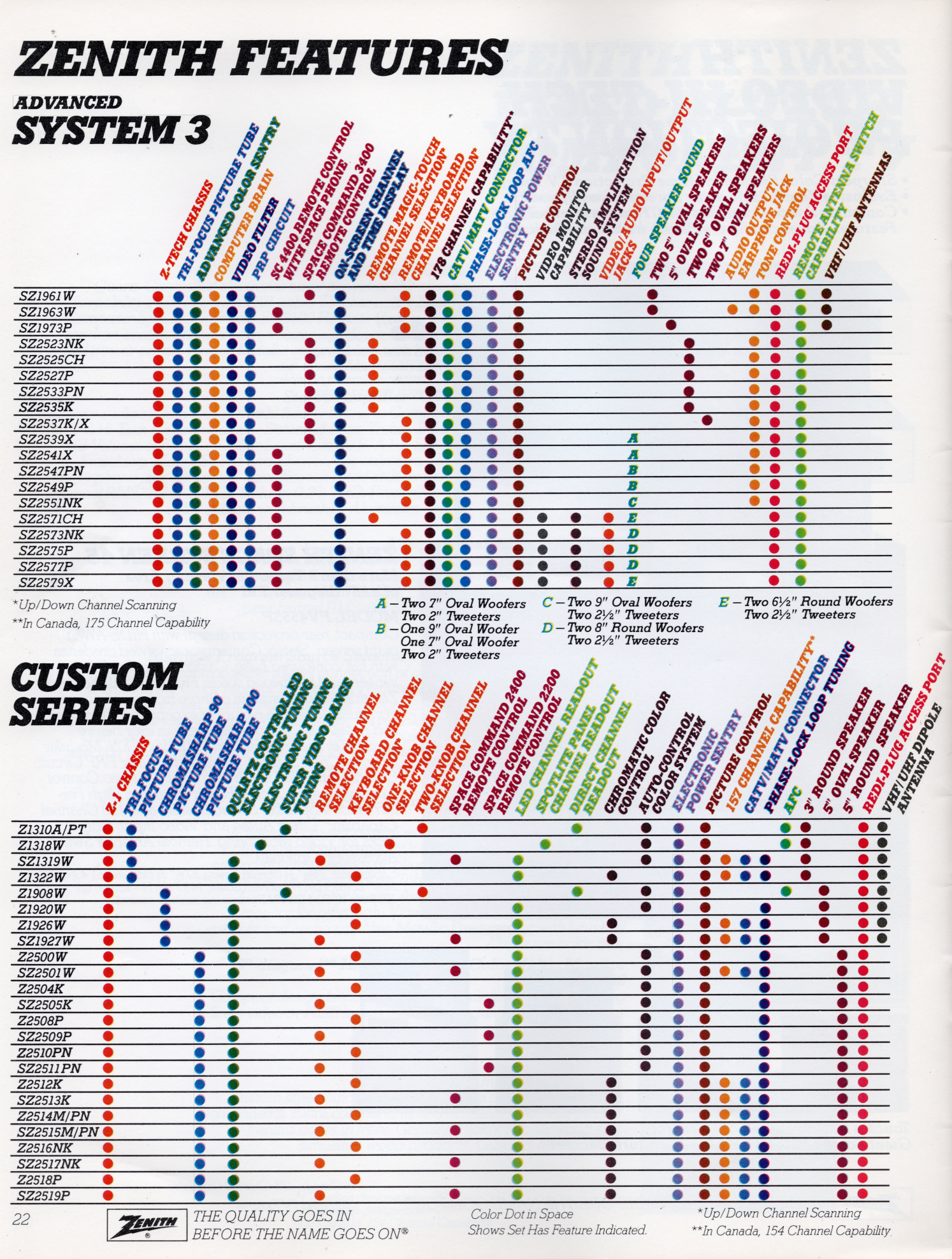

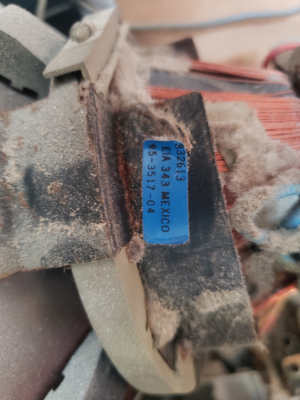

Yoke: | 95-3517-04 |
Yoke Vert. Inductance: | 25.46 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 1.1 ohm |
Yoke Vert. Resistance: | 10 ohm, 10.0 ohm |
Speakers: | Mono |
Chassis: | Z-1 |
Dimensions (W/H/D): |
660 x 416 x 470 mm
(25.9 x 16.3 x 18.5") |
Application: | Consumer |
Cabinet Material: | Plastic, Simulated Woodgrain |
Launched: | 1983 |
MSRP: | 469 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
