Zenith Z19A02G

SegaSaturn94
March 14, 2025, 10:26 pm
March 15, 2025, 2:43 am

Summary

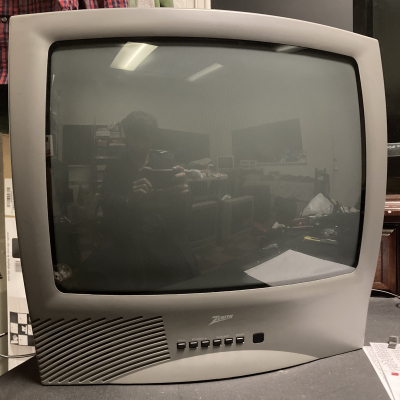

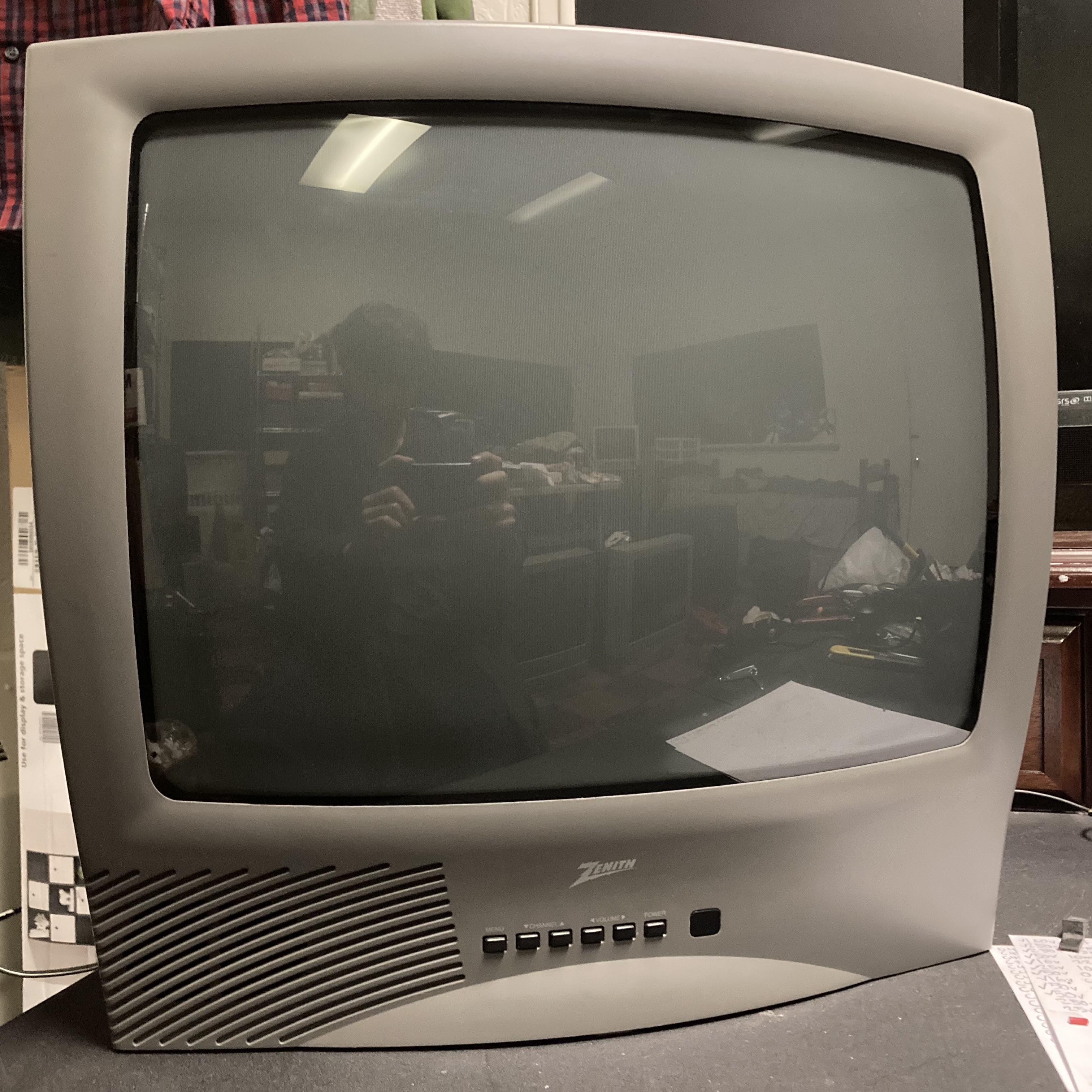

19" CRT by Zenith, one of the last to be made by them as a sovereign company before they shut down their Rauland factory in late 1998.

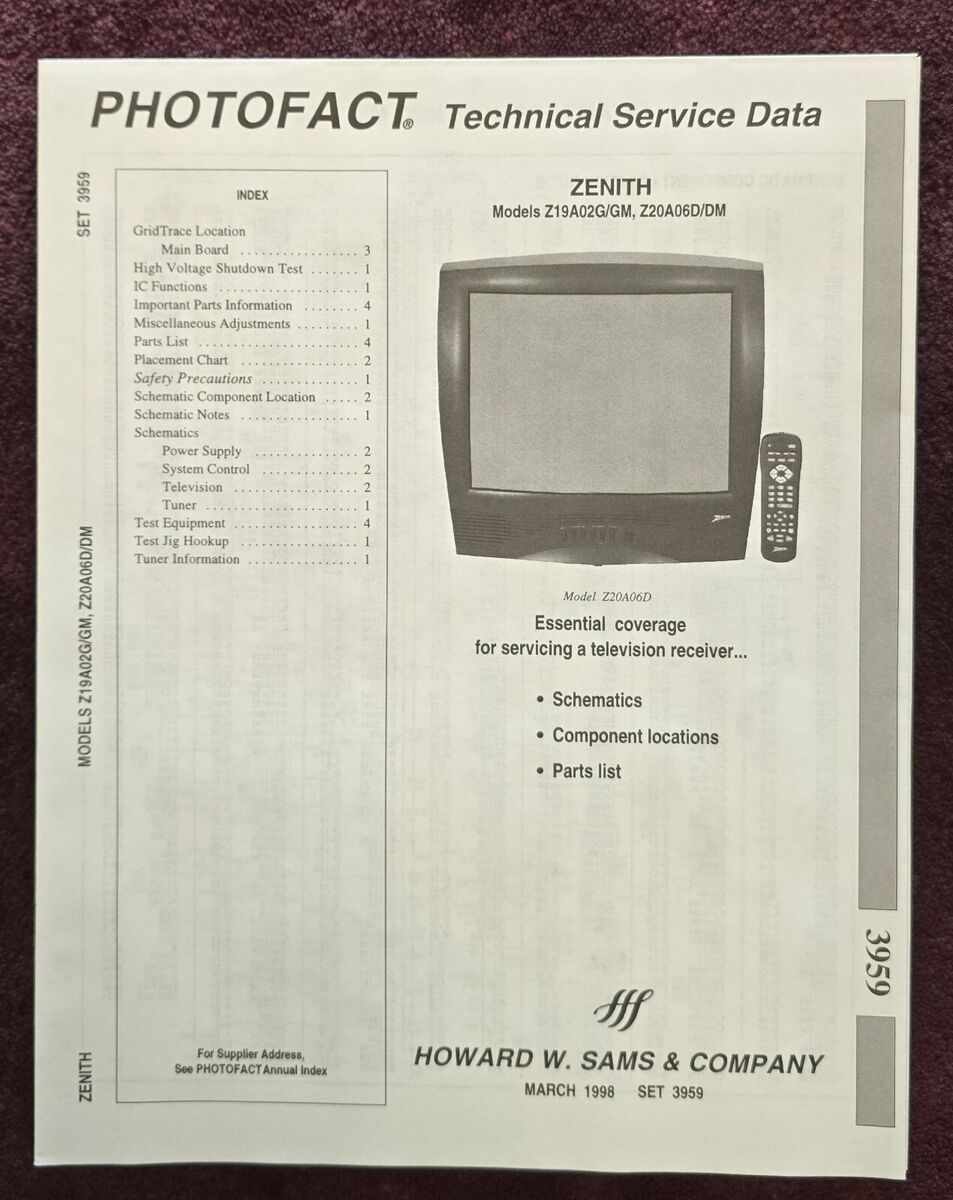

Manuals

(Nothing available at this time.)

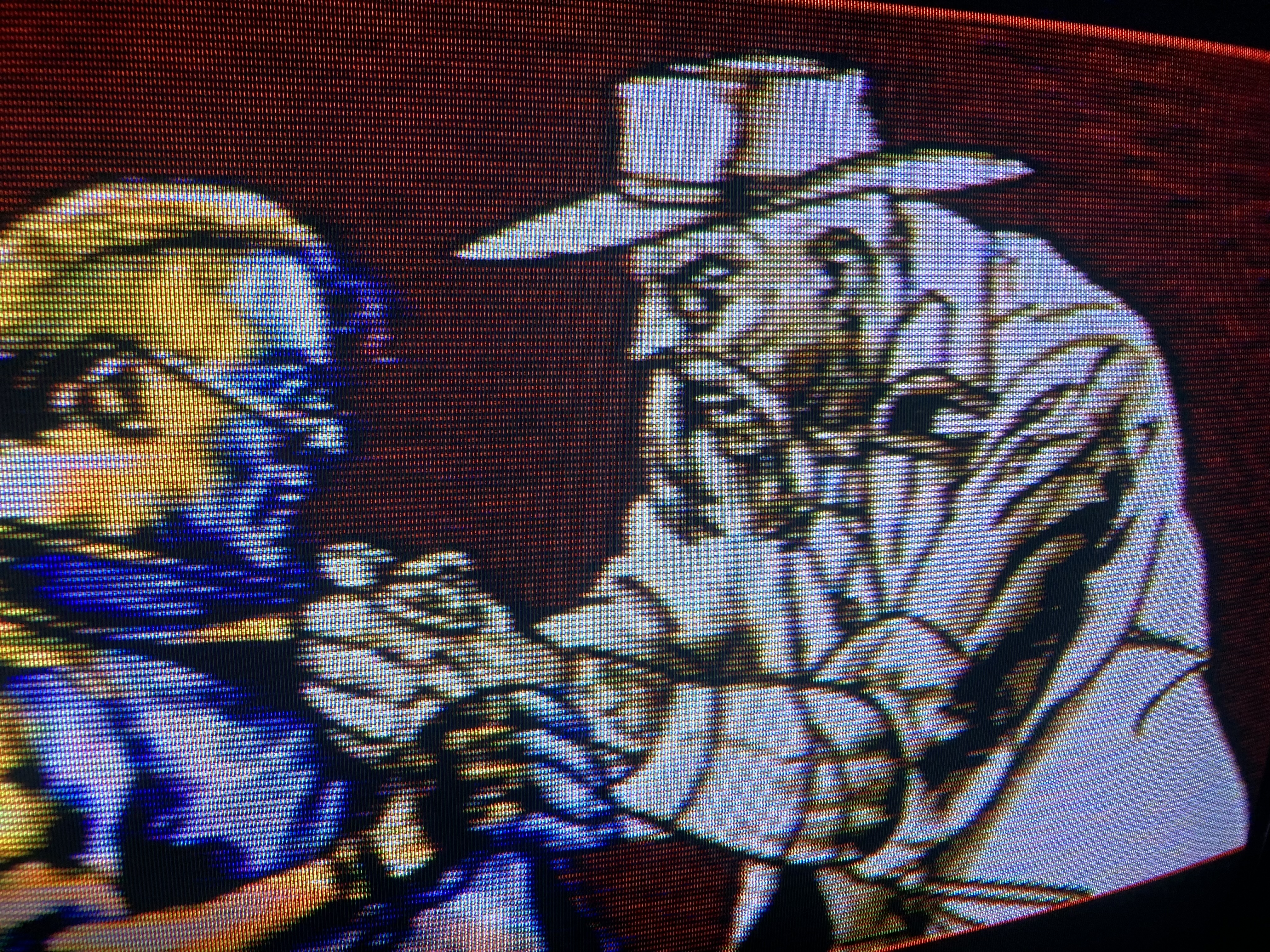

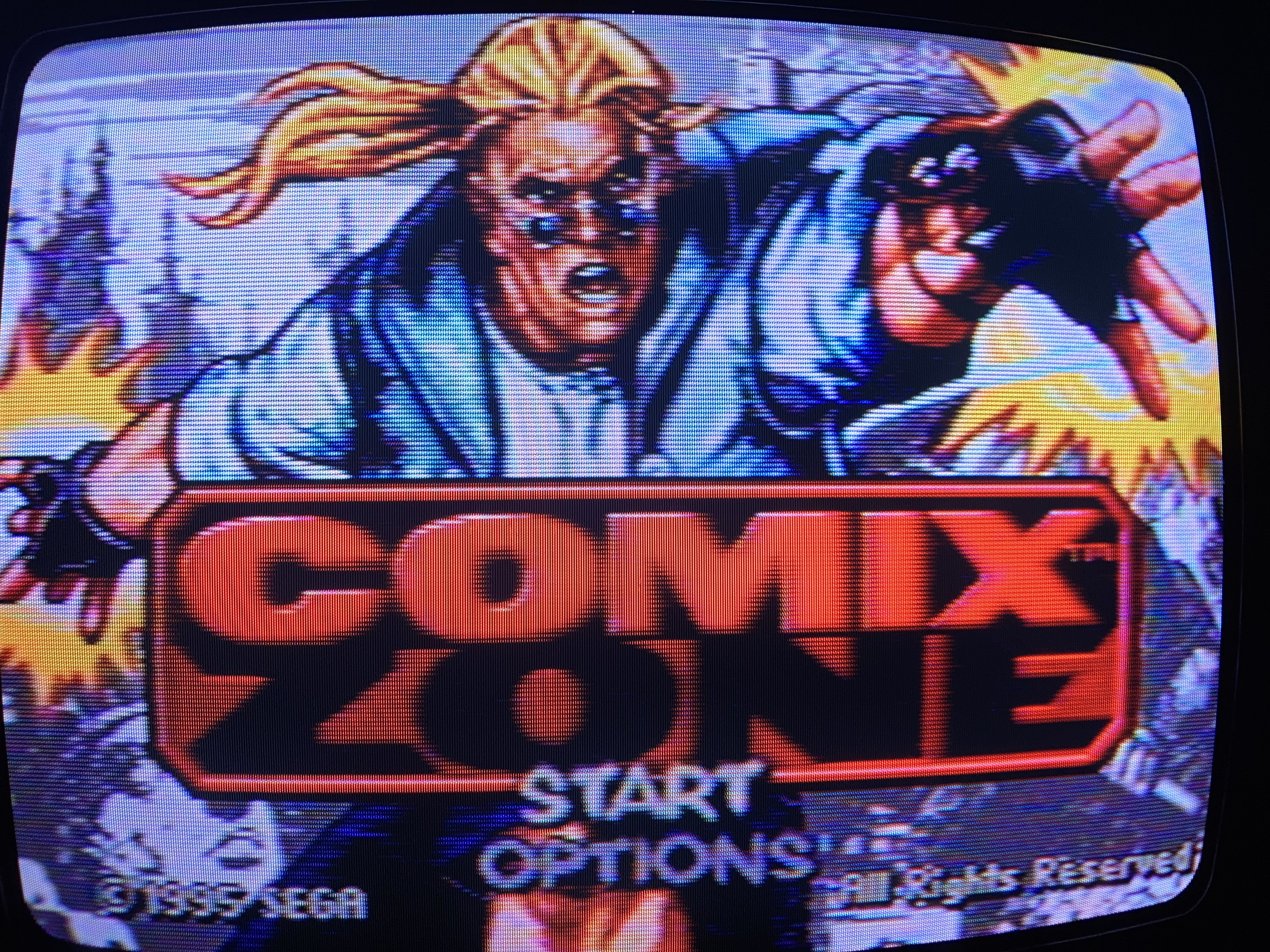

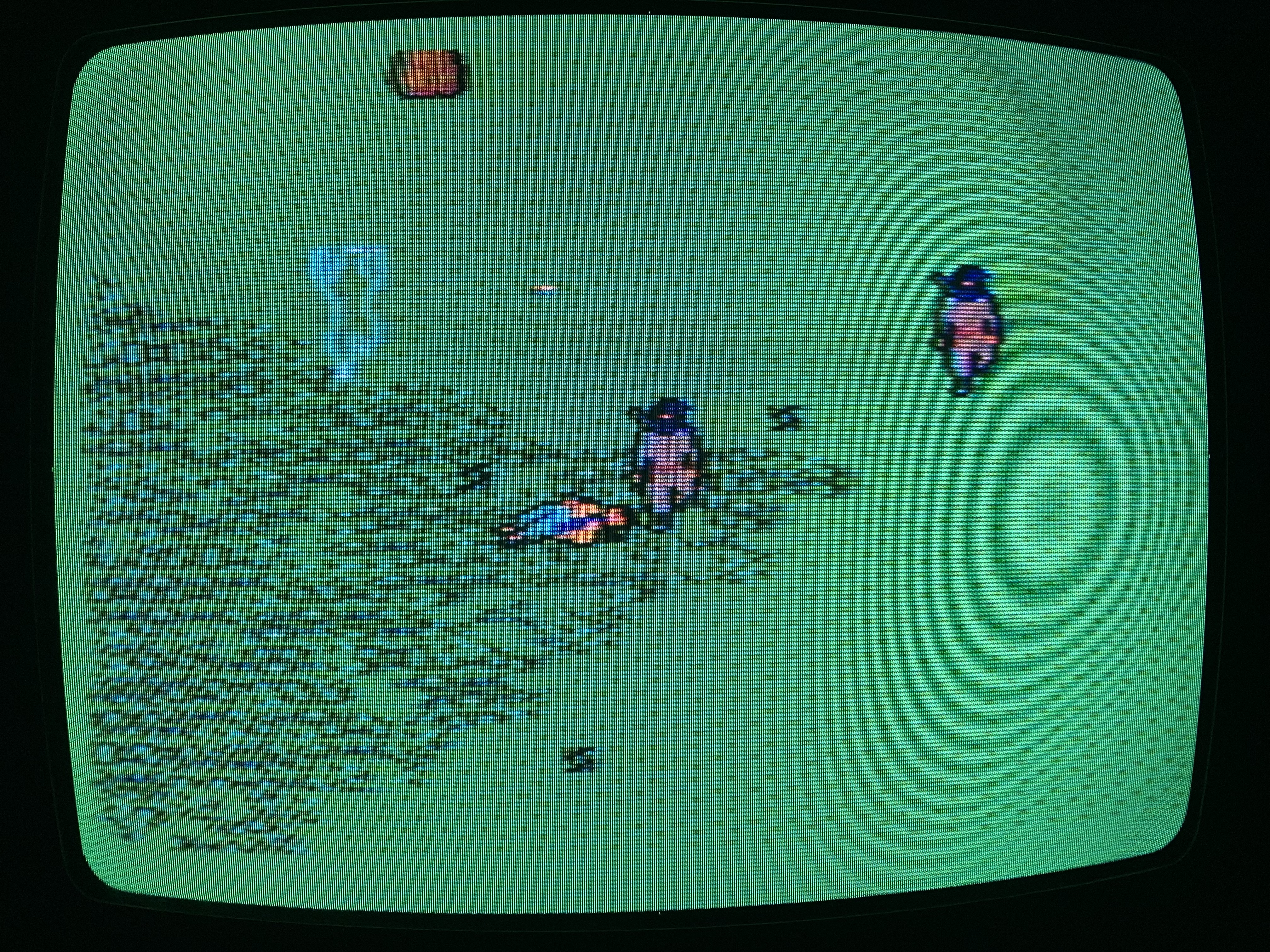

Gallery

Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G Zenith Z19A02G
Specifications
Brand: Zenith
Manufacturer: Zenith
Model: Z19A02G
Series: Z
Viewable Size: 19"
Inputs: RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu

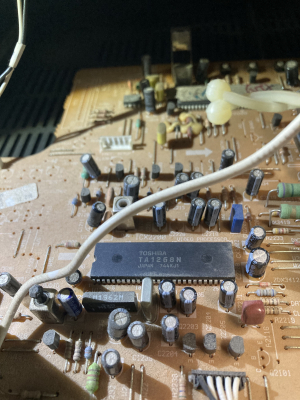

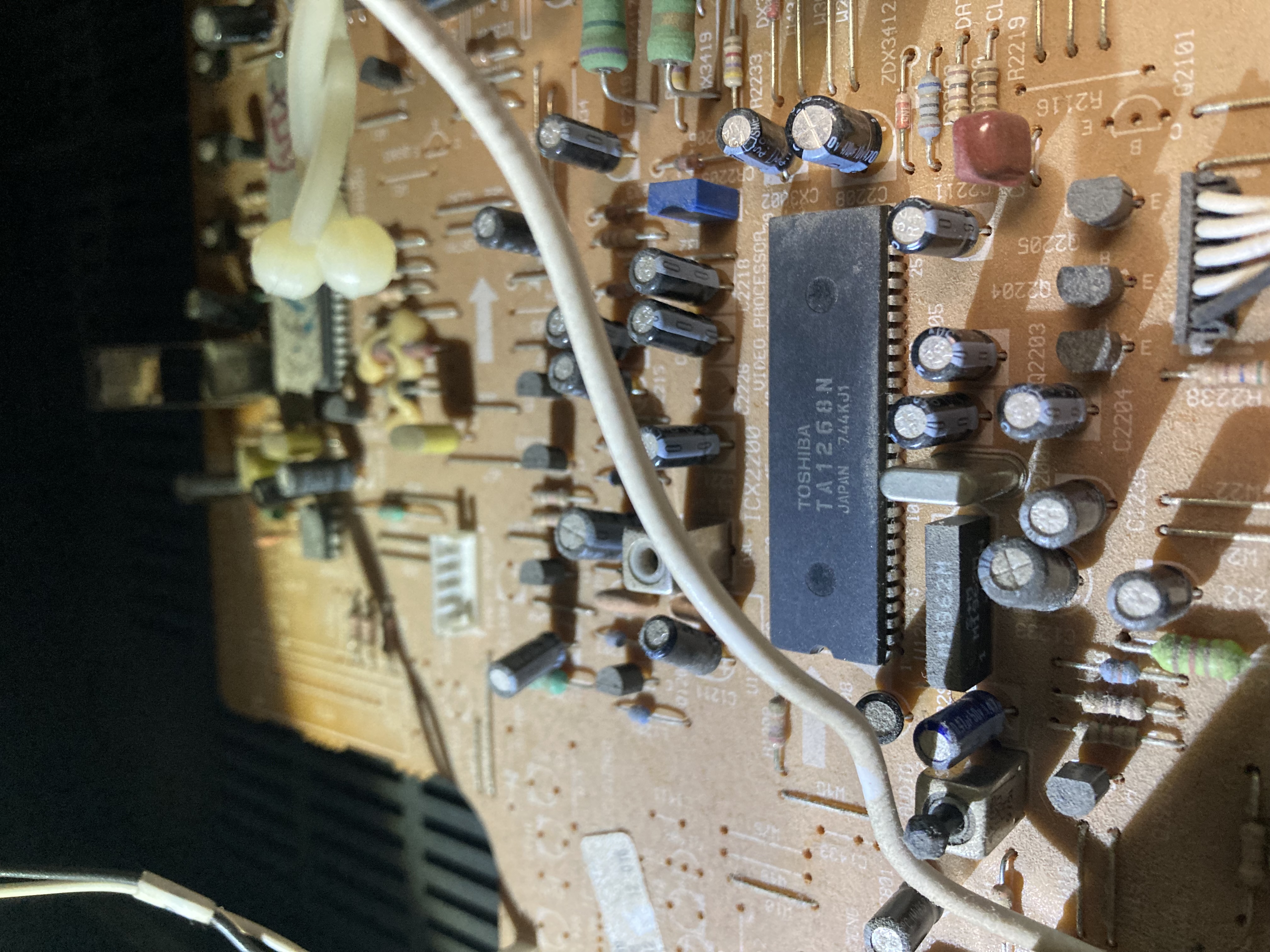

Jungle: Toshiba, TA1268N

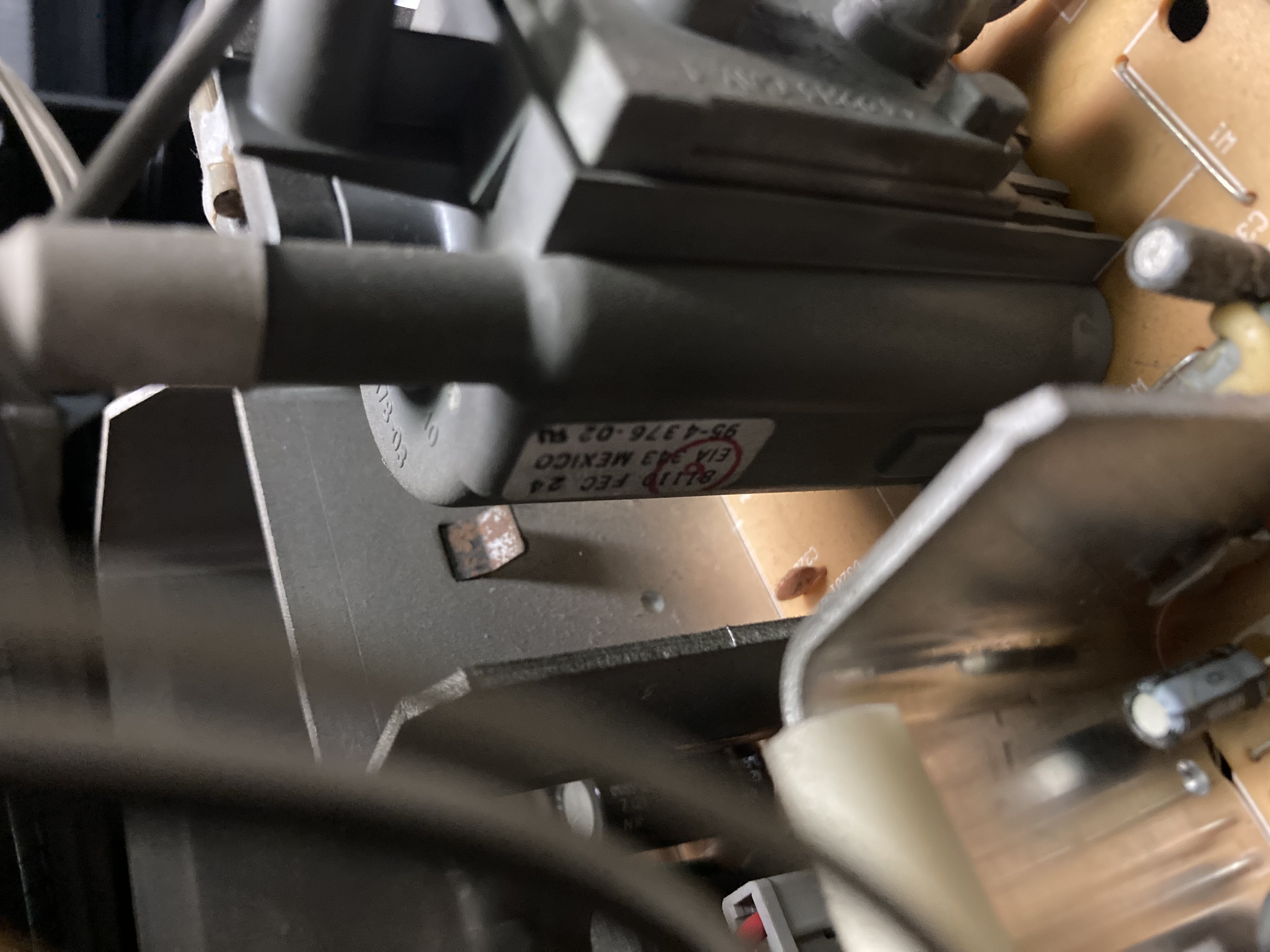

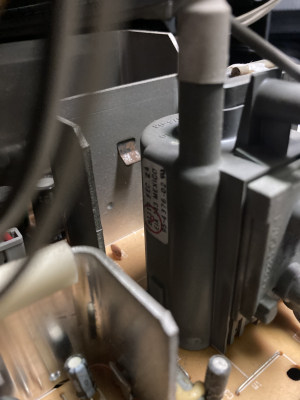

Flyback: 95-4376-02
Focus Type: Single

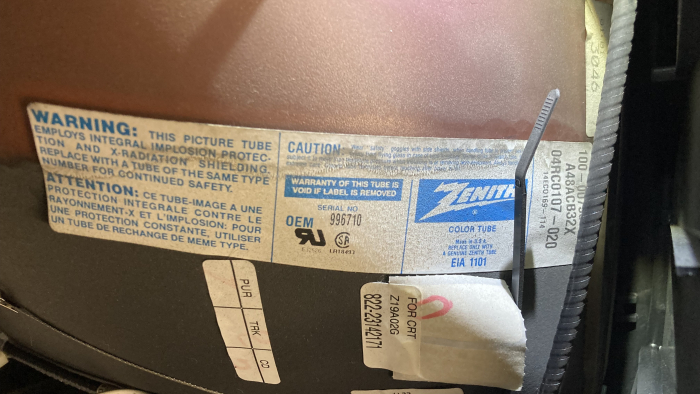

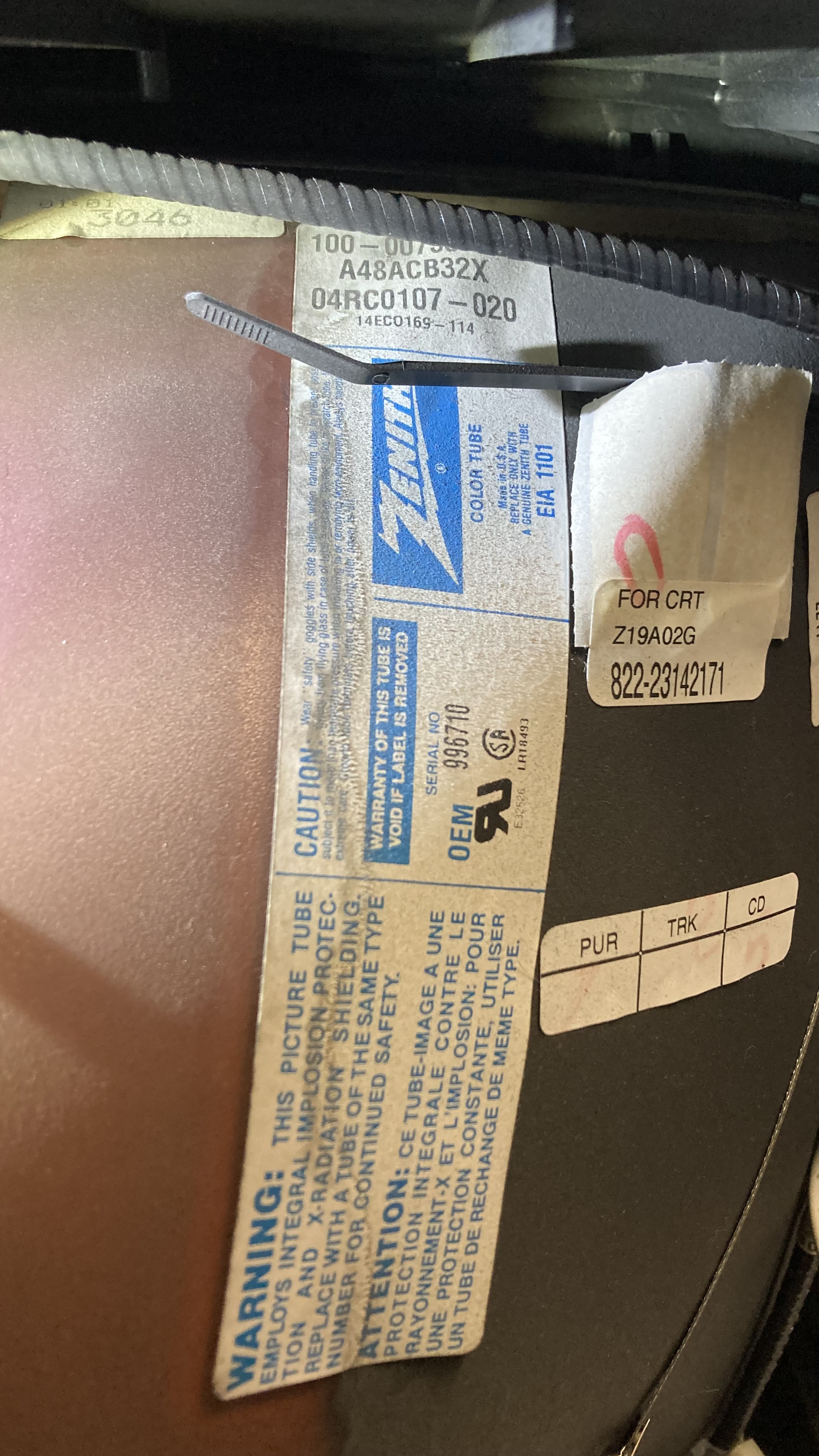

Tube: Zenith , A48ACB32X
Heater Voltage: 6.3v
Deflection: 90°
Mask: Slot
Tint: Dark
Removable Glare Film: No

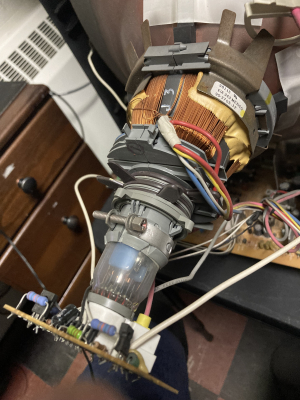

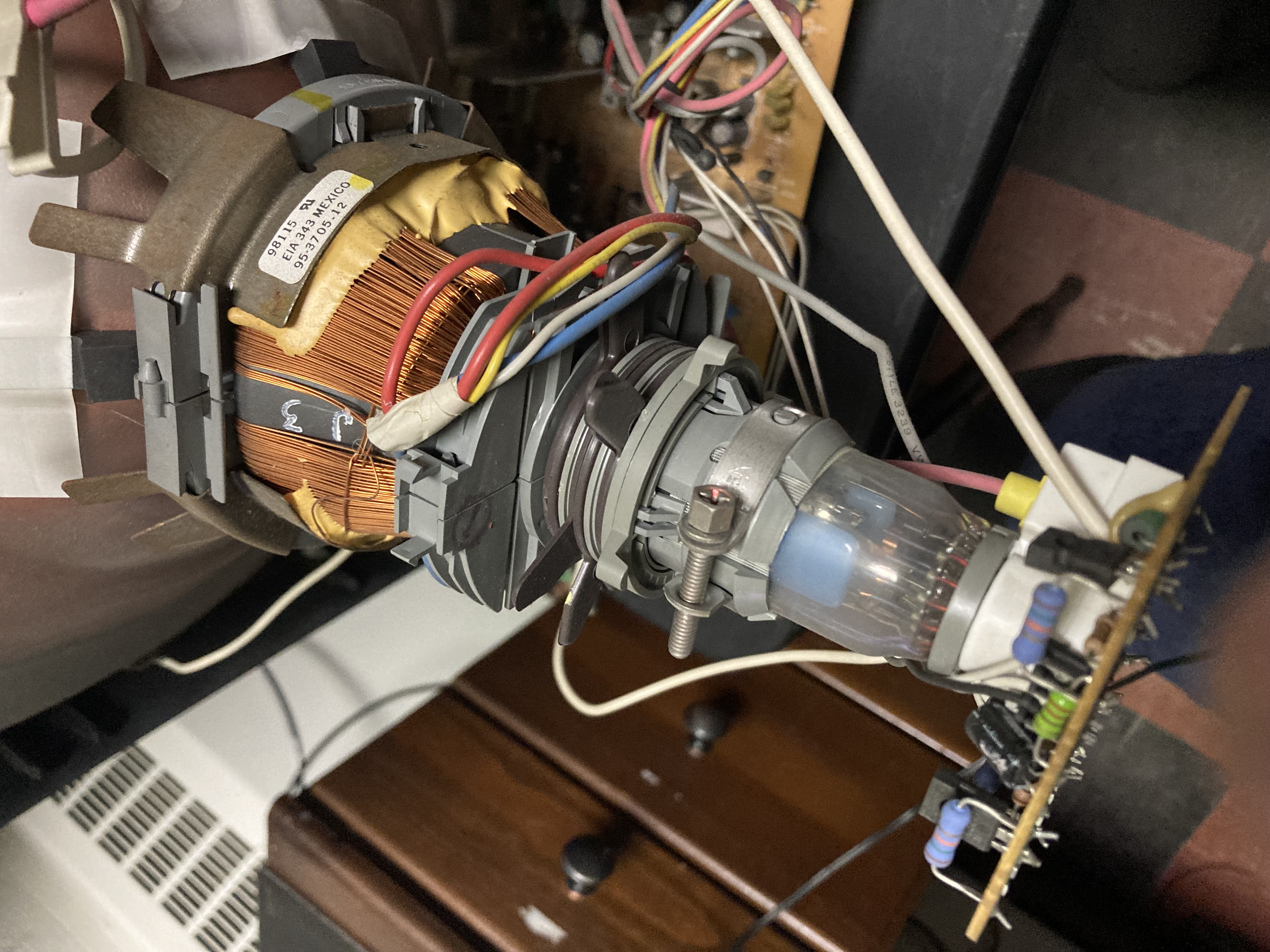

Yoke: 95-3705-12
Speakers: Mono
Remote: 6710V00108D
Application: Consumer
Cabinet Material: Plastic
Launched: 1997
MSRP: 189 USD
Country of Manufacture: Mexico
Market: North America

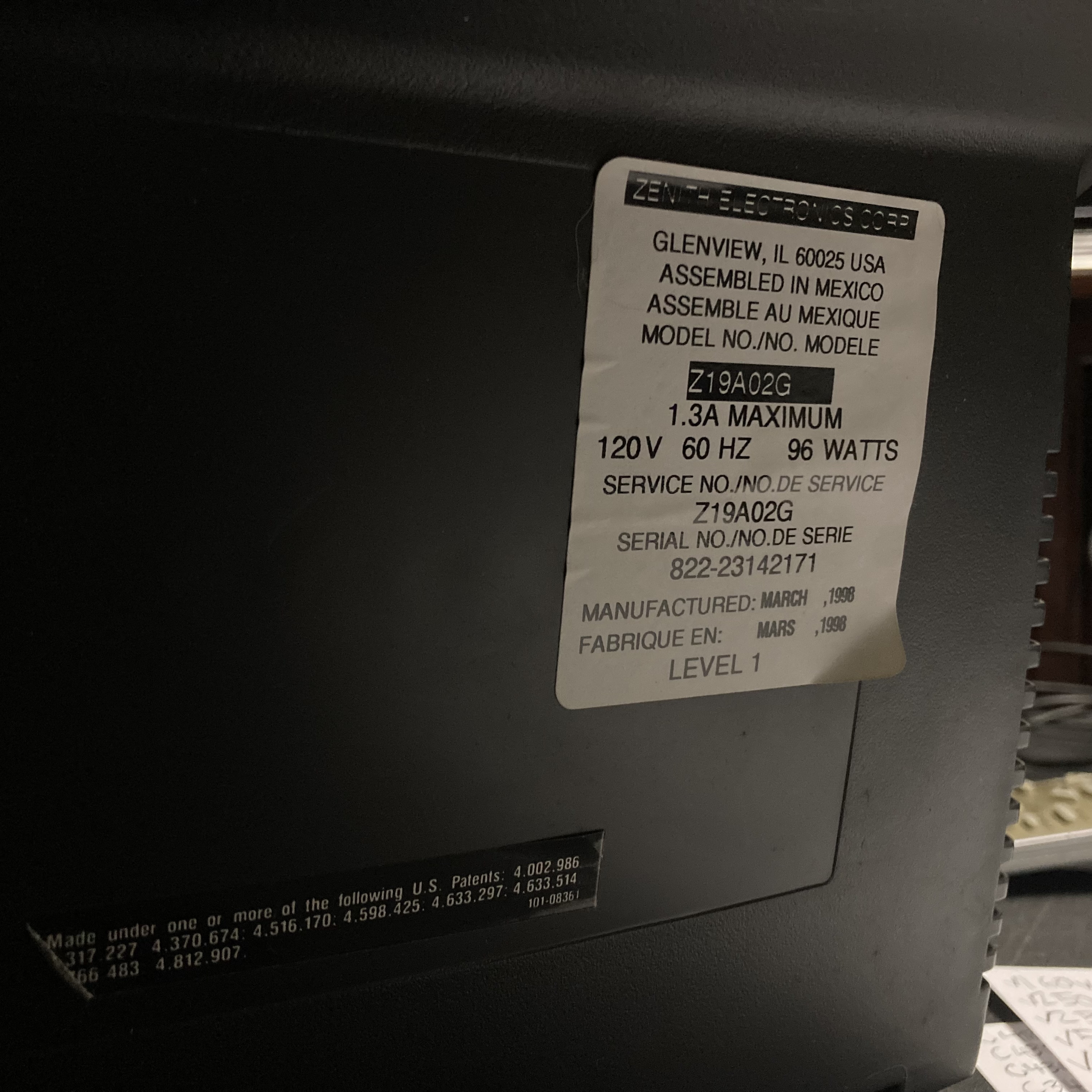

Power Standard: 120v
Mods: RGB via Mux
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual
