Zenith Z19A11S (Service No. Z19A11S)

Summary

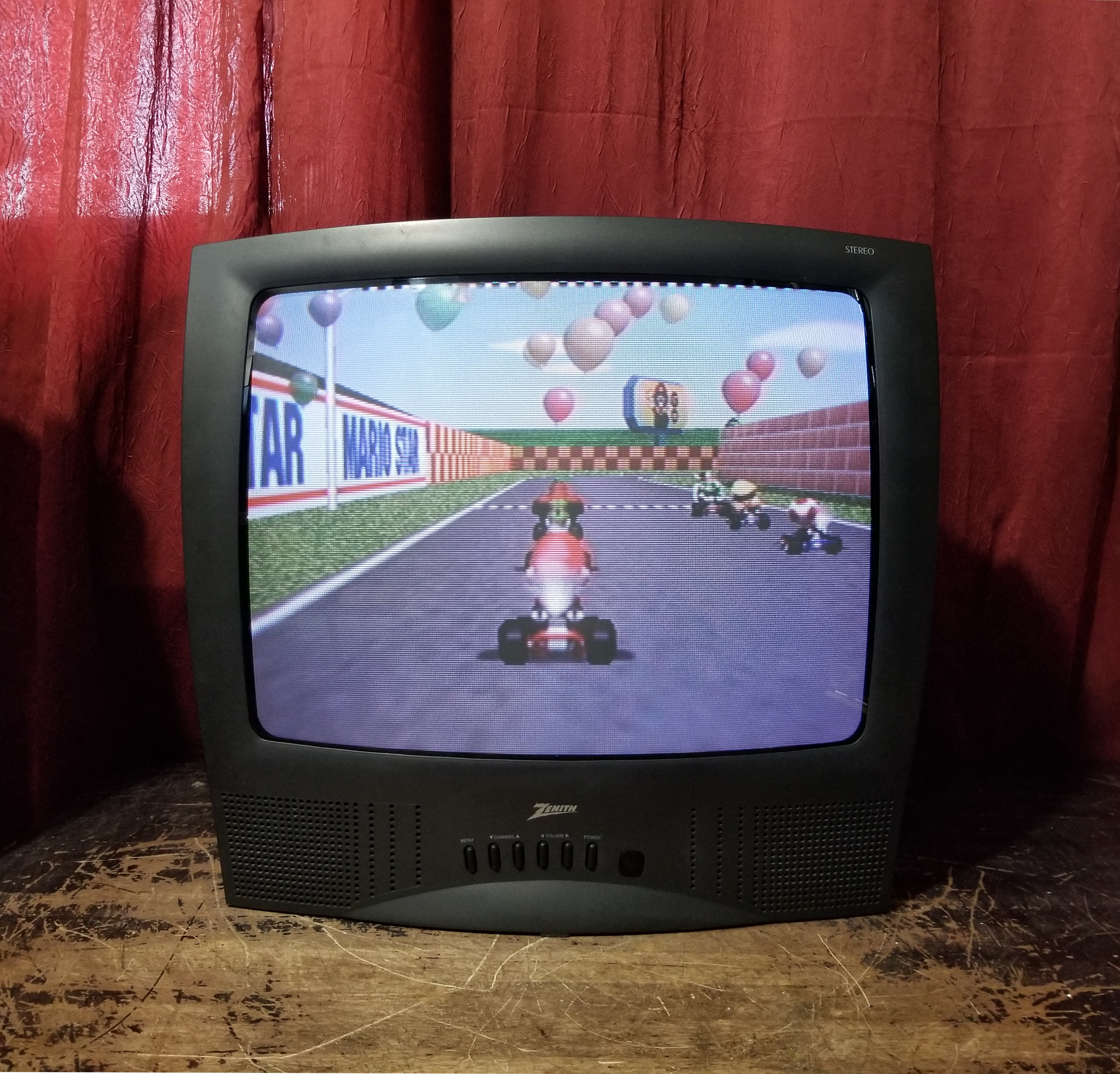

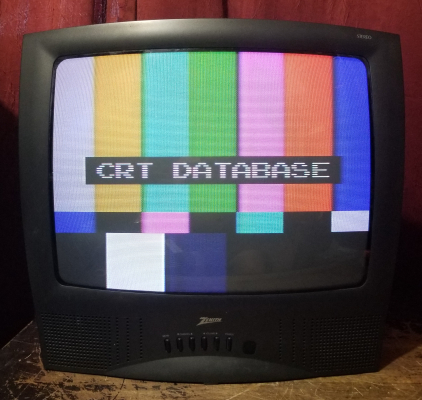

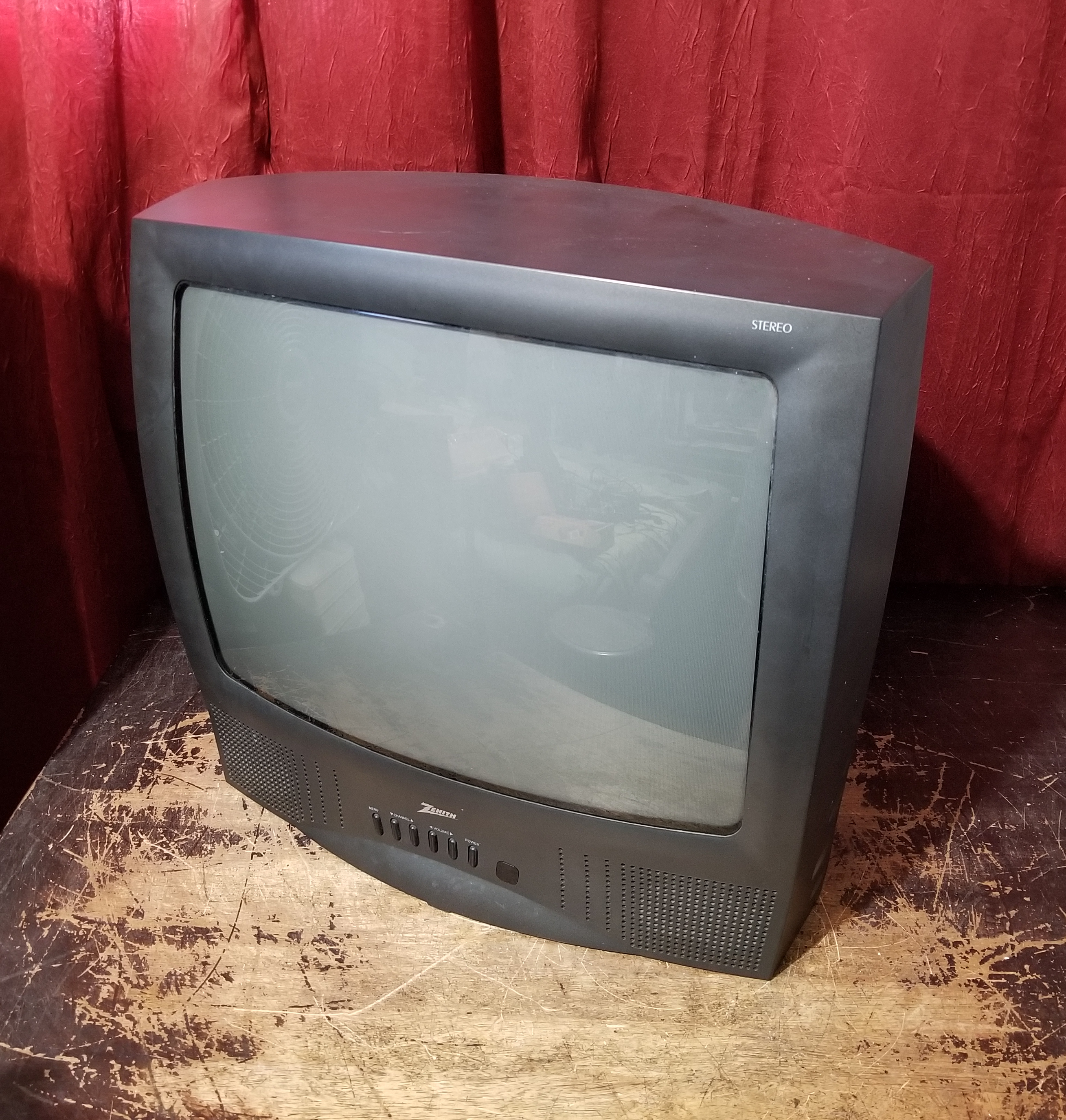

19" TV by Zenith, made in Mexico in 1997. Has RF input with stereo sound.

Manuals

Media & Promo Materials

Gallery

Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S) Zenith Z19A11S (Service No. Z19A11S)
Specifications
Brand: Zenith
Manufacturer: Zenith
Model: Z19A11S
Series: Sentry 2
Viewable Size: 19"
Input Signals: RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu
Comb Filtering: Notch

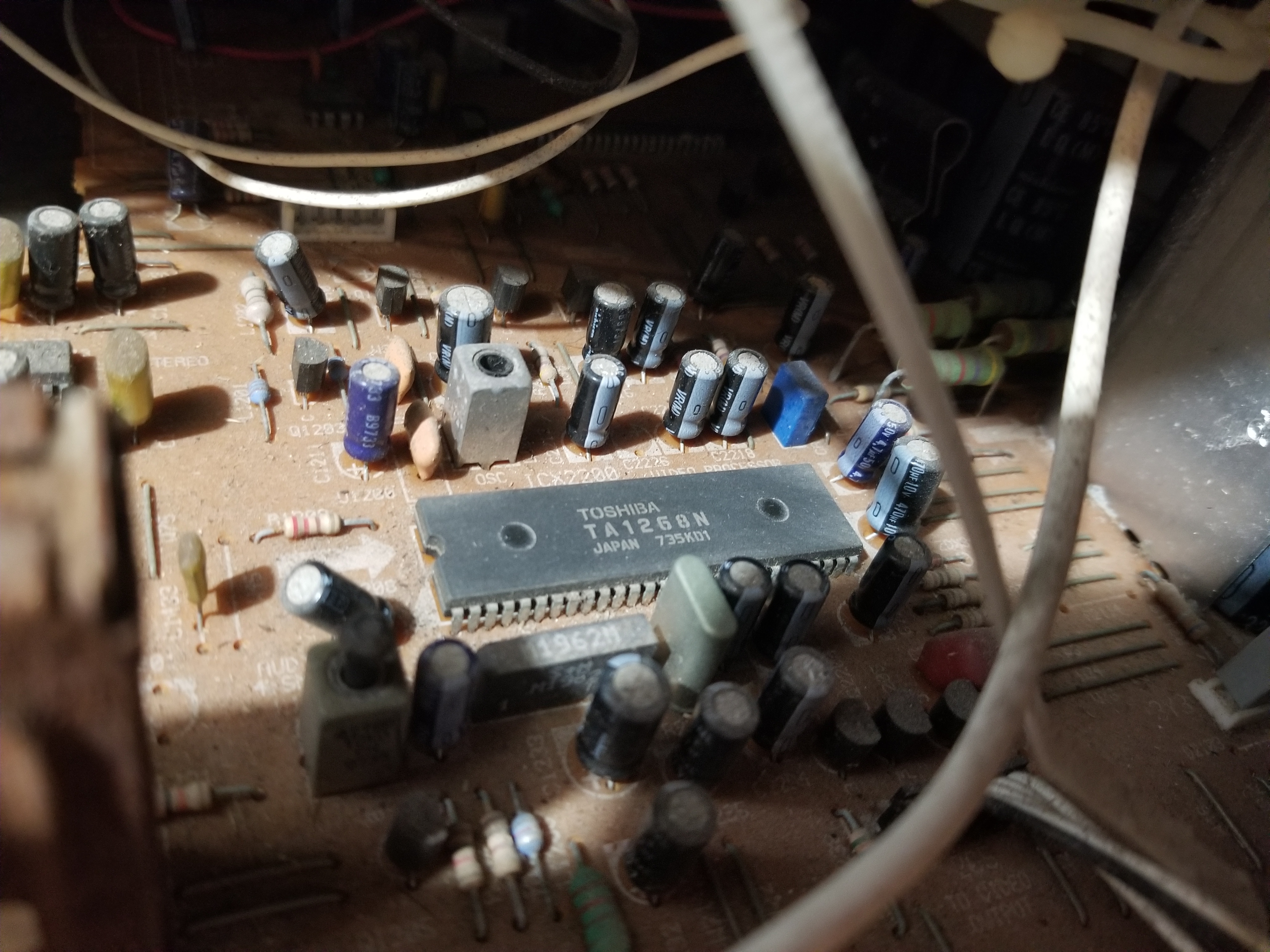

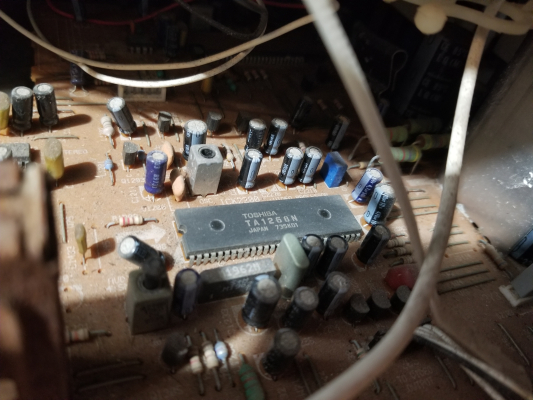

Jungle IC: Toshiba, TA1268N

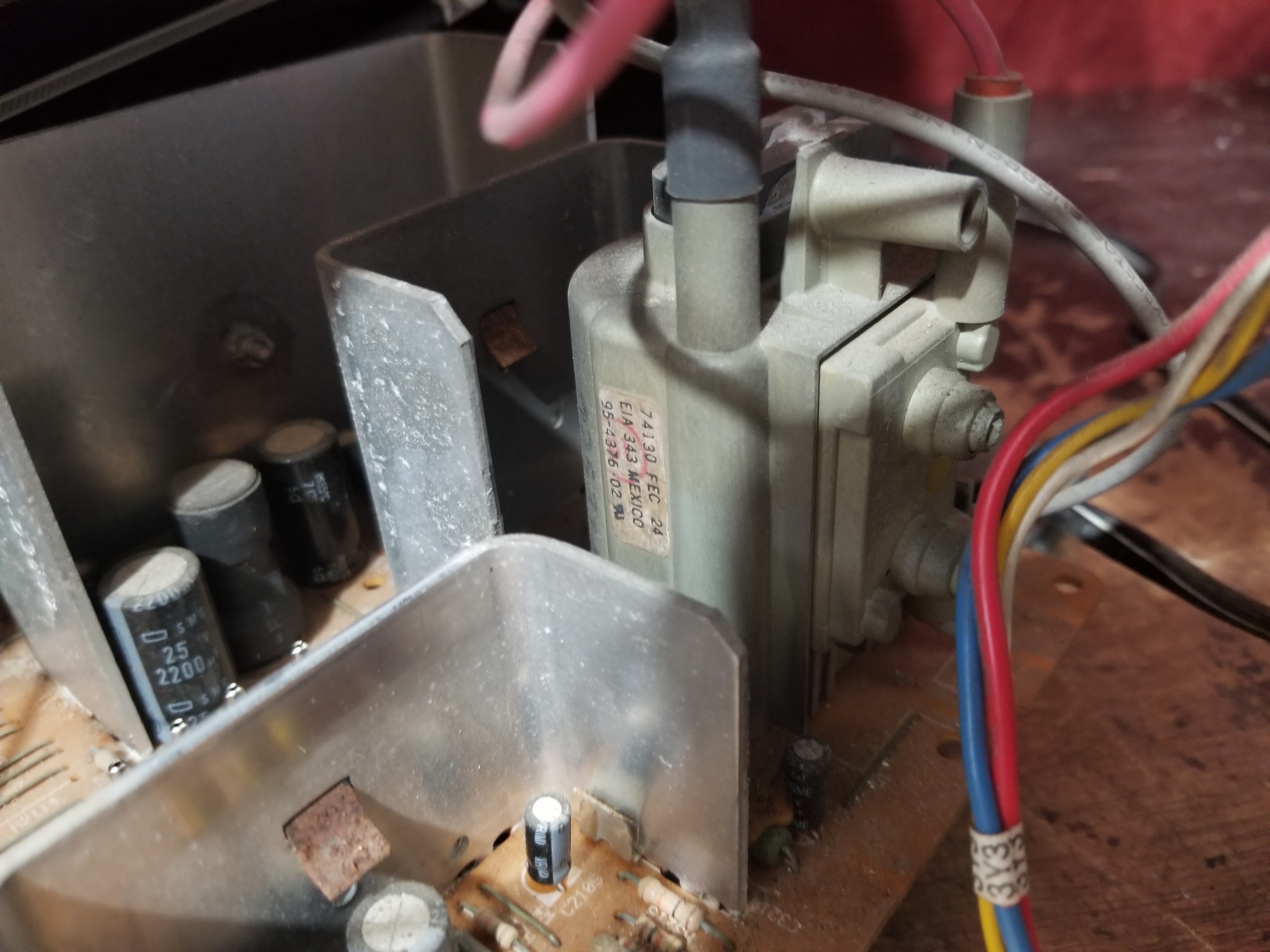

Flyback: 95-4376-02
Focus Type: Single

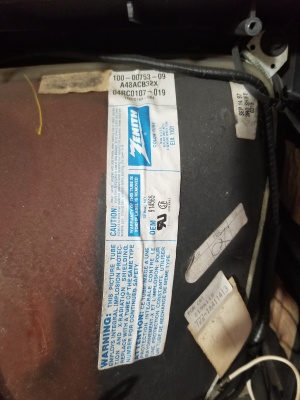

Tube: Zenith , ChromaSharp , A48ACB32X
Heater Voltage: 6.3v
Deflection: 90°
Mask: Slot
Tint: Dark
Removable Glare Film: No

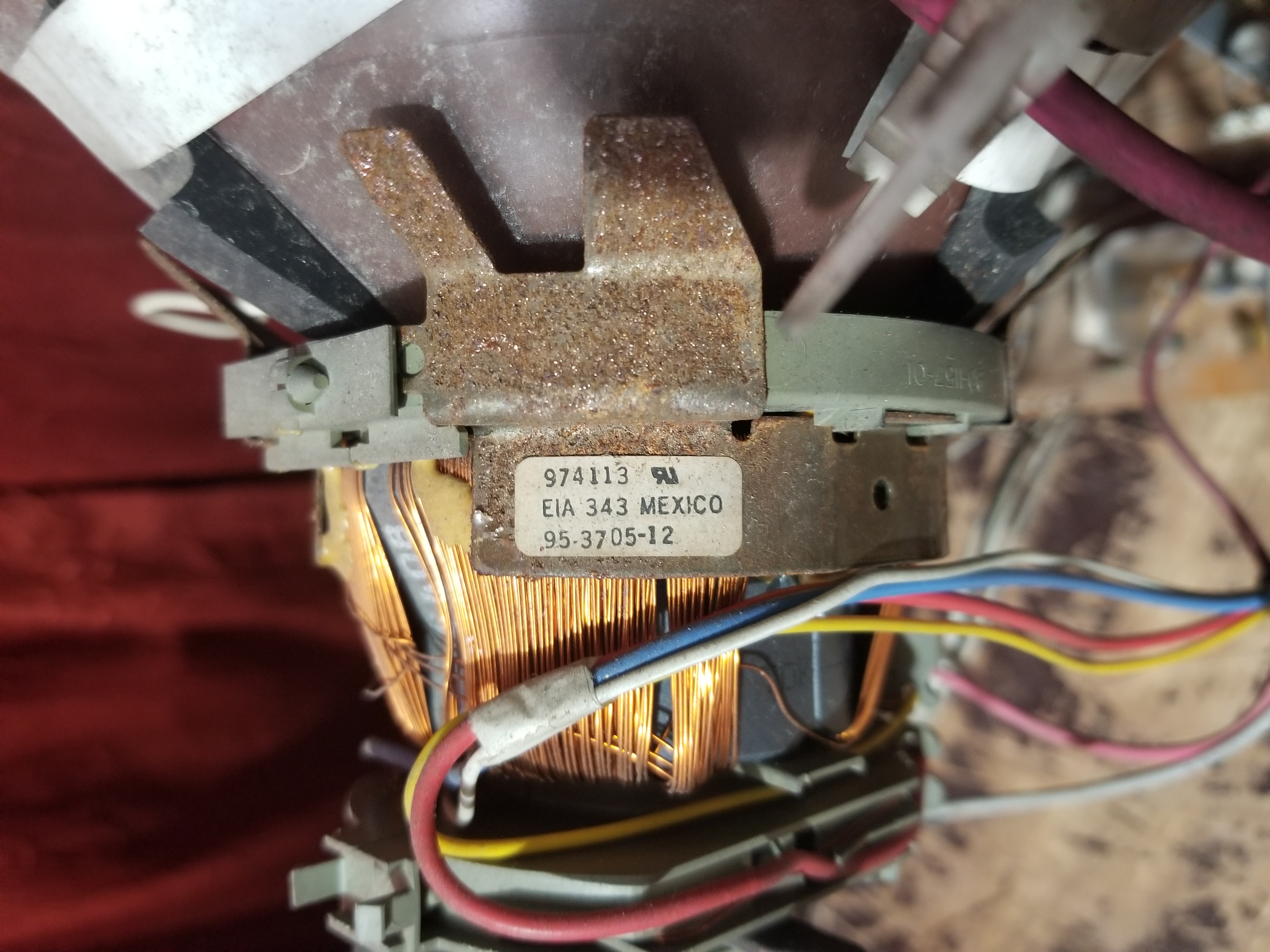

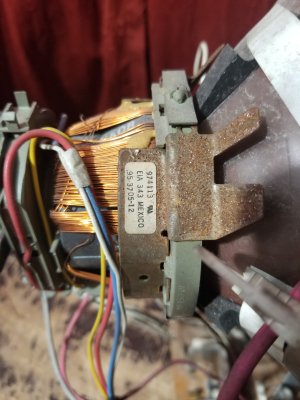

Yoke: 95-3705-12
Yoke Horz. Inductance: 2.651 mH (@ 10 kHz)
Yoke Vert. Inductance: 20.32 mH (@ 100 Hz)
Yoke Horz. Resistance: 2.9 ohm
Yoke Vert. Resistance: 8.5 ohm
Speakers: Stereo, 1.5W x 2
Remote: SC3492
Chassis: CA
Application: Consumer
Cabinet Material: Plastic
Launched: 1997
MSRP: 219 USD
Country of Manufacture: Mexico
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Service Manual, Needs Measurements
