Summary

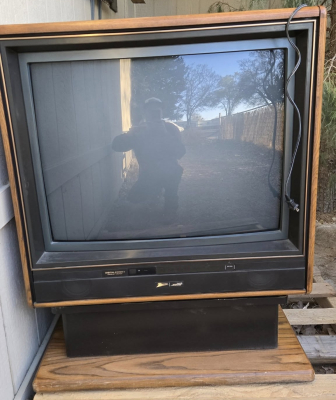

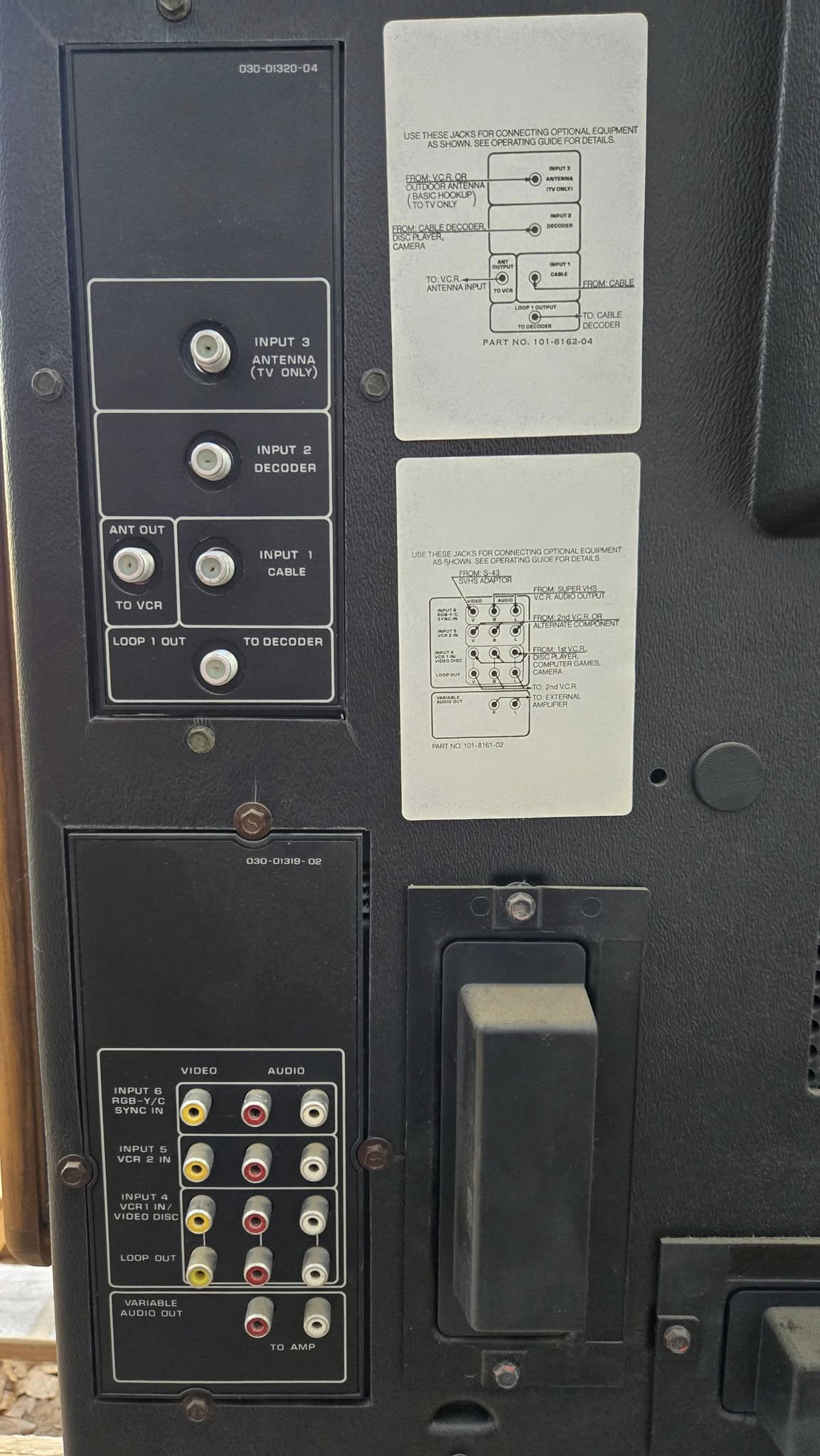

Higher-end 31" color TV from Zenith, part of their collaboration period to use Bose speakers. Features multiple RF and composite inputs. Made at Zenith's Mexican facility in 1988.
Literature
(None at this time.)
Notes
Picture tube is by Panasonic, made in Japan. (Zenith never made tubes larger than 27".)

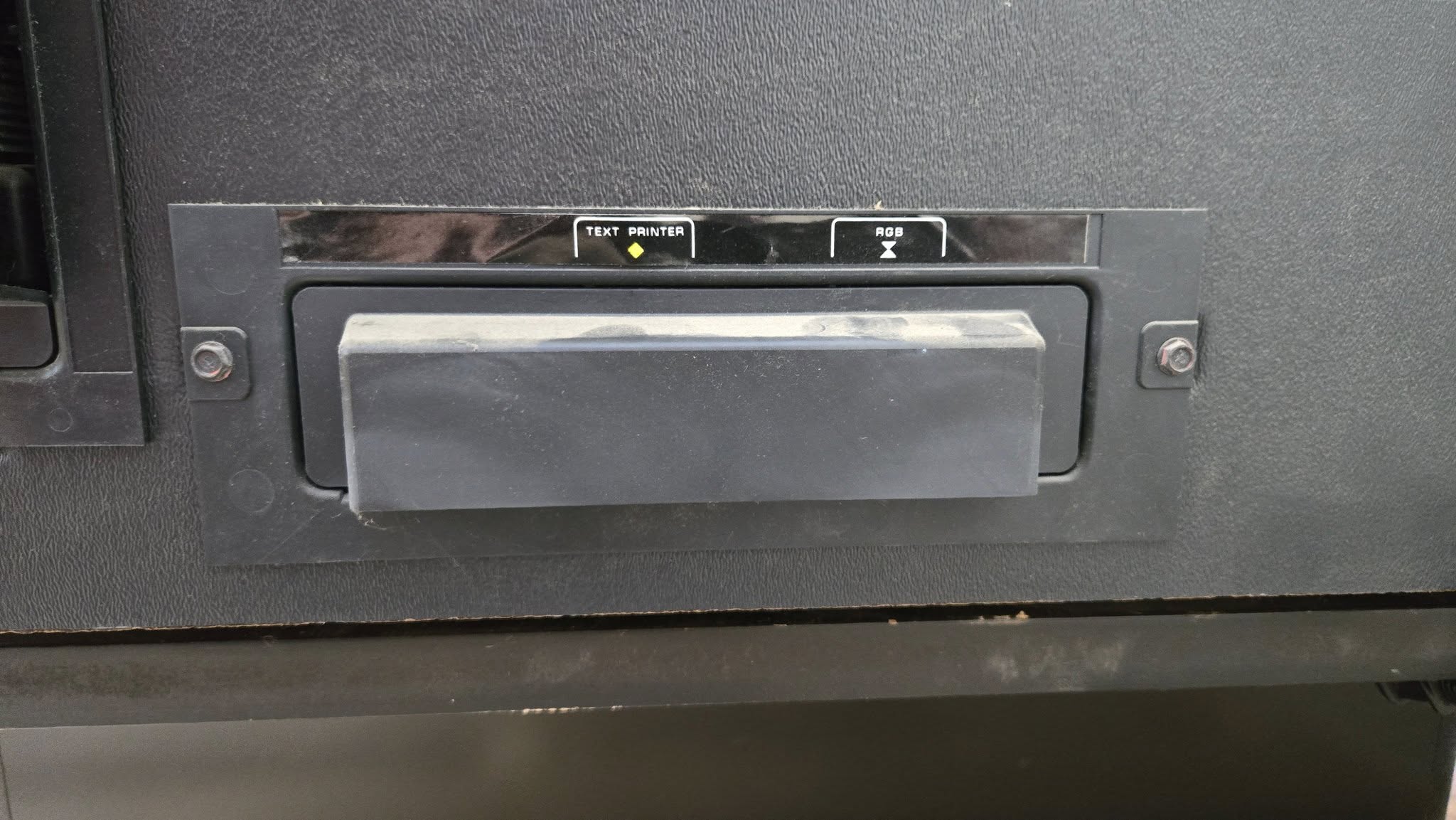

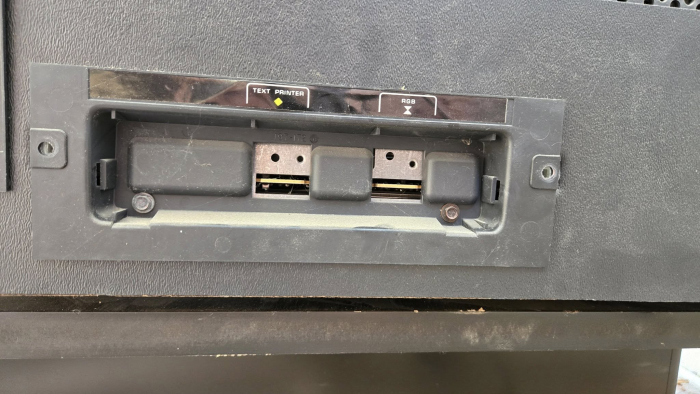

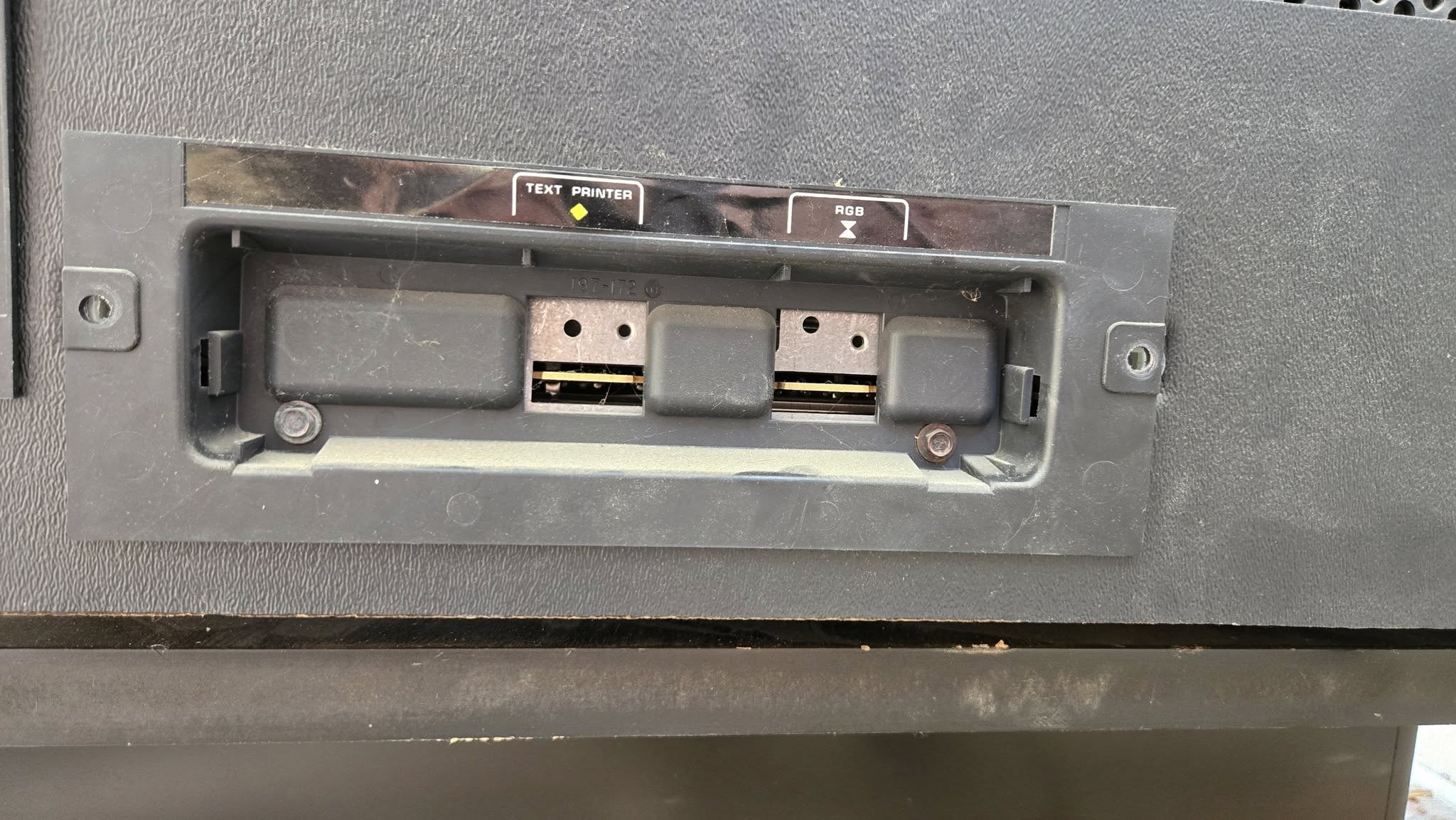

There is an expansion port for analog RGB that can be utilized with a custom cable or soldering wires directly on.

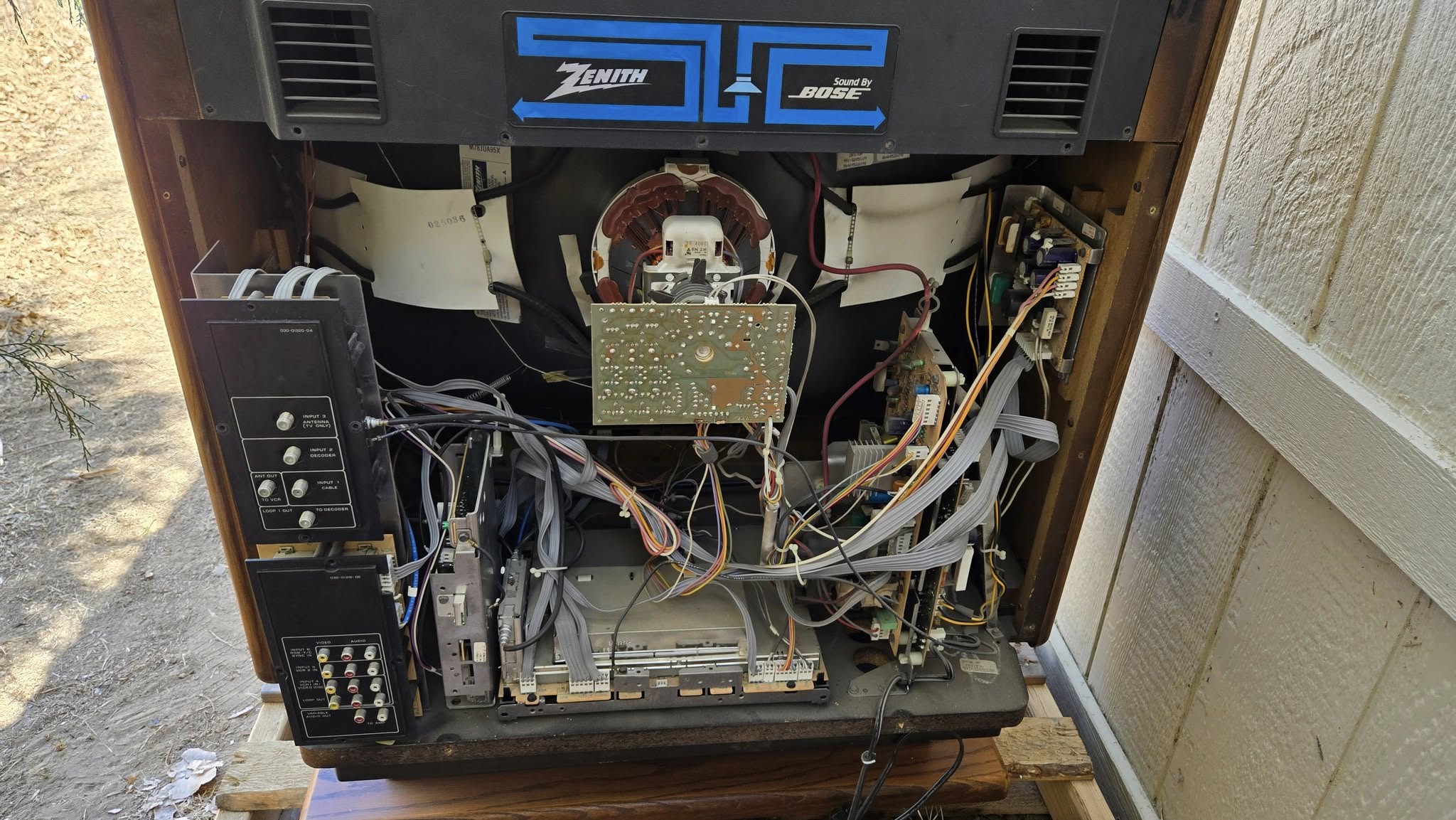

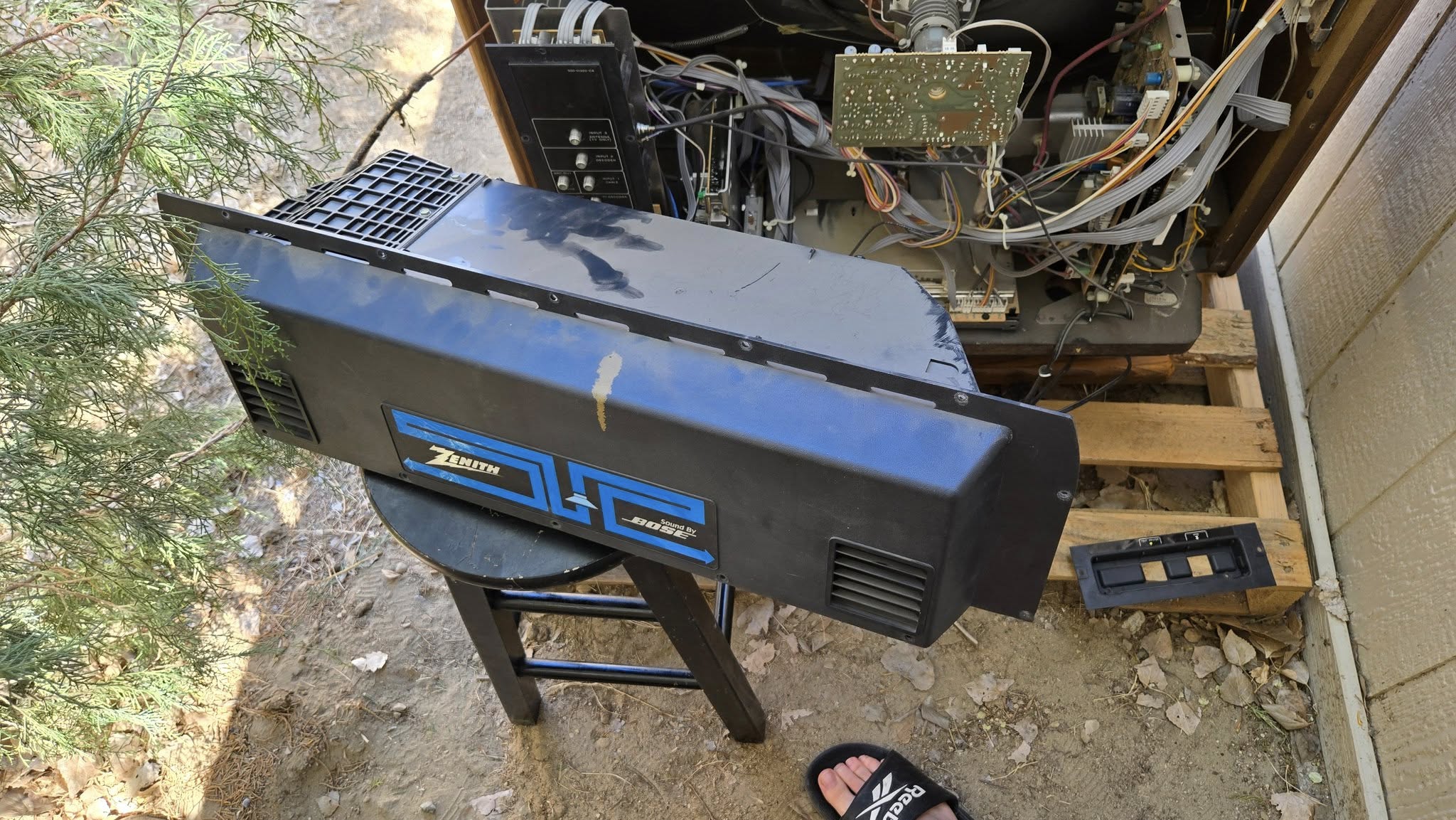

Speakers are by Bose.
Gallery












Specifications | |
---|---|
Brand: | Zenith |
Manufacturer: | Zenith |
Model: | ZB3193H |
Series: | ZB |
Viewable Size: | 31" |

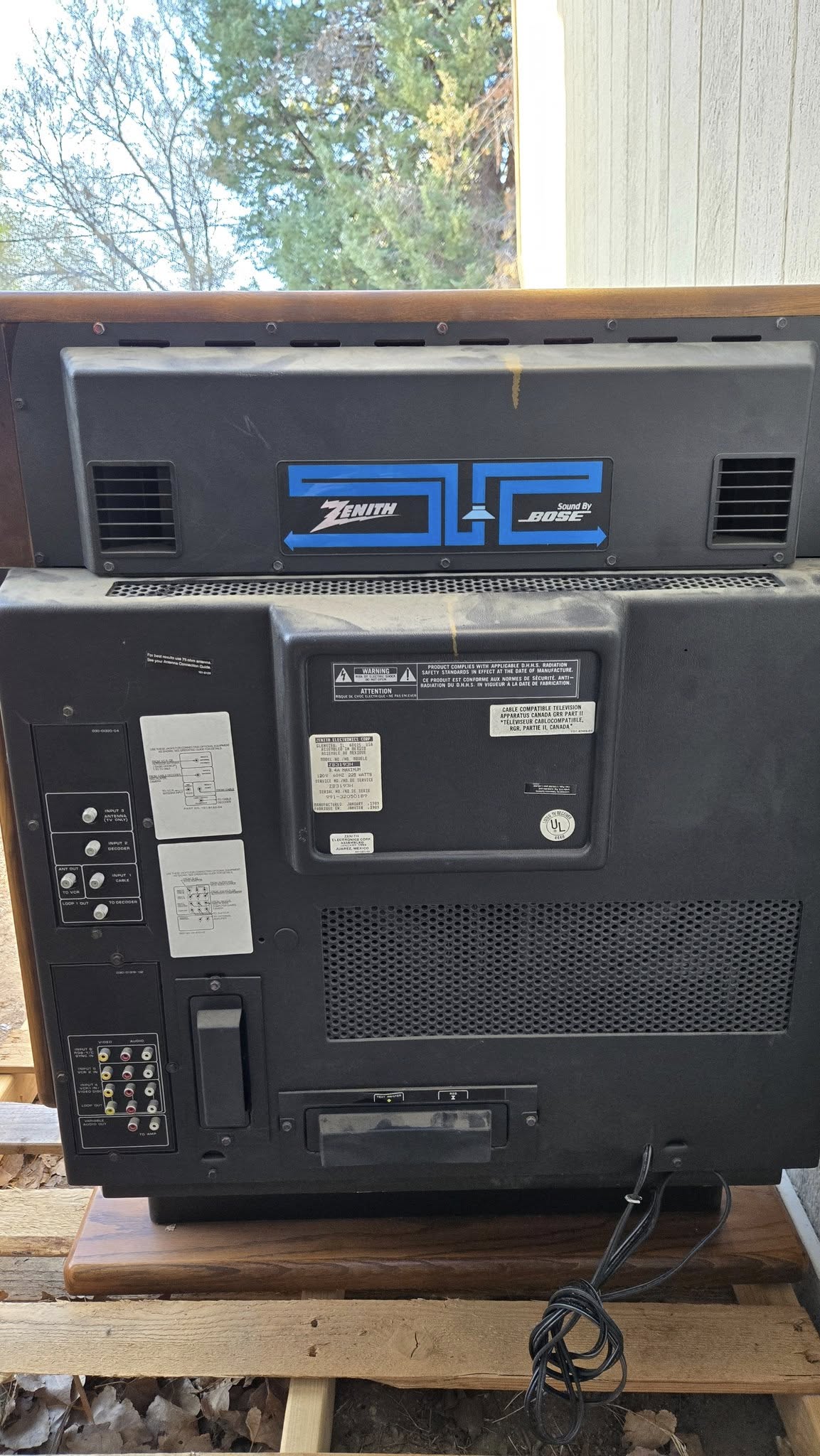

Inputs: | Composite, RF, RGB |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Focus Type: | Single |

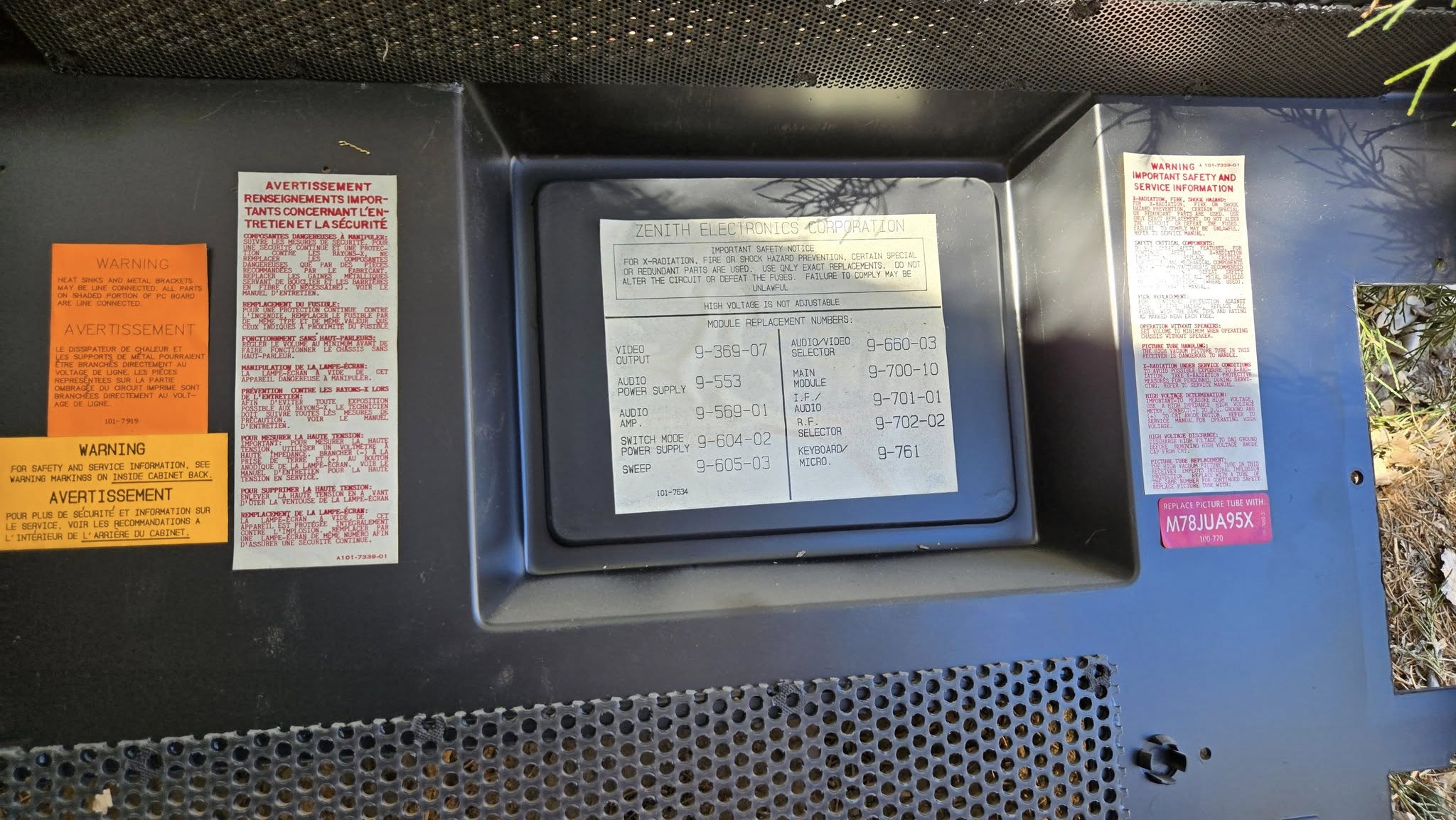

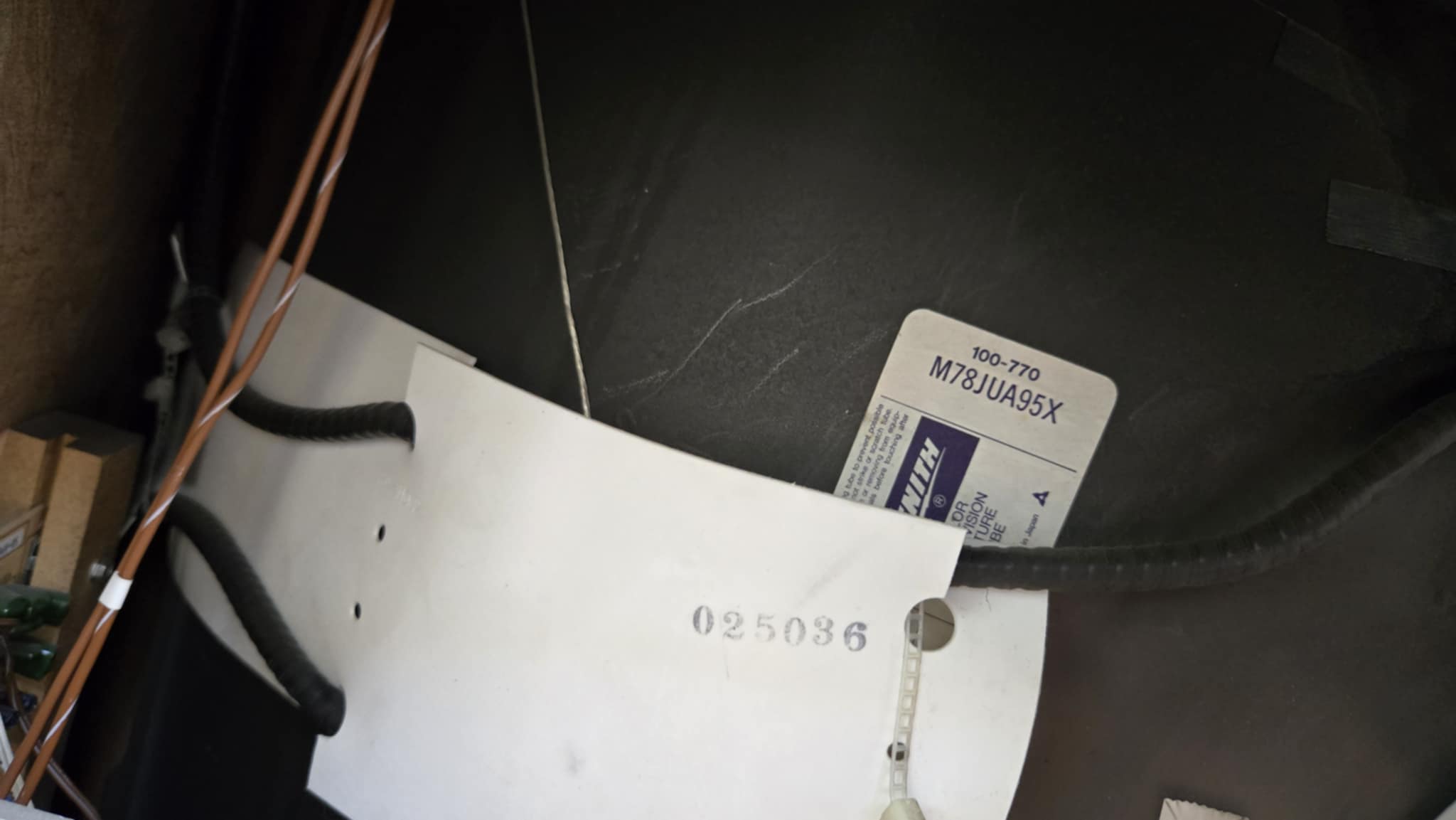

Tube: | Panasonic , M78JUA95X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

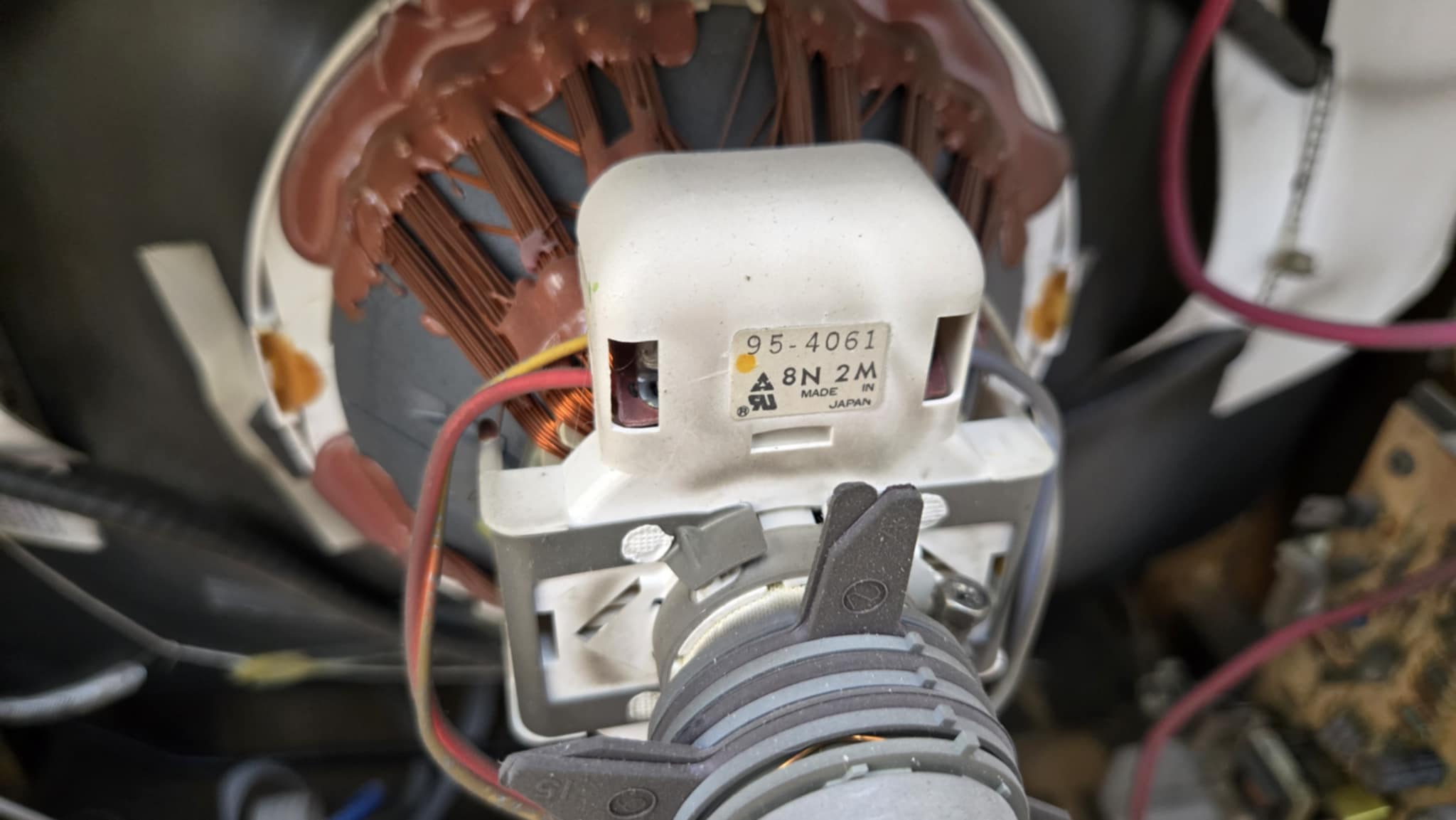

Yoke: | 95-4061 |
Speakers: | Stereo |
Application: | Consumer |
Cabinet Material: | Plastic, Simulated Woodgrain |
Launched: | 1988 |

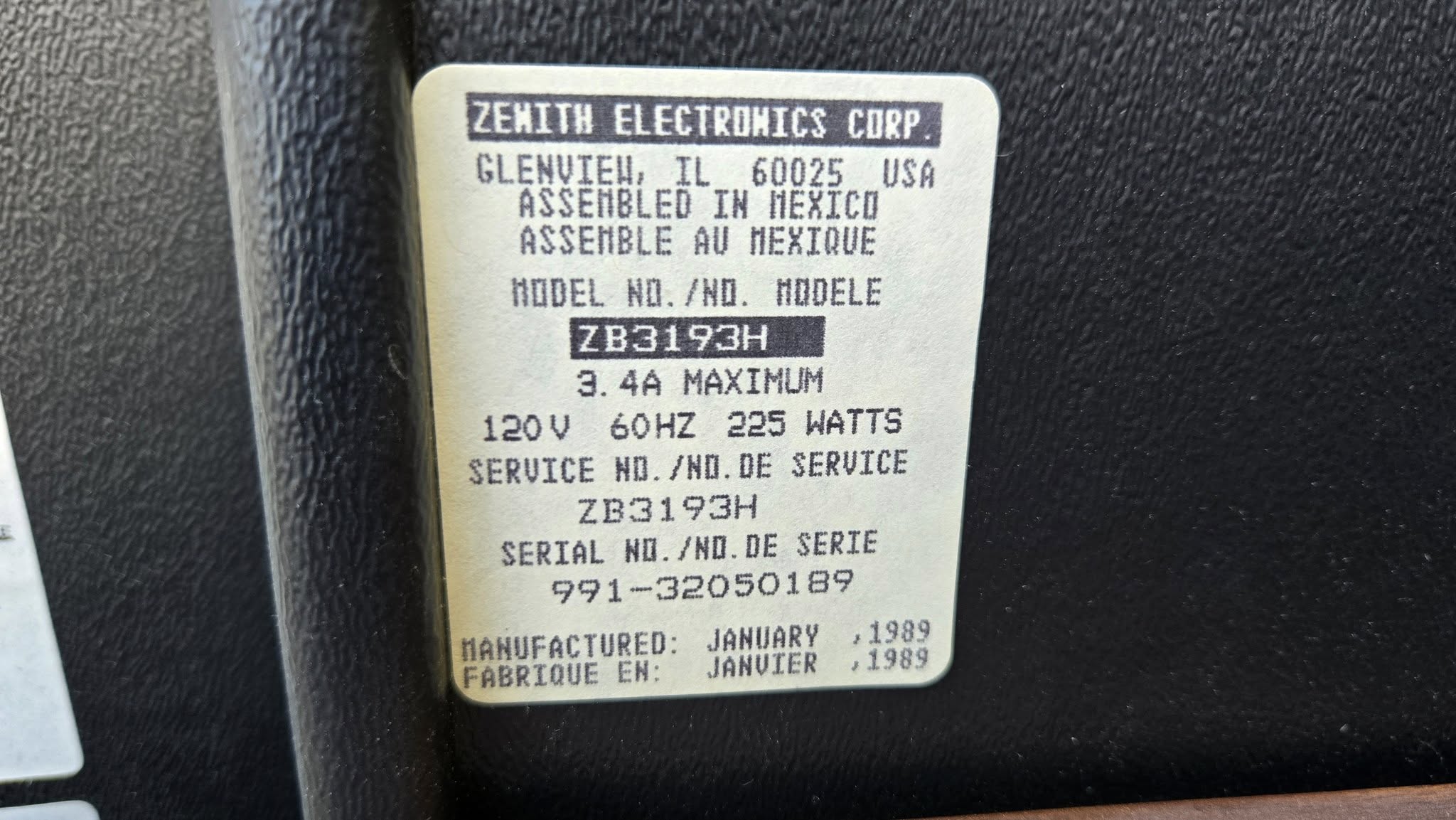

Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
