Summary

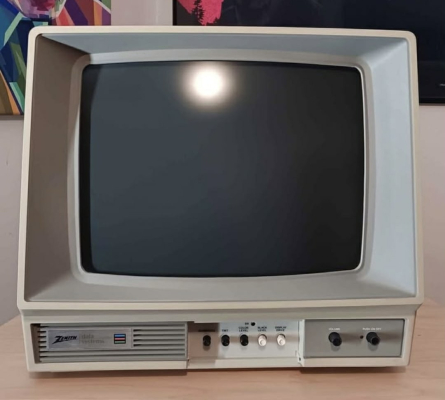

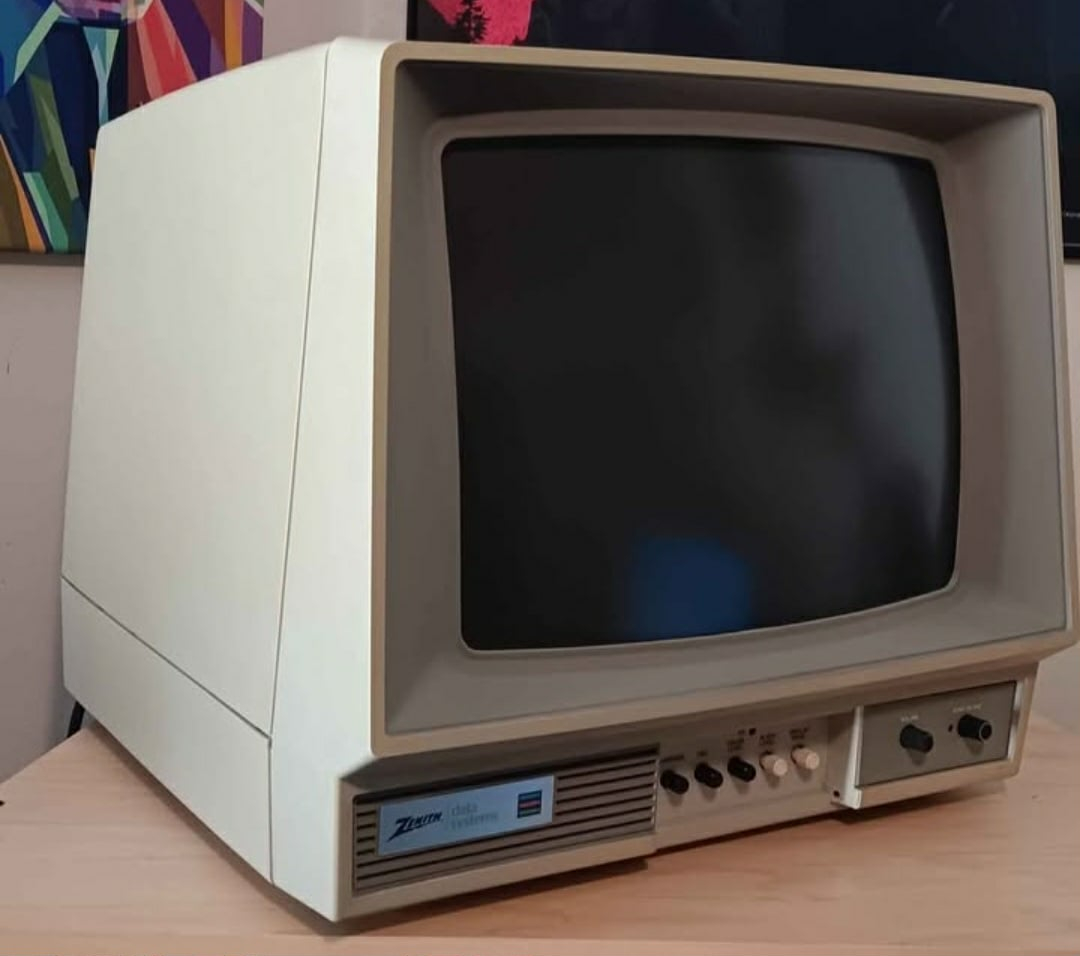

13" color graphics computer monitor by Zenith, made in the USA in 1983. Originally intended for computers with composite input like the Commodore 64 as well as analog RGB like the Zenith's own Z-100.
Manual
Notes
For more information on the ZVM series of monitors, and how to make your own RGB adapter cable for this monitor, check out this website HERE

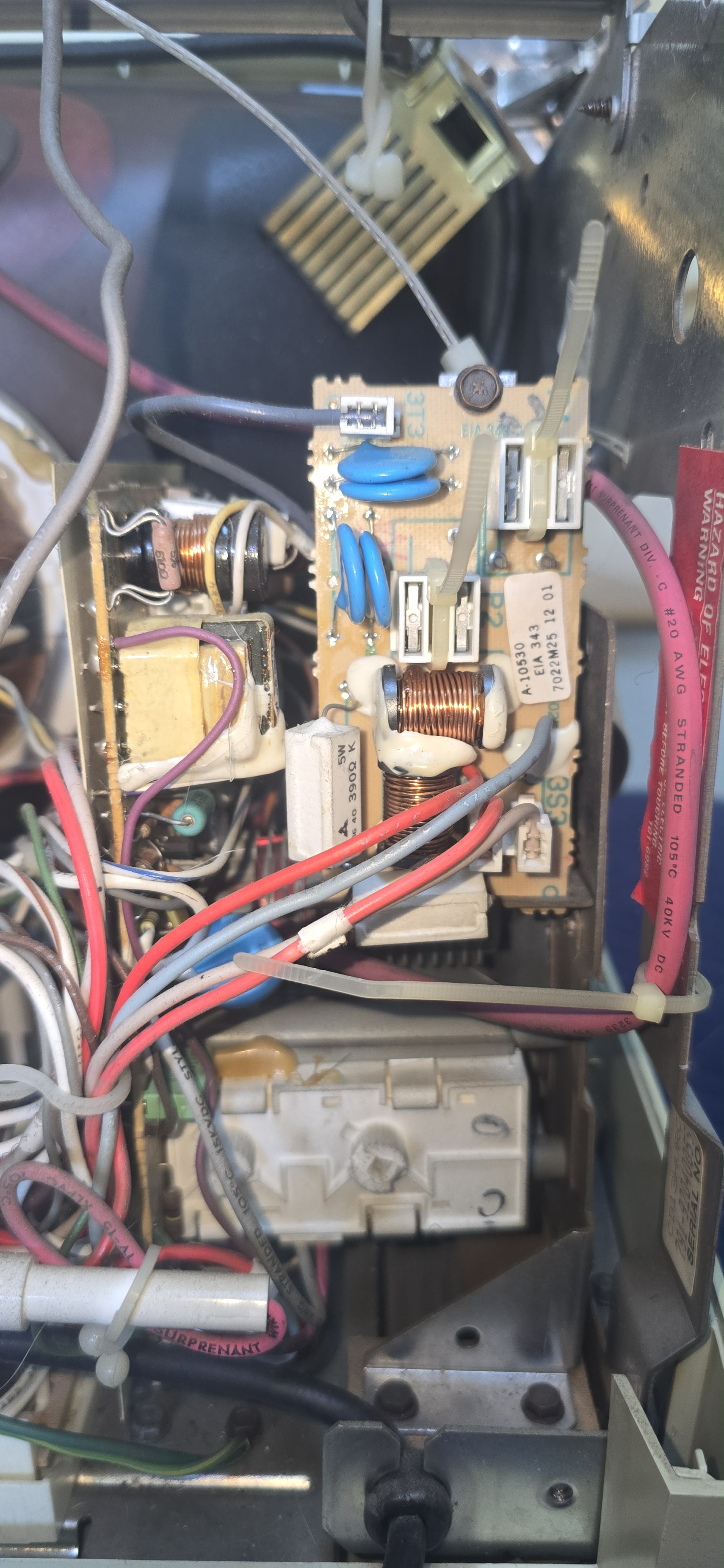

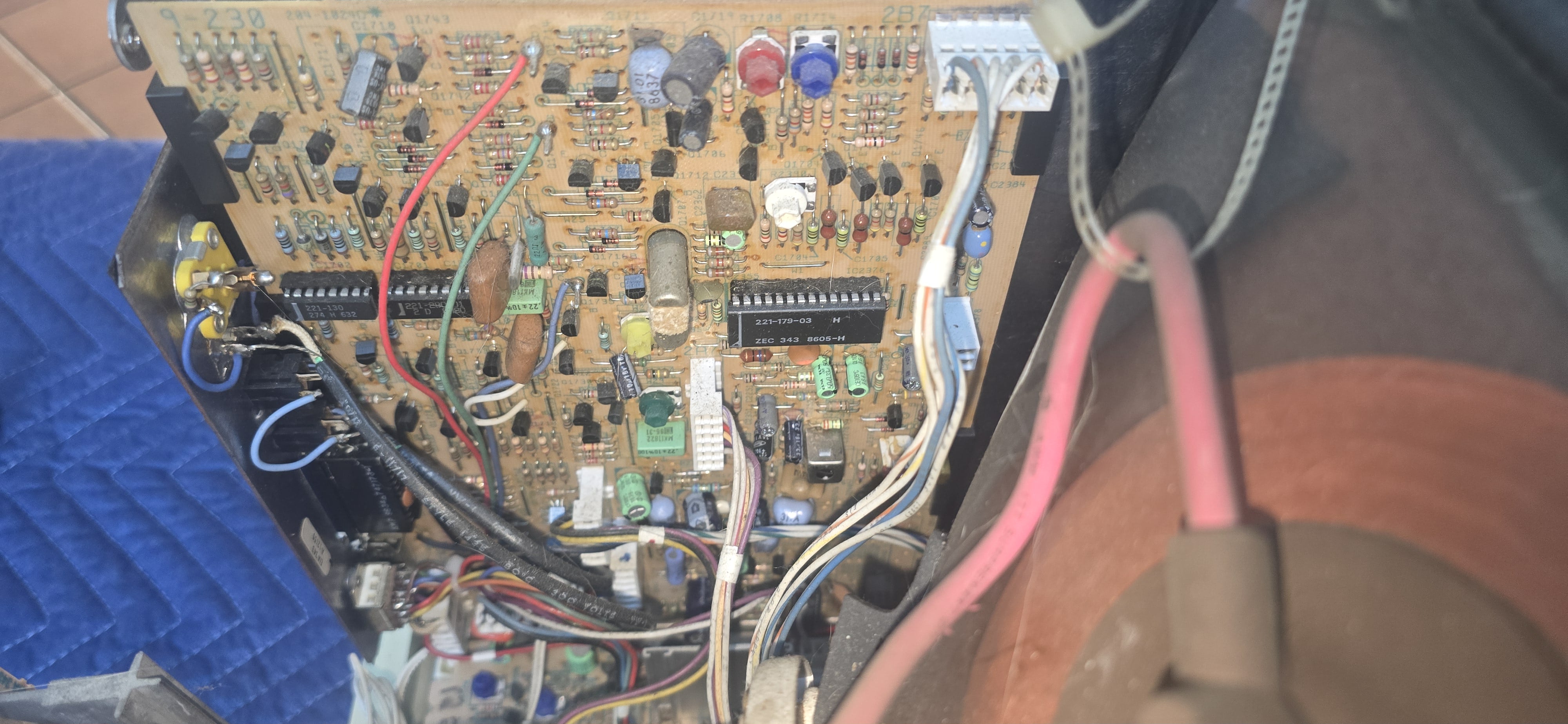

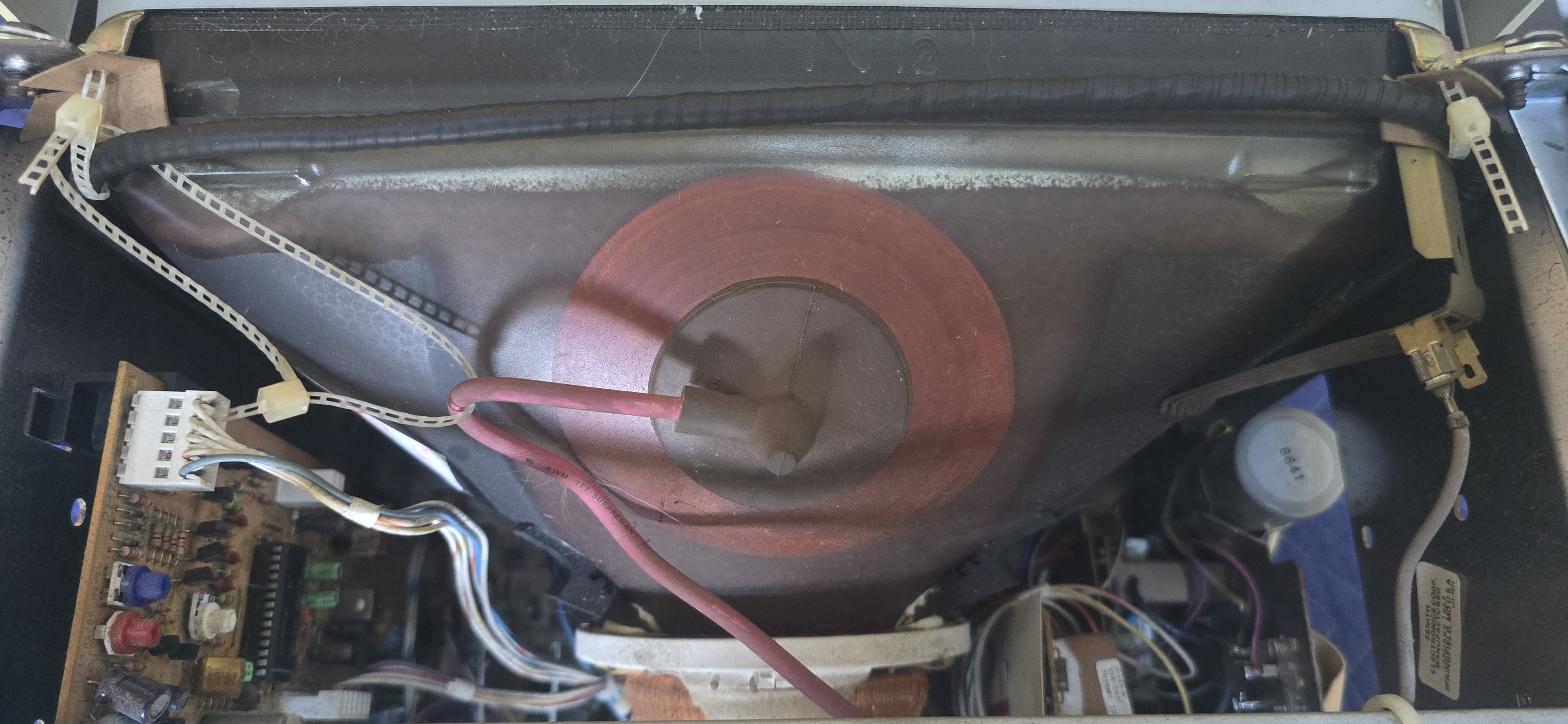

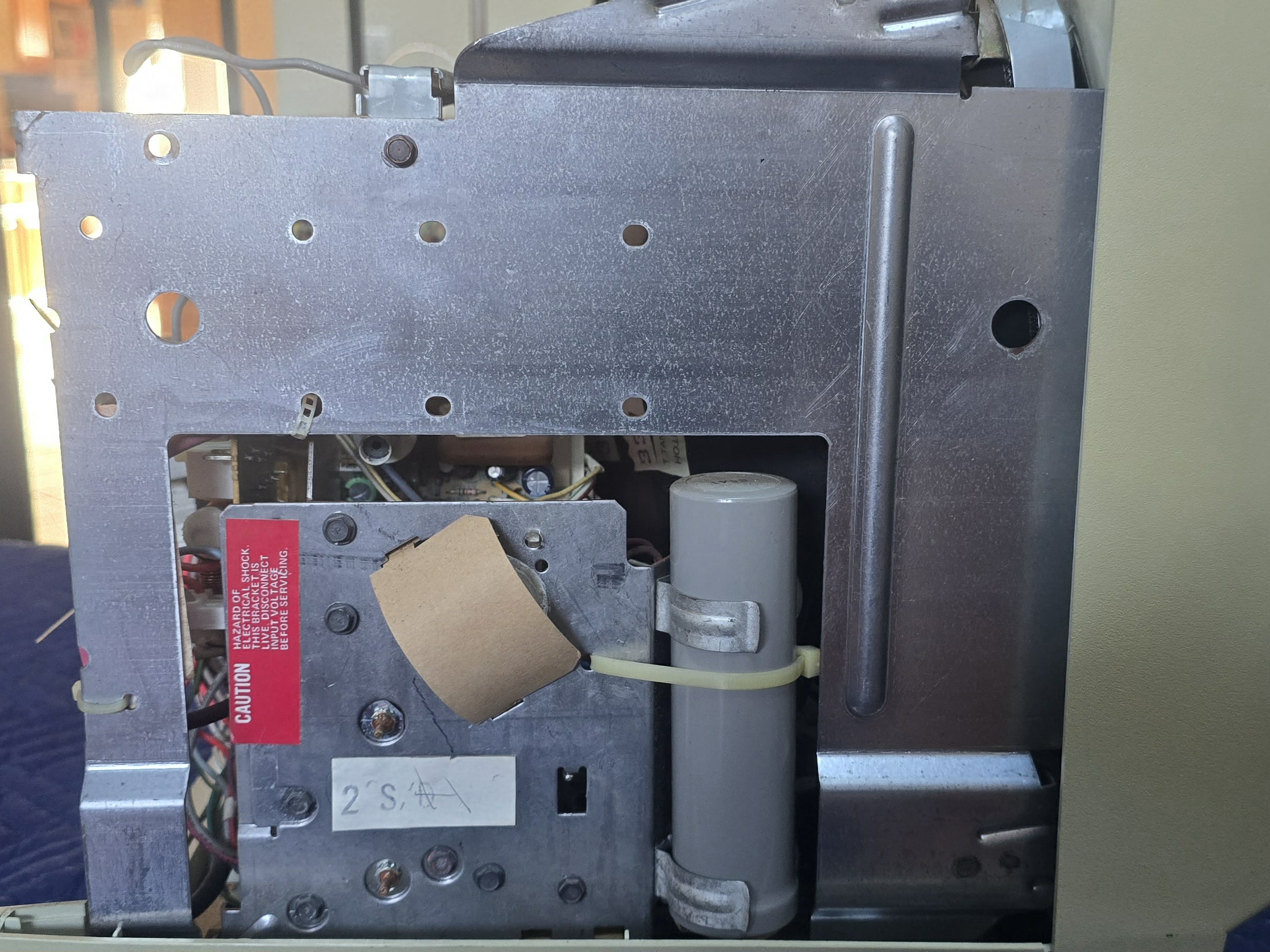

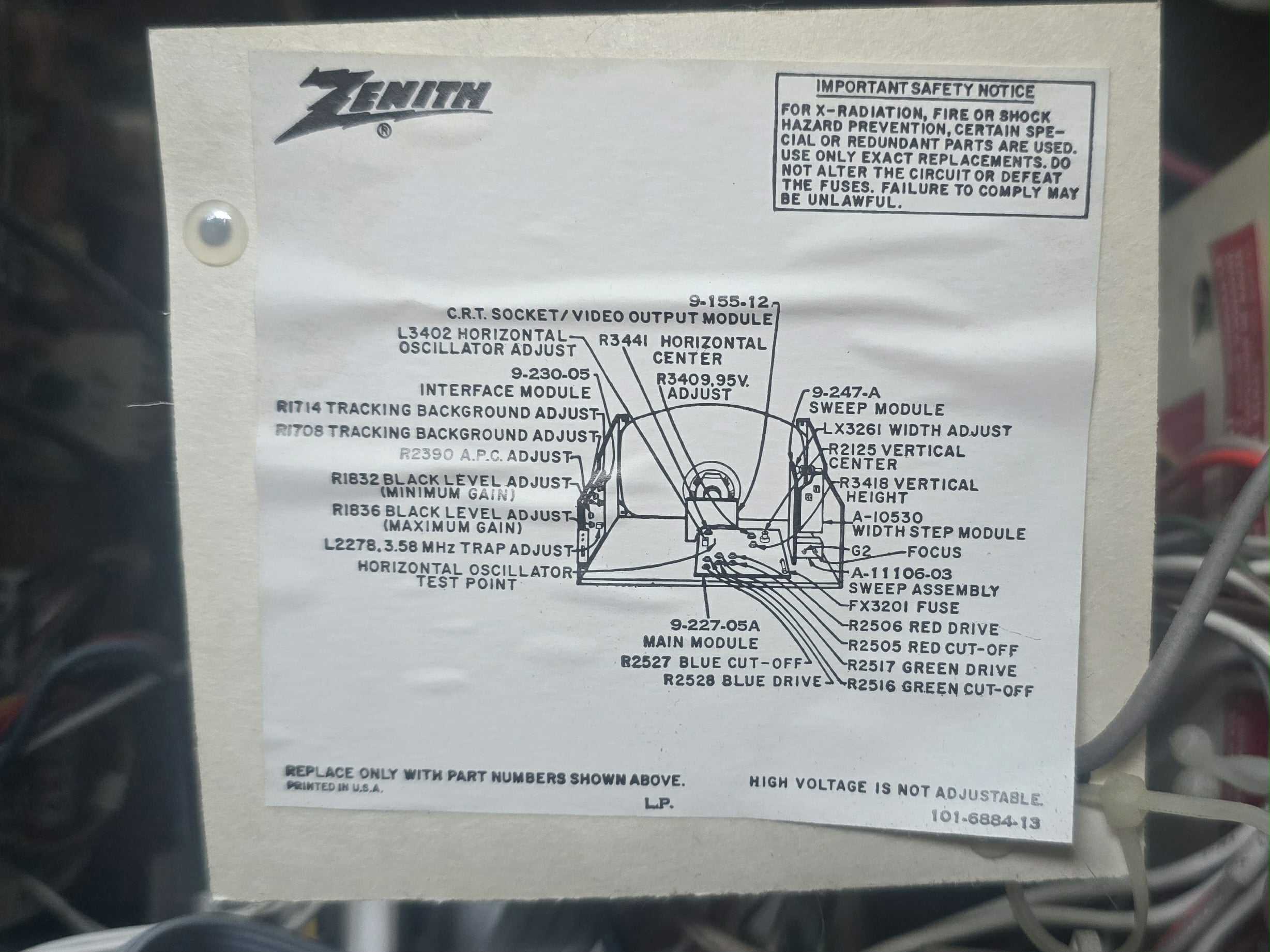

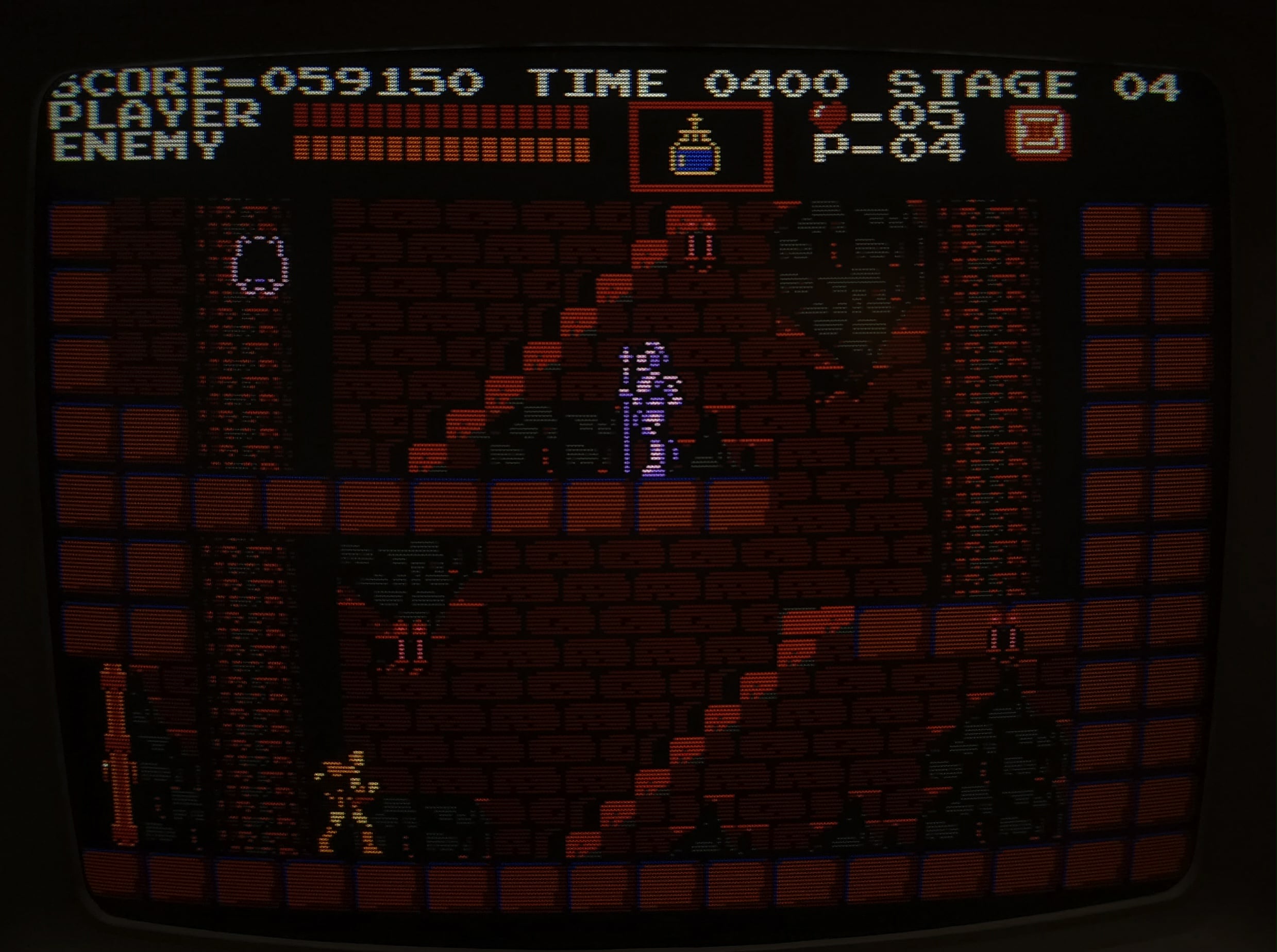

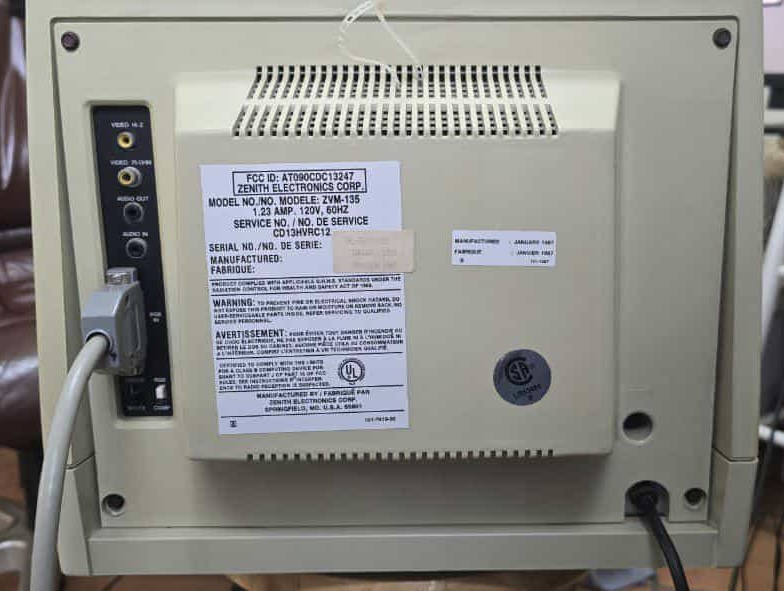

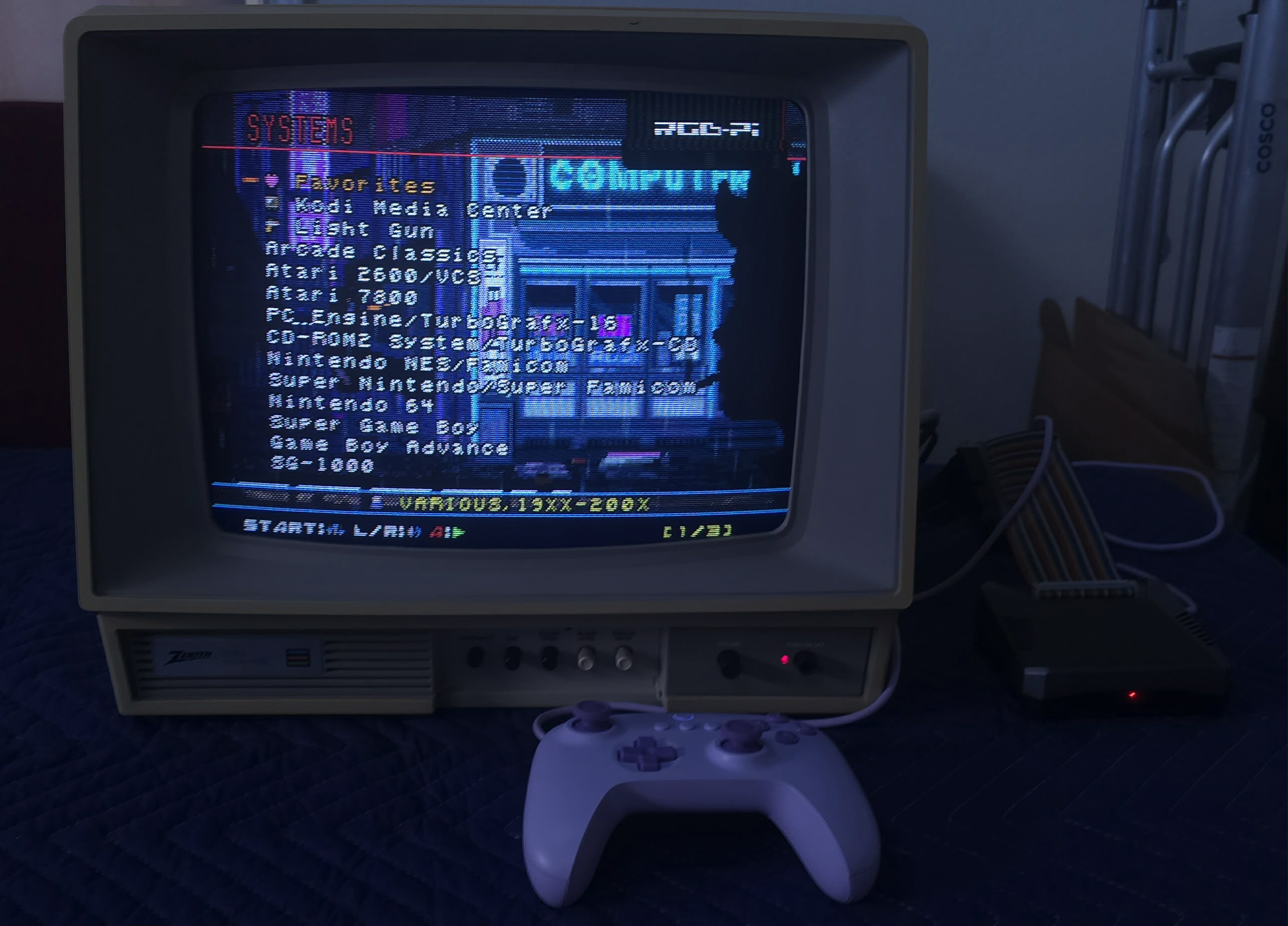

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | ZVM-135 |
| Series: | ZVM |
| Viewable Size: | 13" |

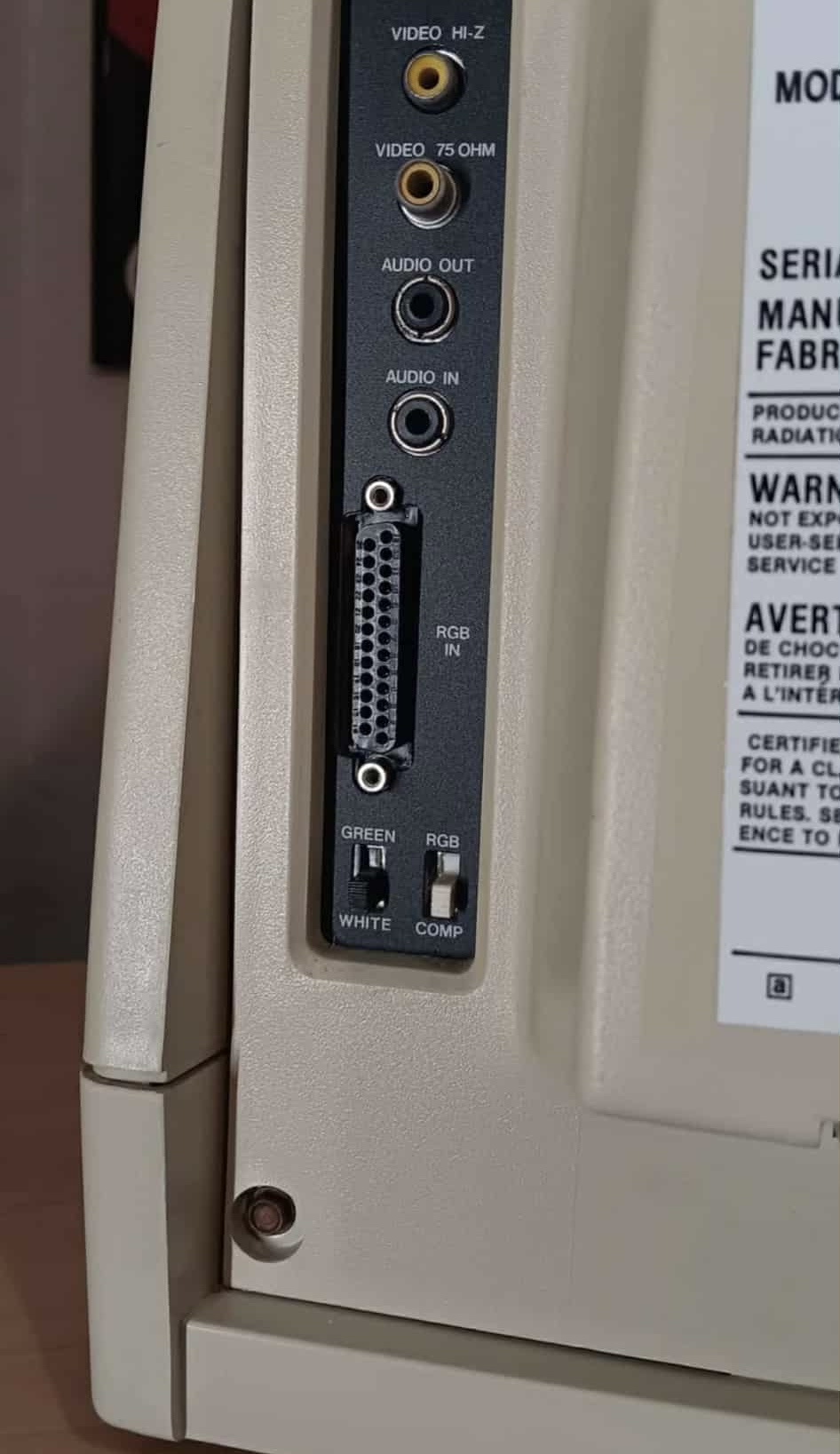

| Inputs: | Composite, RGB |

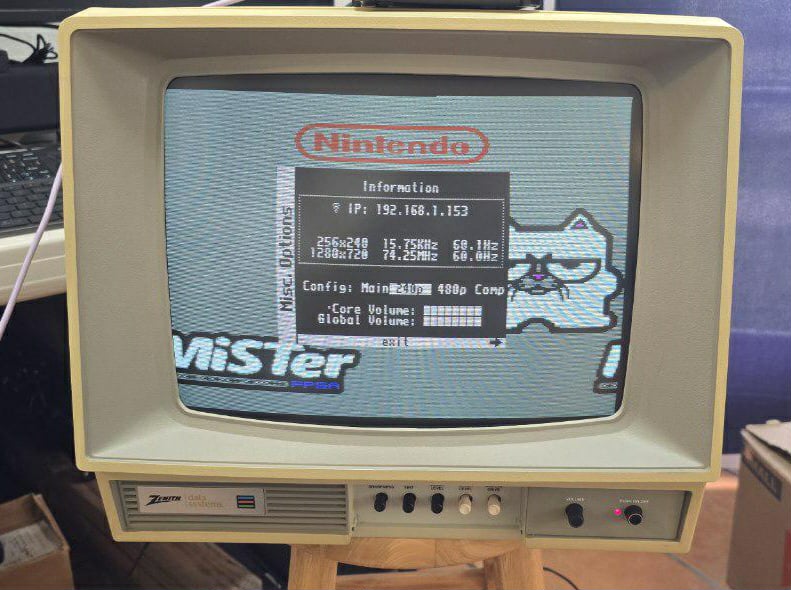

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

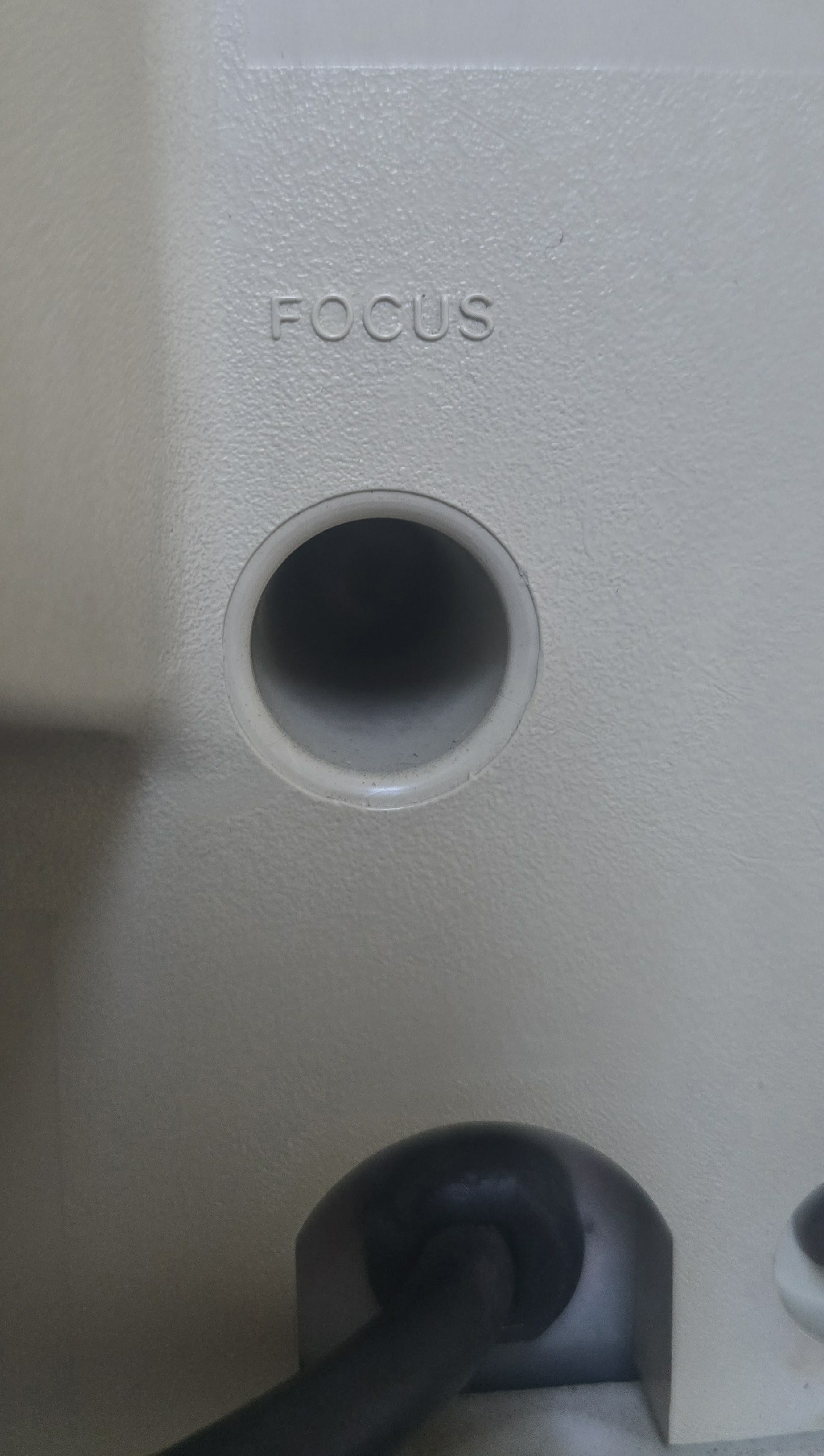

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Zenith, 221-179-03 |
| Focus Type: | Single |

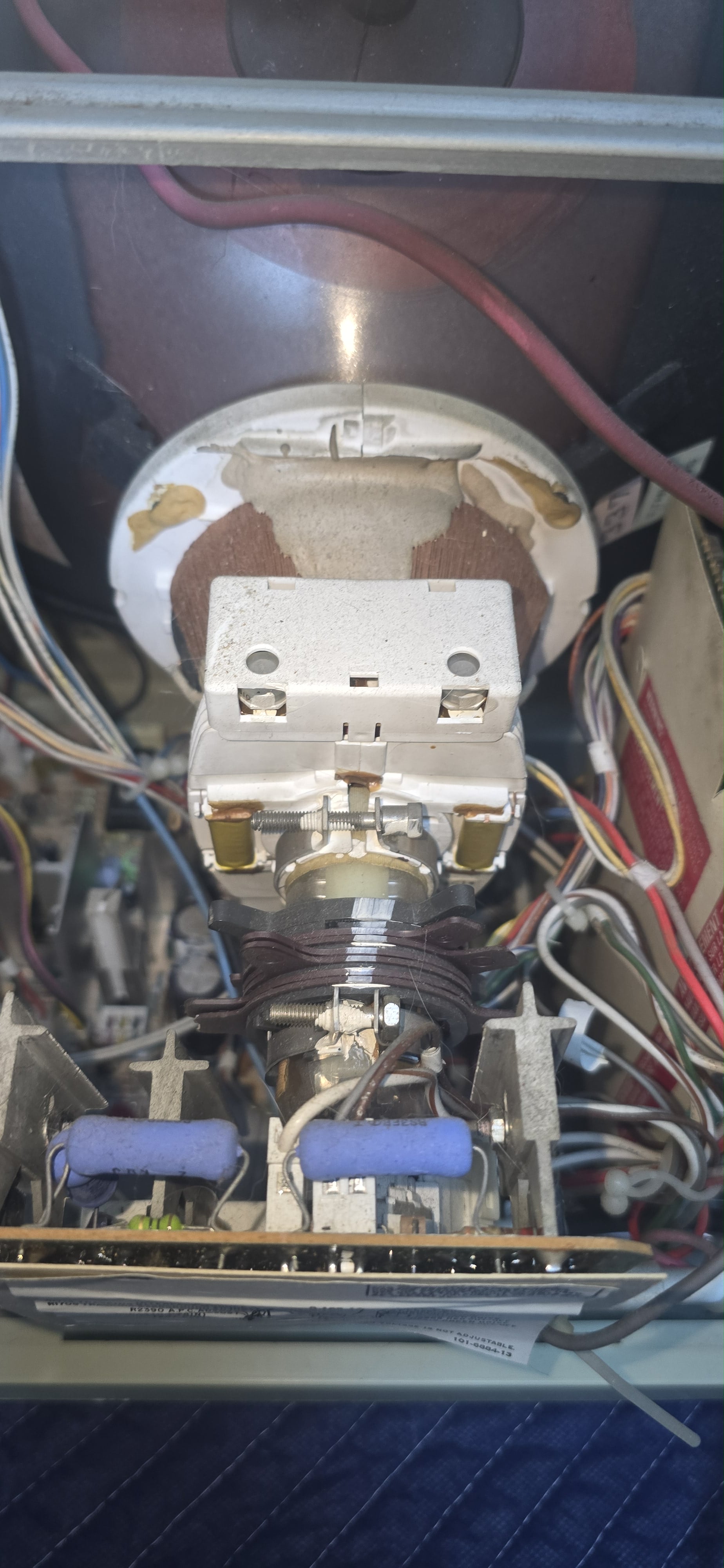

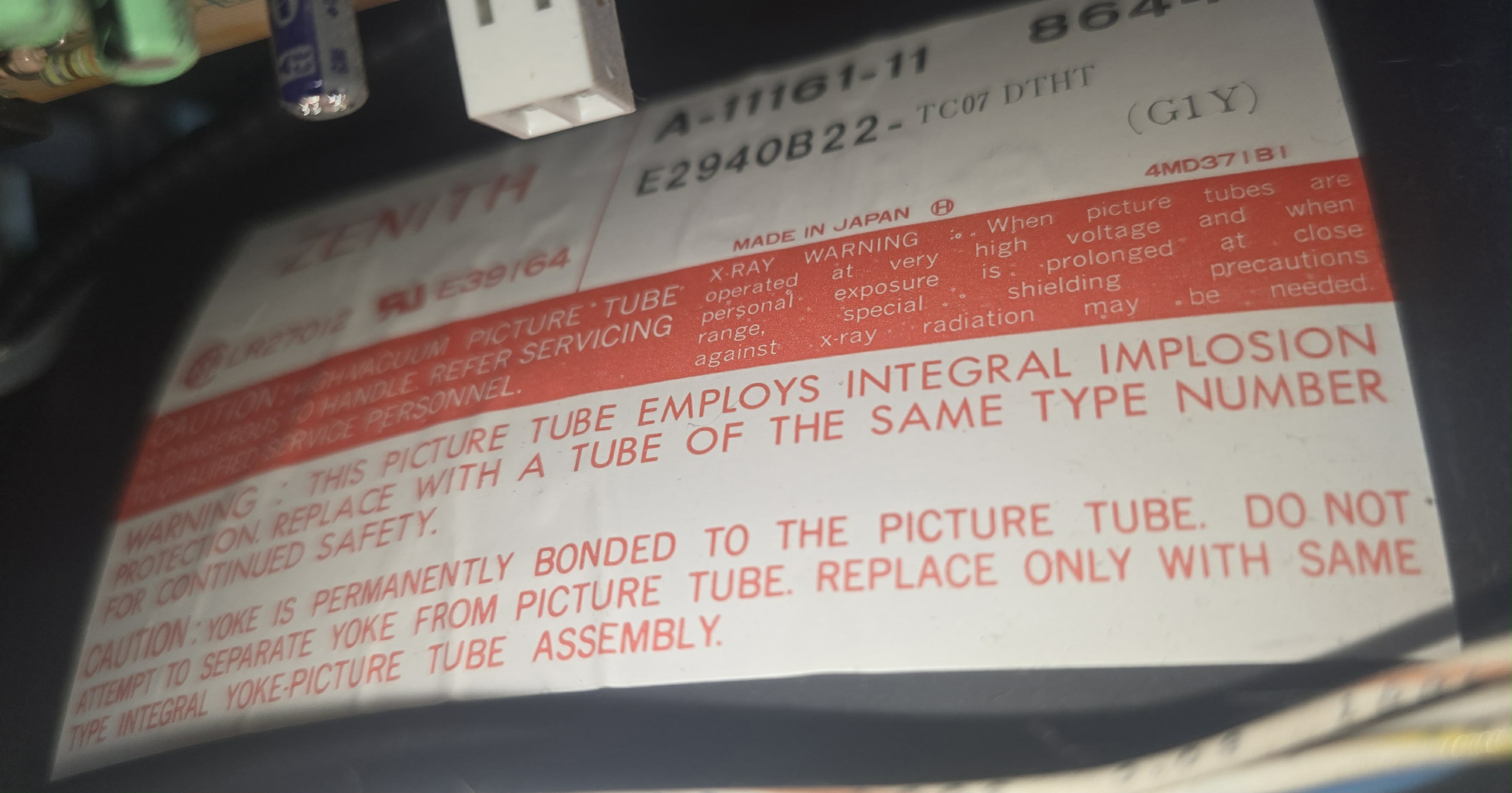

| Tube: | Toshiba , E2940B22 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |

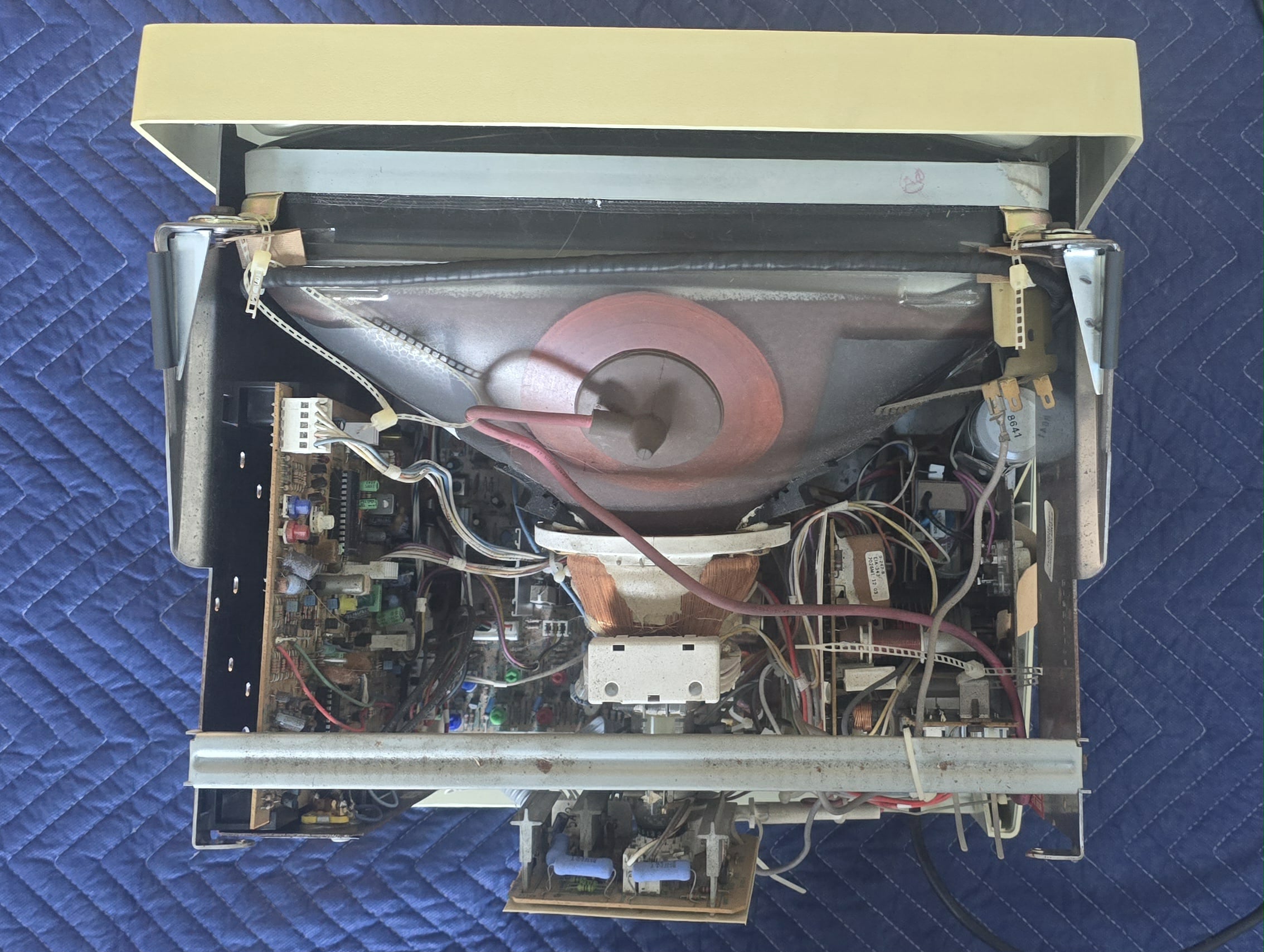

| Chassis: | CD13HVRC12 |
| Weight: | 38 lbs (17.2 kg) |
| Dimensions (W/H/D): |
390 x 350 x 390 mm
(15.3 x 13.8 x 15.3") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1983 |
| MSRP: | 995 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
