Apex AT3208S

SegaSaturn94
October 24, 2024, 8:53 pm
January 10, 2025, 7:58 am

Summary

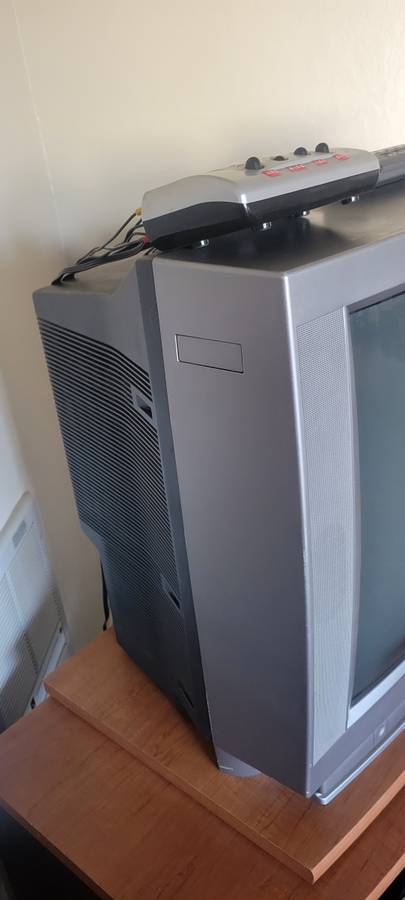

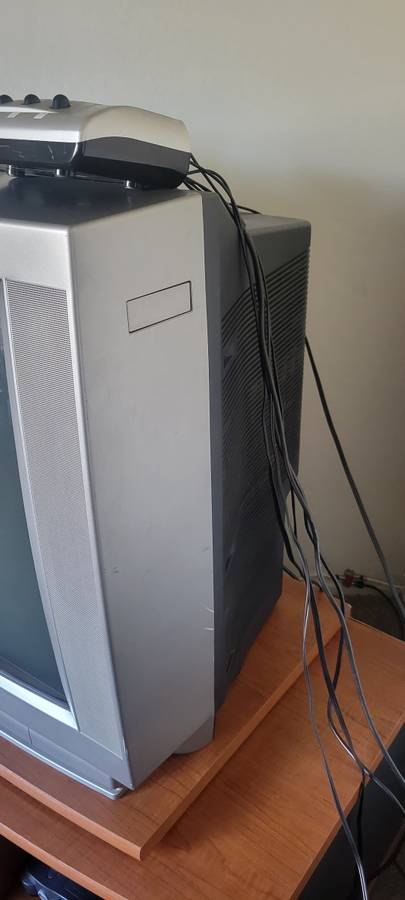

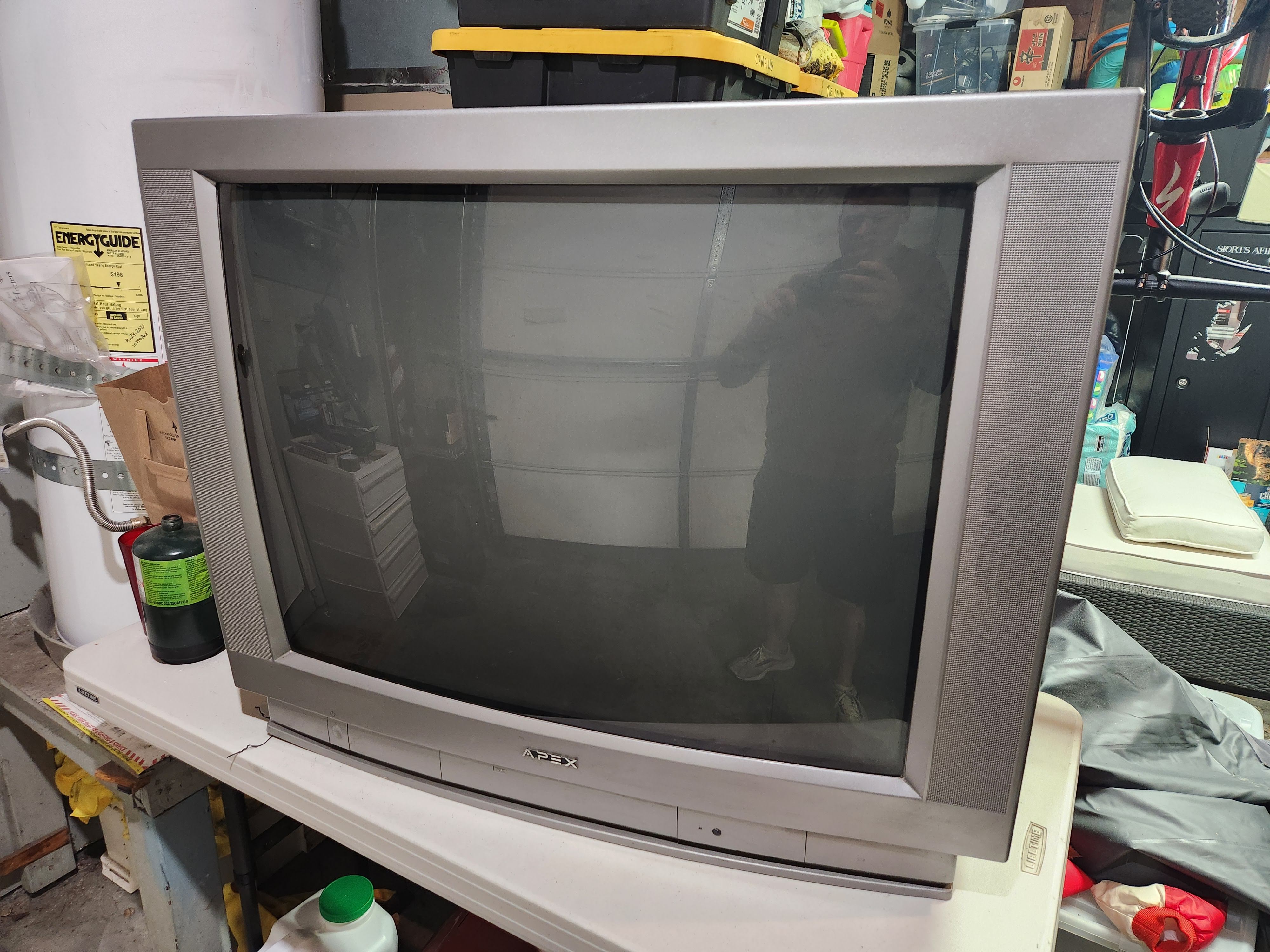

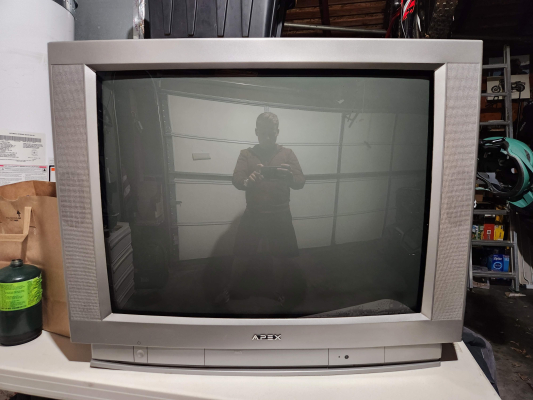

32" curved CRT by Apex. Has RF, composite and s-video inputs. Made by Changhong Electric in China.

Manuals

Notes

The only curved 32" Apex CRT model that I know of.

While this set is s-video at best, it uses a Philips jungle IC that can easily be tapped for analog RGB.

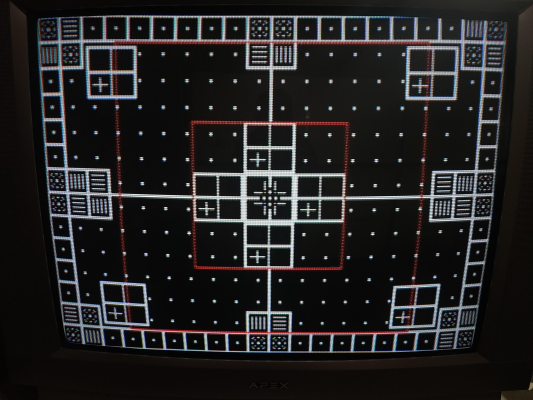

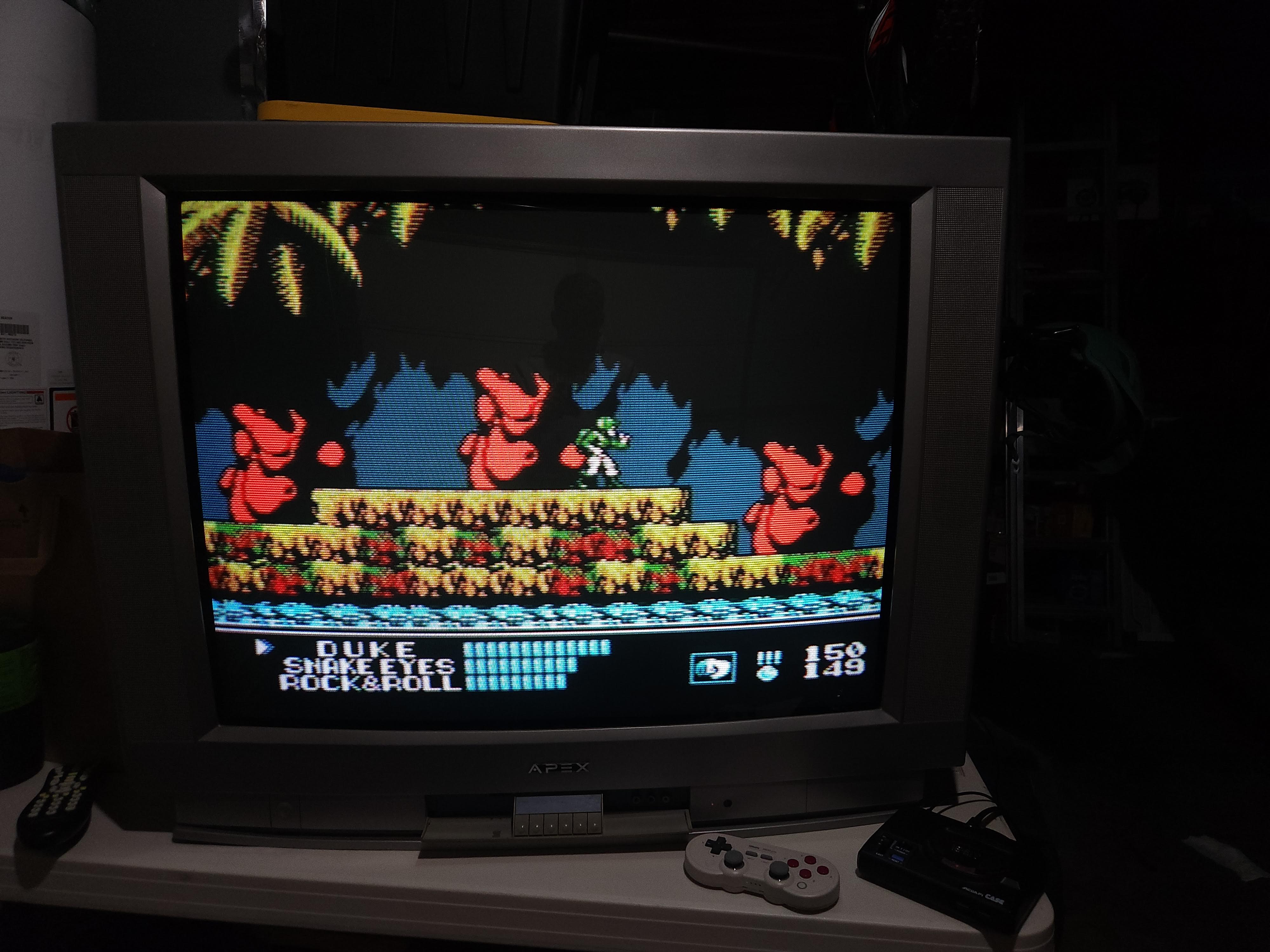

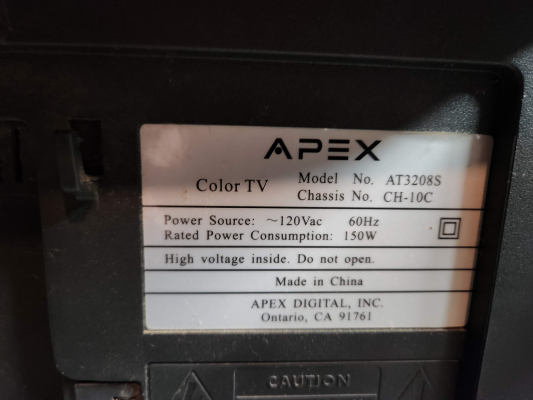

Gallery

Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S Apex AT3208S
Specifications
Brand: Apex
Manufacturer: Changhong Electric
Model: AT3208S
Series: AT
Viewable Size: 32"

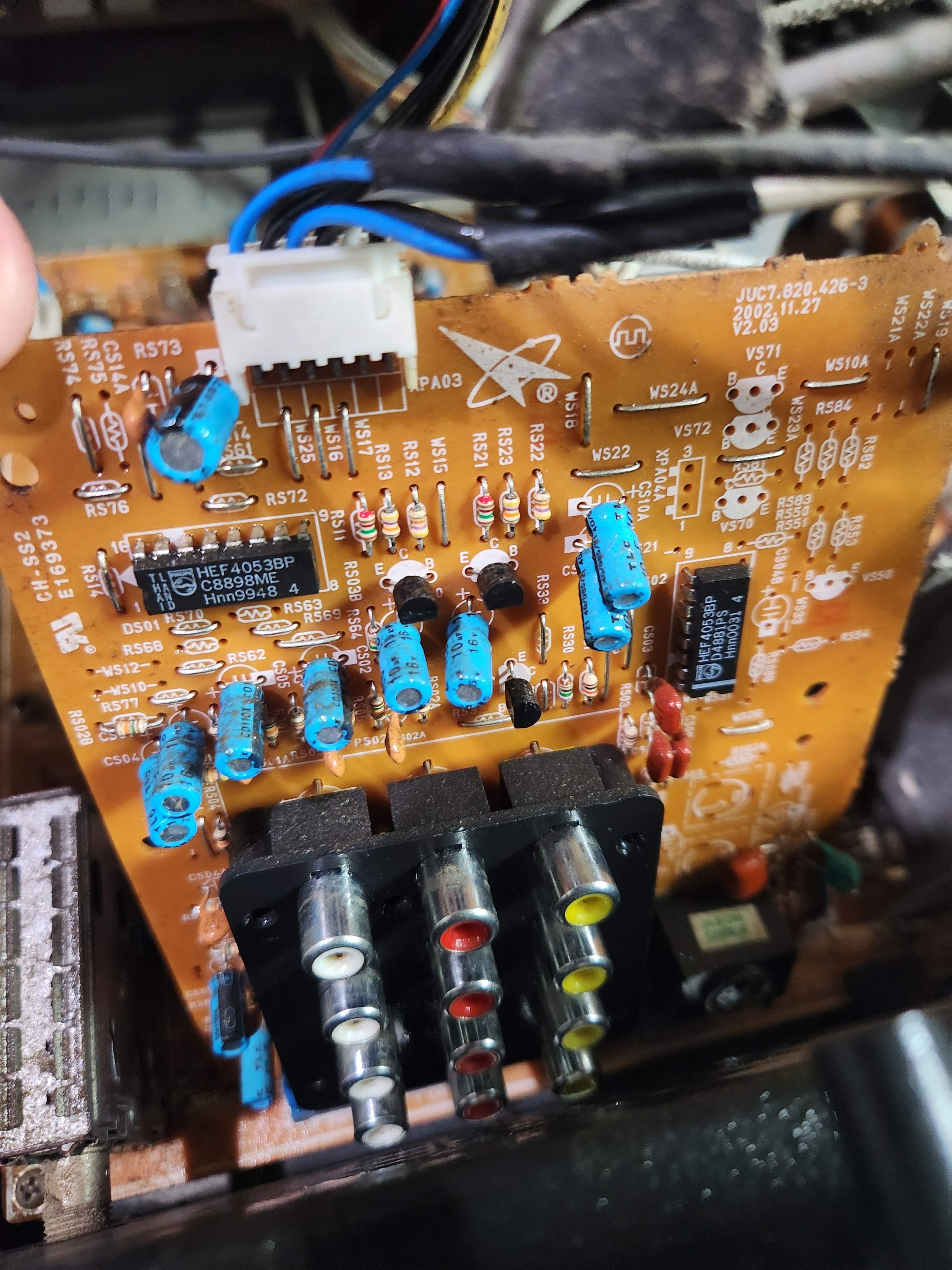

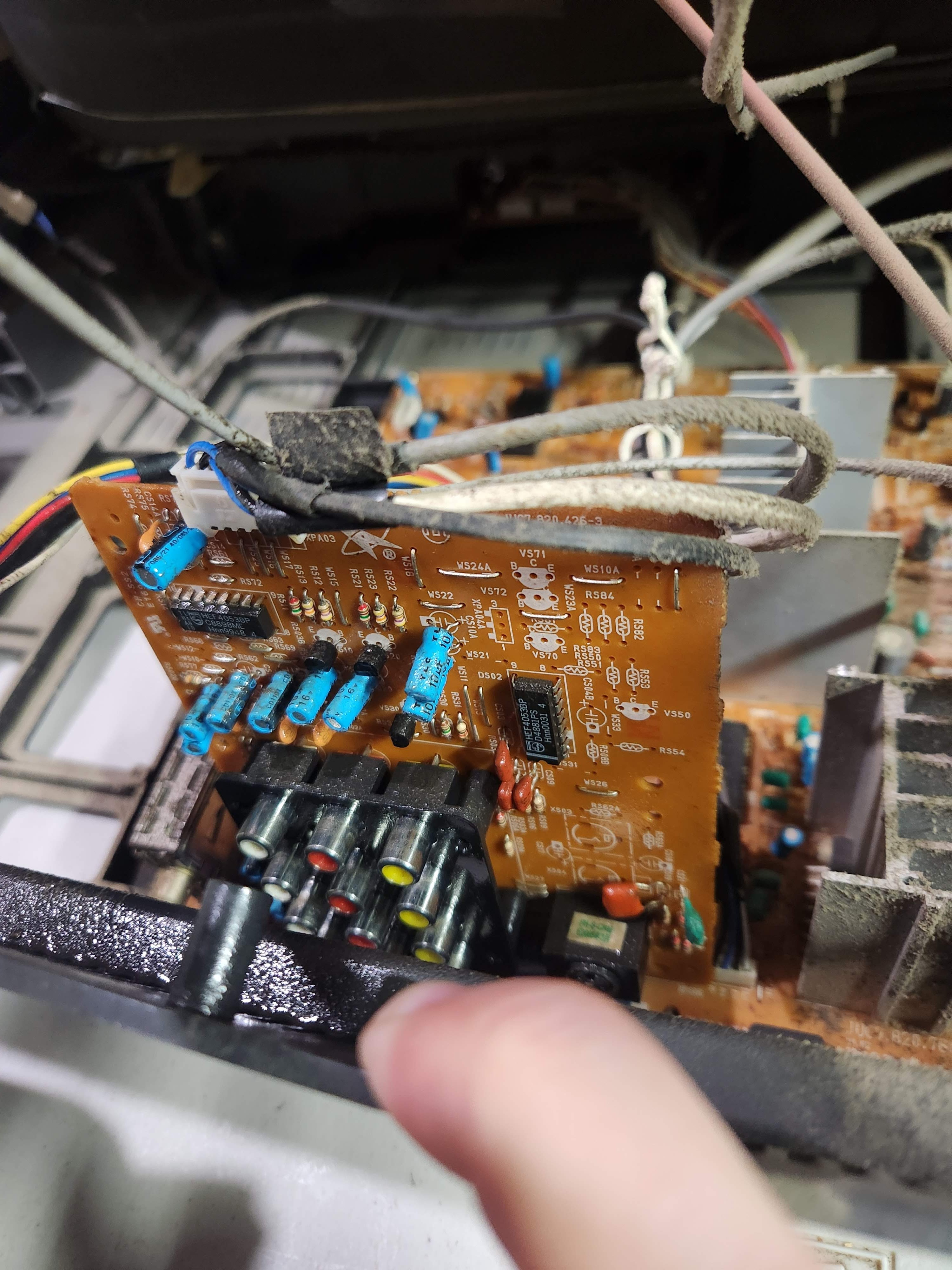

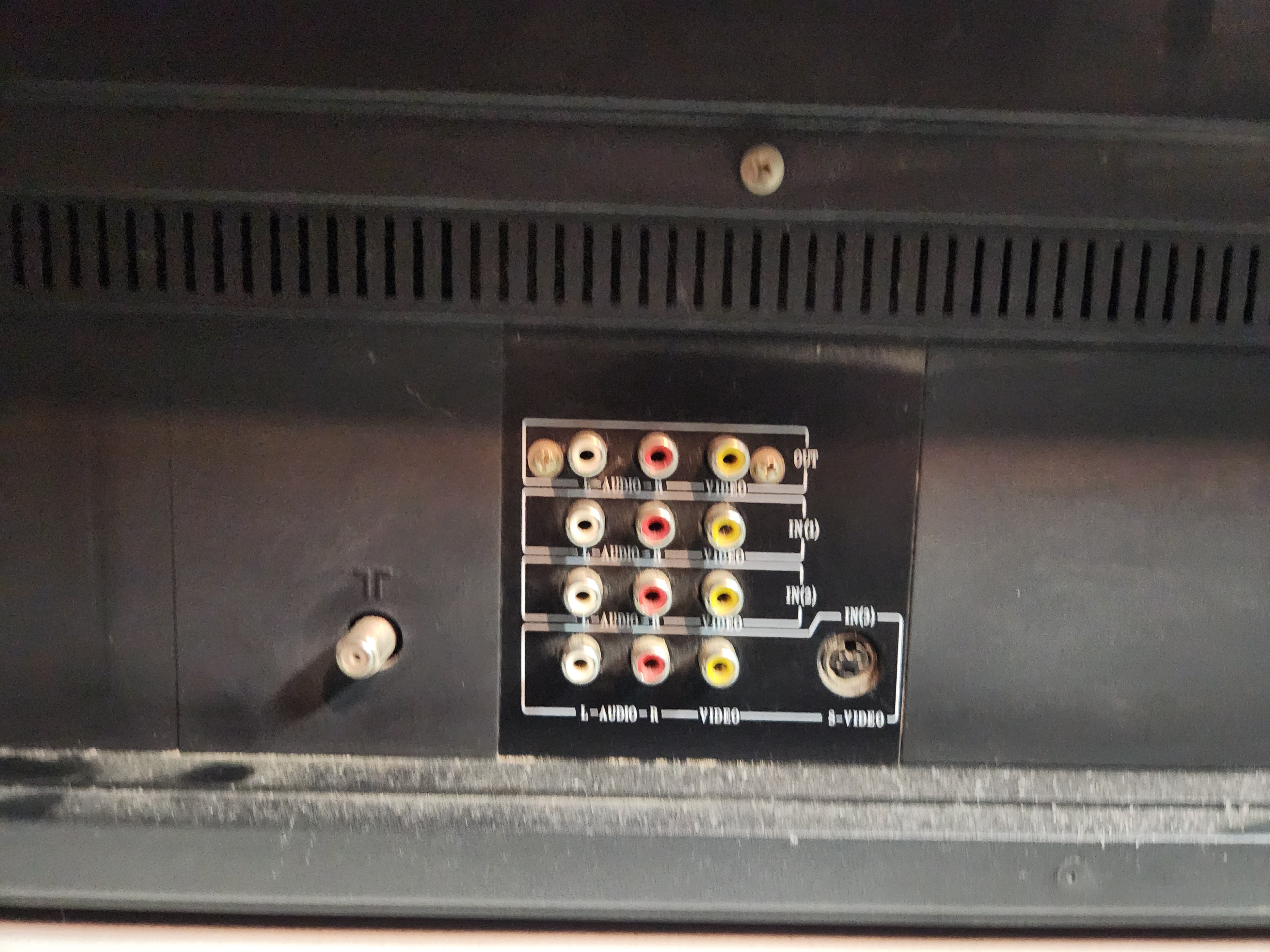

Inputs: Composite, S-Video, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu

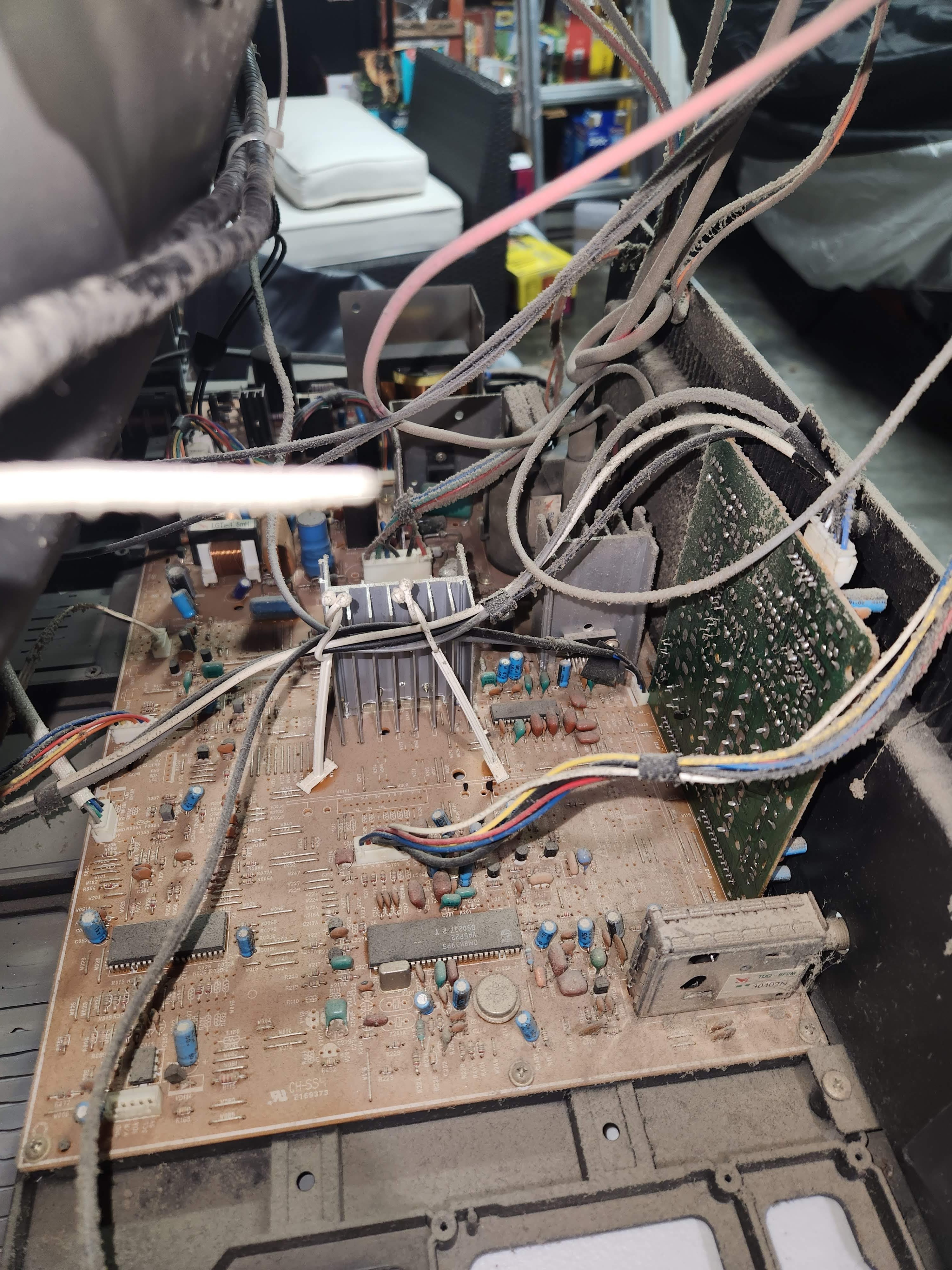

Jungle: Philips, OM8839PS

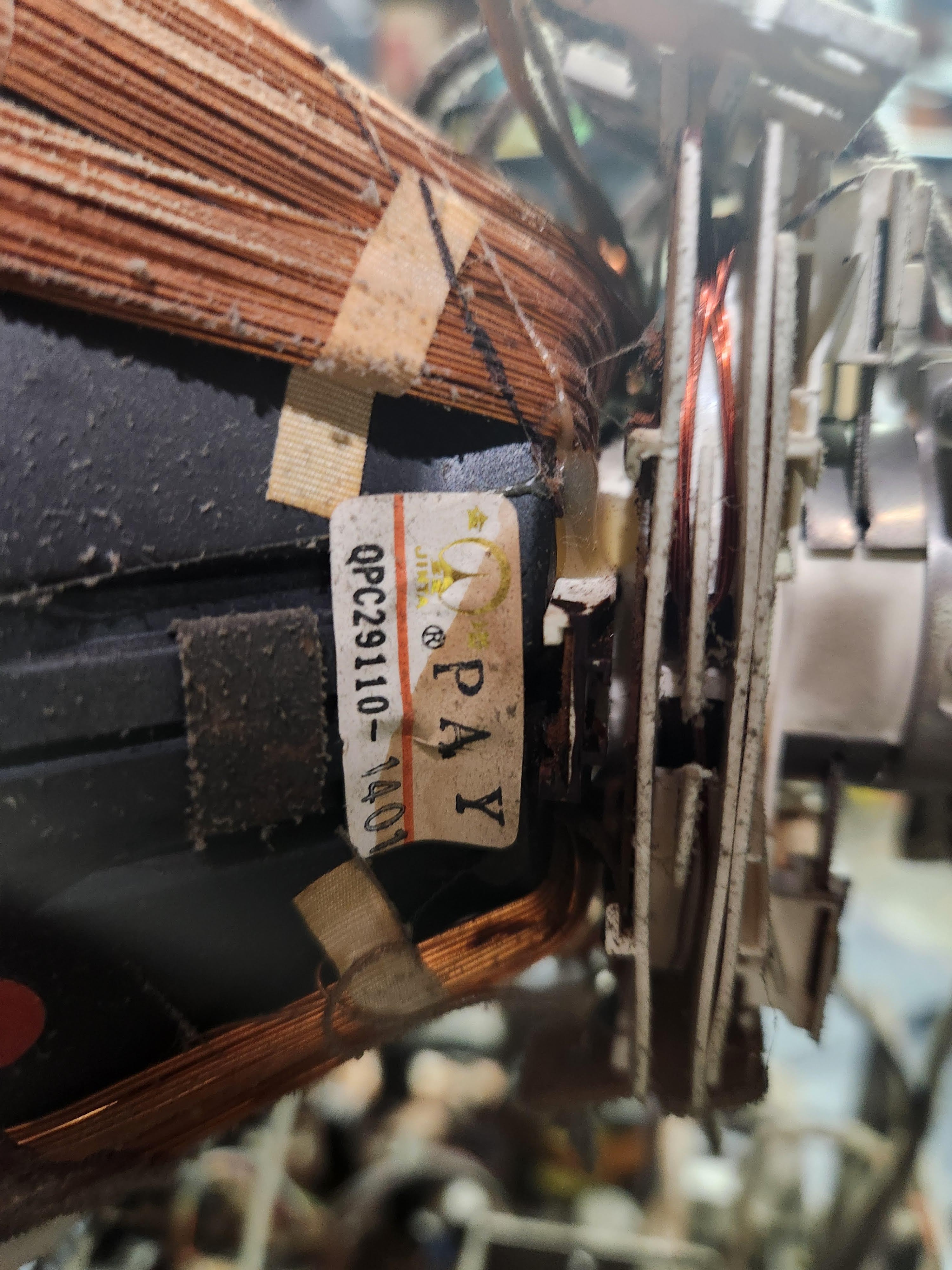

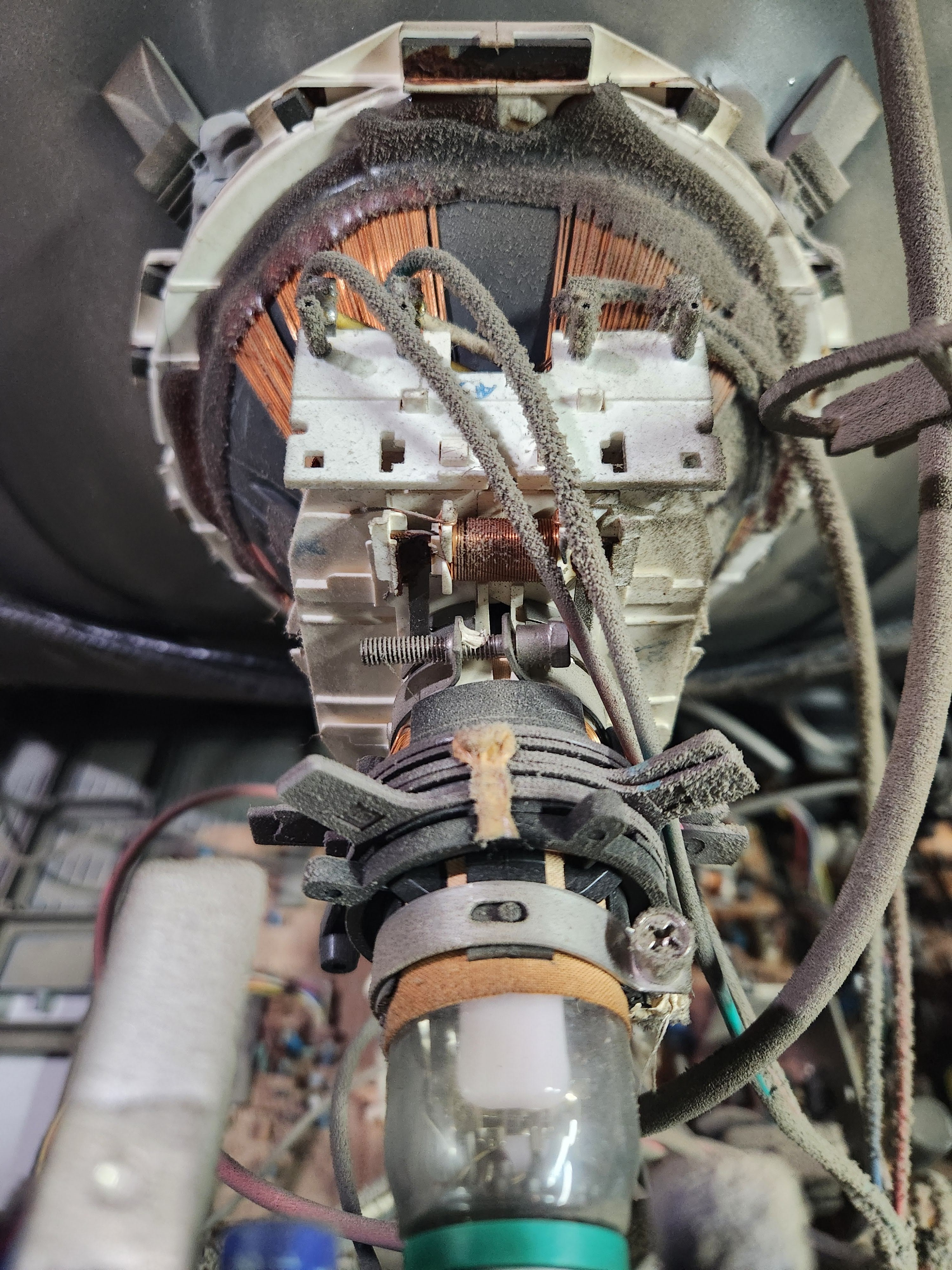

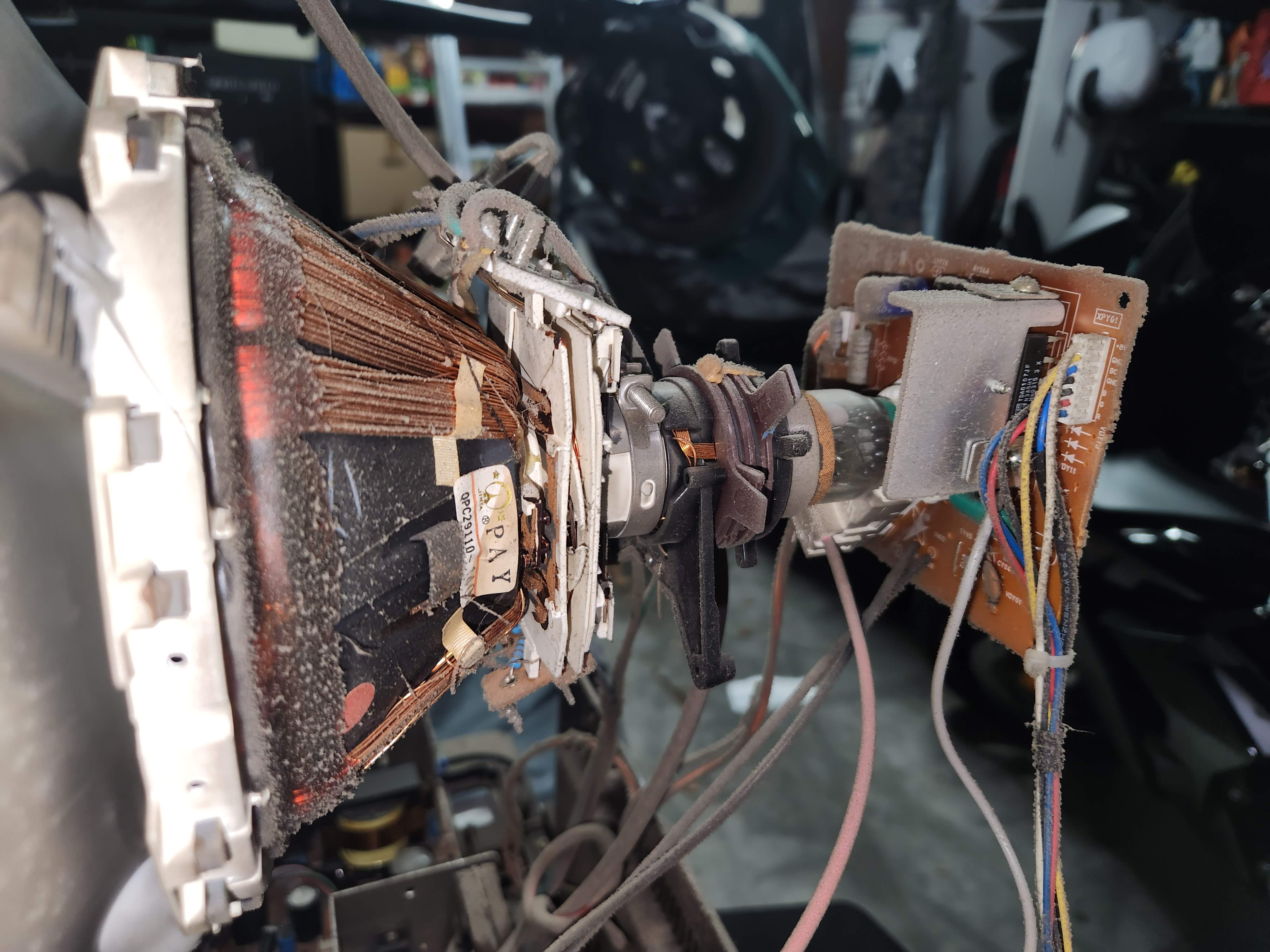

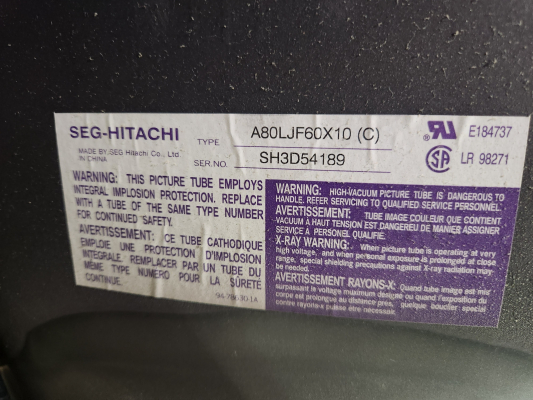

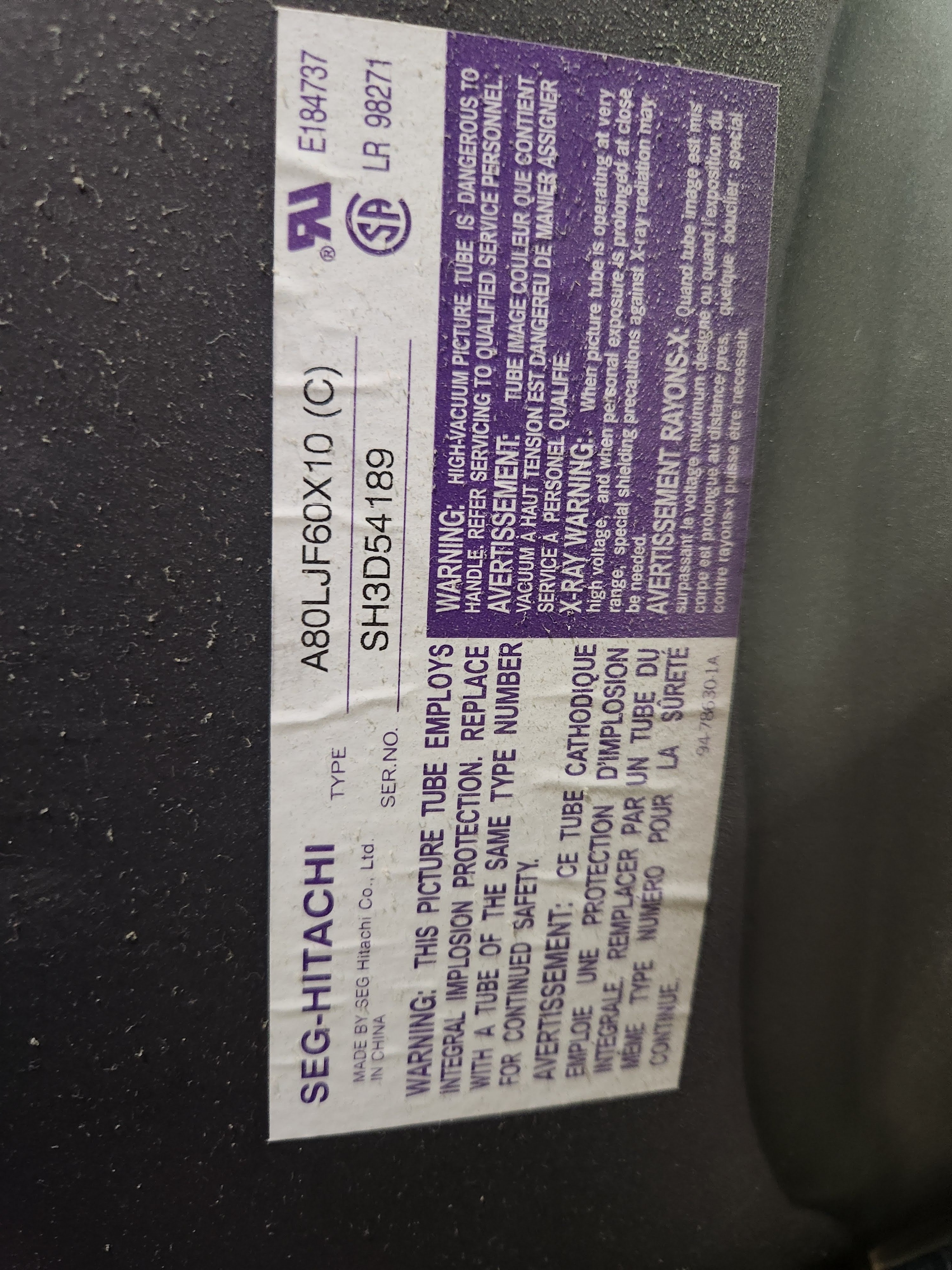

Tube: SEG-Hitachi , Hitachi , A80LJF30X , A80LJF30X10 , A80LJF60X , A80LJF60X10
Mask: Slot
Tint: Dark
Speakers: Stereo

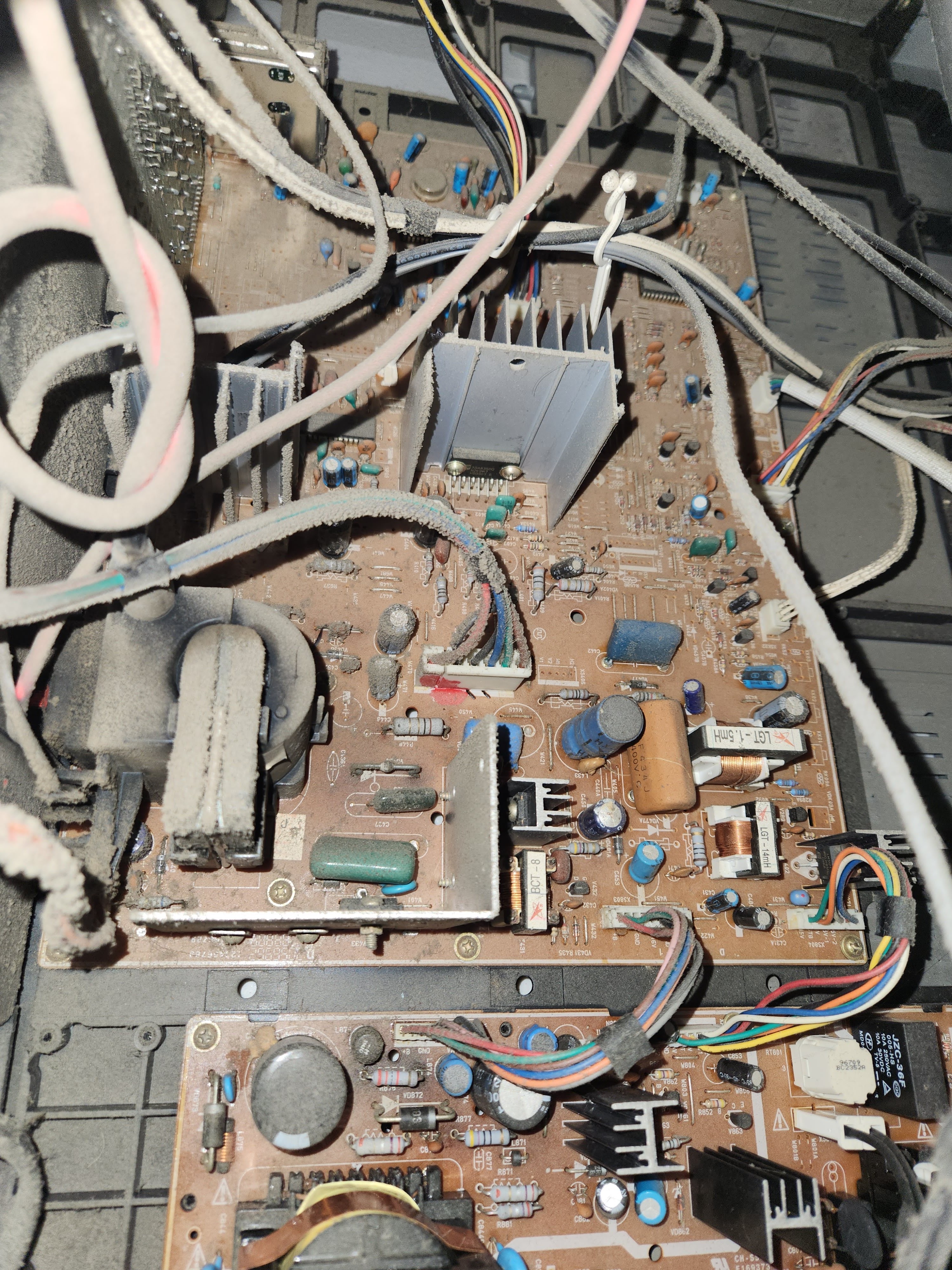

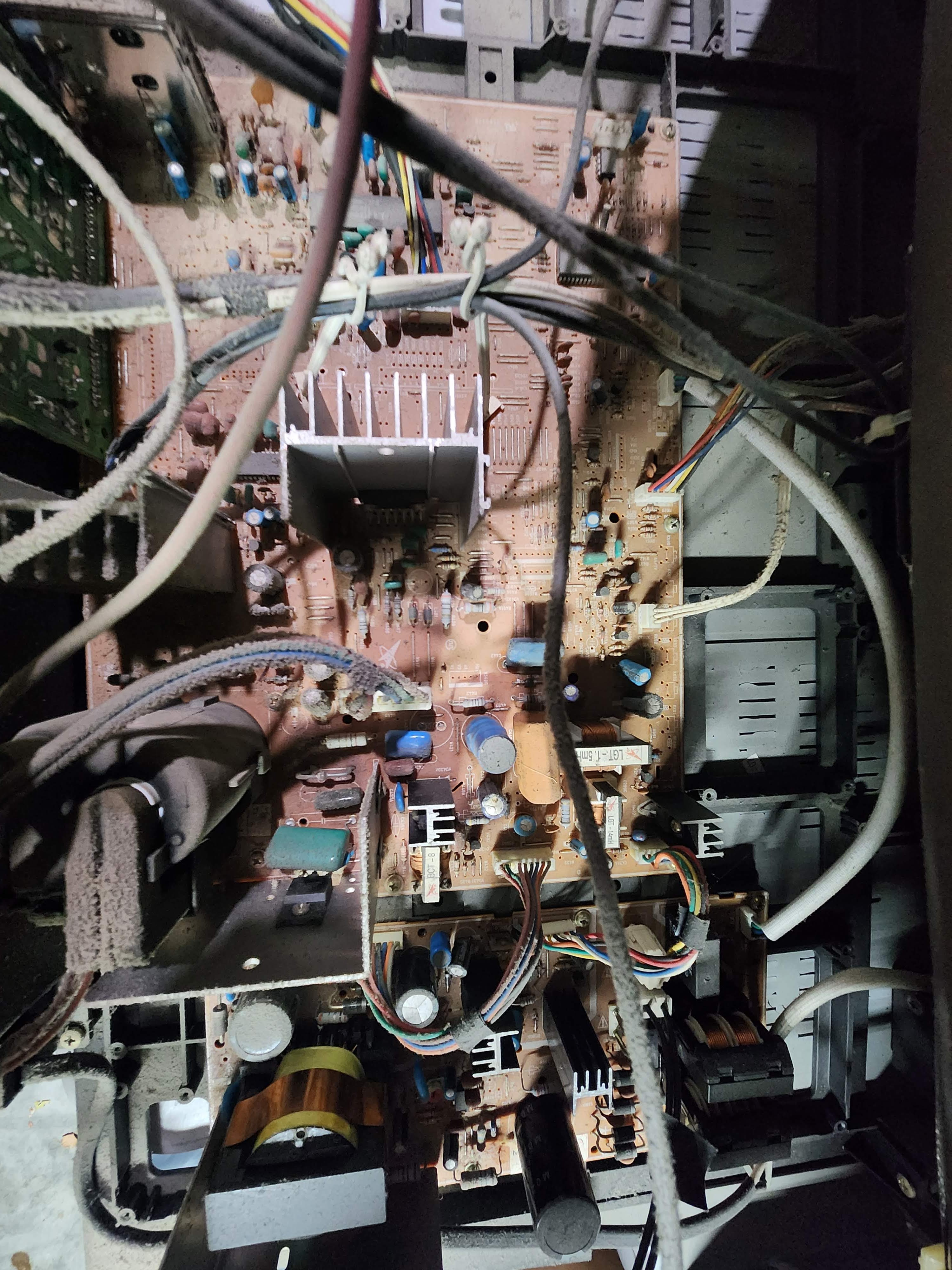

Chassis: CH-10C3
Application: Consumer
Cabinet Material: Plastic
Launched: 2003
Country of Manufacture: China
Degaussing: Automatic on Power-on
Tag: Needs Measurements
