Summary

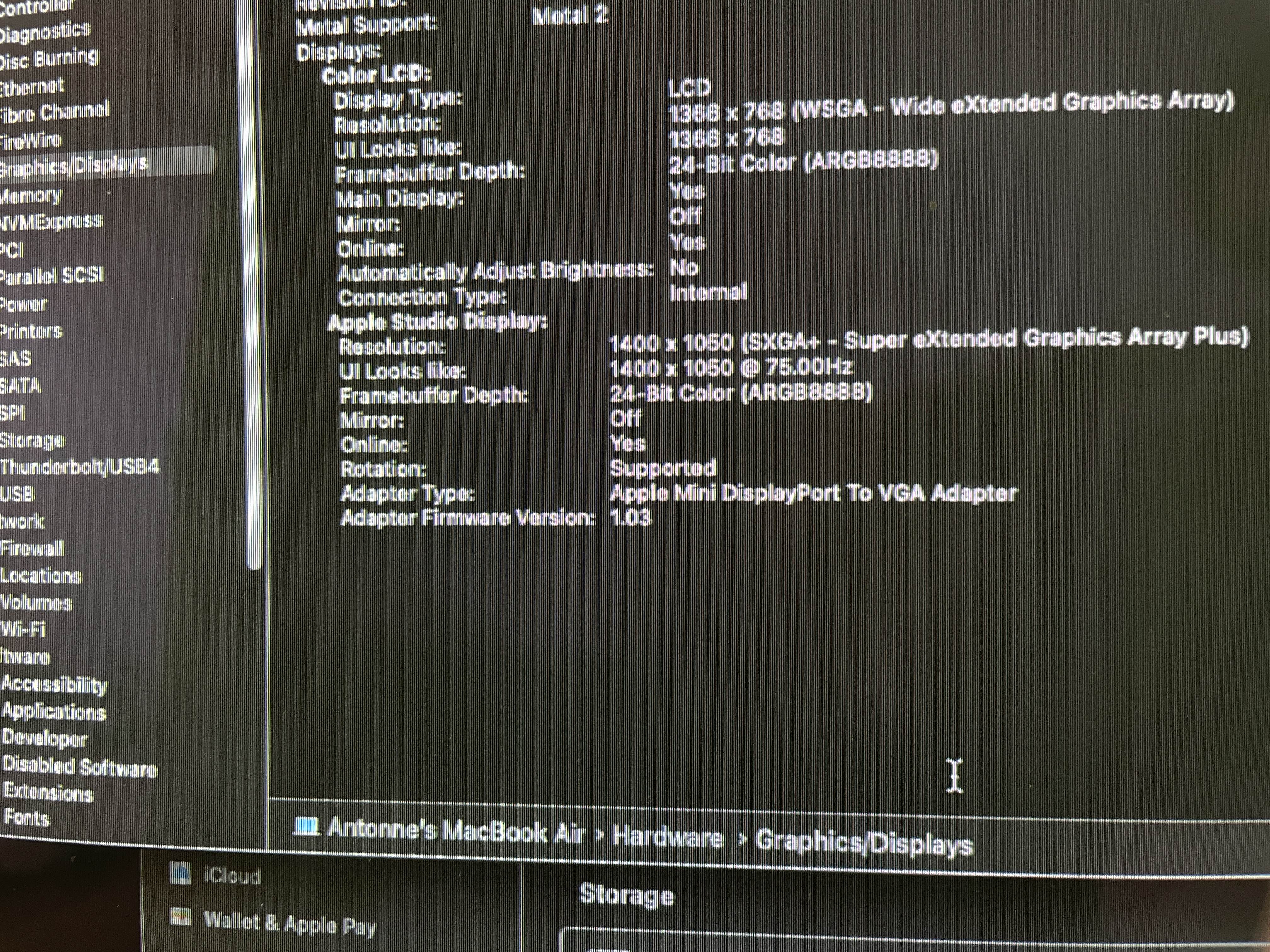

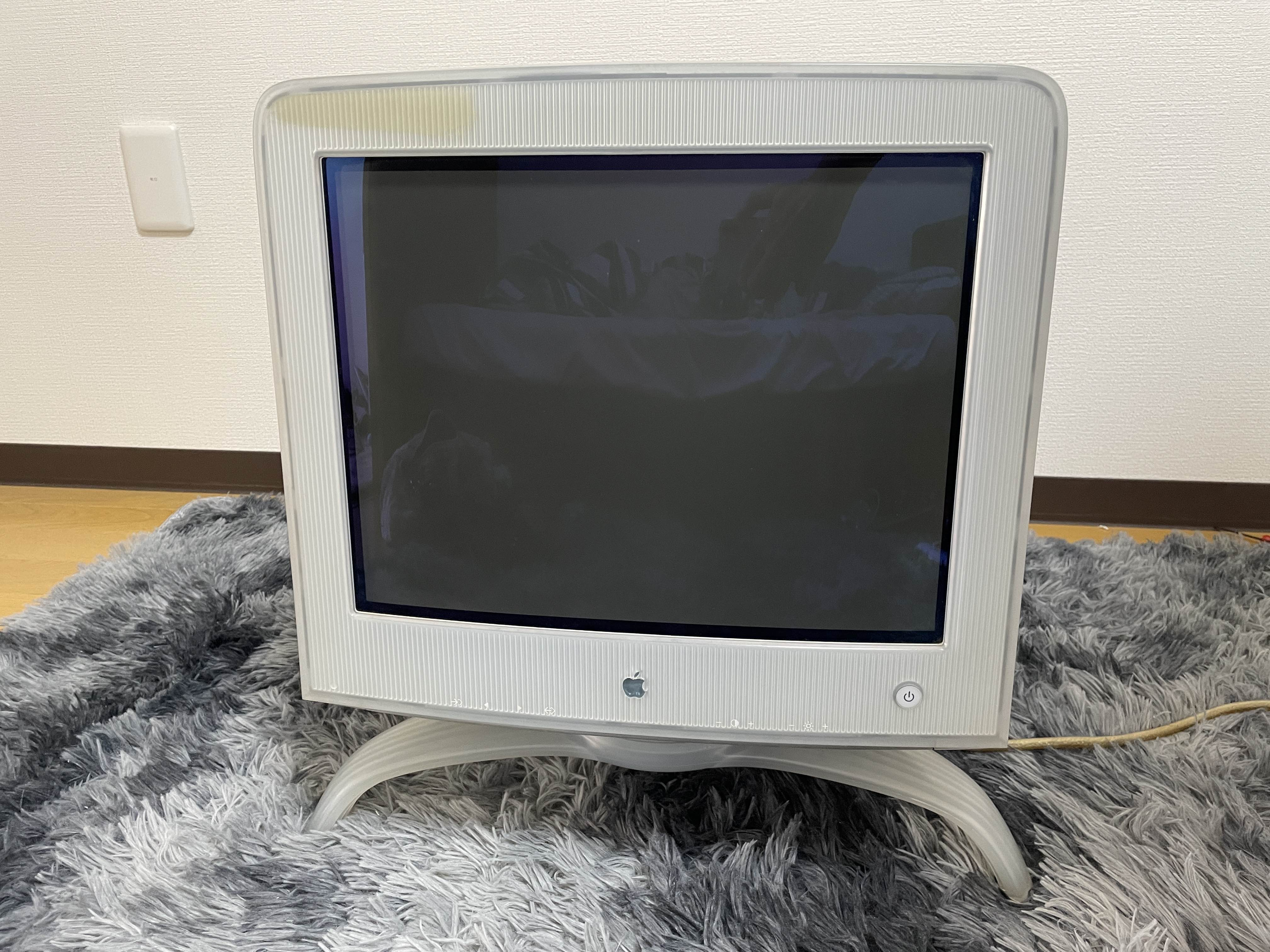

Designed to match Apple's Powermac G3, the Studio display was introduced in 1999 along with its 21" equivalent. Unlike the Studio Display 21, the M6496 is a standard VGA monitor with built-in OSD controls. It can easily be used on a modern PC. Manufactured by LG in Korea, it uses a 17" Mitsubishi Diamondtron aperture grille tube and retailed for $499.
Manuals
Notes
Service adjustment, beyond what is available in the user menu, requires custom software from LG which does not appear to be available at this time.

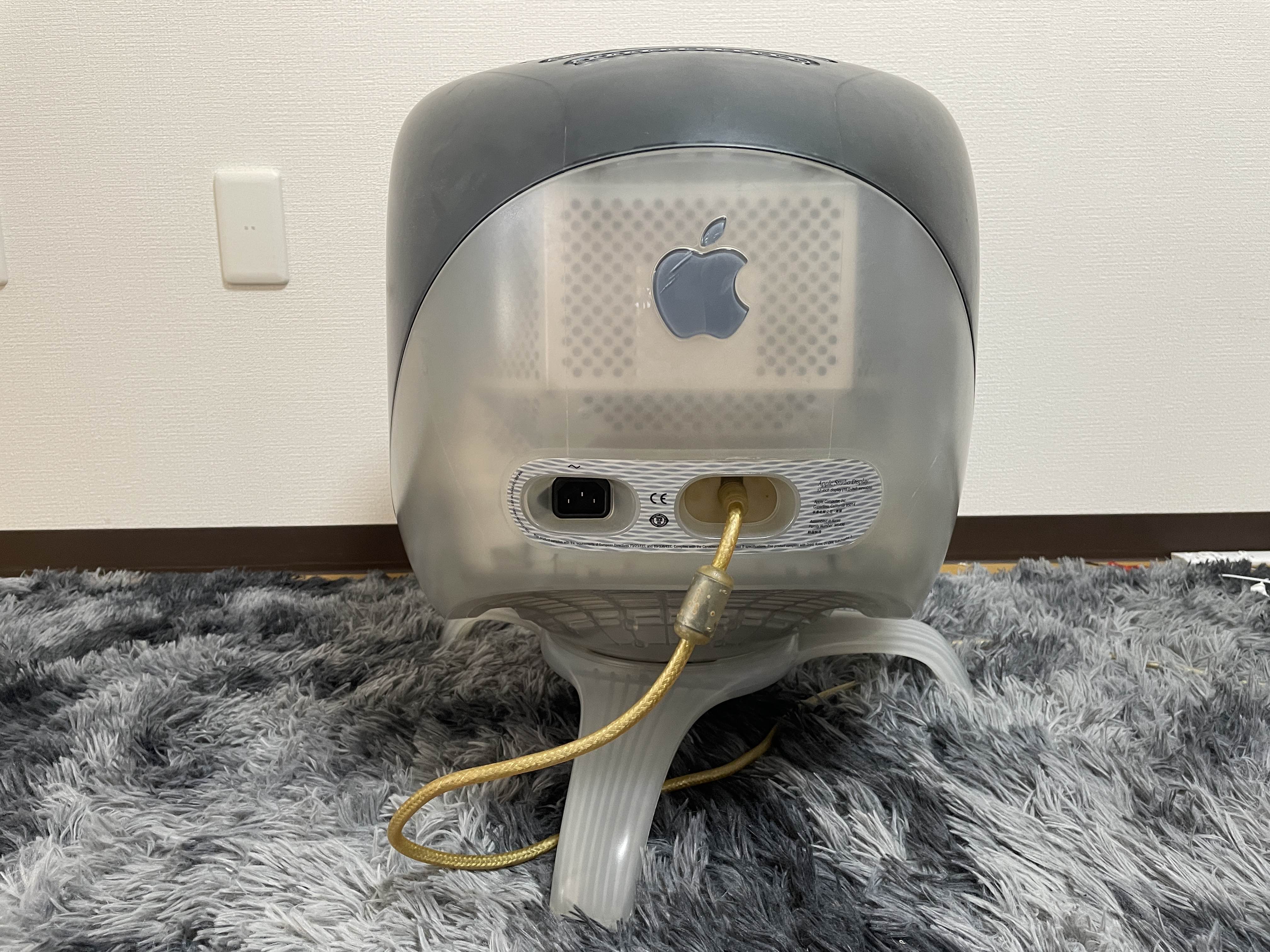

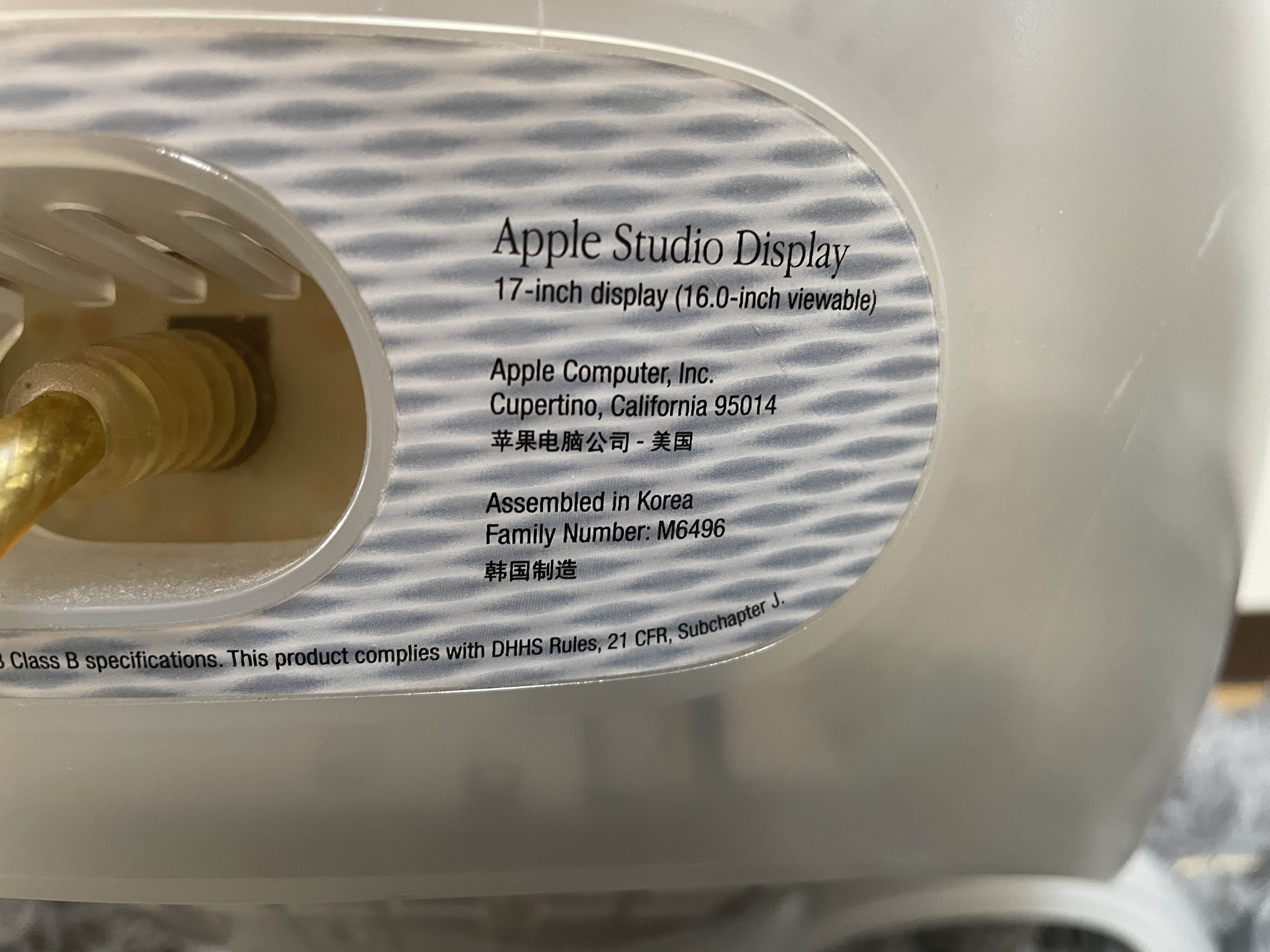

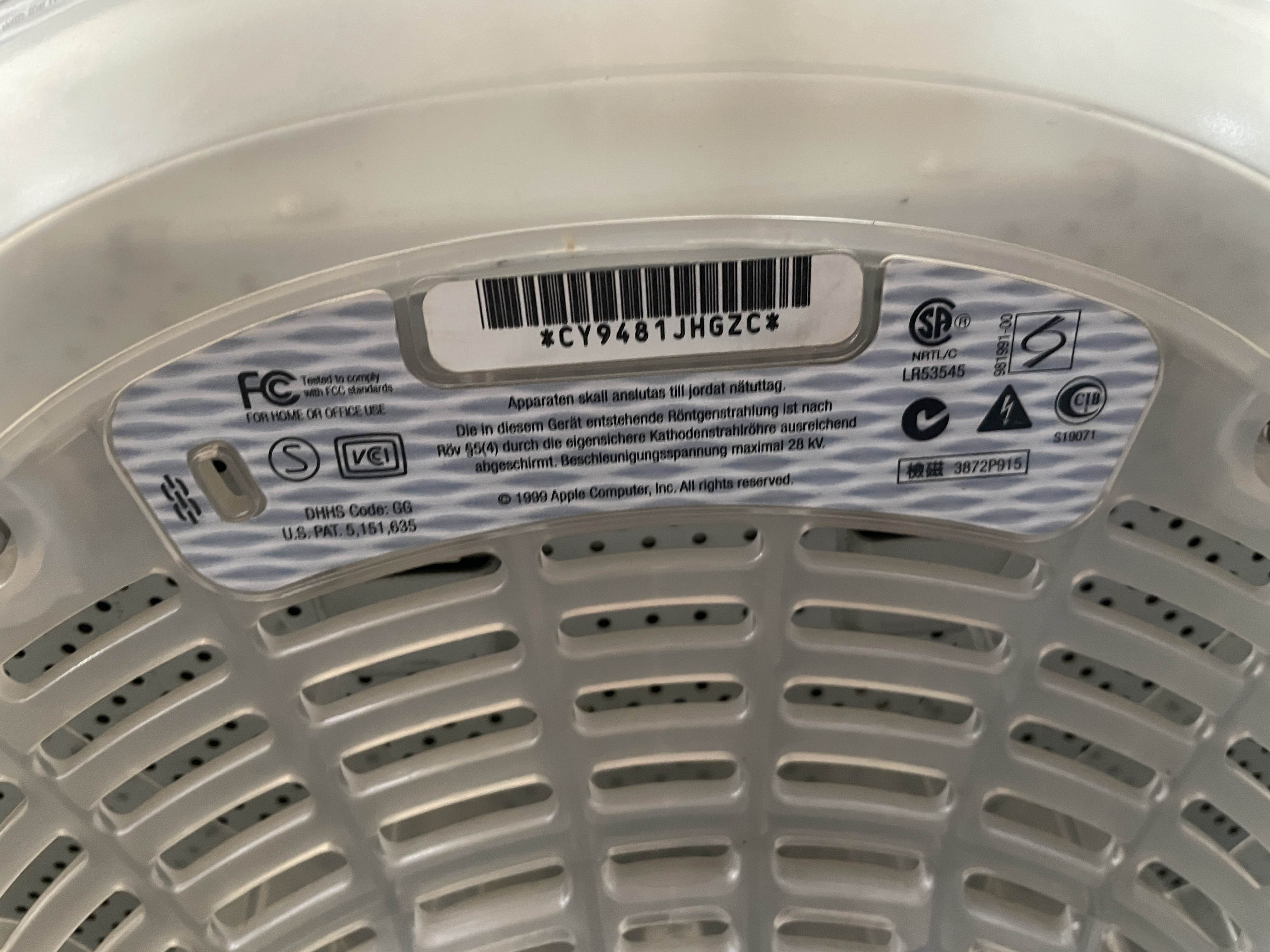

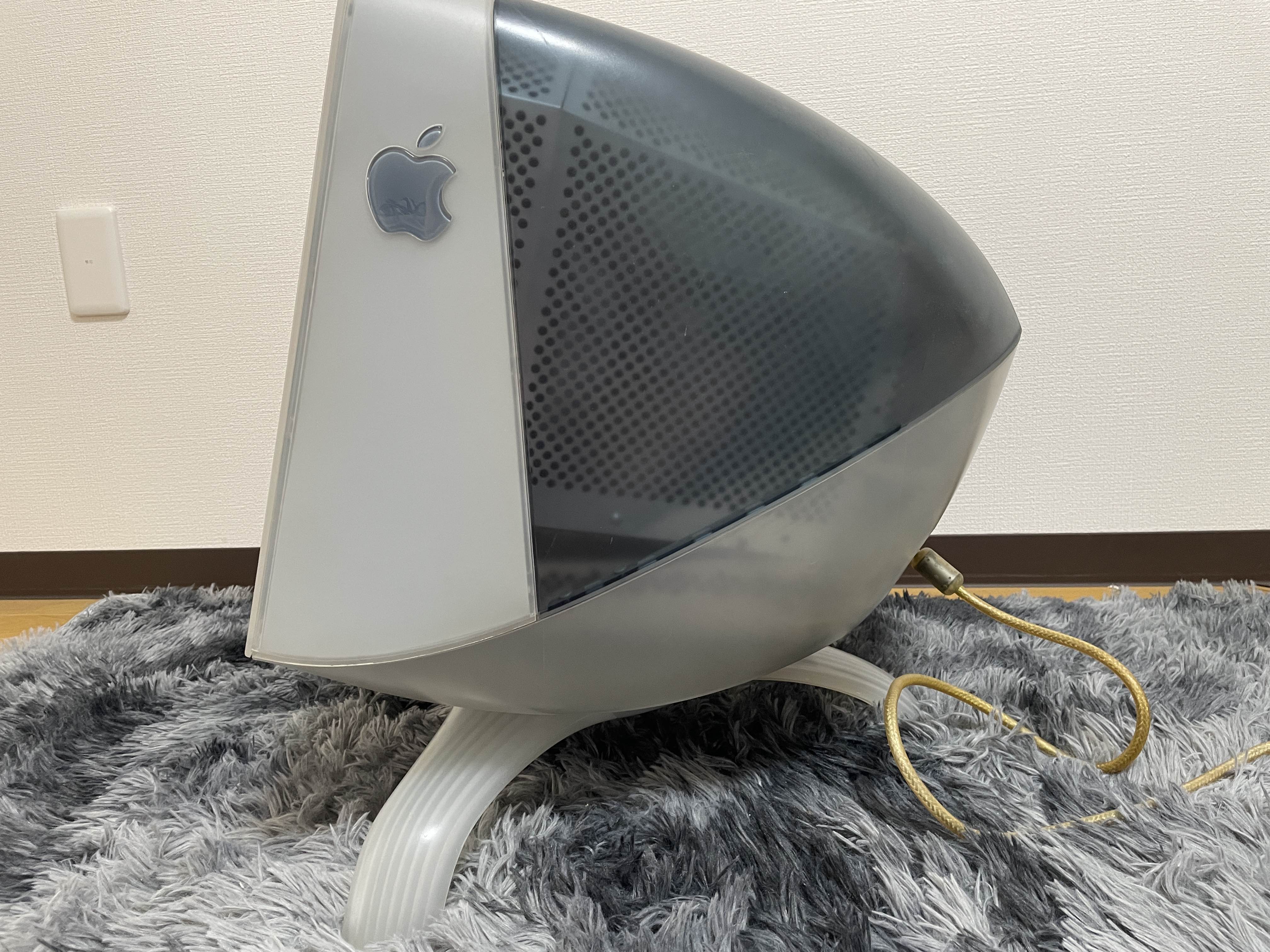

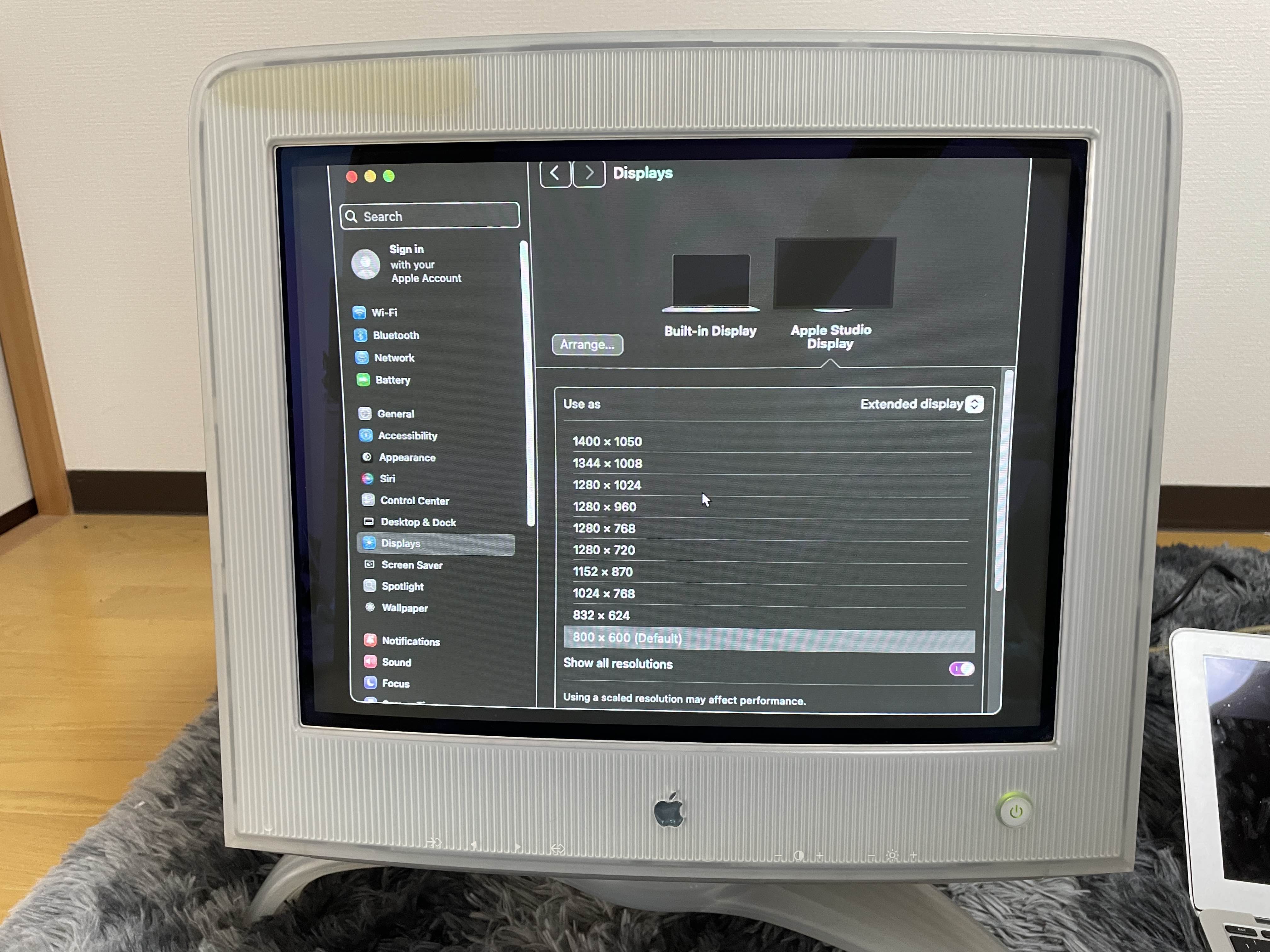

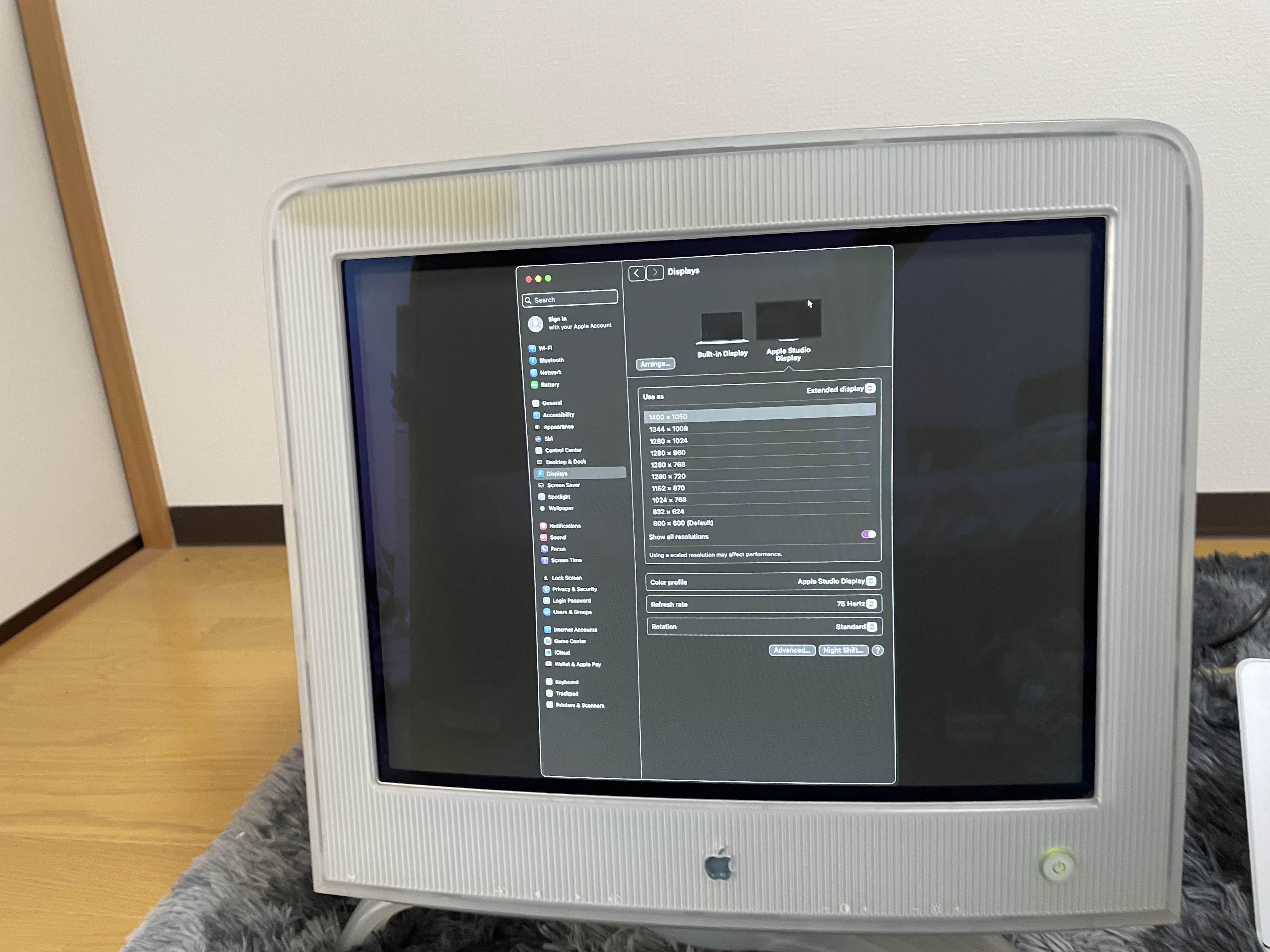

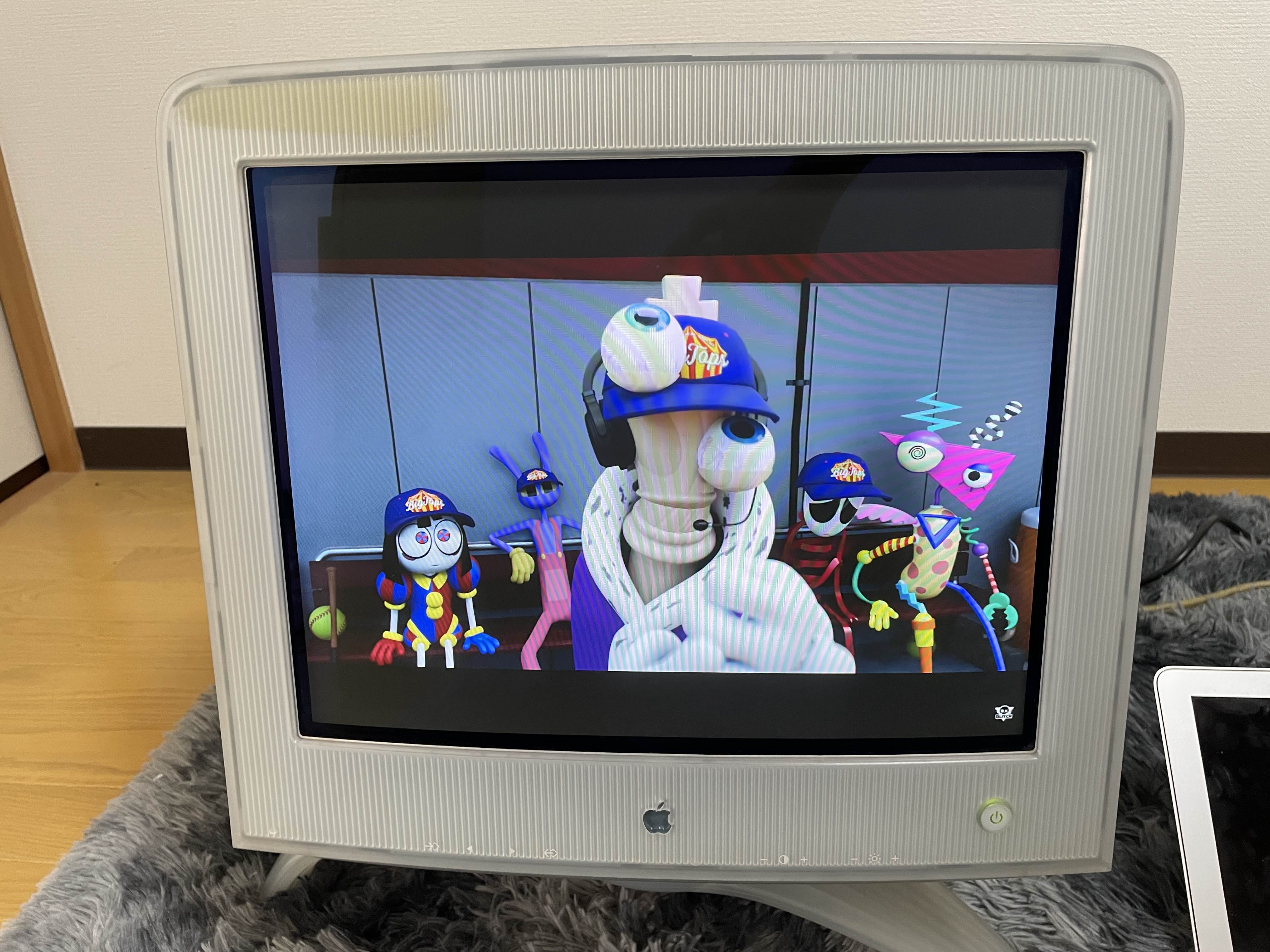

Gallery
| Specifications | |
|---|---|
| Brand: | Apple |
| Manufacturer: | LG |
| Model: | Studio Display 17 |
| Series: | Studio Display |
| Viewable Size: | 16" |

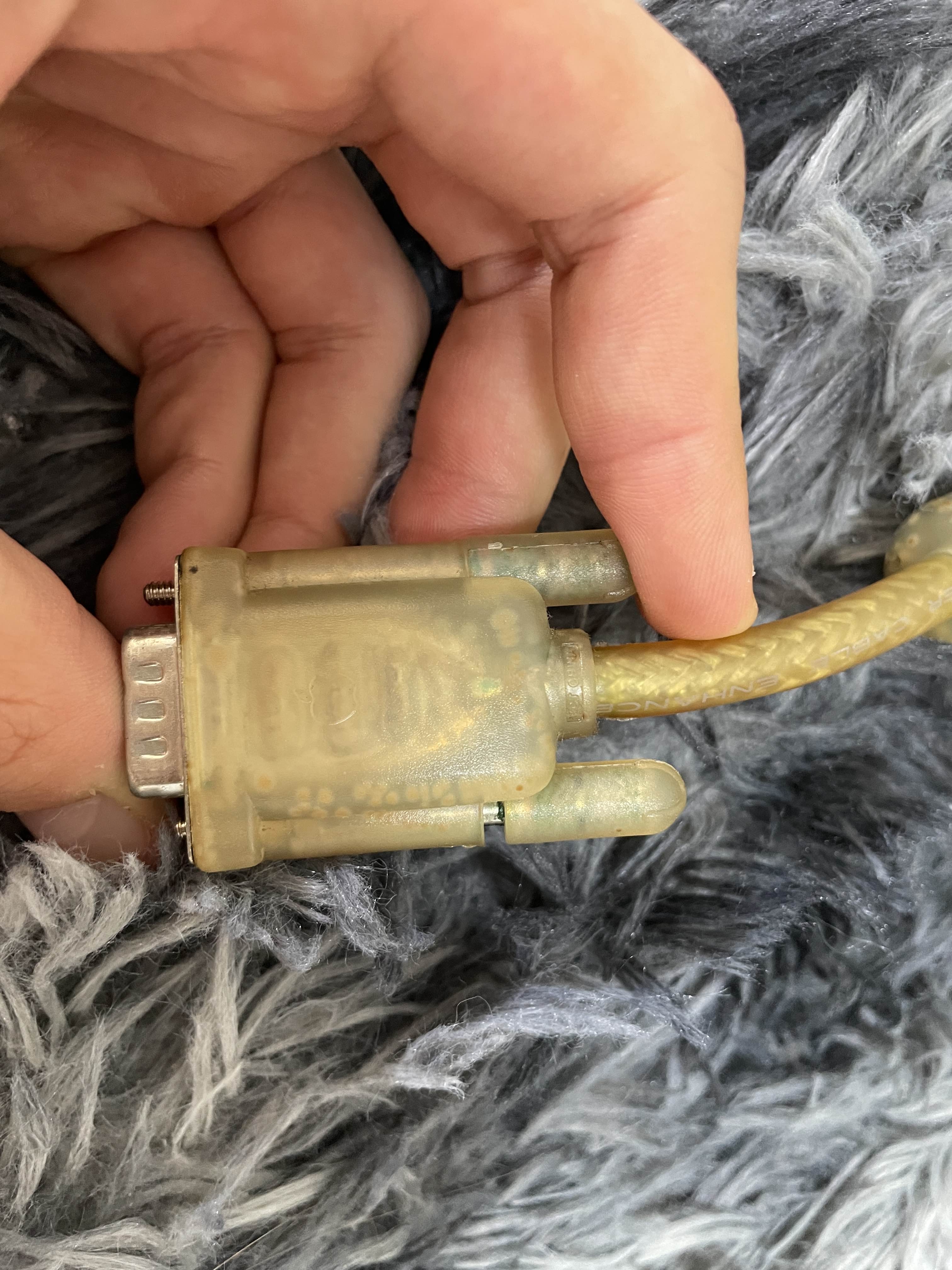

| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 30 kHz, 85 kHz |
| Vertical Scan Range: | 160 Hz, 48 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Flyback: | Y265382A |
| Focus Type: | Dual |
| Tube: | Mitsubishi Diamondtron , M41KZV31X61 , M41KZV31X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | Yes |
| Yoke: | YL-17DFMR |
| Yoke Horz. Inductance: | 0.9368 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.635 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.35 ohm |
| Yoke Vert. Resistance: | 9.76 ohm |
| Speakers: | None |
| Chassis: | DA796 |
| Weight: | 48 lbs (21.8 kg) |
| Dimensions (W/H/D): |
420 x 480 x 430 mm
(16.5 x 18.9 x 16.9") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 499 USD |
| Country of Manufacture: | Korea |
| Market: | Worldwide |
| Power Standard: | 120v, 100v, 240v |

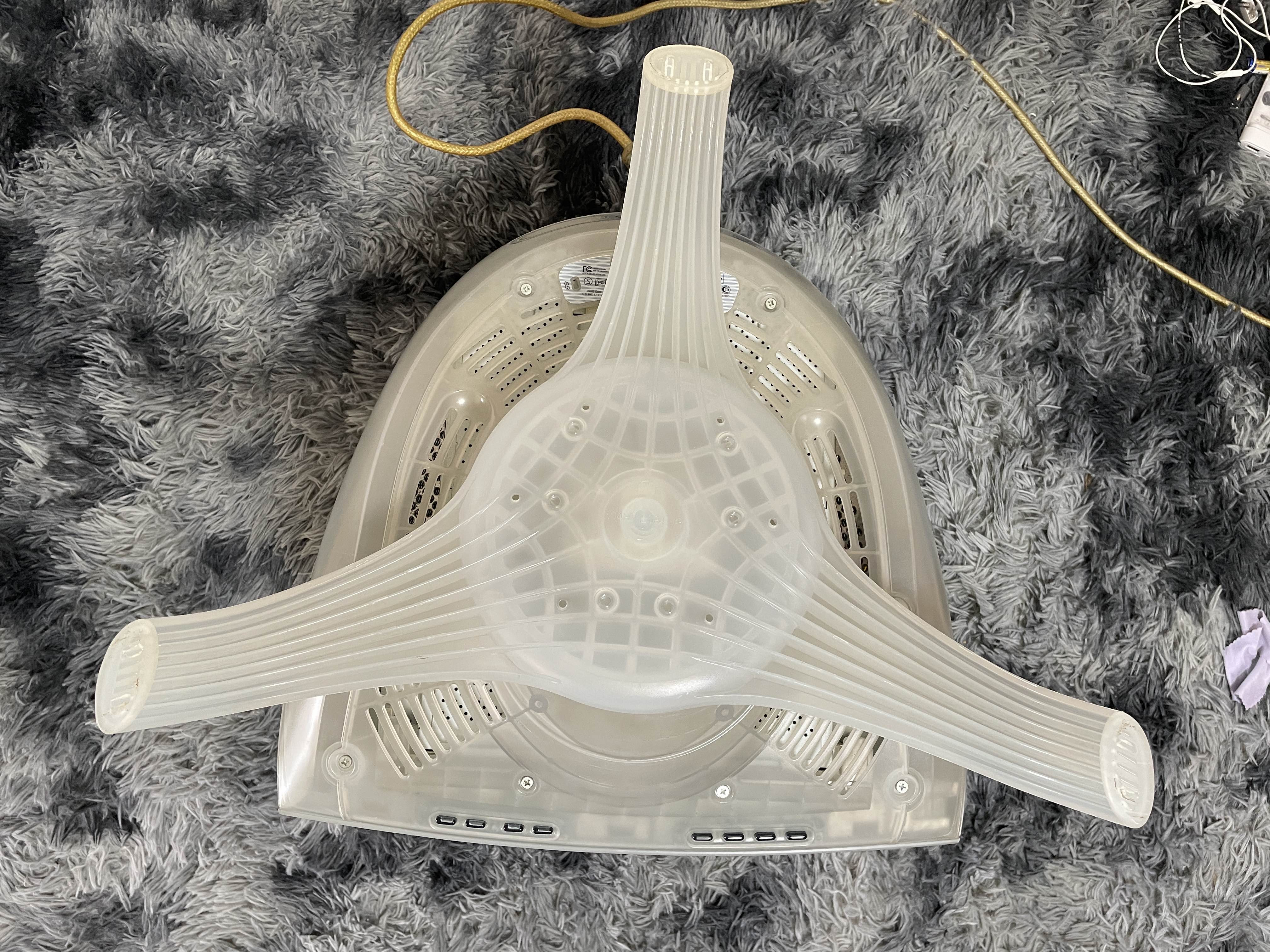

| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
