Summary

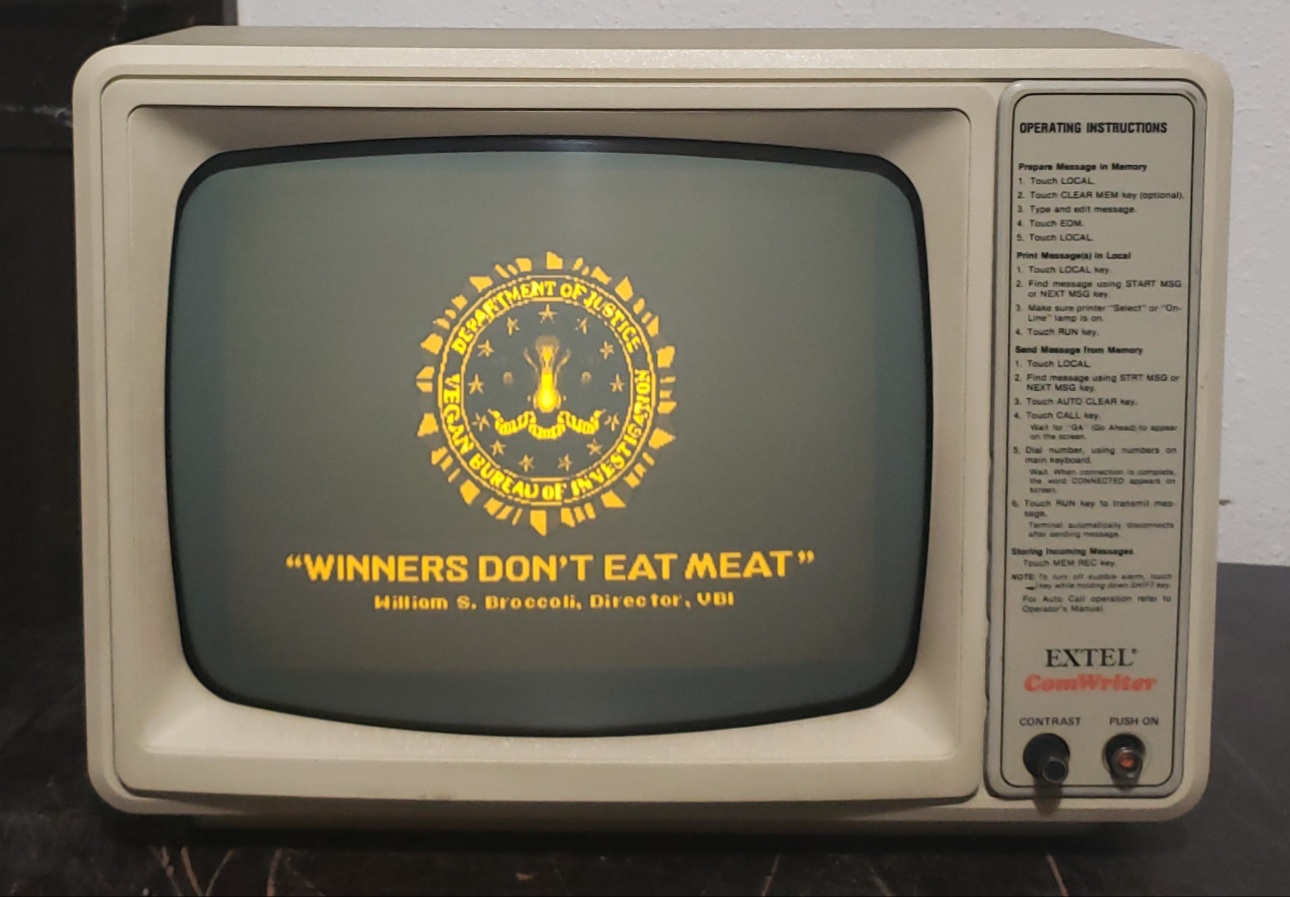

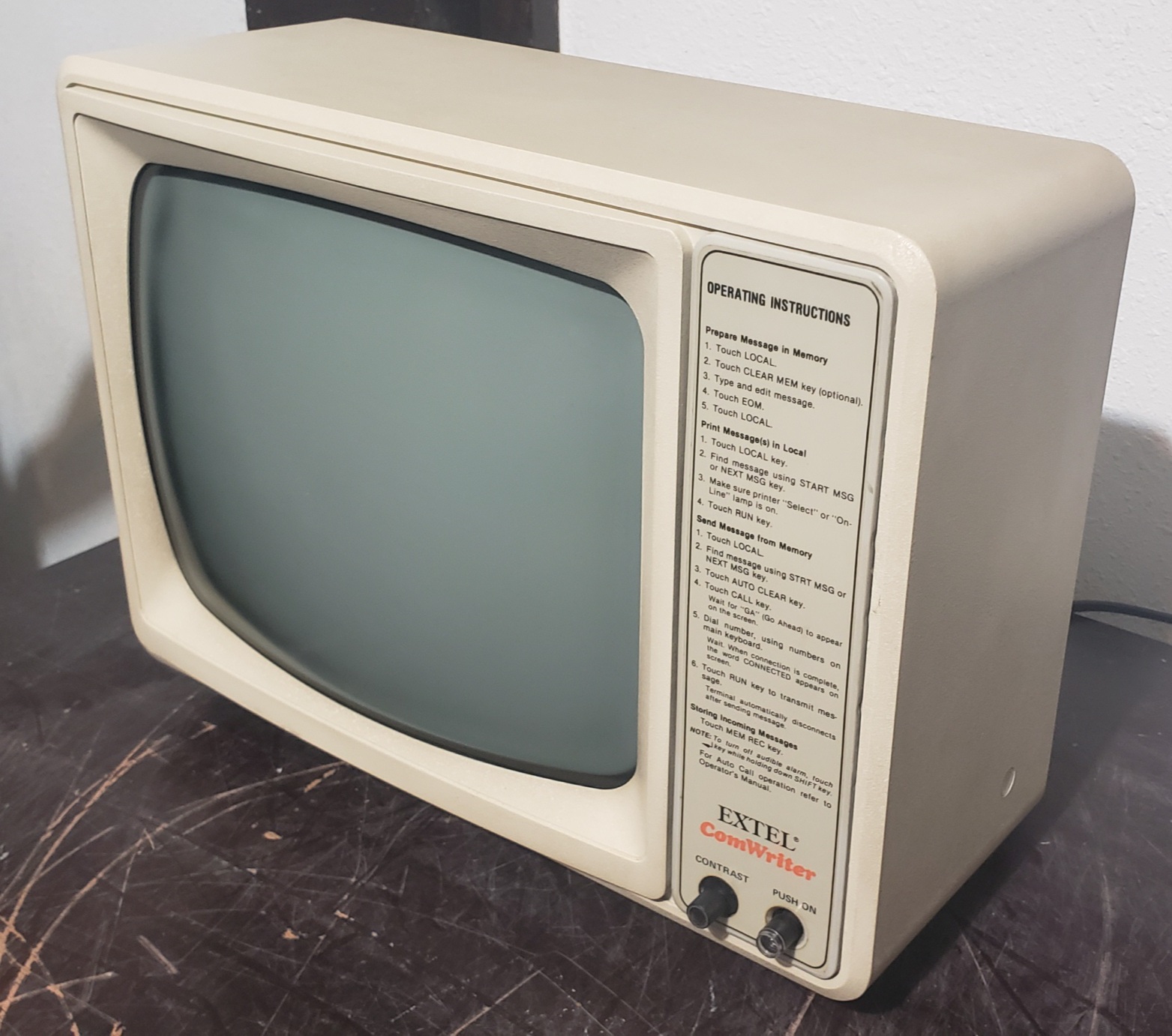

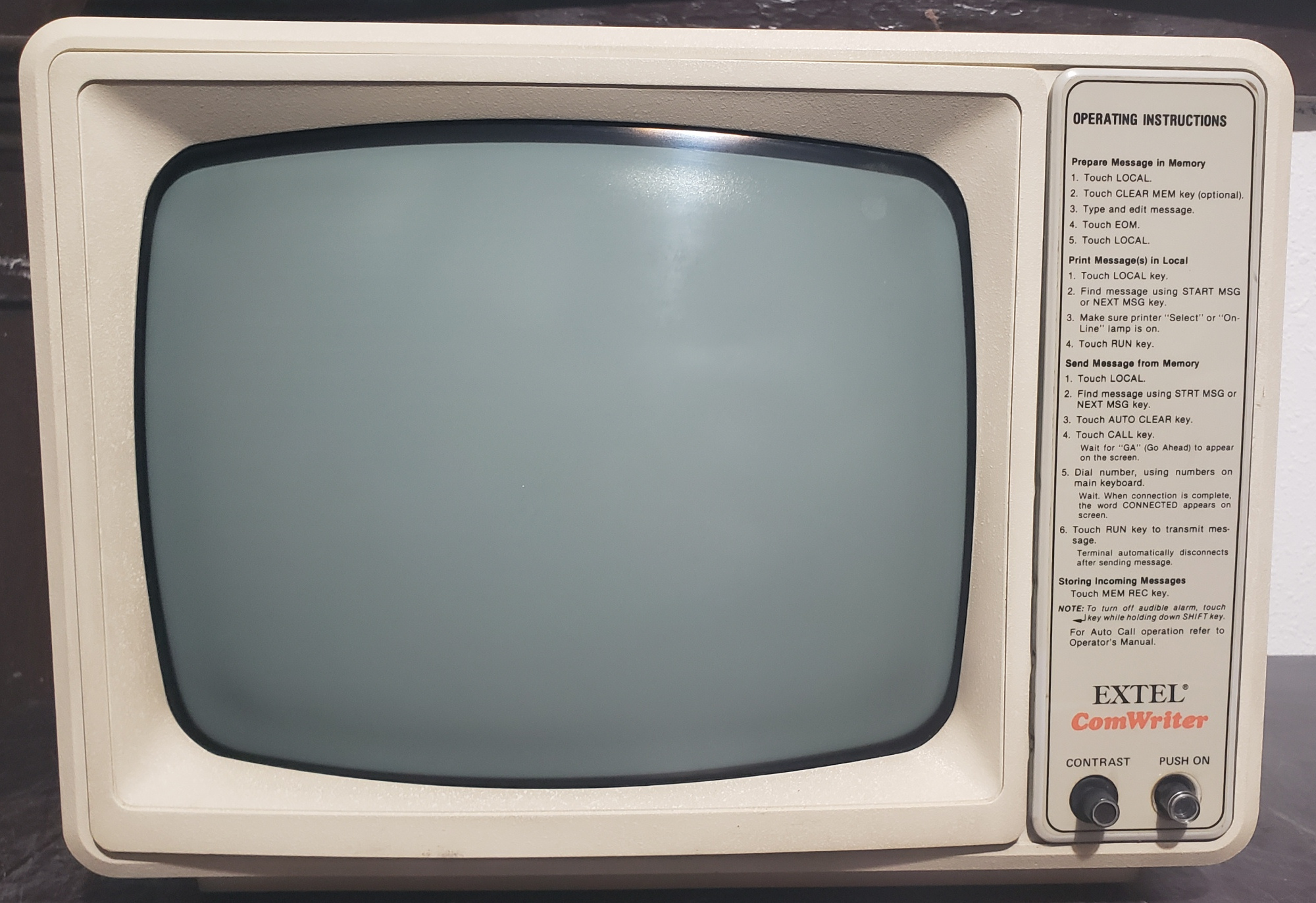

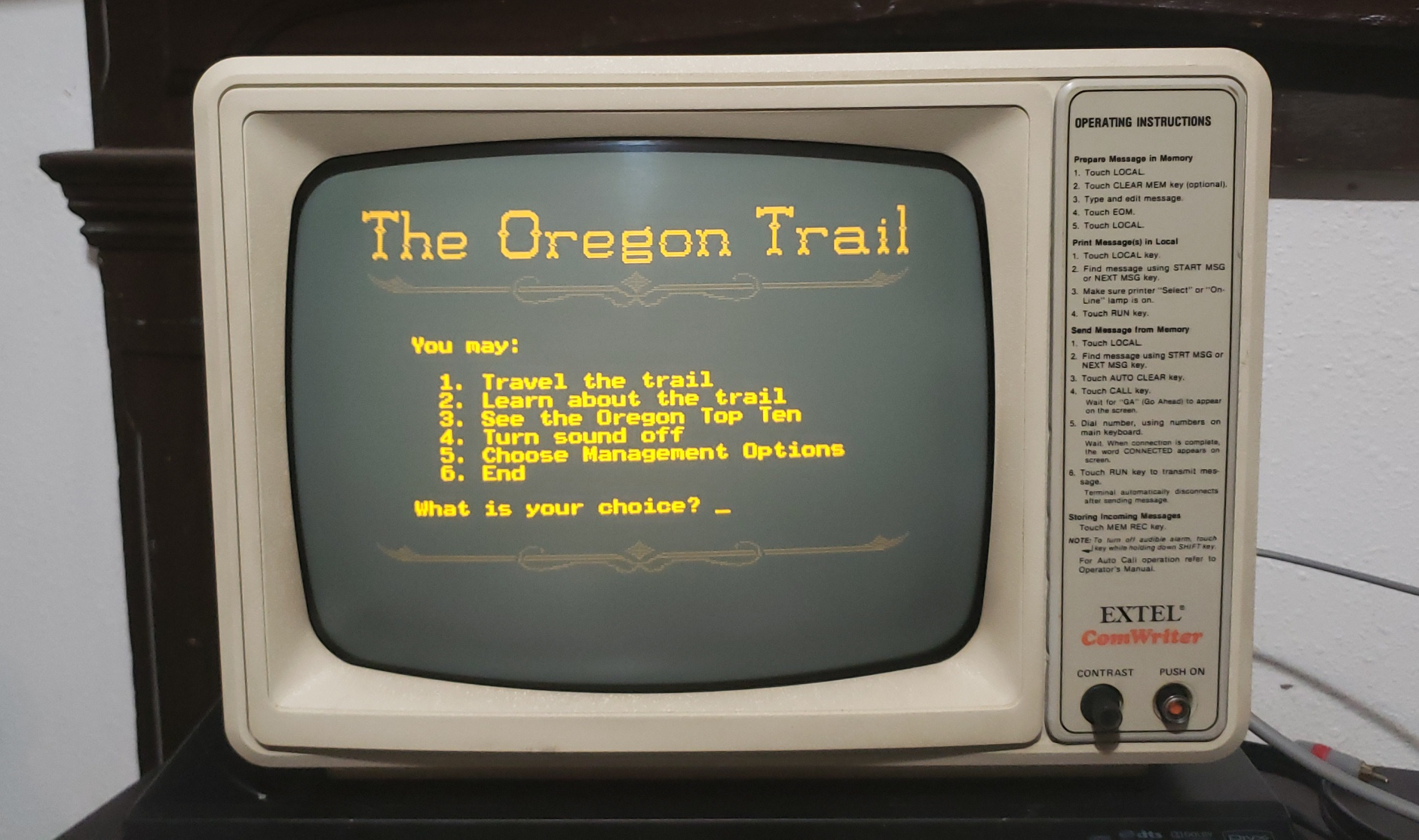

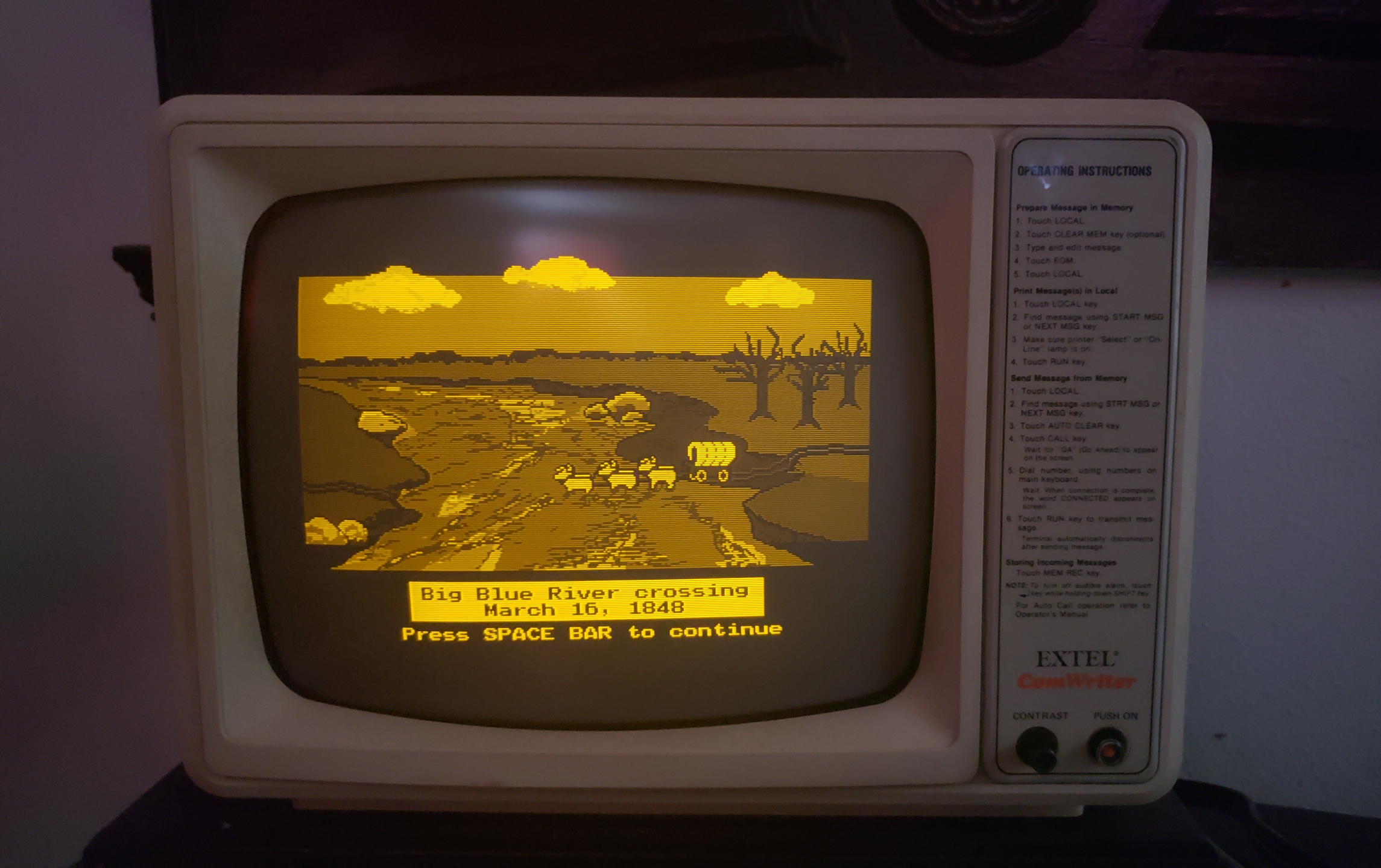

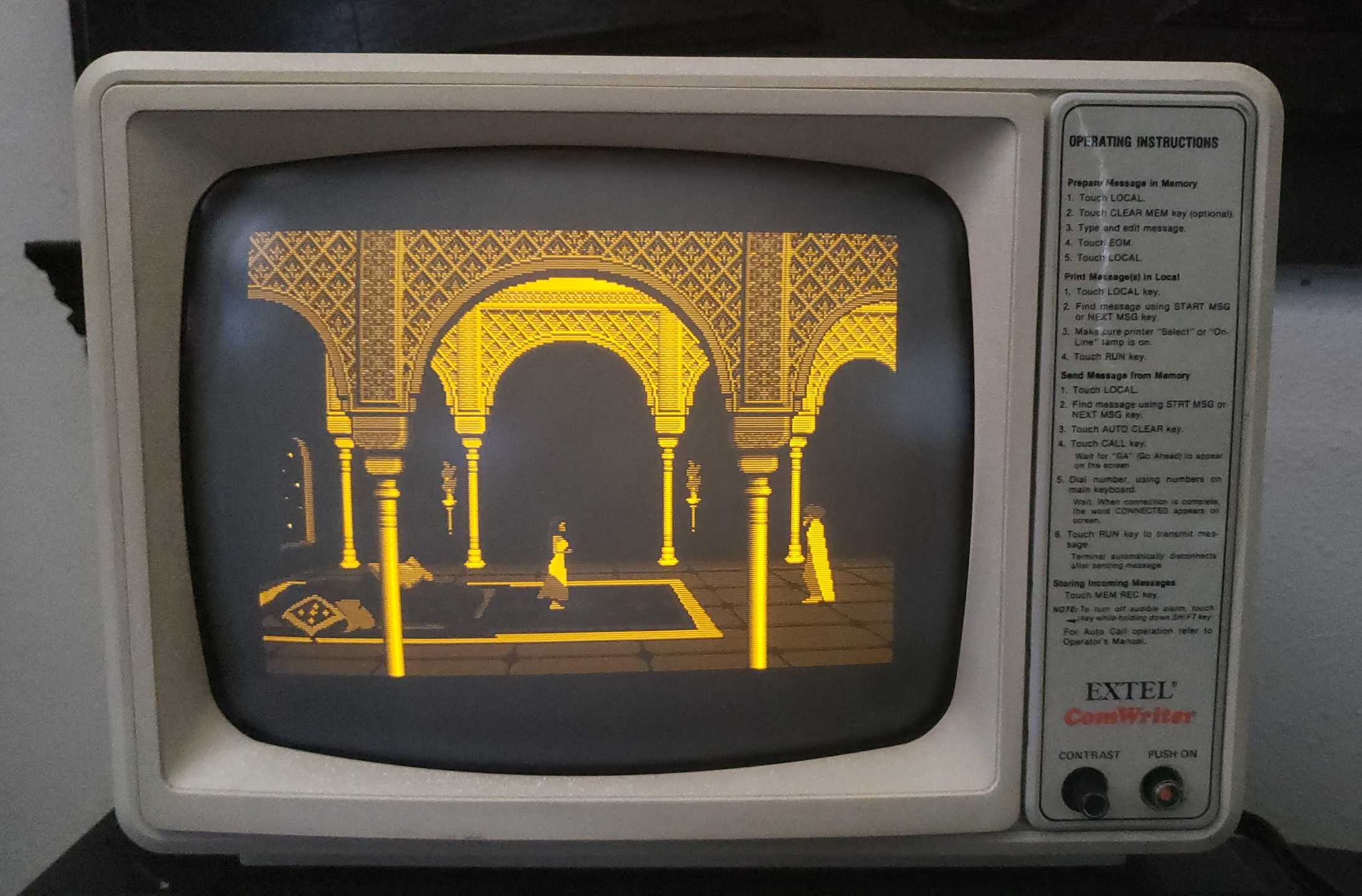

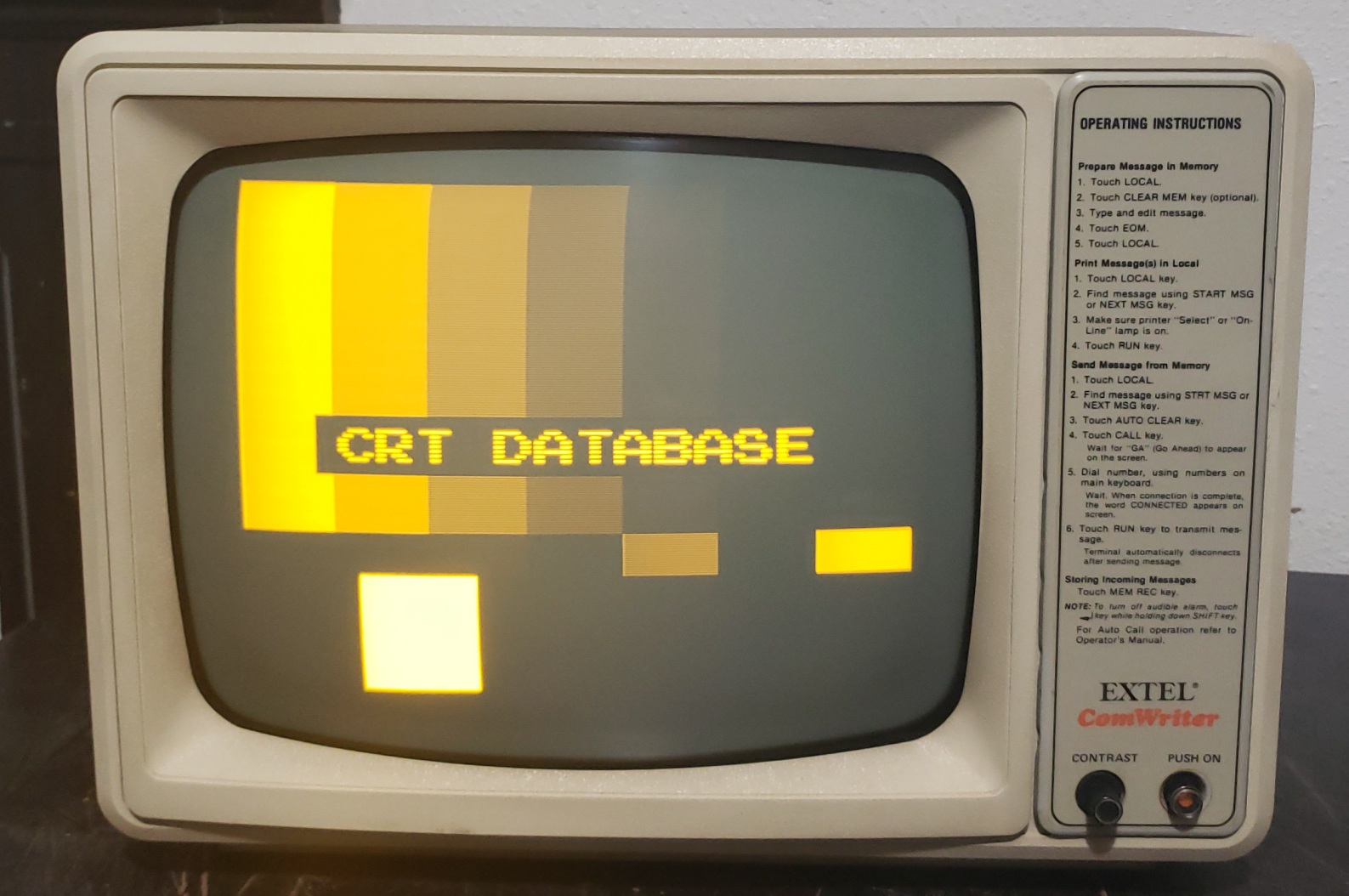

Amber monitor for use with Extel ComWriter system.

Notes

There are internal potentiometers for V. Size, V. Linearity, and Sub-Brightness.

Repair Notes

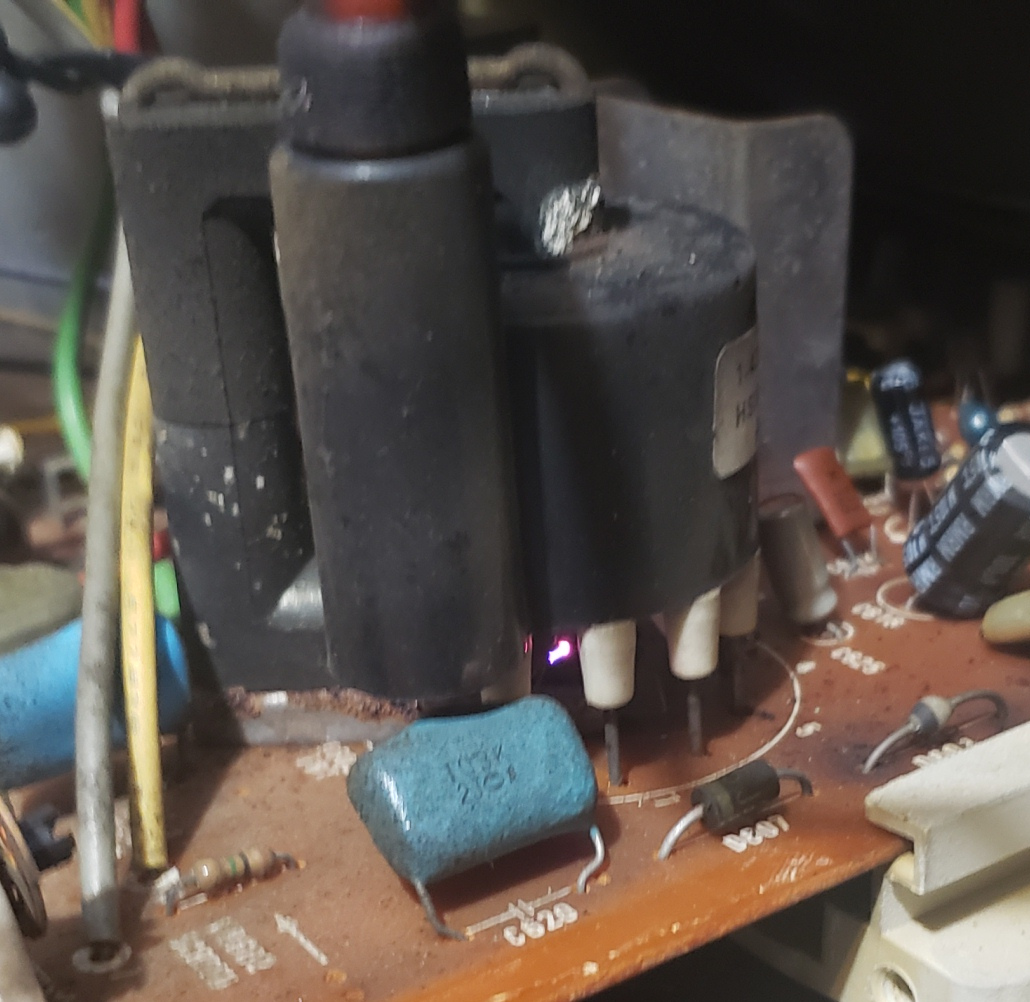

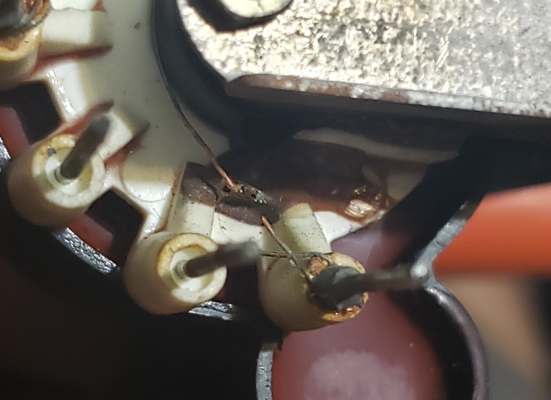

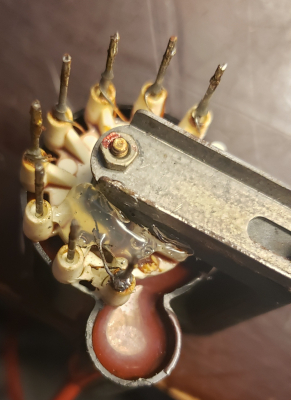

A 47uF 16V capacitor near the blue transformer was found to have gone open, C609. A copper wire on the underside of the flyback had corroded all the way through and was arcing, preventing the picture from showing. Bodged and insulated.
