Summary

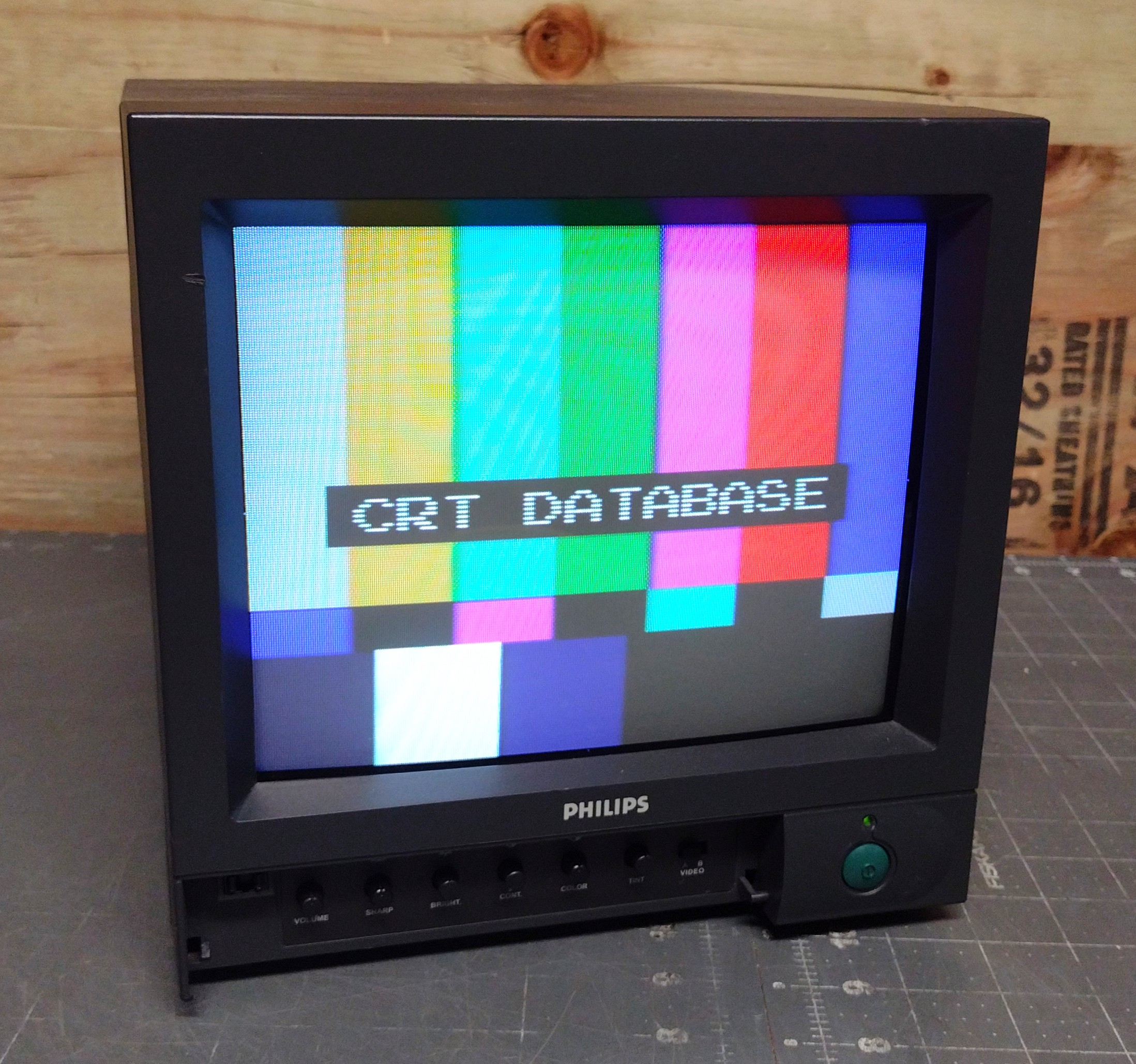

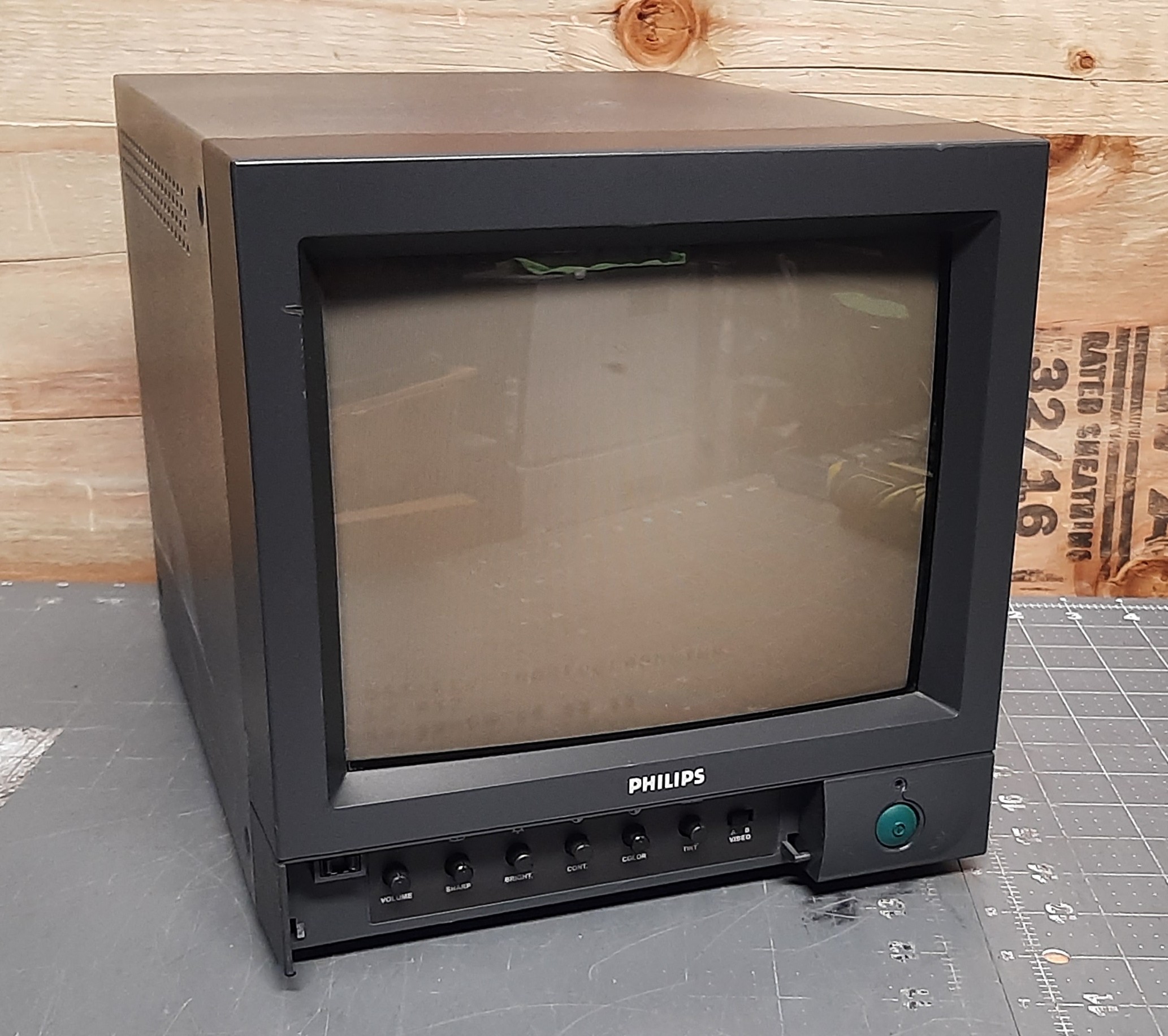

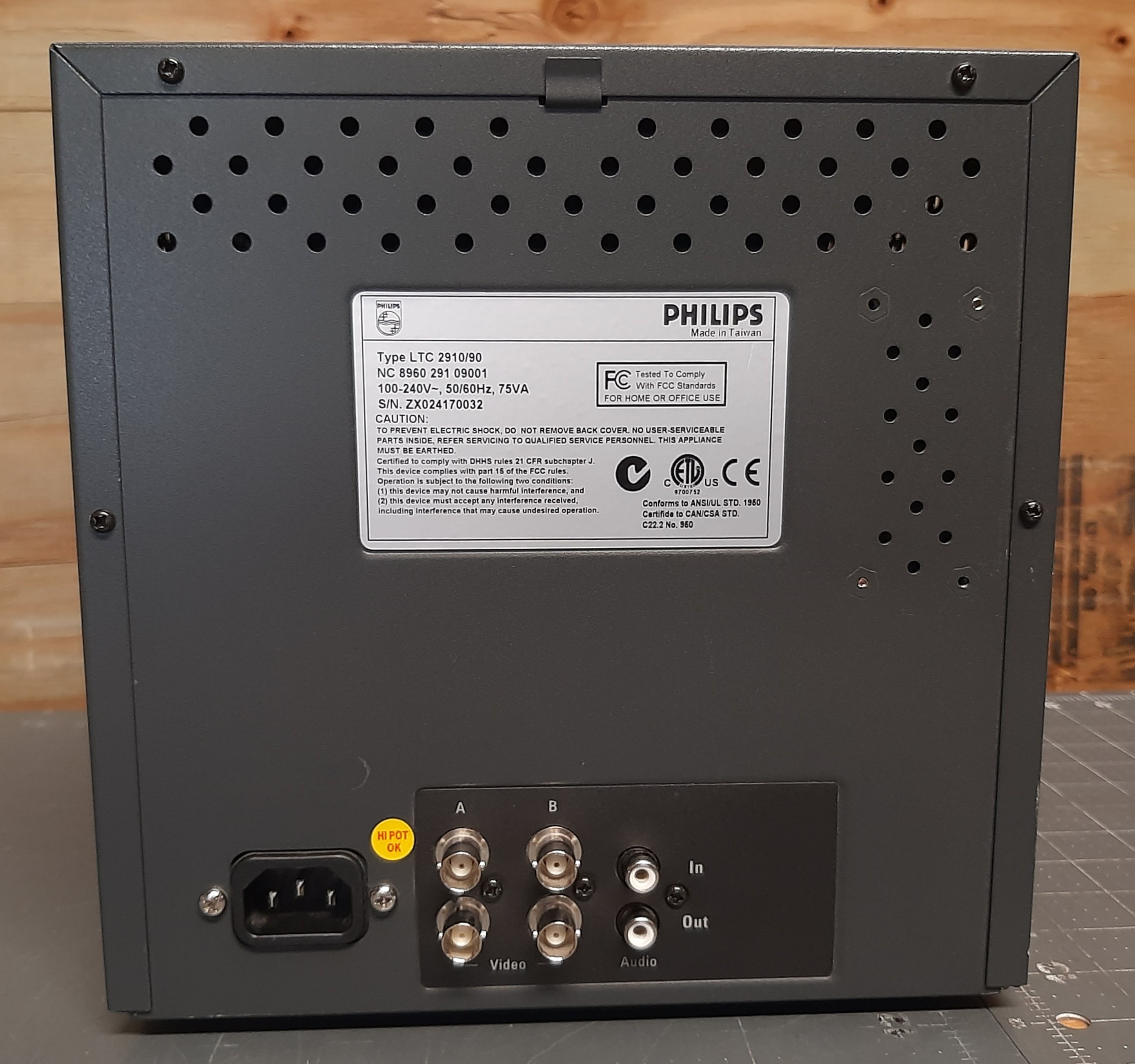

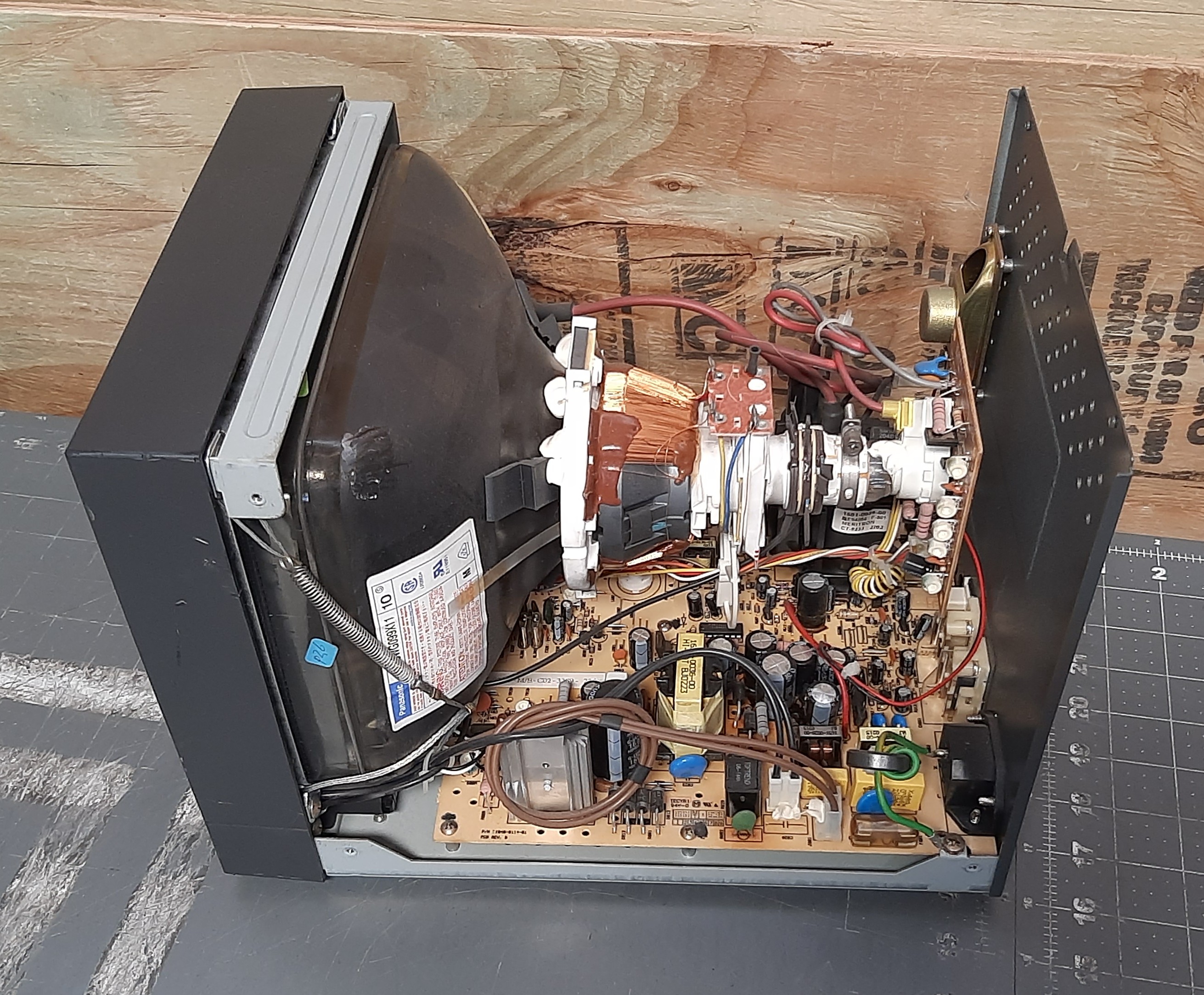

9" CCTV monitor with two composite inputs and a built in speaker. Manufactured by Philips, and sold under both the Philips and Bosch brands (using the same model number). Uses a 9", 90 degree Panasonic tube. Photos on this page are of the Philips branded version.
Manuals
Notes
The jungle chip on this model has external RGB inputs. Also, the chassis doesn't have an OSD and relies on internal pots for adjustments. As such, this is a very good RGB mod candidate.
Gallery
| Specifications | |
|---|---|
| Brand: | Bosch |
| Manufacturer: | Philips |
| Model: | LTC 2910/90 |
| Series: | LTC |
| Viewable Size: | 9" |
| Inputs: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | C5149 |
| Vertical Output IC: | TDA8172 |
| Jungle: | TDA8361 |
| Flyback: | CT-9233 |
| Tube: | Panasonic , A22JWG099X11 , A22JWG099X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY3CFB32M |
| Yoke Horz. Inductance: | 5.298 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 25.04 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 7.2 ohm |
| Yoke Vert. Resistance: | 11.1 ohm |
| Speakers: | Mono |
| Weight: | 15 lbs (6.8 kg) |
| Dimensions (W/H/D): |
222 x 303 x 228 mm
(8.7 x 11.9 x 9") |
| Application: | Commercial |
| Cabinet Material: | Metal |
| Launched: | 2001 |
| Country of Manufacture: | Taiwan |
| Mounting: | Rackable |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Pictures |
