Summary

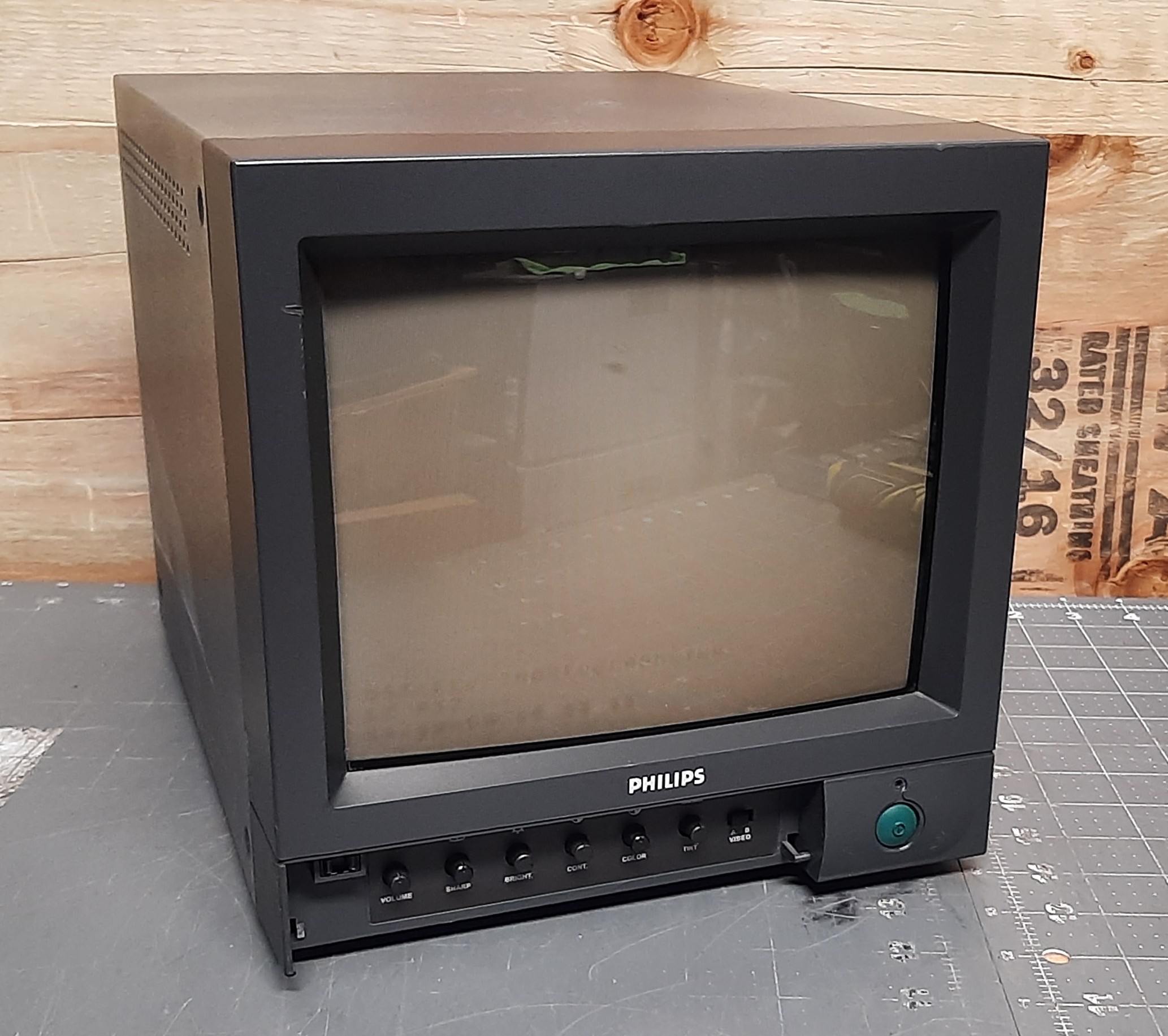

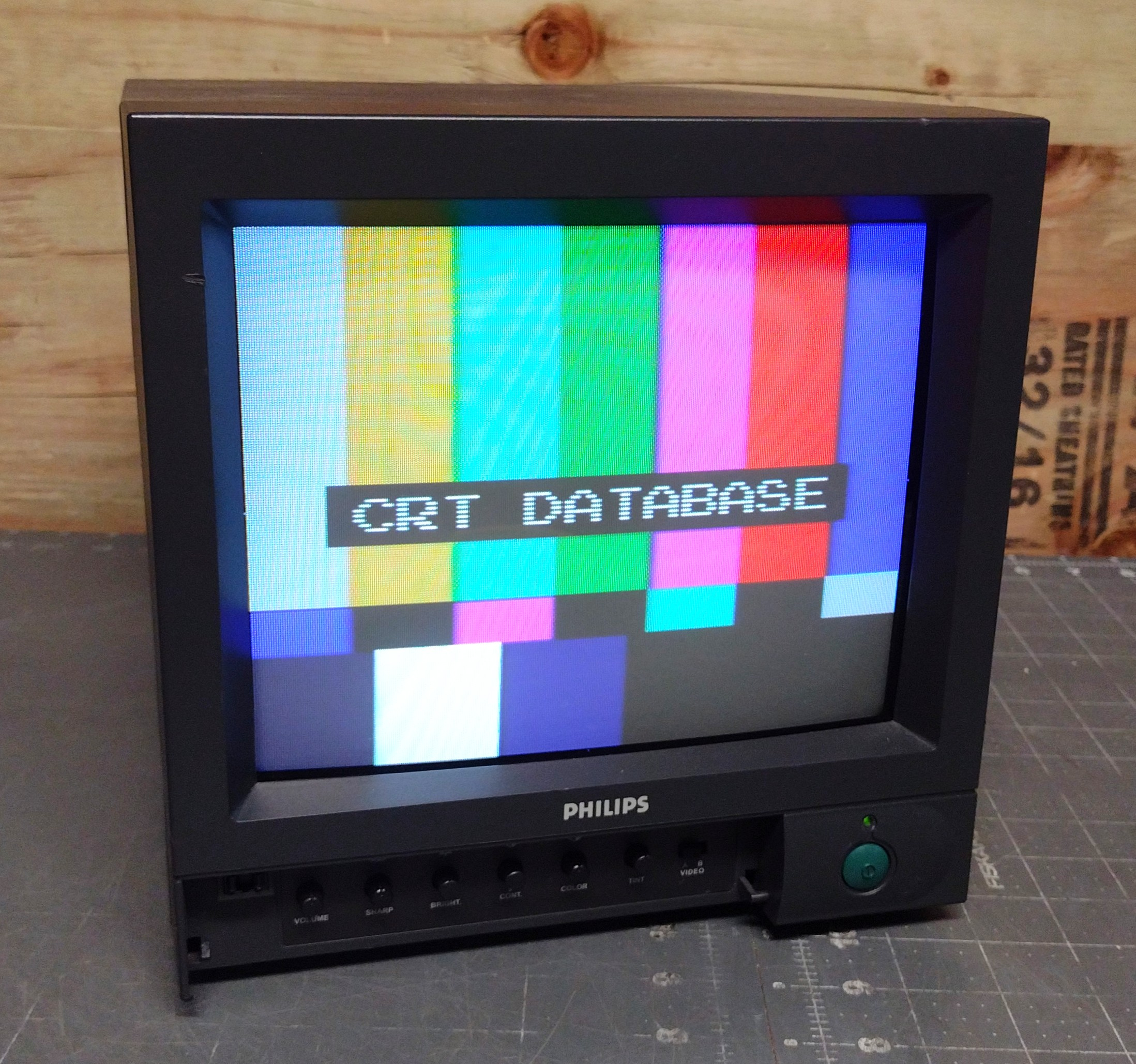

9" CCTV monitor with two composite inputs and a built in speaker. Uses a 9", 90 degree Panasonic tube. Also sold by Bosch (with the same model number).
Manuals
Notes
The jungle chip on this model has external RGB inputs. Also, the chassis doesn't have an OSD and relies on internal pots for adjustments. As such, this is a very good RGB mod candidate.
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | LTC 2910/90 |
| Series: | LTC |
| Viewable Size: | 9" |
| Inputs: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | C5149 |
| Vertical Output IC: | TDA8172 |
| Jungle: | TDA8361 |
| Flyback: | CT-9233 |
| Tube: | Panasonic , A22JWG099X11 , A22JWG099X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY3CFB32M |
| Yoke Horz. Inductance: | 5.298 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 25.04 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 7.2 ohm |
| Yoke Vert. Resistance: | 11.1 ohm |
| Speakers: | Mono |
| Weight: | 15 lbs (6.8 kg) |
| Dimensions (W/H/D): |
222 x 303 x 228 mm
(8.7 x 11.9 x 9") |
| Application: | Commercial |
| Cabinet Material: | Metal |
| Launched: | 2001 |
| Country of Manufacture: | Taiwan |
| Mounting: | Rackable |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Pictures |
