Summary

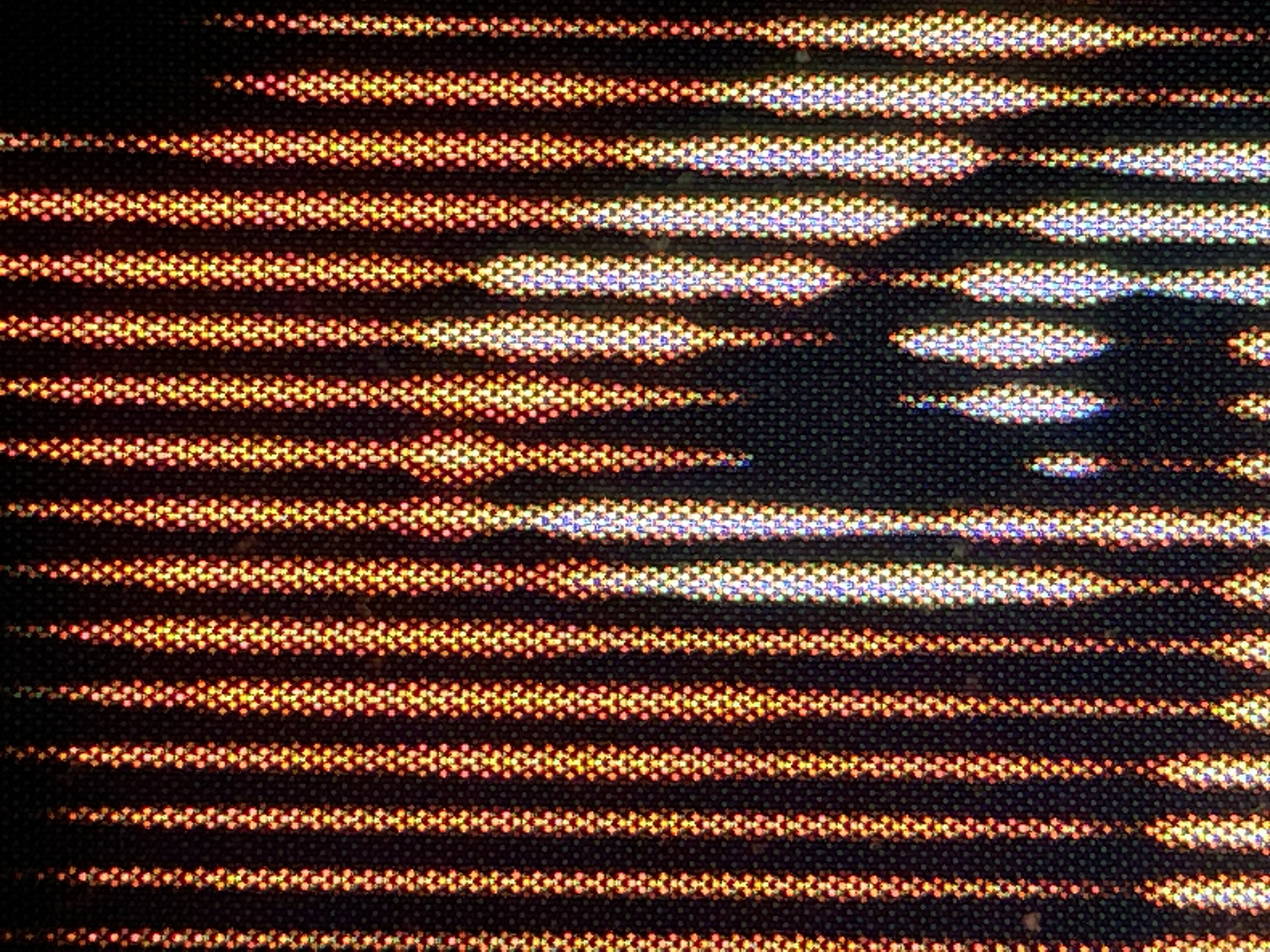

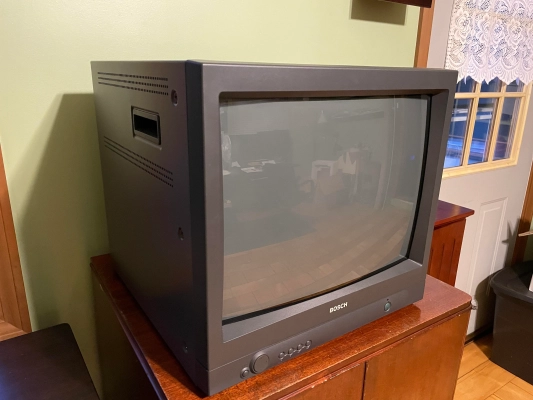

A 19" video monitor with 700 TVL and dot triad mask, which seems to be a rebrand of the Philips LTC 2919/90 monitor.
Manuals
Notes
To access service menu, as documented by user Woojrow on reddit:
- Press the OSD button
- Scroll to "Language" (don't select it yet)
- Press and hold the OSD button
- While still holding the OSD button you should be in the Language menu Press and Hold "Right" and after a few seconds it will enter the factory settings
Gallery
| Specifications | |
|---|---|
| Brand: | Bosch |
| Manufacturer: | Philips |
| Model: | LTC 2919/90 |
| Series: | LTC |
| Viewable Size: | 18" |

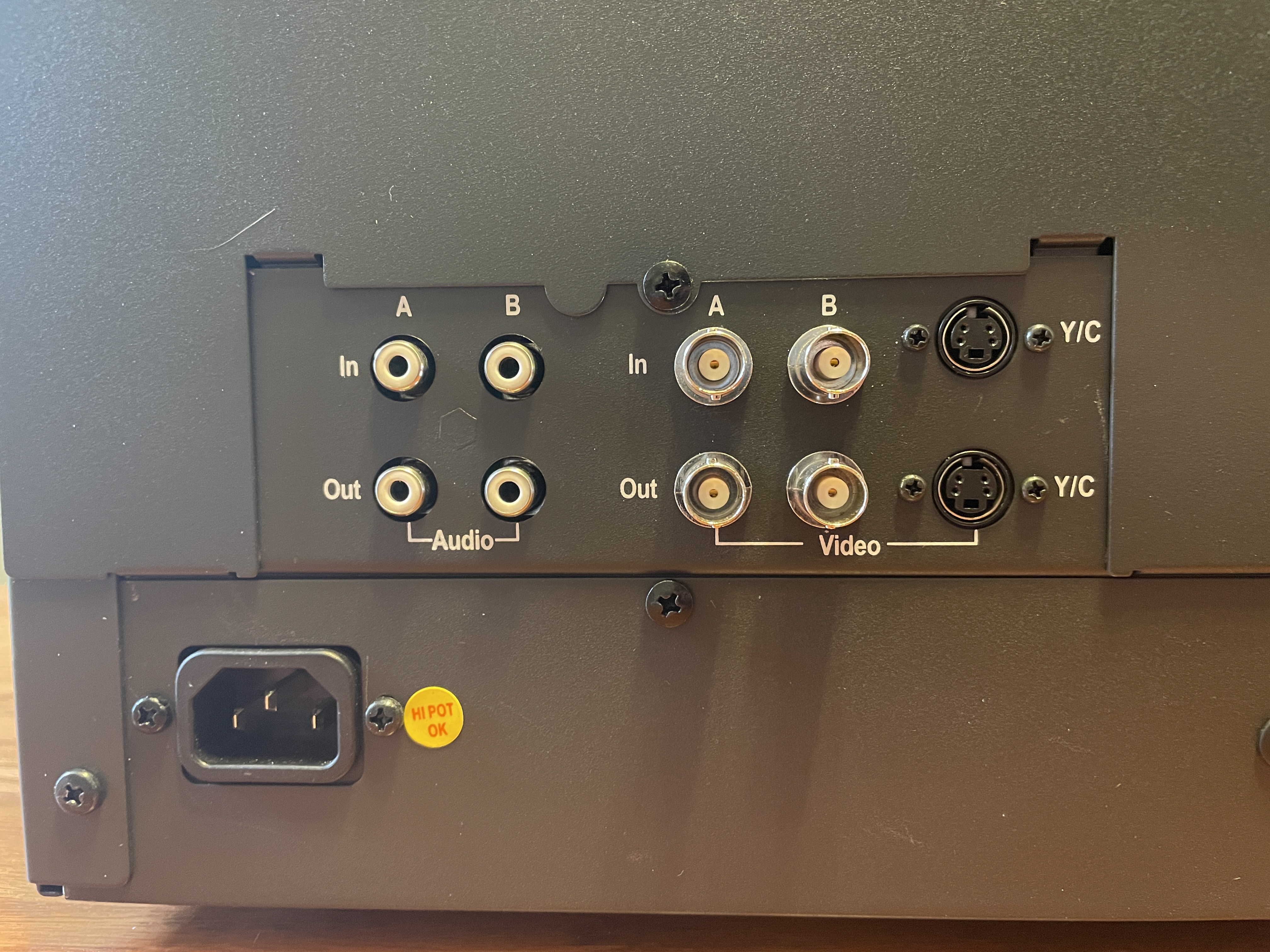

| Inputs: | Composite, S-Video |
| Native Resolutions: | 240p, 480i |
| Linecount: | 700 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.27 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Weight: | 52.9 lbs (24 kg) |
| Dimensions (W/H/D): |
442 x 445 x 410 mm
(17.4 x 17.5 x 16.1") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Country of Manufacture: | China |
| Mounting: | Rackable |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Tube Info, Community Submission |
