Summary

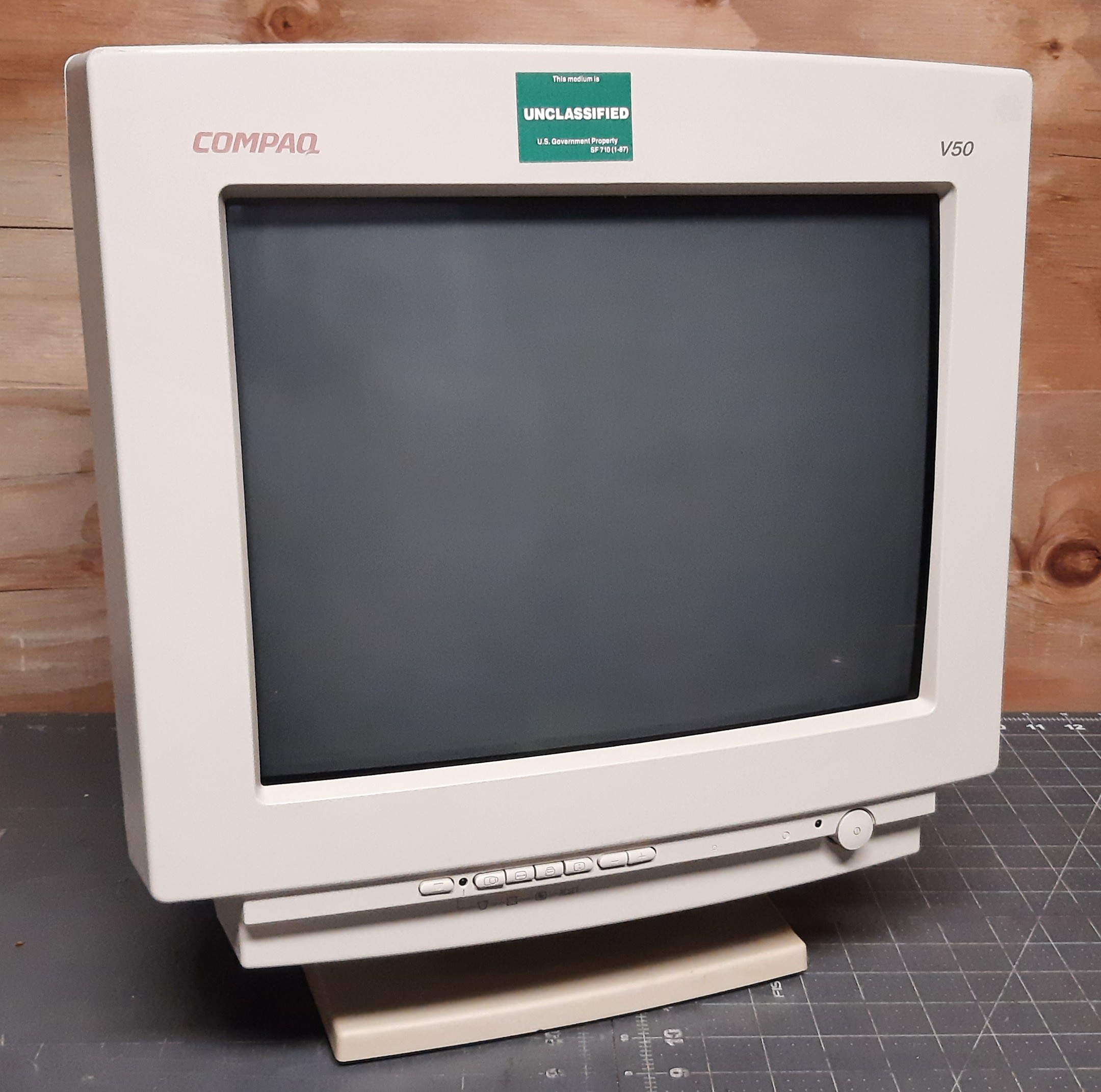

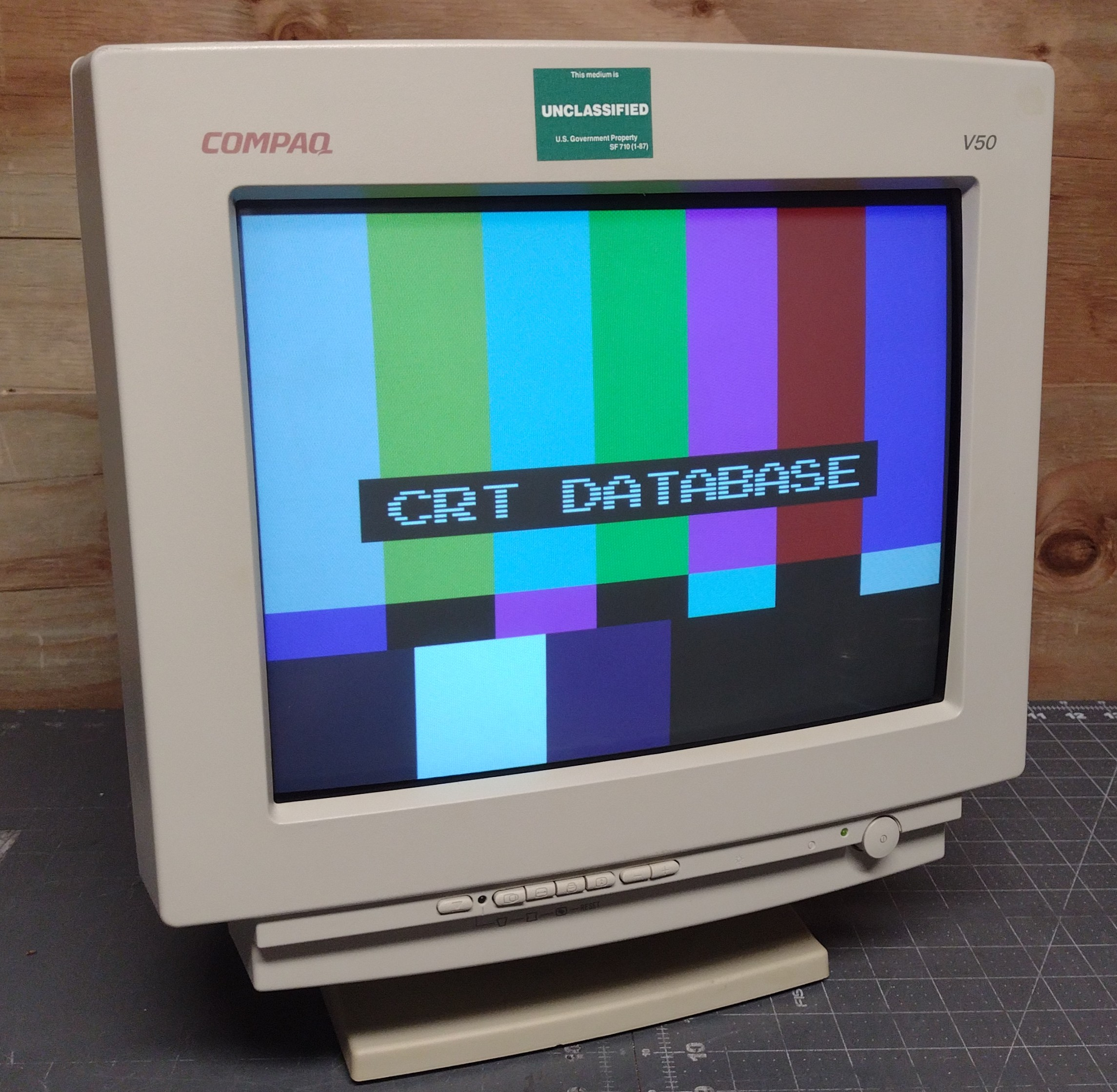

15" PC monitor from Compaq, originally made by Philips. Contemporary to the Compaq V70.
Manuals
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Compaq |
| Manufacturer: | Philips |
| Model: | V50 |
| Series: | Color Monitor |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 60 kHz |
| Vertical Scan Range: | 50 Hz, 100 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Focus Type: | Single |
| Tube: | Philips , M36EDR320X , M36EDR320X130 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 0.17747 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.210 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.38 ohm |
| Yoke Vert. Resistance: | 6.02 ohm |
| Speakers: | None |
| Weight: | 28.6 lbs (13 kg) |
| Dimensions (W/H/D): |
369 x 396 x 393 mm
(14.5 x 15.6 x 15.4") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 385 USD |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
