Summary

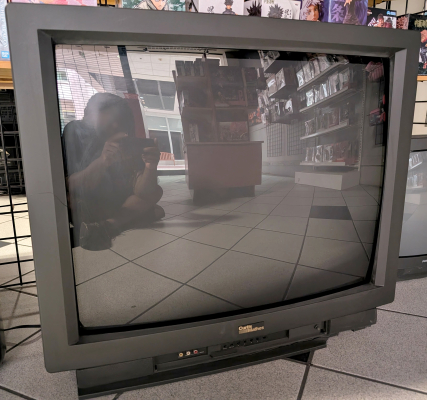

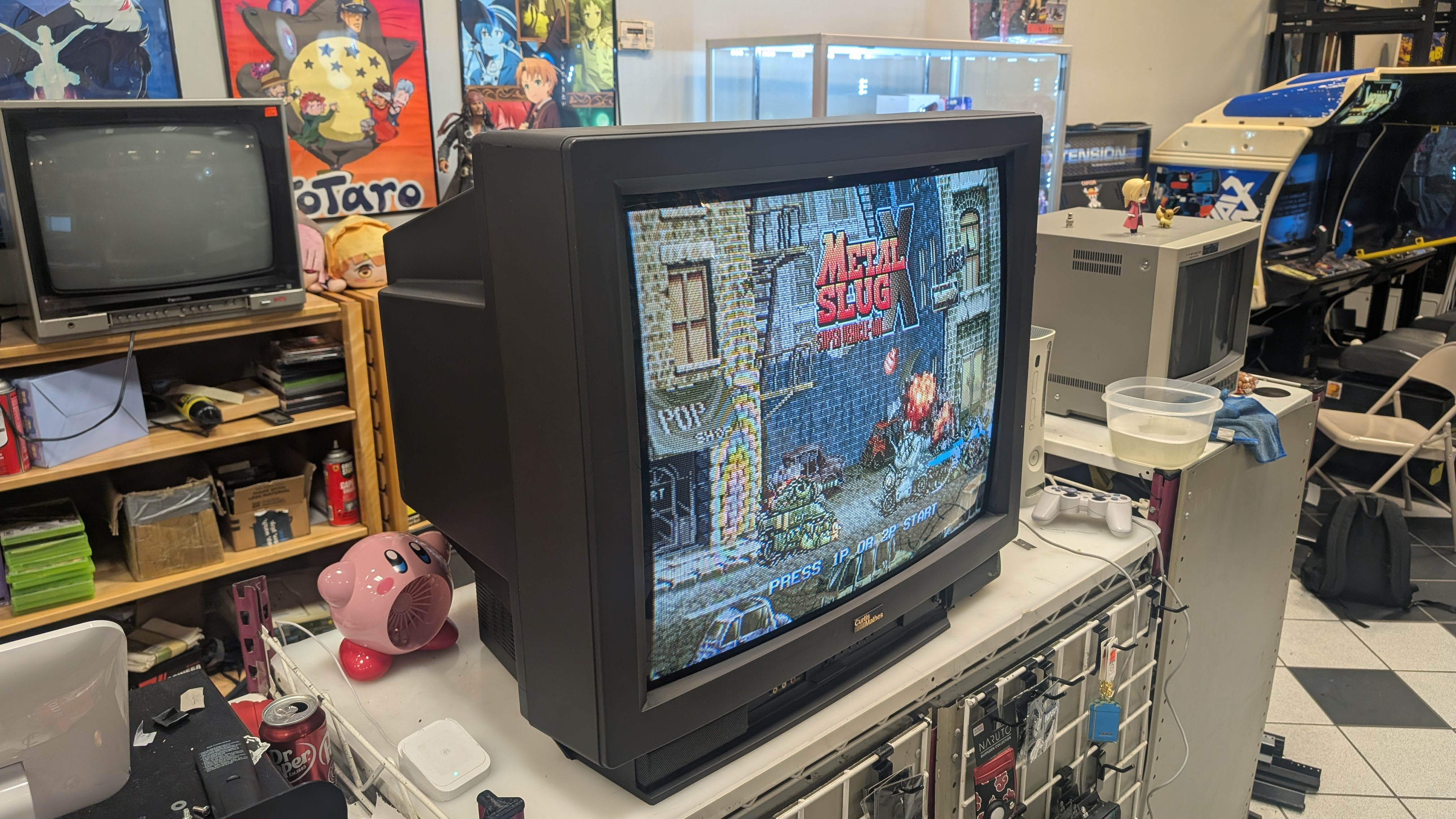

Higher-end 31" CRT by Curtis Mathes. Has RF, composite, and s-video inputs. Originally manufactured by Hitachi in 1995.
(Special thanks to Adrian Ali for the pics!)
Manuals
Notes
Plastic casing tends to be brittle and crack easily, so it is best to handle gently.
This set is a rebadge of Hitachi model 31CX6B (CY56 chassis assembly).
Gallery
| Specifications | |
|---|---|
| Brand: | Curtis Mathes |
| Manufacturer: | Hitachi |
| Model: | 3194TB |
| Series: | TB |
| Viewable Size: | 31" |

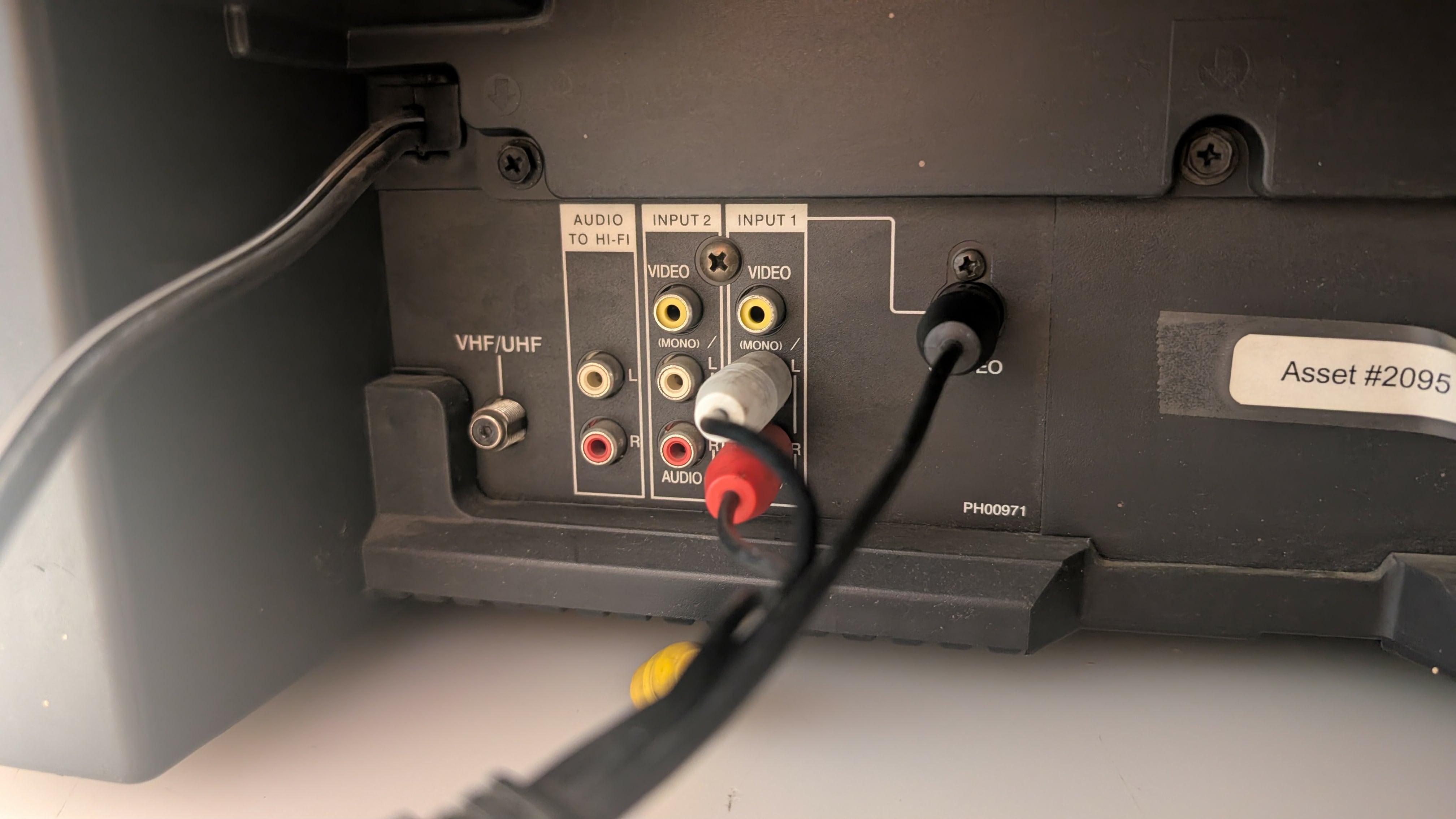

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7674 |
| Jungle: | Sanyo, LA7674 |
| Flyback: | FBT-C87LUI |
| Focus Type: | Single |
| Tube: | Hitachi , A78LCU30X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | BY00511 |
| Speakers: | Stereo, 5W x 2 |
| Remote: | HL00226, CLU-412U |
| Chassis: | A3LXU2 |
| Weight: | 132 lbs (59.9 kg) |
| Dimensions (W/H/D): |
789 x 678 x 572 mm
(31 x 26.6 x 22.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| MSRP: | 1300 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SP316B |
| Degaussing: | Automatic on Power-on |
