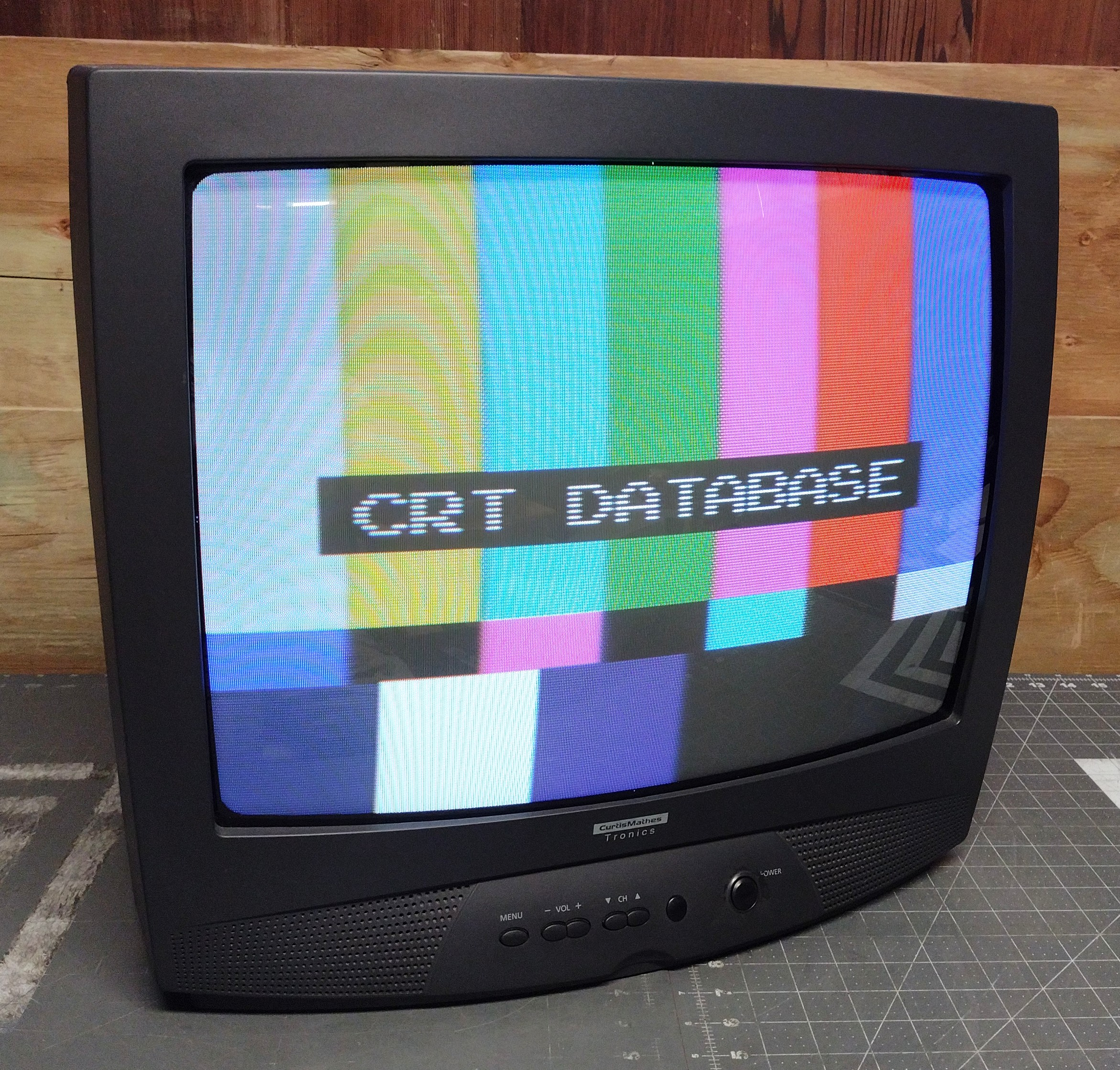

Curtis Mathes CM19022S
Matt Ross
November 25, 2024, 11:48 pm
November 27, 2024, 9:12 pm
November 25, 2024, 11:48 pm
November 27, 2024, 9:12 pm
Summary
19" consumer TV, manufactured by Samsung and sold under the Curtis Mathes label which, at the time, was the store brand for K-Mart. Includes one rear stereo AV input.
Literature
Notes
Remotes for this TV are very easy to find. Most Samsung remotes will work with it, including modern ones.

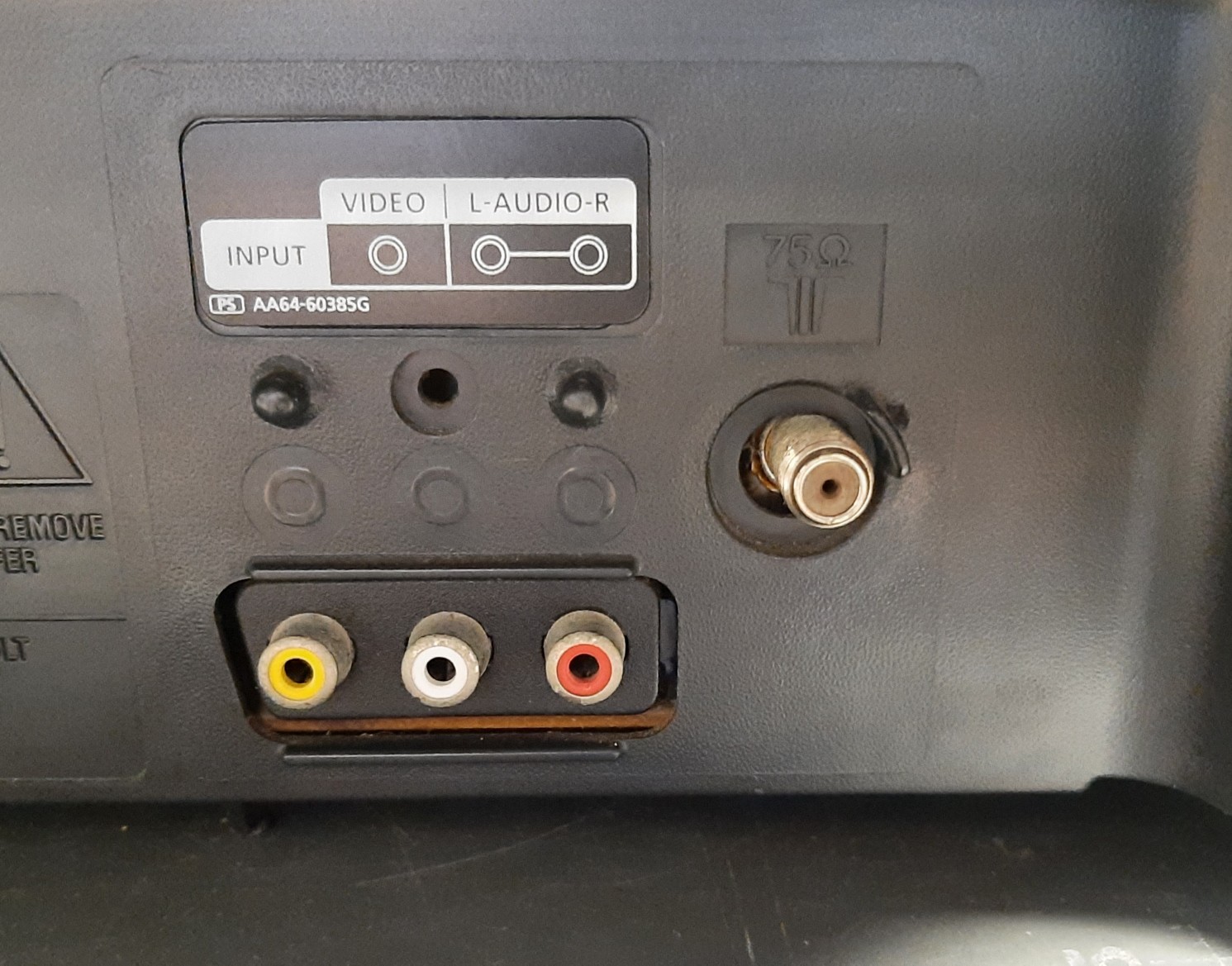

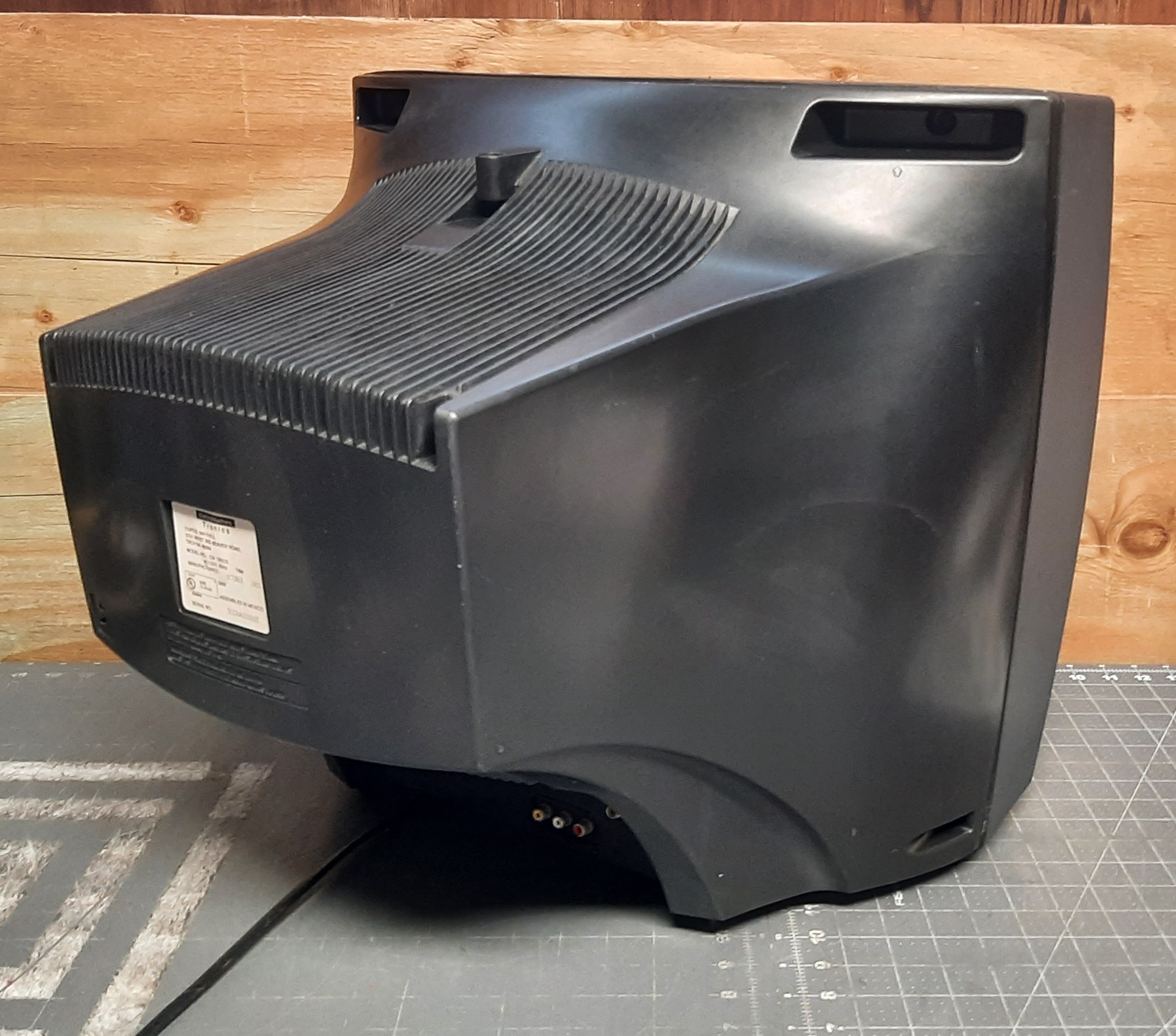

The rear AV input is mounted in a SCART-shaped cutout in the case. However, the design of the PCB does not reflect this. It does use a Toshiba jungle chip that can be modified for RGB inputs via the OSD Mux method.

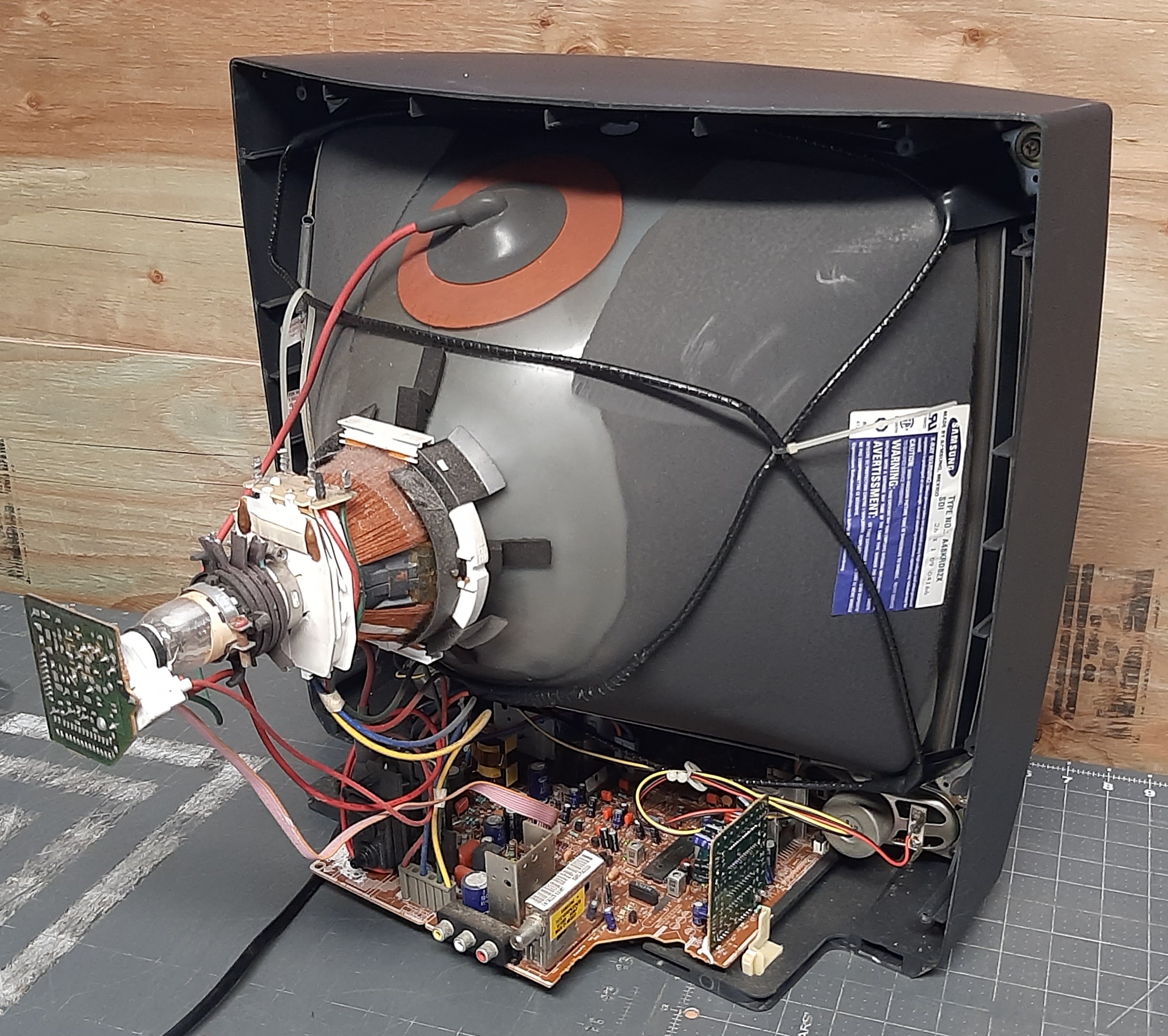

This TV uses a 19" viewable tube with a CR-23 socket, which makes it a potential replacement for 19" arcade monitors.
Samsung sold versions of this TV under their own brand name, with different model numbers.

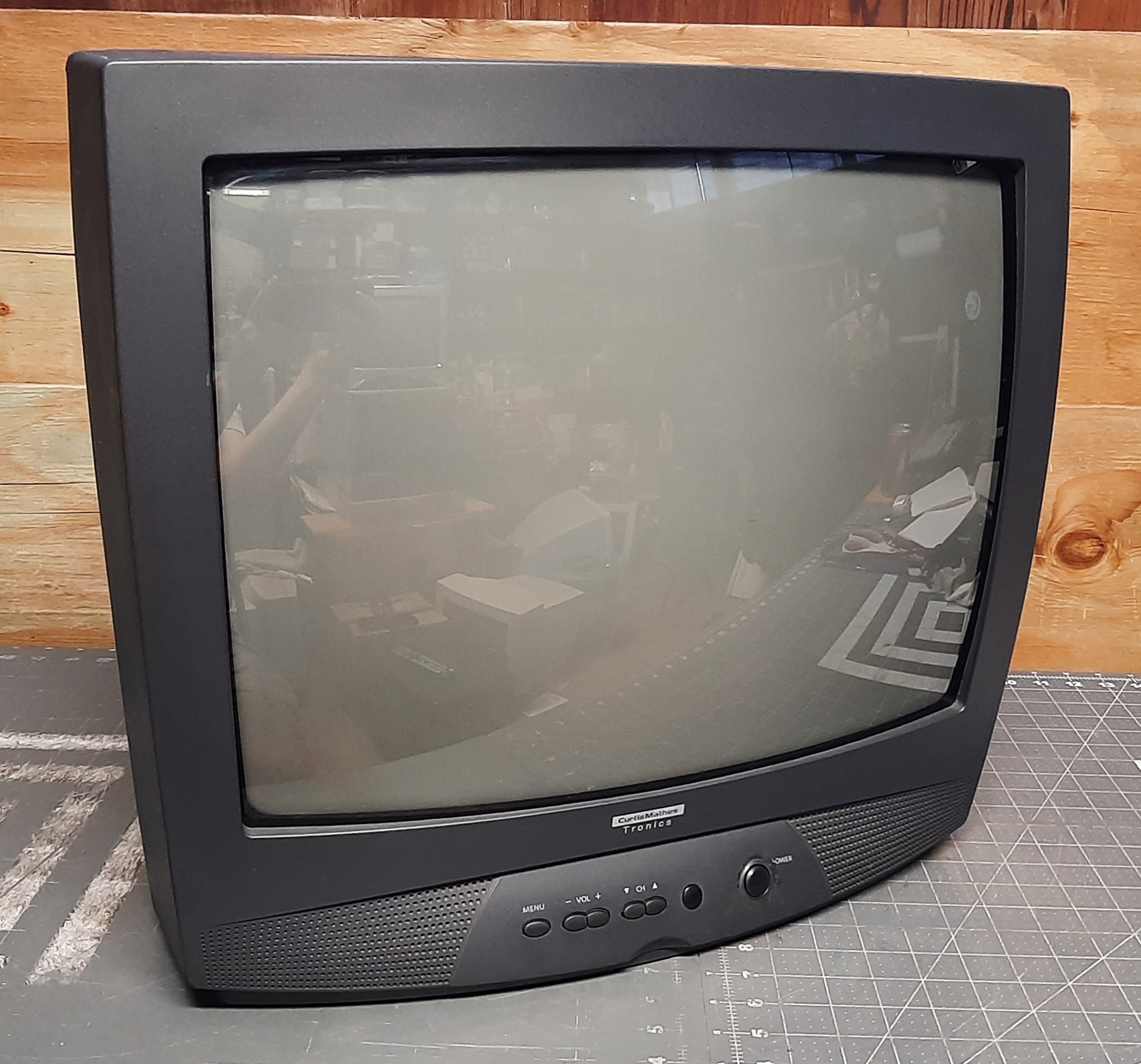

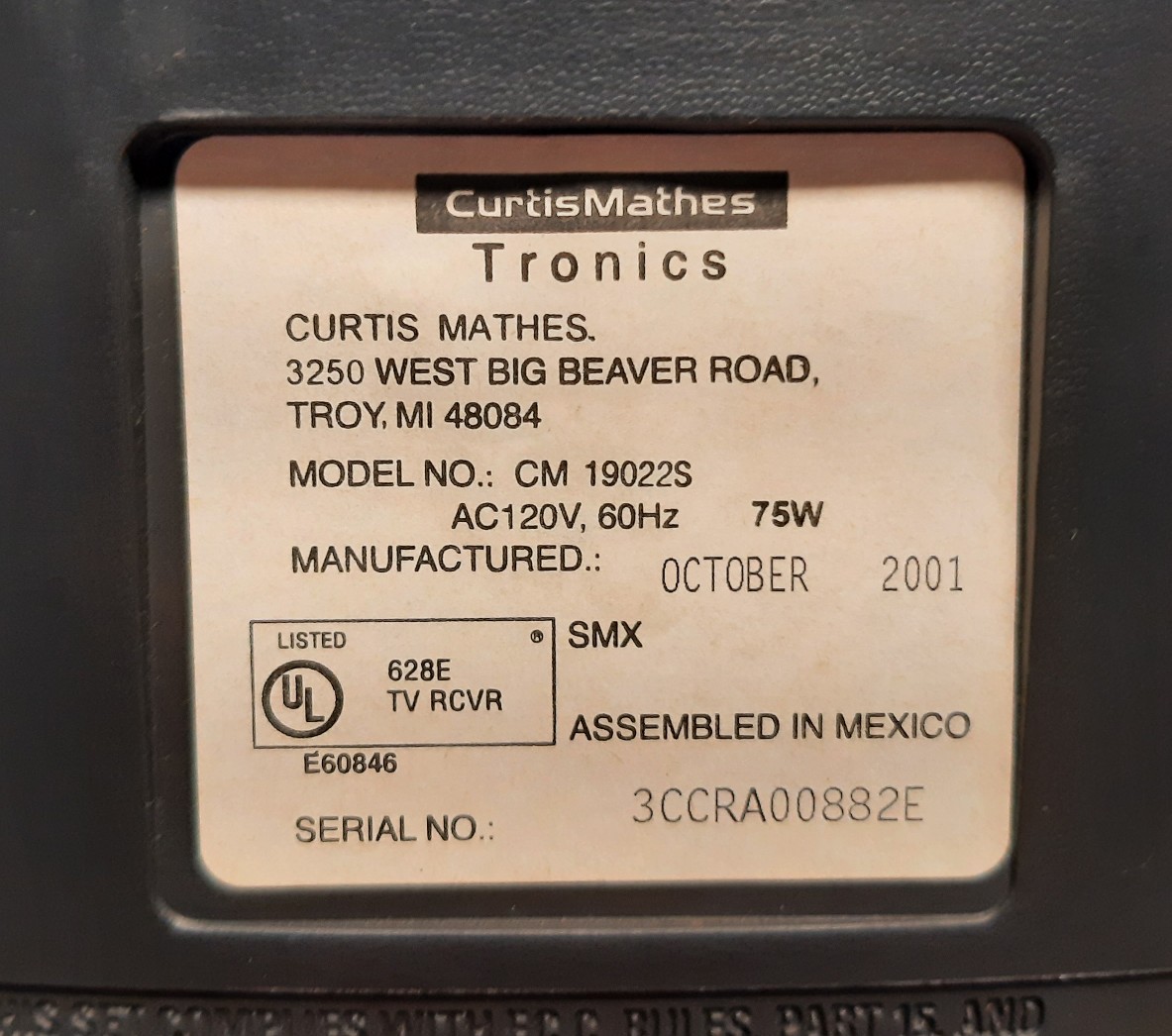

Gallery
Specifications | |
---|---|
Brand: | Curtis Mathes |
Manufacturer: | Samsung |
Model: | CM19022S |
Series: | CM |
Viewable Size: | 19" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | KSC5386 |
Vertical Output IC: | KA2131 |
Jungle: | TA1282N |
Comb Filtering: | None |
Flyback: | FSV-20AA001, AA26-30005F |
Tube: | A48KRD82X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | DSE-1992LL |
Yoke Horz. Inductance: | 3.595 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 28.97 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 16.313 ohm |
Yoke Vert. Resistance: | 14.82 ohm |
Speakers: | Mono |
Remote: | AA59-00213A |
Chassis: | K15A |
Weight: | 37.4 lbs (17 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2001 |
Country of Manufacture: | Mexico |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
