Summary

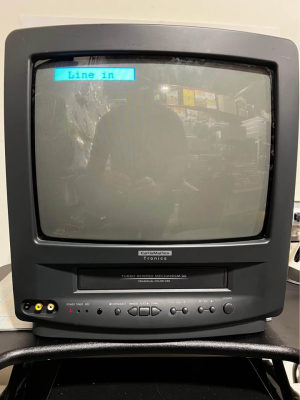

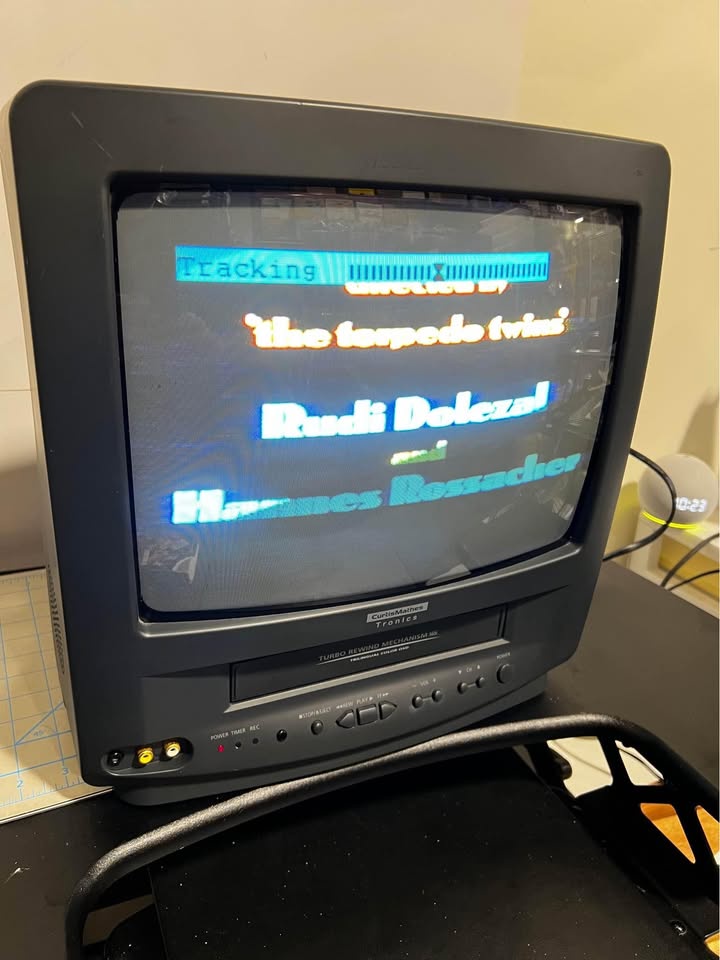

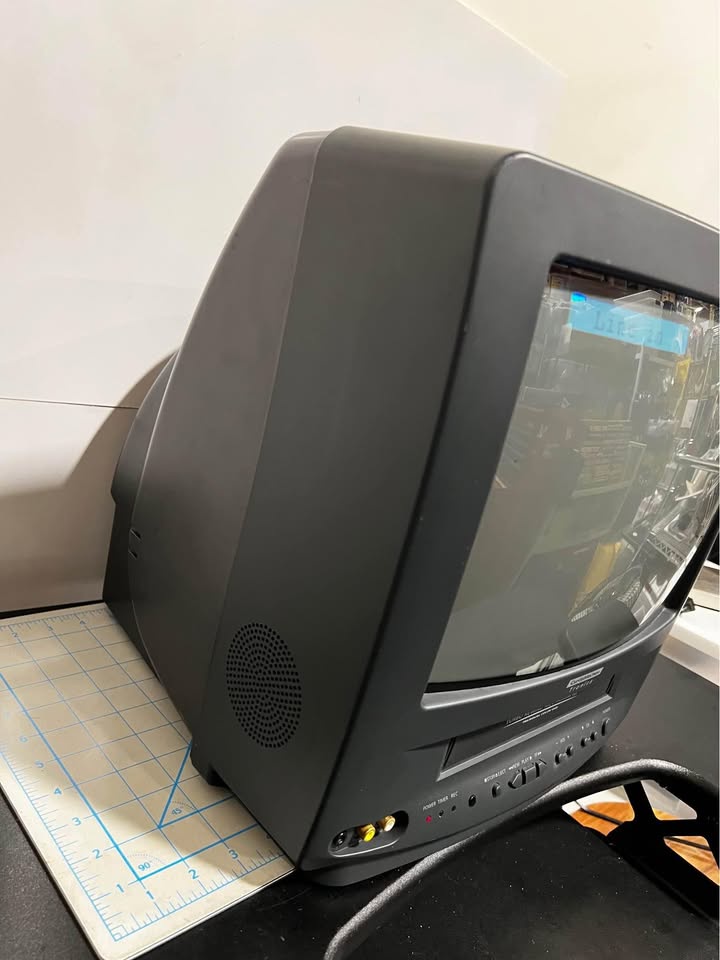

13" TV/VCR combo by Curtis Mathes.
Manuals
Notes

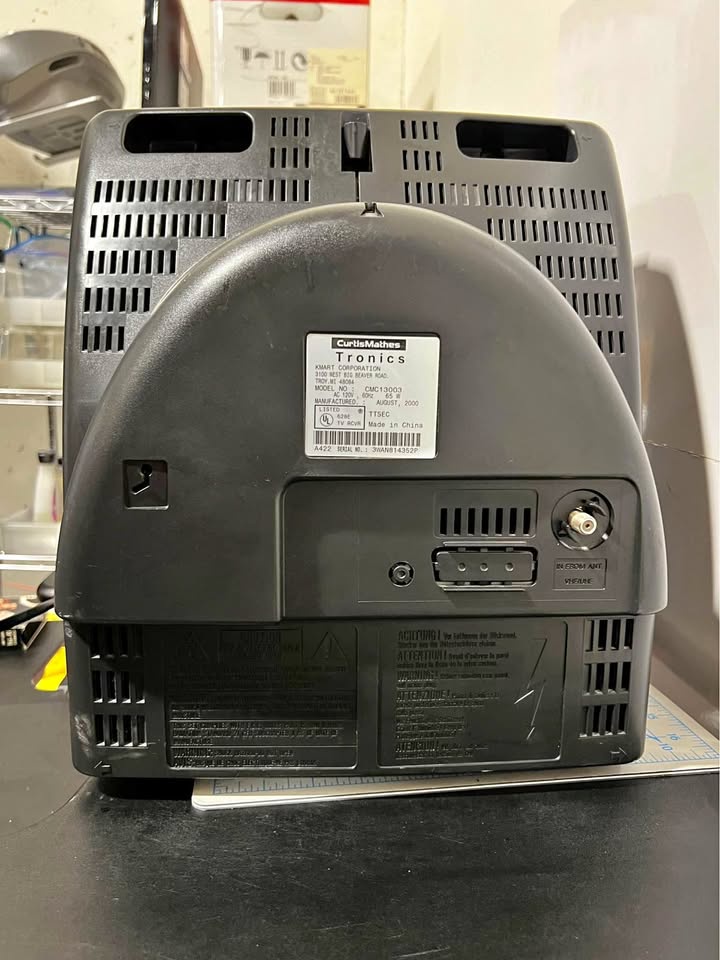

The rear AV input is mounted in a SCART-shaped knockout in the case. However, the design of the PCB does not reflect this. It does use a jungle chip that can be modified for RGB inputs via the OSD Mux method. See pins 14 though 17 on the jungle.
Gallery
| Specifications | |
|---|---|
| Brand: | Curtis Mathes |
| Manufacturer: | Samsung |
| Model: | CMC13003 |
| Series: | CMC |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Horz. Output Transistor: | KSC5386 |
| Vertical Output IC: | KA2131 |
| Jungle: | TA128TN |
| Flyback: | FSA38019S |
| Focus Type: | Single |
| Tube: | Samsung , A34KQV42X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DSE-1422FL |
| Yoke Horz. Inductance: | 3.194 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.15 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.366 ohm |
| Yoke Vert. Resistance: | 15.02 ohm |
| Speakers: | Mono, Headphone Jack |
| Remote: | AA59-00134A |
| Chassis: | V15A |
| Weight: | 25.8 lbs (11.7 kg) |
| Dimensions (W/H/D): |
362 x 383 x 382 mm
(14.2 x 15.1 x 15") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
