Summary
Entry level 17" PC monitor, manufactured by Samsung. Rebrand of the Samtron 7C. Sold in beige and black versions.
Manuals
Notes
This model was also sold as the IBM E74 (and potentially others).
Various revisions of this monitor were produced, using different tubes and PCB designs. Compatibility of parts may not be consistent.
This monitor has no manual G2 voltage adjustment. Calibration of this and other values is done via software (which does not appear to be available).

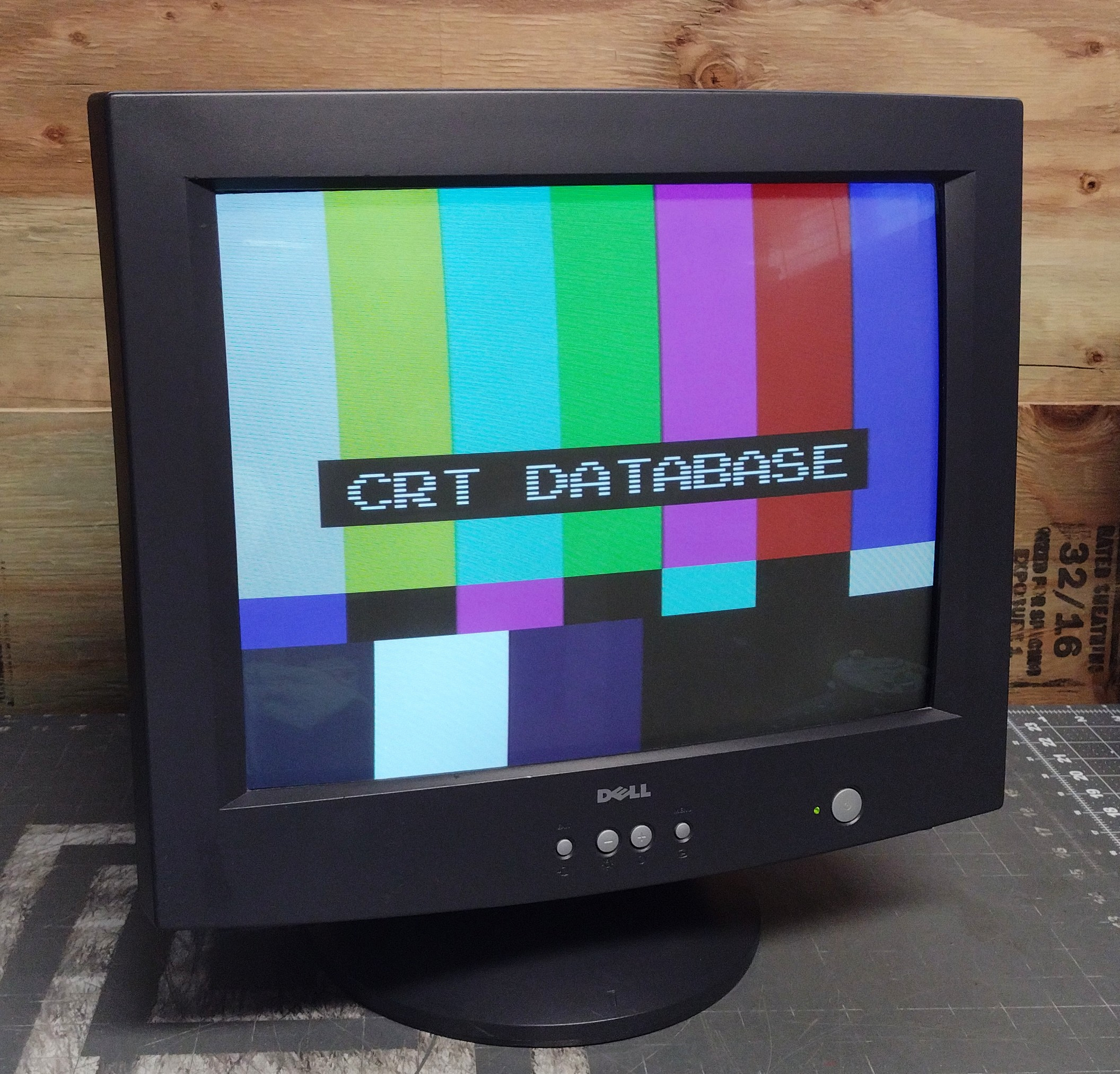

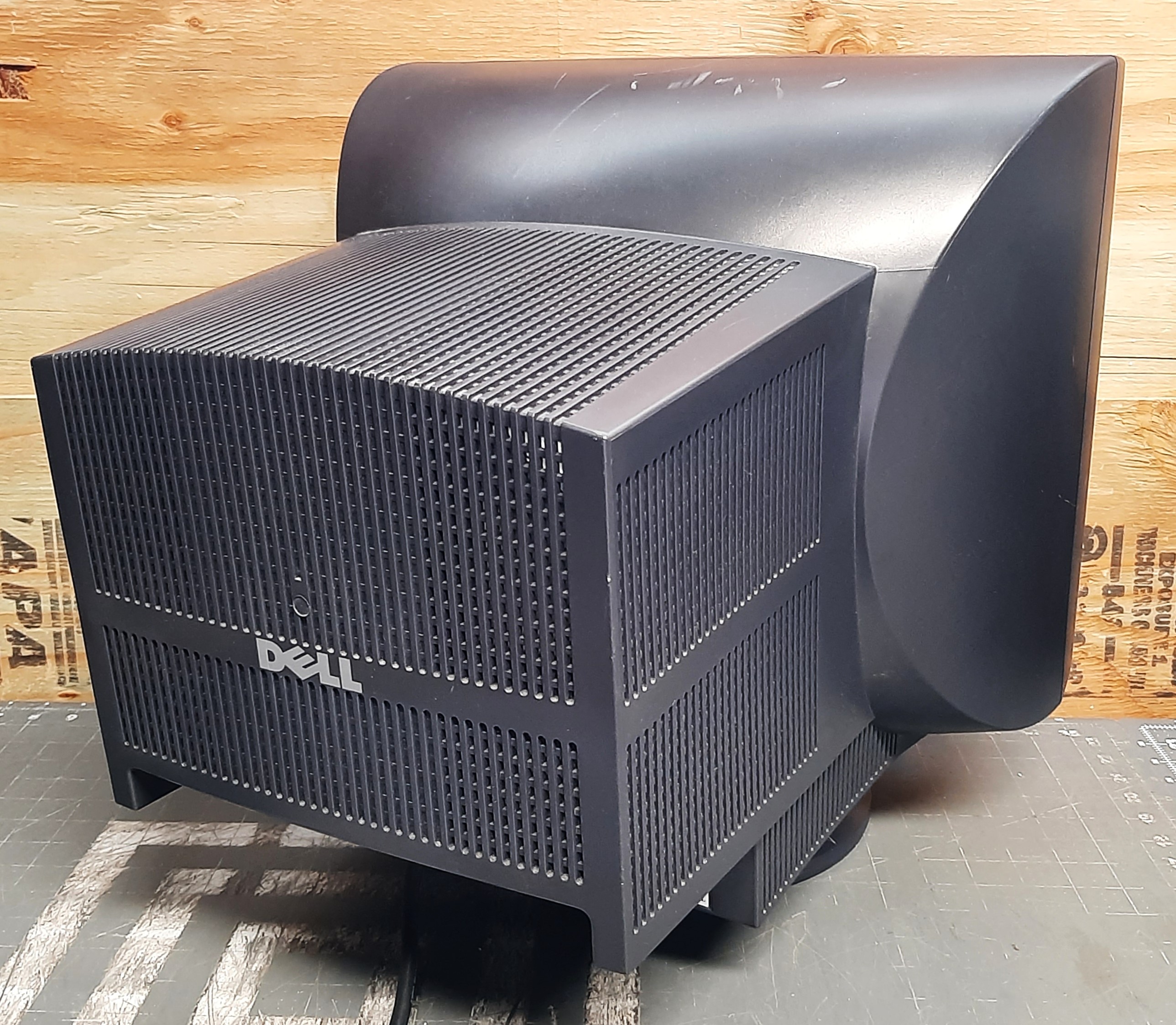

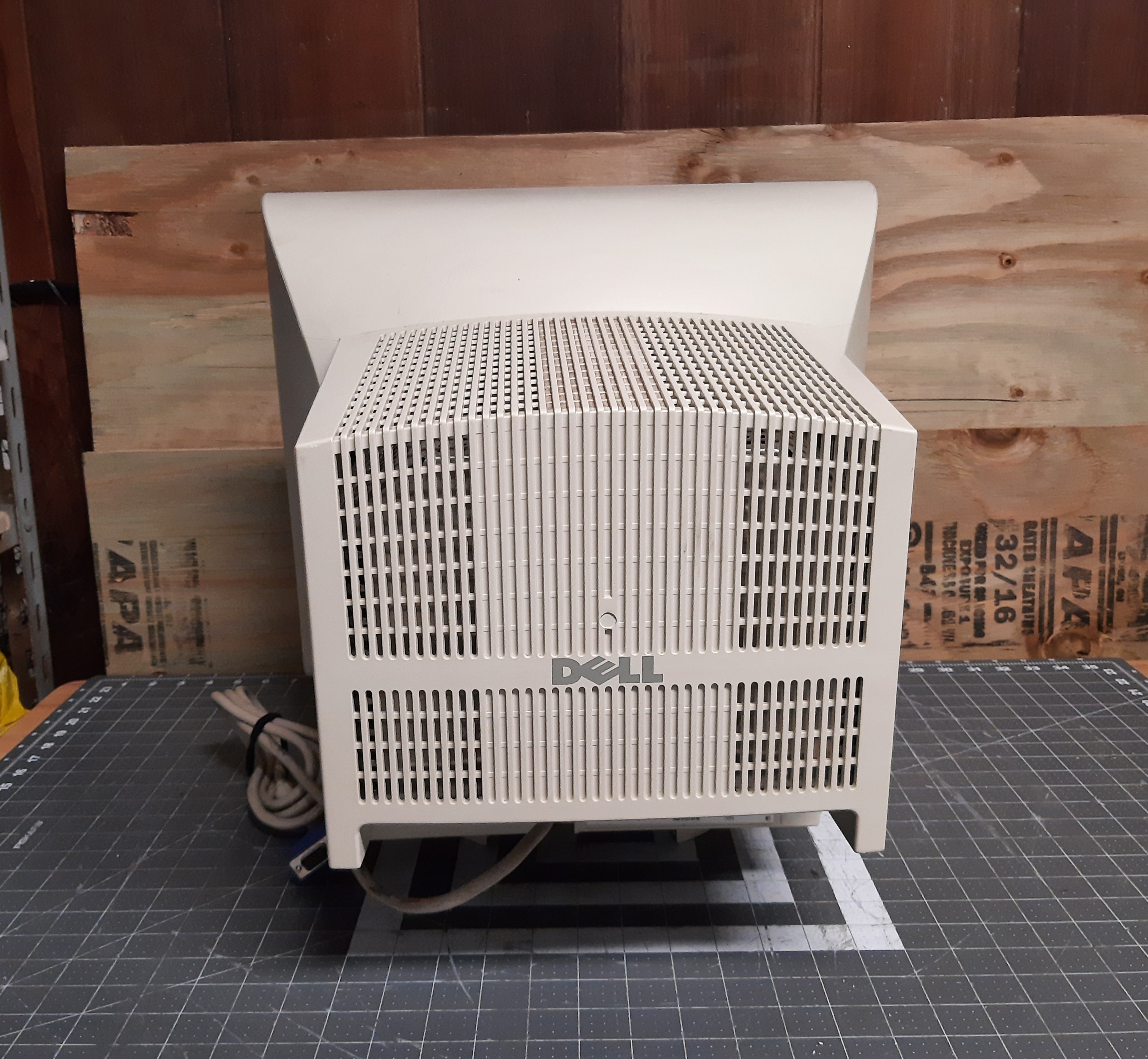

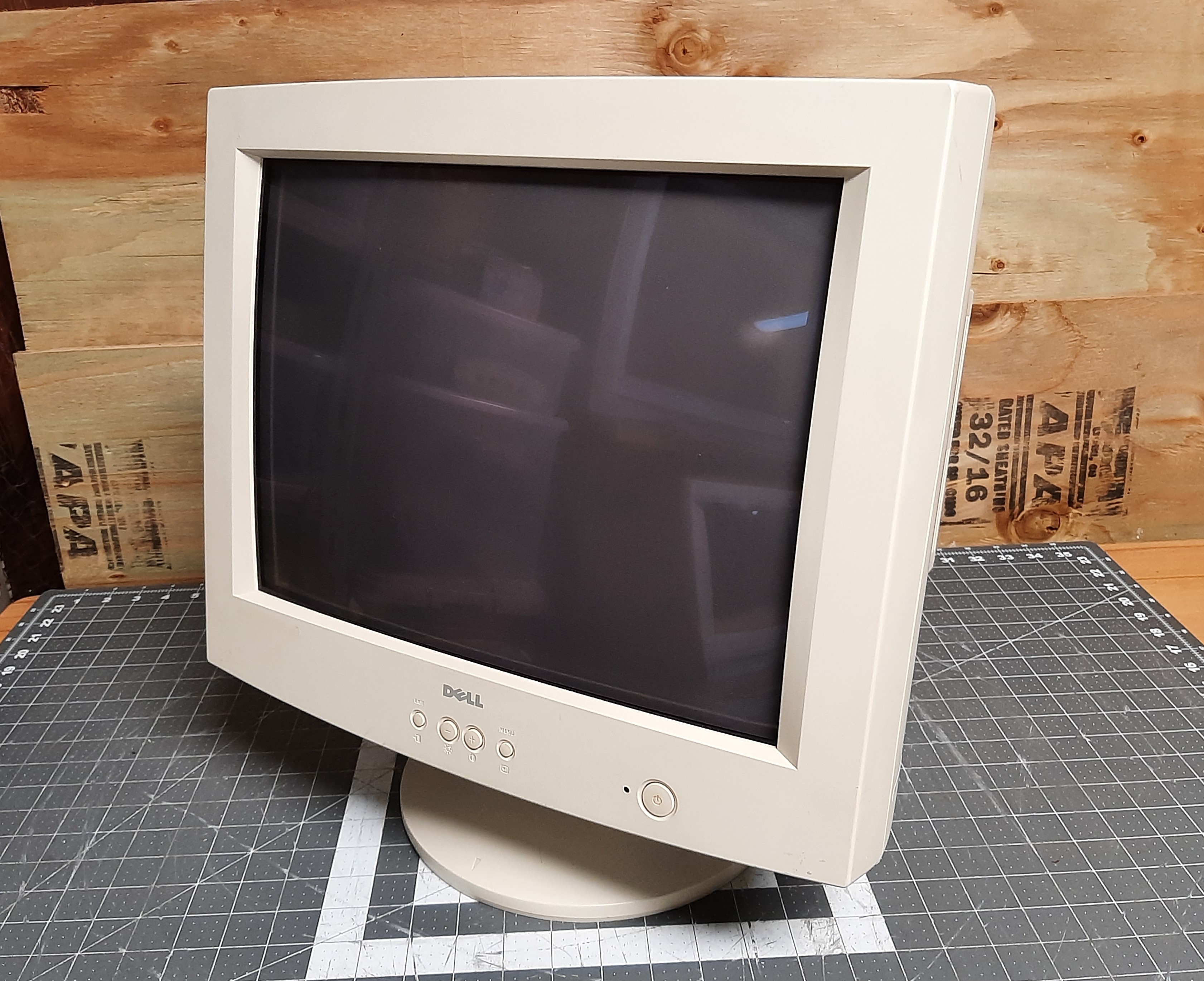

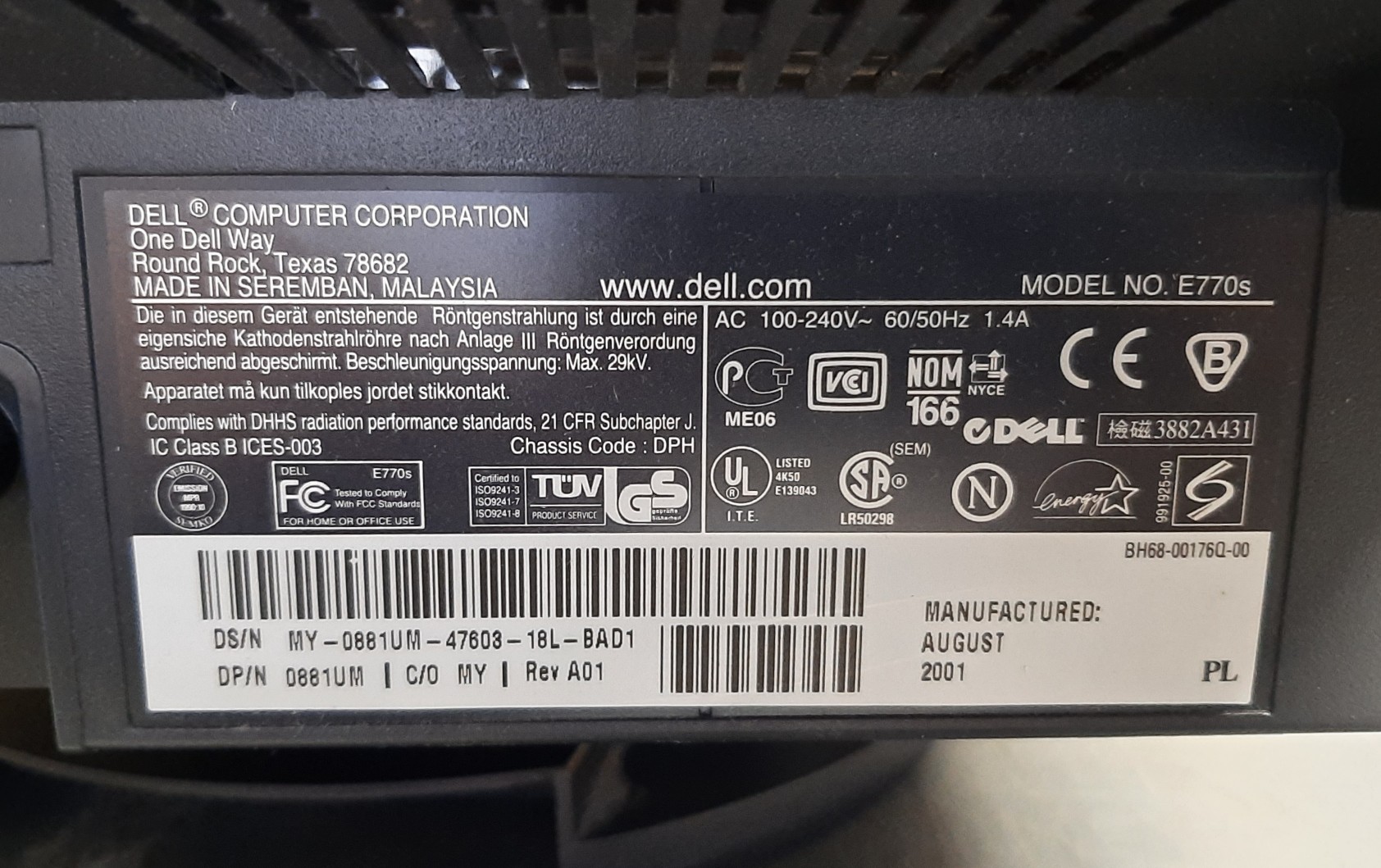

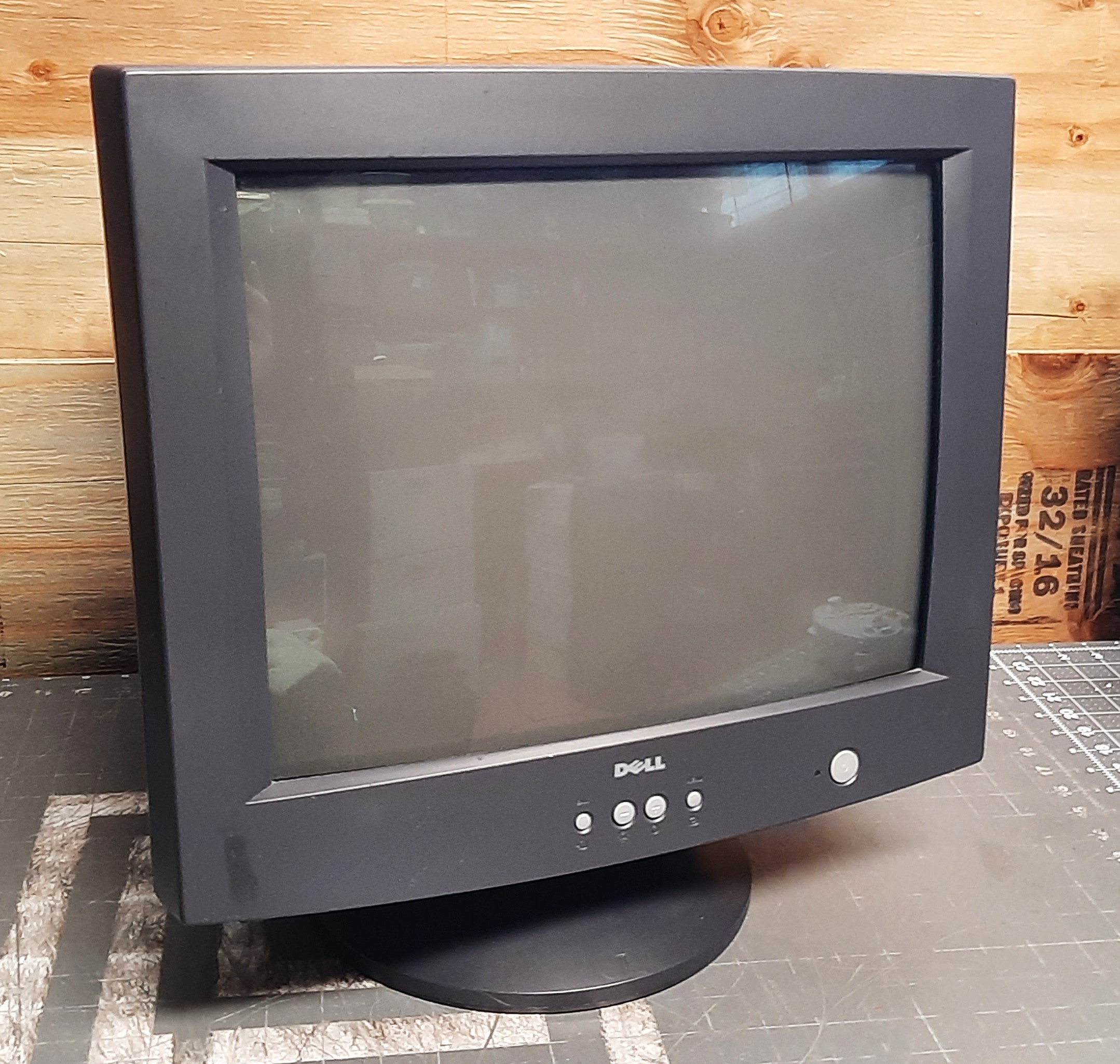

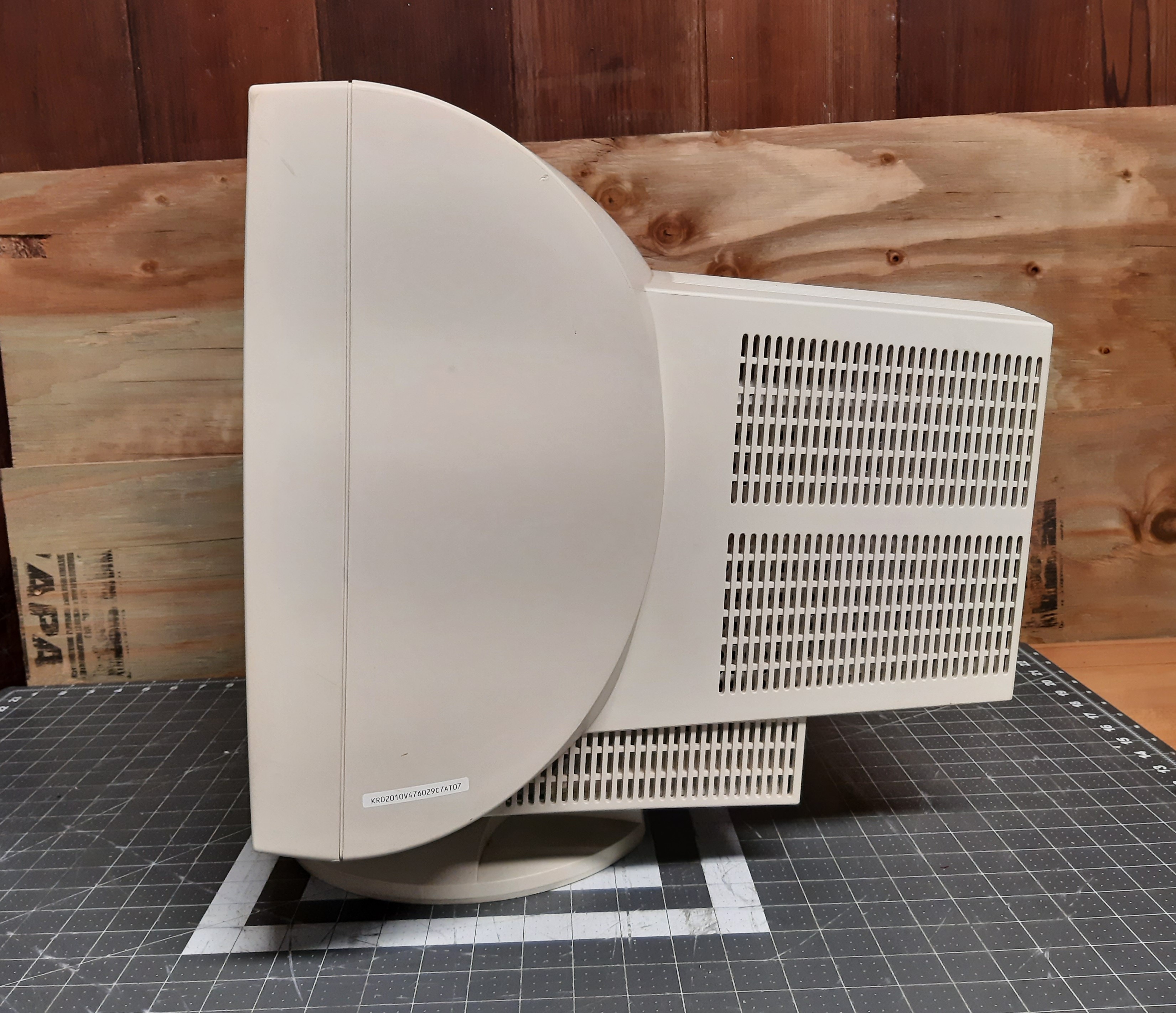

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Samsung |
| Model: | E770 |
| Series: | E |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 72 kHz |
| Vertical Scan Range: | 162 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Horz. Output Transistor: | KSC5802 |
| Vertical Output IC: | KA2142 |
| Flyback: | FEA831, FQB-17A001 |
| Tube: | Samsung , Toshiba , M41QAR361X114 , M41LLJ507XX437 , M41QAR361X , M41LLJ507XX |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | SCD-17207TH |
| Yoke Horz. Inductance: | 0.17544 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.058 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.395 ohm |
| Yoke Vert. Resistance: | 7.47 ohm |
| Speakers: | None |
| Chassis: | DPH |
| Weight: | 33 lbs (15 kg) |
| Dimensions (W/H/D): |
414 x 455 x 443 mm
(16.3 x 17.9 x 17.4") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Malaysia |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
