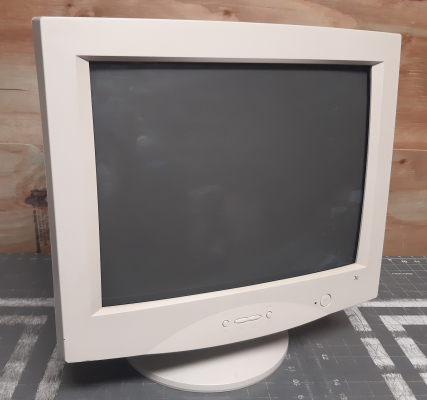

Samsung Samtron 7c
Matt Ross
March 1, 2024, 4:12 pm
March 1, 2024, 4:12 pm
Summary
Entry level 17" PC monitor with a 70 kHz max scan rate. Rebranded as the Dell E770s, IBM E74, and possibly others.
Literature
Notes
Various revisions of this monitor were produced, using different tubes and PCB designs. Compatibility of parts may not be consistent.
This monitor has no manual G2 voltage adjustment. Calibration of this and other values is done via software (which does not appear to be available).
Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | 7c |
| Series: | Samtron |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Max: | 30 kHz, 70 kHz |
| Vertical Max: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Horz. Output Transistor: | KSC5802 |
| Vertical Output IC: | KA2142 |
| Flyback: | BH26-0018A, FOB-17A001 |
| Tube: | Samsung , M41QAR361X111 |
| Heater Voltage: | 6.3v |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .28mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | SCD-17201 |
| Yoke Horz. Inductance: | 0.17306 mH |
| Yoke Vert. Inductance: | 4.903 mH |
| Yoke Horz. Resistance: | 0.419 ohms |
| Yoke Vert. Resistance: | 7.80 ohms |
| Speakers: | None |
| Chassis: | DPH |
| Weight: | 33 lbs (15 kg) |
| Application: | Computer Monitor |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
