Summary

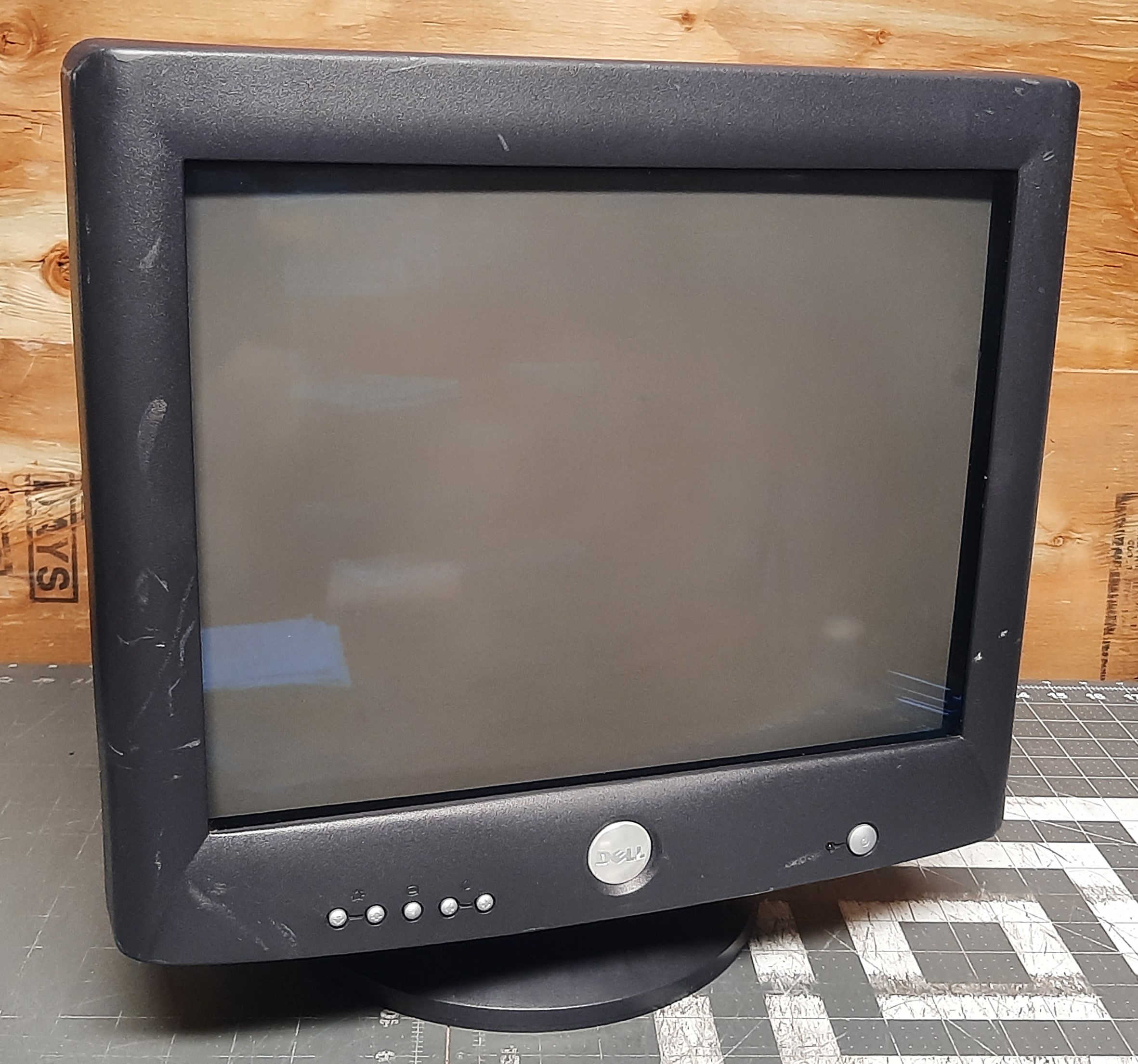

17" flat CRT computer monitor, manufactured by Samsung and sold under the Dell brand. It is relatively high spec for its size, and is capable of an 85 kHz max horizontal scan rate.
Literature
Notes
The Dell M782p has similar specs to this model, but uses a different chassis and was made by Philips. Both monitors use the same tube and yoke.
Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Samsung |
| Model: | M782 |
| Series: | M |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 30 kHz, 85 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Flyback: | FQB-17A001 |
| Tube: | Samsung , M41QCJ761X174 , M41QCJ761X |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DMX-1791ATSP |
| Yoke Horz. Inductance: | 0.13442 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.275 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.454 ohm |
| Yoke Vert. Resistance: | 11.04 ohm |
| Speakers: | None |
| Weight: | 35.5 lbs (16 kg) |
| Application: | Computer Monitor |
| Country of Manufacture: | Malaysia |
| Mounting: | Desk Stand |
