Summary
17" flat CRT computer monitor, manufactured by Philips and sold under the Dell brand. It is relatively high spec for its size, and is capable of 88 kHz horizontal scan rate. This translates to a max resolution of 1900x1425 at 60 Hz, or 1024x768 at 108 Hz.
Manuals
Notes
This monitor will accept composite sync via the H sync pin if needed.
The Dell M782 (without the p) has similar specs to this model, but uses a different chassis and was made by Samsung.

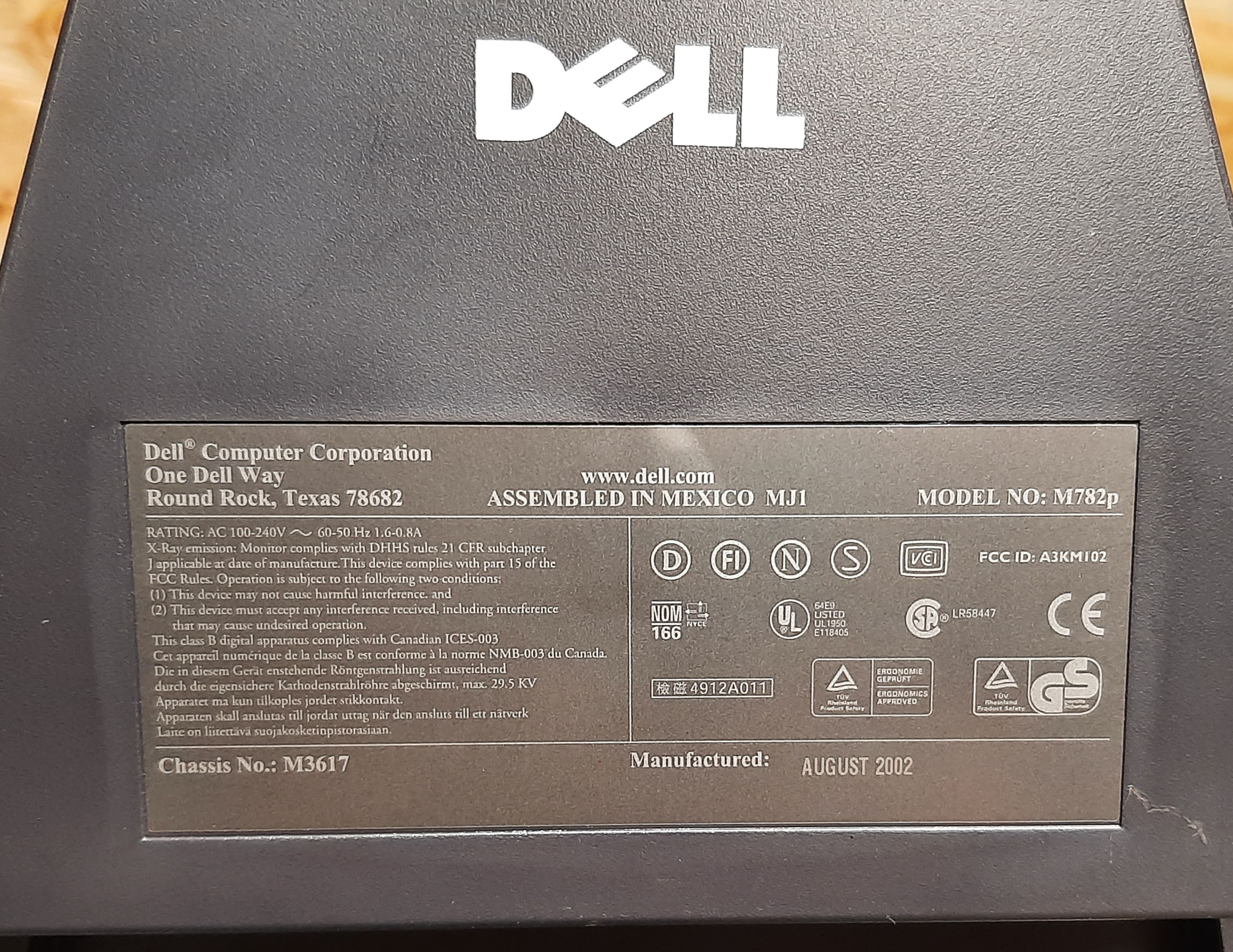

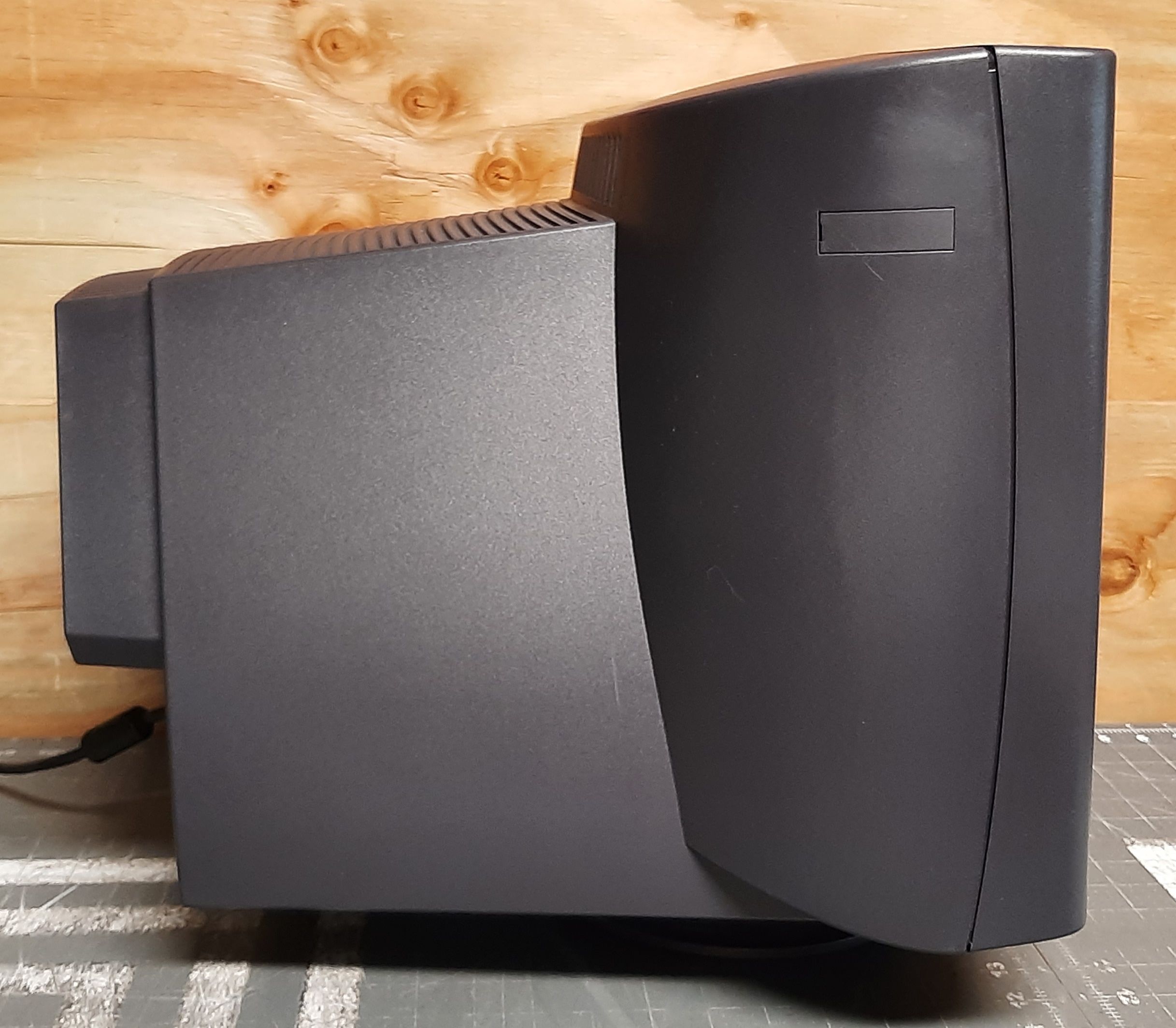

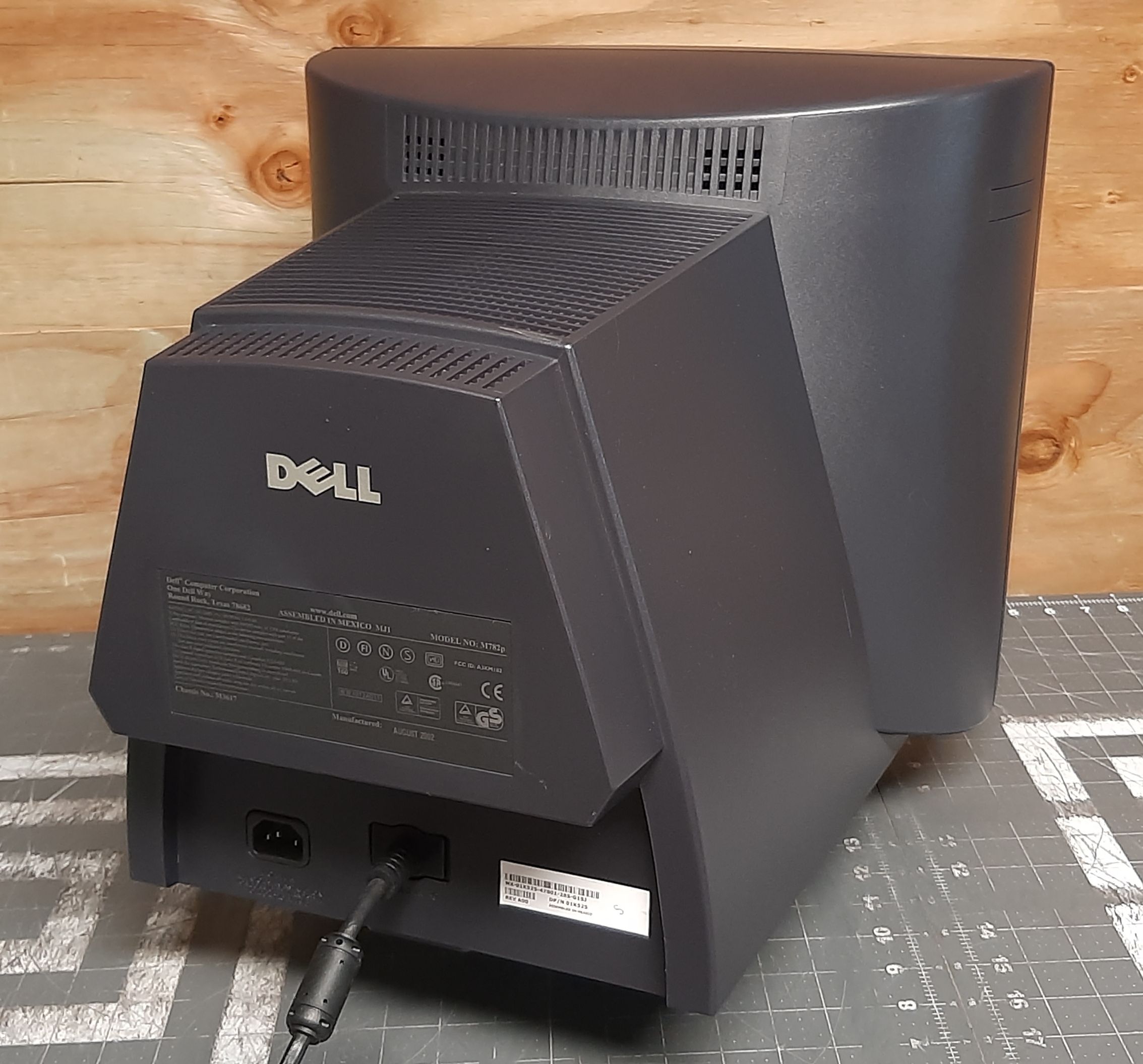

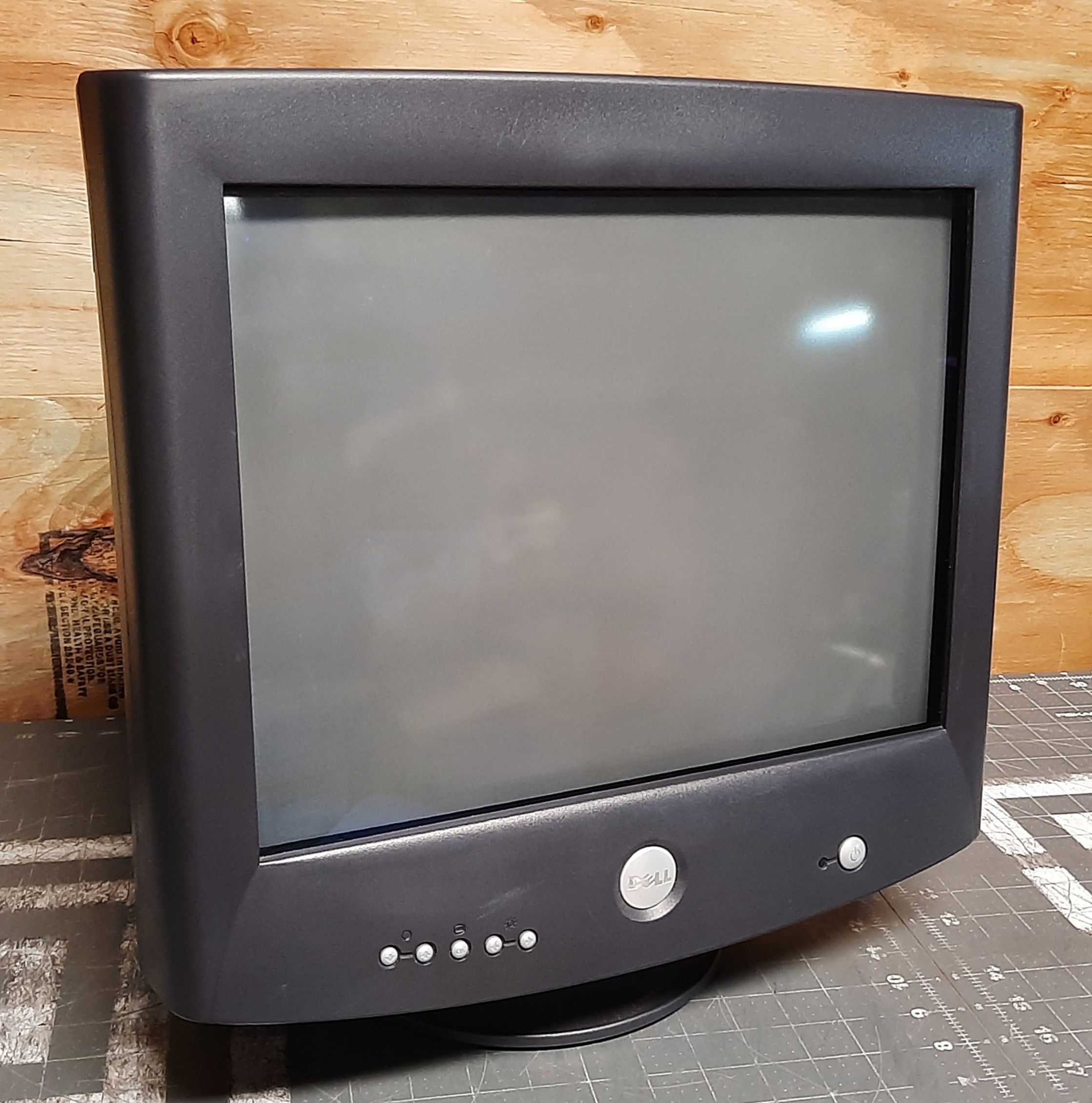

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Philips |
| Model: | M782p |
| Series: | M |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 28 kHz, 88 kHz |
| Vertical Scan Range: | 162 Hz, 46 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Flyback: | LCE CF1992 |
| Tube: | Samsung , M41QCJ761X , M41QCJ761X172 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DMX-1791ATSP |
| Yoke Horz. Inductance: | 0.13247 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.367 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.446 ohm |
| Yoke Vert. Resistance: | 8.31 ohm |
| Speakers: | None |
| Chassis: | M3617 |
| Weight: | 34.8 lbs (15.8 kg) |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures |
