Summary
17" flat CRT computer monitor, manufactured by Philips and sold under the Dell brand. It is relatively high spec for its size, and is capable of an 86 kHz horizontal scan rate.
Manuals
Notes
Like many Philips computer monitors, this model has a service menu and can be calibrated manually without the need for a PC interface. To access it, hold the left and right arrow buttons while the powering on the monitor. Then, press "OK" to open the user menu. A new line of text (red colored) with the model number will appear. Scroll down to this line and select it with the "OK" button.

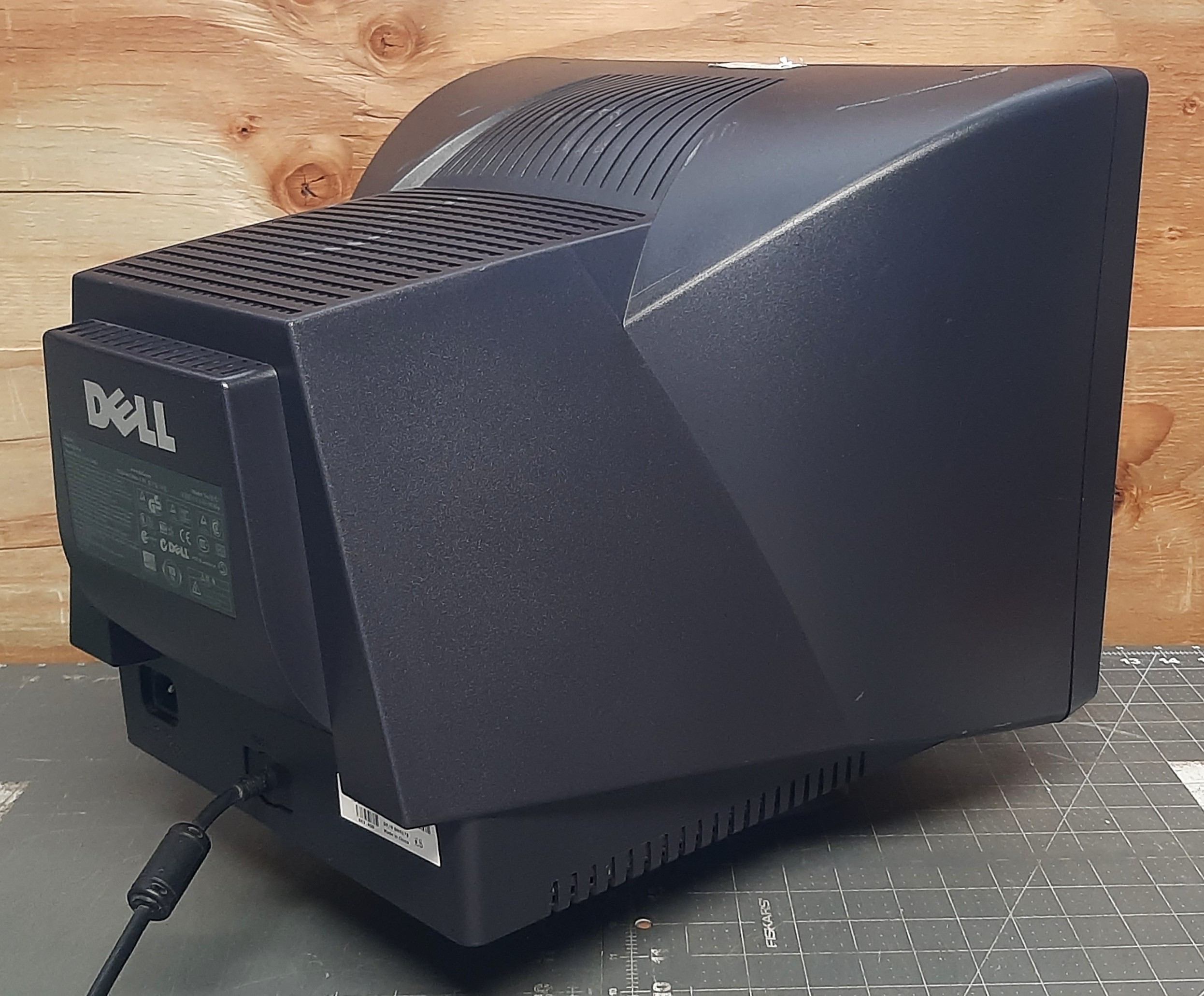

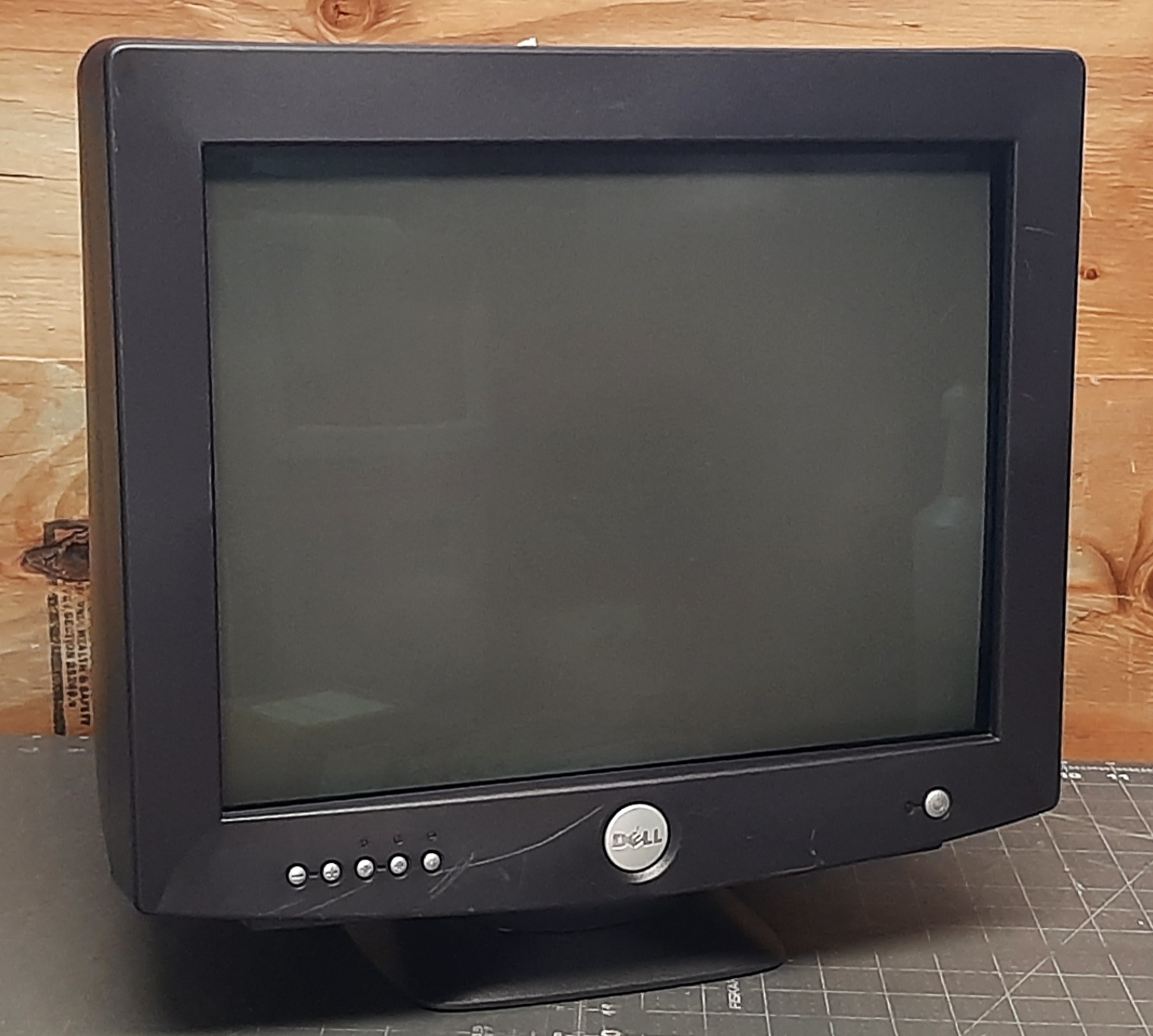

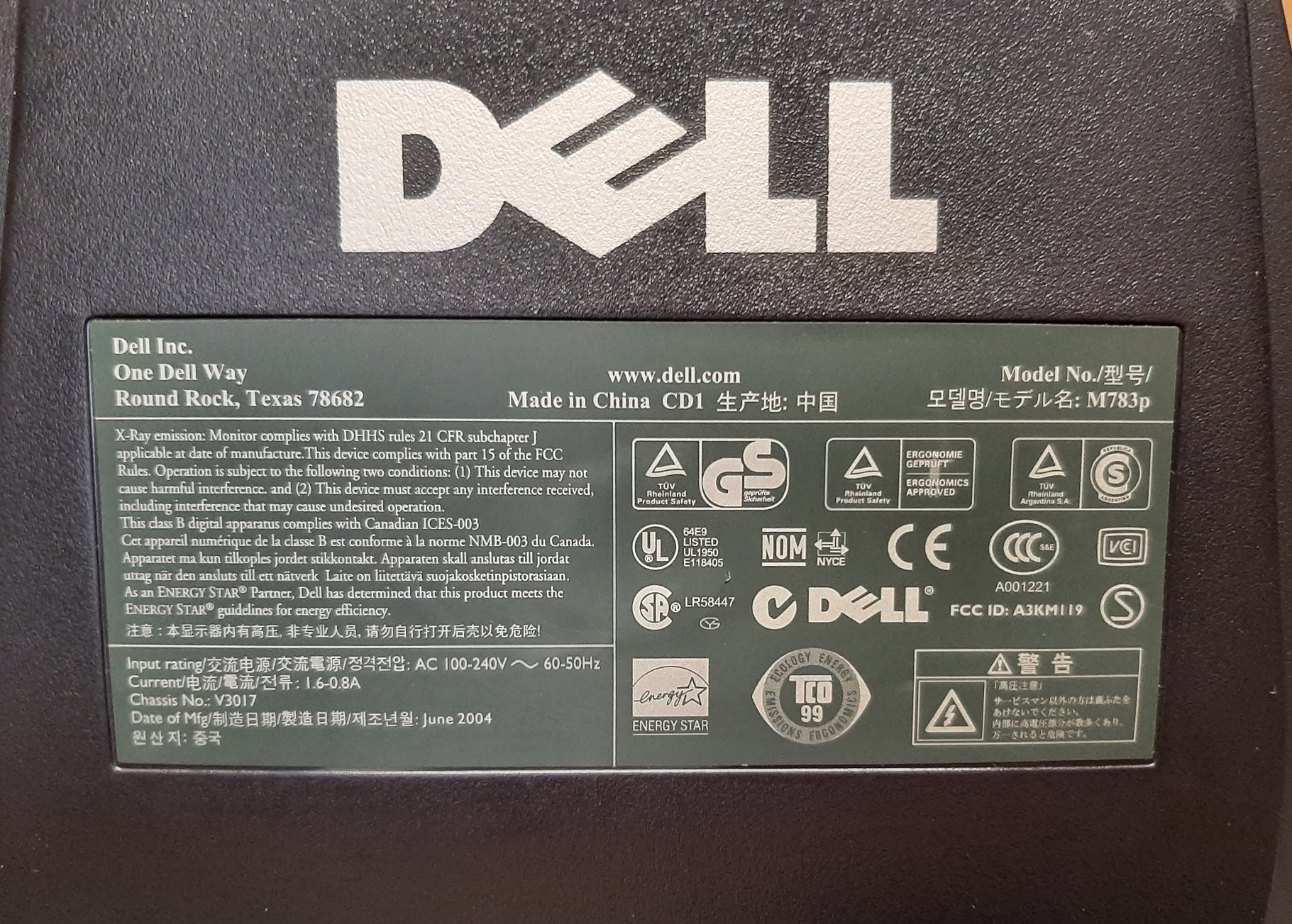

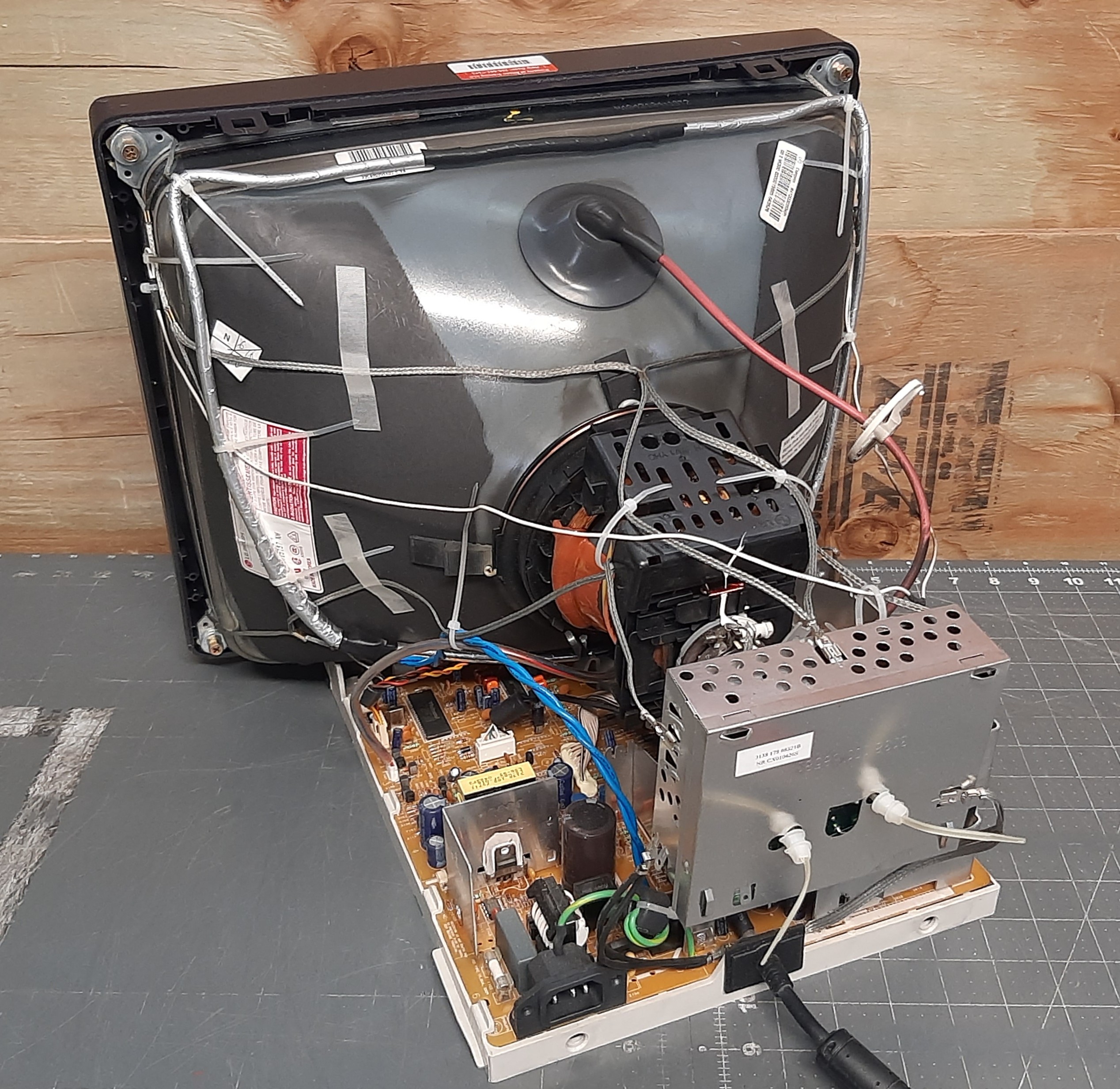

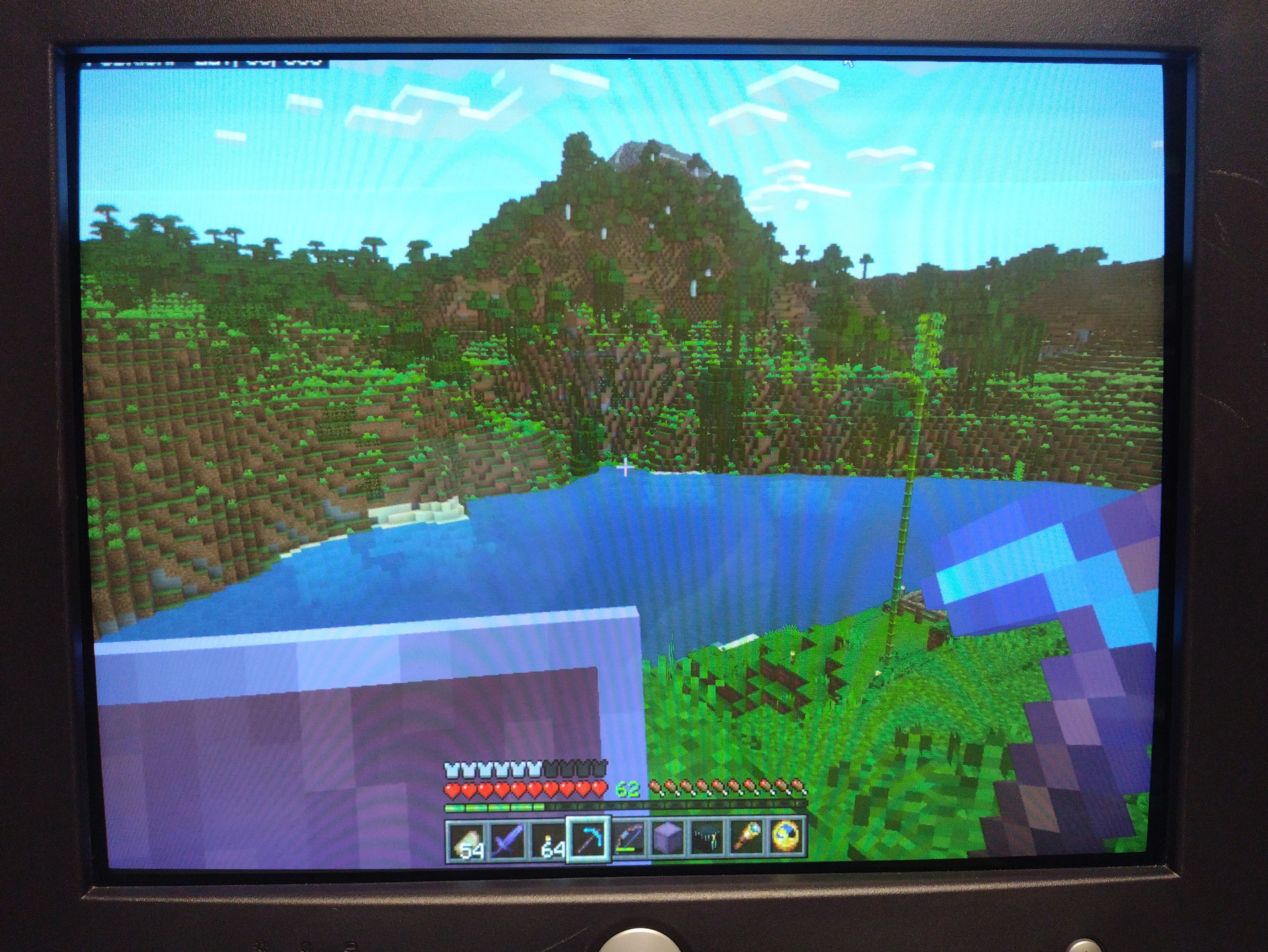

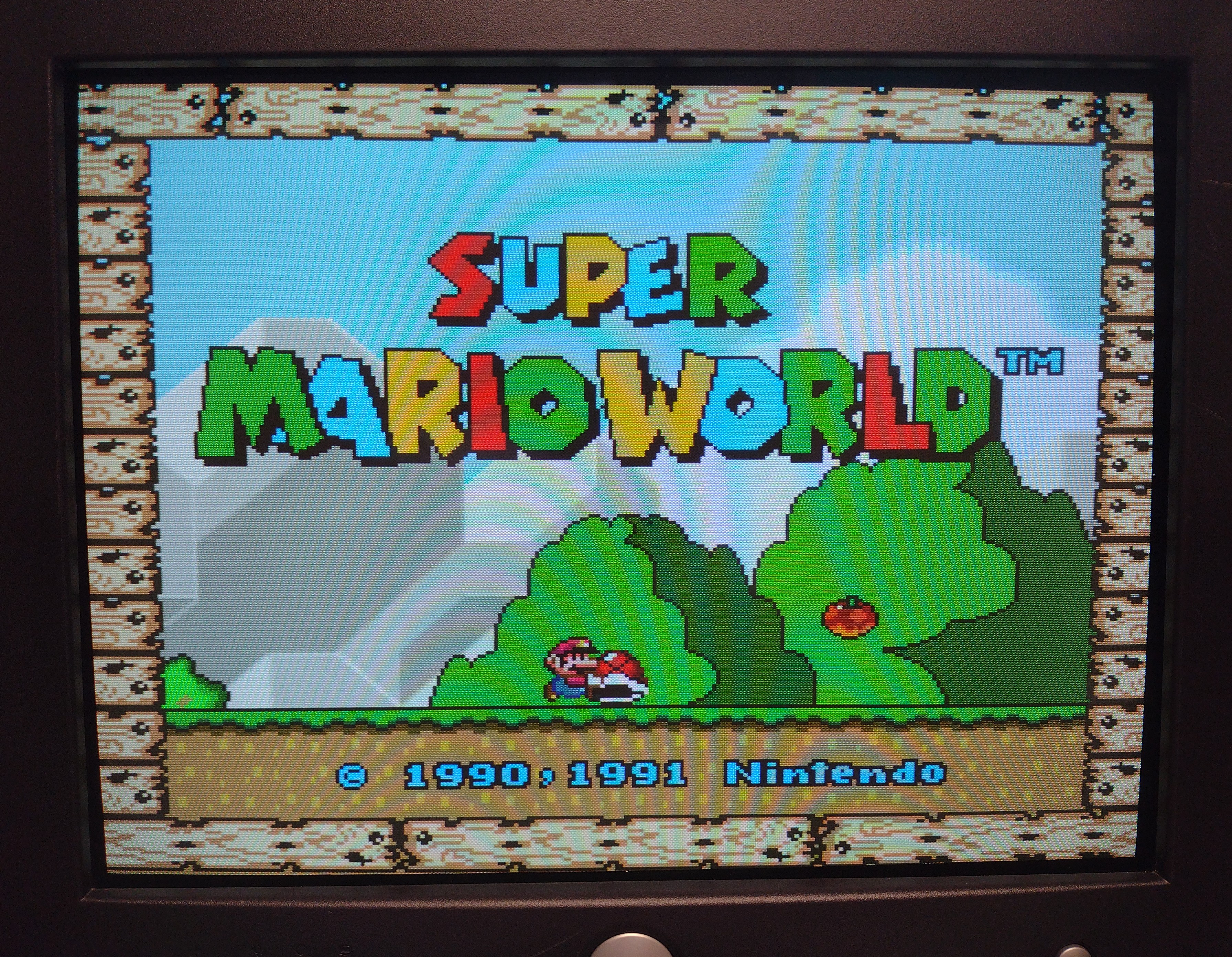

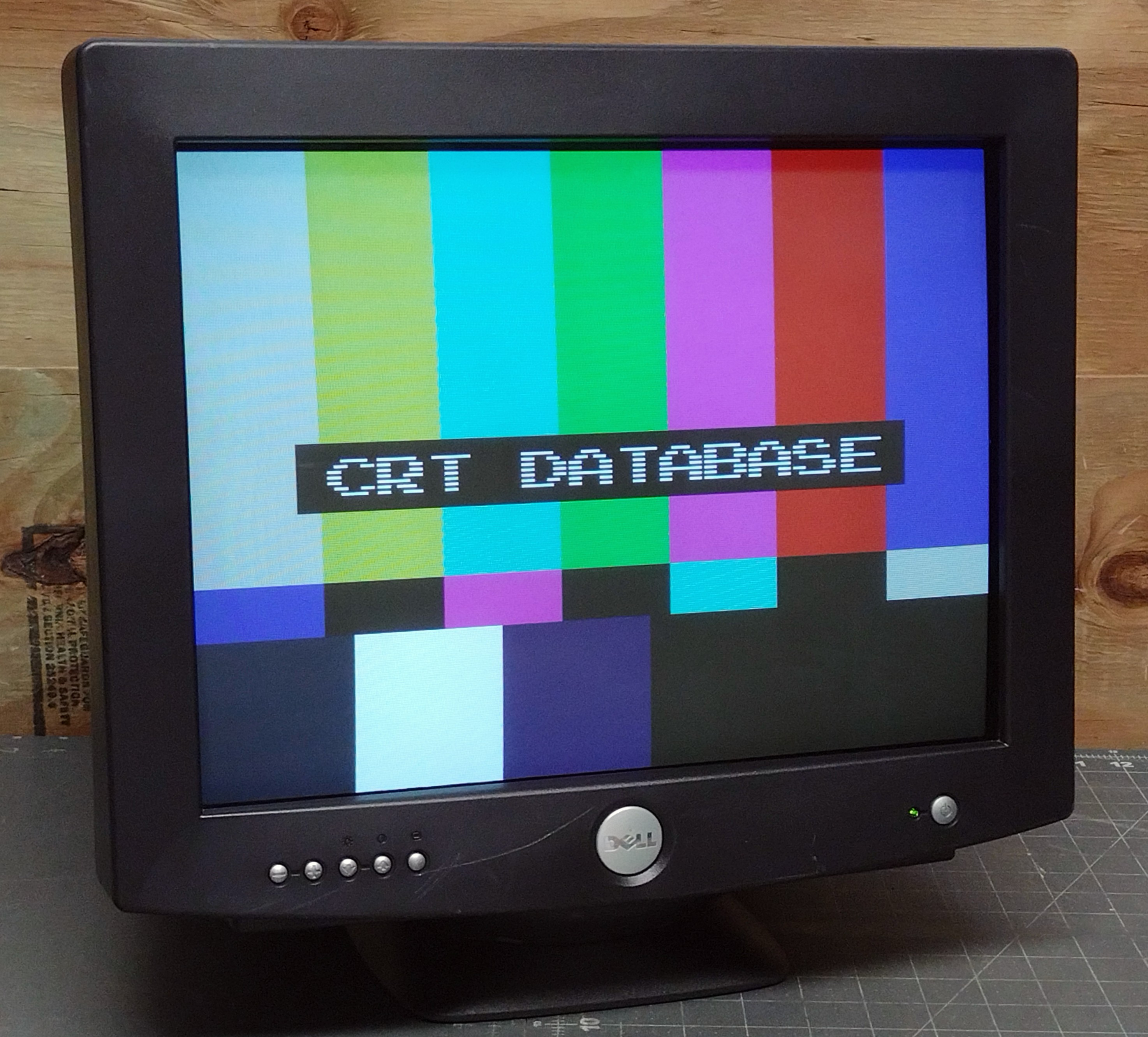

Gallery




Specifications | |
---|---|
Brand: | Dell |
Manufacturer: | Philips |
Model: | M783p |
Series: | M |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync, CSYNC |
Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
Horizontal Scan Range: | 28 kHz, 86 kHz |
Vertical Scan Range: | 160 Hz, 45 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu, Software Calibration |
Flyback: | FPH0213, E159656 |
Focus Type: | Dual |
Tube: | LG.Philips , M41QEE903X , M41QEE903X04 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Shadow
![]() |
Pitch: | 0.25 mm, .25 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 6150Z-7723F |
Yoke Horz. Inductance: | 0.13883 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 5.726 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.54 ohm |
Yoke Vert. Resistance: | 10.28 ohm |
Speakers: | None |
Weight: | 30.6 lbs (13.9 kg) |
Dimensions (W/H/D): |
394 x 381 x 406 mm
(15.5 x 15 x 16") |
Application: | Computer Monitor |
Cabinet Material: | Plastic |
Launched: | 2004 |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v, 100v, 240v |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Owners Manual, Needs Service Manual |
