Durabrand DU1301
Matt Ross
August 30, 2024, 4:41 am
December 25, 2024, 12:41 am
August 30, 2024, 4:41 am
December 25, 2024, 12:41 am
Summary
Basic consumer TV manufactured by Orion and sold by Walmart under the Durabrand label. It has a composite input and a single 1 amp speaker that's mounted on the bottom of the TV. This TV was sold under several different brands, and is likely a clone of the Toshiba 13A25.
Manuals
Notes
Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.
Unlike some previous 13" Orion TVs, this model uses a simplified chassis with a 1-chip jungle design. It cannot be modified for RGB.

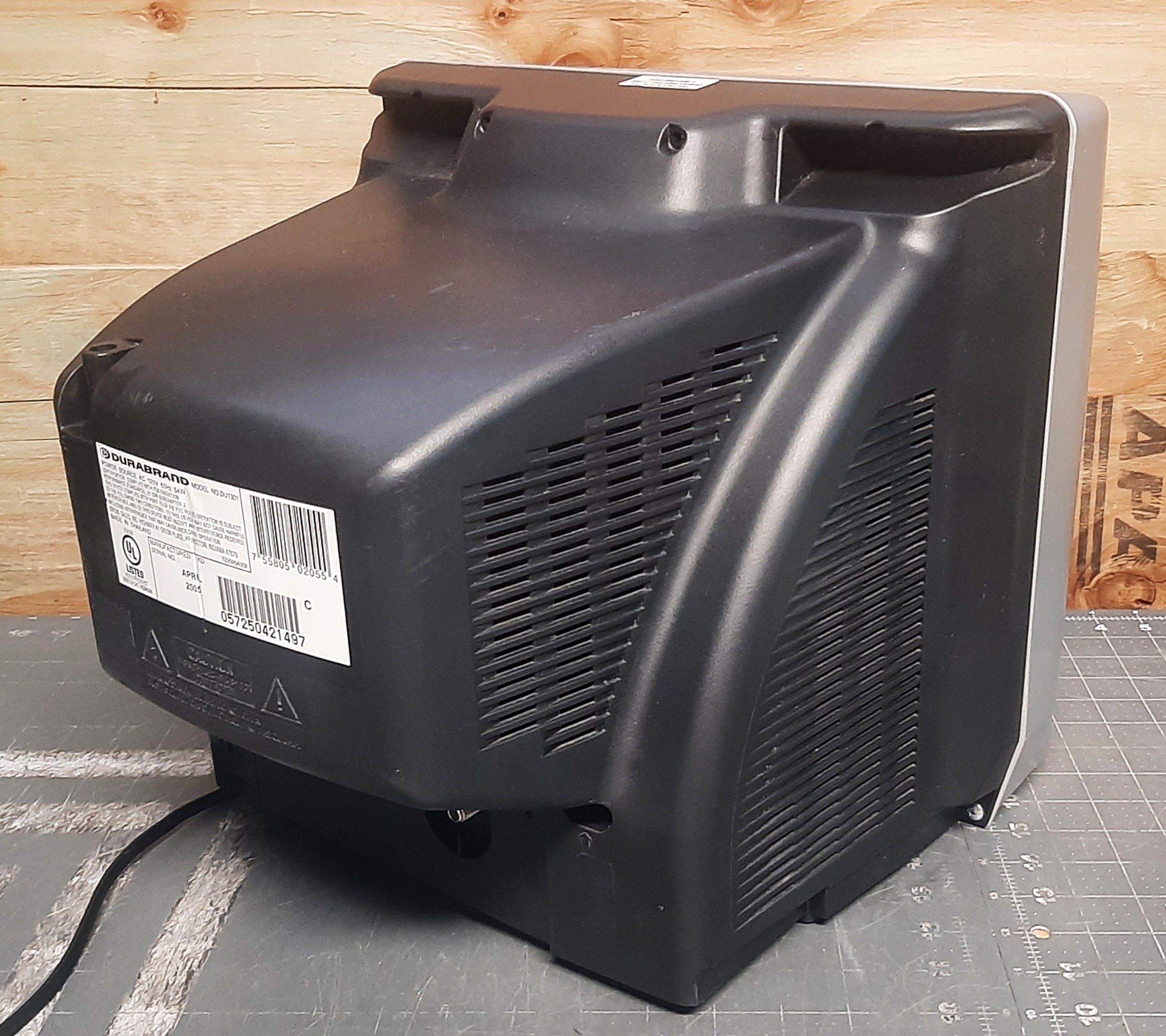

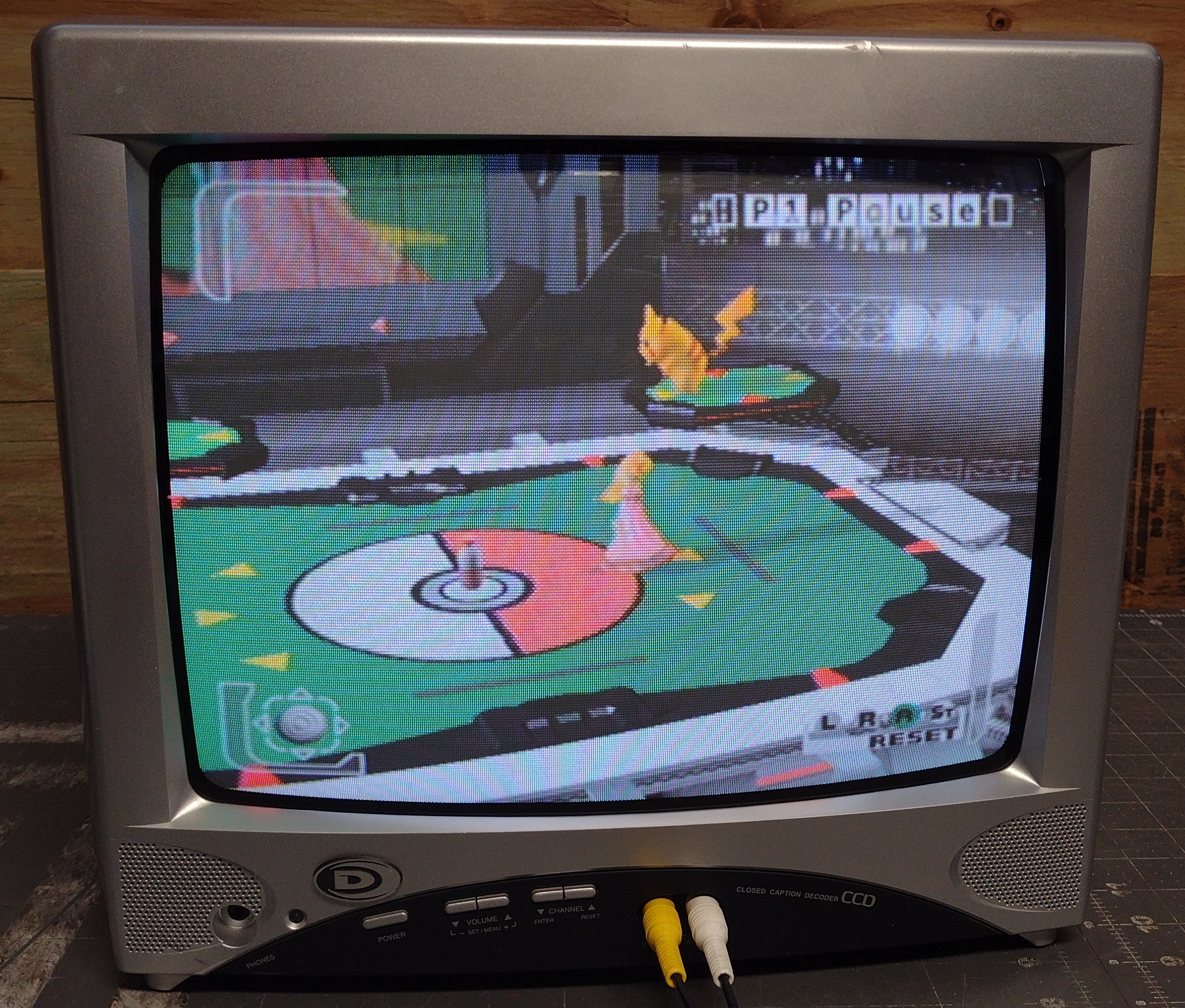

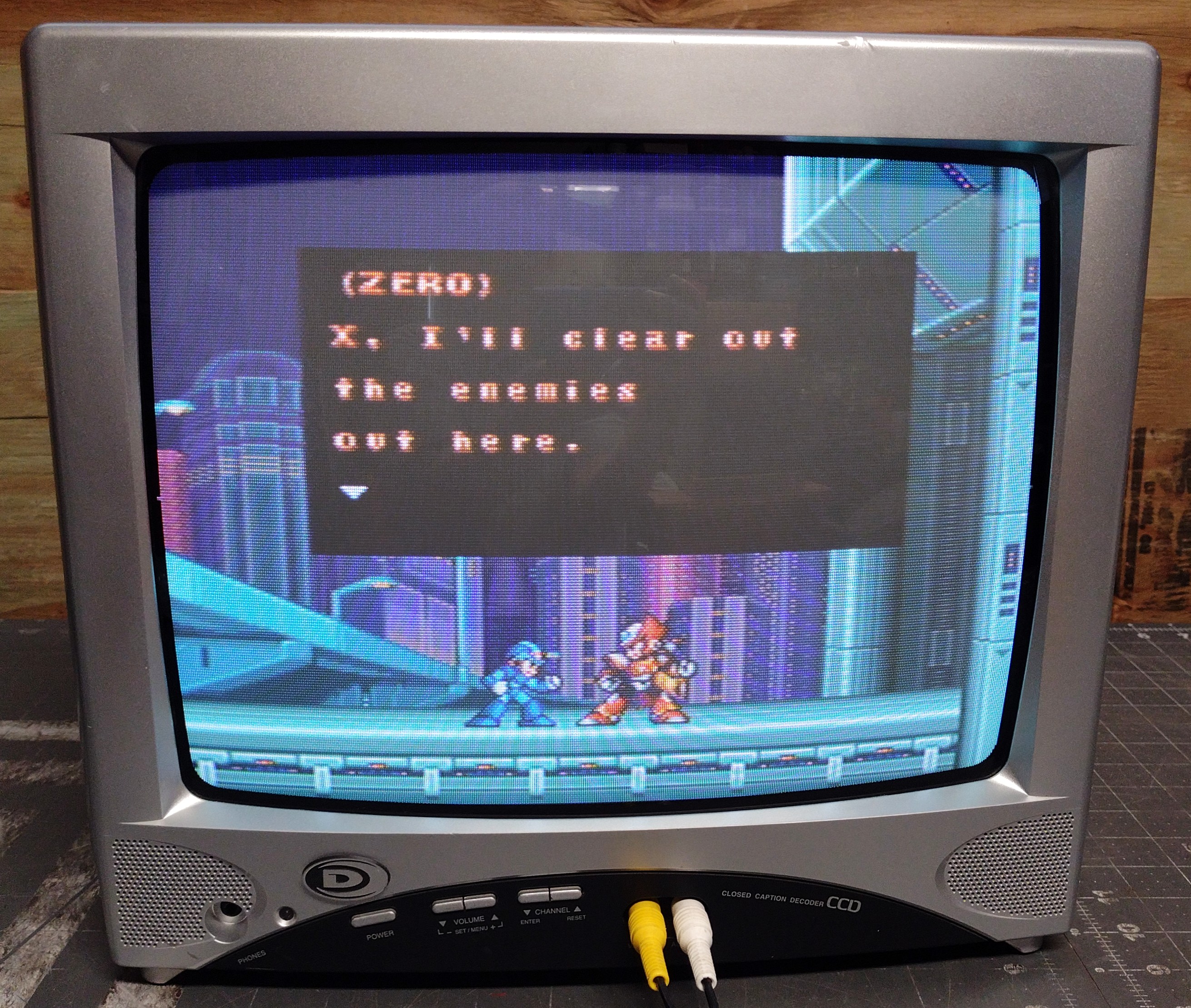

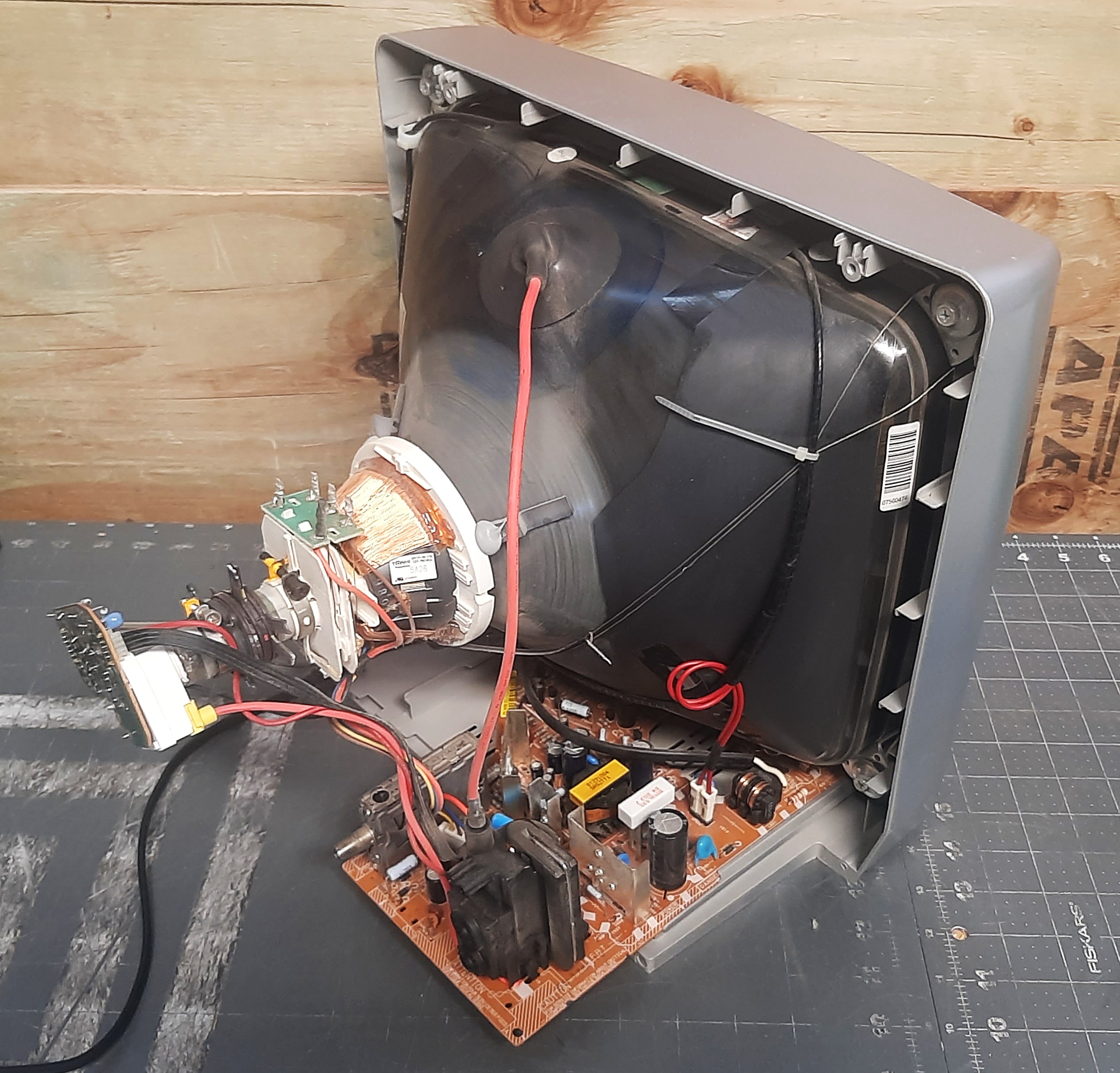

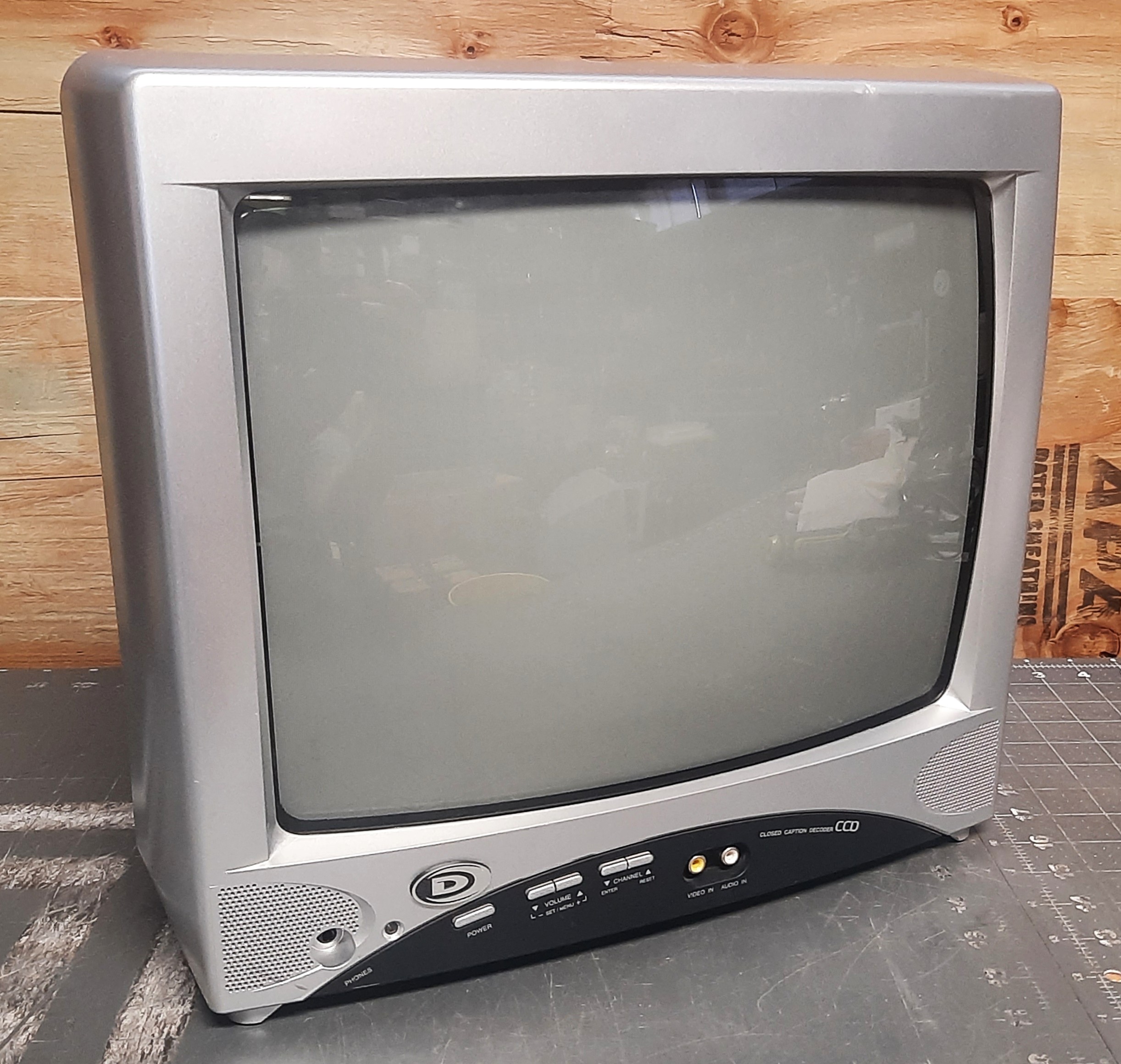

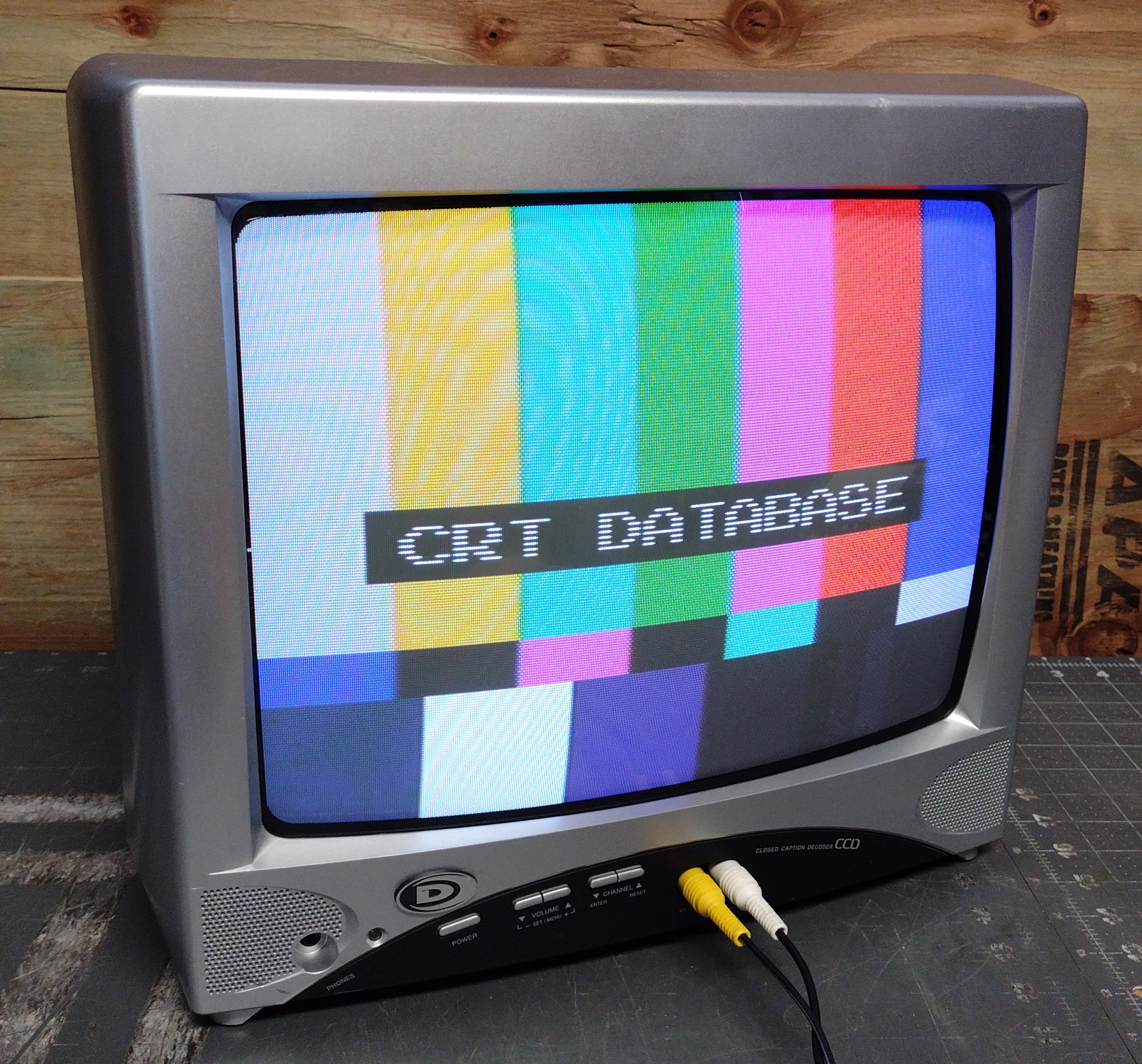

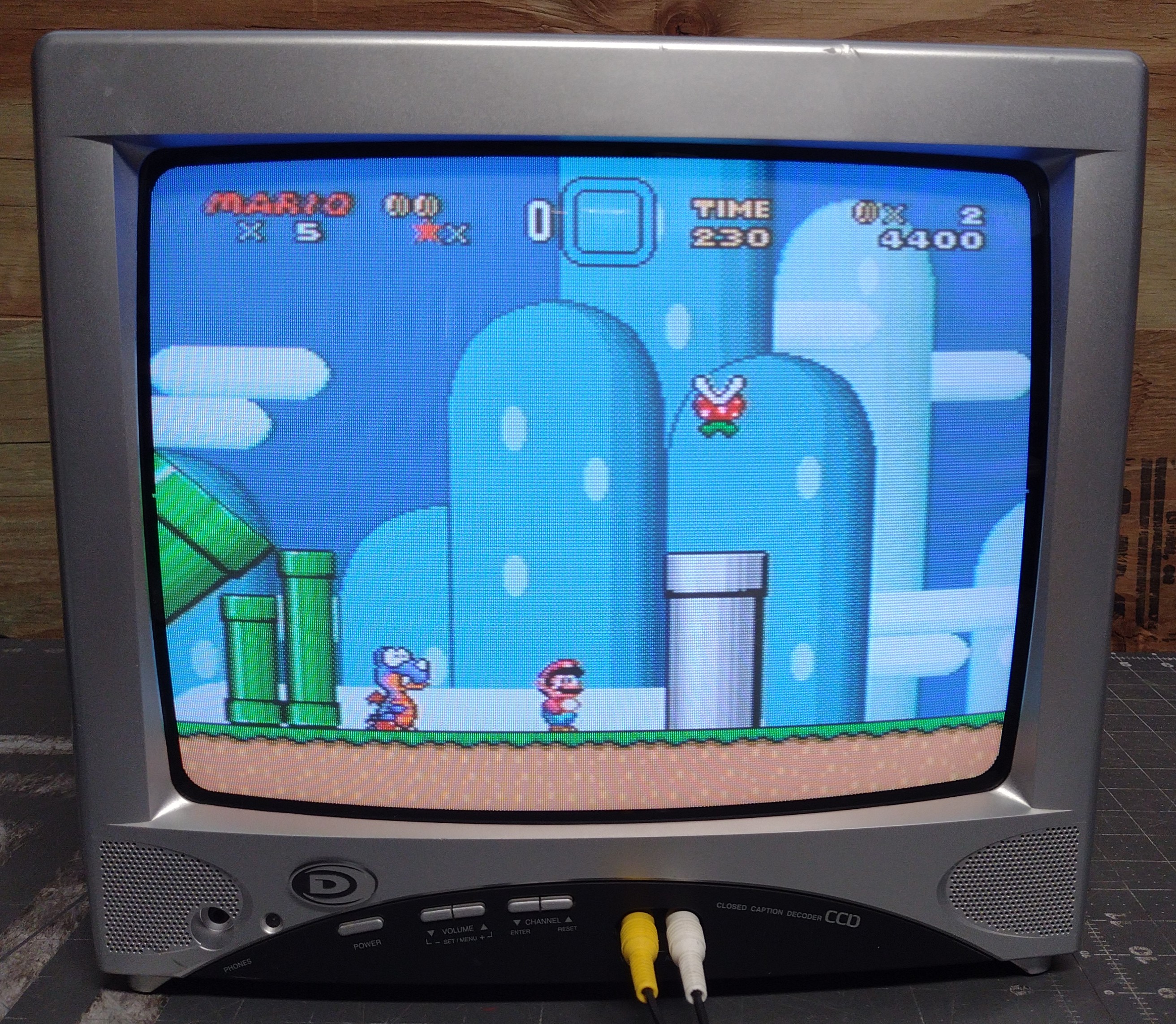

Gallery







Specifications | |
---|---|
Brand: | Durabrand |
Manufacturer: | Orion |
Model: | DU1301 |
Series: | Durabrand |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | LA78040 |
Jungle: | OEC7091C |
Comb Filtering: | None |
Flyback: | BSC23-N0147 |
Tube: | A34JXV70X53 , A34JXV70X , Thai CRT Co. |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | CDY-FM1401A |
Yoke Horz. Inductance: | 4.102 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 29.46 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 6.29 ohm |
Yoke Vert. Resistance: | 15.71 ohm |
Speakers: | Mono |
Weight: | 18 lbs (8.2 kg) |
Dimensions (W/H/D): |
362 x 360 x 320 mm
(14.2 x 14.1 x 12.6") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2005 |
Country of Manufacture: | Thailand |
Degaussing: | Automatic on Power-on |
