Emerson EC1331
Eli Krause
September 28, 2024, 5:56 pm
January 2, 2025, 3:11 pm
September 28, 2024, 5:56 pm
January 2, 2025, 3:11 pm

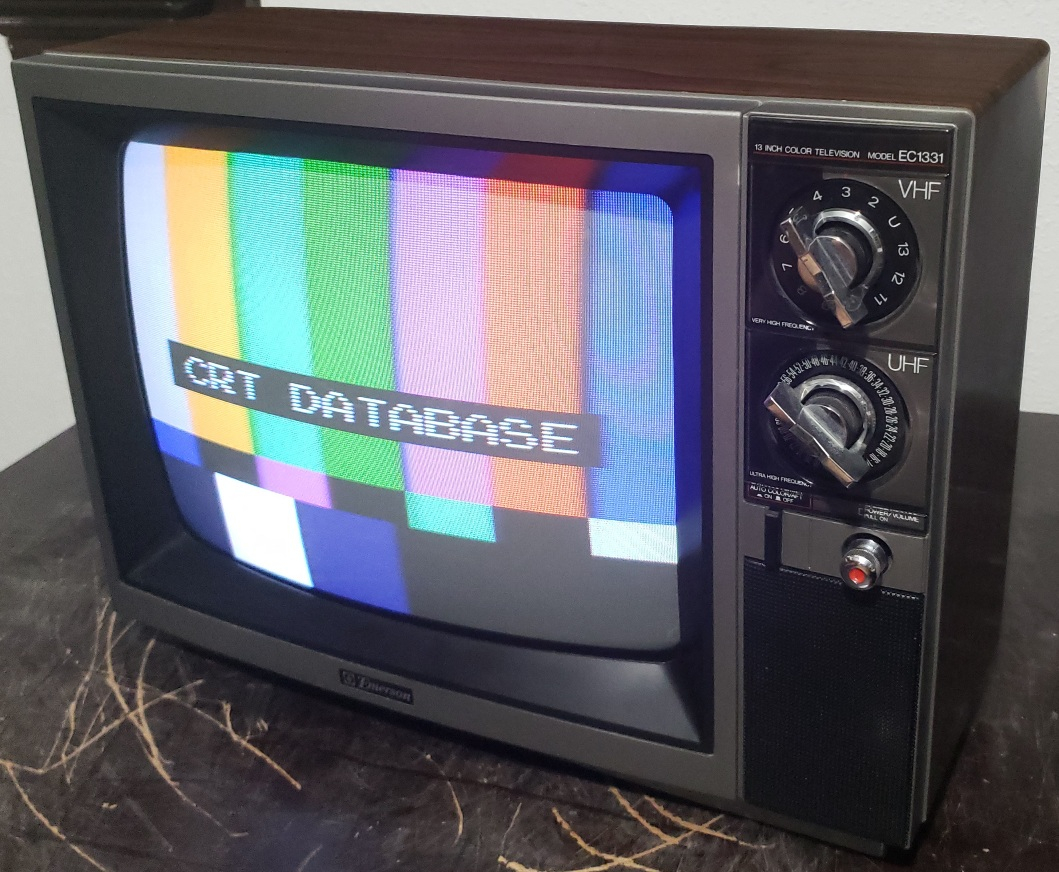

Summary
Color 13" manufactured by Orion.

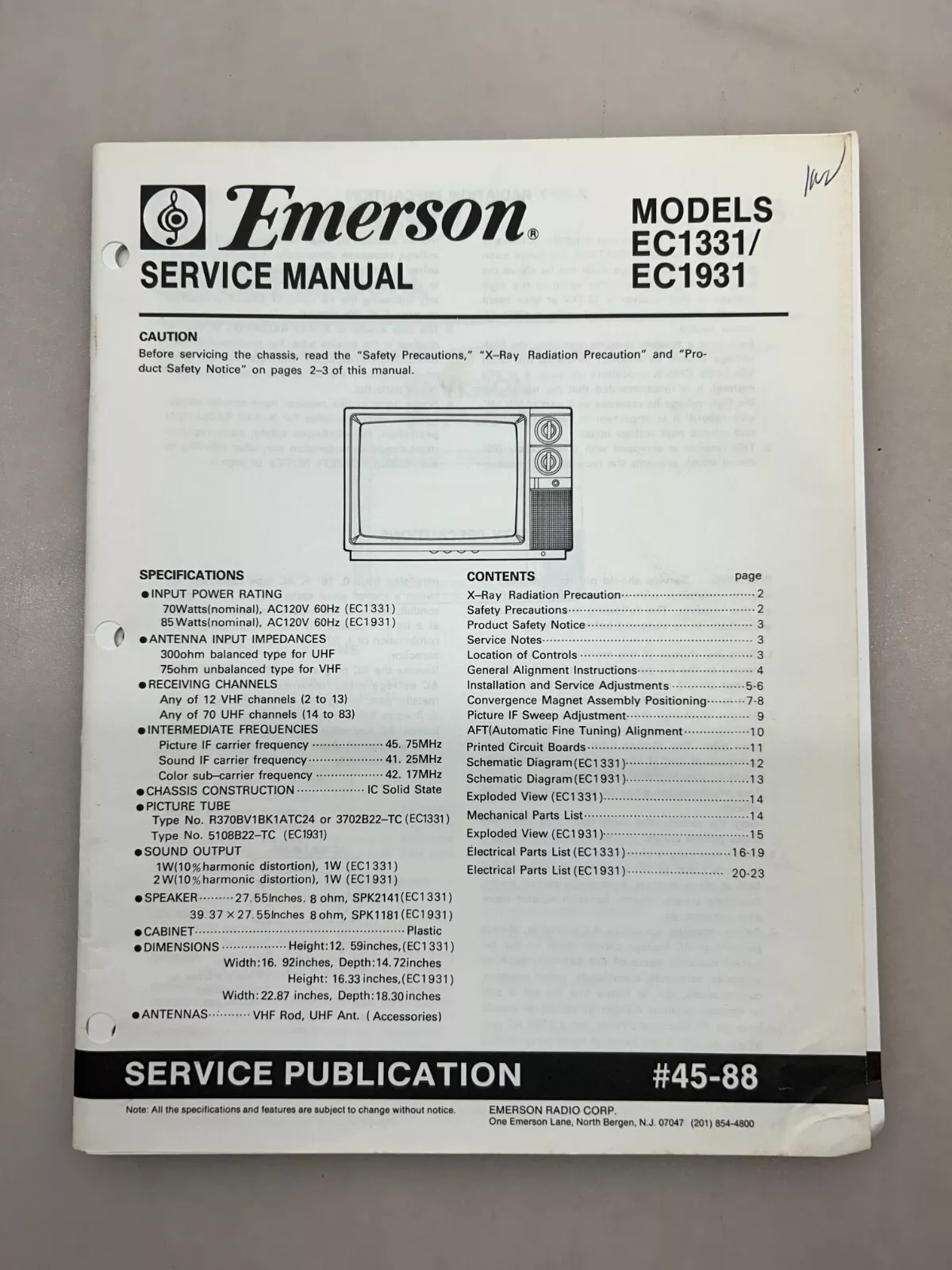

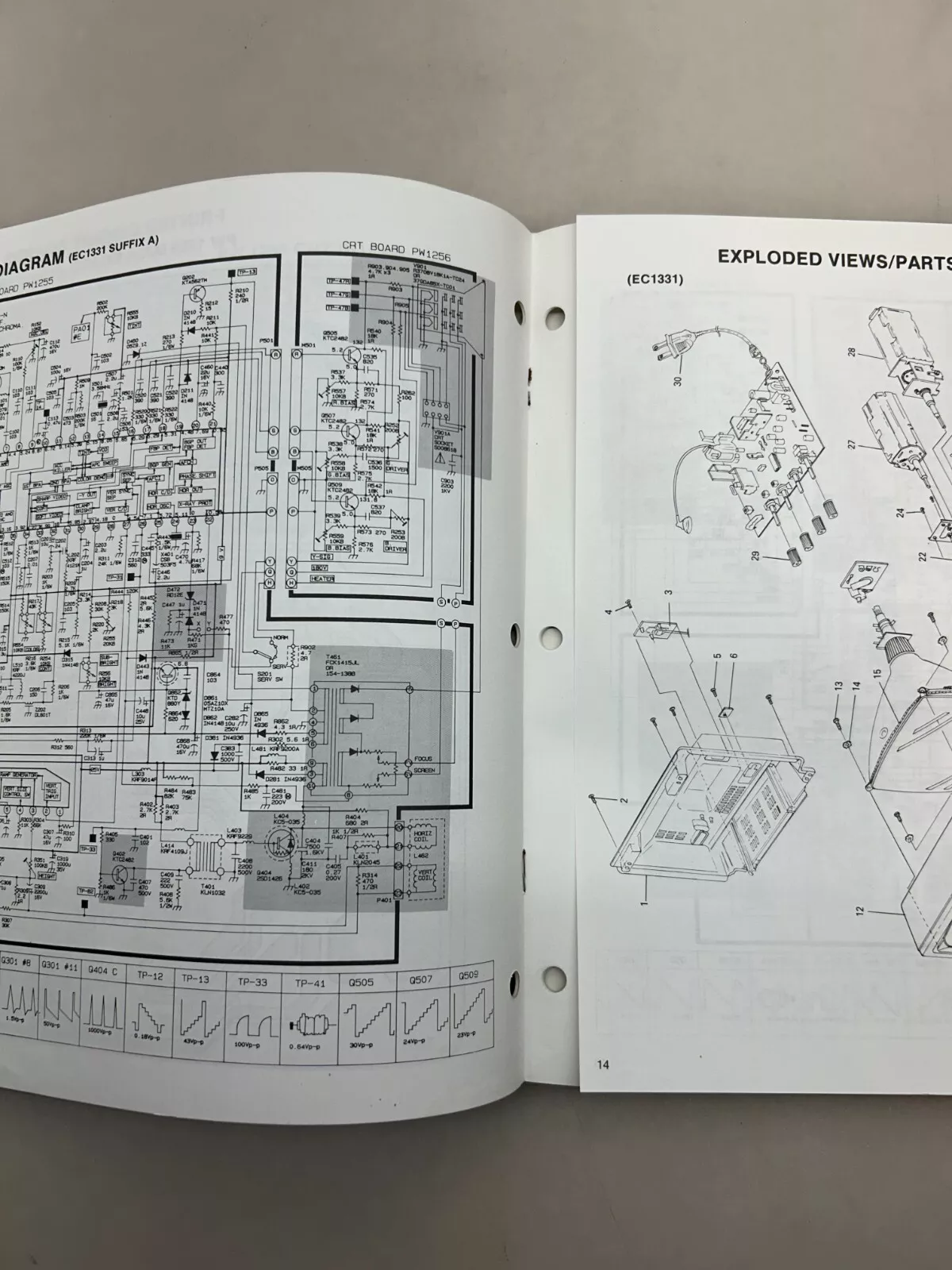

Manuals
No documentation is freely available online at this time.
Notes

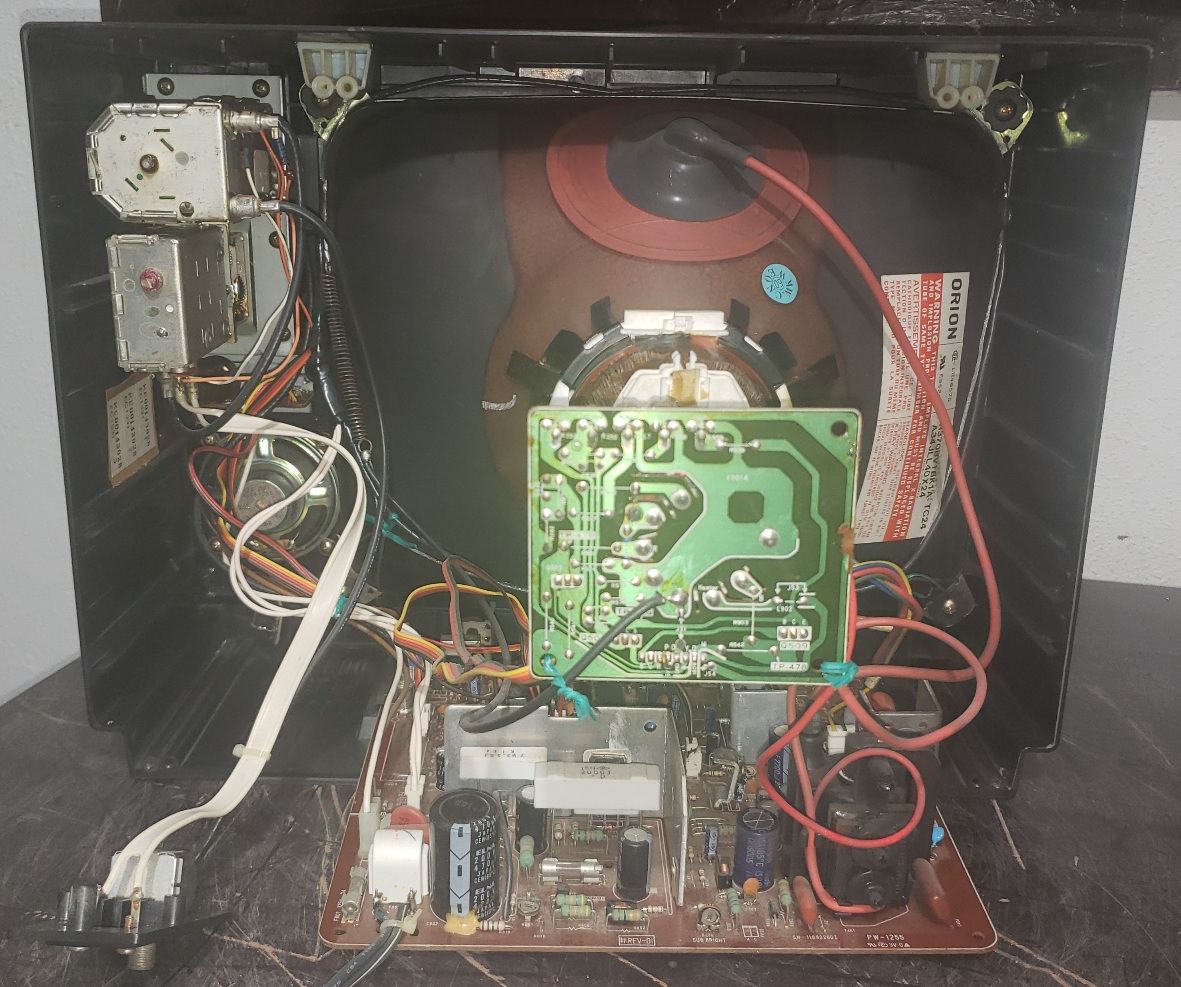

The only internal potentiometer on the main board that is labelled is sub-brightness. On the set pictured, part of the trace on the right edge of the back of the neckboard was ripped off, but appears to be intentional/does not negatively affect operation.

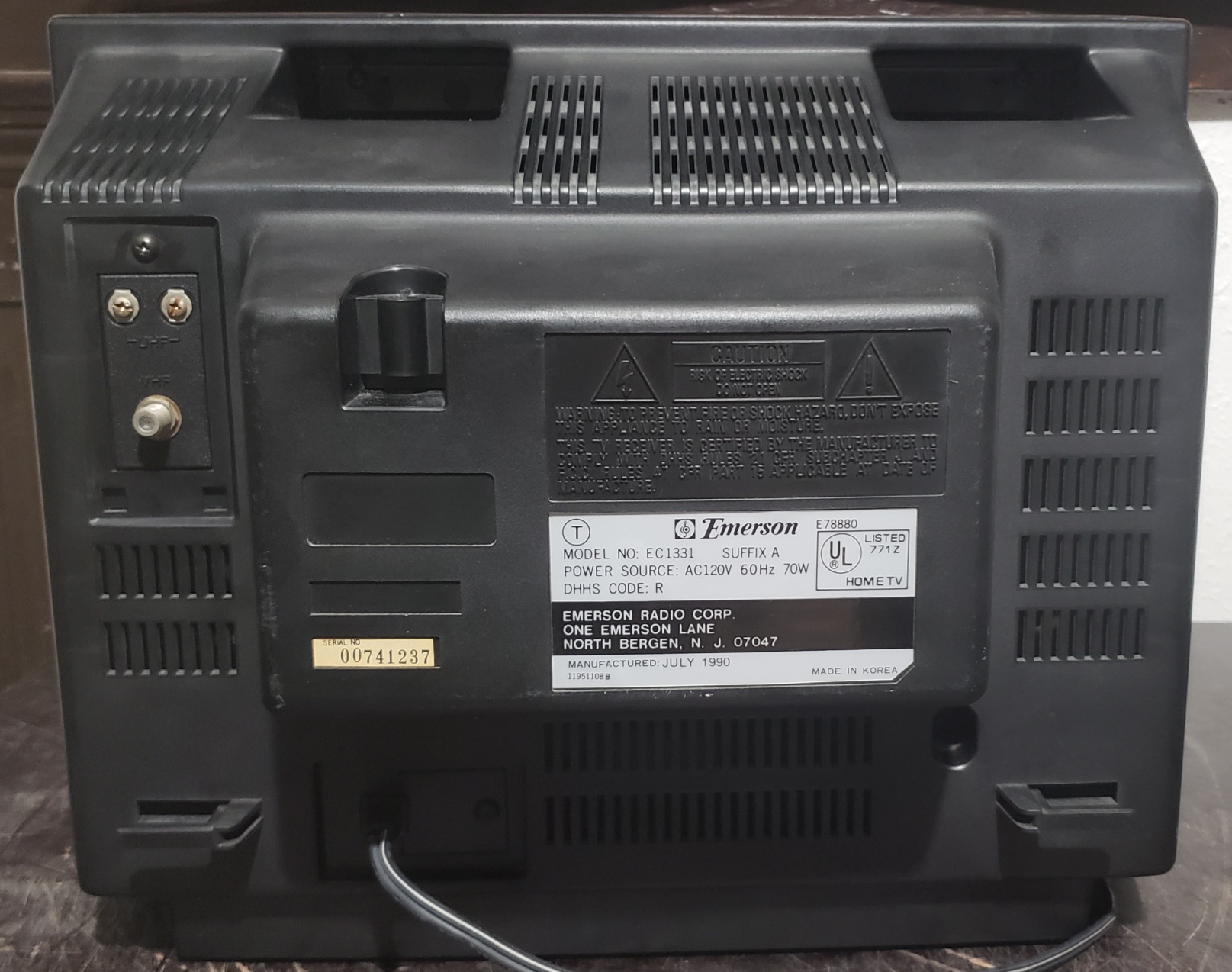

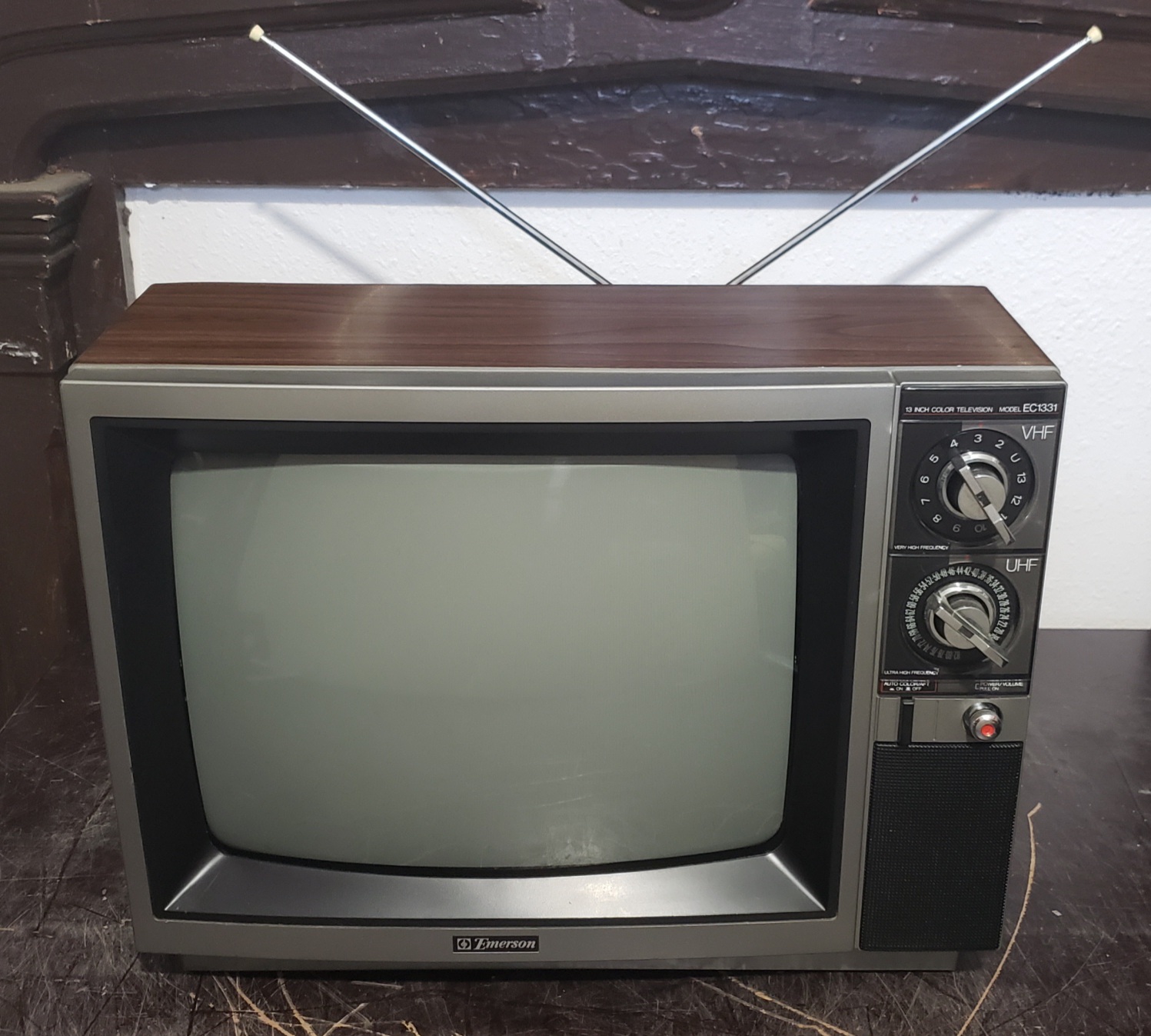

Gallery







Specifications | |
---|---|
Brand: | Emerson |
Manufacturer: | Orion |
Model: | EC1331 |
Series: | EC |
Viewable Size: | 13" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Tube: | A34JLL40X24 , R370BV1BK1A-TC24 , A34JLL40X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Yoke: | KYS-60159 |
Yoke Horz. Resistance: | 6.9 ohm |
Yoke Vert. Resistance: | 15.7 ohm |
Speakers: | Mono, 1W |
Chassis: | KAC-1411 |
Application: | Consumer |
Cabinet Material: | Plastic, Simulated Woodgrain |
Launched: | 1990 |
Country of Manufacture: | Korea |
Mounting: | Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
