Summary

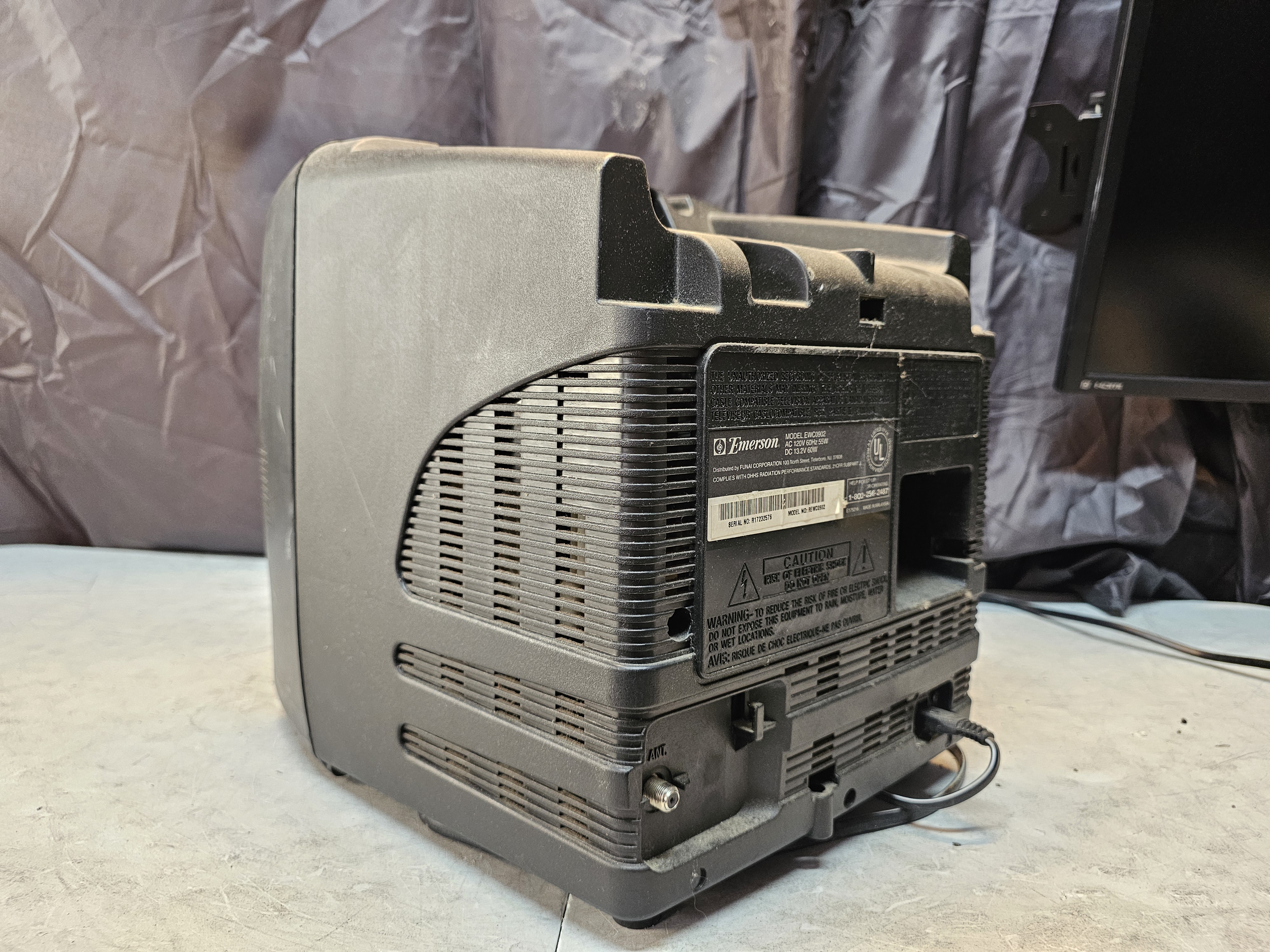

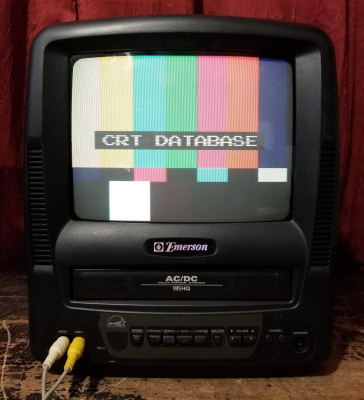

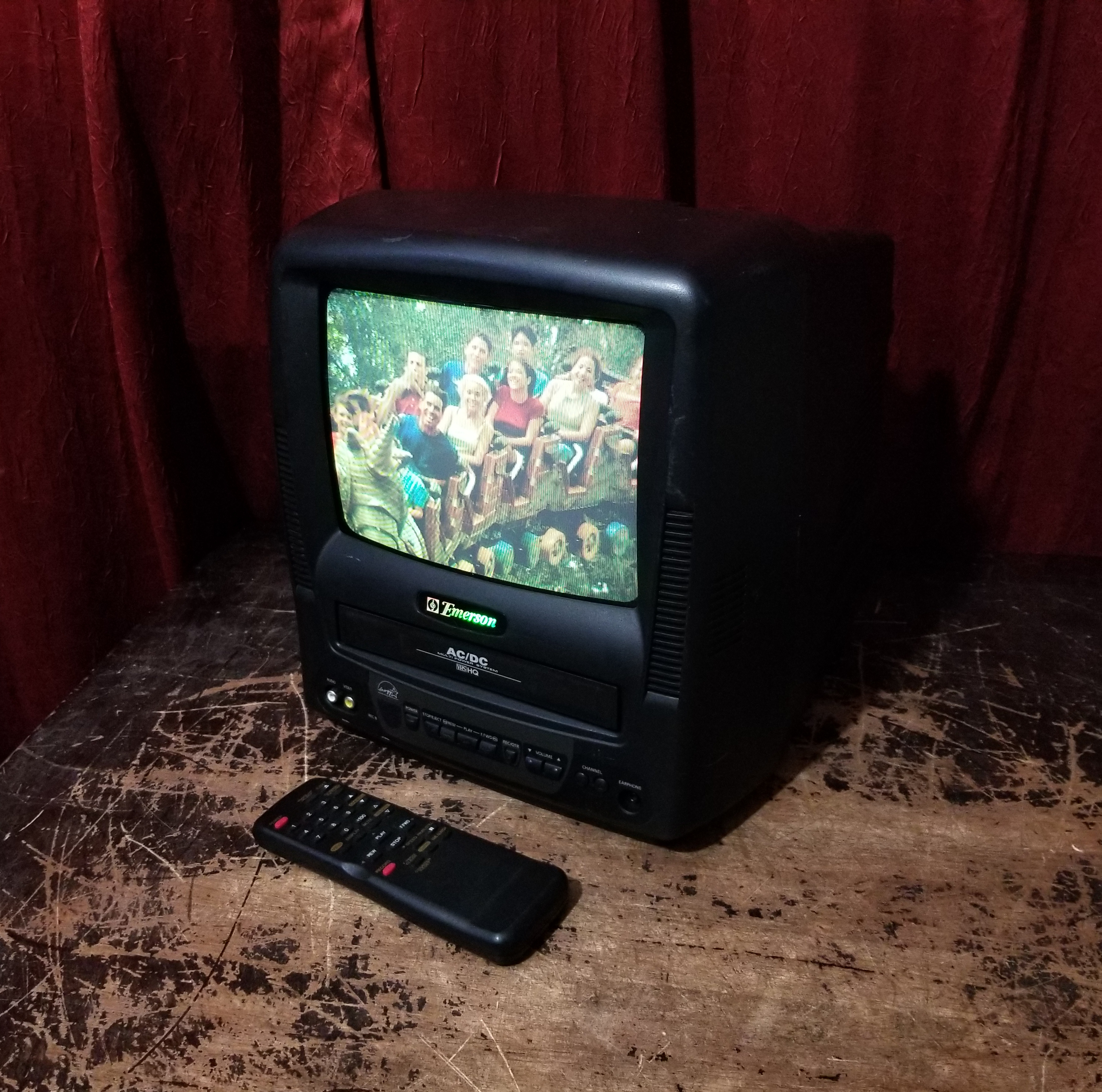

9" TV/VCR combo. Manufactured by Funai and sold under the Emerson brand. Has composite and RF inputs. TV can run on 12V DC.
Manuals
Notes
THe input can be switched and the menu including picture settings can be access using the channel buttons. Menu can be navigated with the VCR playback buttons.
A universal remote that can control all of this sets functions is the COX URC-8820 using program code 1913.

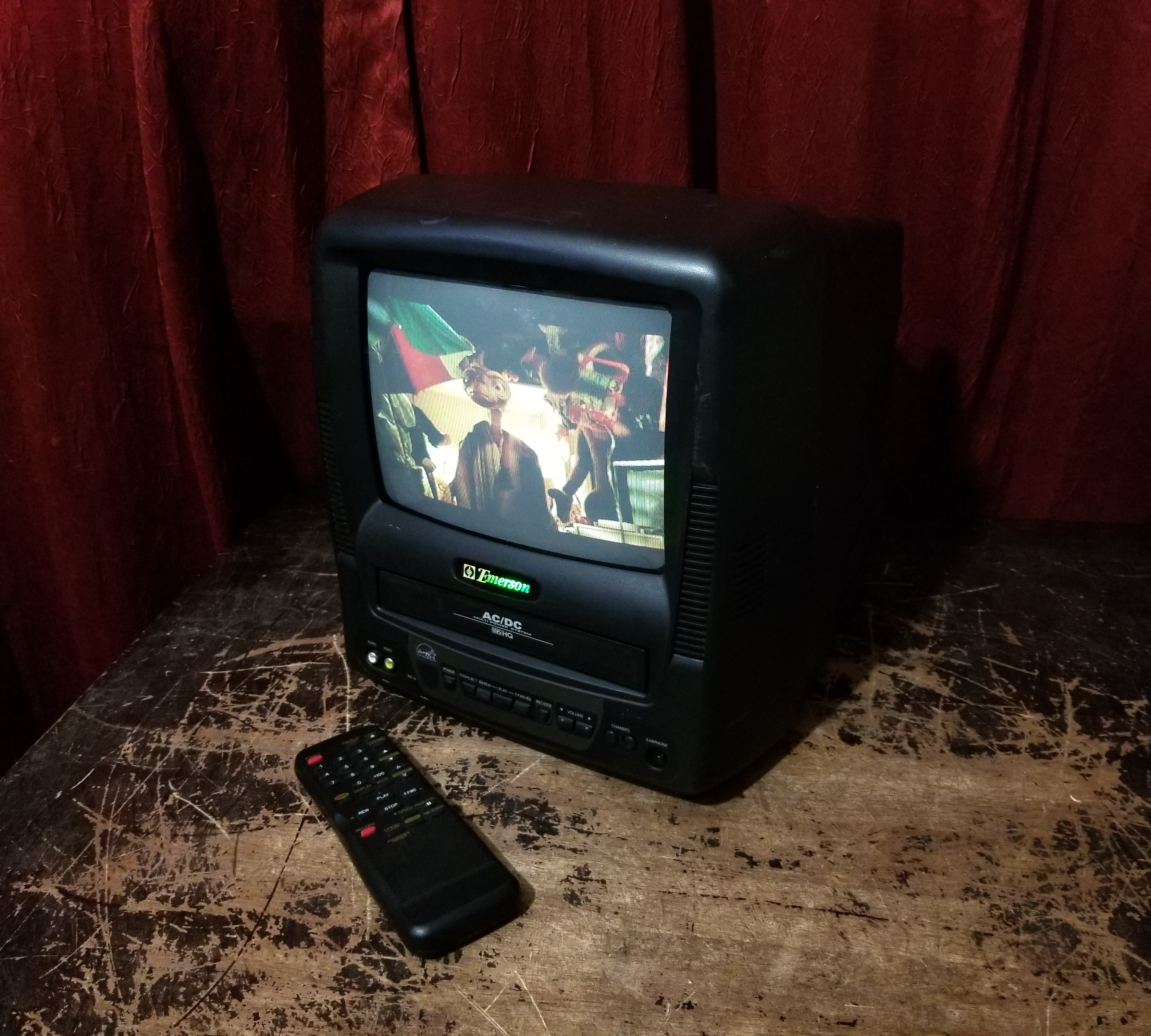

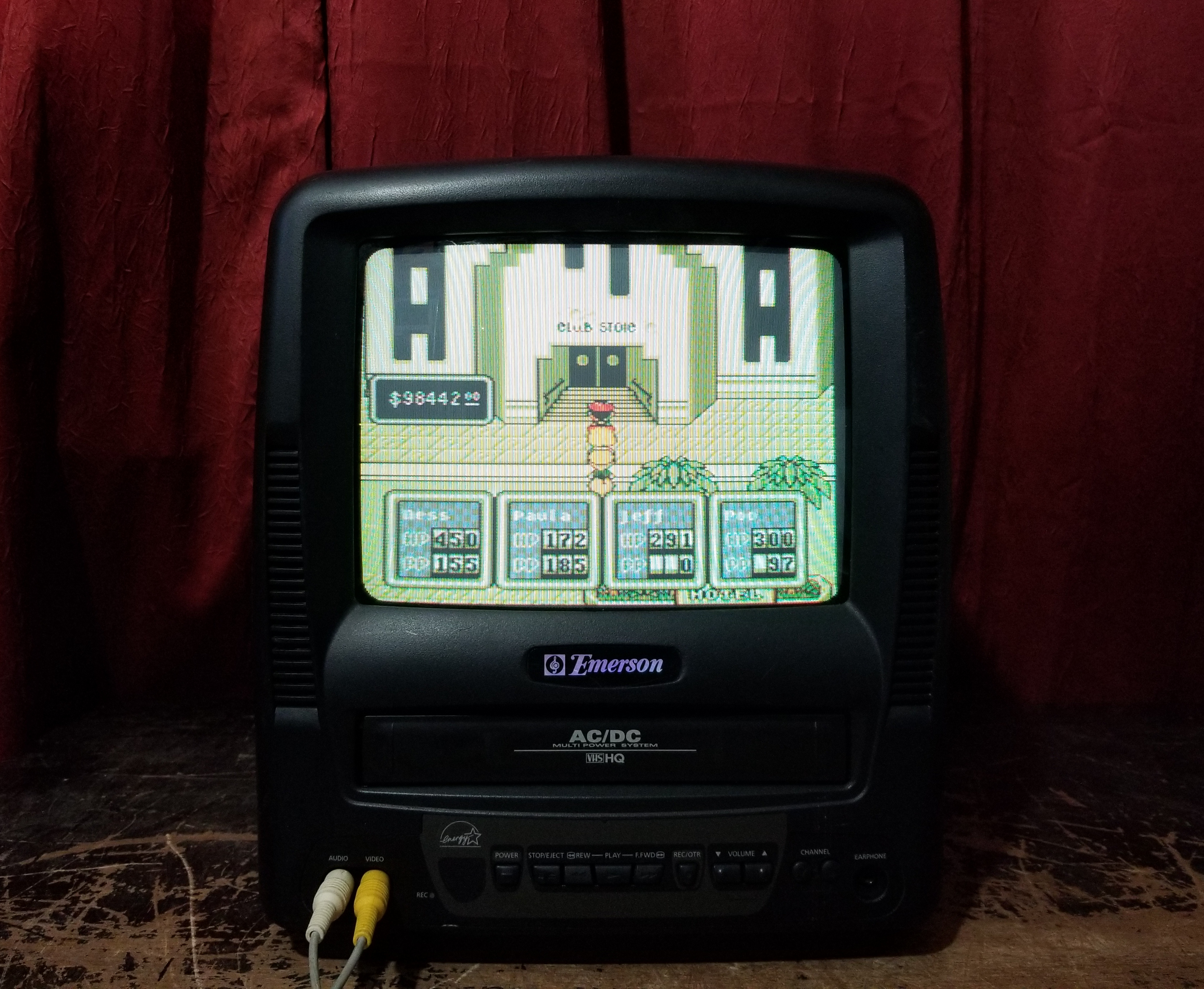

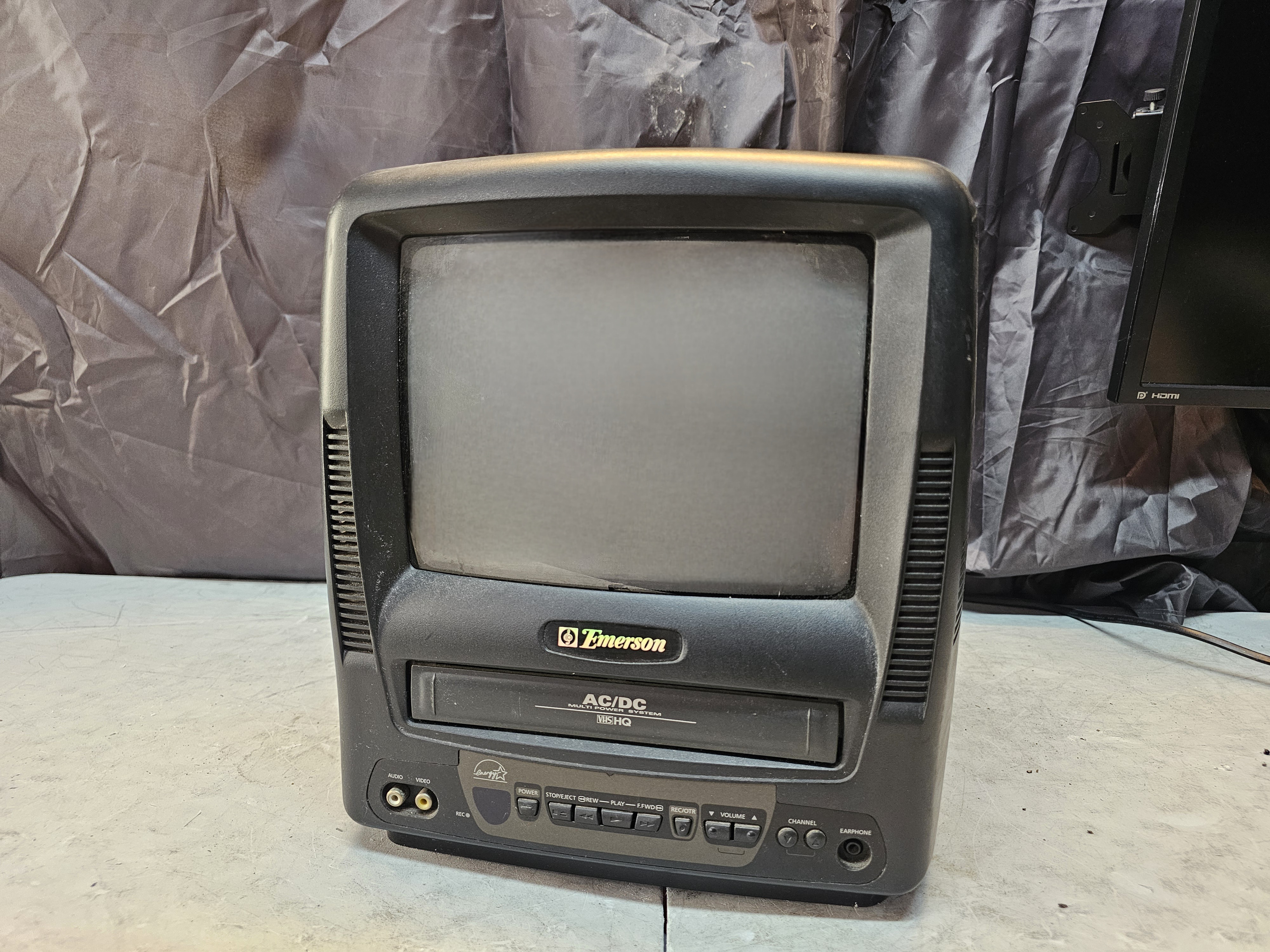

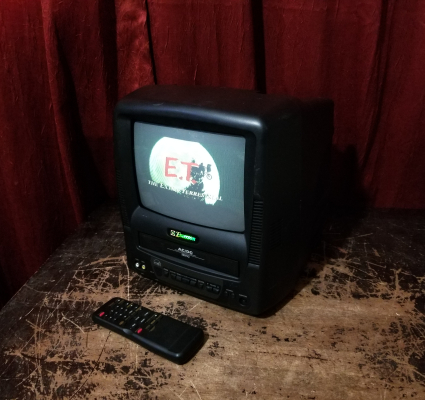

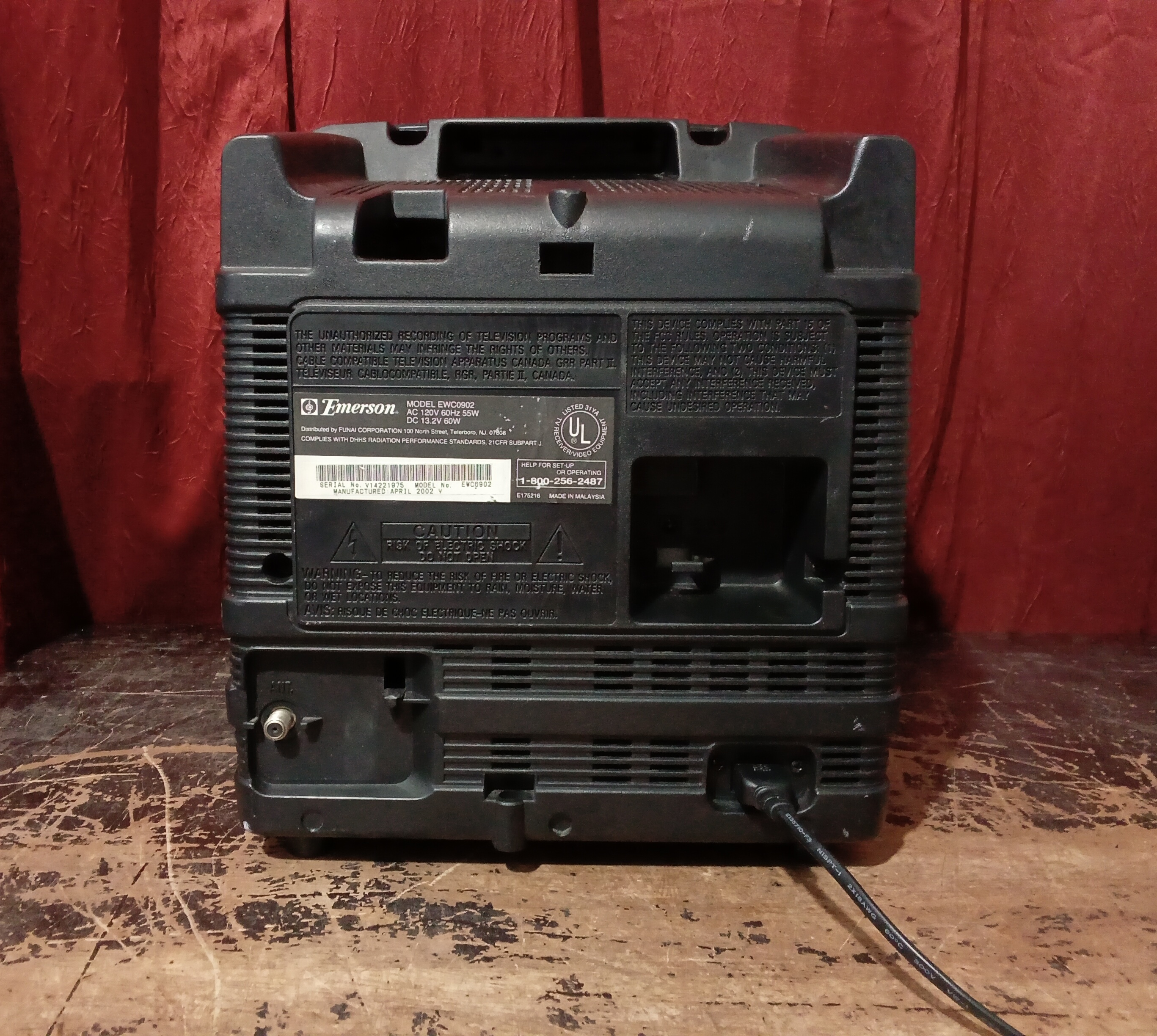

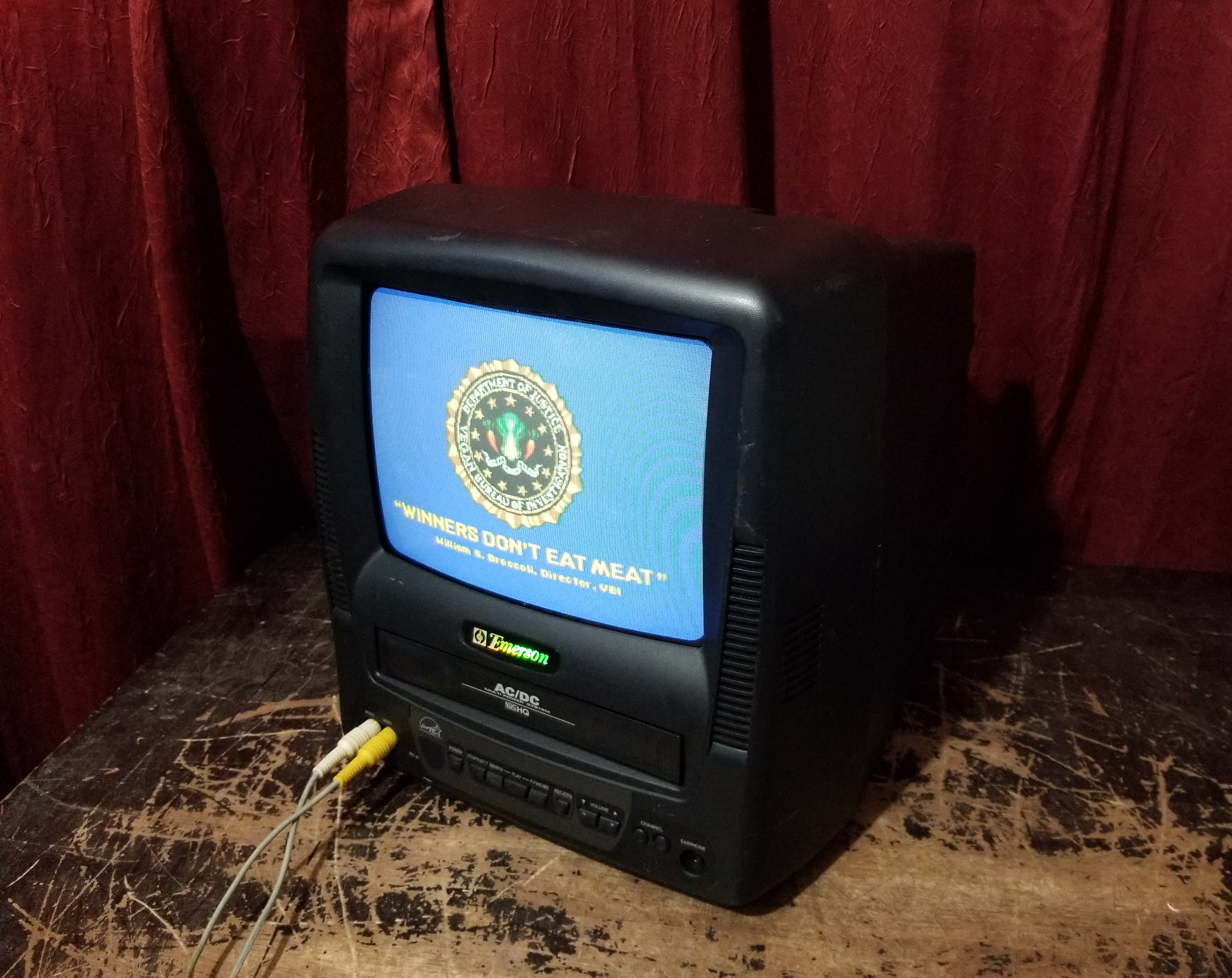

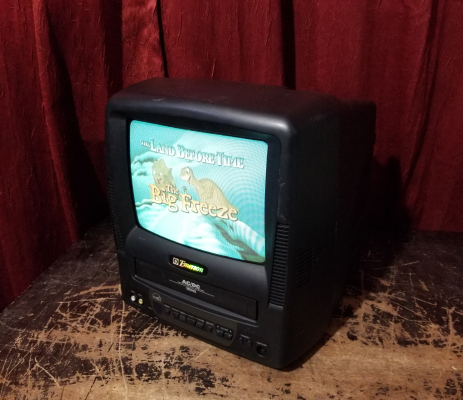

Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC0902 |
| Series: | EWC |
| Viewable Size: | 9" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Horz. Output Transistor: | 2SD2627LS |
| Vertical Output IC: | AN5522 |
| Comb Filtering: | Notch |
| Jungle IC: | M61210FP |

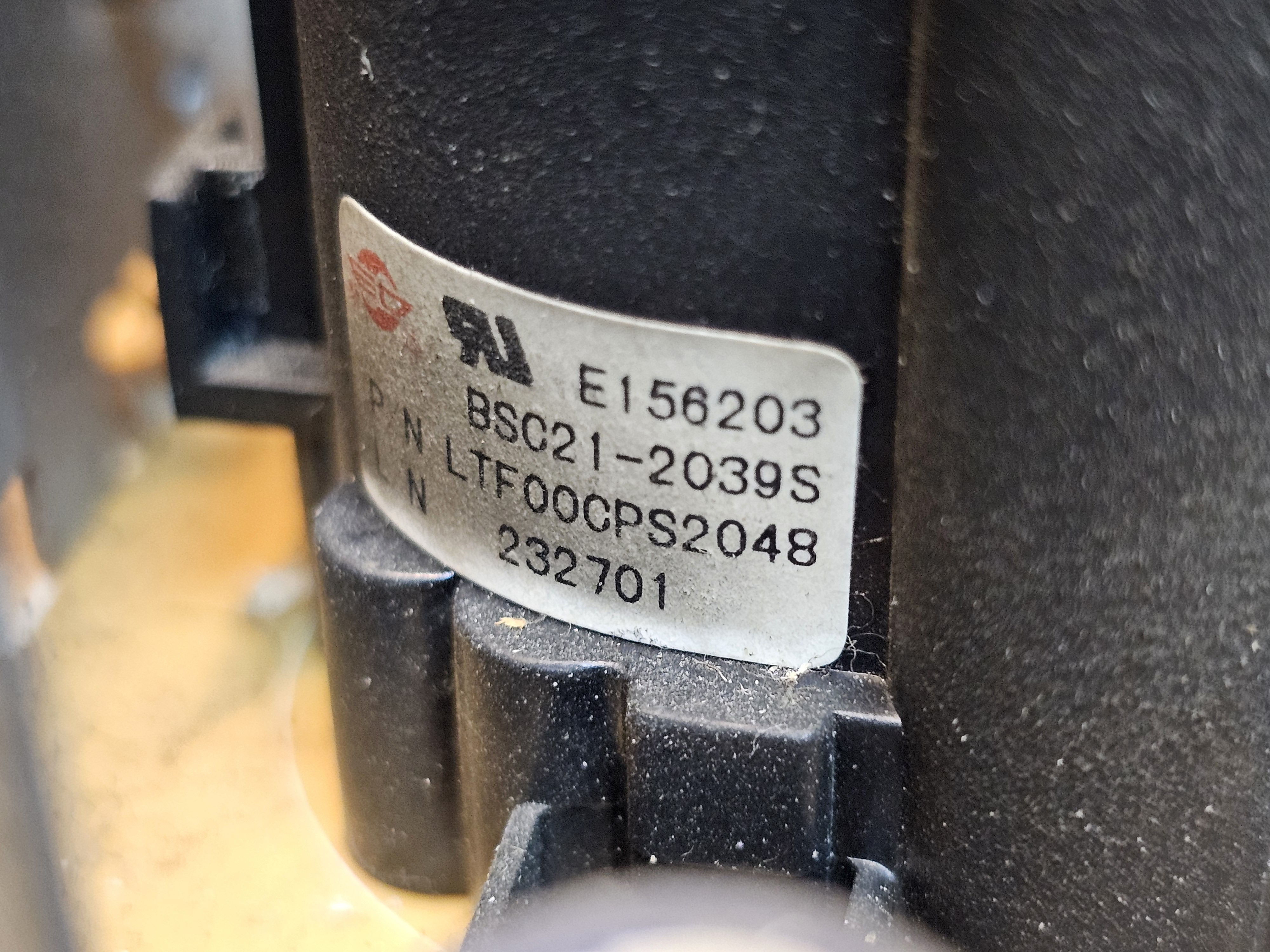

| Flyback: | LTF00CPS2048, LTF00CPP1013 |
| Focus Type: | Single |

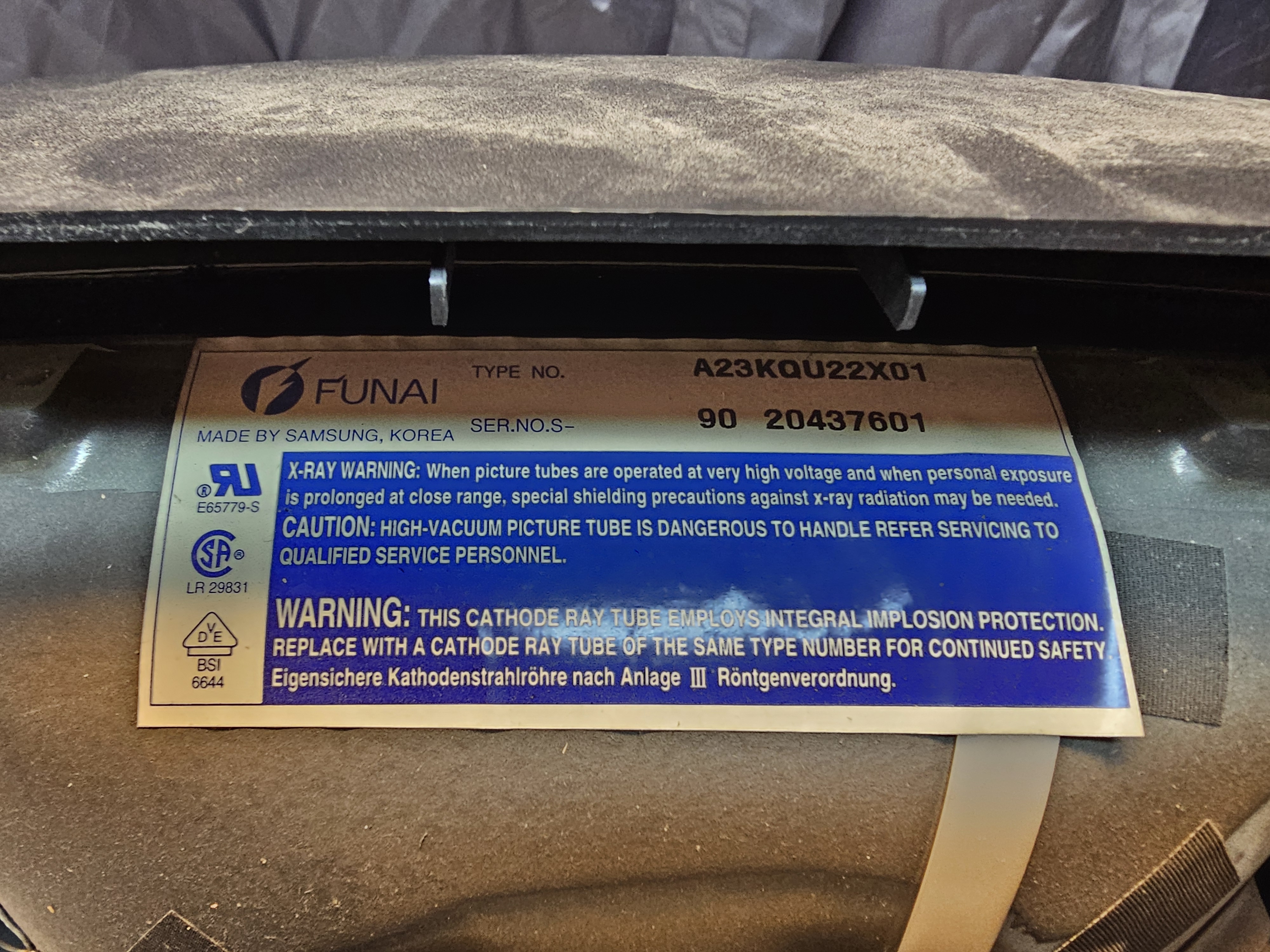

| Tube: | Funai , A23KQU22X01 , A23KQU22X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

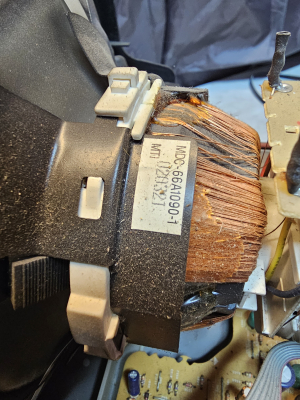

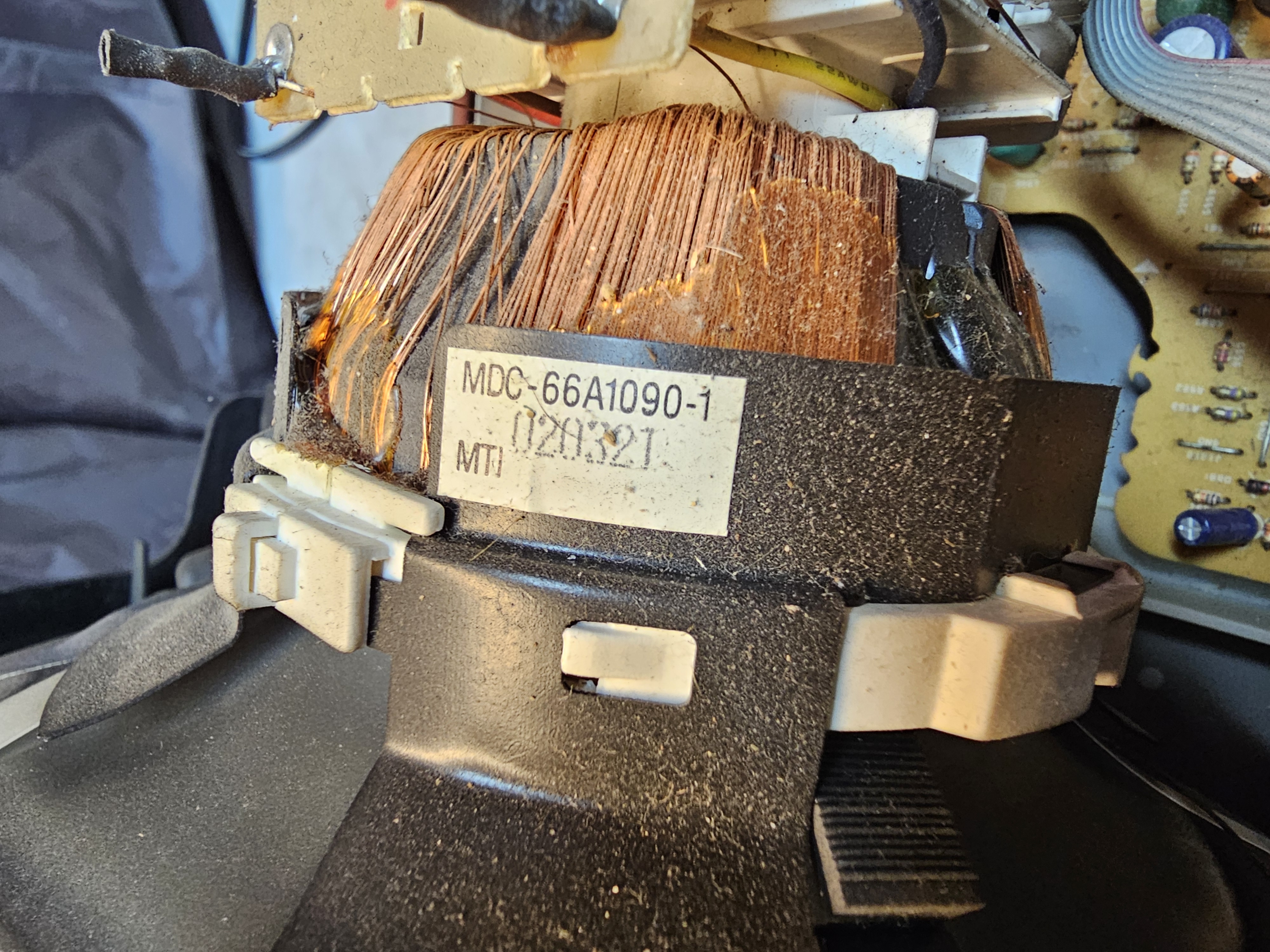

| Yoke: | MDC-66A1090-1 |
| Speakers: | Mono |

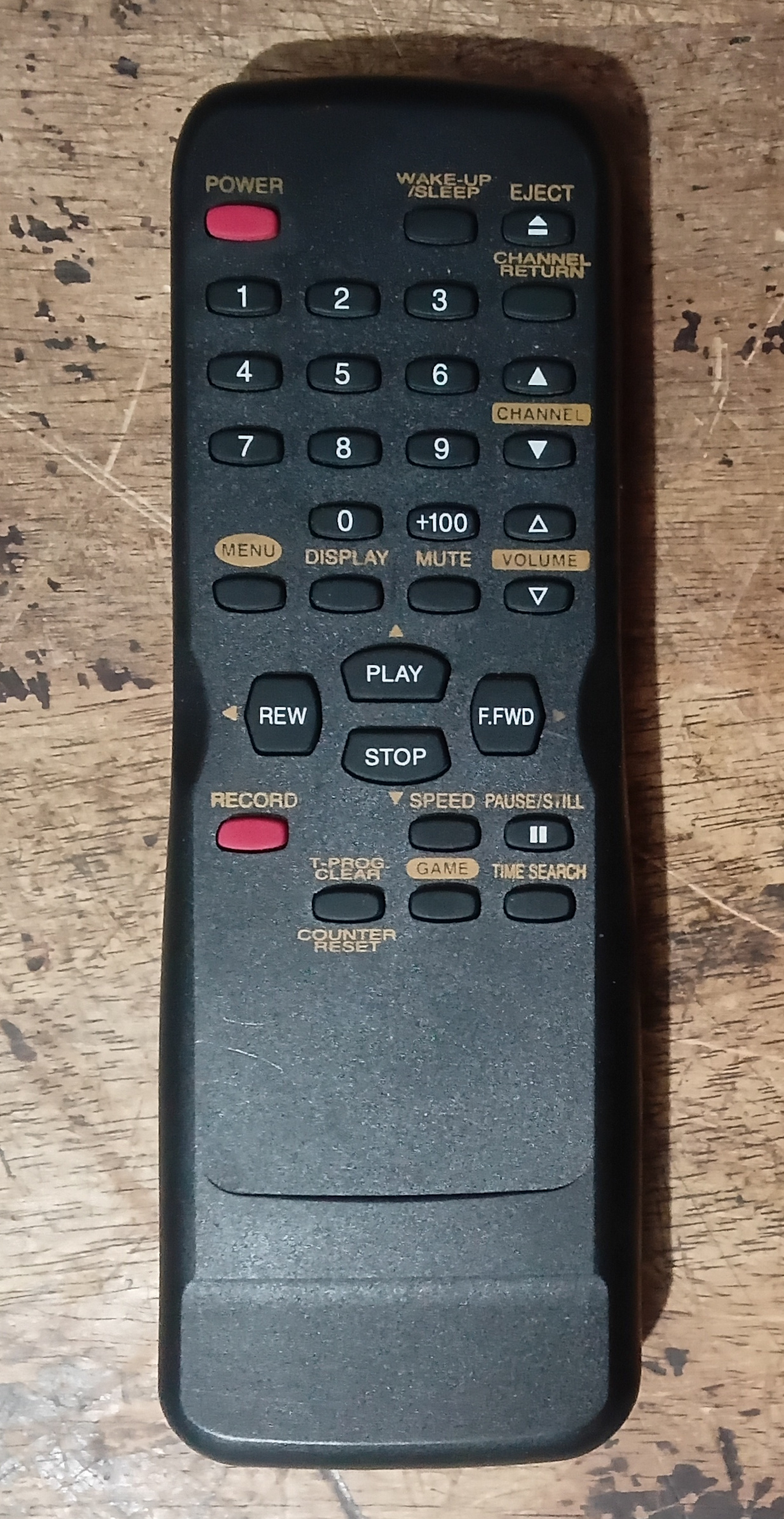

| Remote: | N0162UD, N9278UD |
| Chassis: | T4300UA |
| Weight: | 18.7 lbs (8.5 kg) |
| Dimensions (W/H/D): |
308 x 330 x 329 mm
(12.1 x 13 x 12.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 169 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
