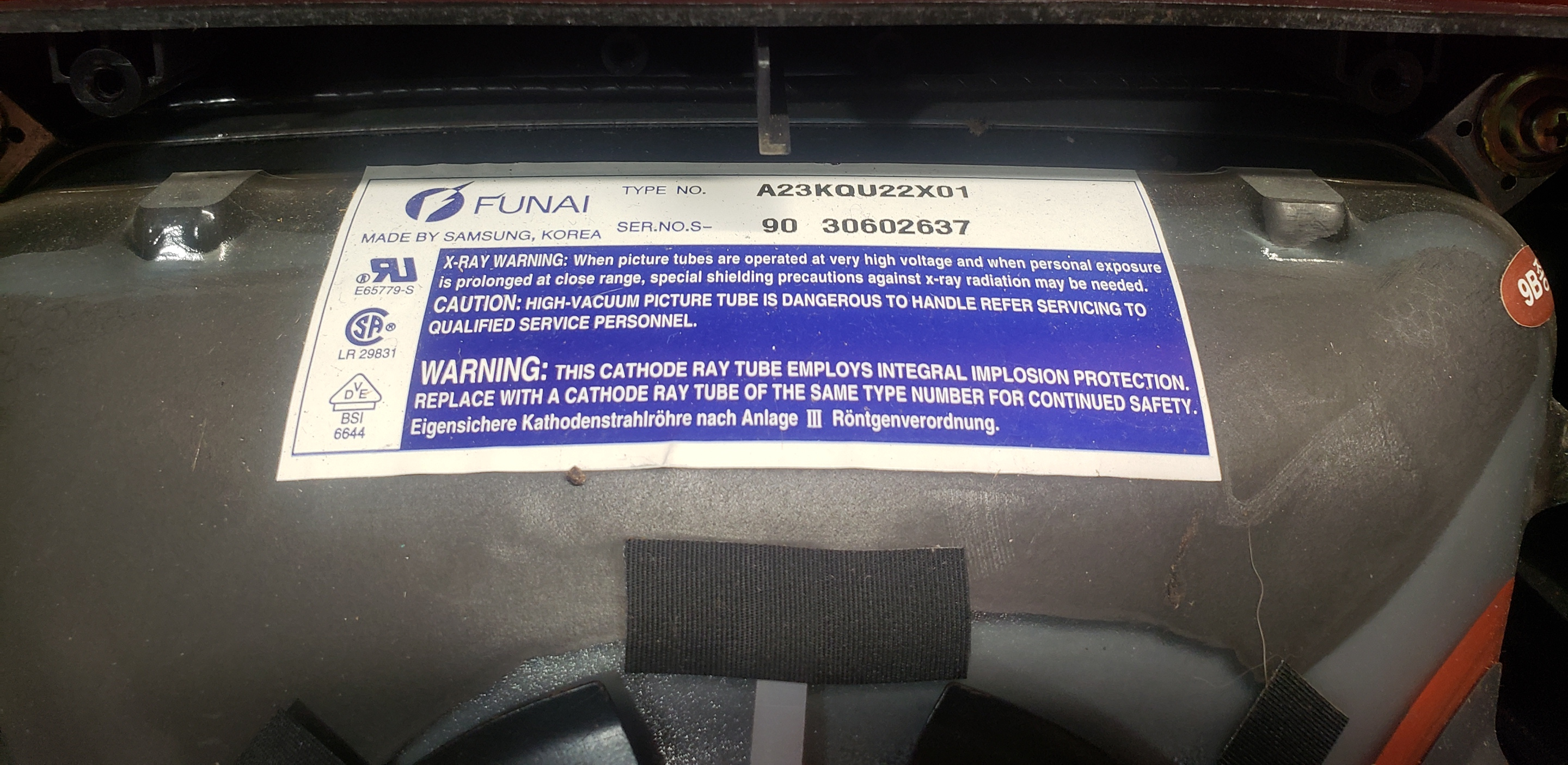

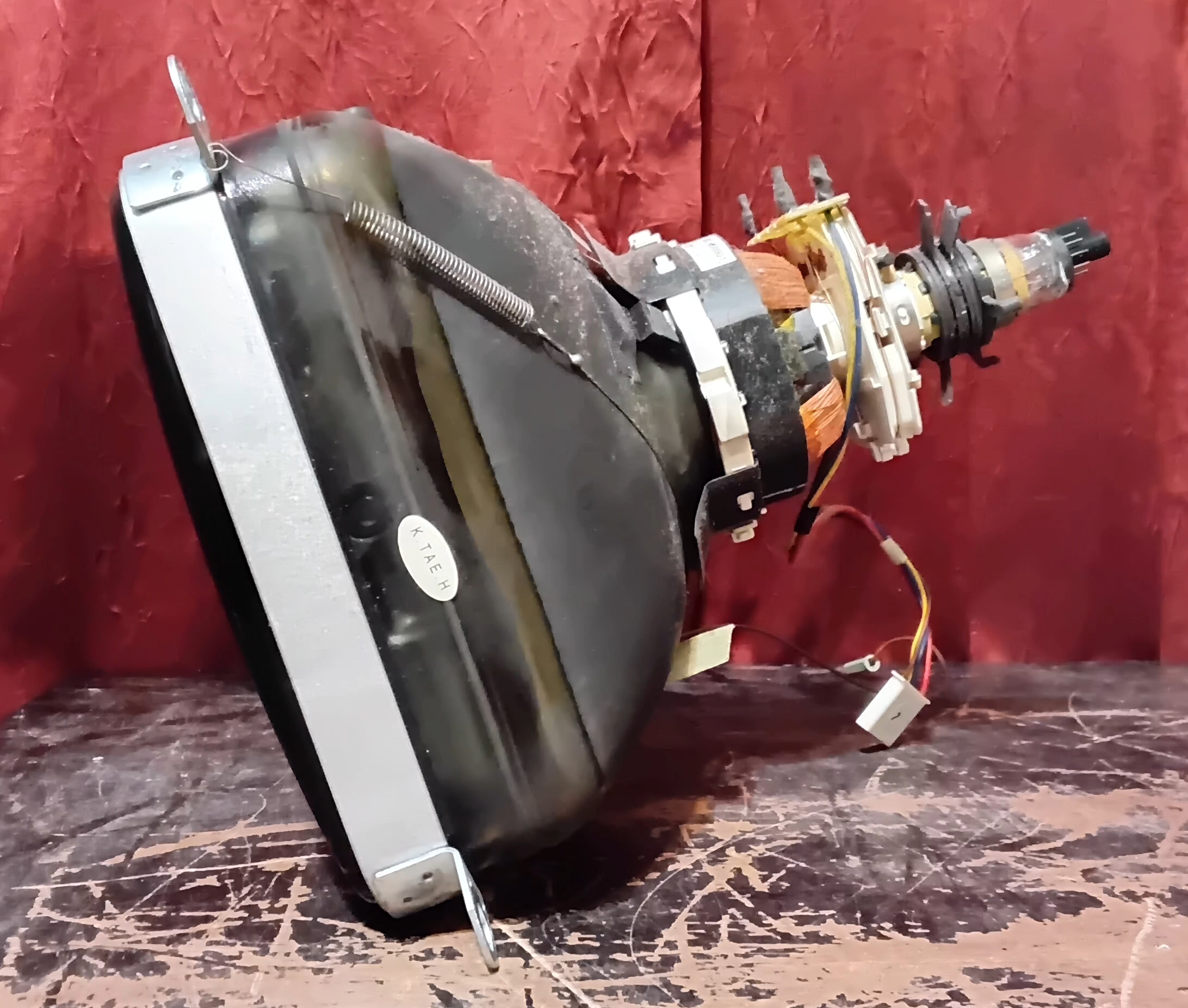

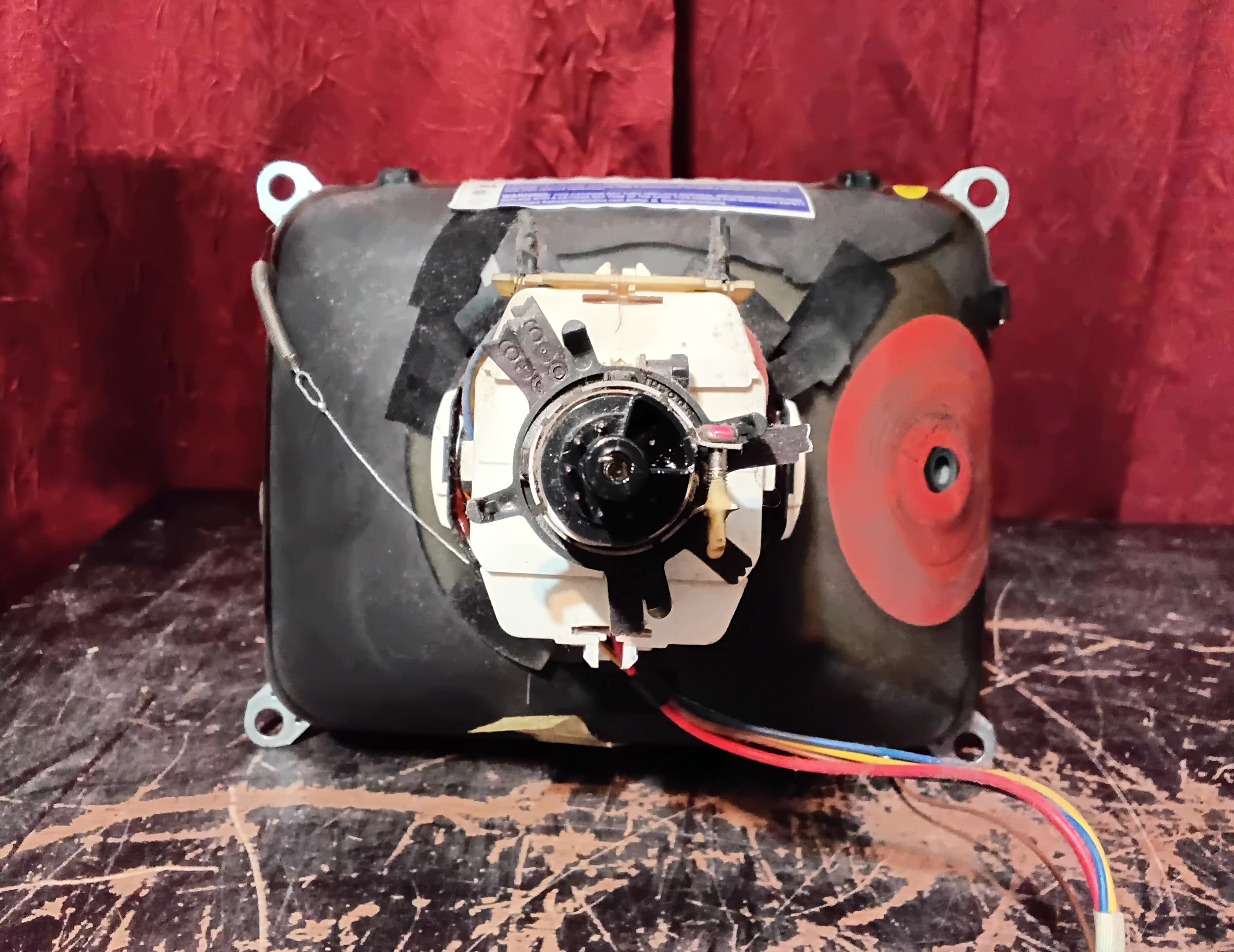

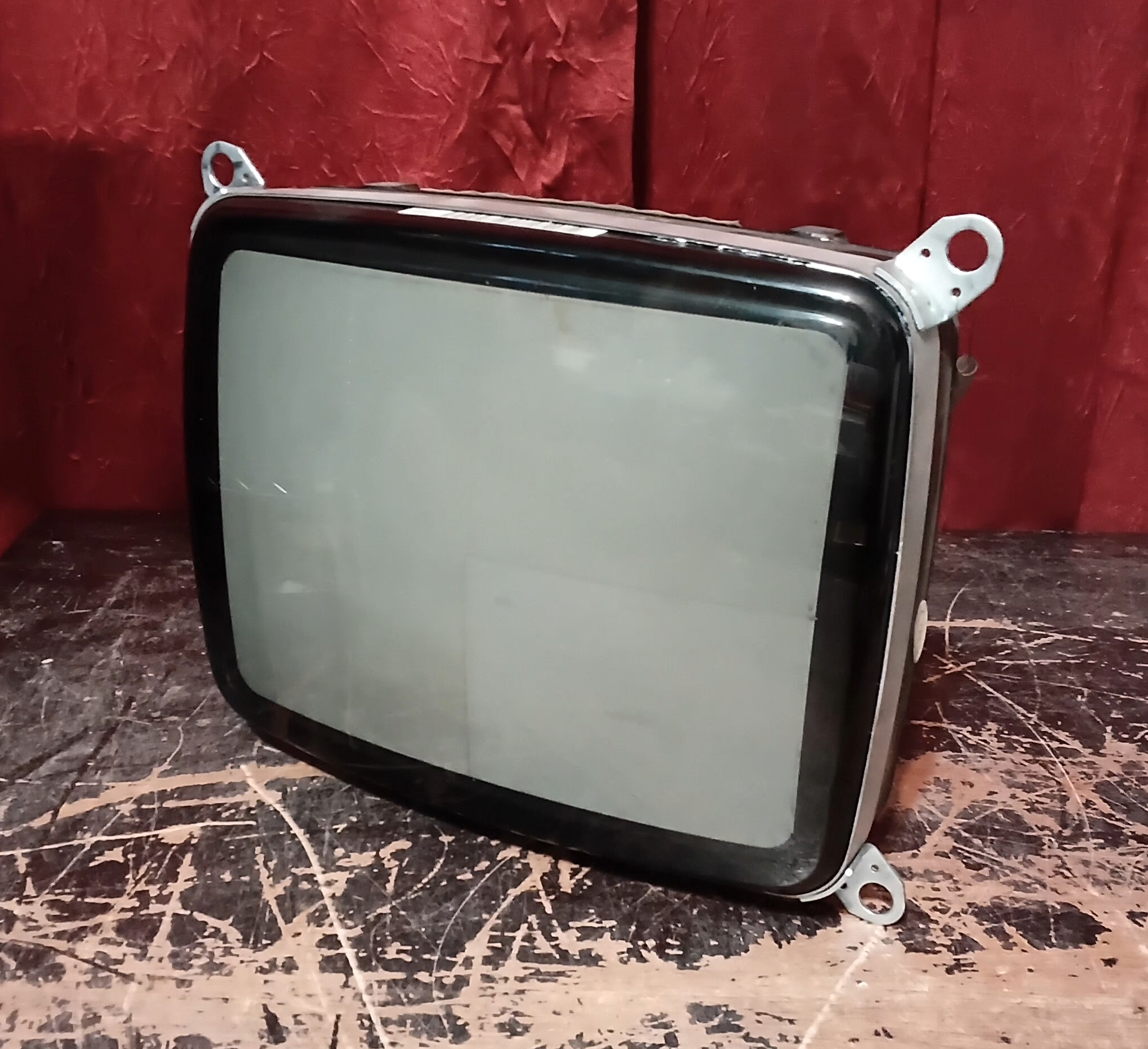

List of Chassis Models which are compatible with A23KQU22X
This list is automatically updated as more models are added to CRT Database.CR-31 Socket
| Pin # | Assignment |
|---|---|
| 1 | Focus (G3) |
| 2 | Keyed Out |
| 3 | Blue Pin |
| 4 | Heater (F1) |
| 5 | Heater (F2) |
| 6 | G1 Red Pin |
| 7 | Red Pin |
| 8 | G2 Red Pin |
| 9 | Green Pin |
| 10 | Keyed Out |
Note: If you only see one assignment for G1 (or G2), it means there is only a single G1 (or G2) grid shared across all cathodes. This is called "common G1" (or "common G2"). In this case, when using a Universal Adapter (UA), you only have to hook up one G1 (or G2) lead on your tester to connect all cathodes' G1 or G2 properly.
B&K 490 / 467 Tester Info
| Tester Model | Heater | Socket | G1 Voltage |
|---|---|---|---|
| B&K 490 / 467 | 6.3V | CR-31 | 50 |
Müter Socket Adapter
| Tester Model | Socket |
|---|---|
| BMR 95 & 2005 | 816 |
Sencore CRT Tester Info
| Tester Model | Heater | Socket | Bias | Video |
|---|---|---|---|---|
| CR-7000 | 6.3V | 5 | 132V | Video 2 |
| CR-70 | 6.3V | 13/UA | 68V | VIDEO |
| CR-31 | 6.3V | - | D | N/A |
