Summary

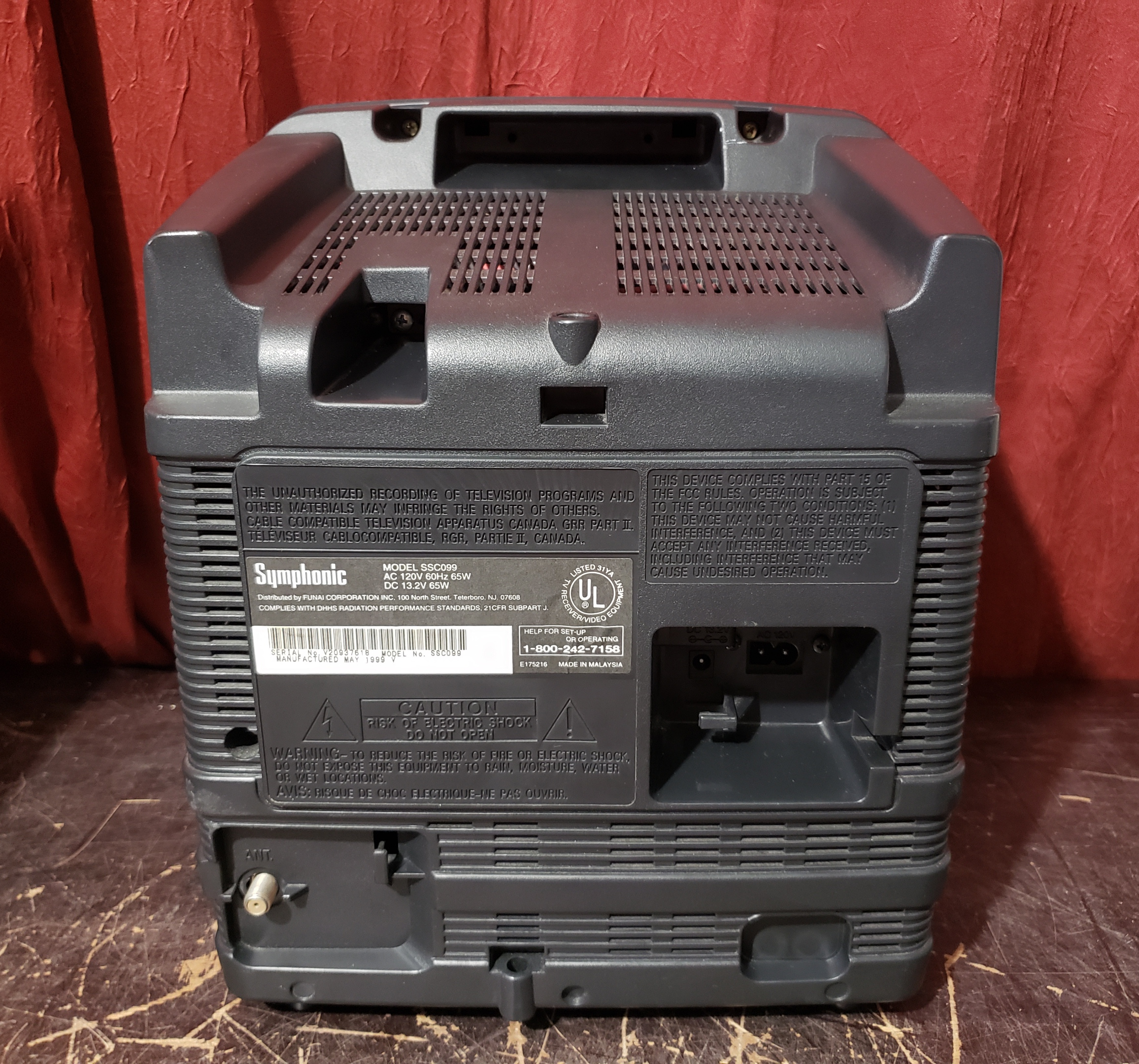

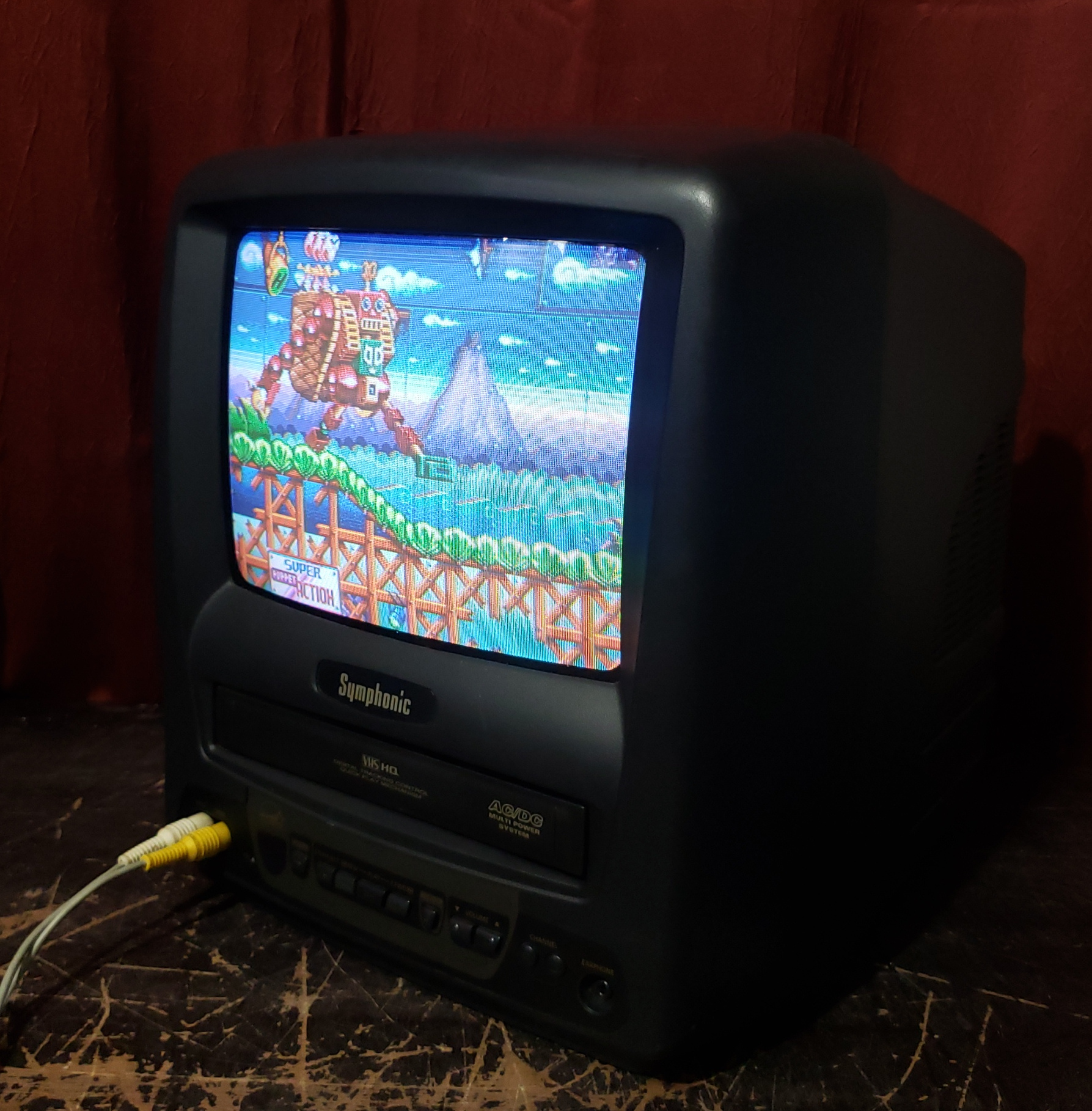

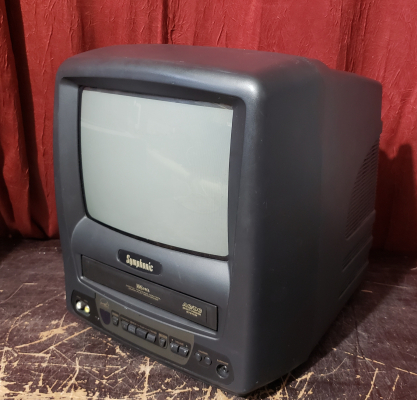

9" TV/VCR combo unit, manufactured by Funai and sold under the Symphonic brand. Features a single mono AV port on the front, and an RF coaxial input on the back.

Manuals

• User Manual
• Service Manual

Notes

Unlike later models with this same cabinet, the channel buttons on the set can not bring up the user menu, but they can change to the auxiliary AV input. A universal remote can bring up the menu, and then Play and Stop on the set can move up and down the menu, and Fast Forward selects a menu option.

Also unlike later models, this jungle chip uses analog RGB inputs for the OSD which lends itself to RGB mux modding.
