Summary

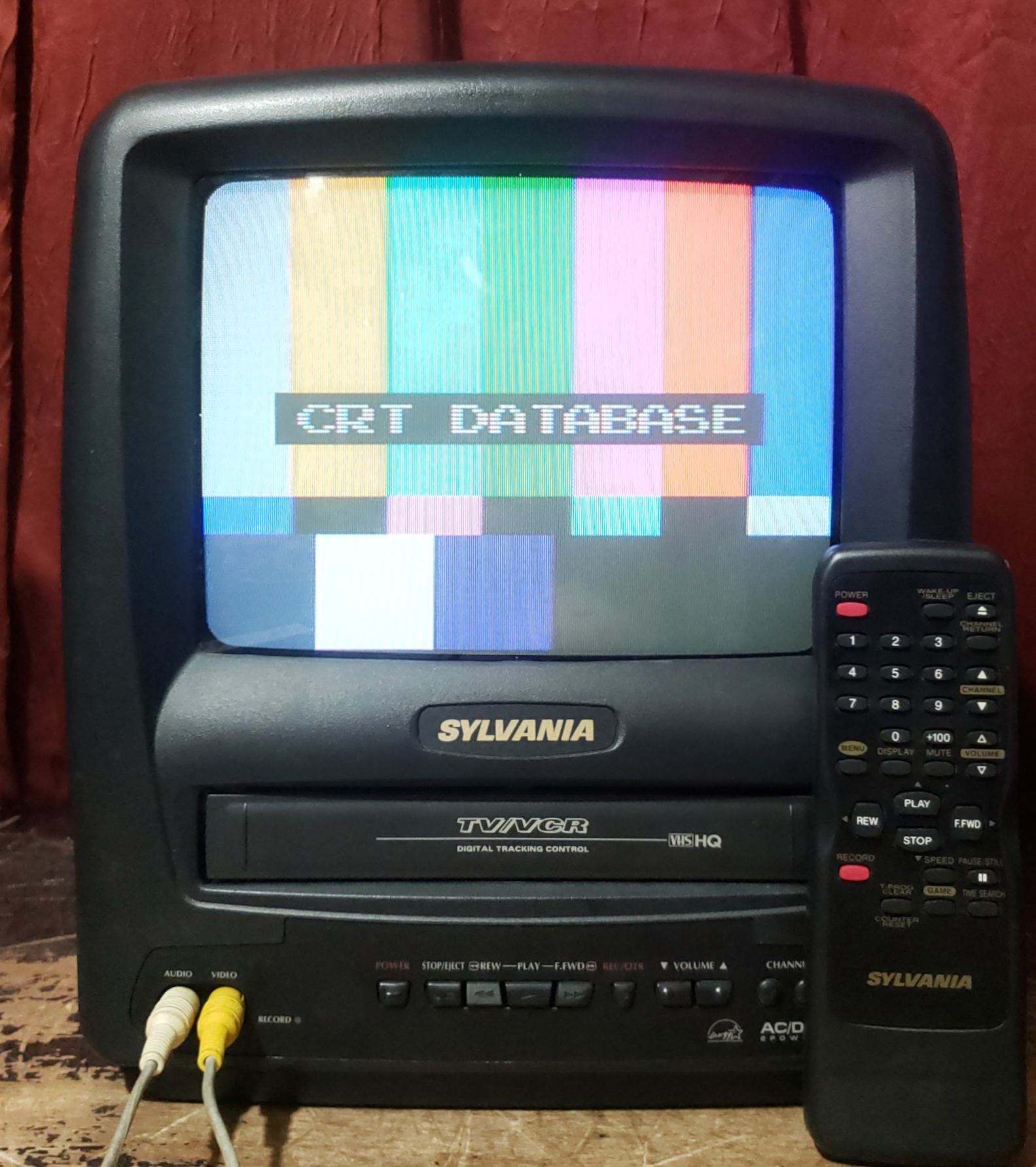

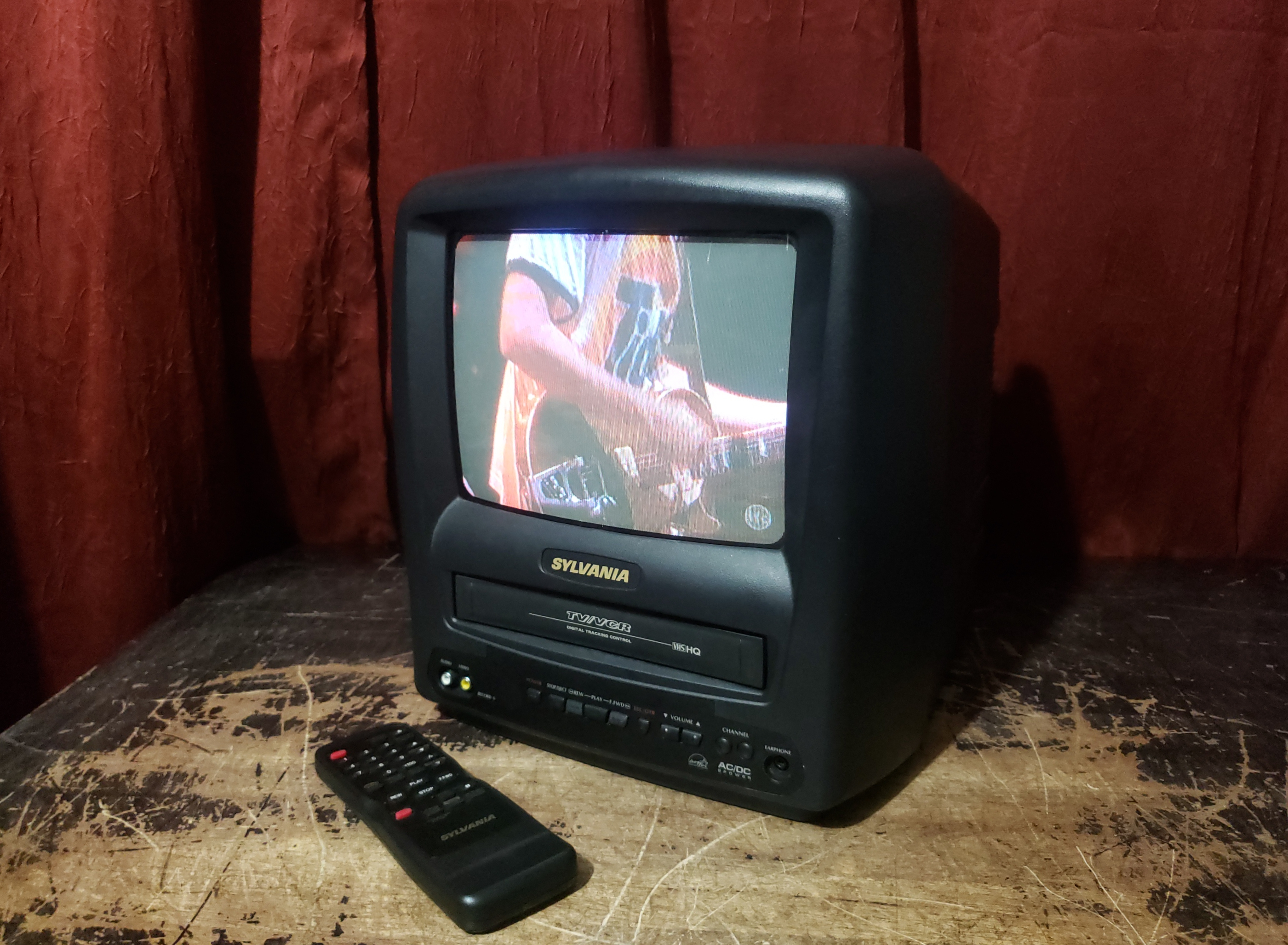

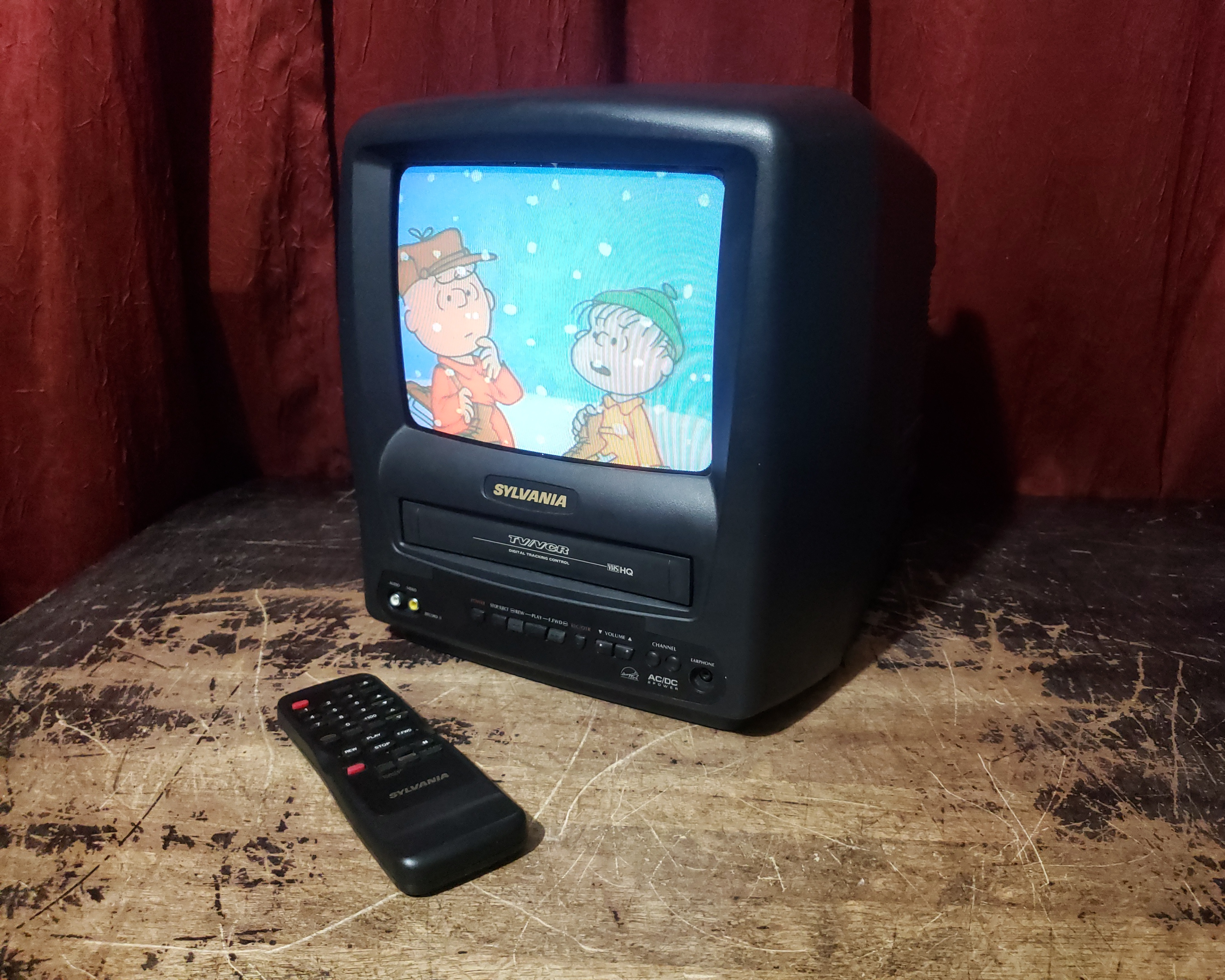

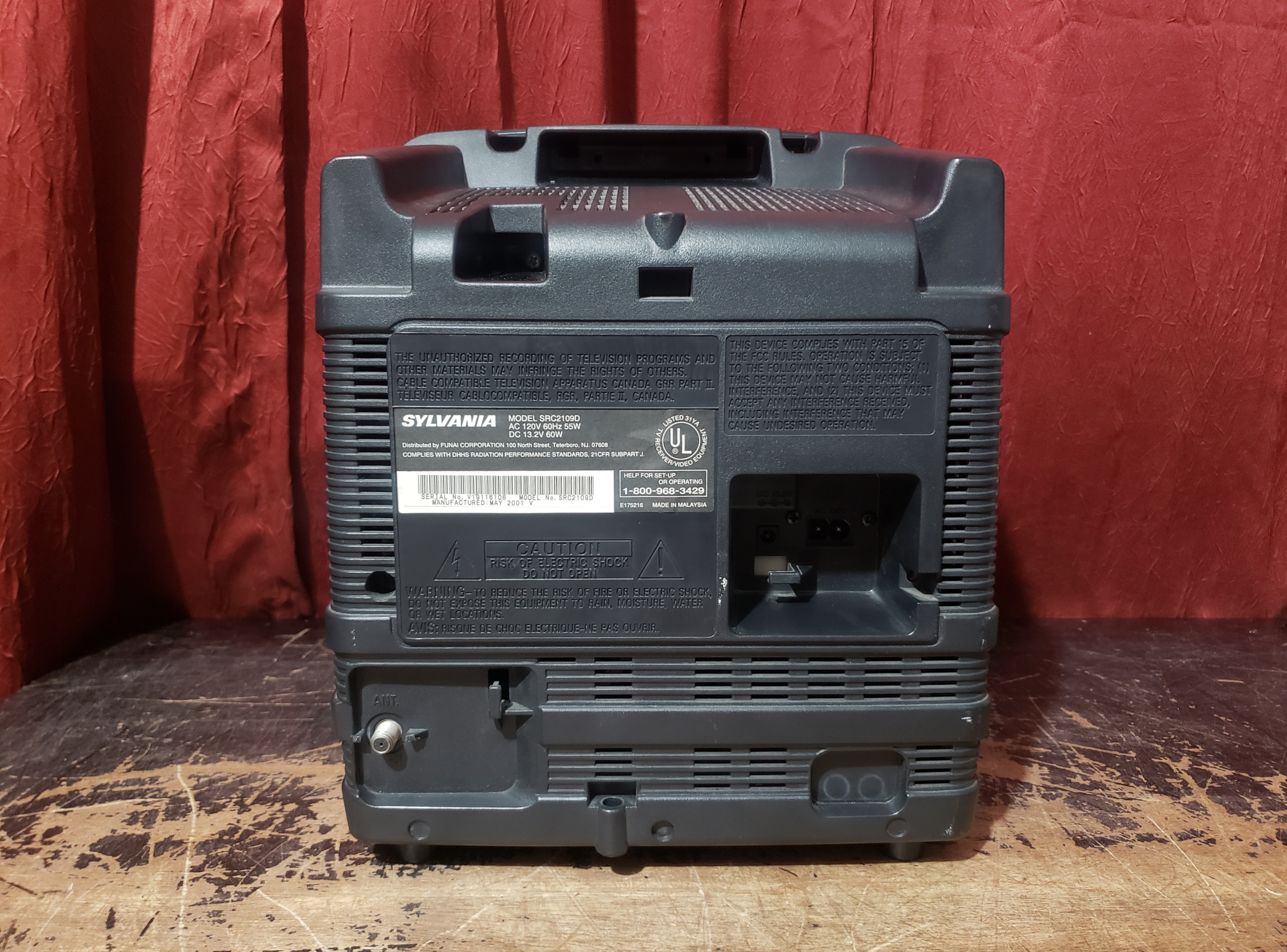

9" TV/VCR combo unit, manufactured by Funai and sold under the Symphonic brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Manuals
- User Manual
- Official service manual available for purchase
- Closest free Service Manual
Notes

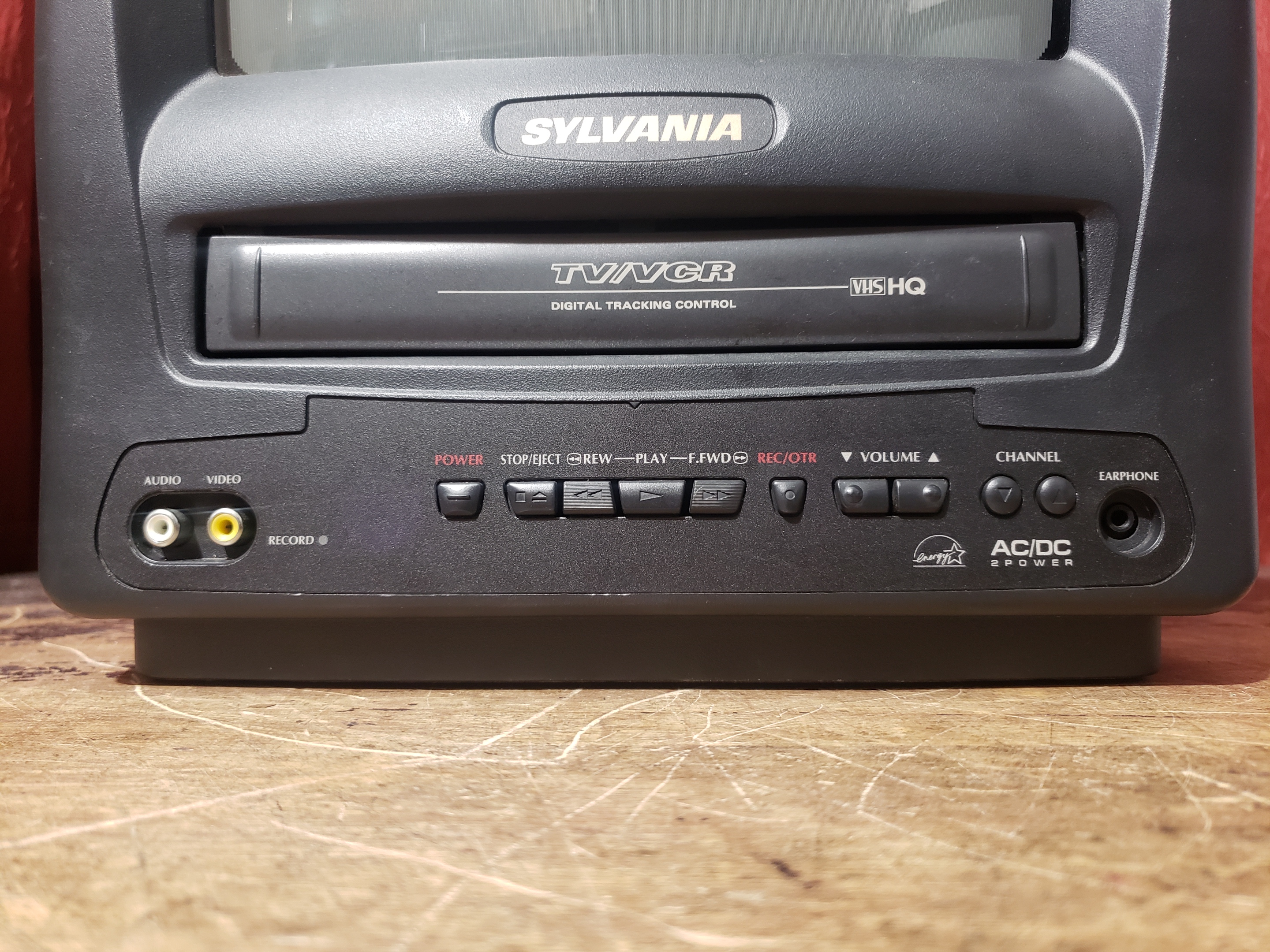

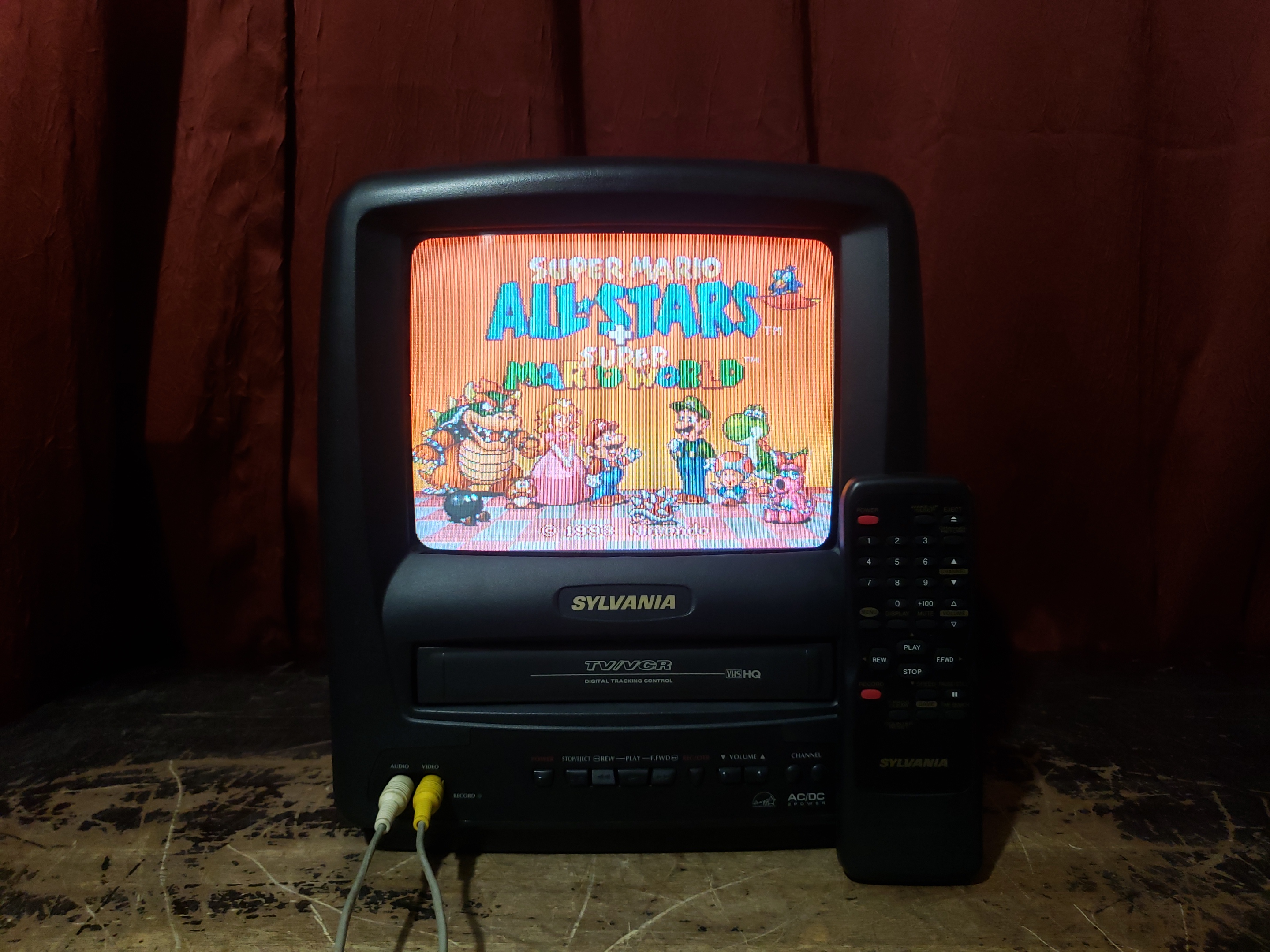

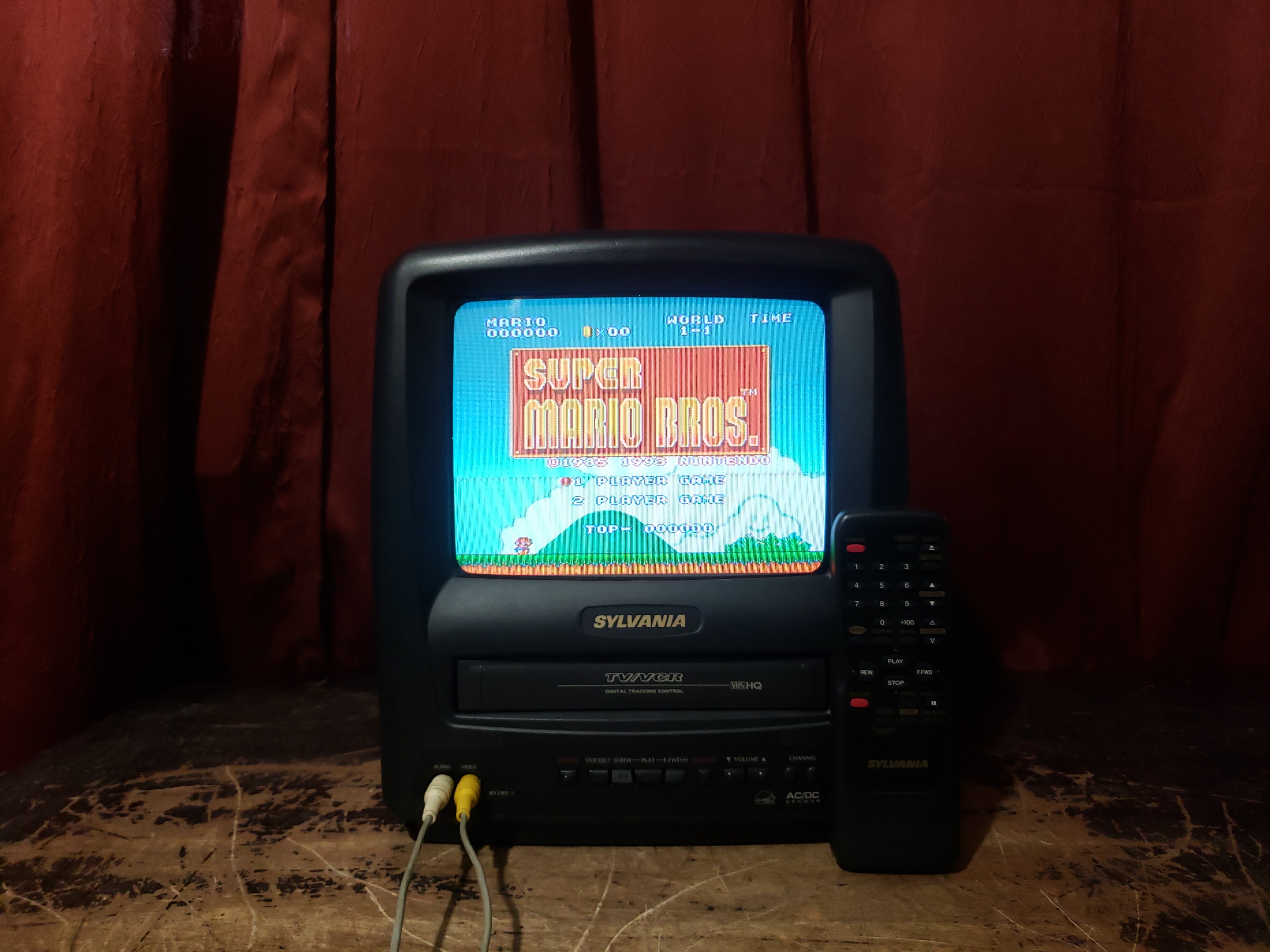

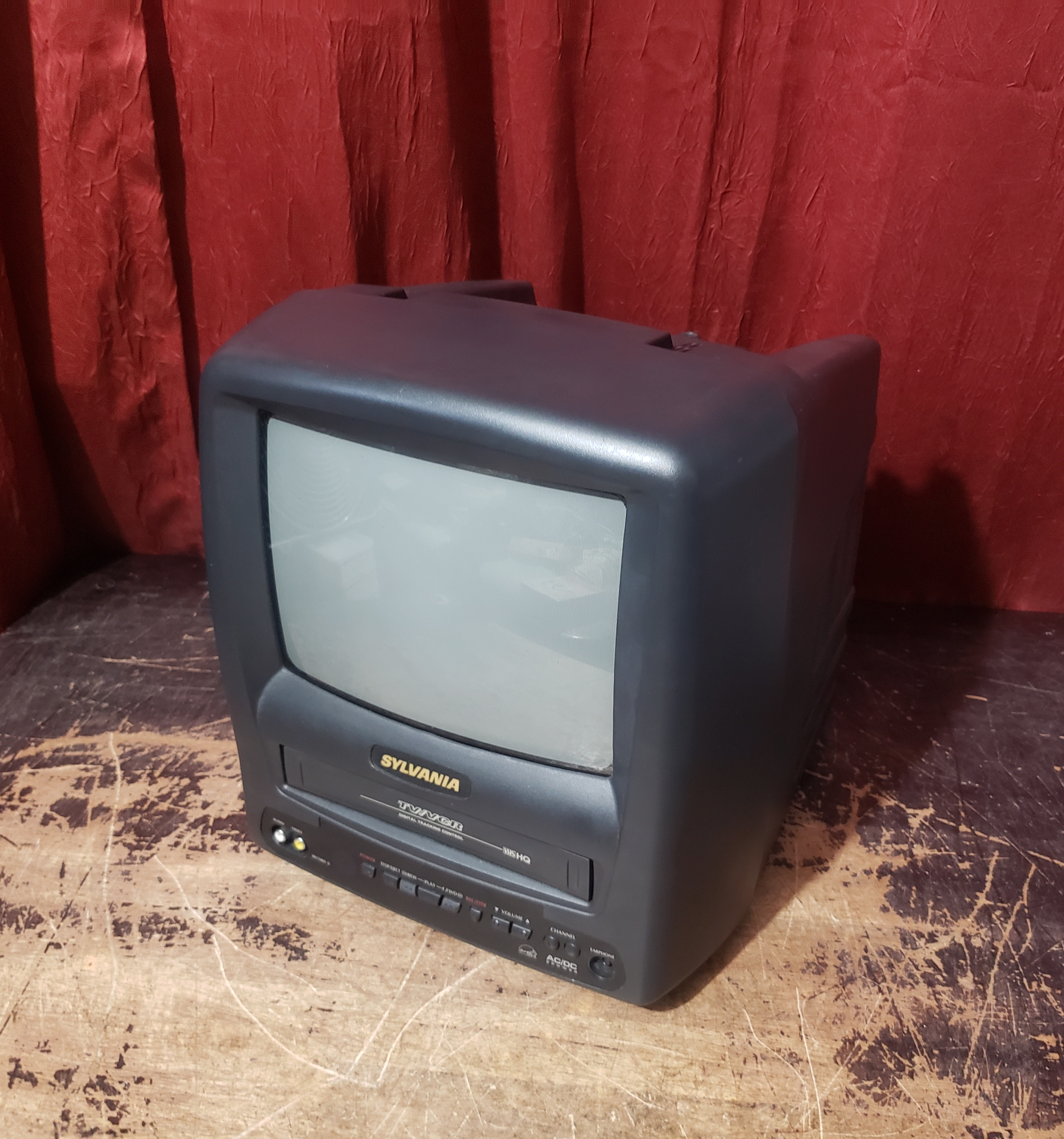

The channel buttons on the set can change to the front input as will as bring up the user menu to change picture settings. Play and Stop move up and down the menu, and Fast Forward selects a menu option.
Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | SRC2109D |
| Series: | TV/VCR Combo |
| Viewable Size: | 9" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2627 |
| Vertical Output IC: | AN5522 |
| Comb Filtering: | Notch |

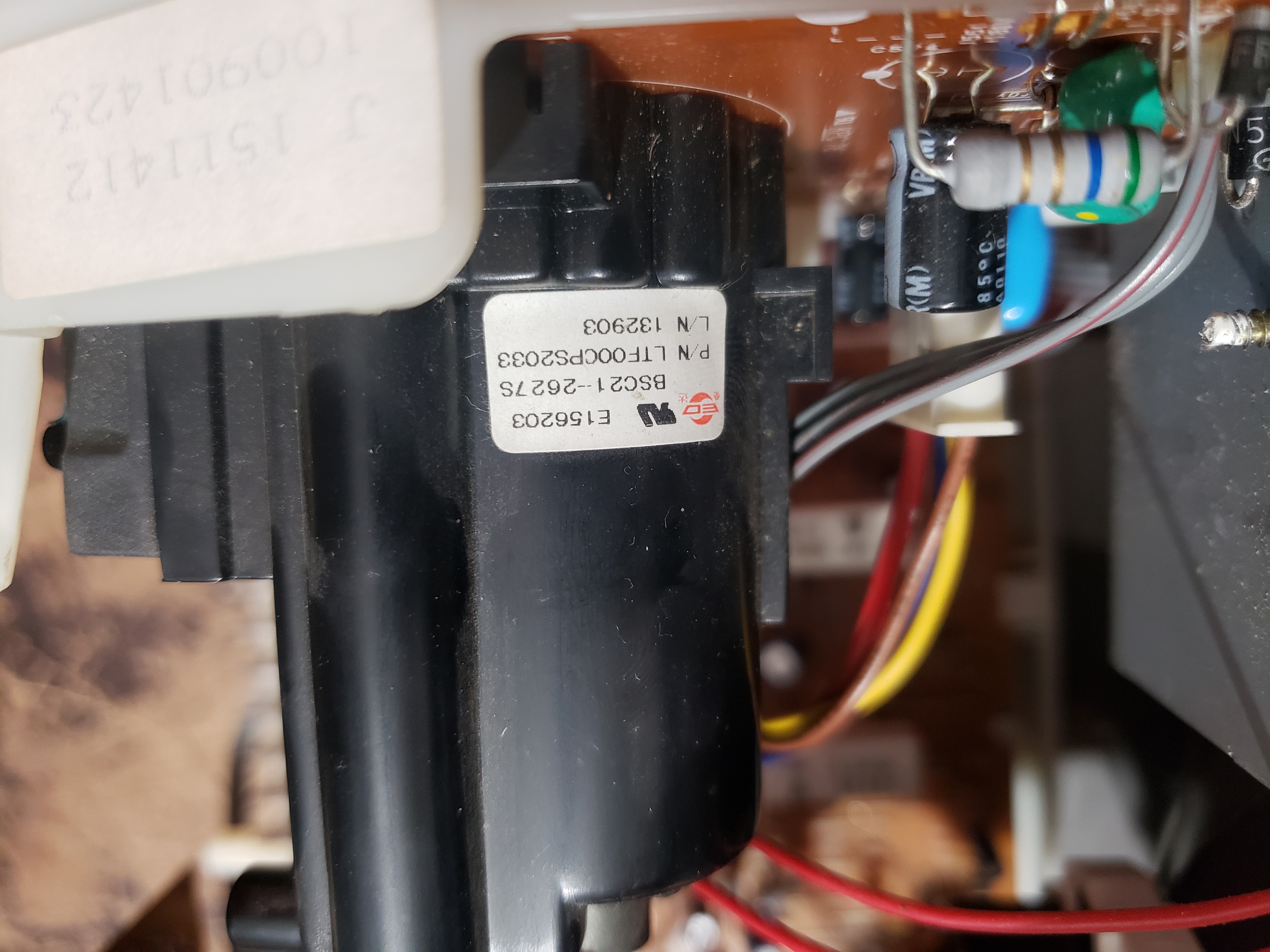

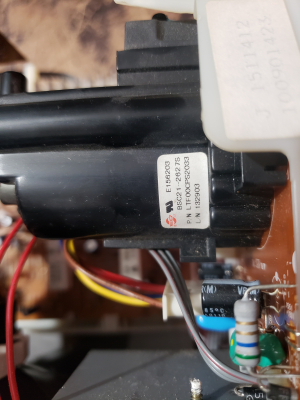

| Flyback: | BSC21-2627S, LTF00CPS2033 |

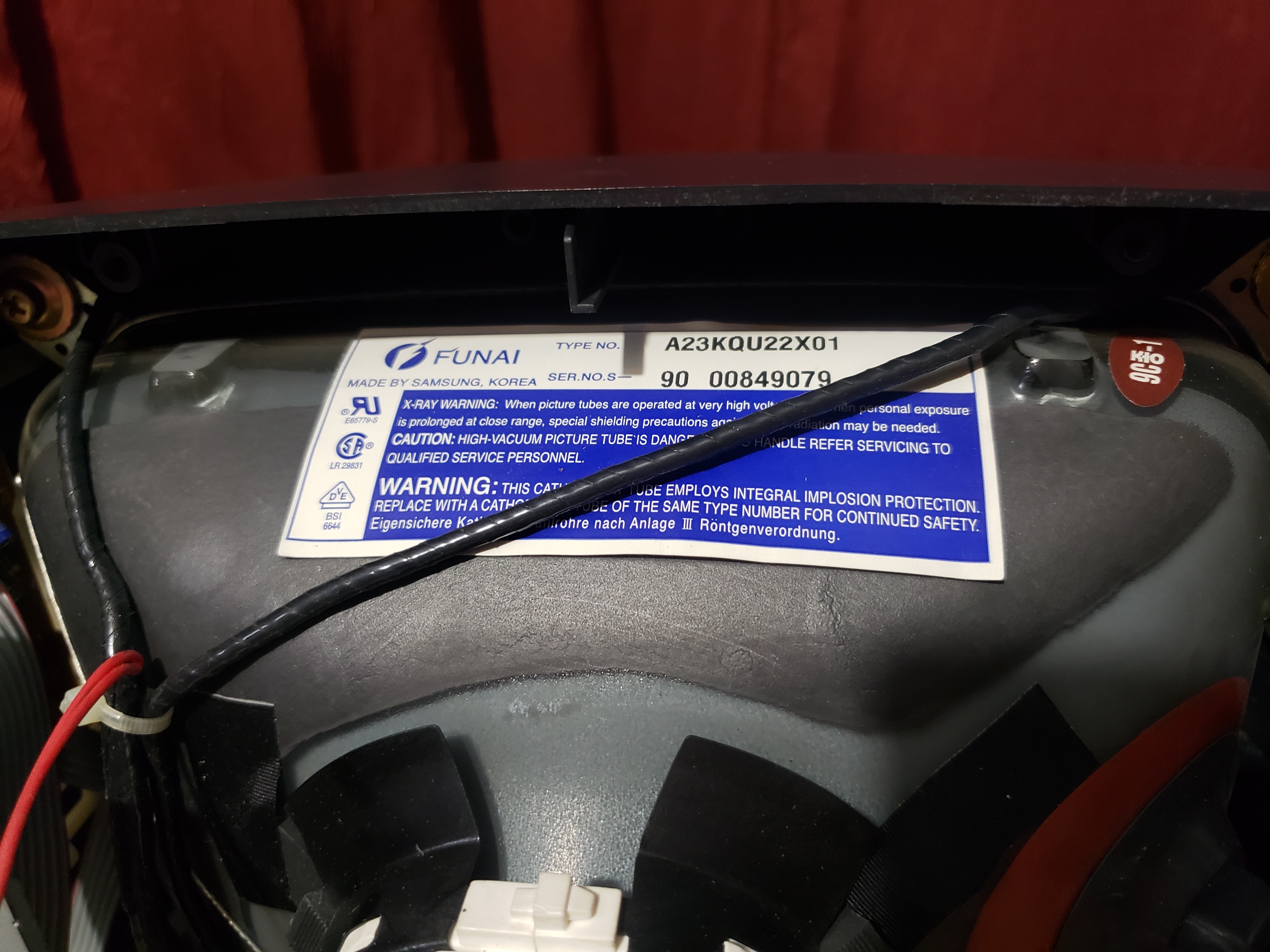

| Tube: | Samsung , A23KQU22X01 , A23KQU22X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

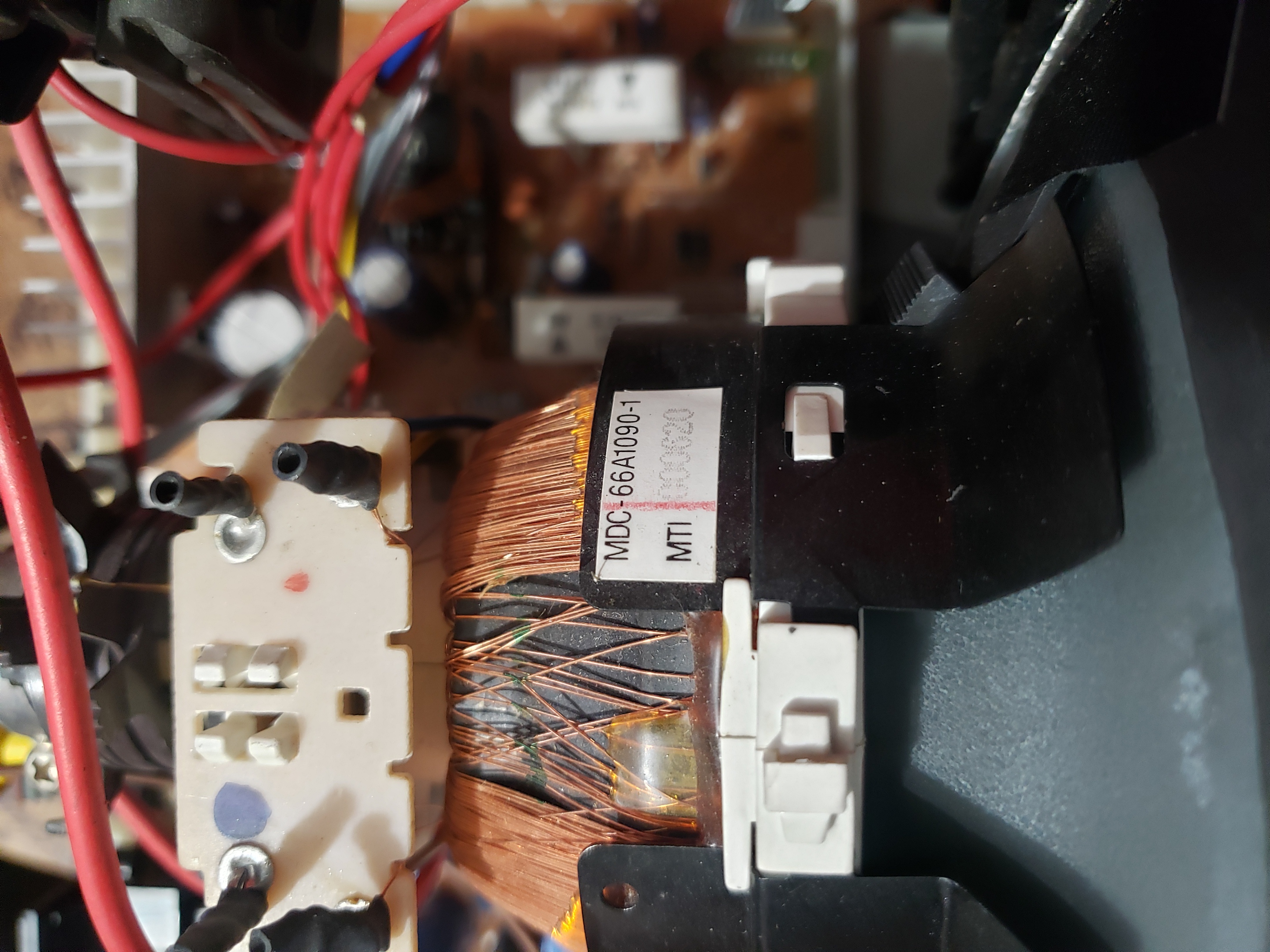

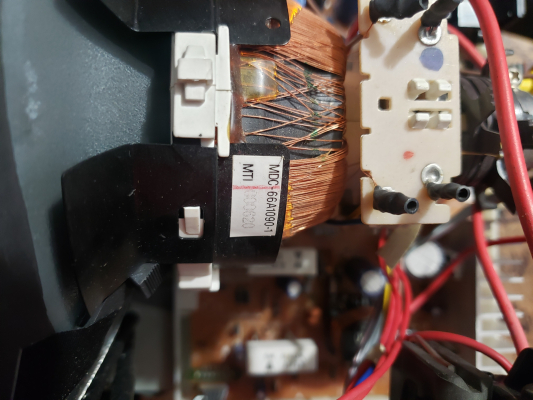

| Yoke: | MDC-66A1090-1 |
| Yoke Horz. Inductance: | 4.261 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.09 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 6.95 ohm |
| Yoke Vert. Resistance: | 10.44 ohm |
| Speakers: | Mono, Headphone Jack |
| Remote: | N0123UD, N0154UD |
| Weight: | 18.7 lbs (8.5 kg) |
| Dimensions (W/H/D): |
308 x 330 x 329 mm
(12.1 x 13 x 12.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v, 13.2VDC |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Portable |
