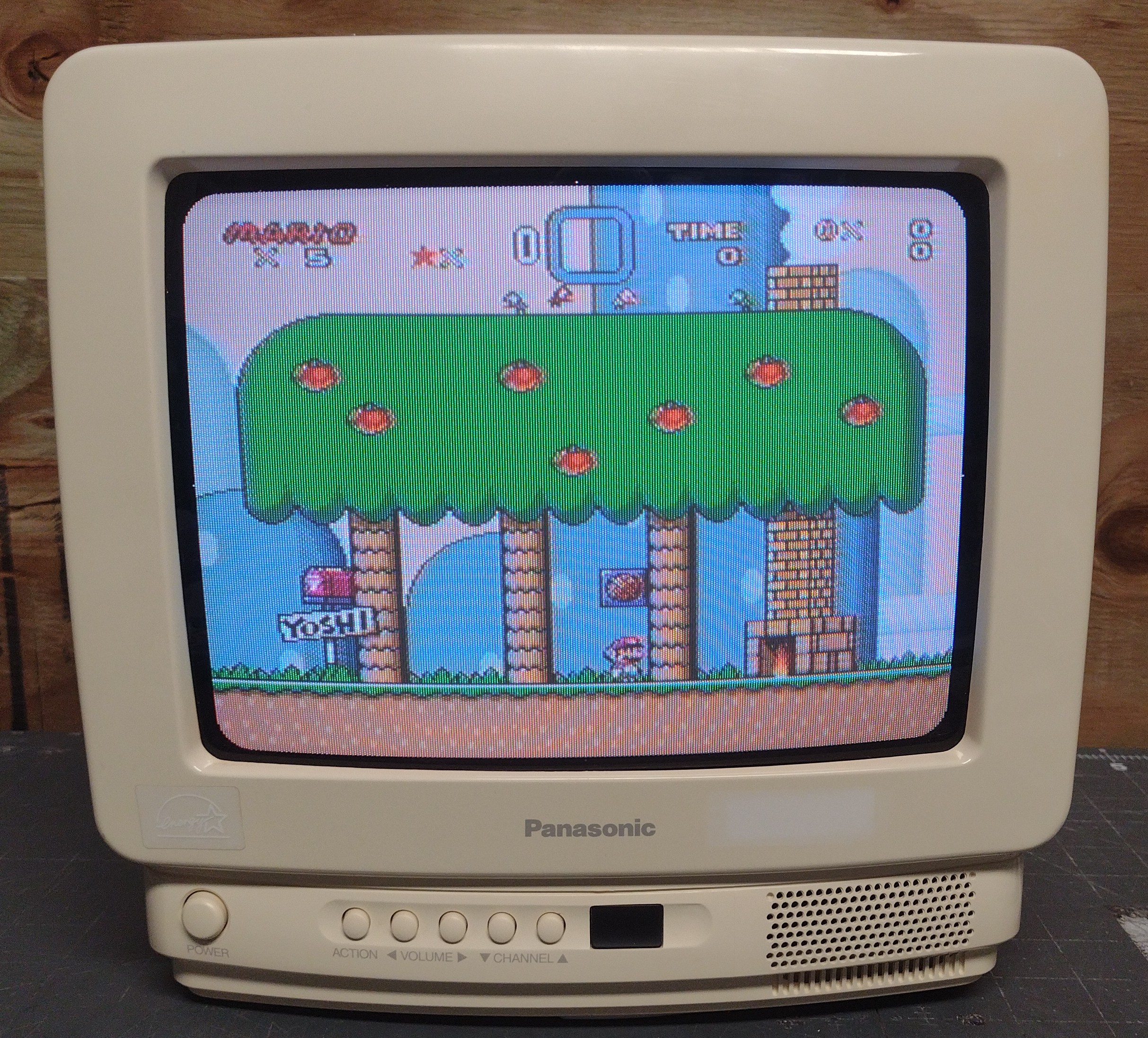

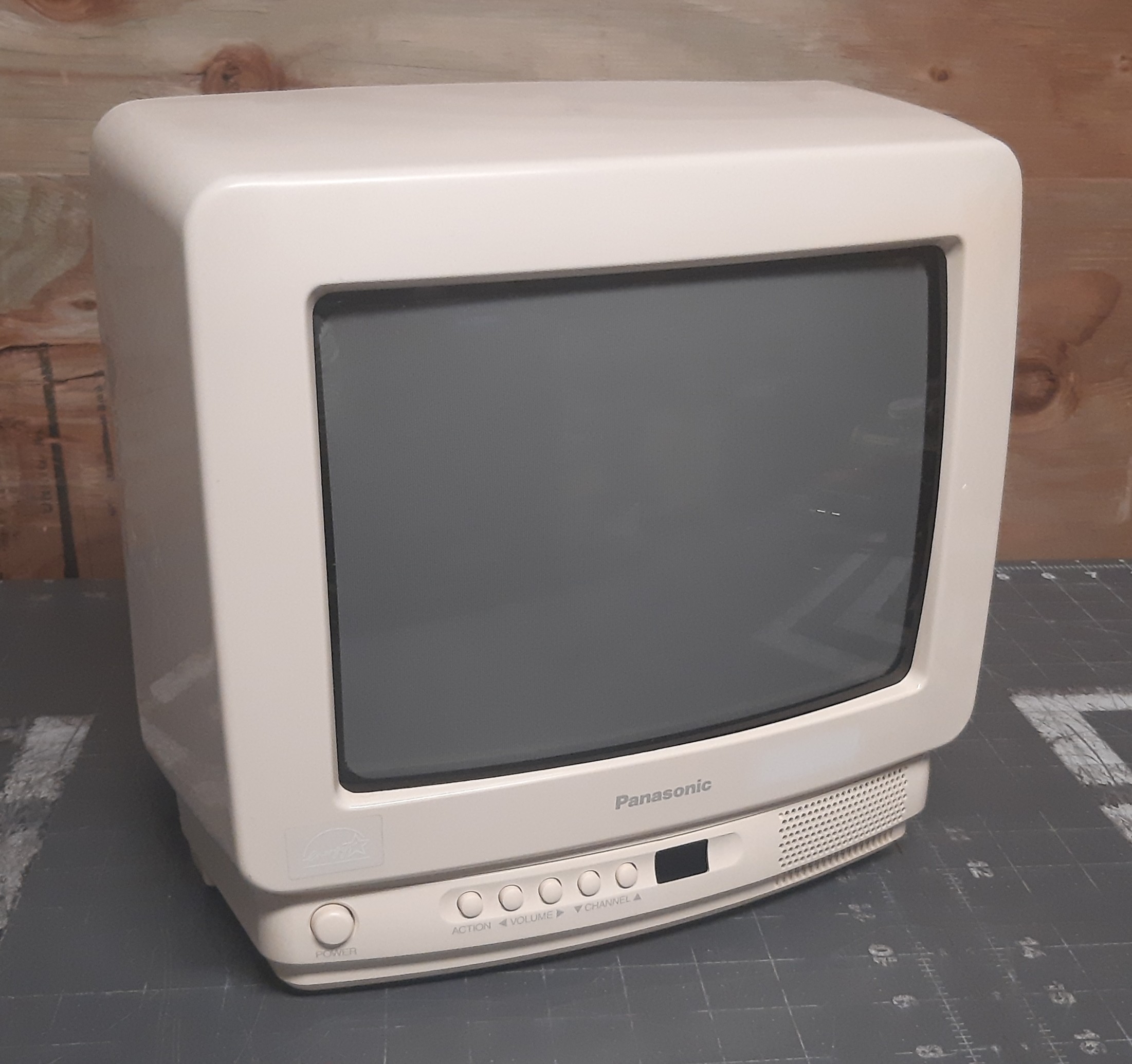

Summary

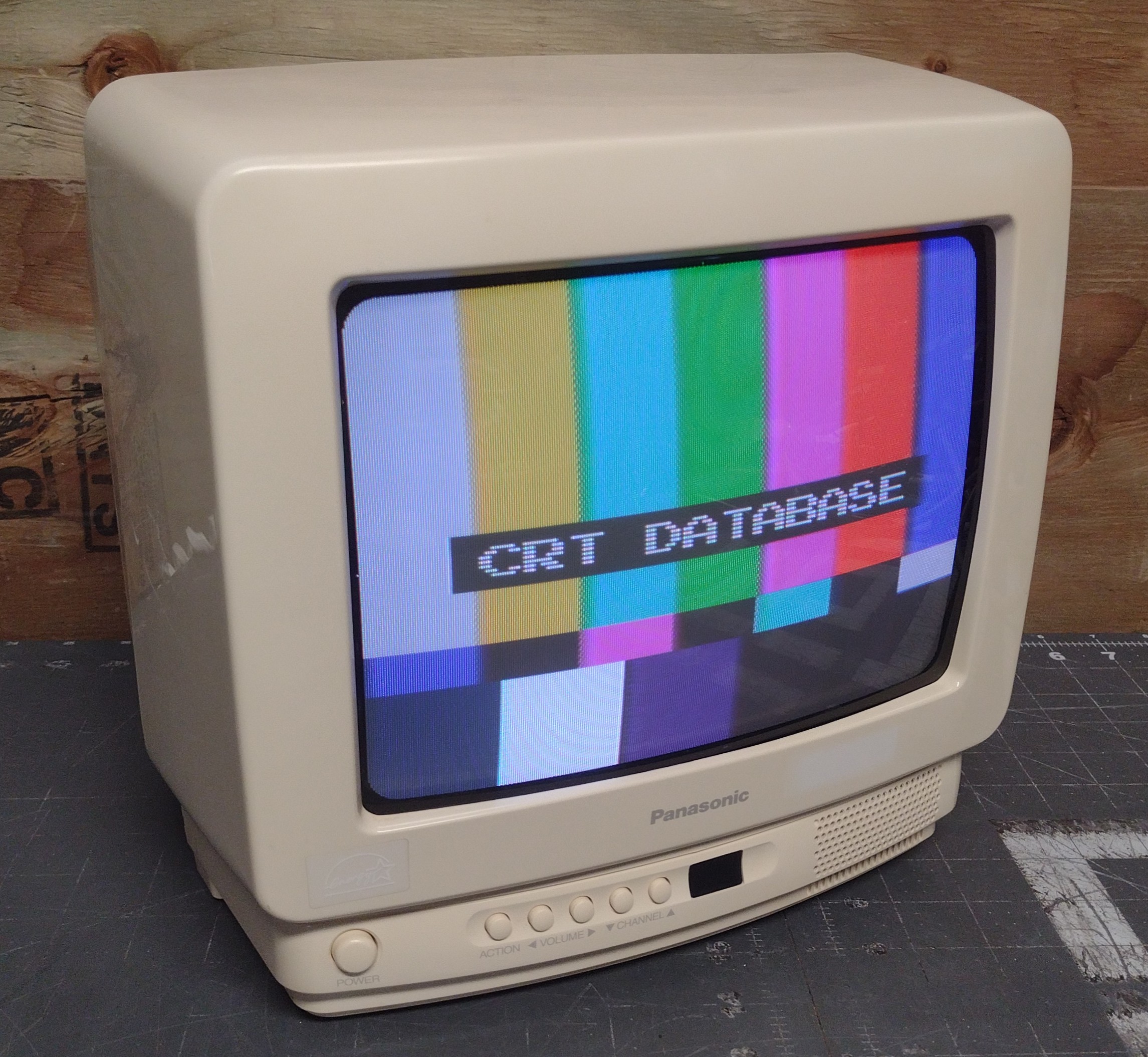

Compact (9" viewable) kitchen TV, with a carry handle on top and a built in turntable on the bottom. RF input only.

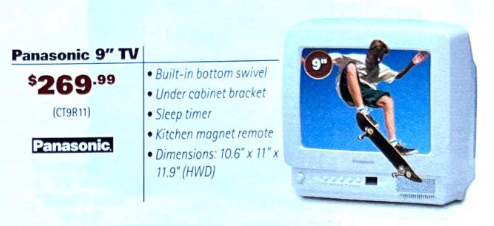

Literature

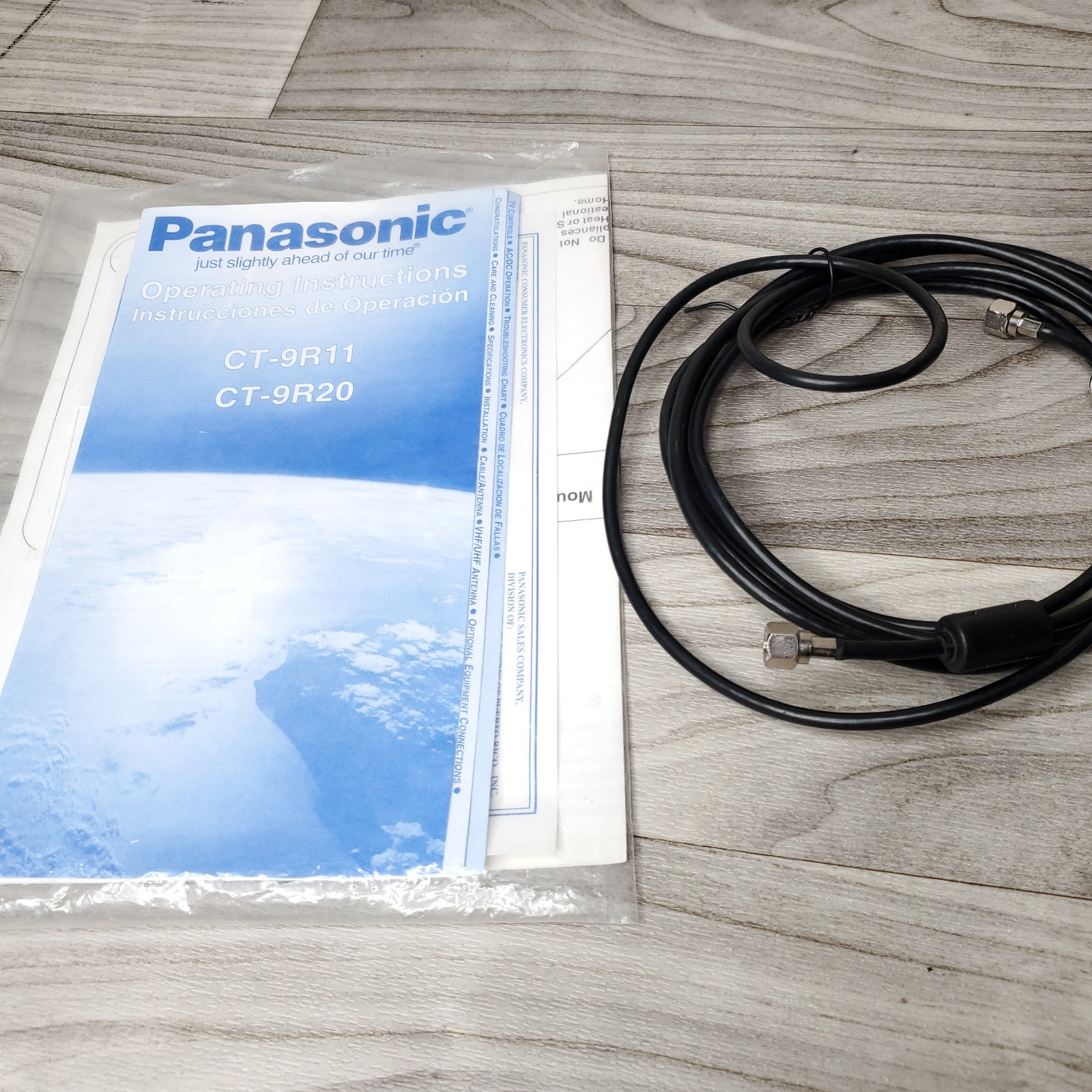

- User Manual
- Service Manual coming soon
Notes

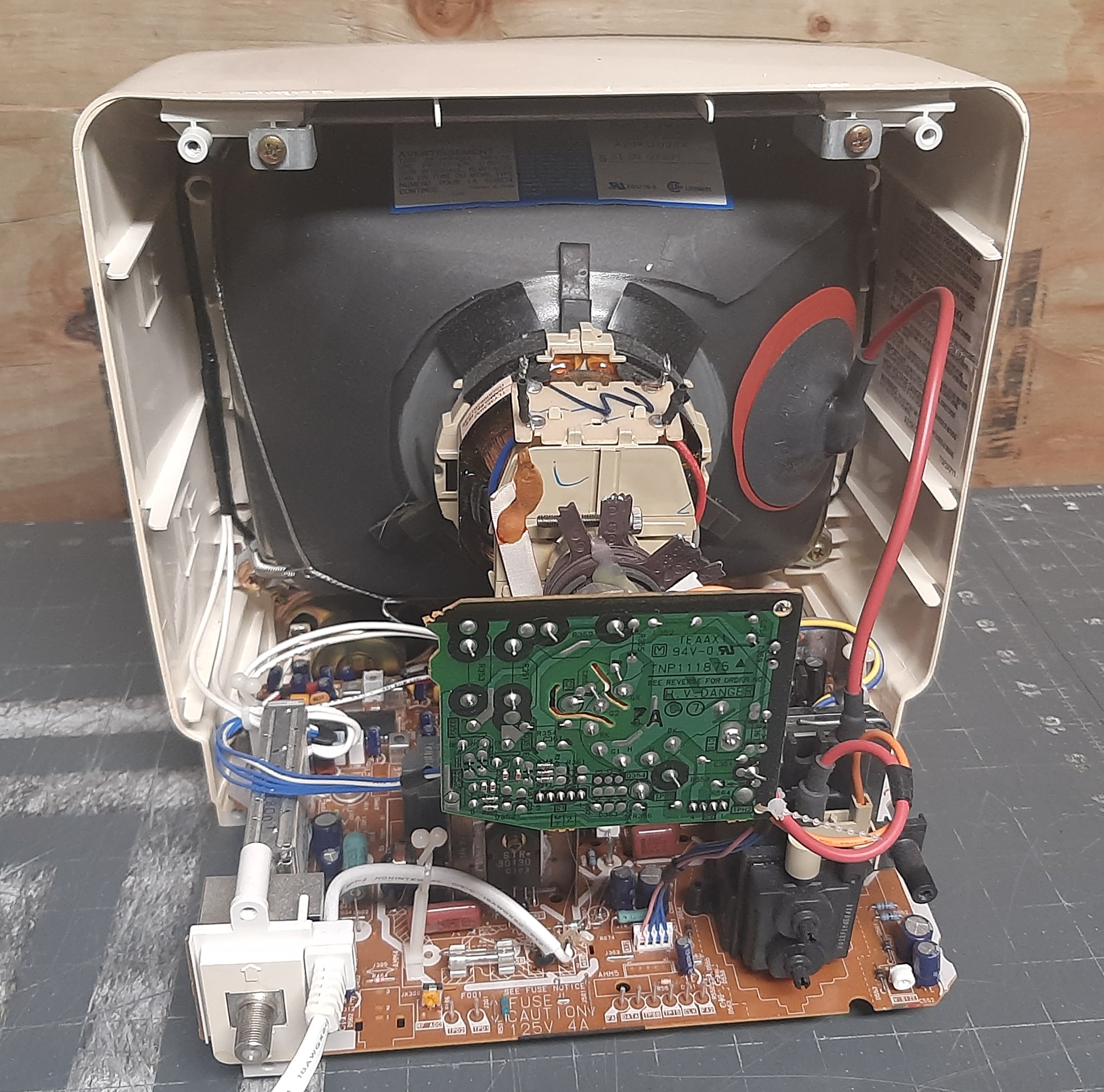

Despite being an RF-only TV, this model has an isolated chassis. Therefore, it should be safe to modify for additional inputs if supported by the jungle chip.

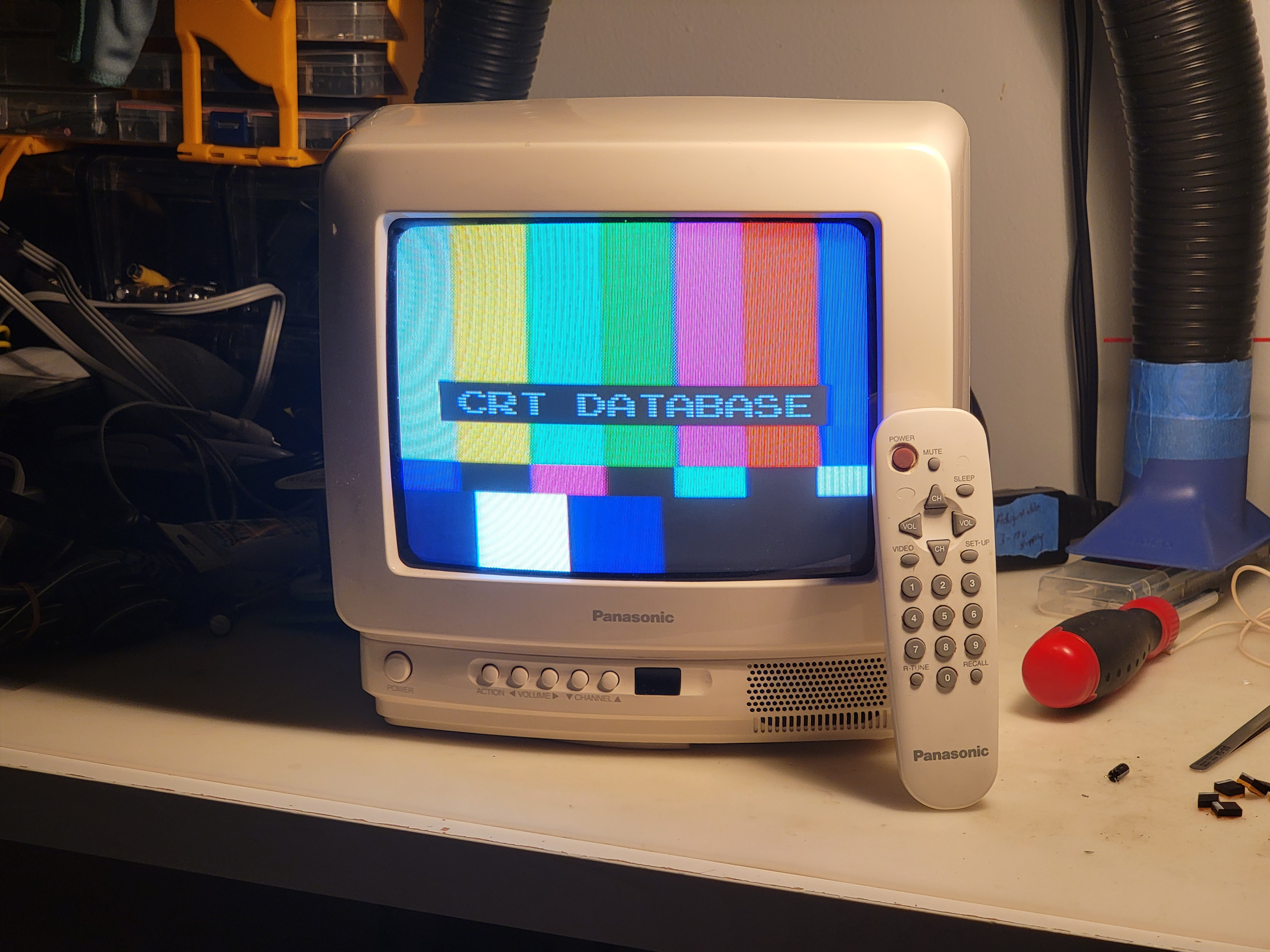

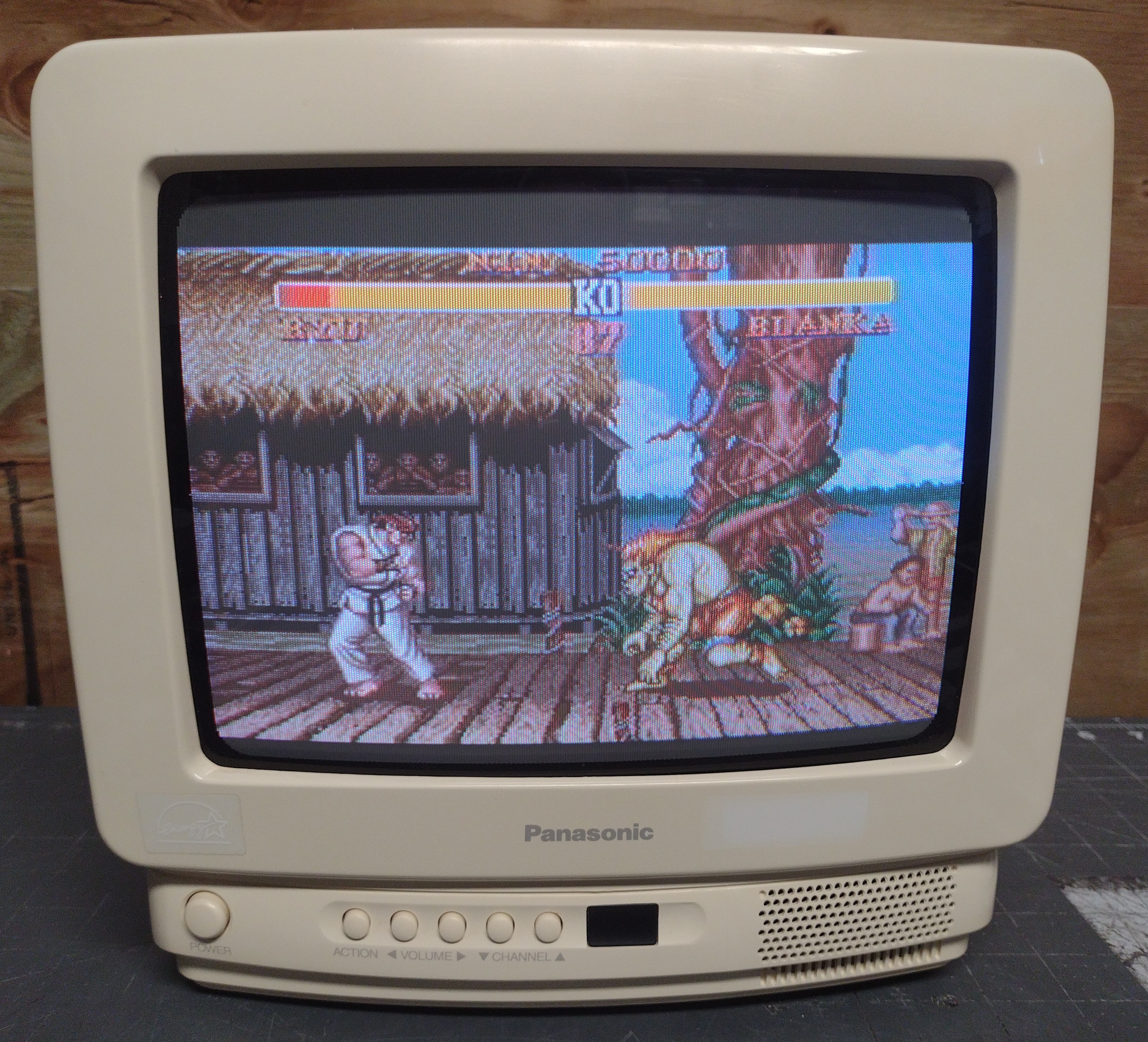

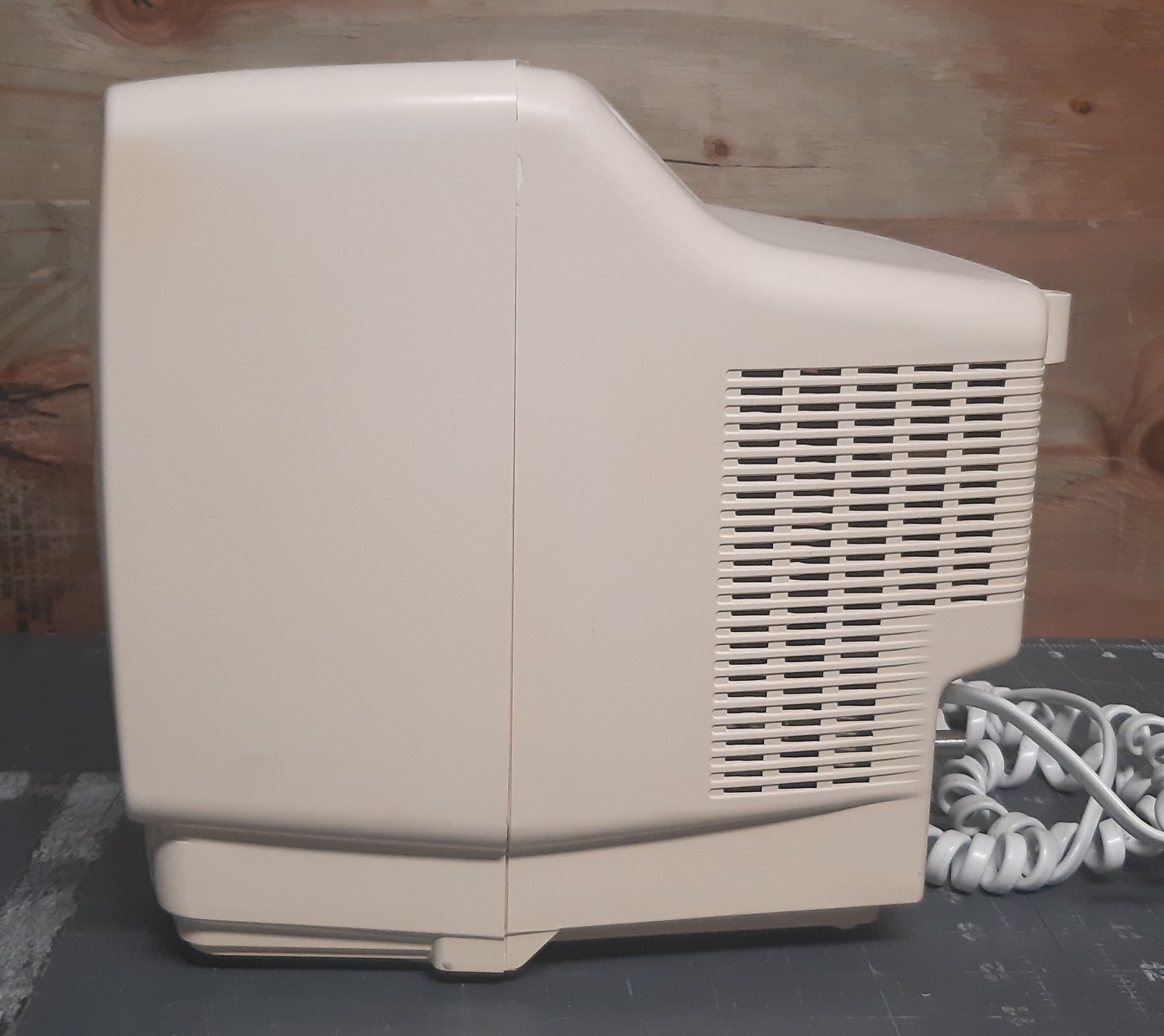

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-9R11A |
| Series: | CT |
| Viewable Size: | 9" |
| Inputs: | RF |
| Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | BU2506DF |
| Vertical Output IC: | LA7835 |
| Jungle: | AN5613K |
| Flyback: | TLF14774F |

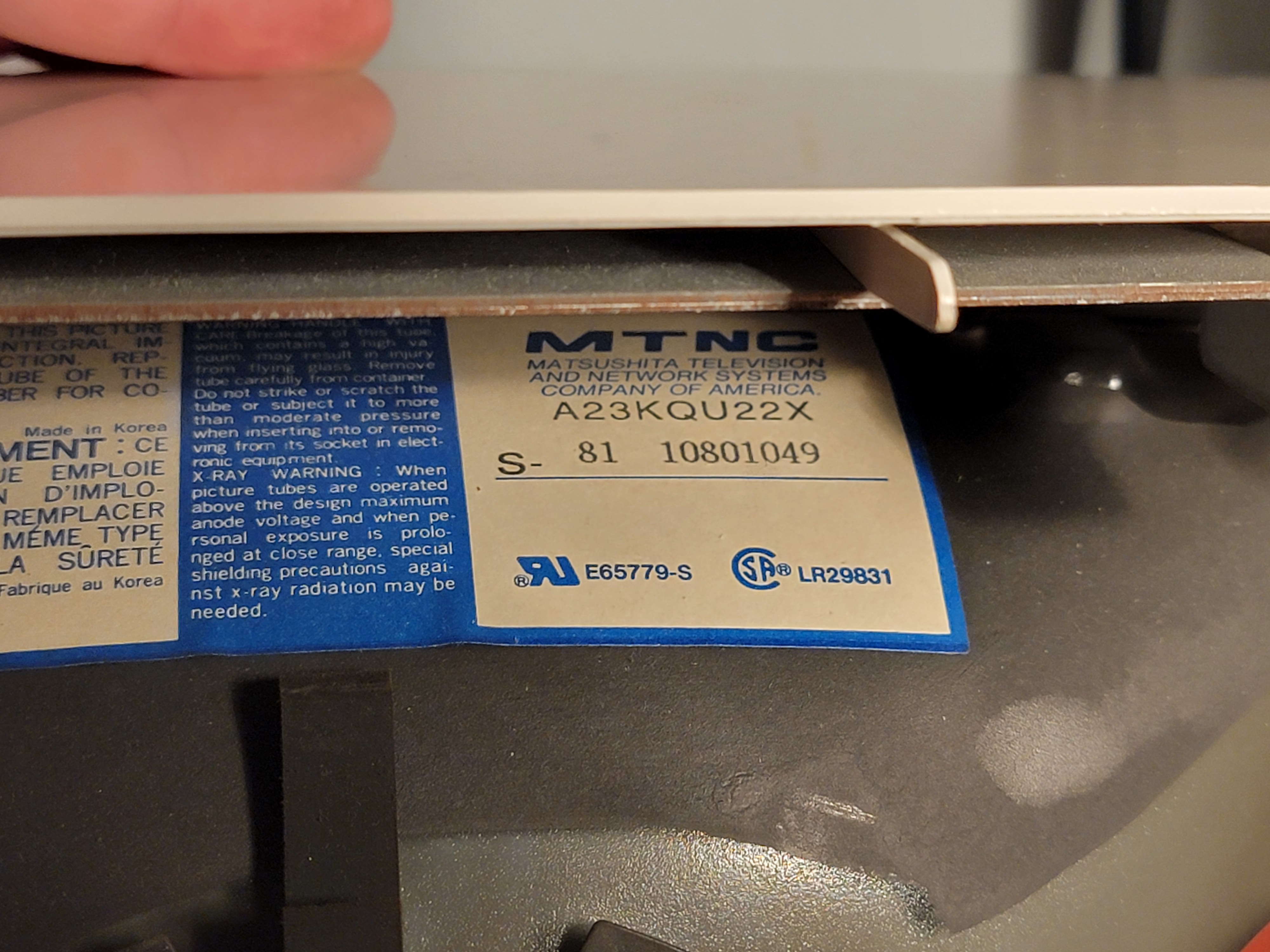

| Tube: | A23KQU22X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

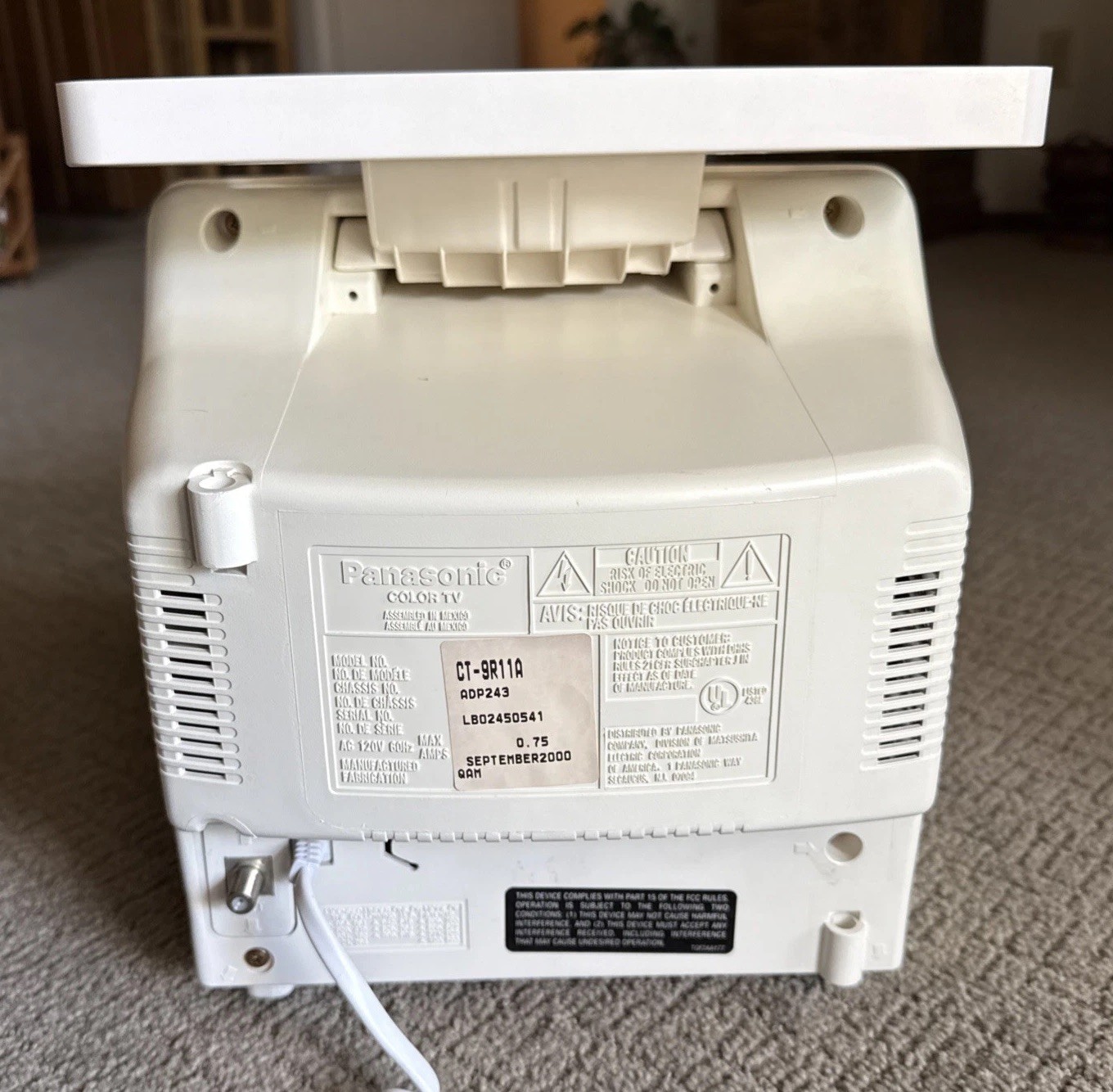

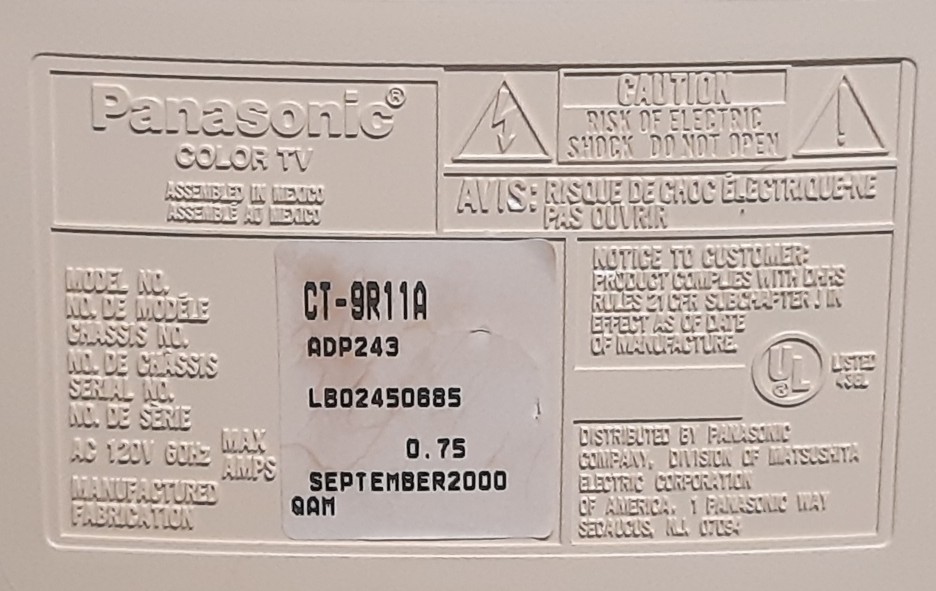

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY35303Z |
| Yoke Horz. Inductance: | 5.526 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 23.21 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 10.137 ohm |
| Yoke Vert. Resistance: | 10.7 ohm |
| Speakers: | Mono |
| Chassis: | ADP243 |
| Application: | Consumer |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |

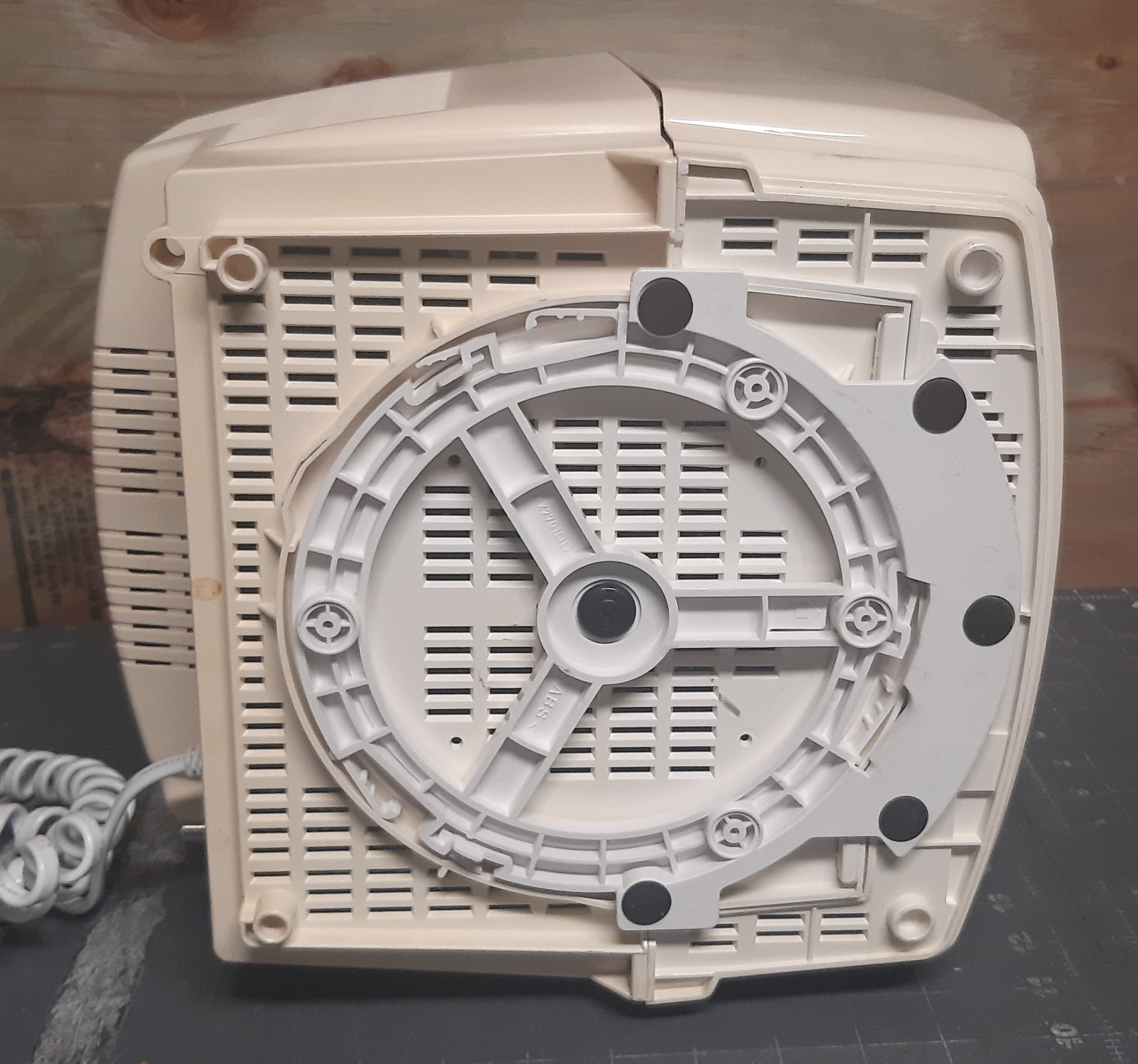

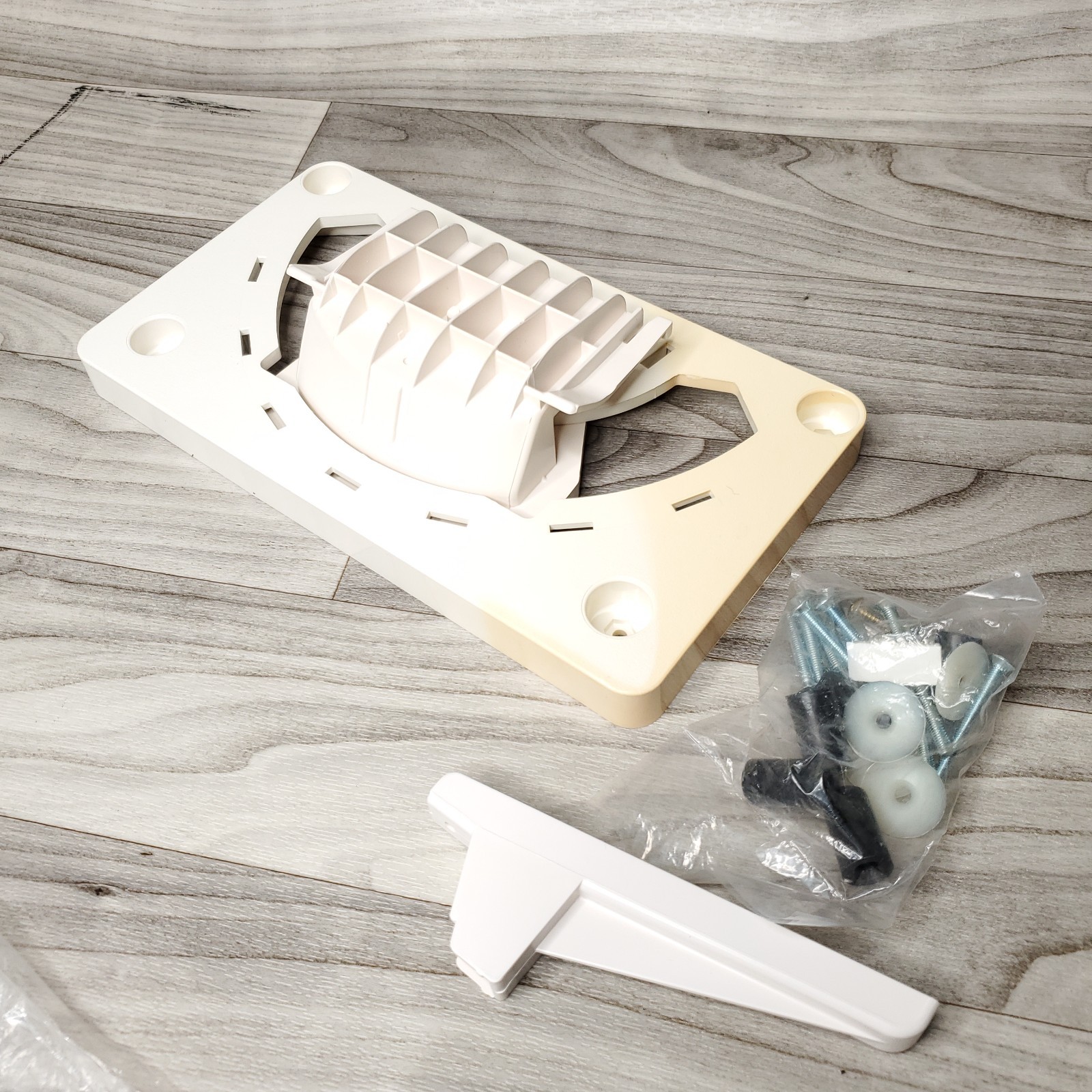

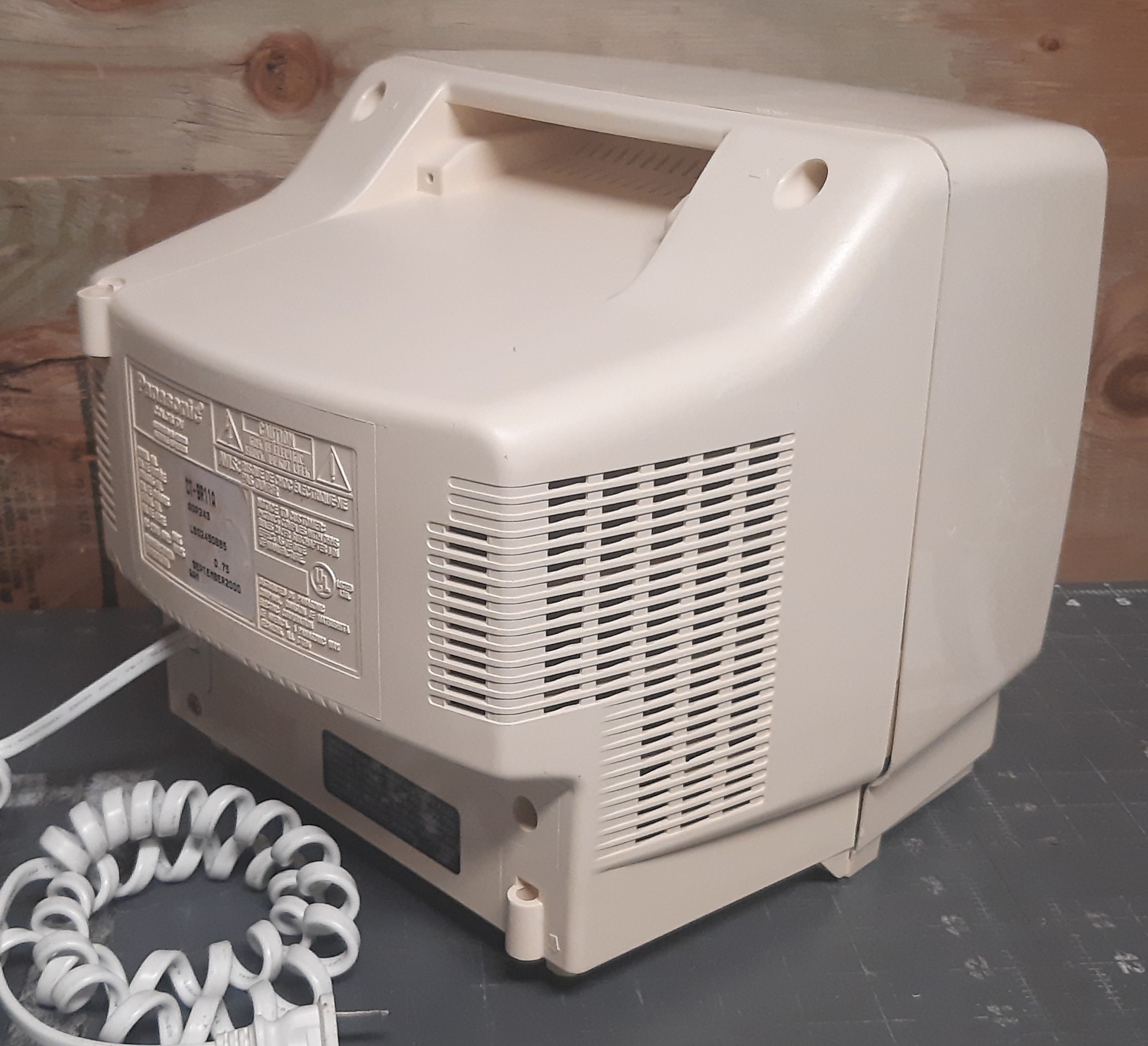

| Mounting: | Carrying Handle, Turntable |
| Degaussing: | Automatic on Power-on |
