Summary

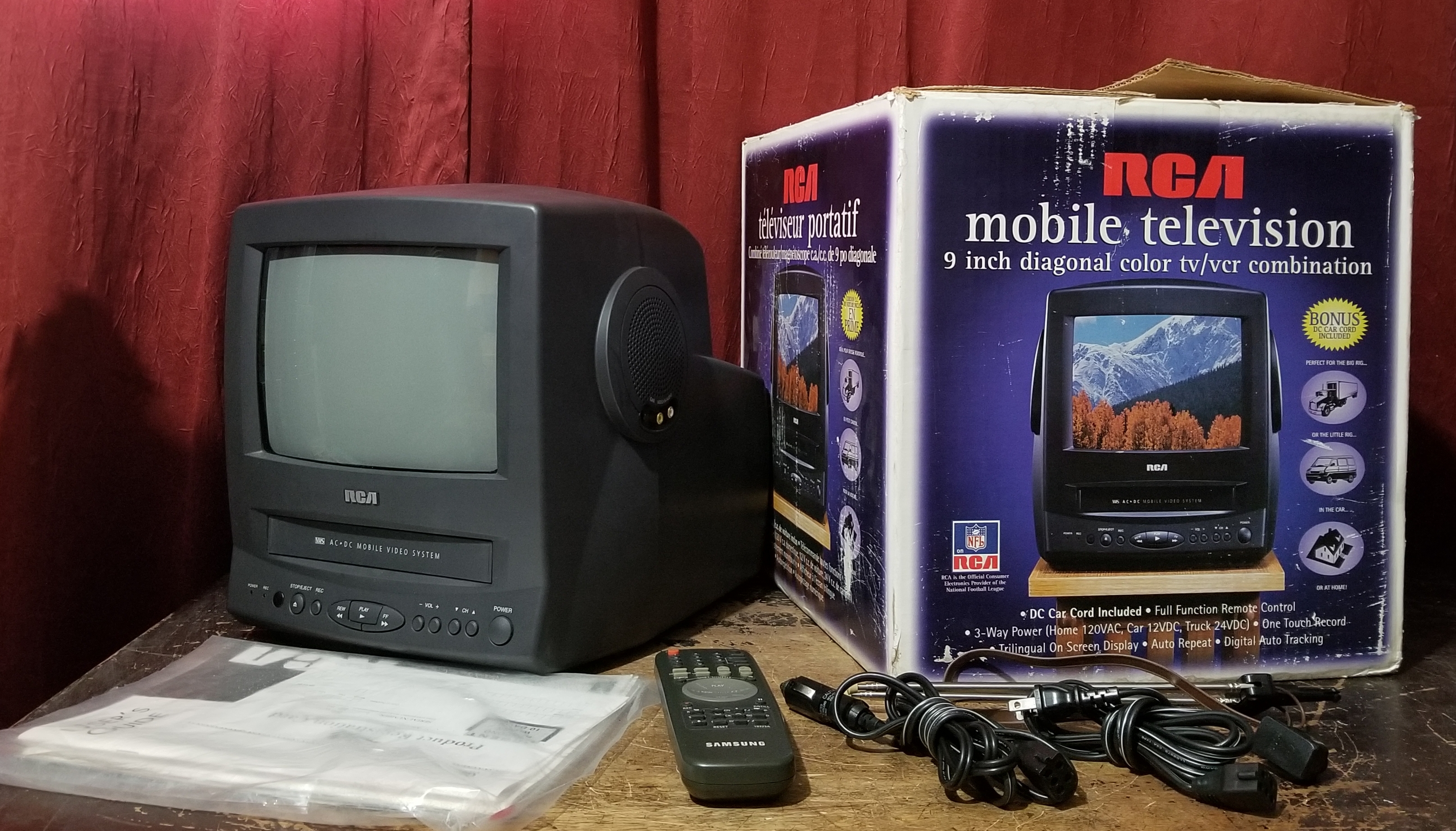

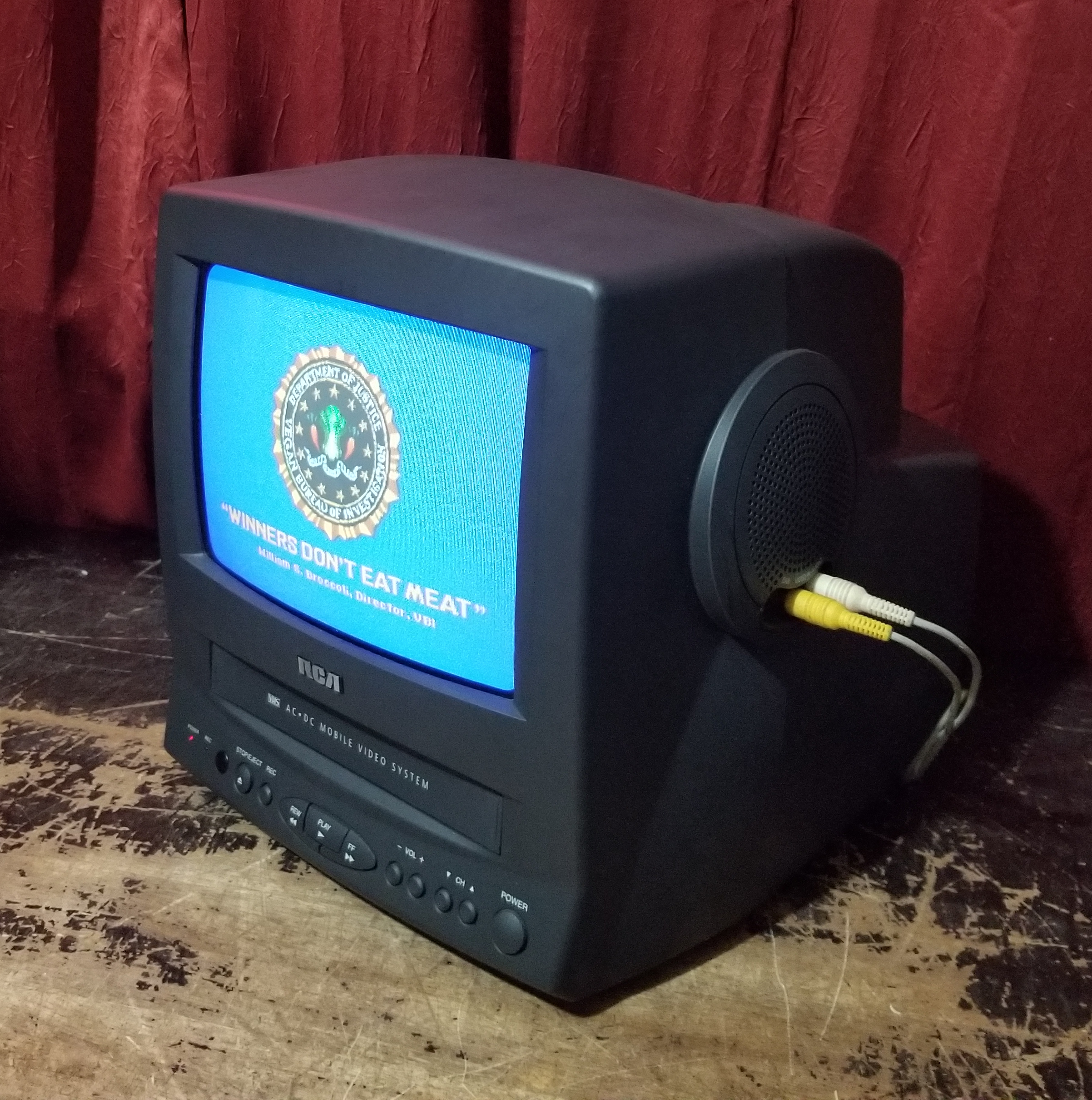

Keep Santa and the Kids Happy...with a compact travel 9" TV/VCR Combo Set. The #1 Choice for families on the run. Perfect for the big rig...or the little rig...in the car...or at home!

Manuals

• Owner's Manual & Service Manual on CD .iso image

Mods & Repair Guides

• RCA T09081BC - RGB and S-Video Mod

Notes

A remote is needed to access the user menu as well as to change inputs. Since the original remote with the channel and volume controls on the large circular button is relatively costly, I used the more common Samsung NR-3346 aka 10323A. This substitute can do most operations (including bringing up the menu and switching inputs) except for volume control. Pressing the Audio button on this remote will bring up the service menu.

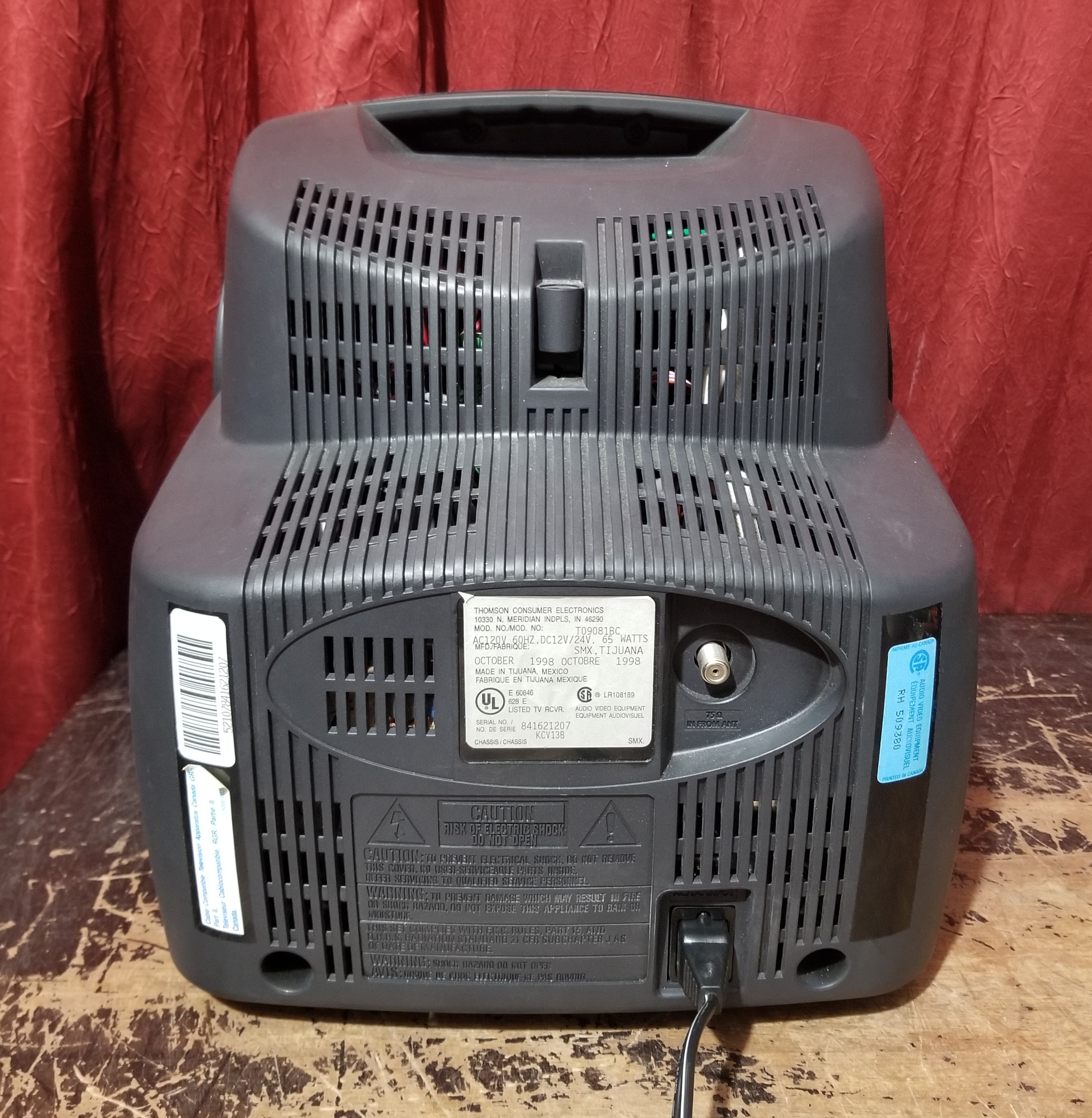

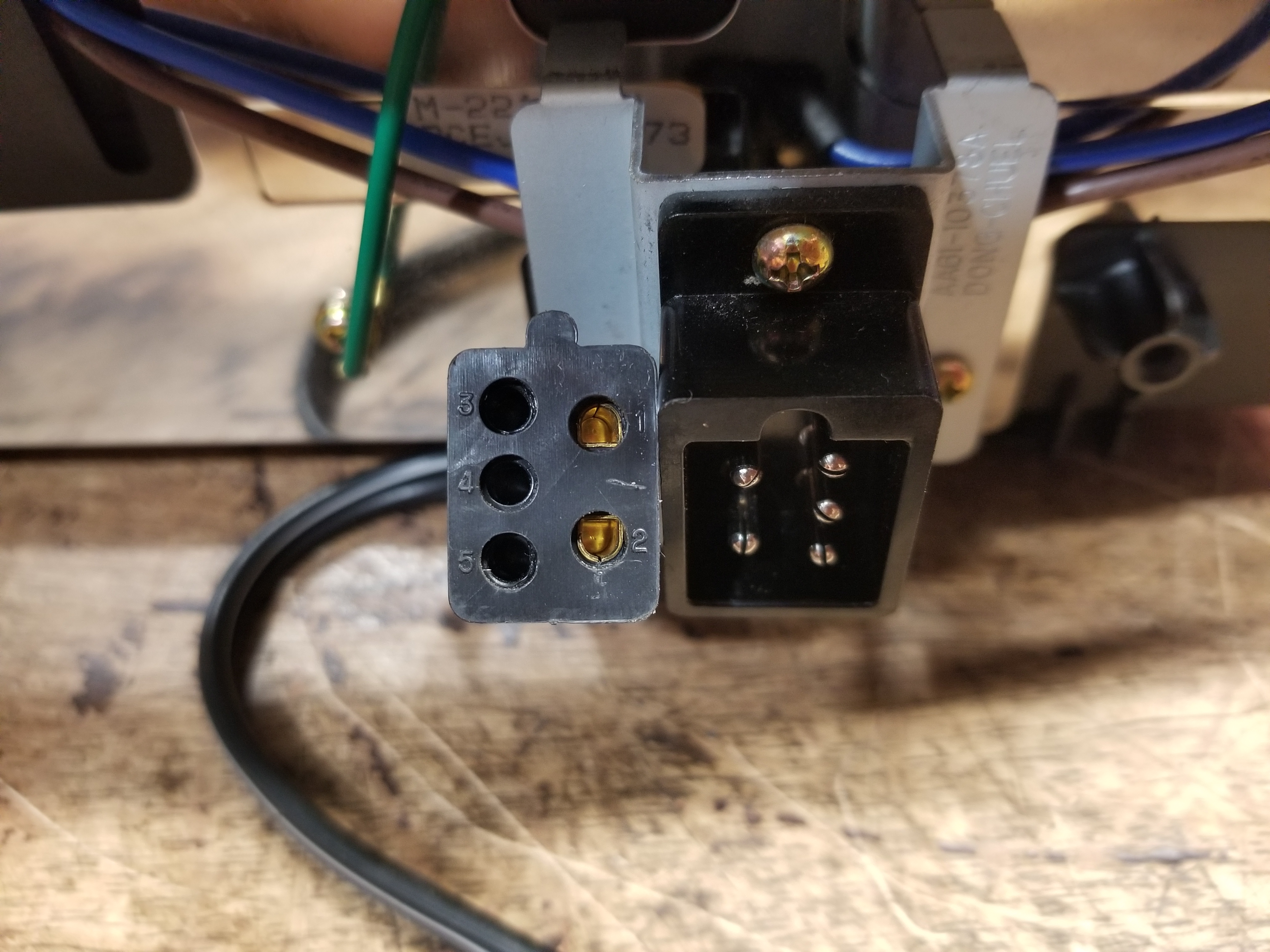

Uses a non-standard power jack. See picture in gallery for which pins are AC.

Repair Notes

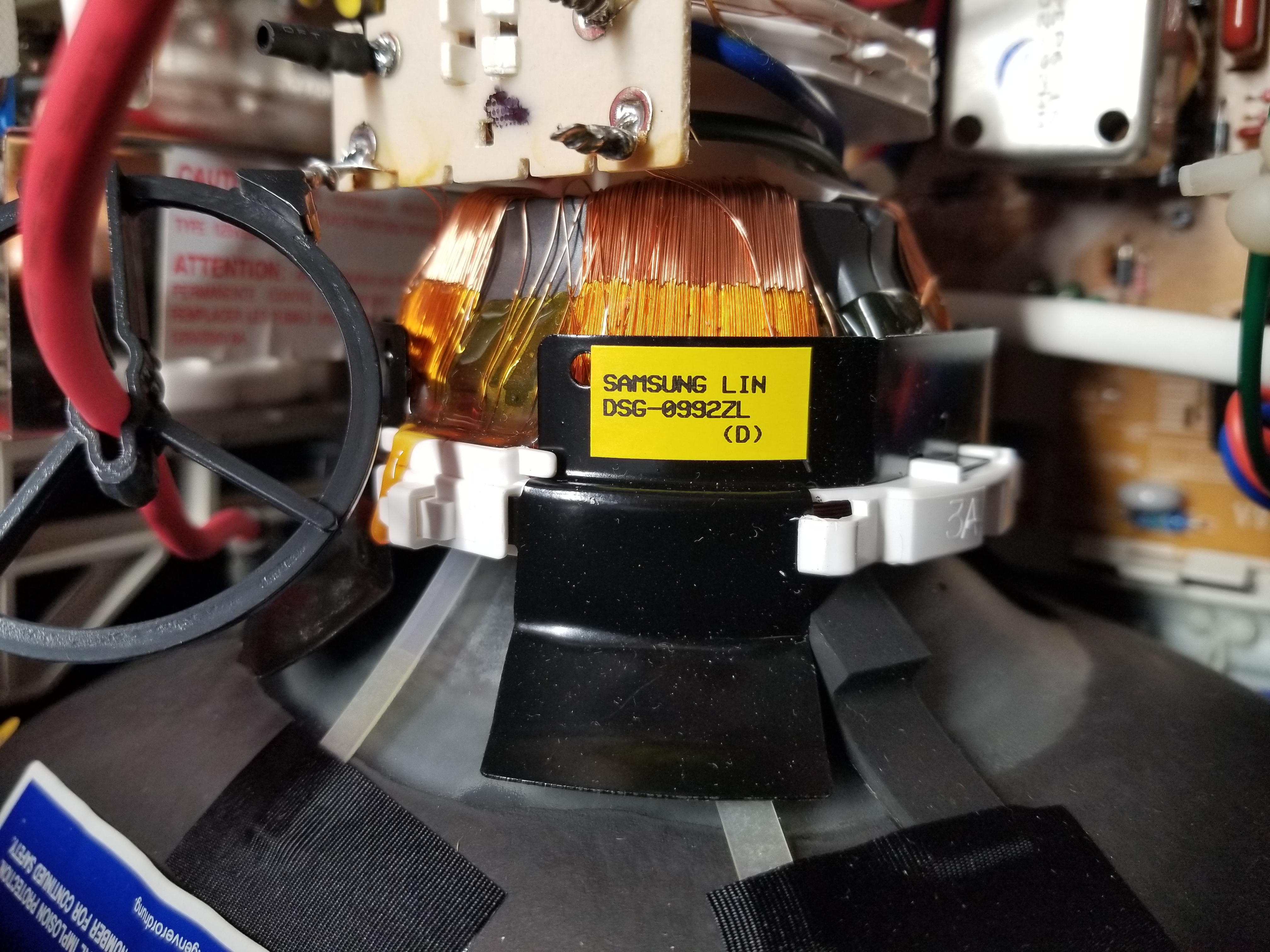

Red was missing from the raster due to cold solder joints on the neck board where the CRT socket is soldered to the PCB. Recommend reflowing all of the CRT socket pins.
