Summary

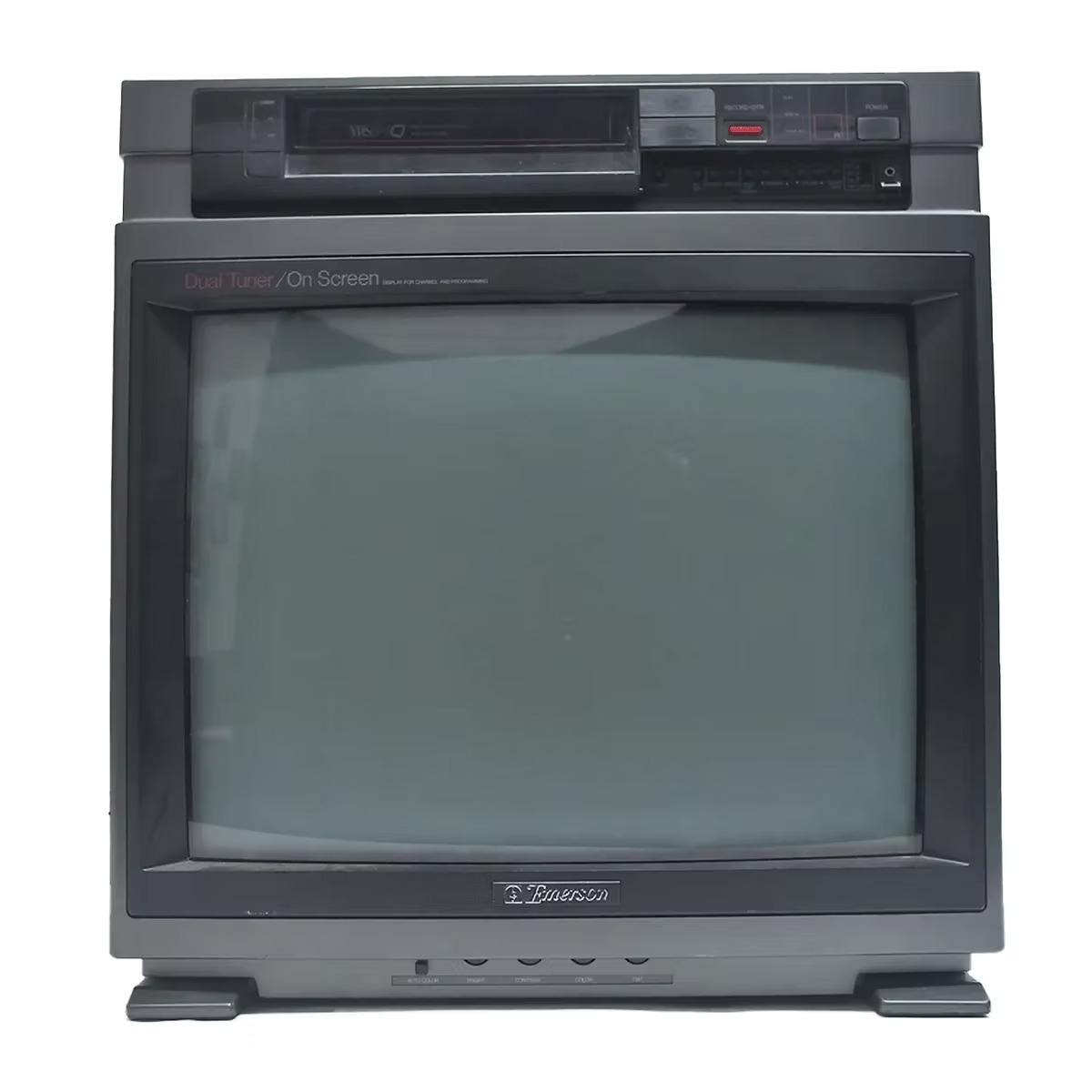

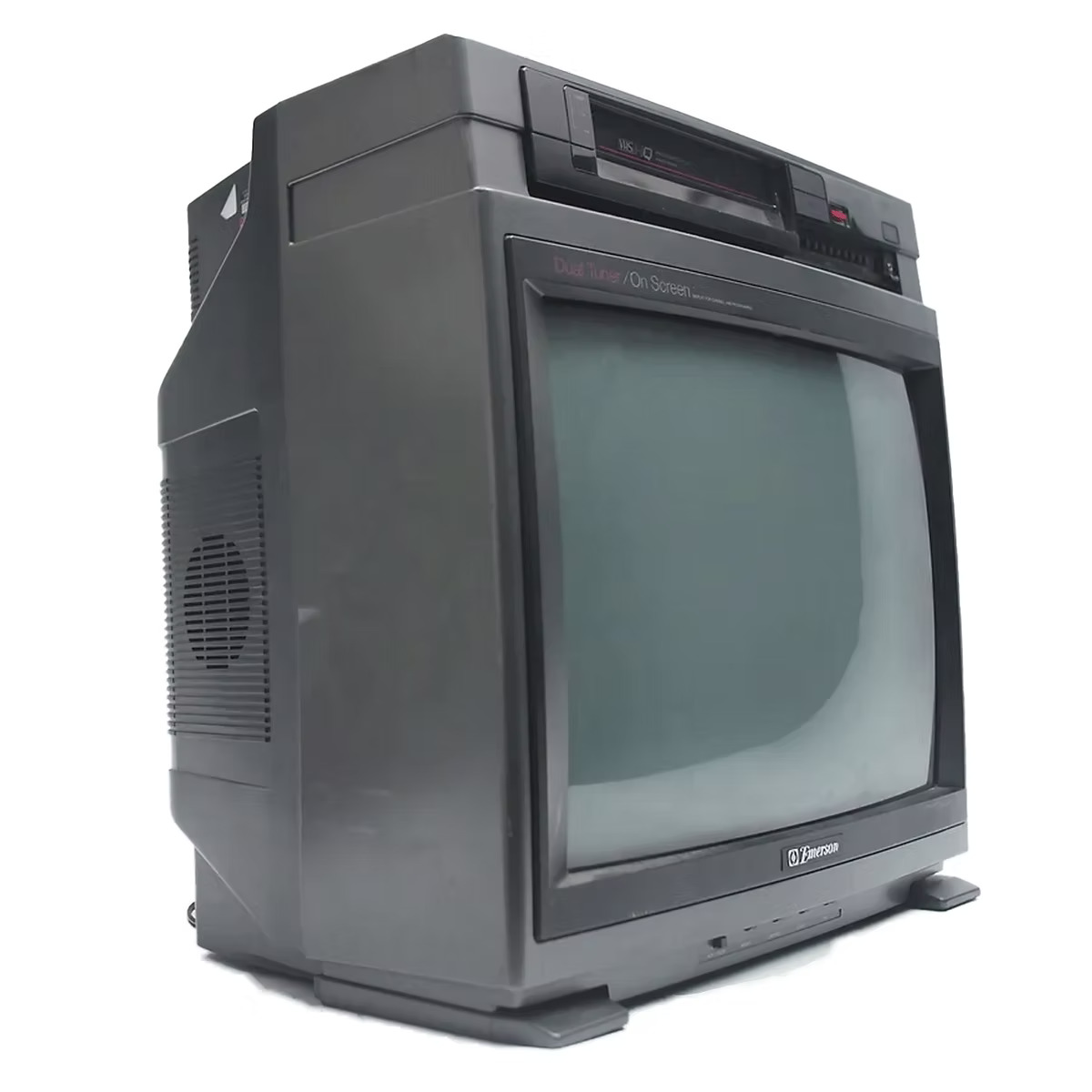

20" TV/VCR combo. Manufactured by Orion in Taiwan and sold under the Emerson brand in 1989. Has RF and composite inputs with mono sound.
(Special thanks to Jay Goo for the pics!)
Manuals
No documentation is available online at this time.
Notes
While the TV does have an on screen display, it does not have a service menu and relies on internal potentiometers for adjustment.
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Orion |
| Model: | VT4490 |
| Series: | VT |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, OSD Customer Controls |

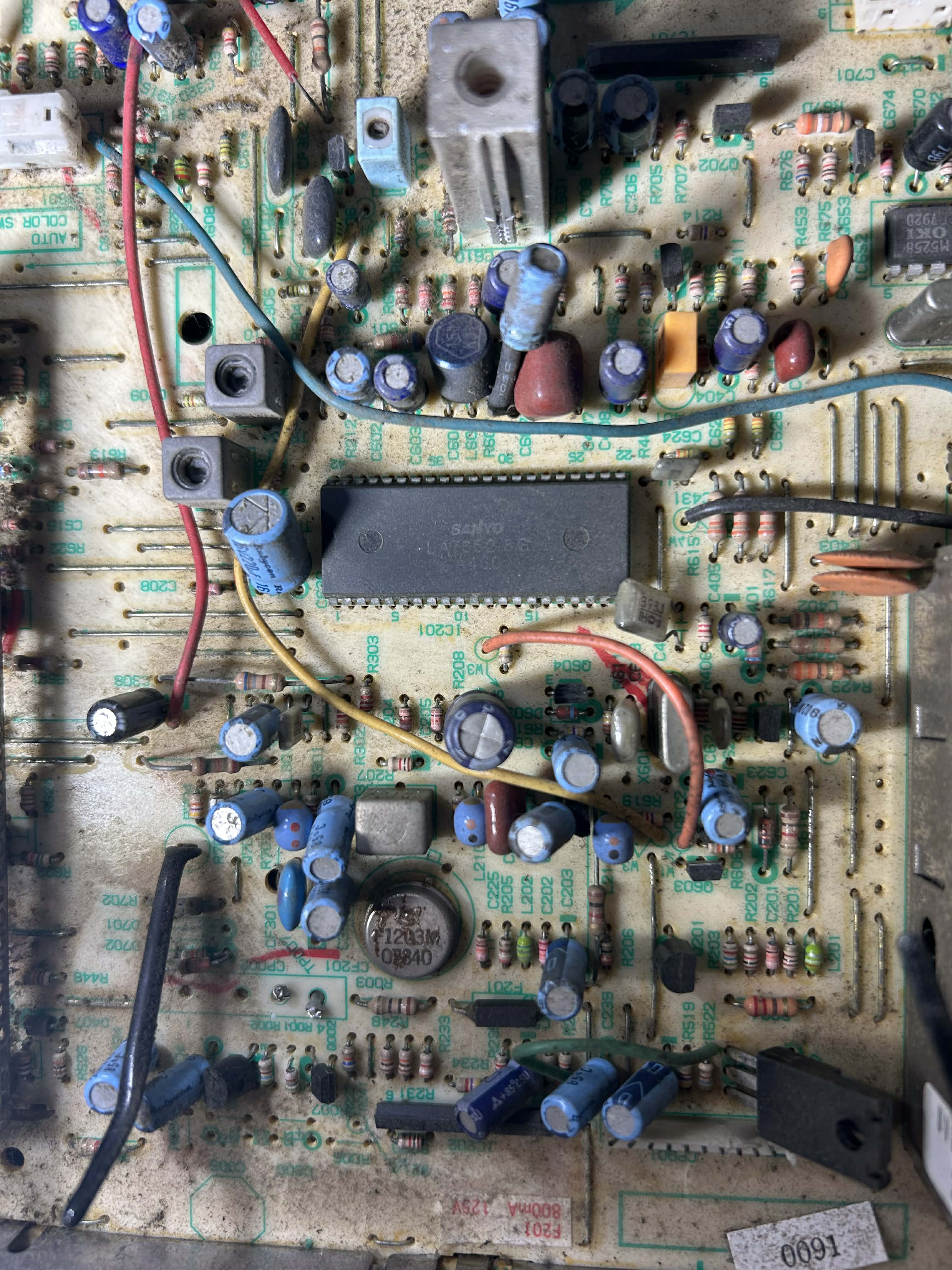

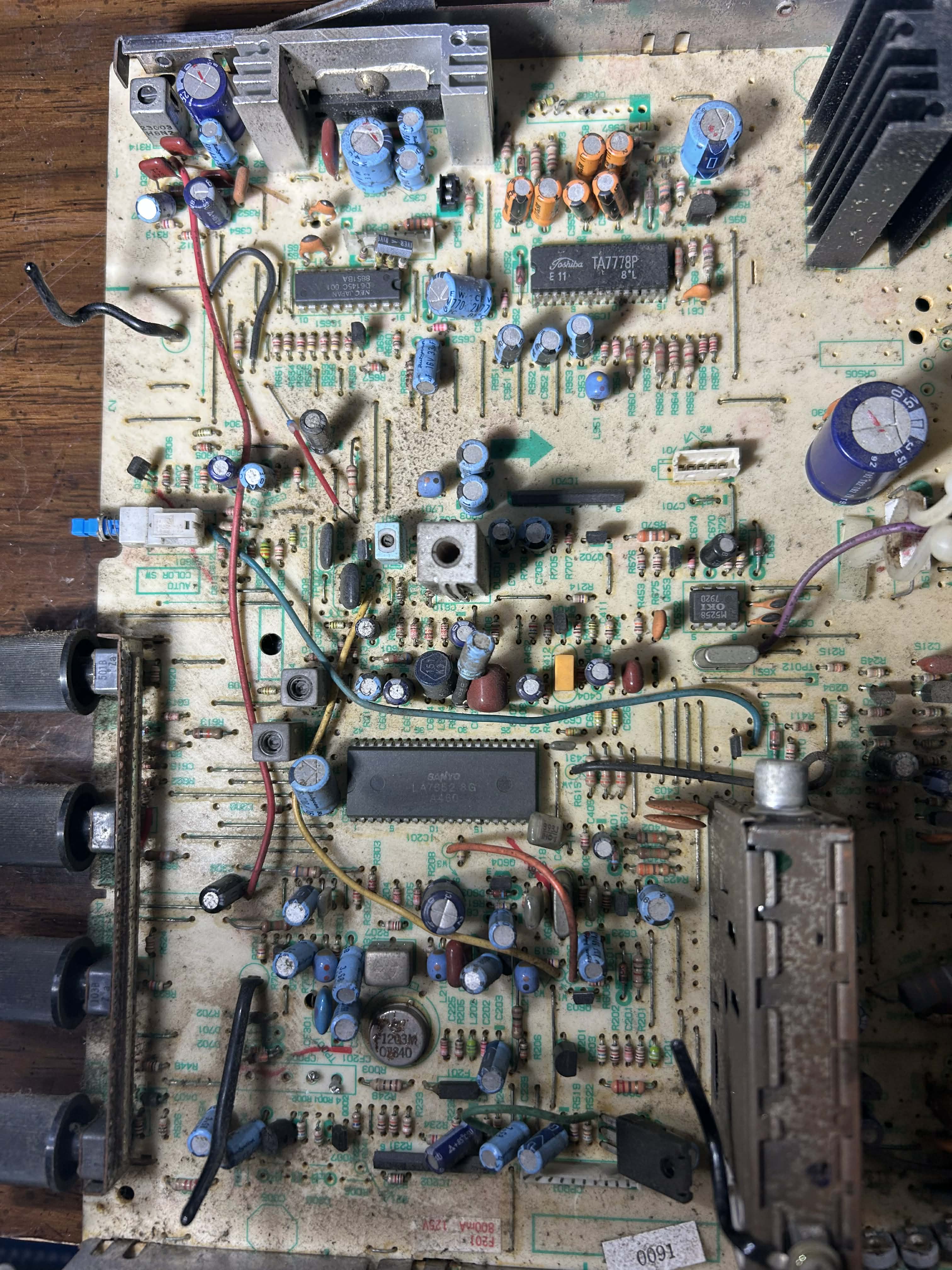

| Jungle IC: | Toshiba, TA7778P |
| Focus Type: | Single |

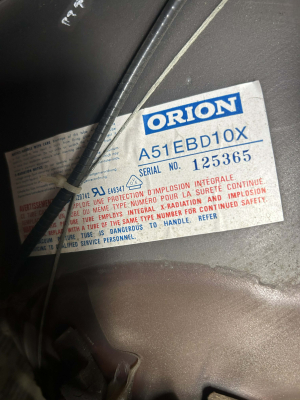

| Tube: | Philips , A51EBD10X , A51EBD10X61 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

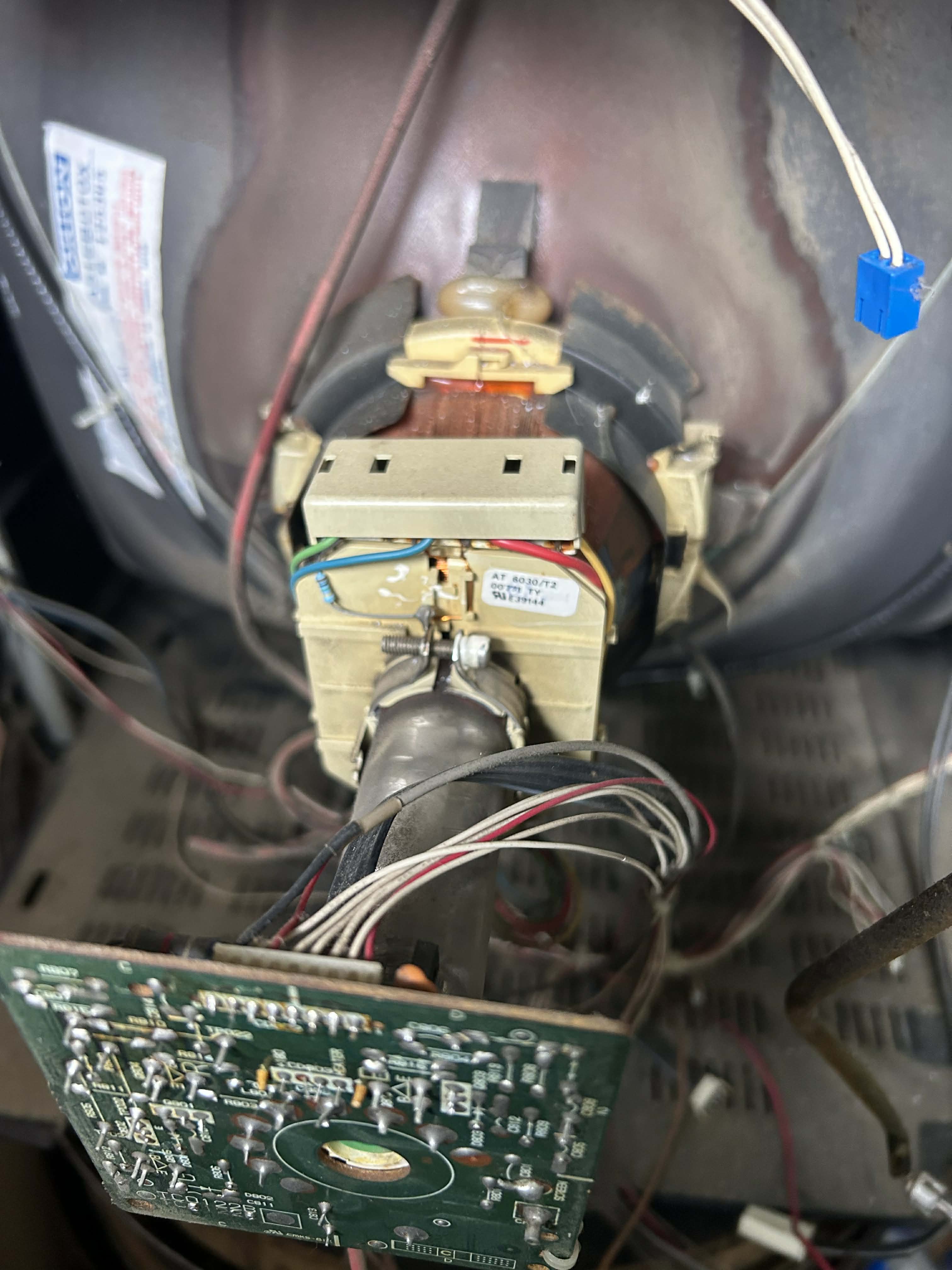

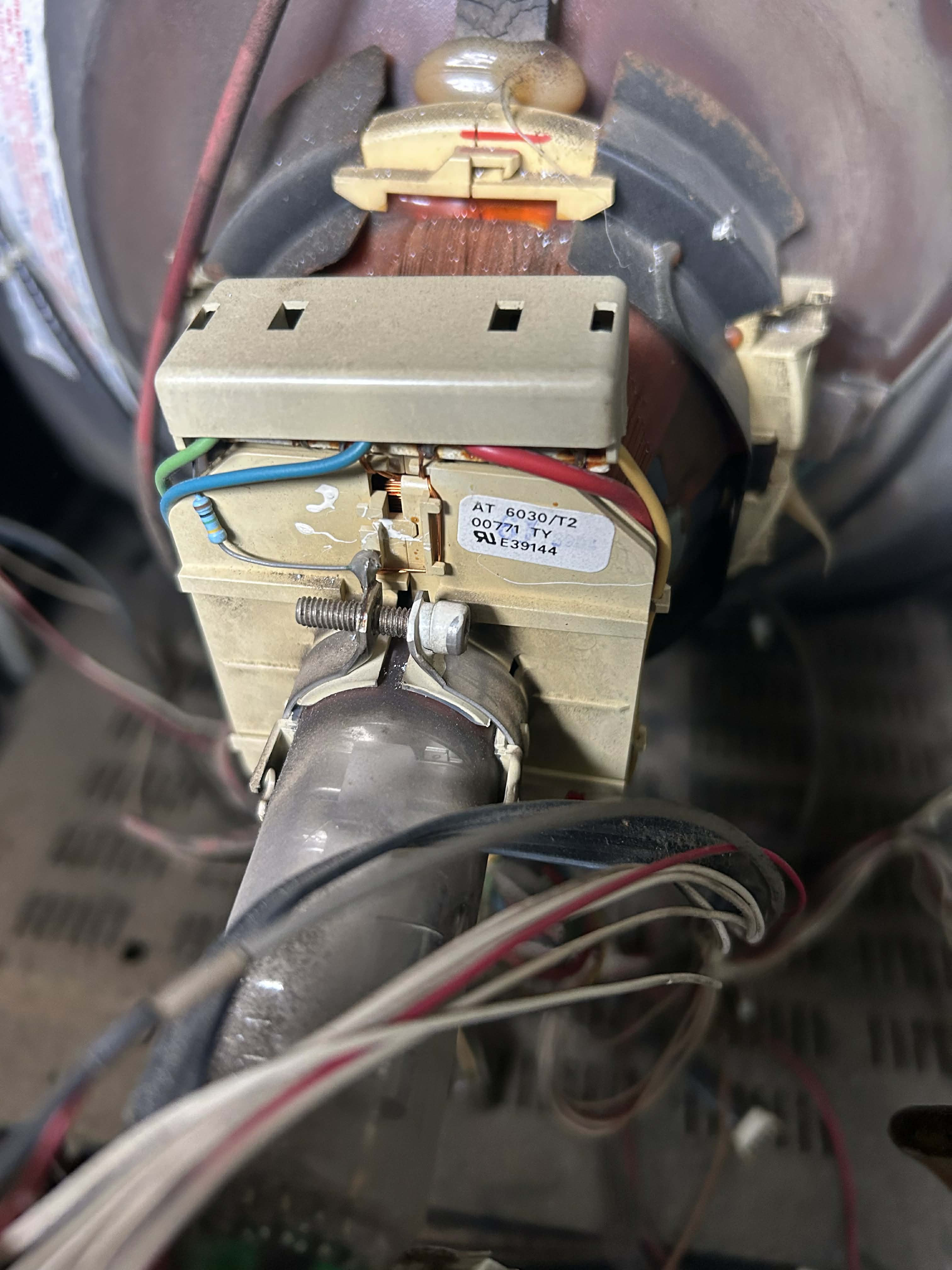

| Yoke: | AT6030/T2 |

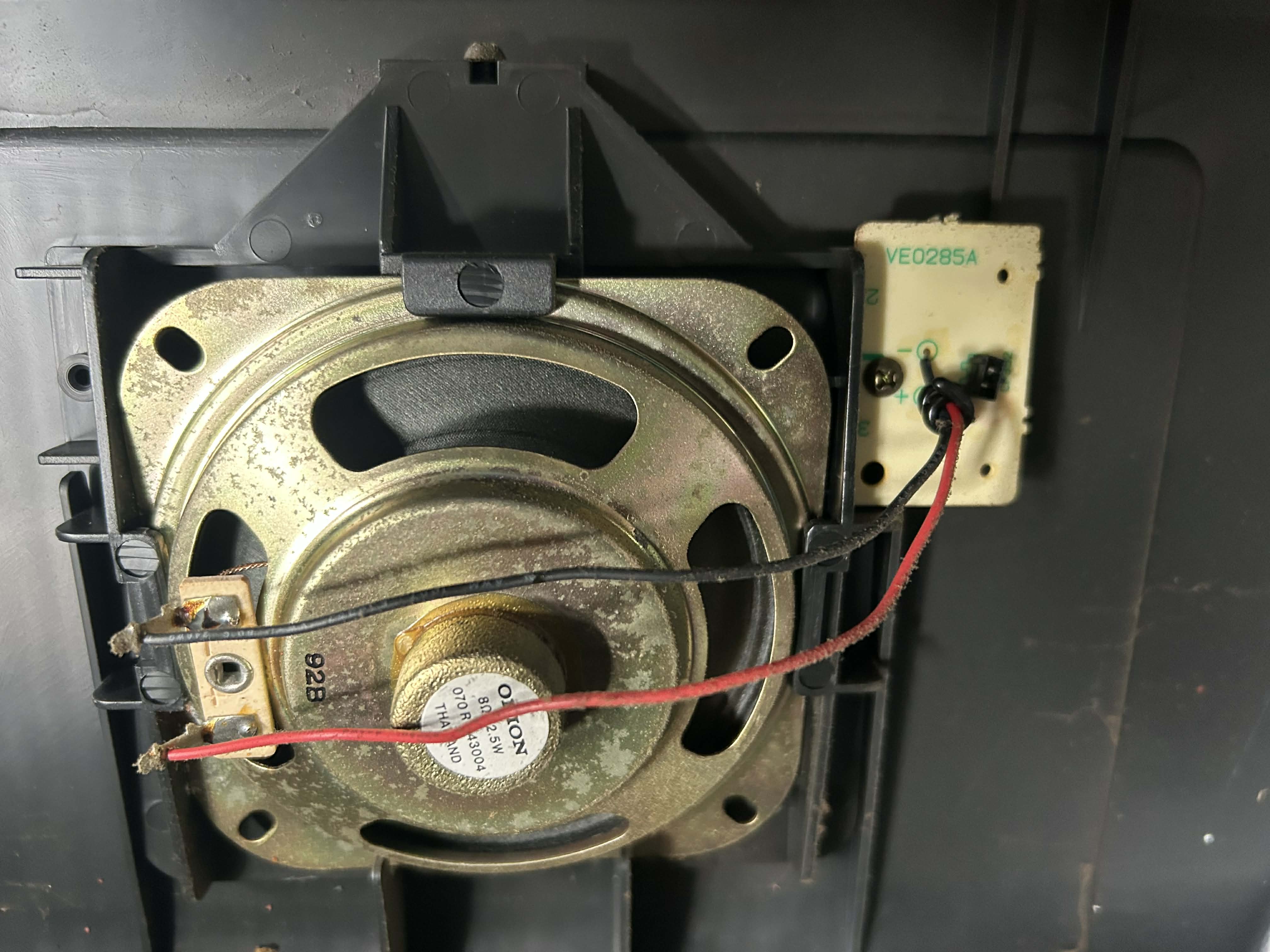

| Speakers: | Mono, 2W |

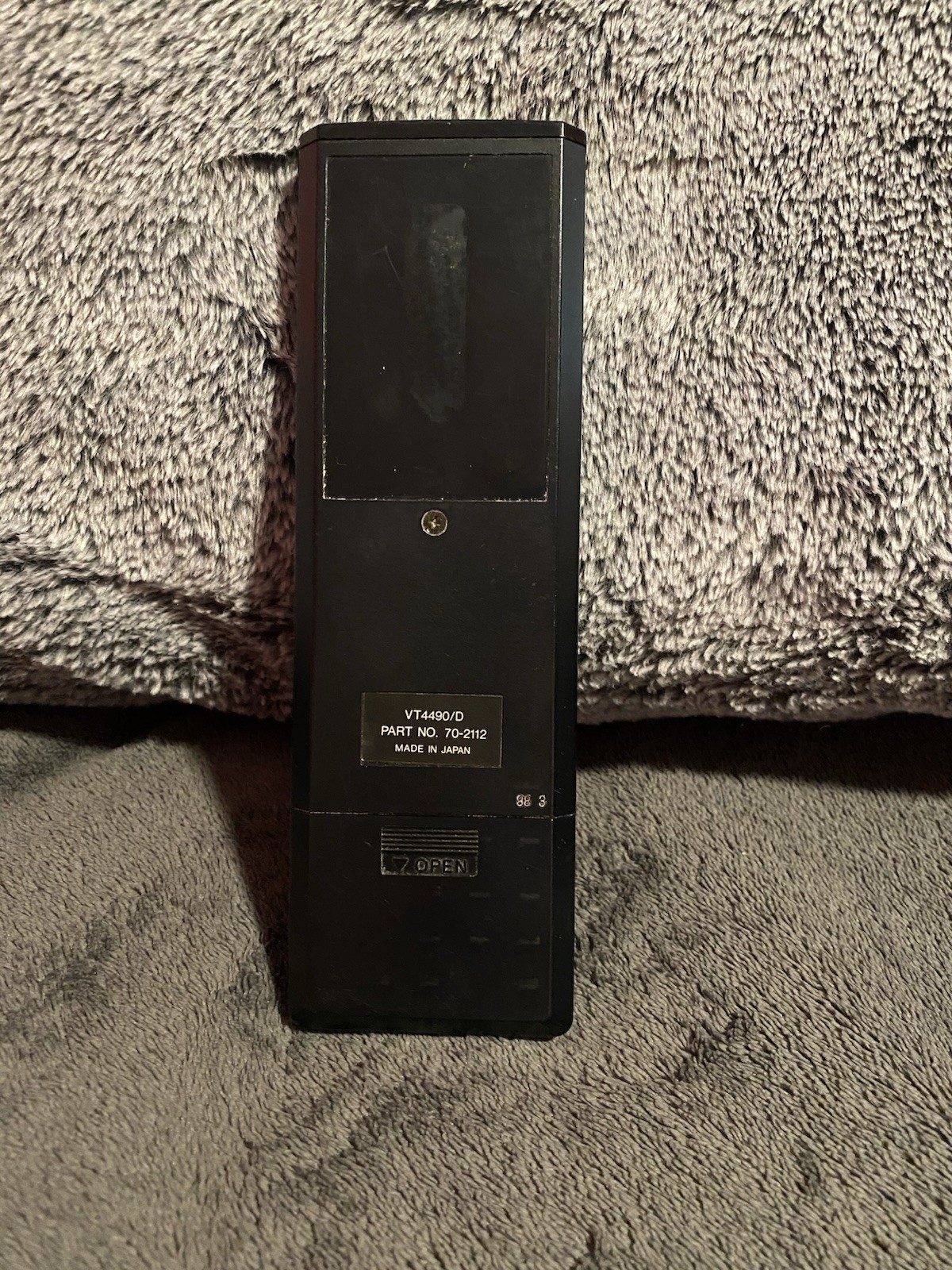

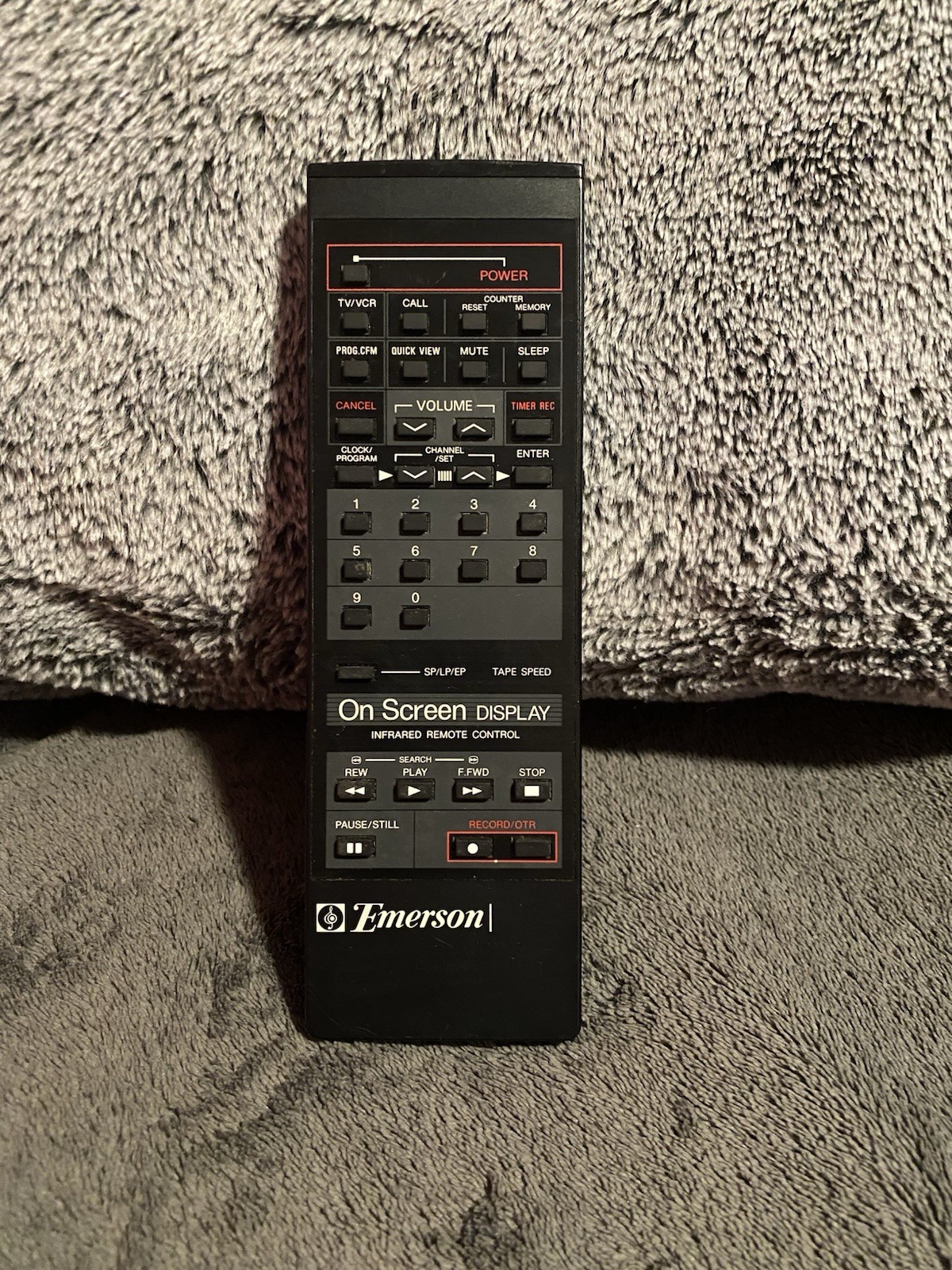

| Remote: | 70-2112 |
| Weight: | 60 lbs (27.2 kg) |
| Dimensions (W/H/D): |
508 x 484 x 541 mm
(20 x 19 x 21.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 649 USD |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
