Summary
Standard early 2000s 17" PC monitor, capable of 70 kHz. Made by AOC and sold under the Envision brand. Very similar in appearance and specs to the Dell E773C (also made by AOC). Unlike that model, it doesn't have an OSD and uses LEDs on the front panel to identify user adjustments.
Manuals
No documentation is available online at this time.
Notes
As with other AOC monitors, this model often suffers from oxidized microswitches for the front panel buttons. These can usually be restored by spraying the switches with contact cleaner.

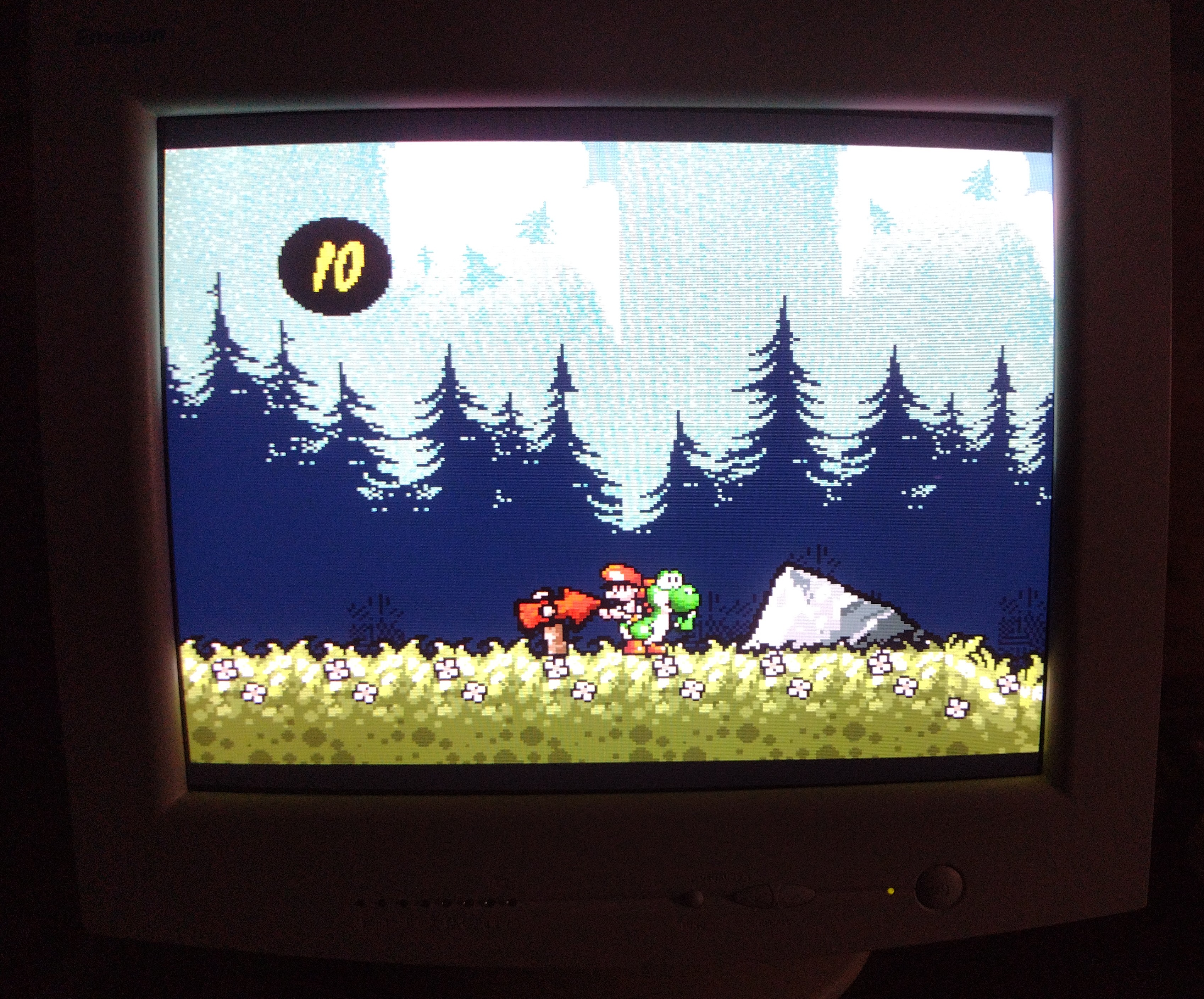

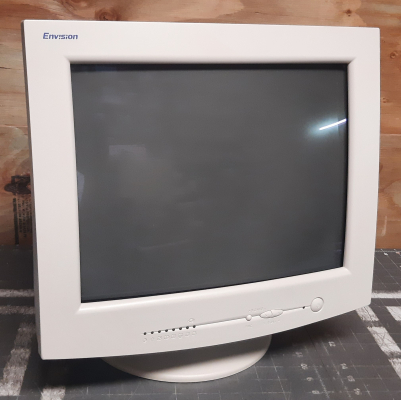

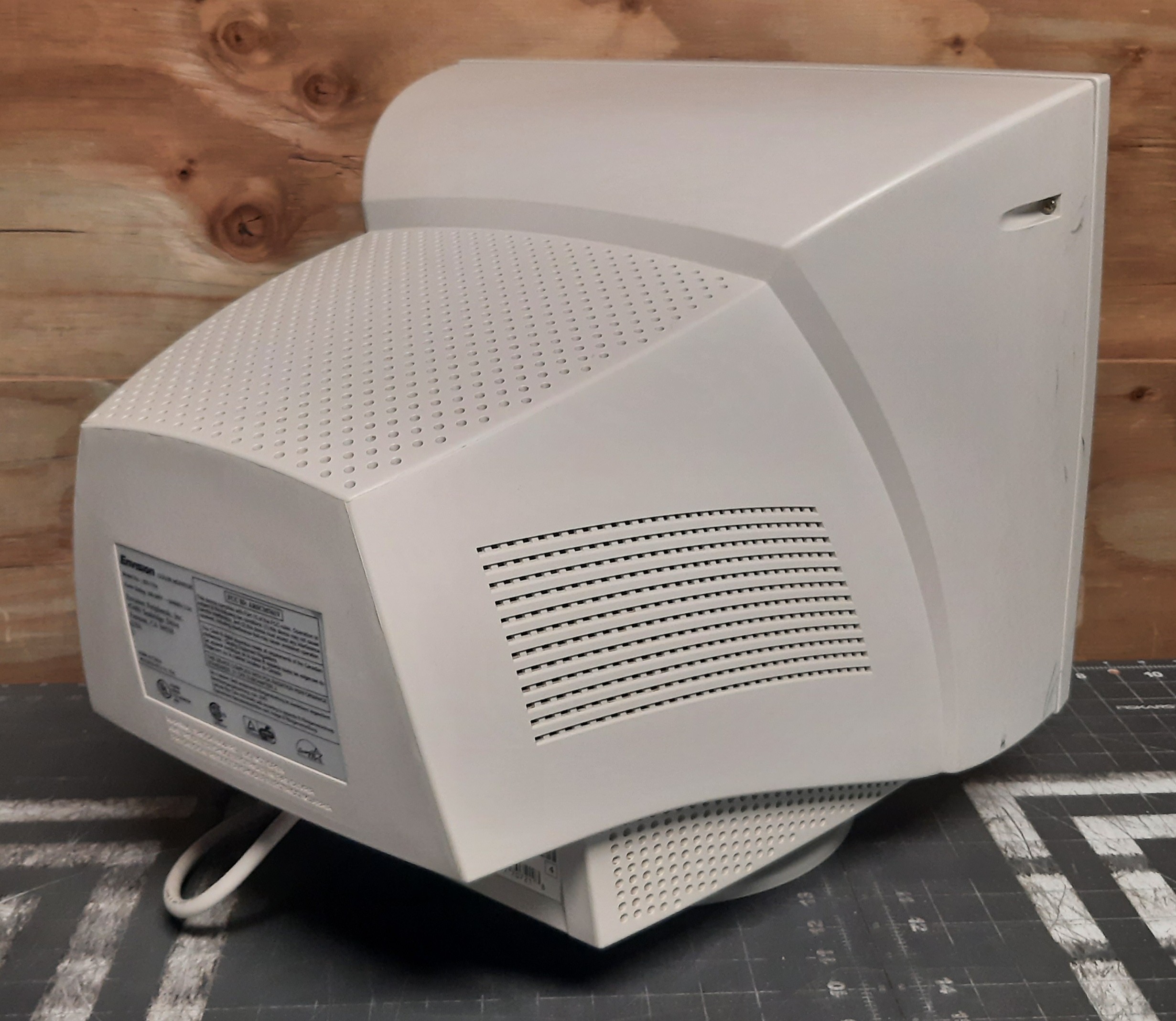

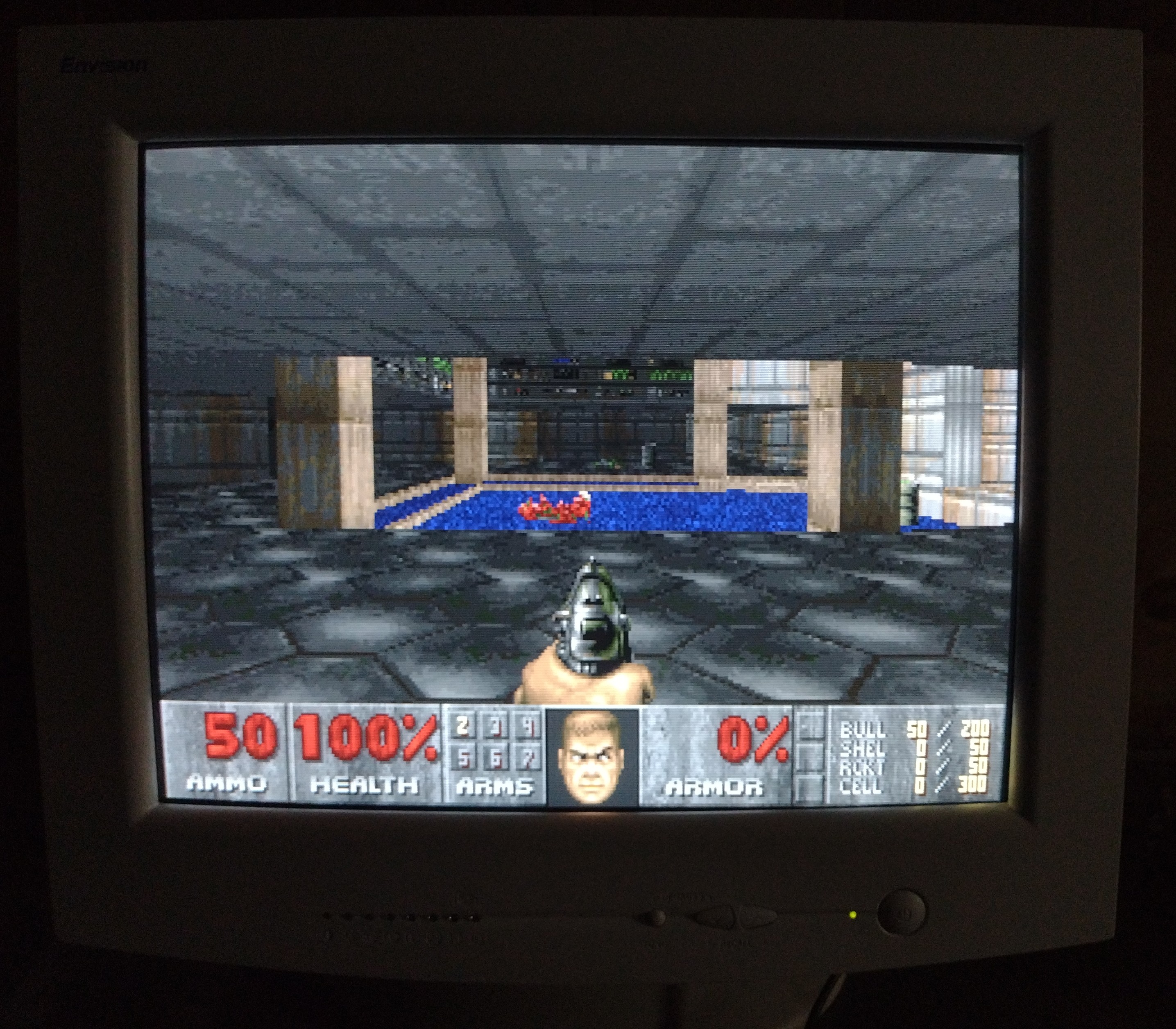

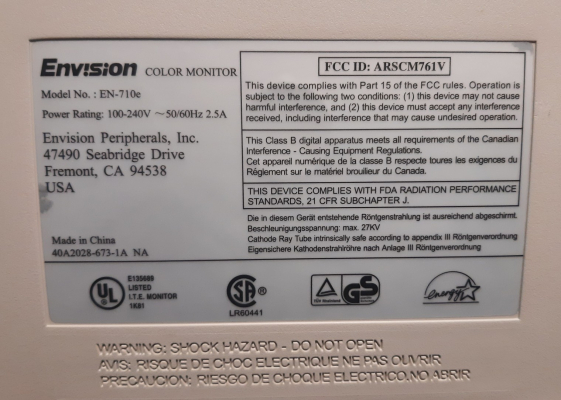

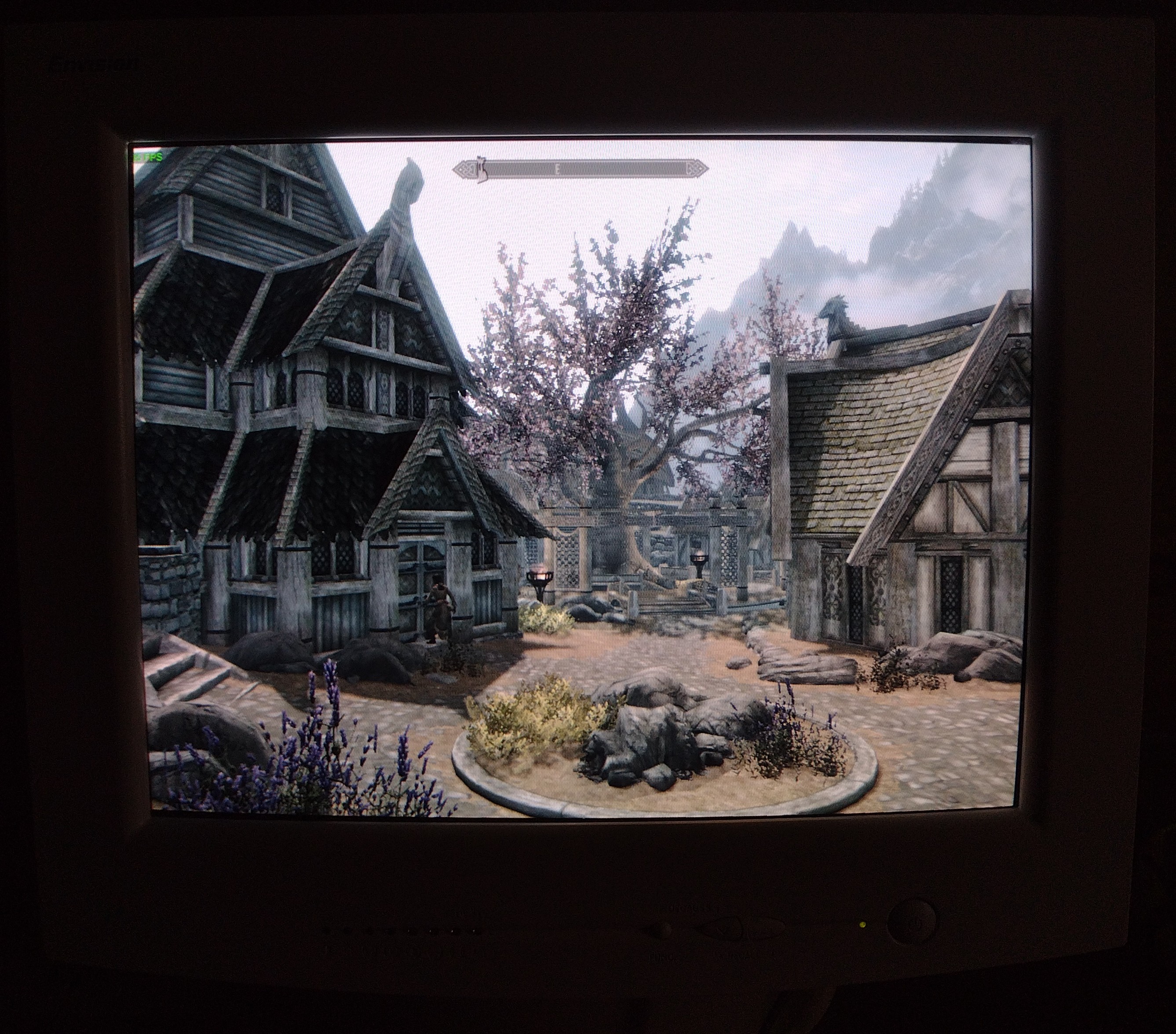

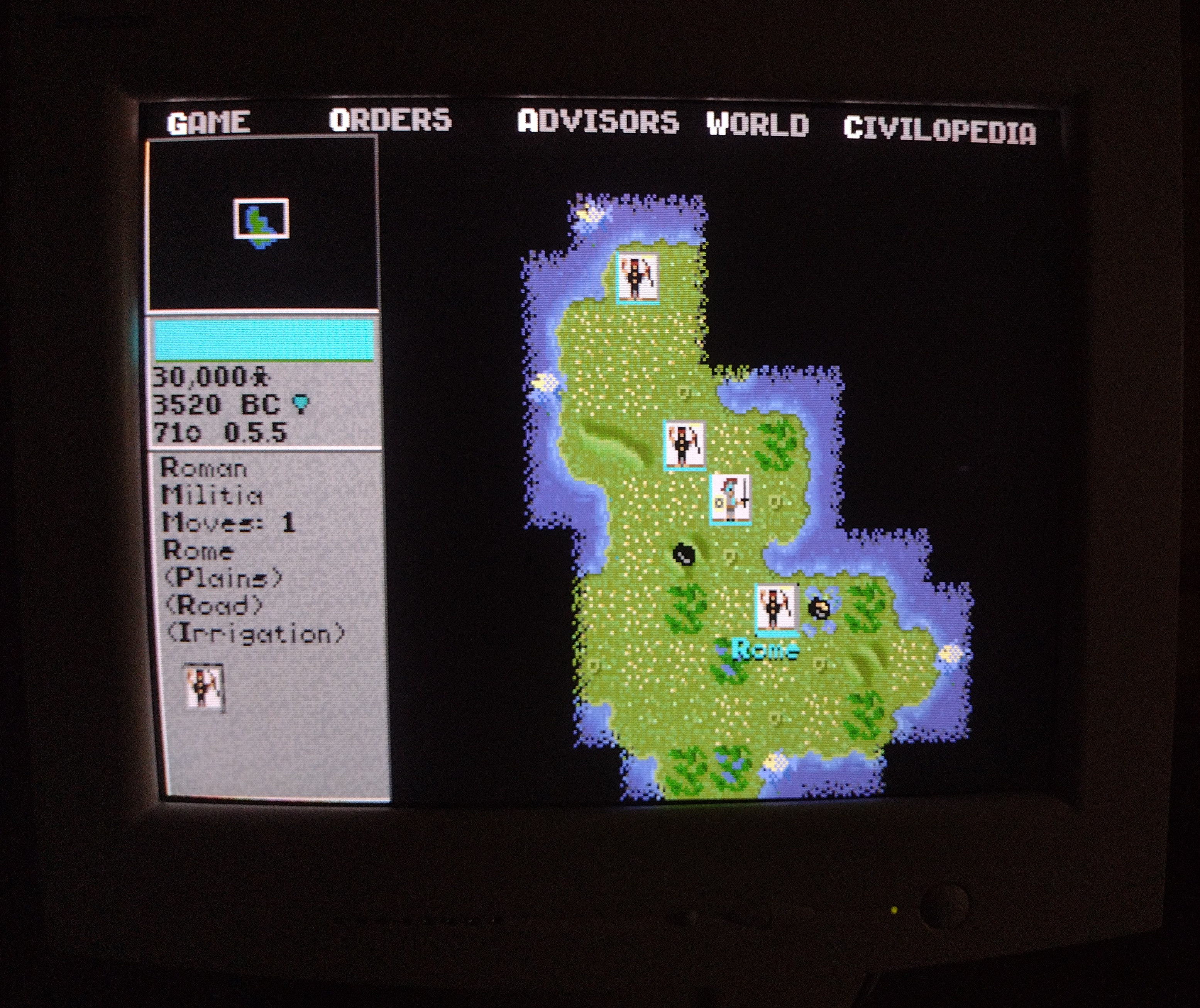

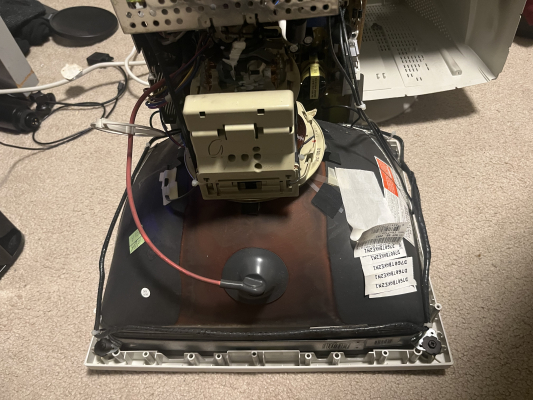

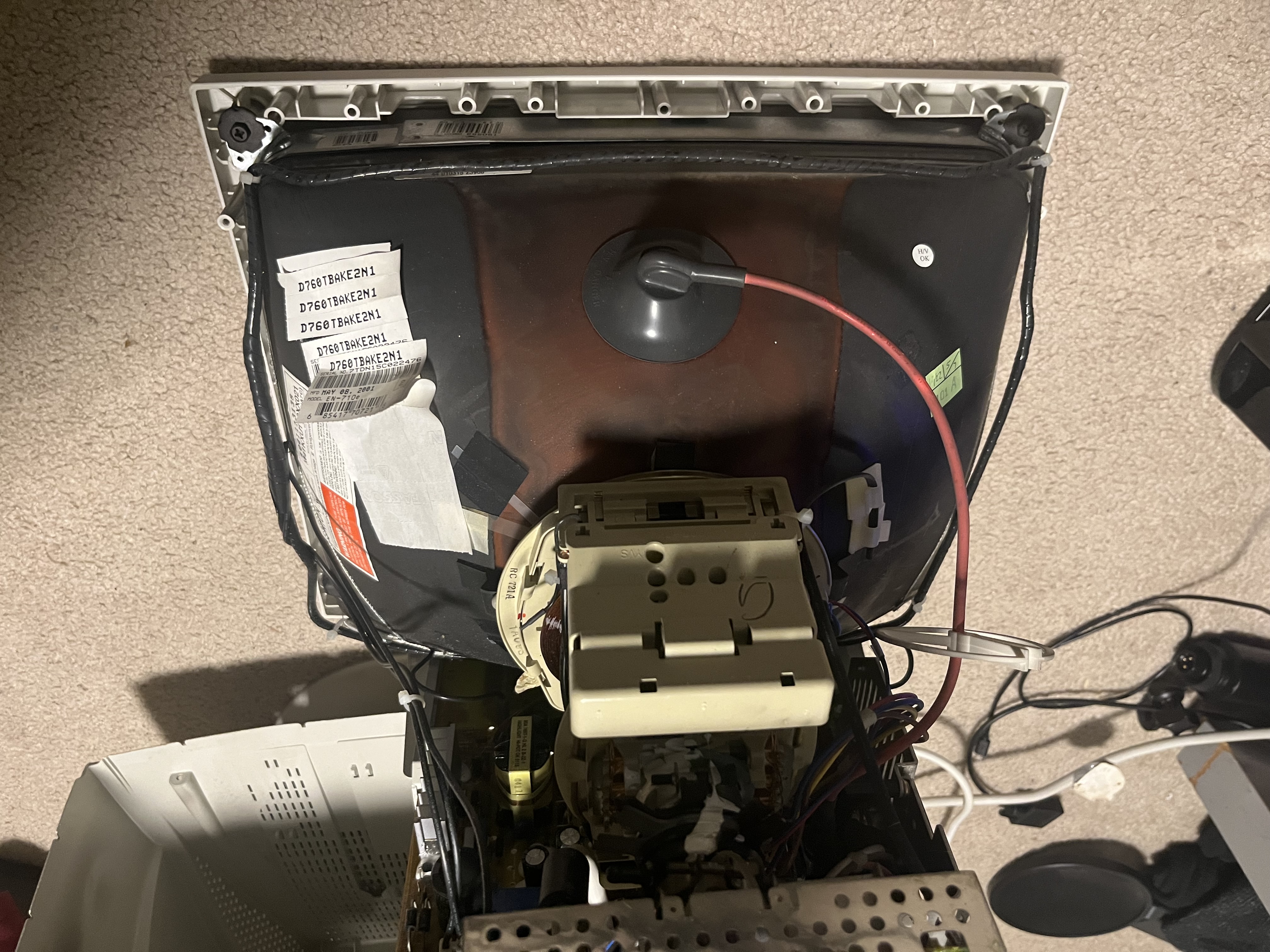

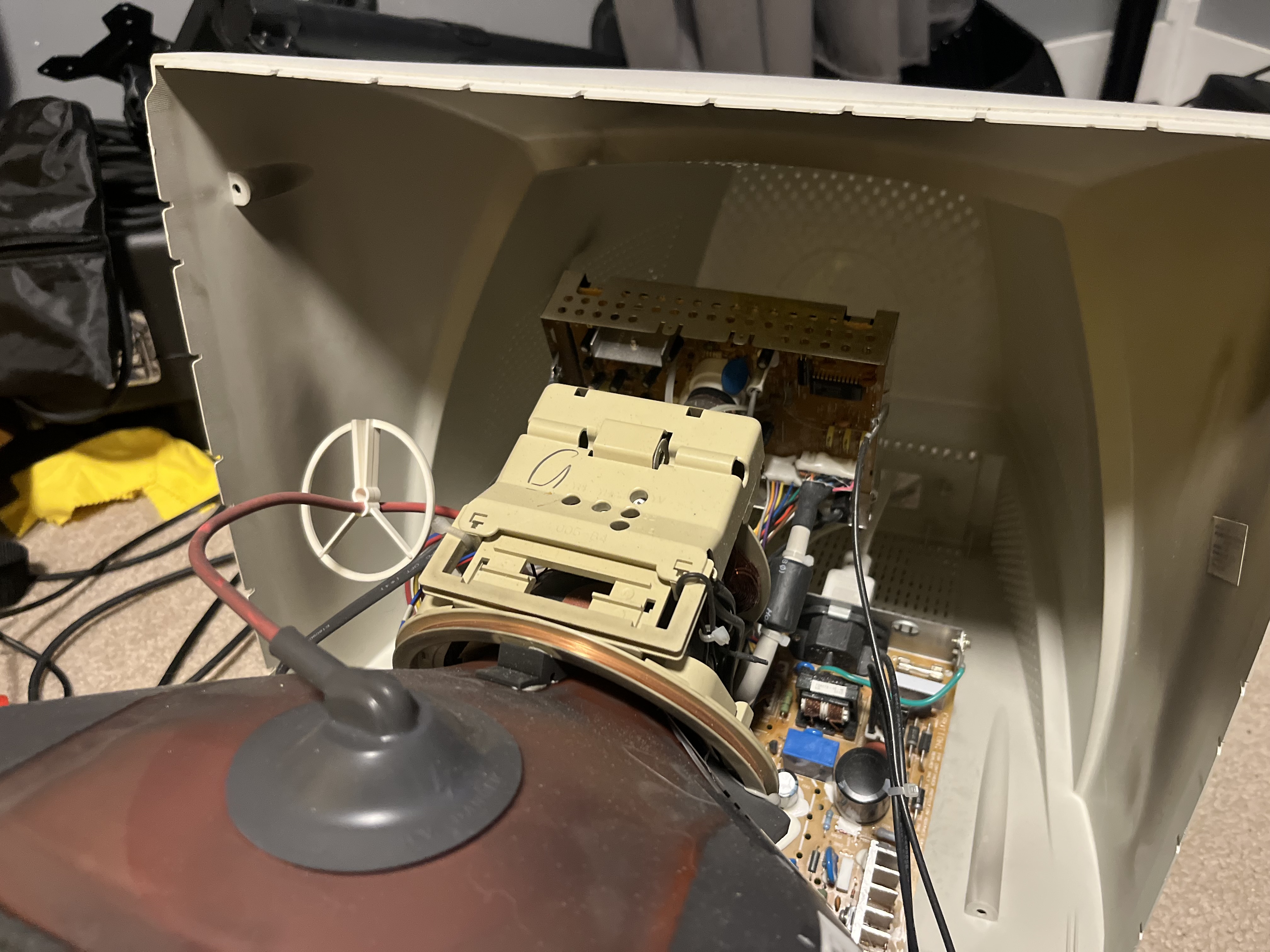

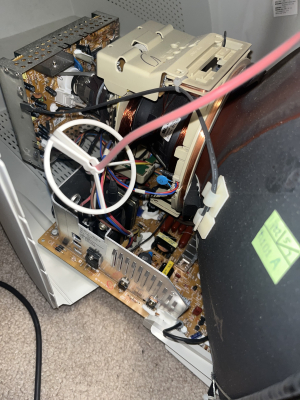

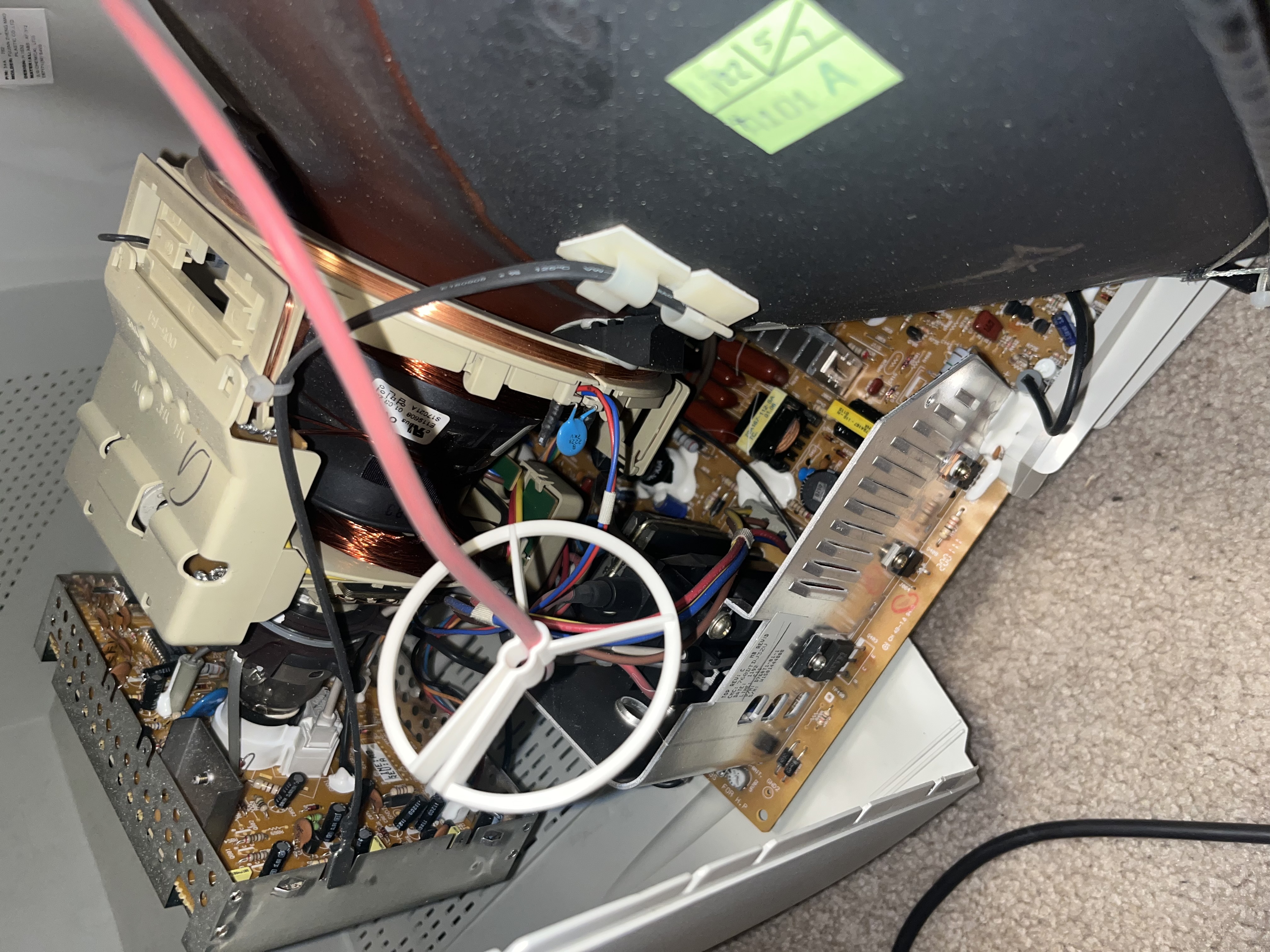

Gallery
| Specifications | |
|---|---|
| Brand: | Envision |
| Manufacturer: | AOC |
| Model: | EN-710e |
| Series: | EN |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 70 kHz, 29 kHz |
| Vertical Scan Range: | 46 Hz, 135 Hz |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons |
| Vertical Output IC: | TDA9302H |
| Flyback: | FAO0049 |
| Tube: | Orion , M41KXU110XX021 , M41KXU110XX |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | E119608 |
| Yoke Horz. Inductance: | 0.13188 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.072 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.500 ohm, 0.5 ohm, 0.50 ohm |
| Yoke Vert. Resistance: | 6.18 ohm |
| Speakers: | None |
| Weight: | 33 lbs (15 kg) |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures |
