Summary

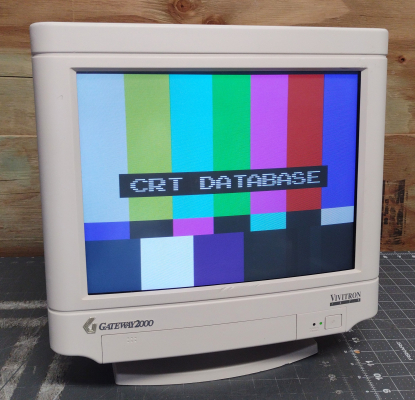

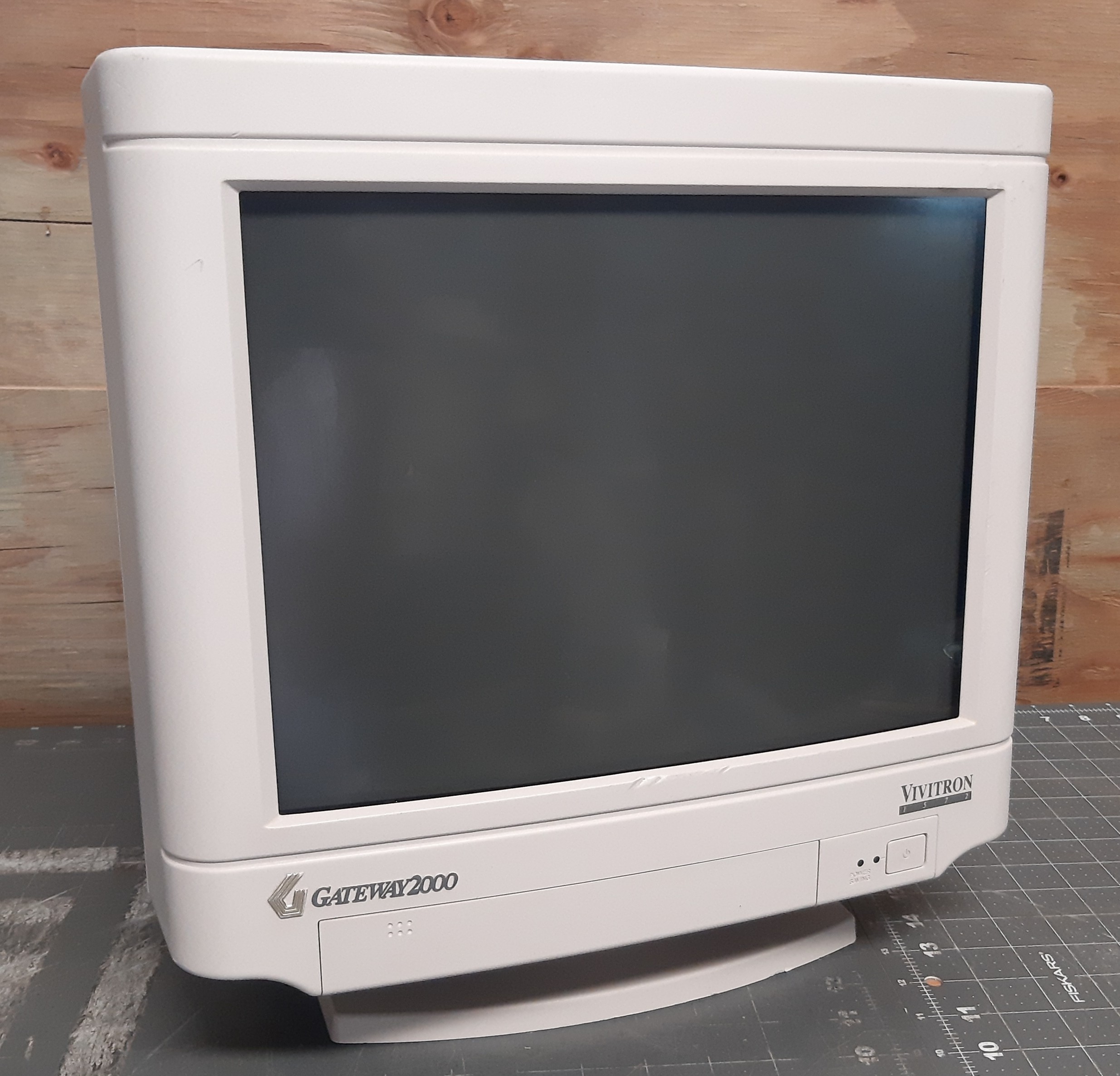

Compact 15" computer monitor from Sony, also known as the CPD-15F13. It was sold by Gateway under the "Vivitron" brand, along with several other Sony monitors. It has a max horizontal scan rate of 64 kHz, which was quite high for its time.
Literature
Notes
Service adjustments to this (and other Sony PC monitors) must be done using Sony's DAS software, which is a DOS-based predecessor to WinDAS. DASX version 5.7d should be used, with model #CPD-15SF1 selected.

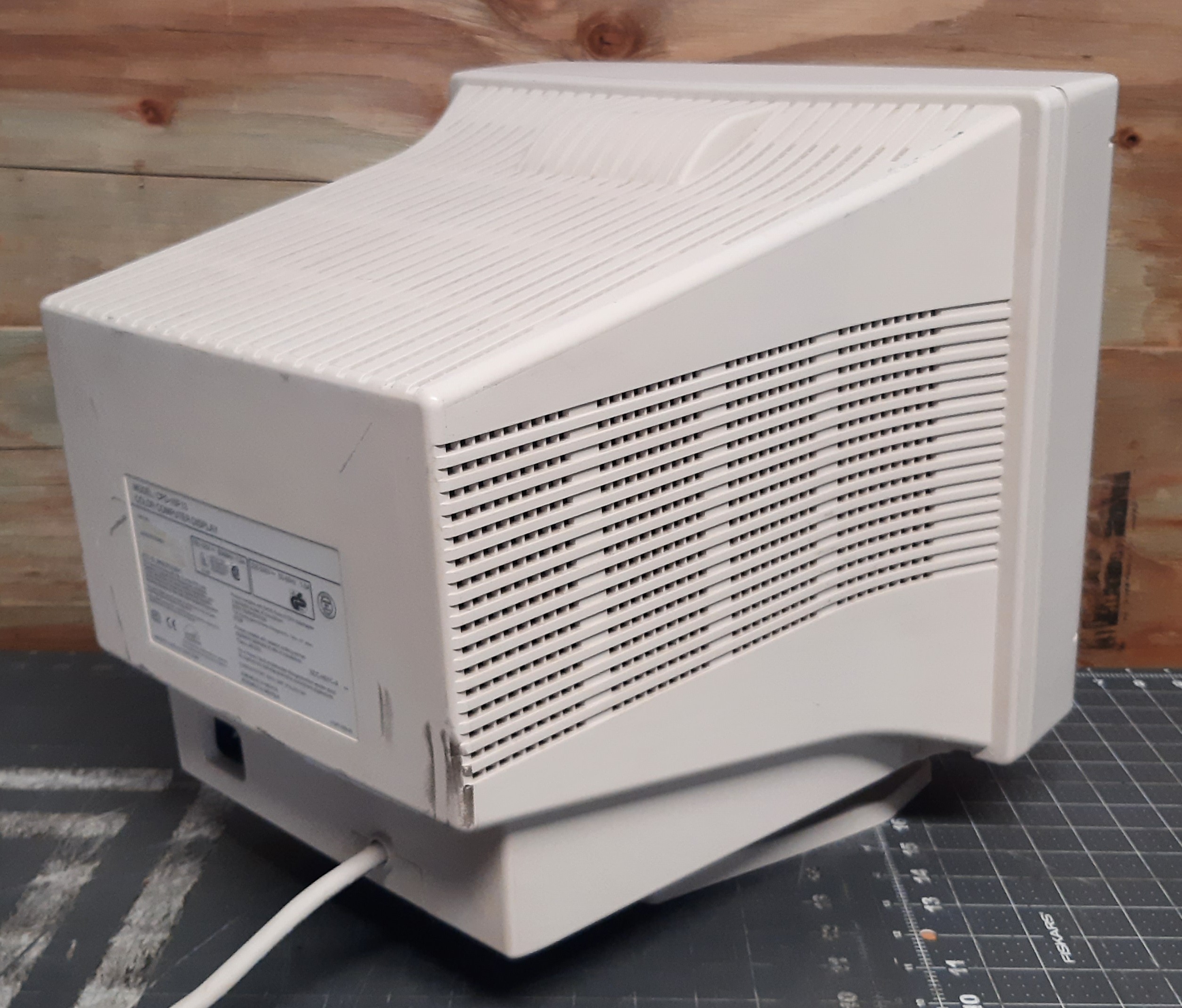

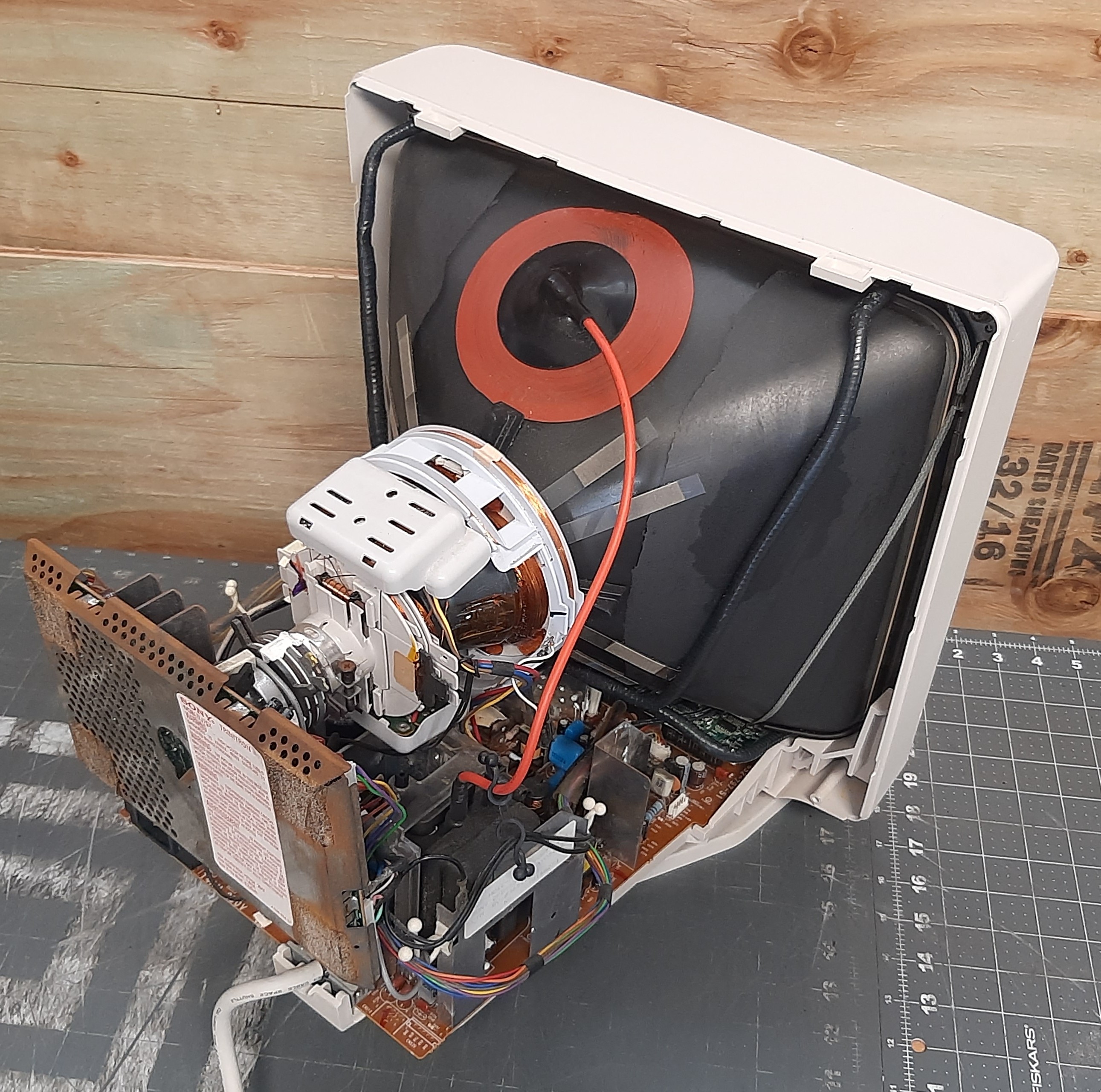

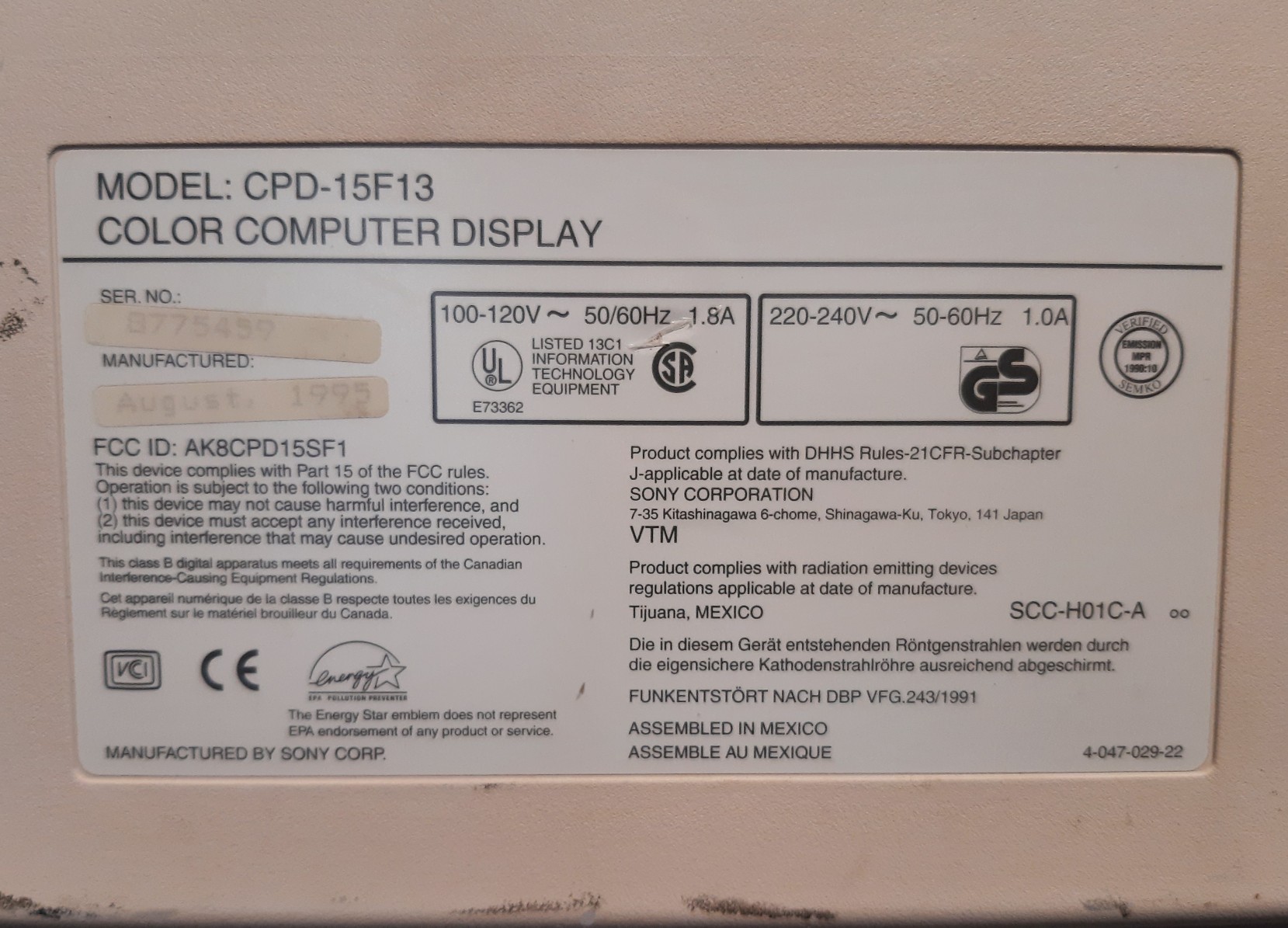

Gallery
| Specifications | |
|---|---|
| Brand: | Gateway |
| Manufacturer: | Sony |
| Model: | Vivitron 1572 |
| Series: | Vivitron |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 31 kHz, 64 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons, Software Calibration |
| Vertical Output IC: | TDA8172 |
| Flyback: | 1-453-168-21 |
| Tube: | Sony Trinitron , M36LDJ15X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | 0.25 mm |
| Tint: | Dark |
| Yoke: | 8-451-445-33 |
| Yoke Horz. Inductance: | 0.14729 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.823 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.459 ohm |
| Yoke Vert. Resistance: | 8.07 ohm |
| Speakers: | None |
| Weight: | 30.6 lbs (14 kg) |
| Application: | Computer Monitor |
| Launched: | 1994 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
