Summary
Basic 19" set by Thomson introduced in 1997.
Manuals
- User Manual
- CTC185 Training Manual
- CTC185 Service Data CD-ROM .ISO
- Sam's Tips & "Trade Secrets" From CTC130 to CTC197

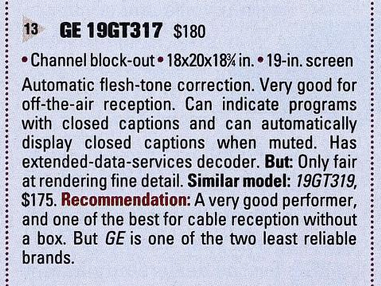

Media & Promo Materials
Notes
Hot chassis set, cannot be readily video modded without isolation.

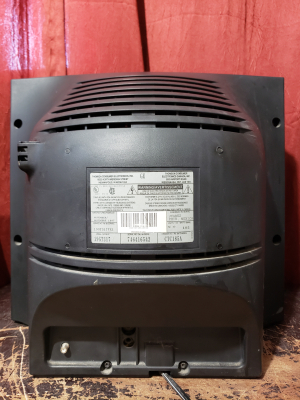

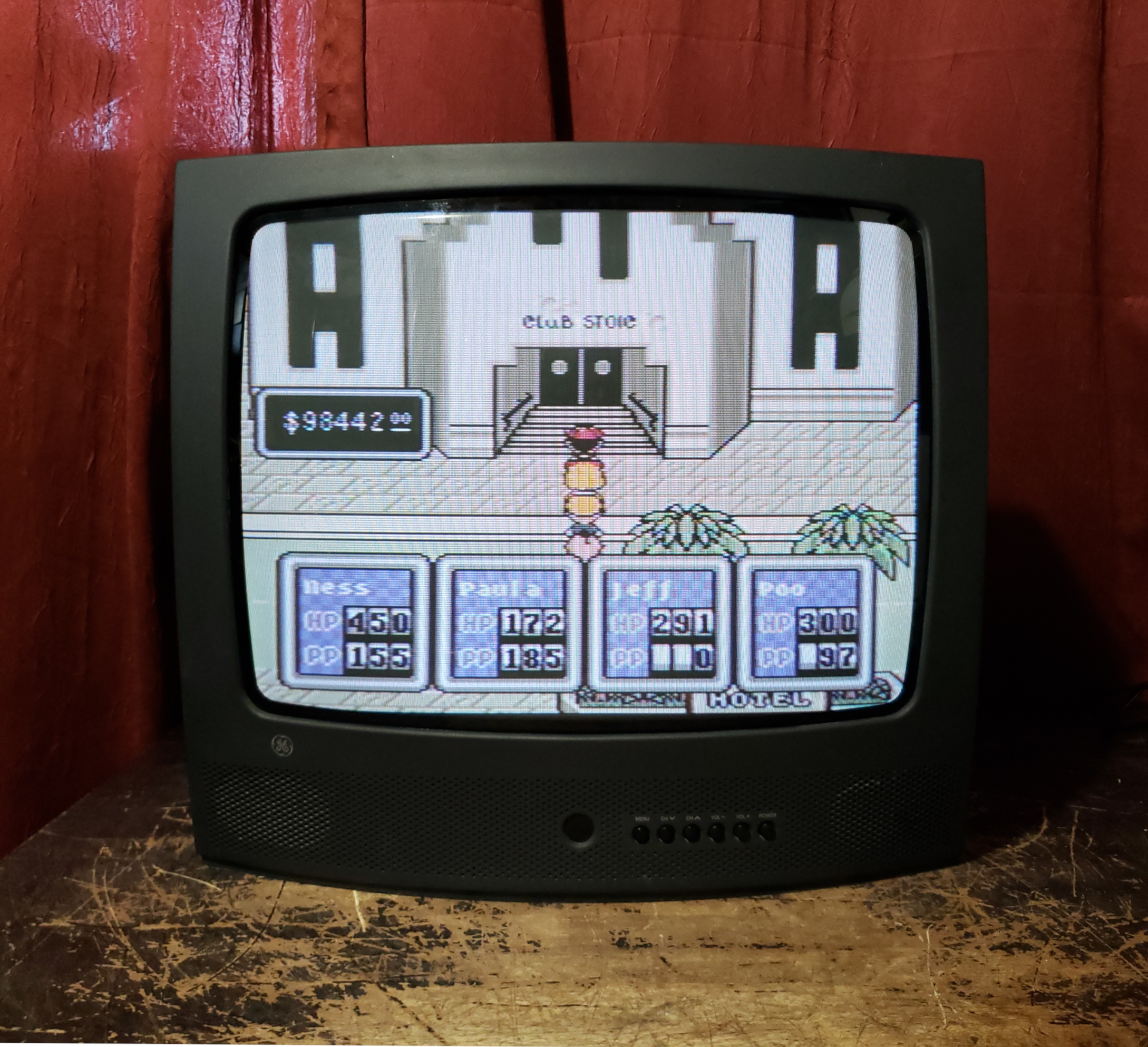

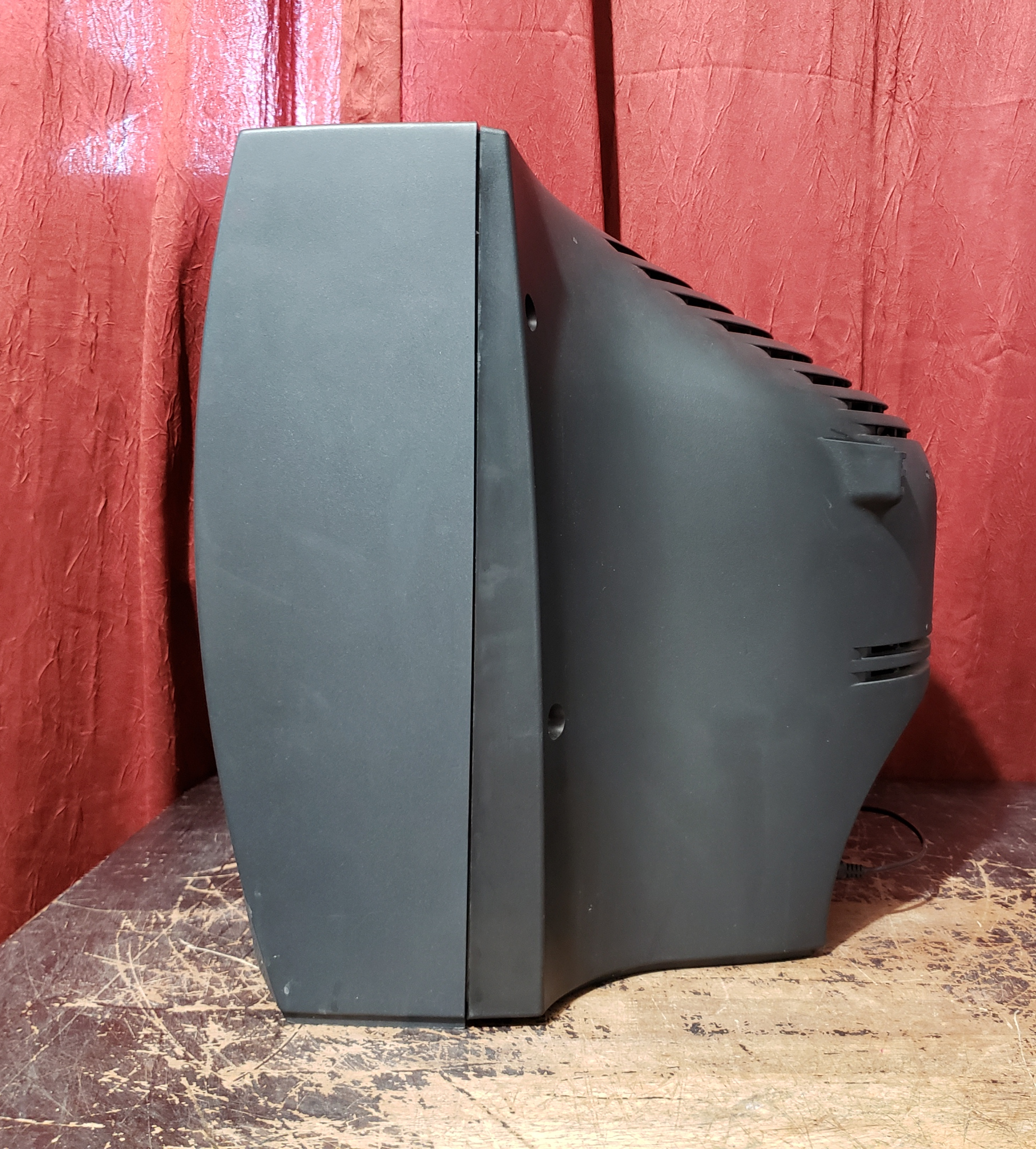

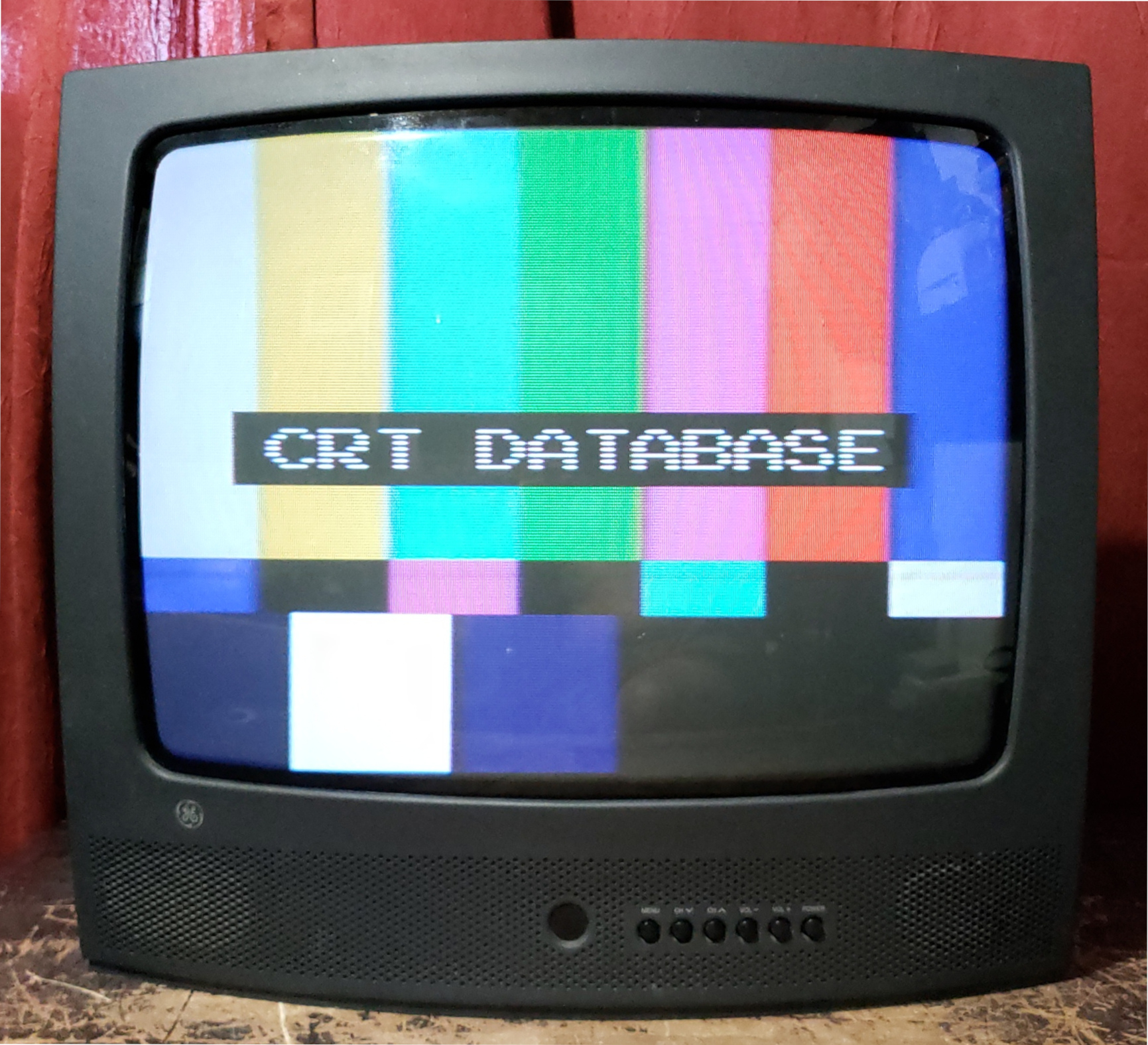

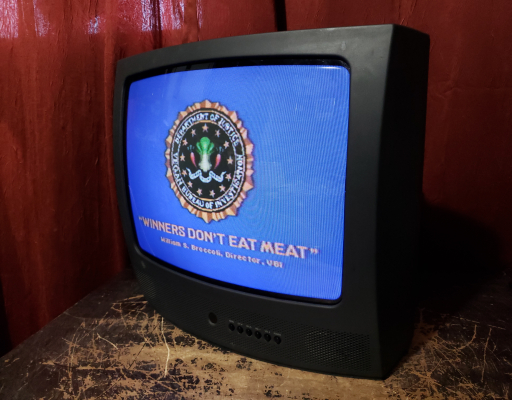

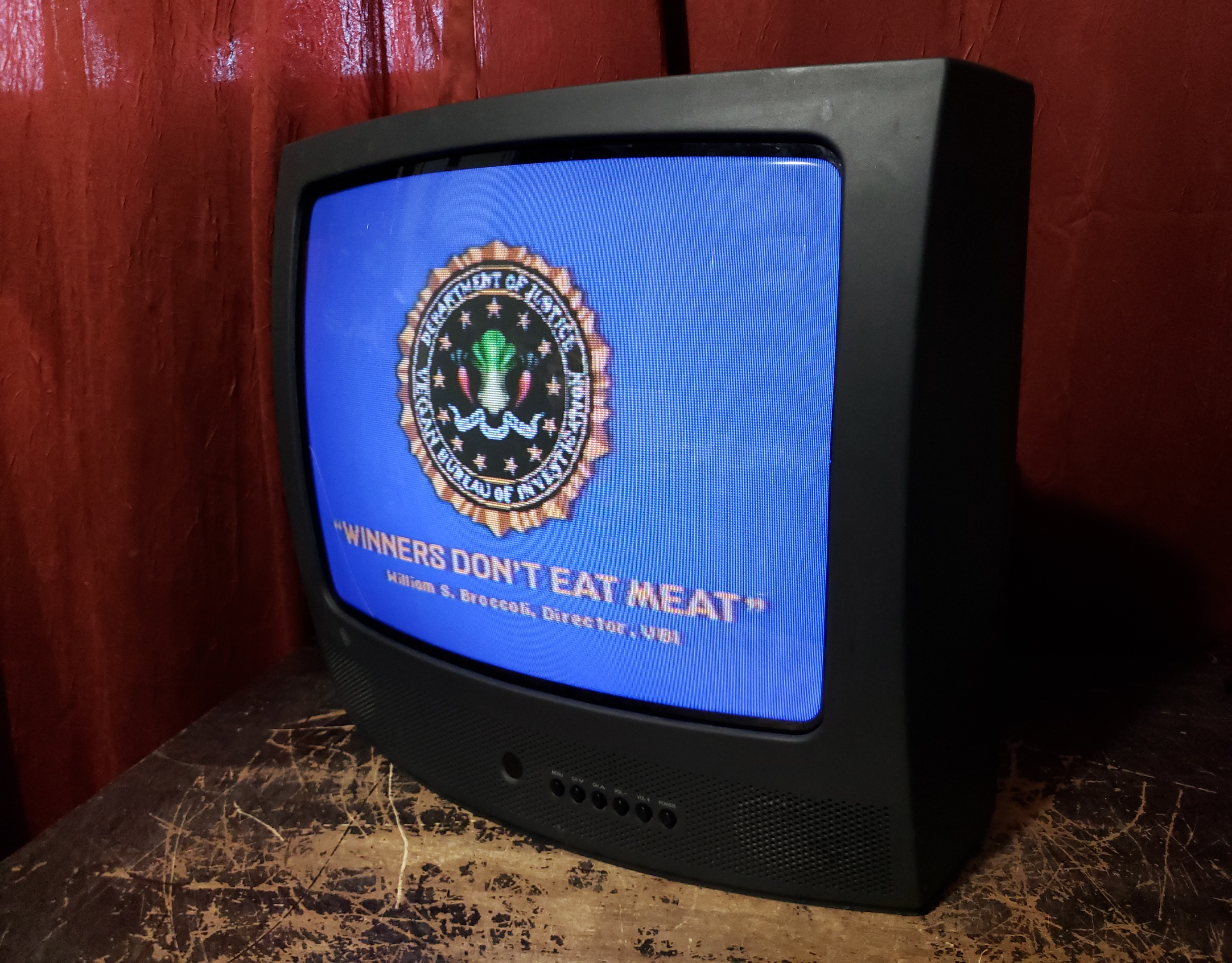

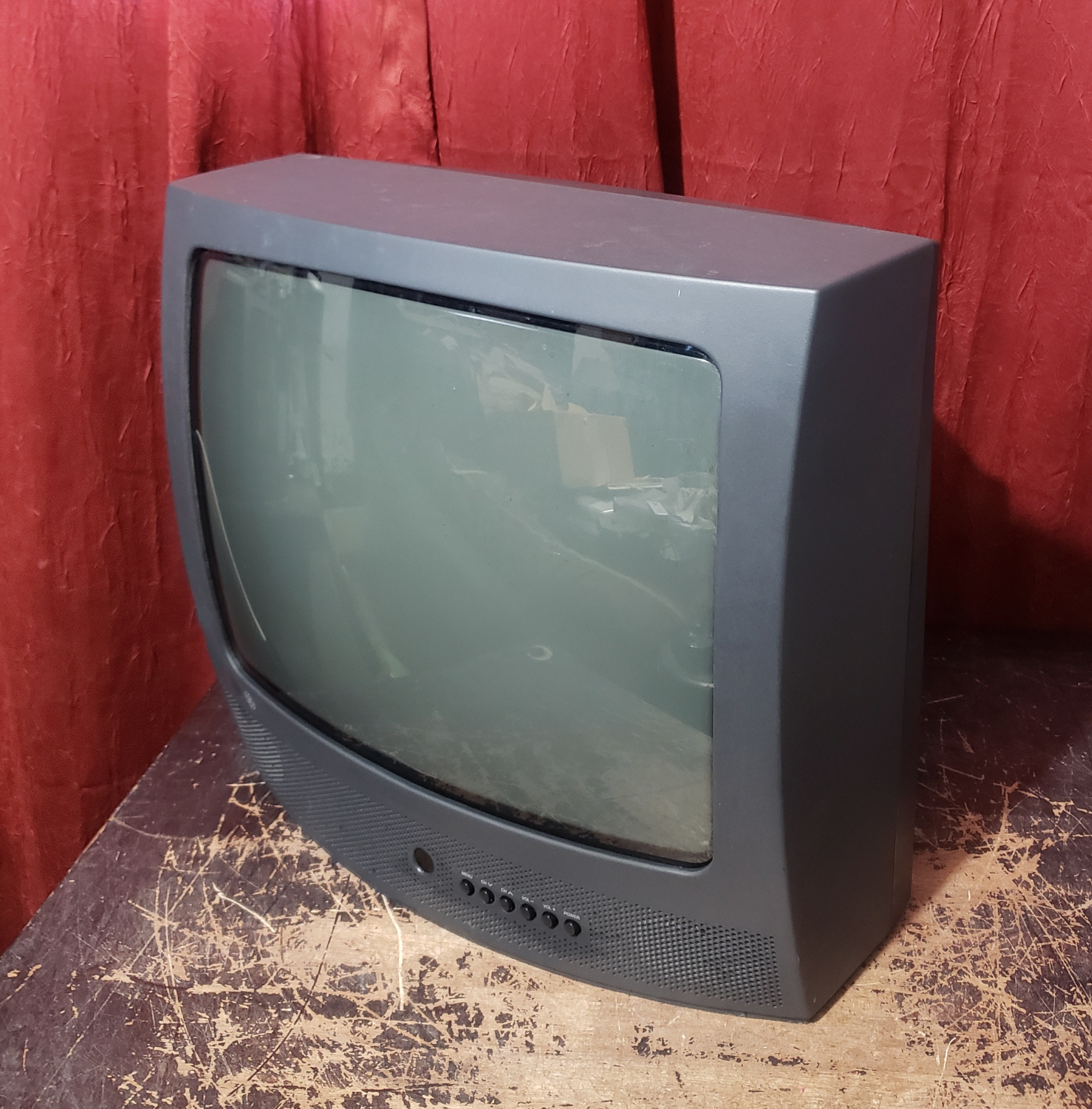

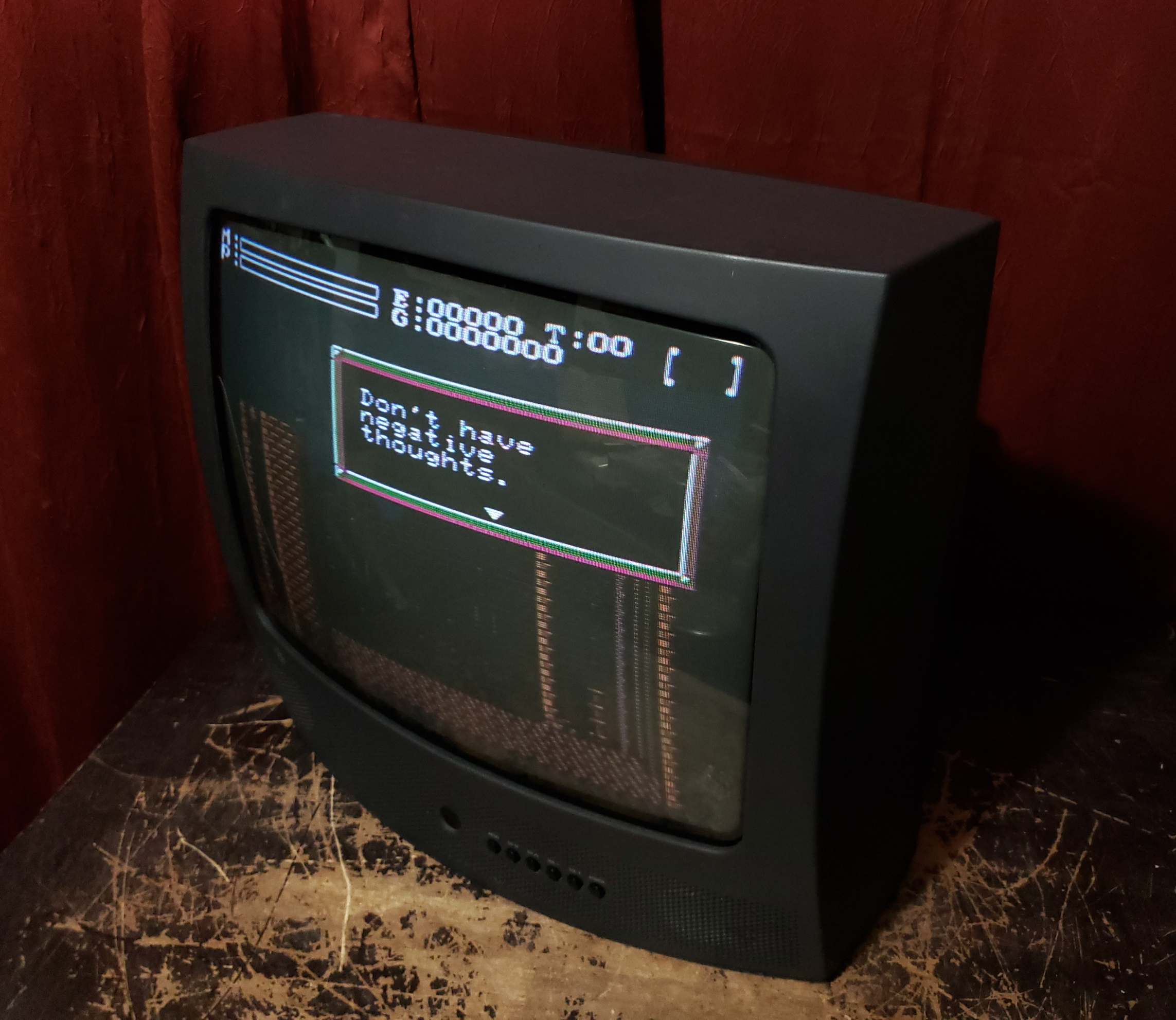

Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 19GT317 |
| Series: | GT |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | LA7612N |
| Comb Filtering: | None |
| Focus Type: | Single |

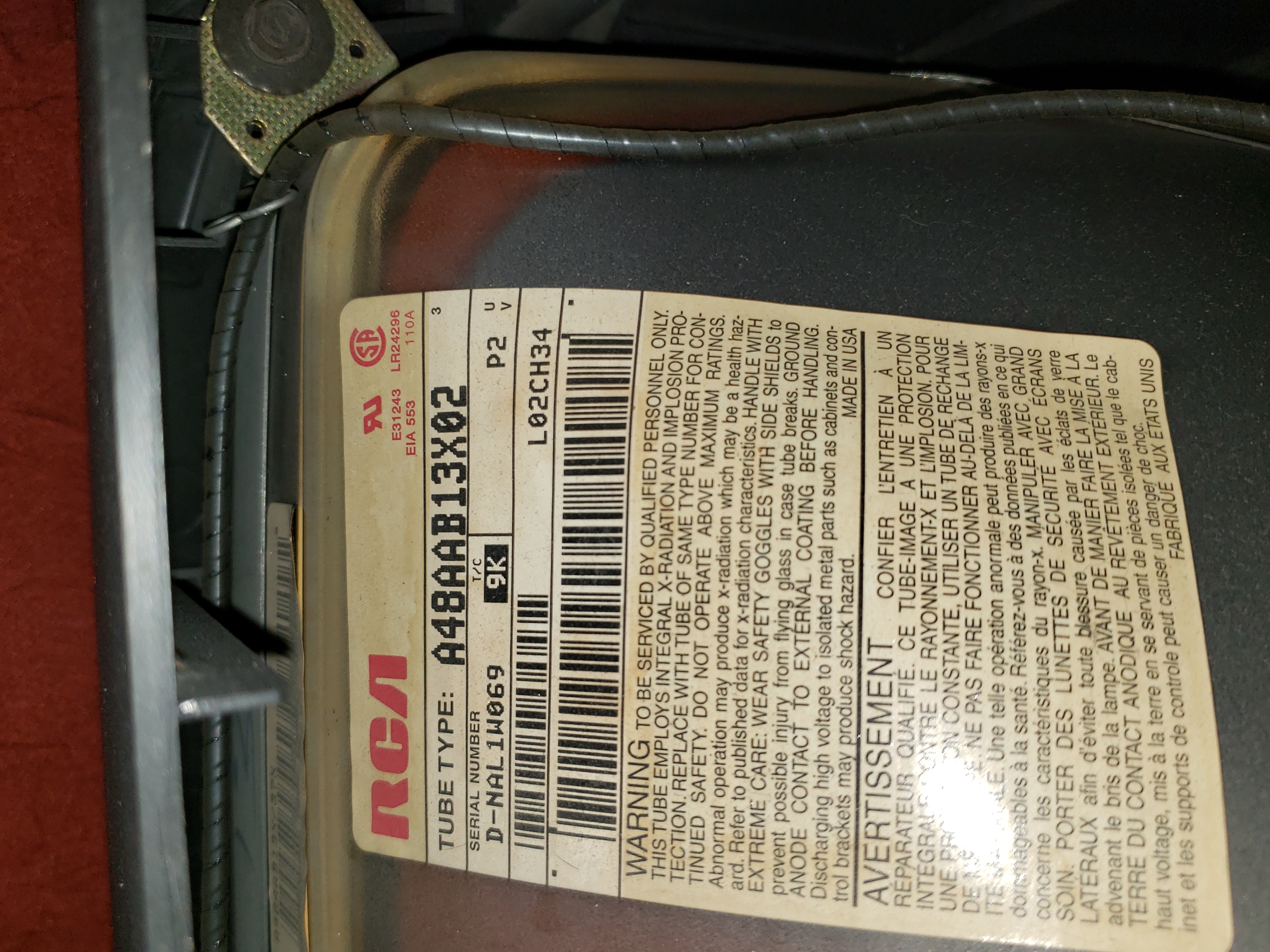

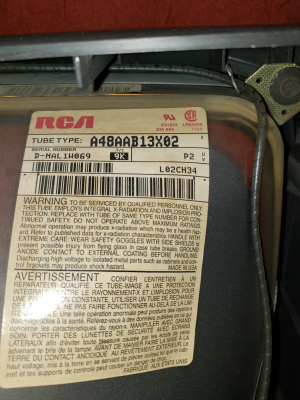

| Tube: | A48AAB13X02 , A48AAB13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

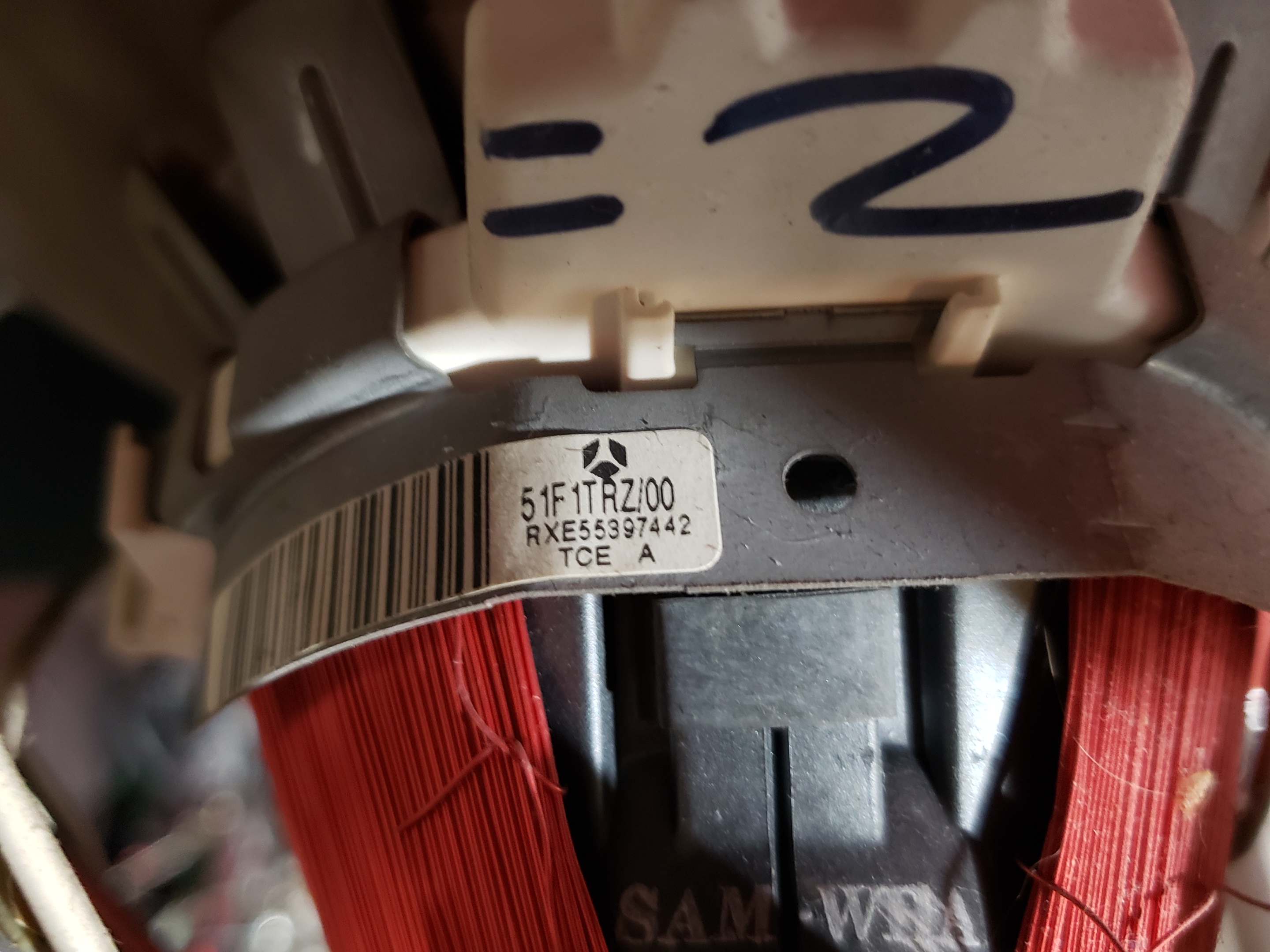

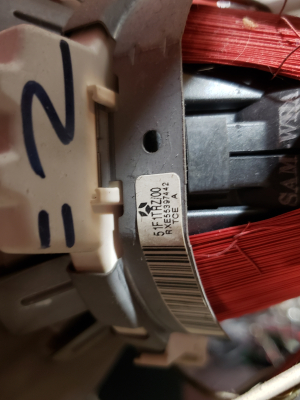

| Yoke: | 51F1TRZ/00 |
| Yoke Horz. Inductance: | 3.2 mH (@ 10 kHz) |
| Yoke Horz. Resistance: | 3.7 ohm |
| Yoke Vert. Resistance: | 12.2 ohm |
| Speakers: | Mono |
| Remote: | CRK20A |

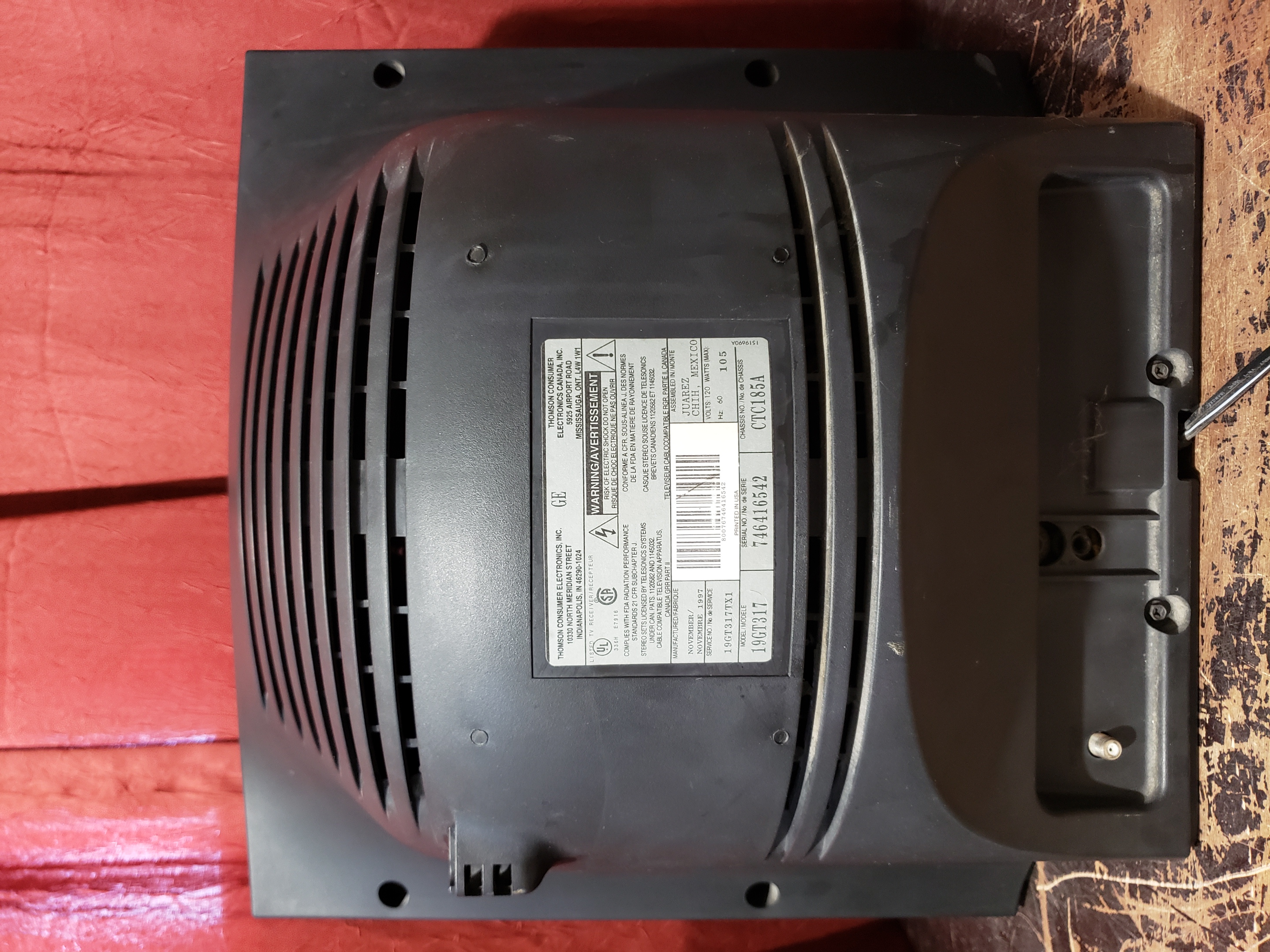

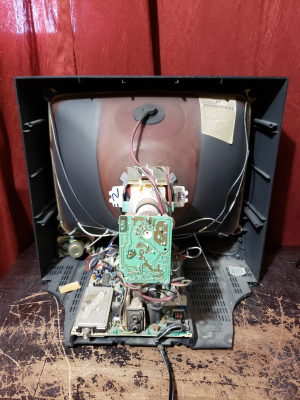

| Chassis: | CTC185A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 219 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements |
