GE 13GP341
Eli Krause, John S
May 26, 2025, 3:58 pm
June 8, 2026, 5:59 pm
May 26, 2025, 3:58 pm
June 8, 2026, 5:59 pm
Summary

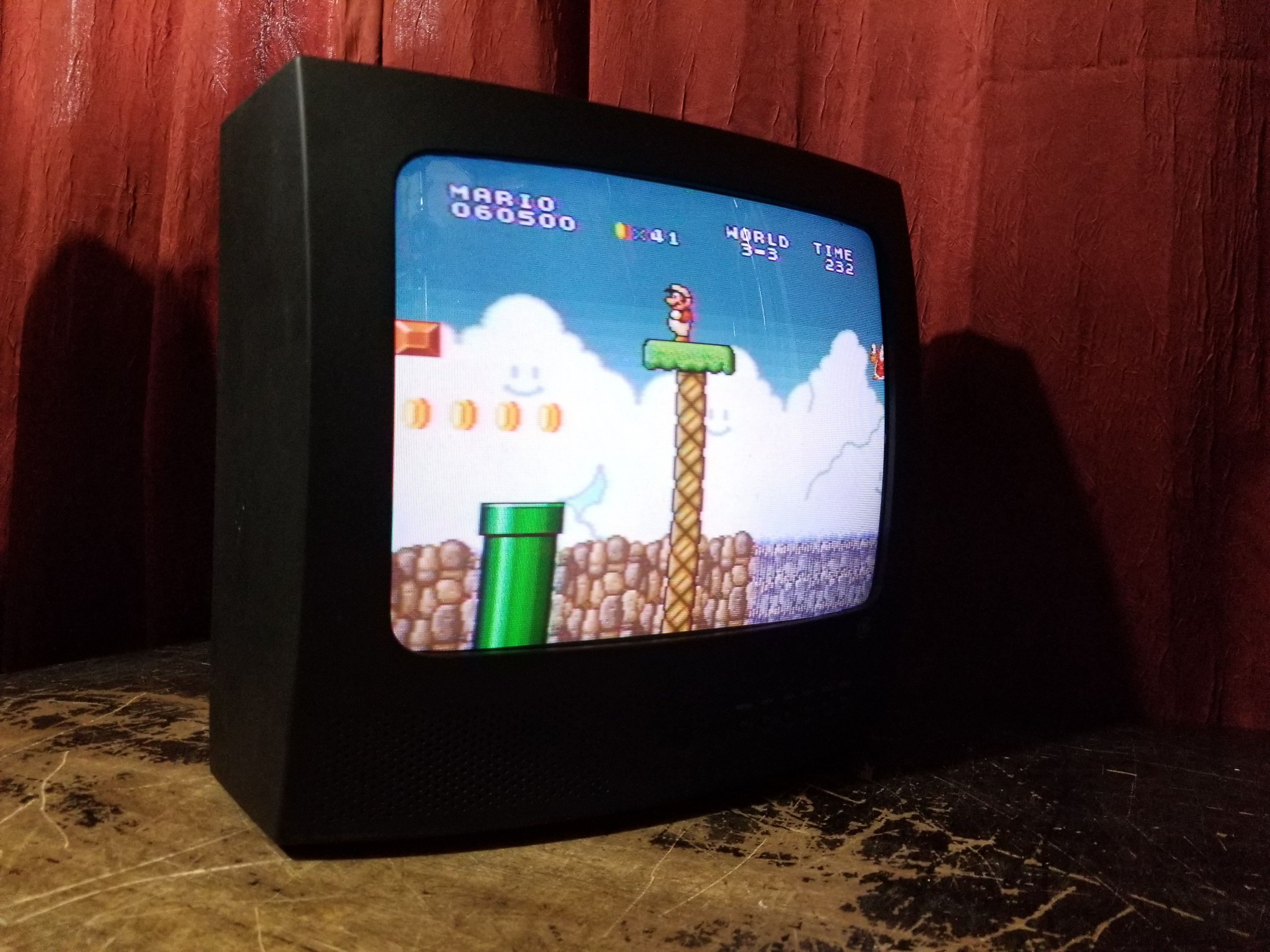

Basic 13" CRT by Thomson. RF input and mono sound.
Manuals
Mods & Repair Guides
- Composite Mod for similar TX808J chassis
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 13GP341 |
| Series: | GP |
| Viewable Size: | 13" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |

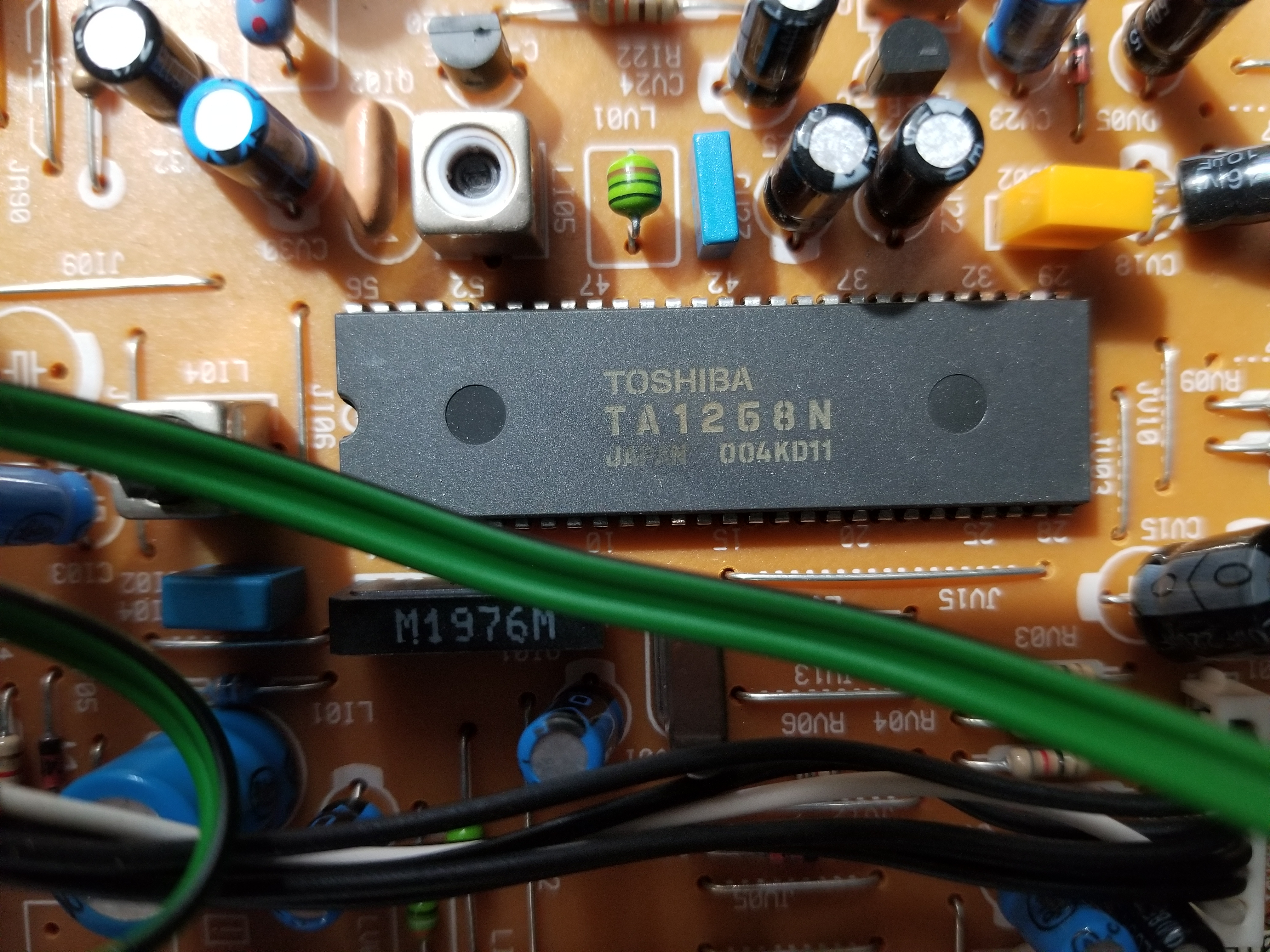

| Jungle IC: | TA1268N |

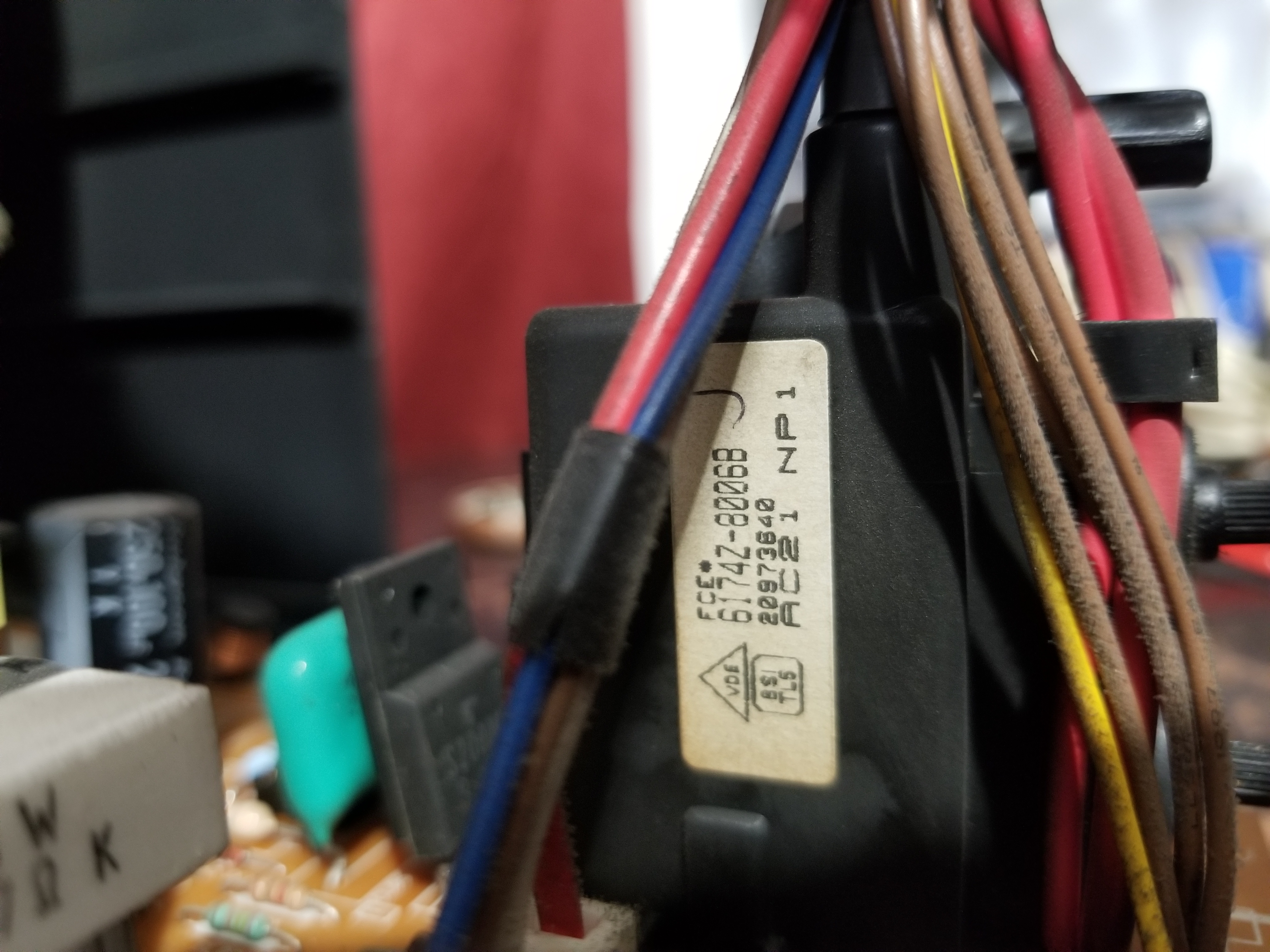

| Flyback: | 6174Z-8006B |

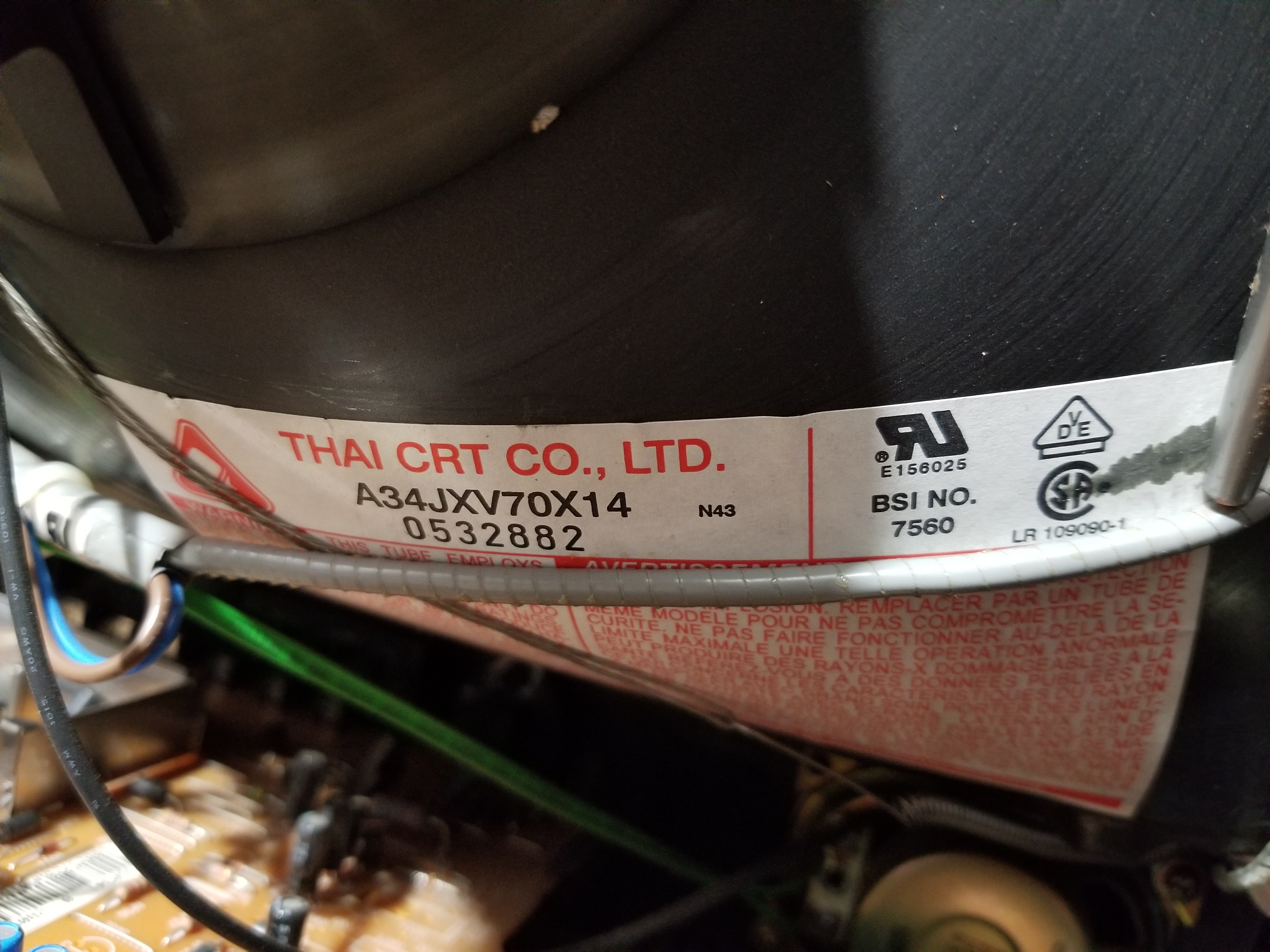

| Tube: | Thai CRT Co. , A34JXV70X , A34JXV70X14 |
| Tint: | Dark |
| Removable Glare Film: | No |

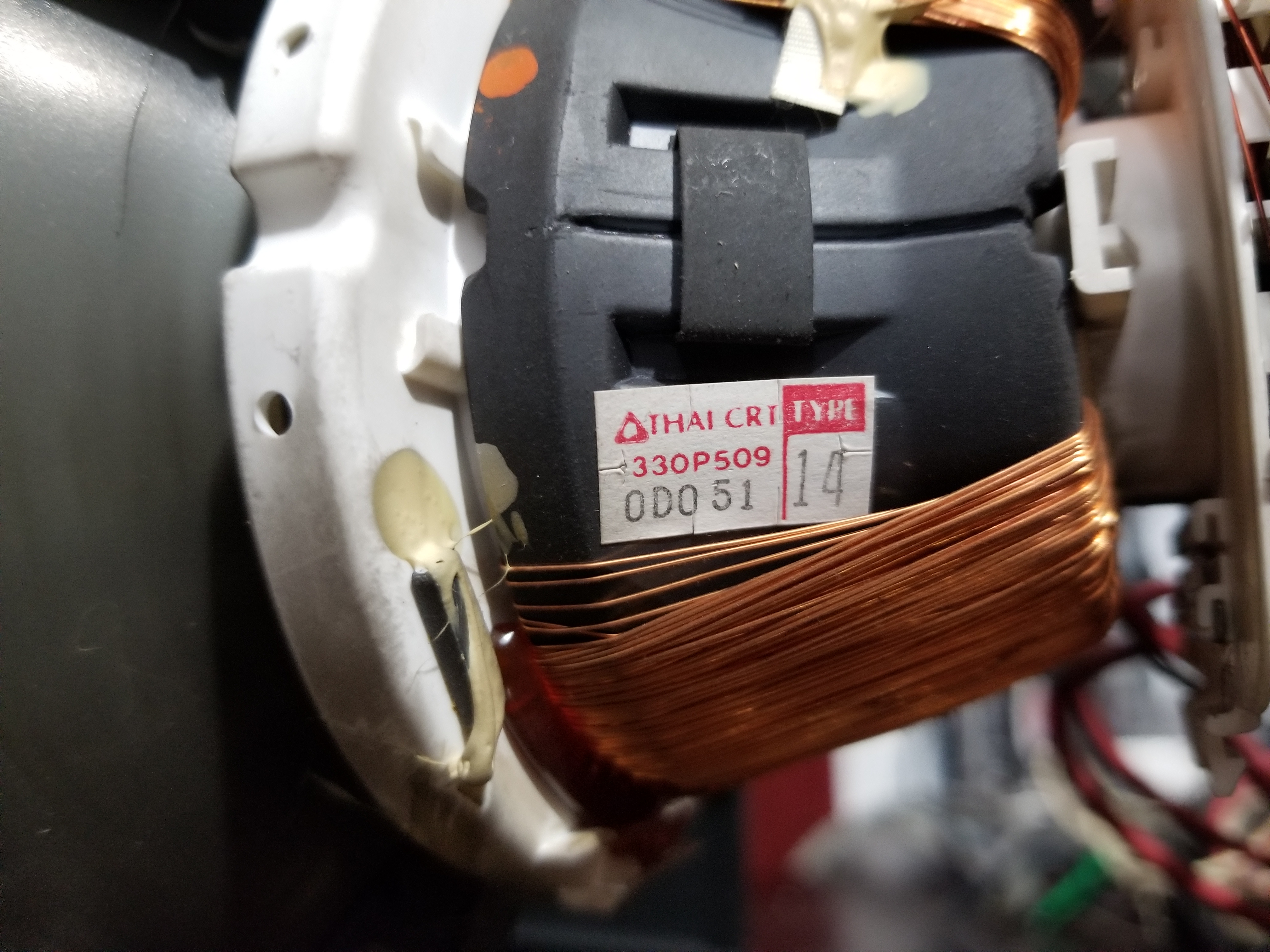

| Yoke: | 330P509 |
| Yoke Horz. Inductance: | 2.435 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.02 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.945 ohm |
| Yoke Vert. Resistance: | 15.76 ohm |
| Speakers: | Mono |

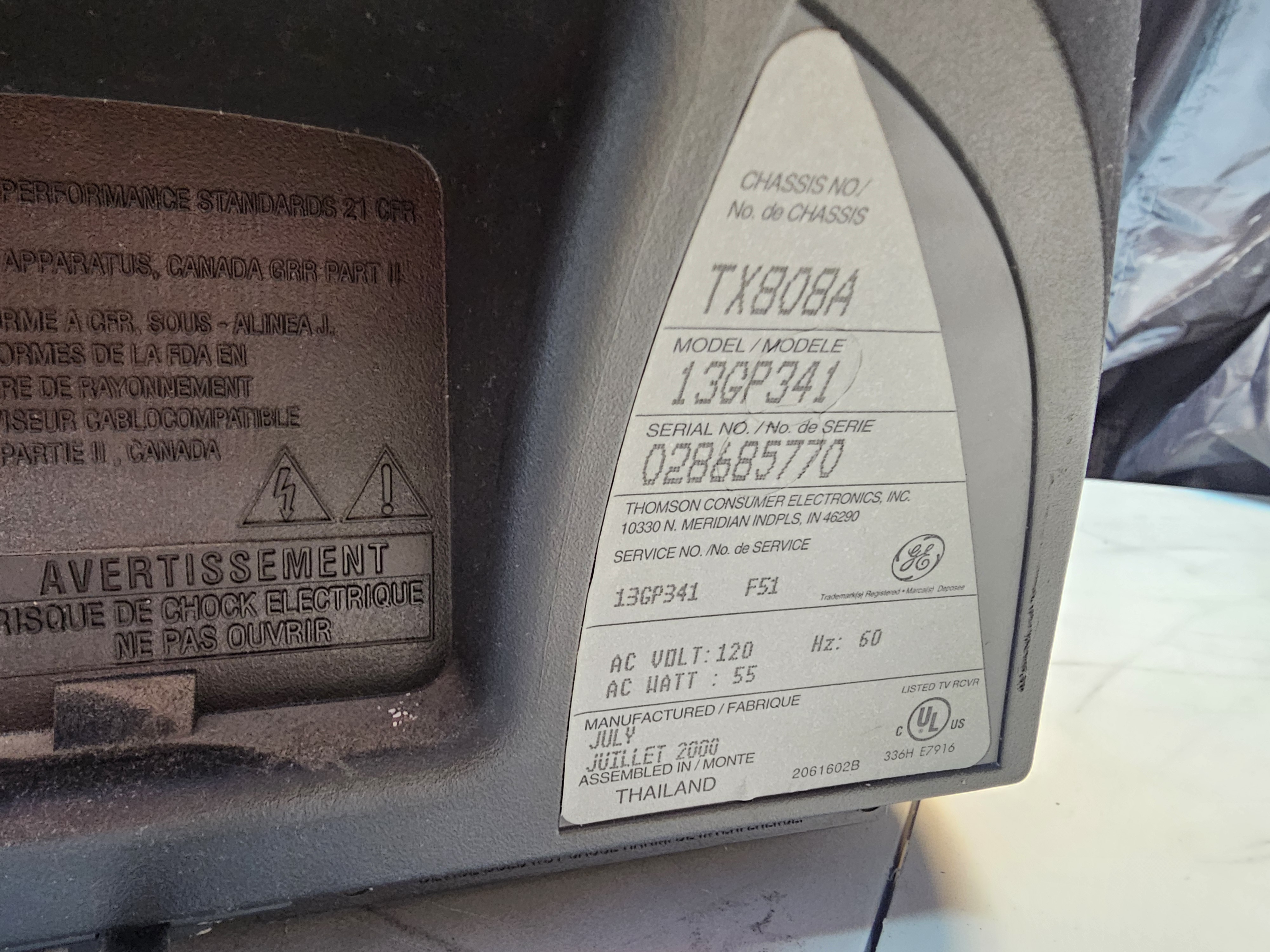

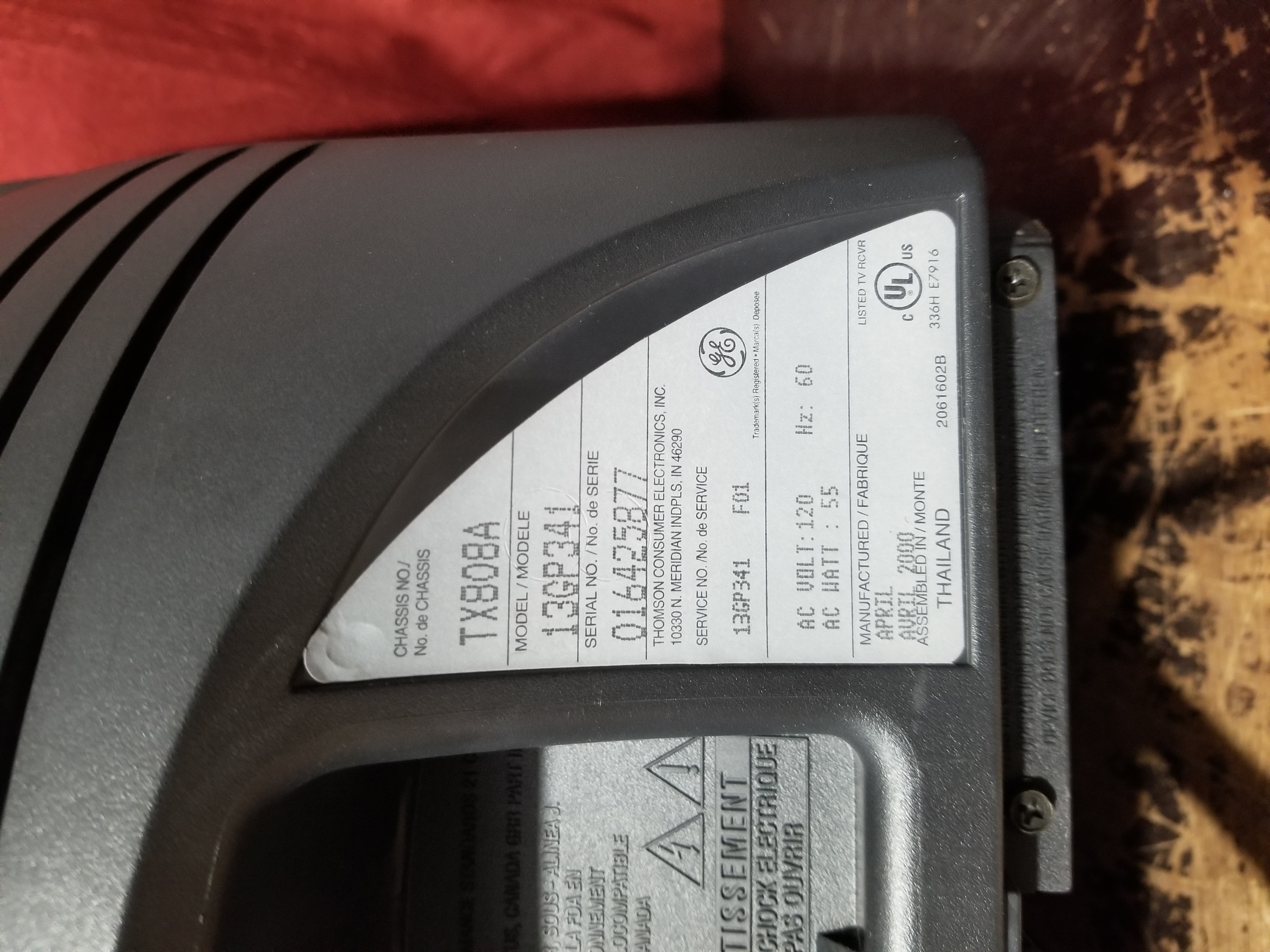

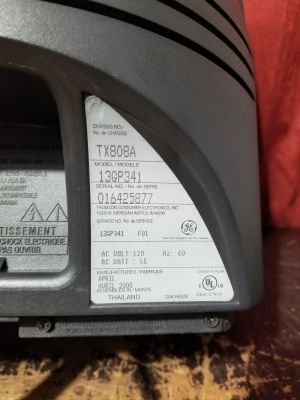

| Chassis: | TX808A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 119 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux, Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
