Summary
You have purchased a product that is the leader in a brand new category of products, the TV/VCR. Your GoldStar ViewMax TV/VCR is a one-piece unit that combines a color television with a VHS video cassette recorder. Gone is the confusion and wariness associated with connecting a VCR to a television-it's already done for you. No messy wires to untangle, just attach the antenna to receive TV reception.

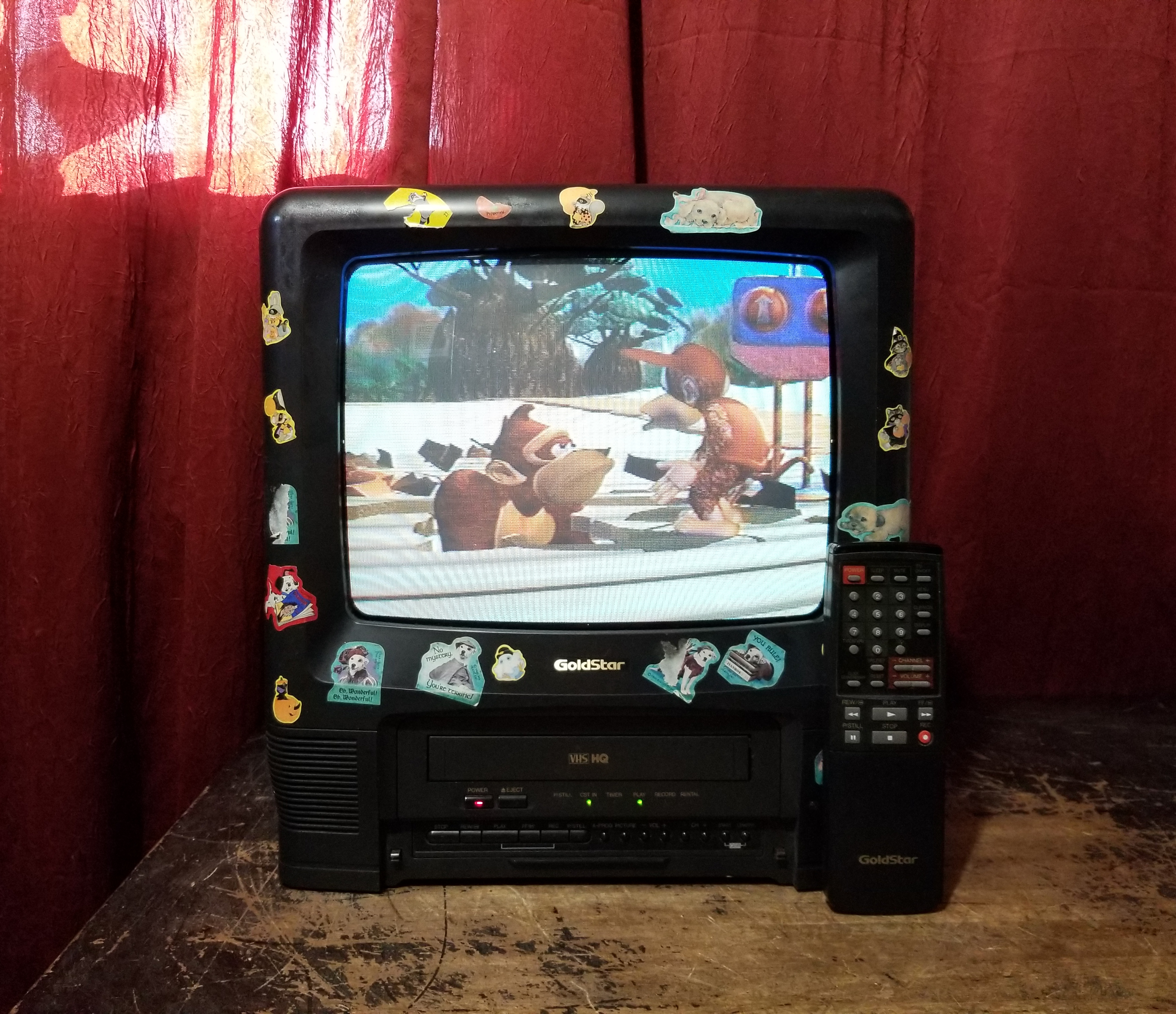

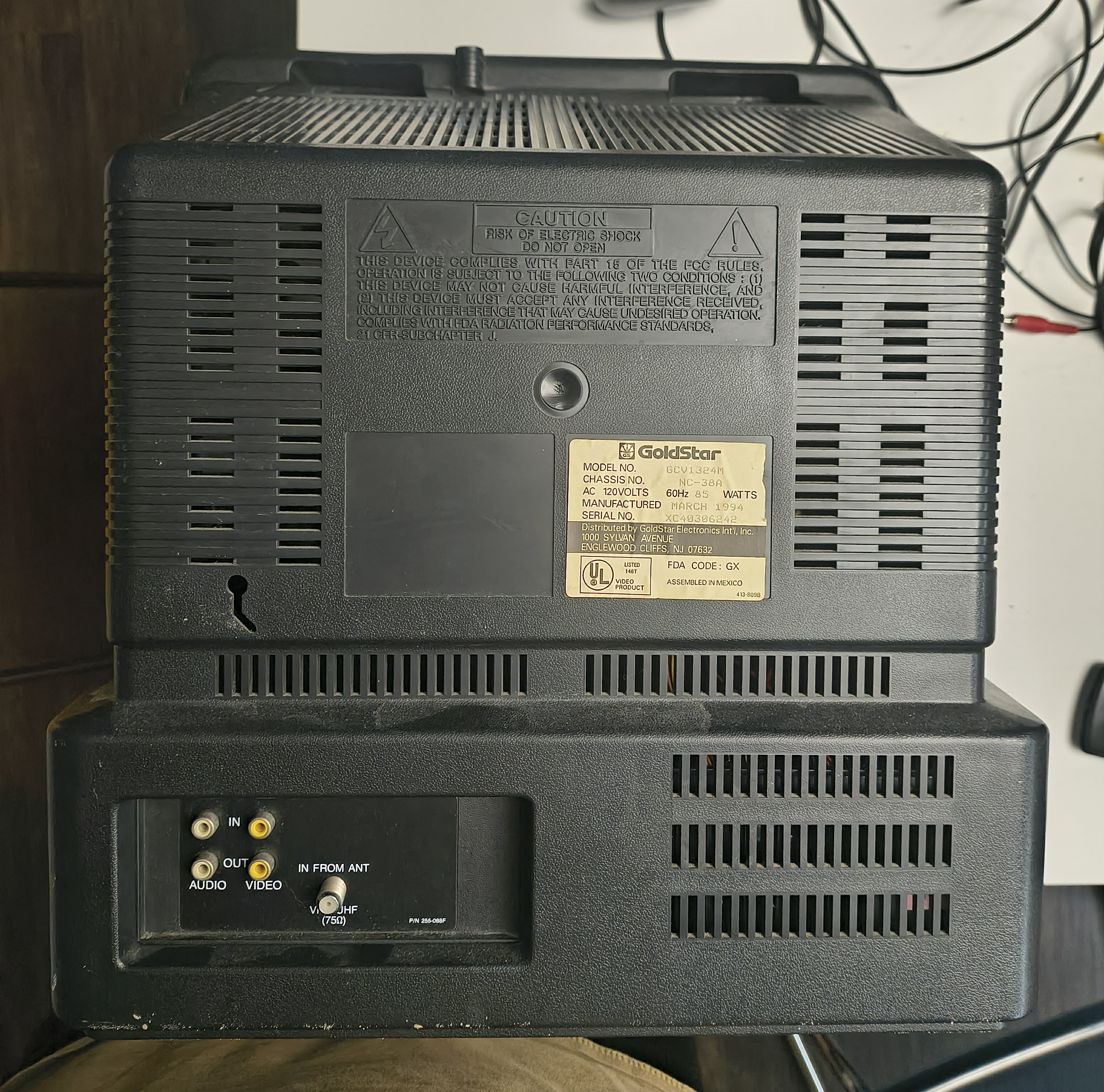

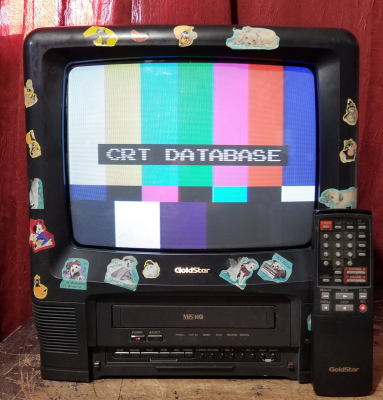

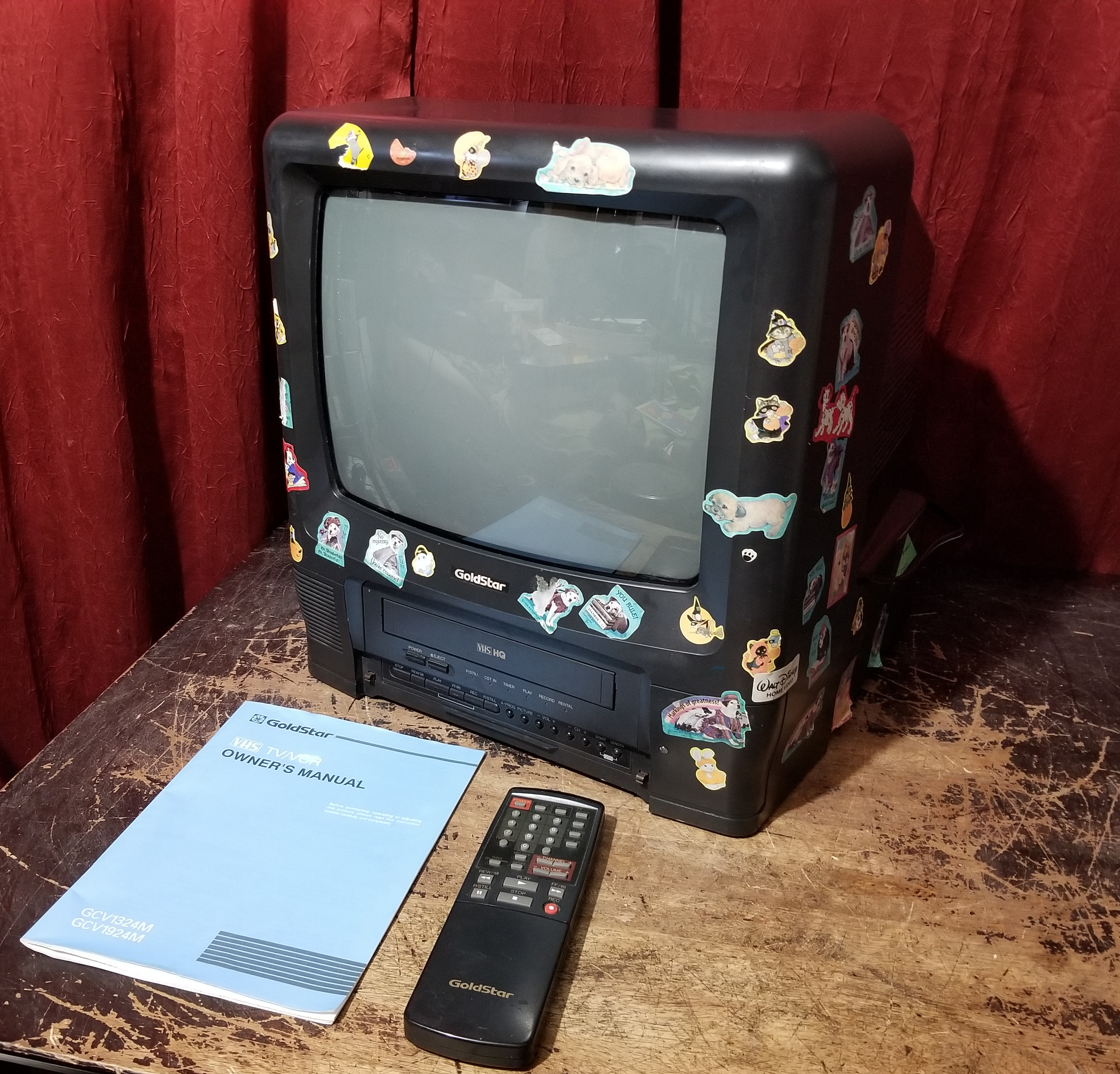

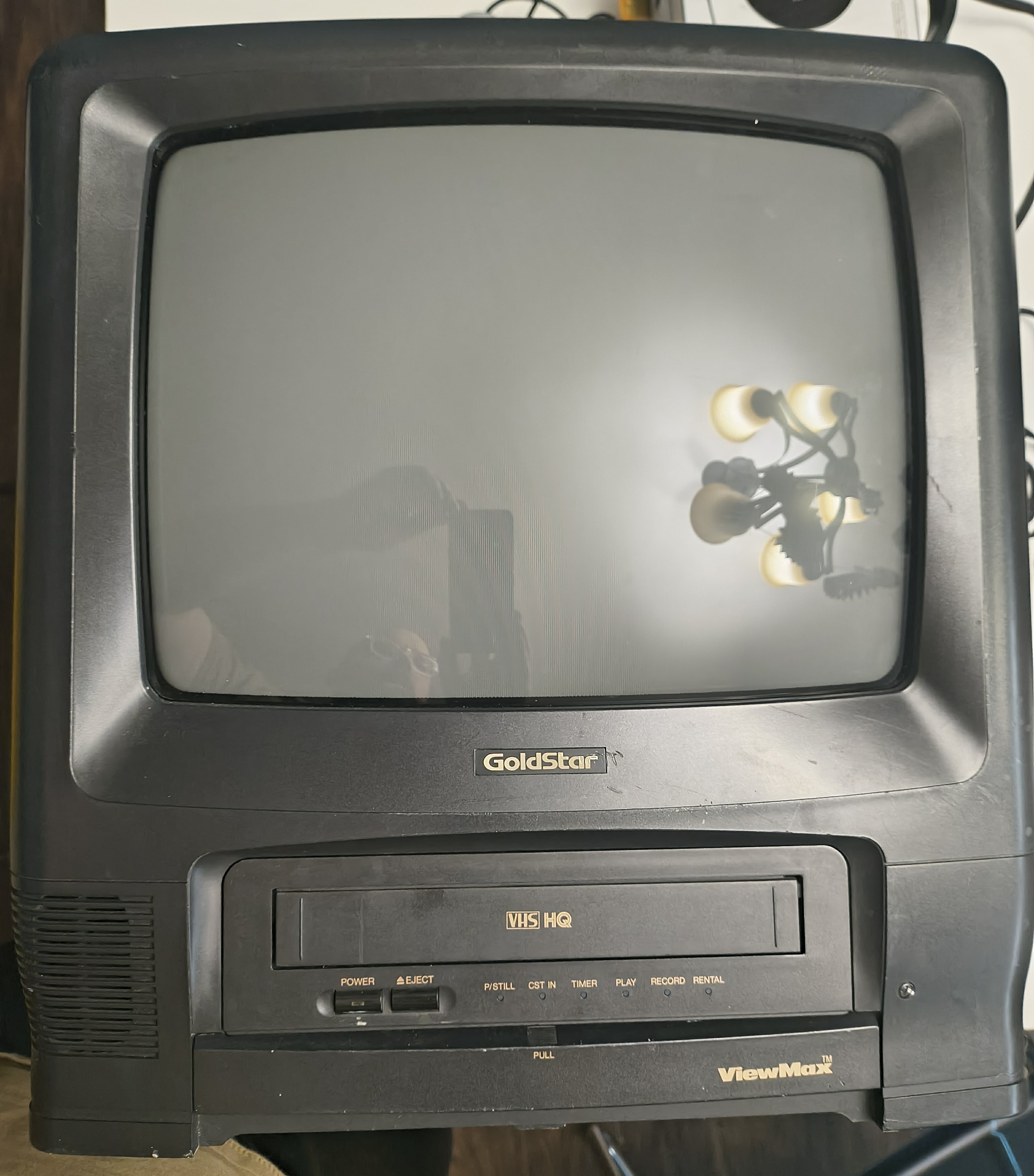

13" TV/VCR combo set by Goldstar, made at their Mexico plant in 1993. Has RF and composite inputs and mono sound.
(Special thanks Zach Keasling for pics!)

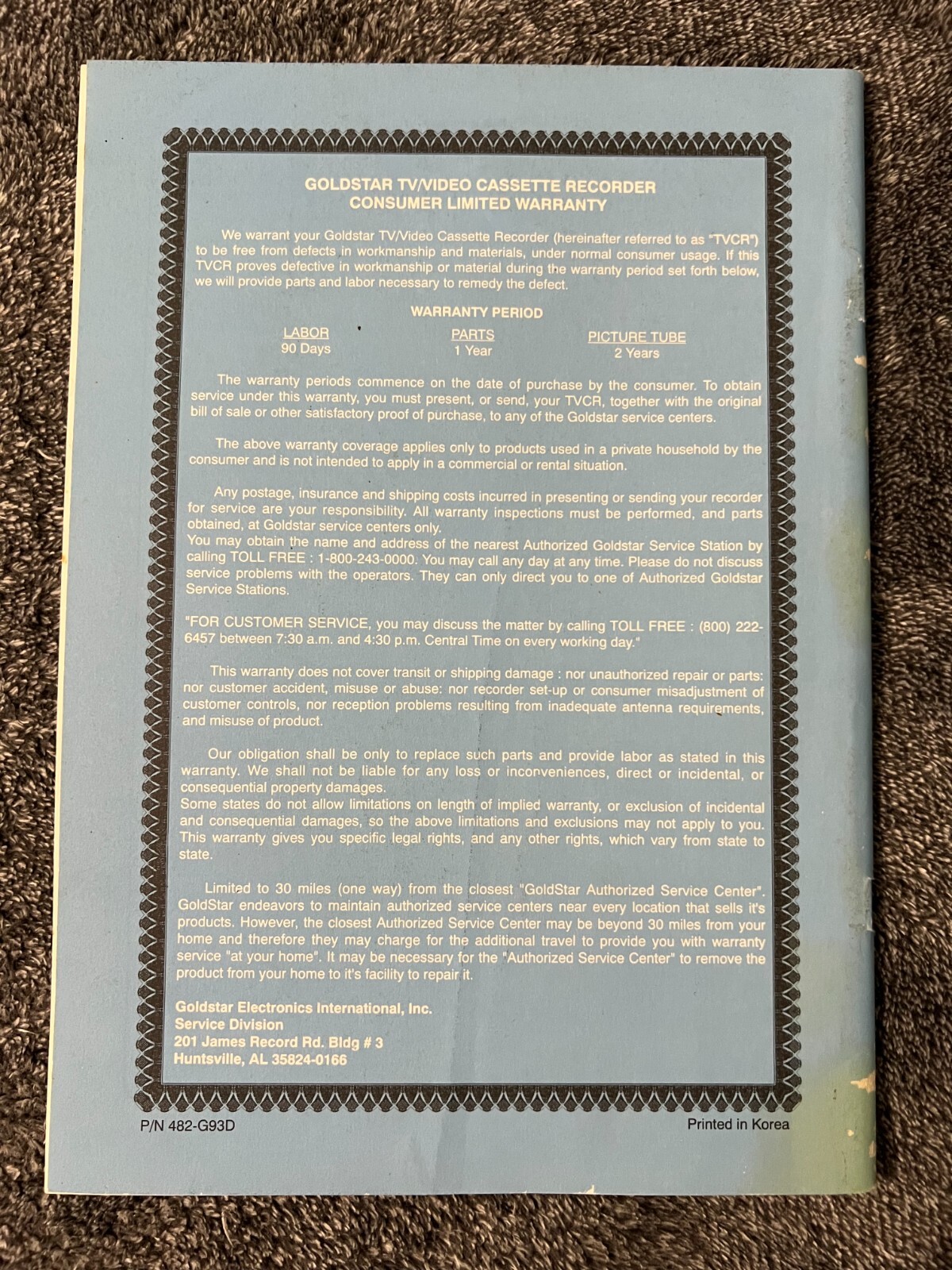

Manuals
Media & Promo Materials
- Recommended in the book from the year 2000, Moms Saving Money by The Tightwad Twins
Gallery
| Specifications | |
|---|---|
| Brand: | Goldstar |
| Manufacturer: | Goldstar |

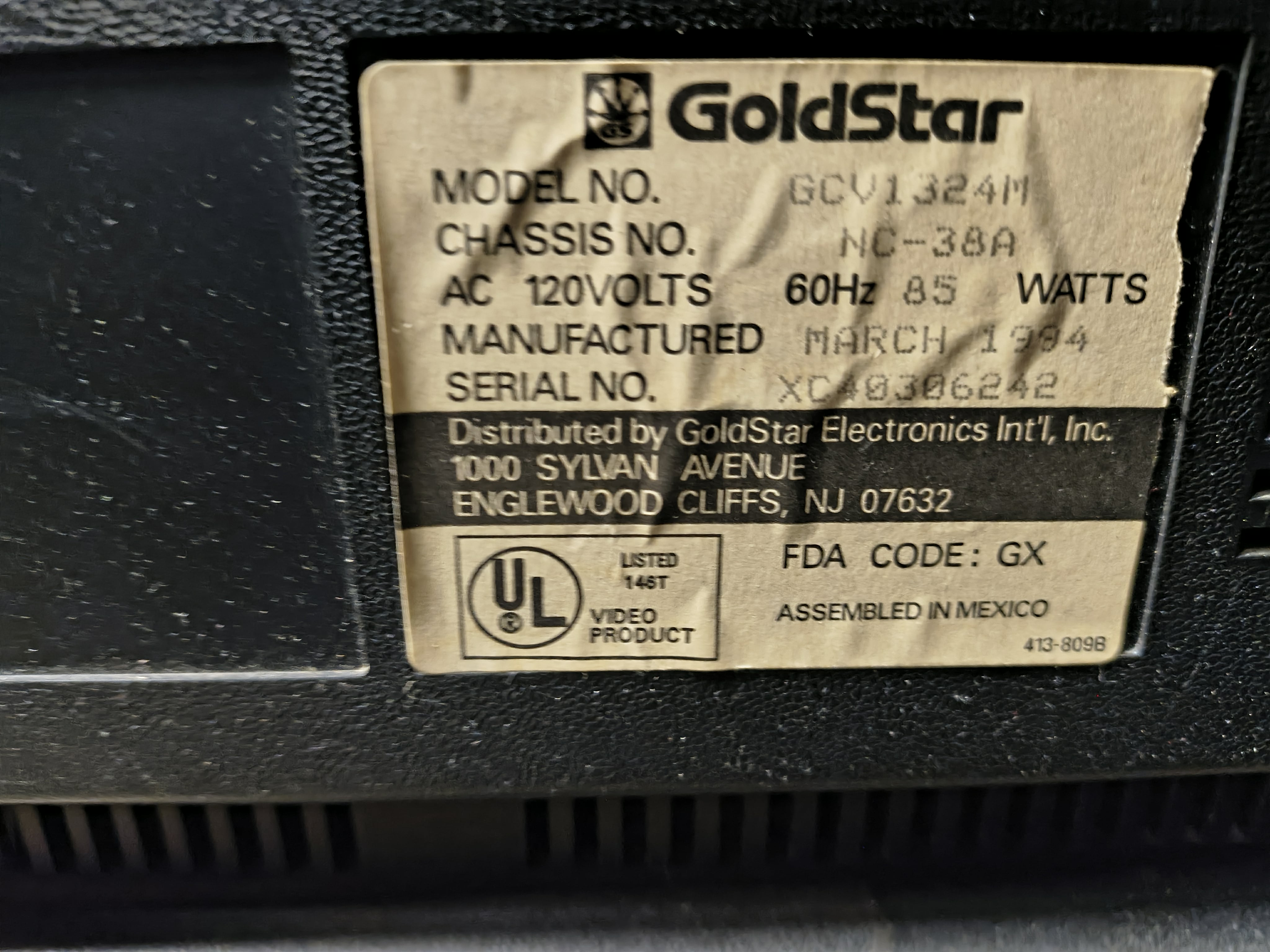

| Model: | GCV1324M |
| Series: | ViewMax |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

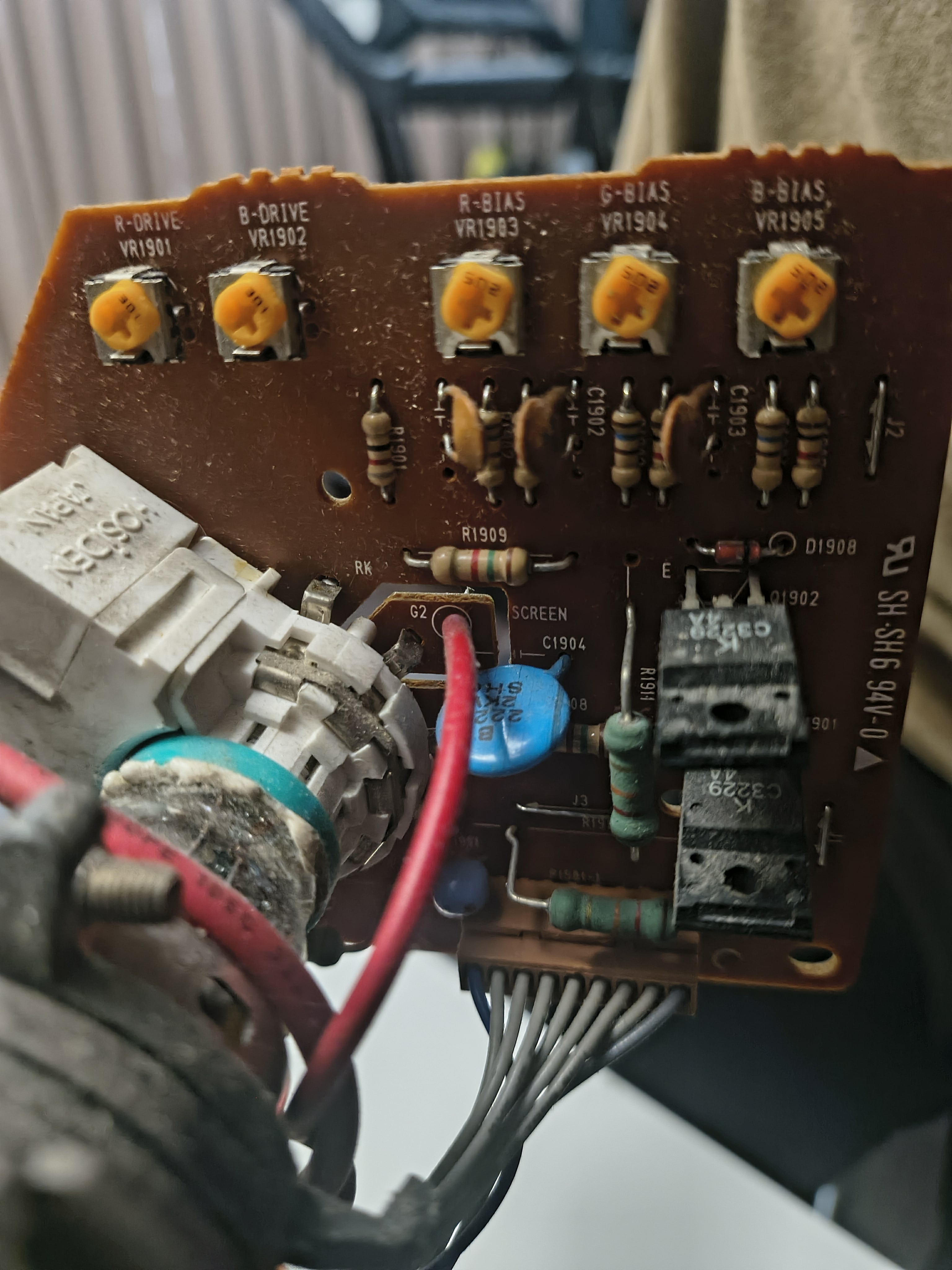

| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D1554 |

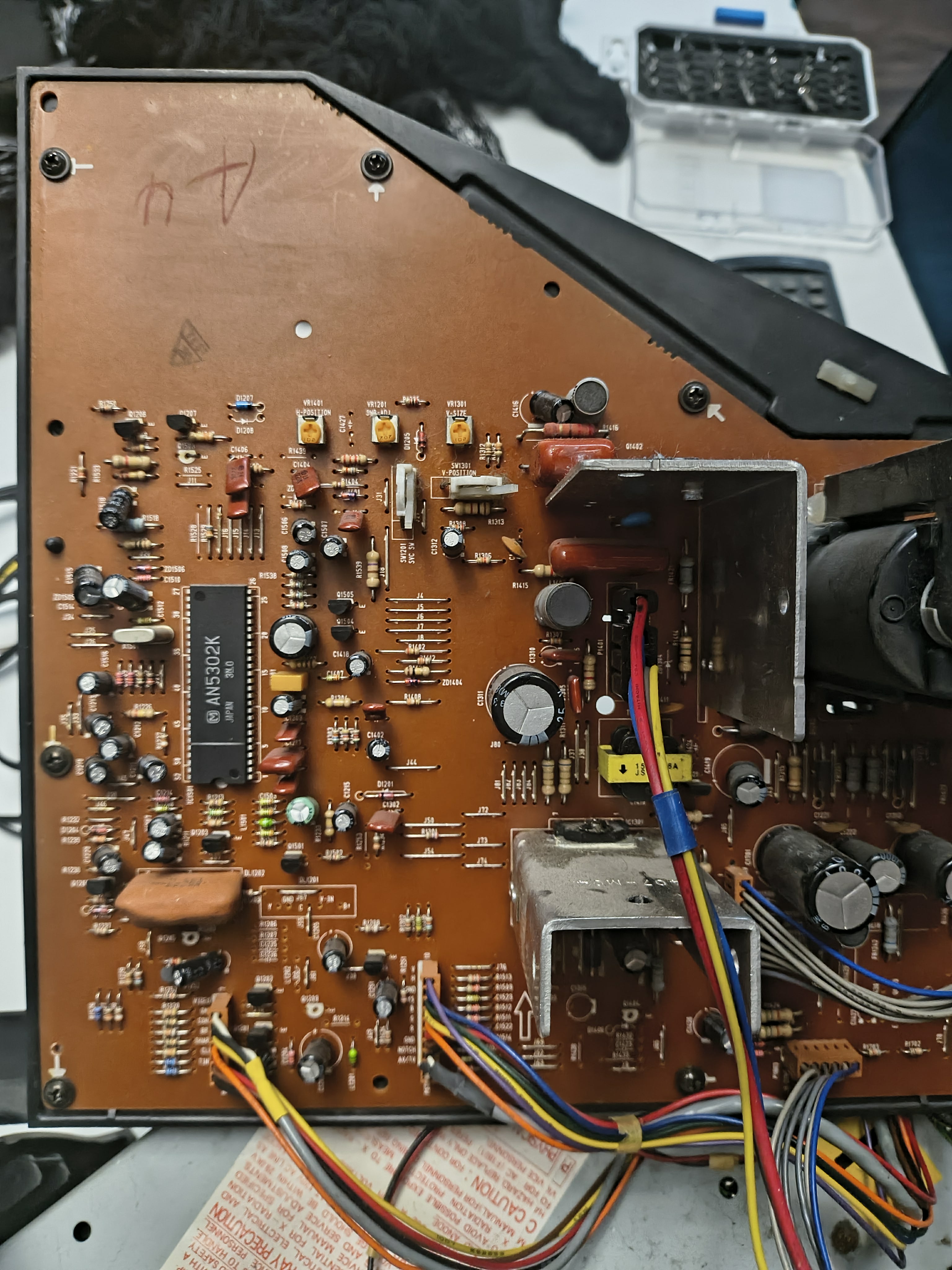

| Jungle IC: | Panasonic, AN5302K |
| Comb Filtering: | Notch |
| Focus Type: | Single |

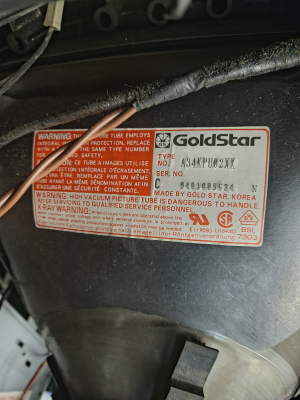

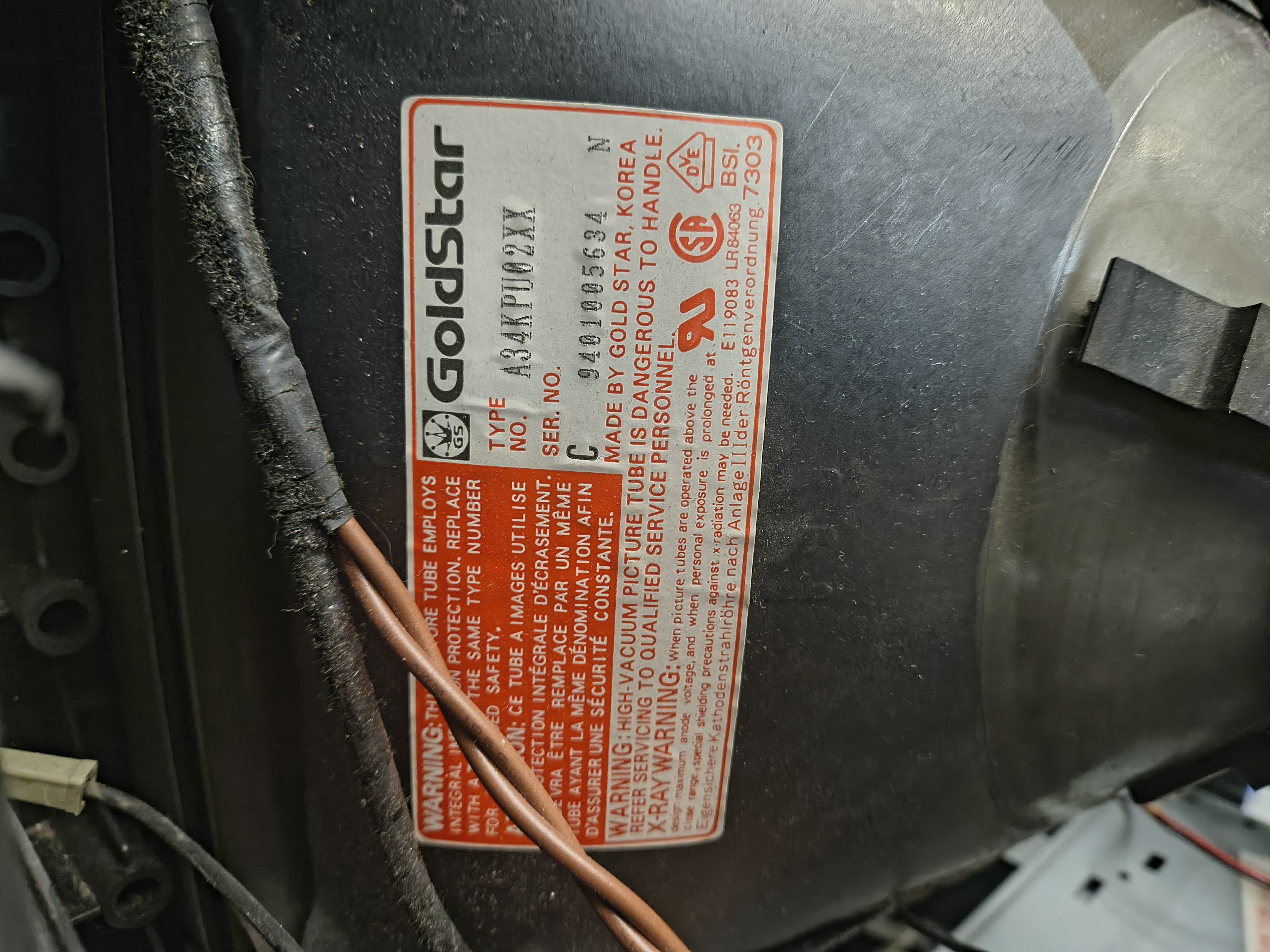

| Tube: | A34KPU02XX , A34KPU02X , Goldstar |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

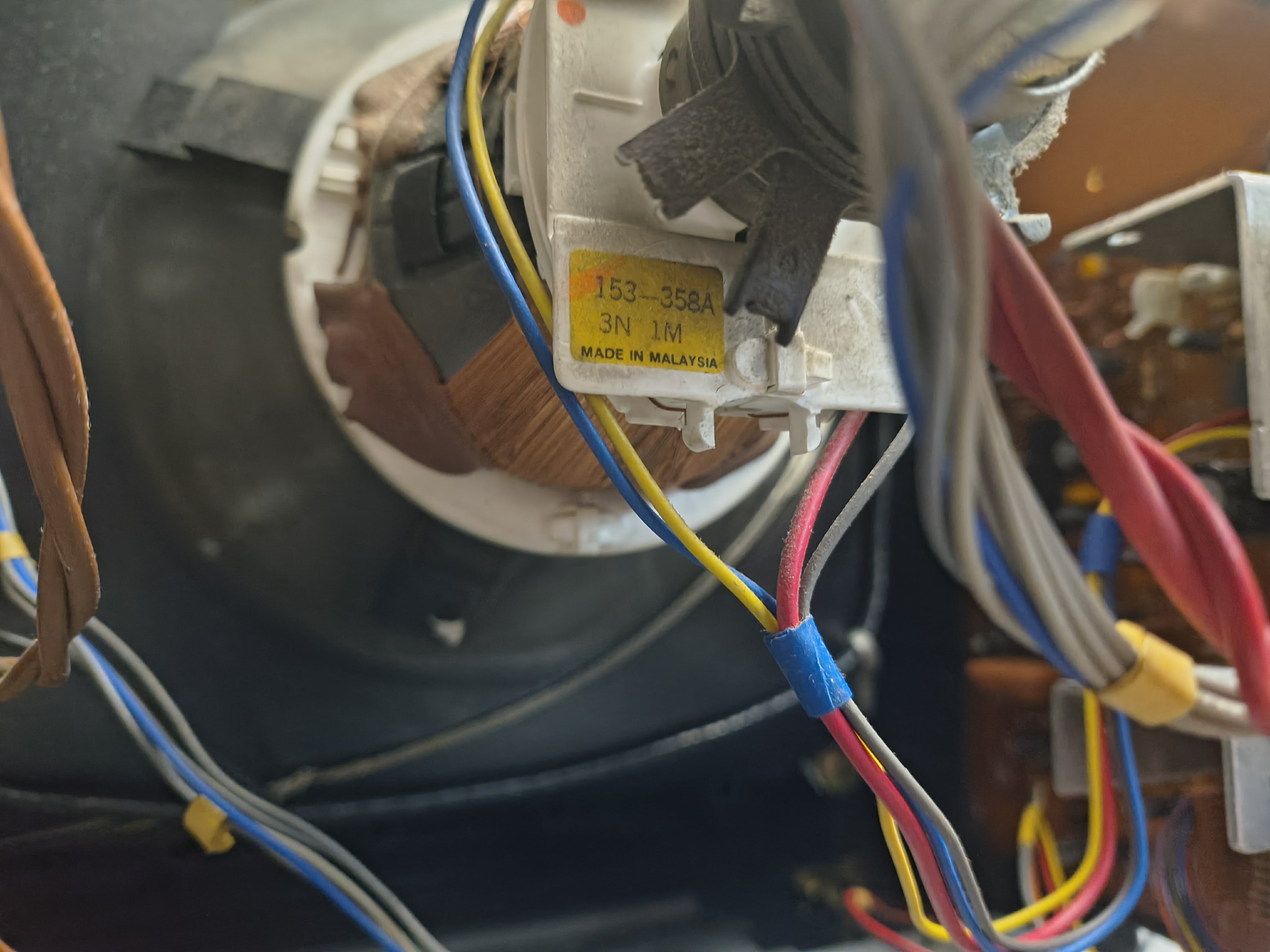

| Yoke: | 153-358A |
| Yoke Horz. Resistance: | 4.1 ohm |
| Yoke Vert. Resistance: | 12.3 ohm |

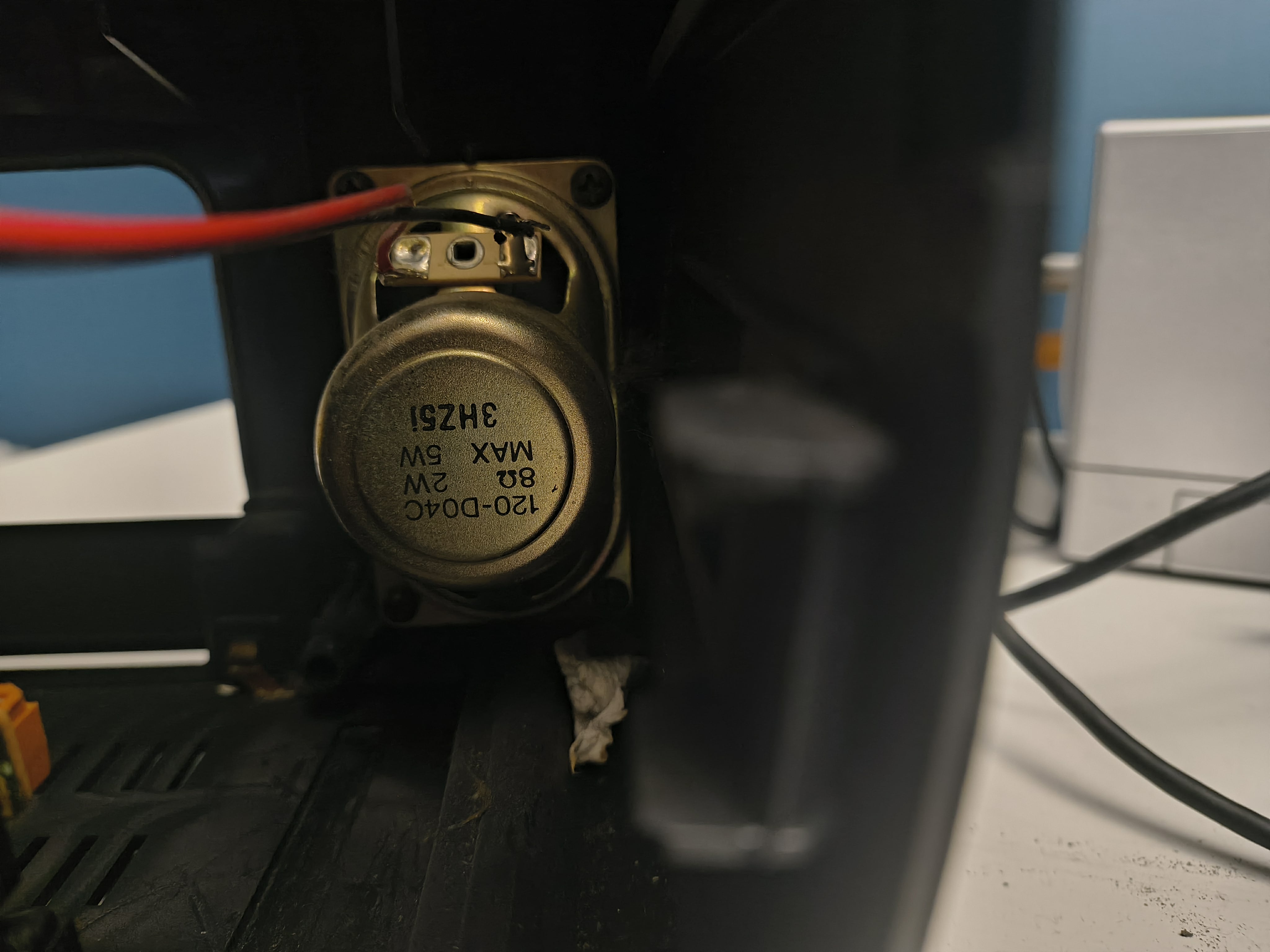

| Speakers: | Mono, 2W |

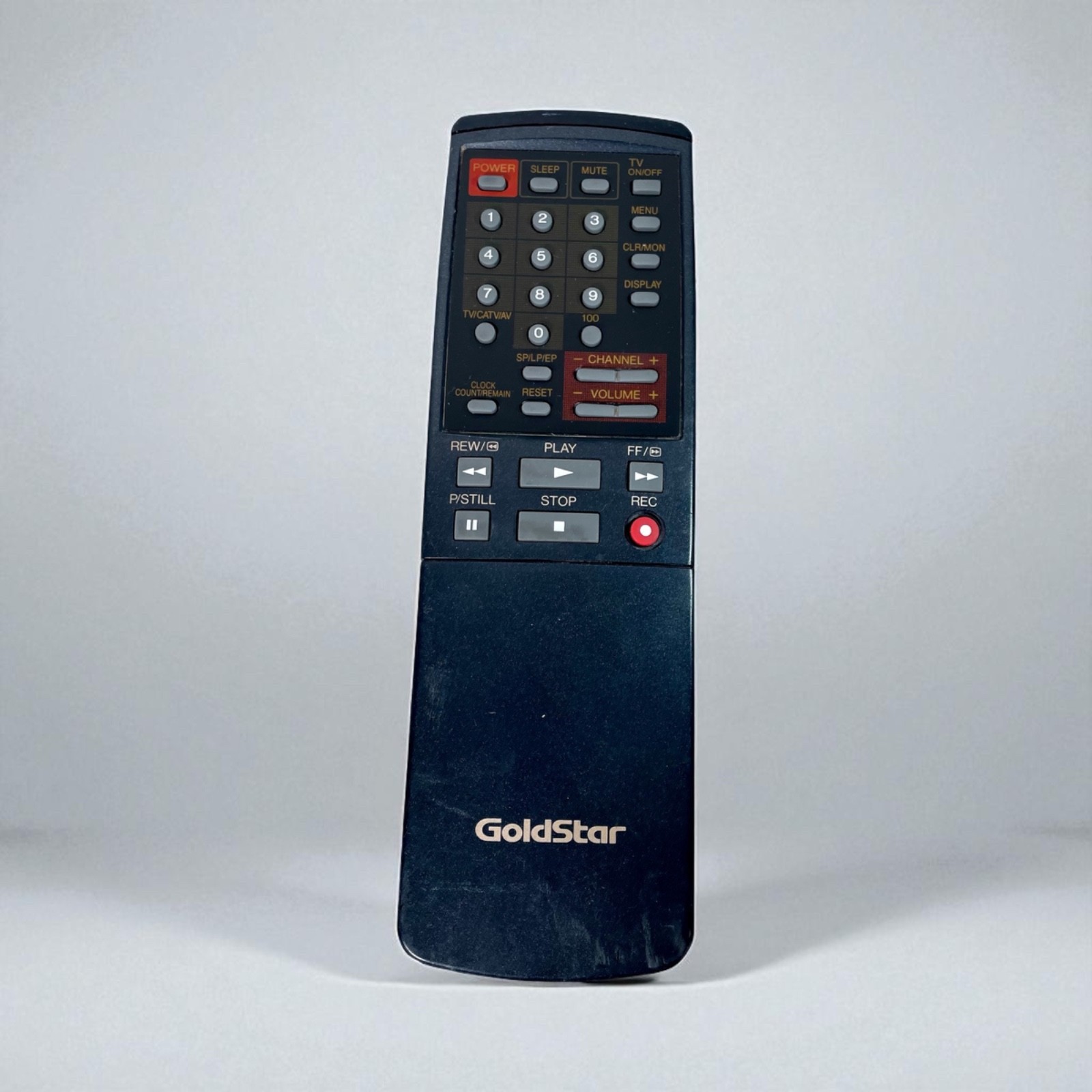

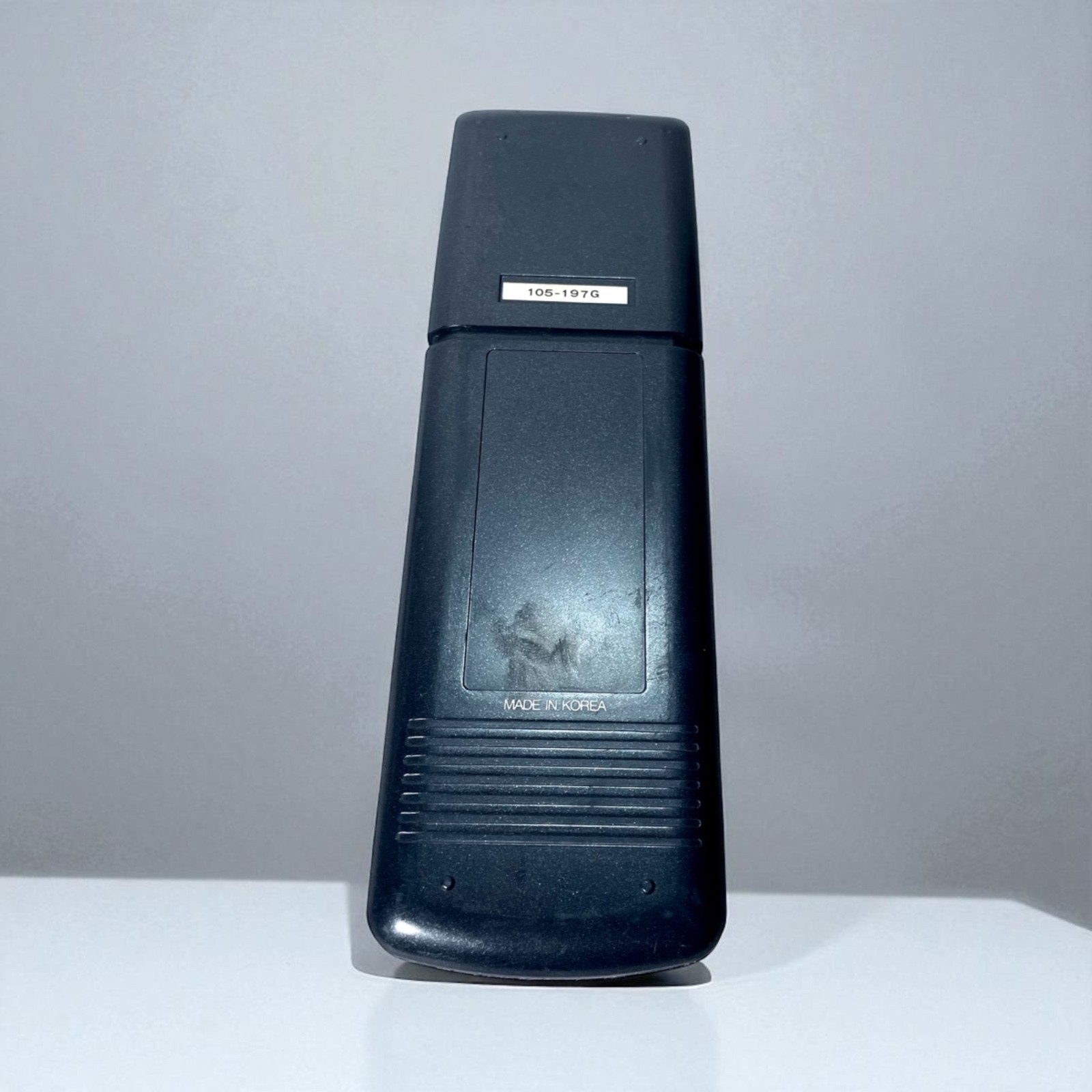

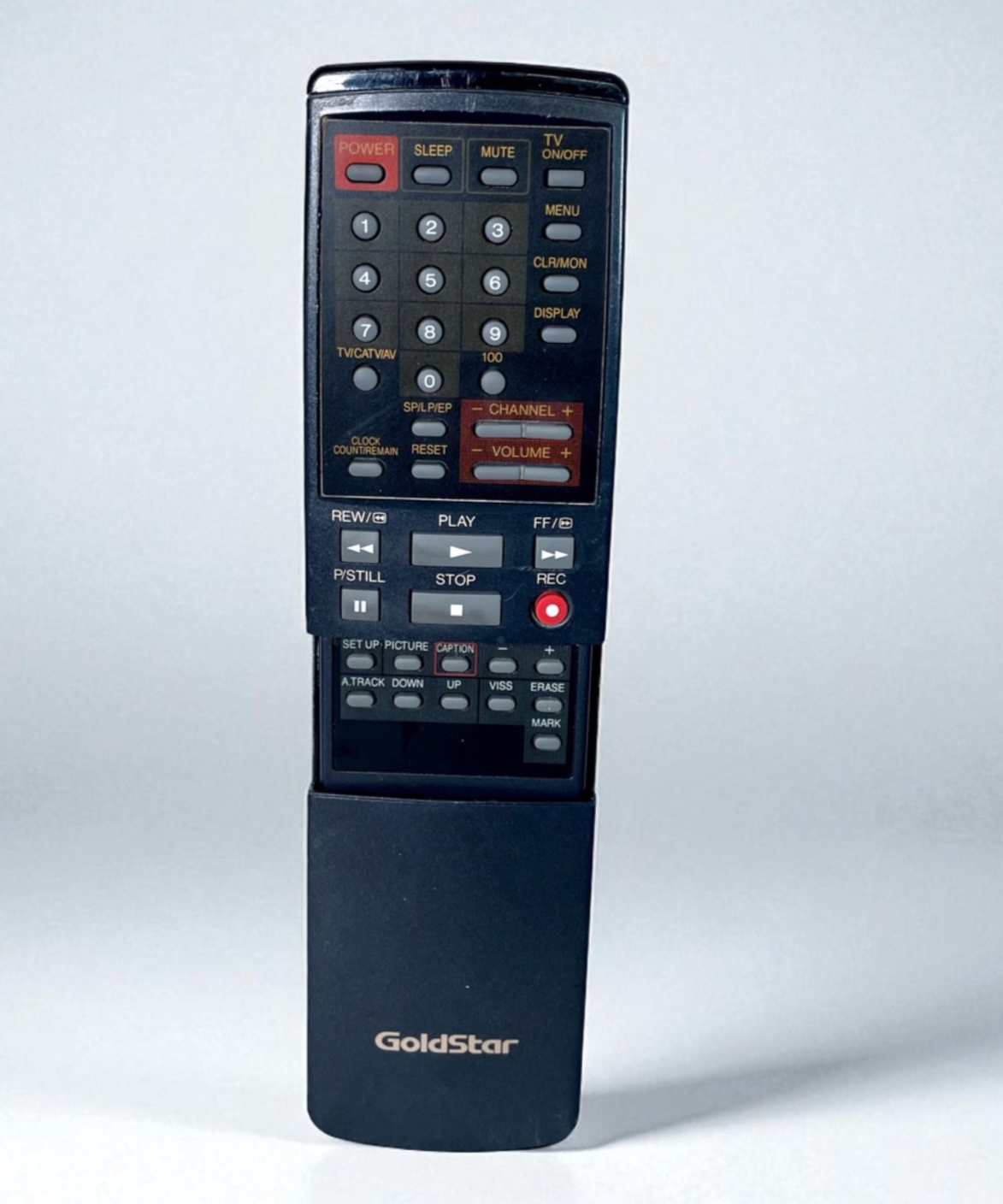

| Remote: | 105-197G |

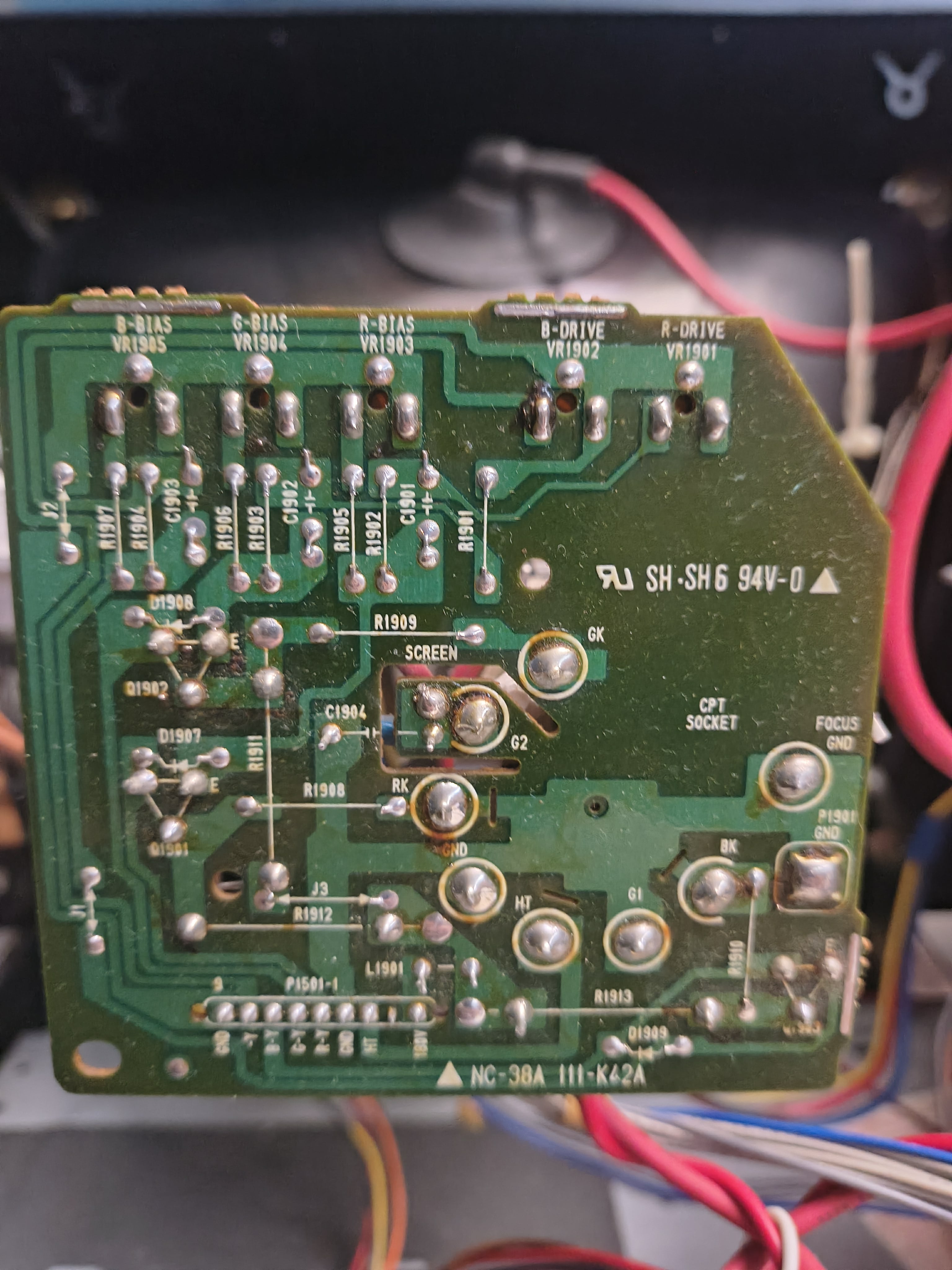

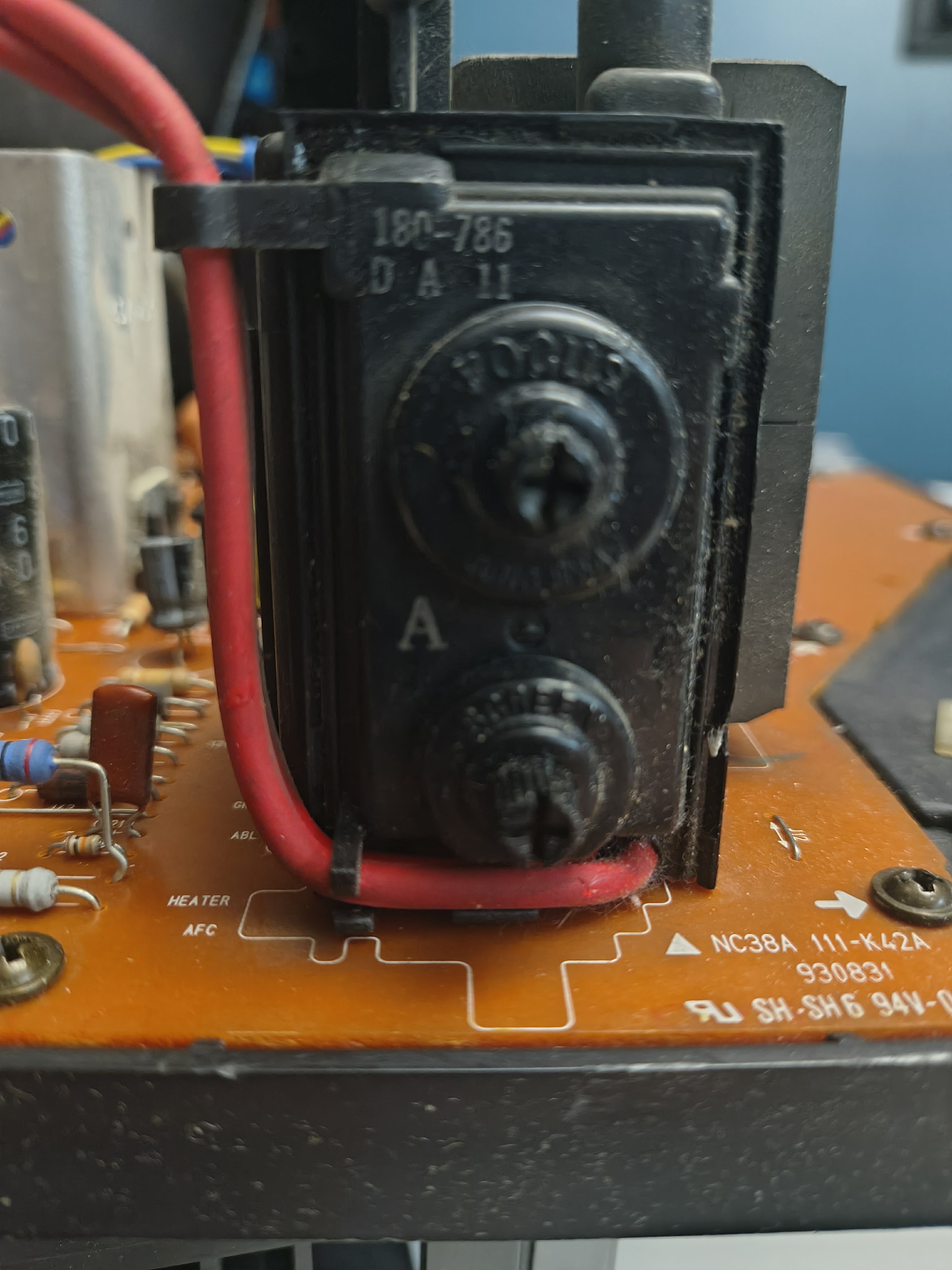

| Chassis: | NC-38A |
| Dimensions (W/H/D): |
394 x 427 x 414 mm
(15.5 x 16.8 x 16.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| MSRP: | 399 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
