Summary

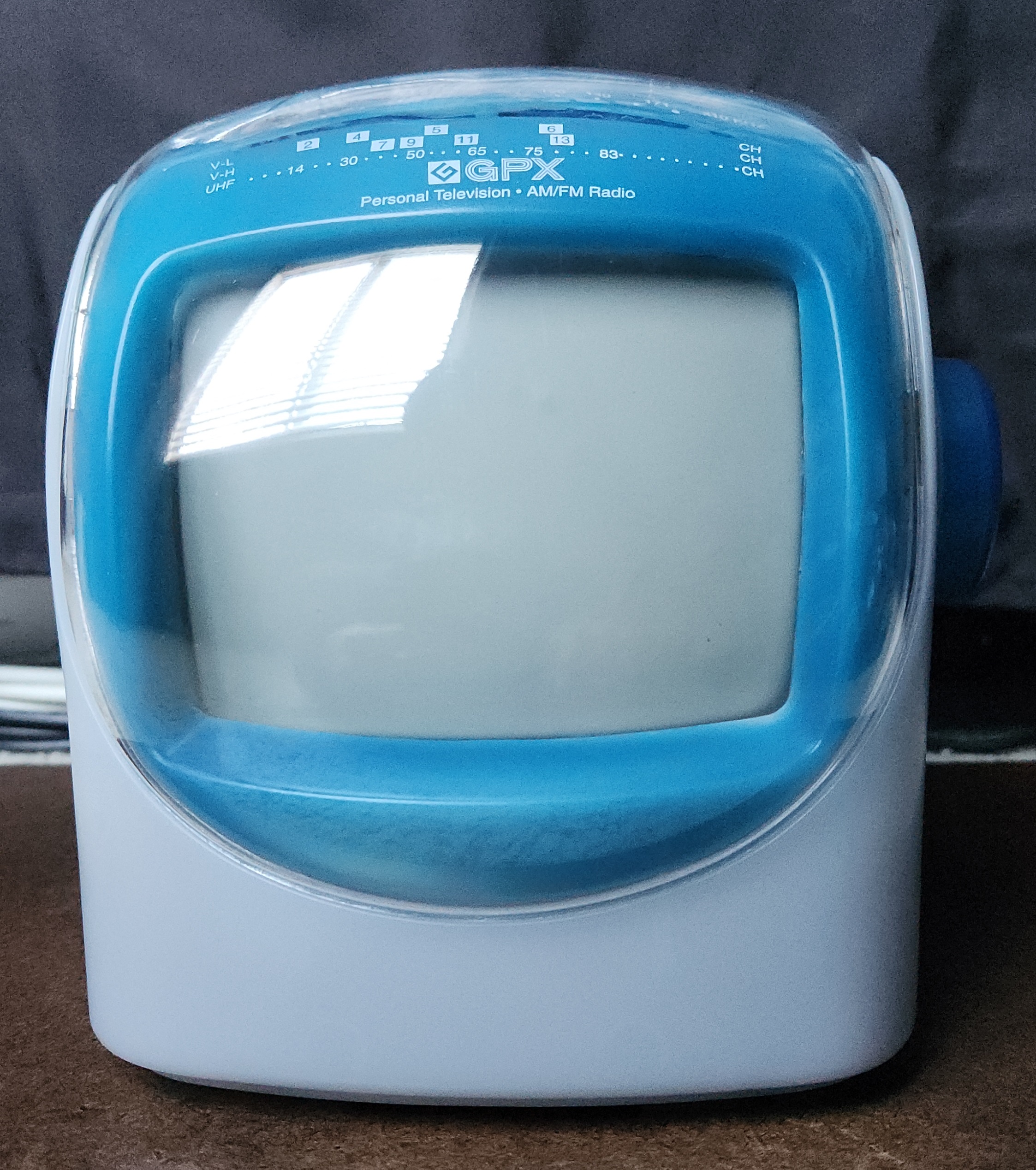

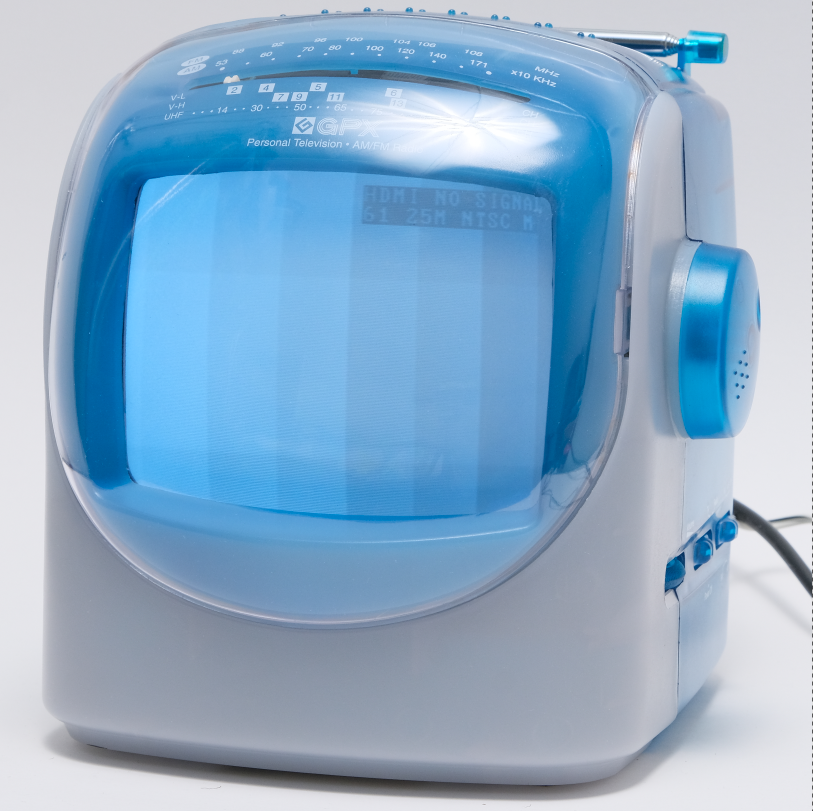

A budget friendly black-and-white consumer television with built-in AM/FM radio. There is NOS still available on eBay to this day.
Manuals
(none available at this time)
Notes

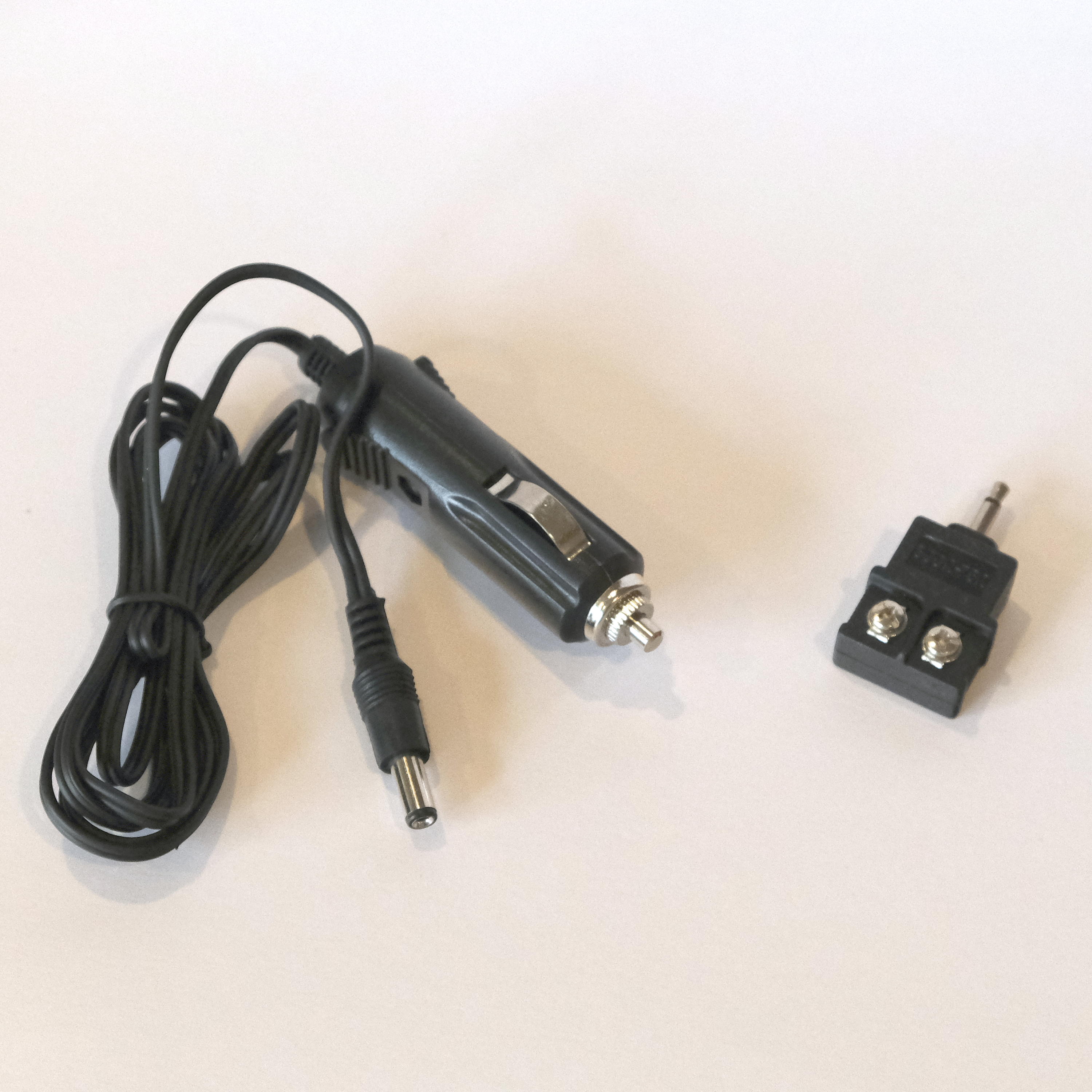

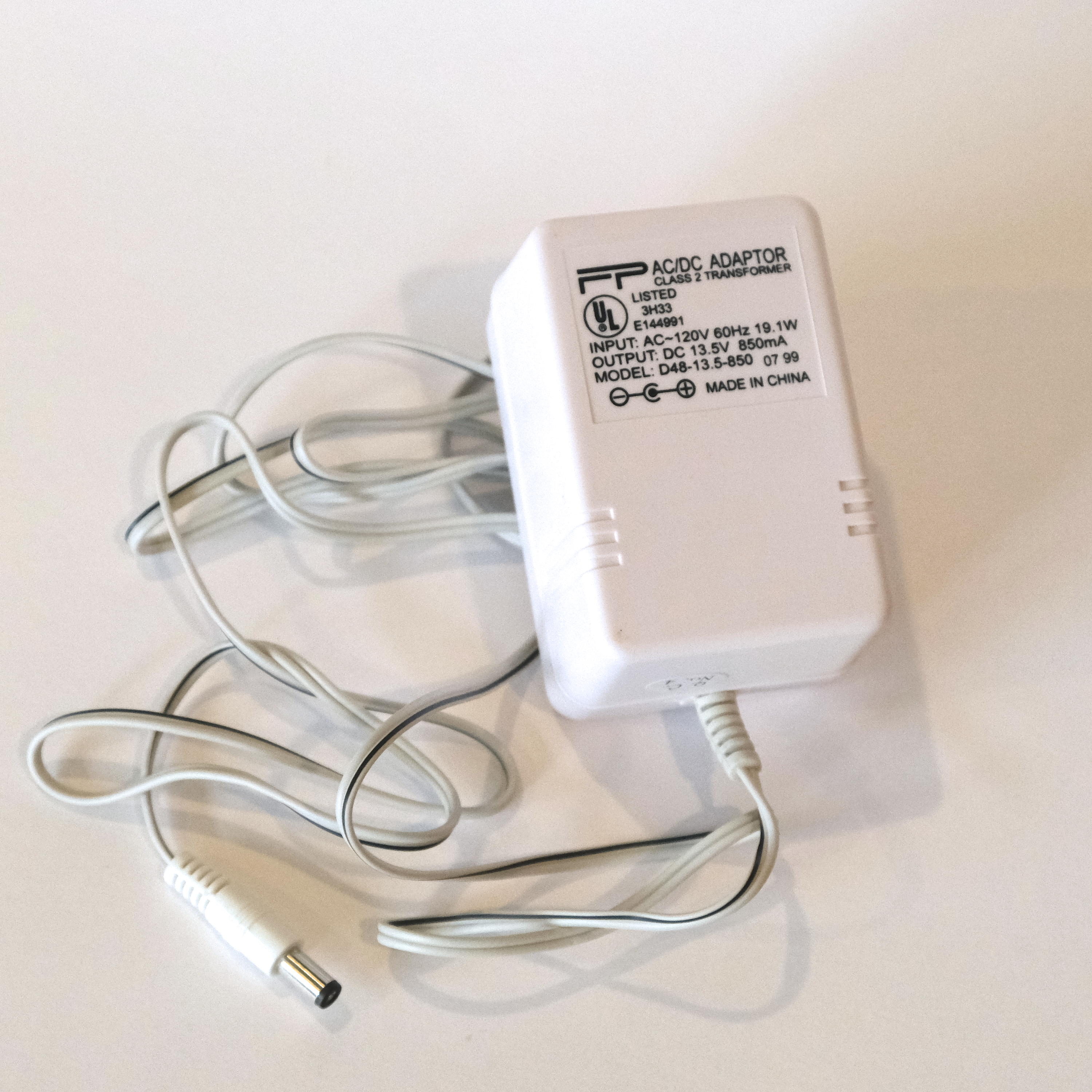

It can either be powered with it's 12V AC adapter, cigarette lighter, or with 10 C cell alkaline batteries. If you are using an AC adapter, please make sure it supplied 1A at 12VDC. There have been cases of poor image quality due to an undersized power supply.

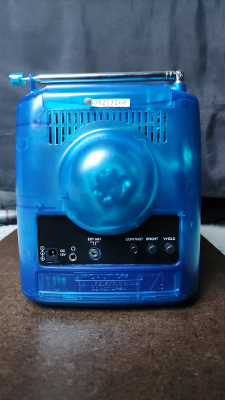

External RF is via 3.5mm, so an adapter is required if you plan to use it.
Appears to be extremely similar to the Coby CX-TV1 but without composite.
Gallery







Specifications | |
---|---|
Brand: | Gpx |
Manufacturer: | Gpx |
Model: | TVP2CT |
Series: | TV |
Viewable Size: | 5" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers |
Mask: | Monochrome Tube (no mask) |
Tint: | Light |
Speakers: | Mono, Headphone Jack |
Application: | Consumer |
Cabinet Material: | Plastic |
Country of Manufacture: | China |
Power Standard: | 12VDC, Battery |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Tube Info, Community Submission, Needs Yoke Info |
