Grundig ST 70-574 SAT
March 13, 2026, 5:06 pm
March 13, 2026, 5:07 pm
March 13, 2026, 5:07 pm
Summary

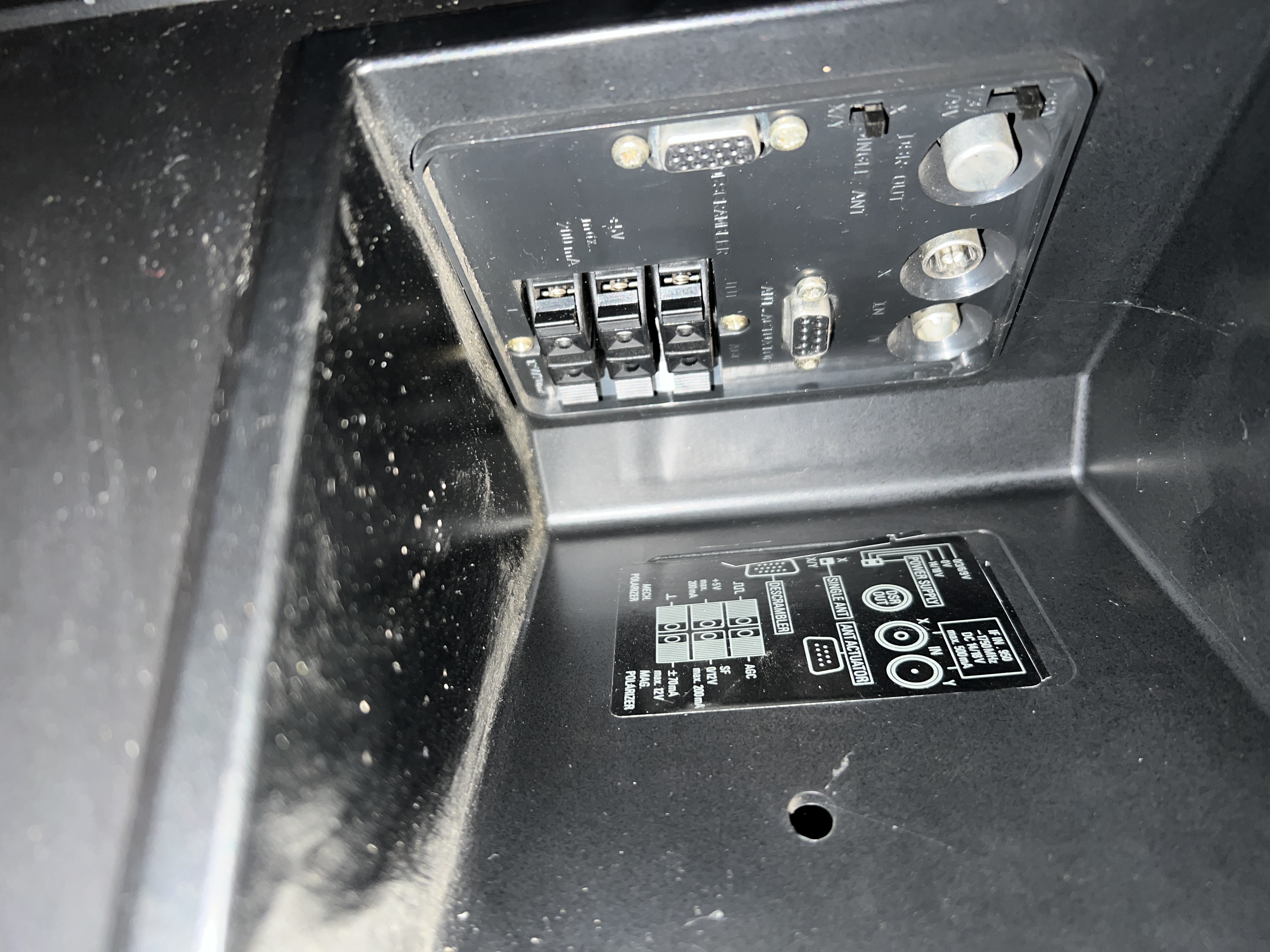

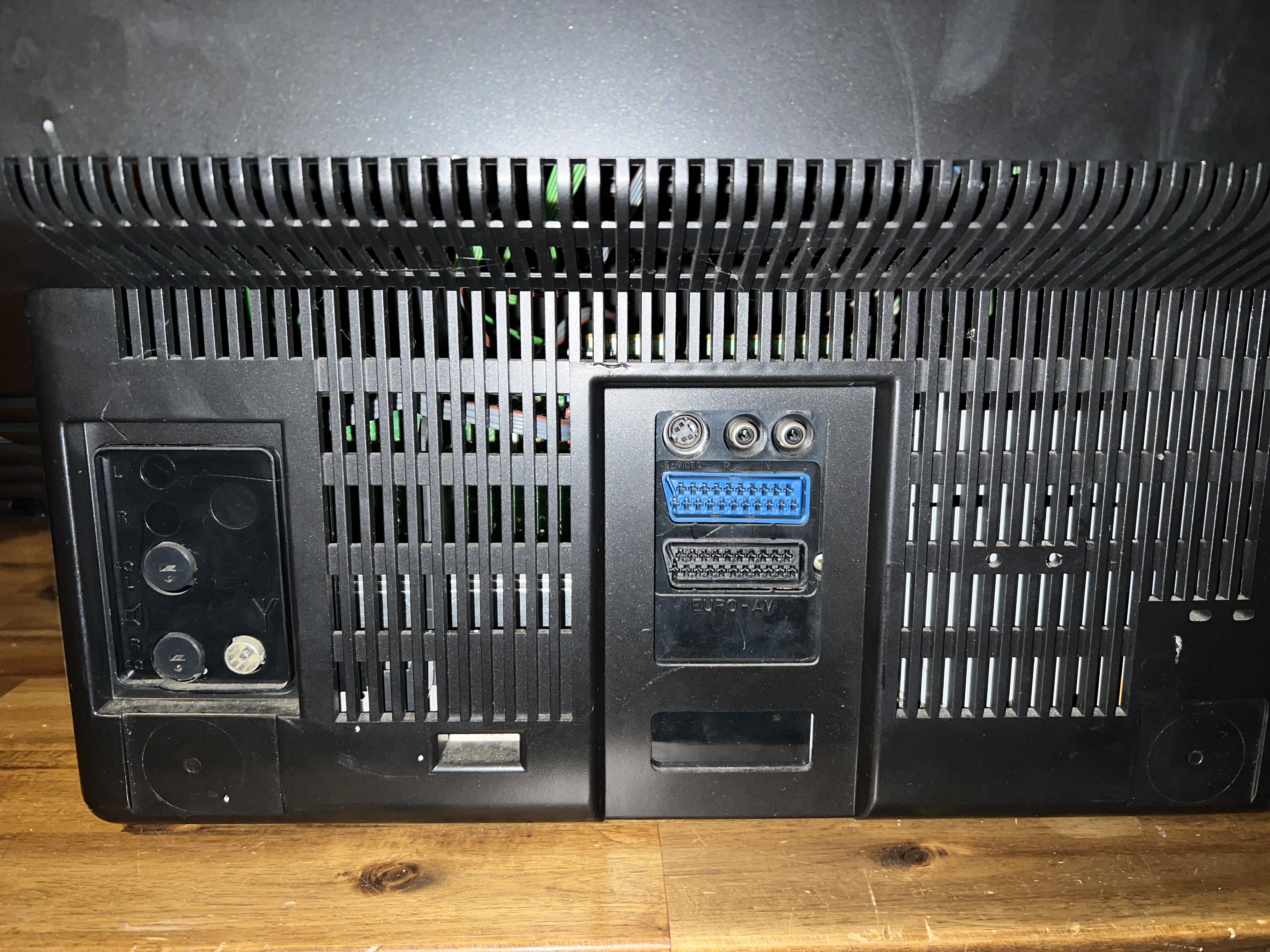

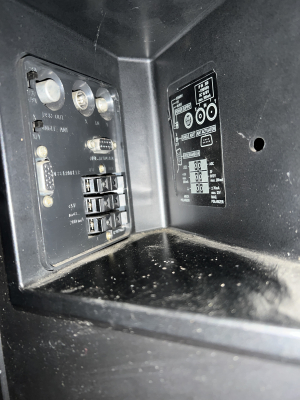

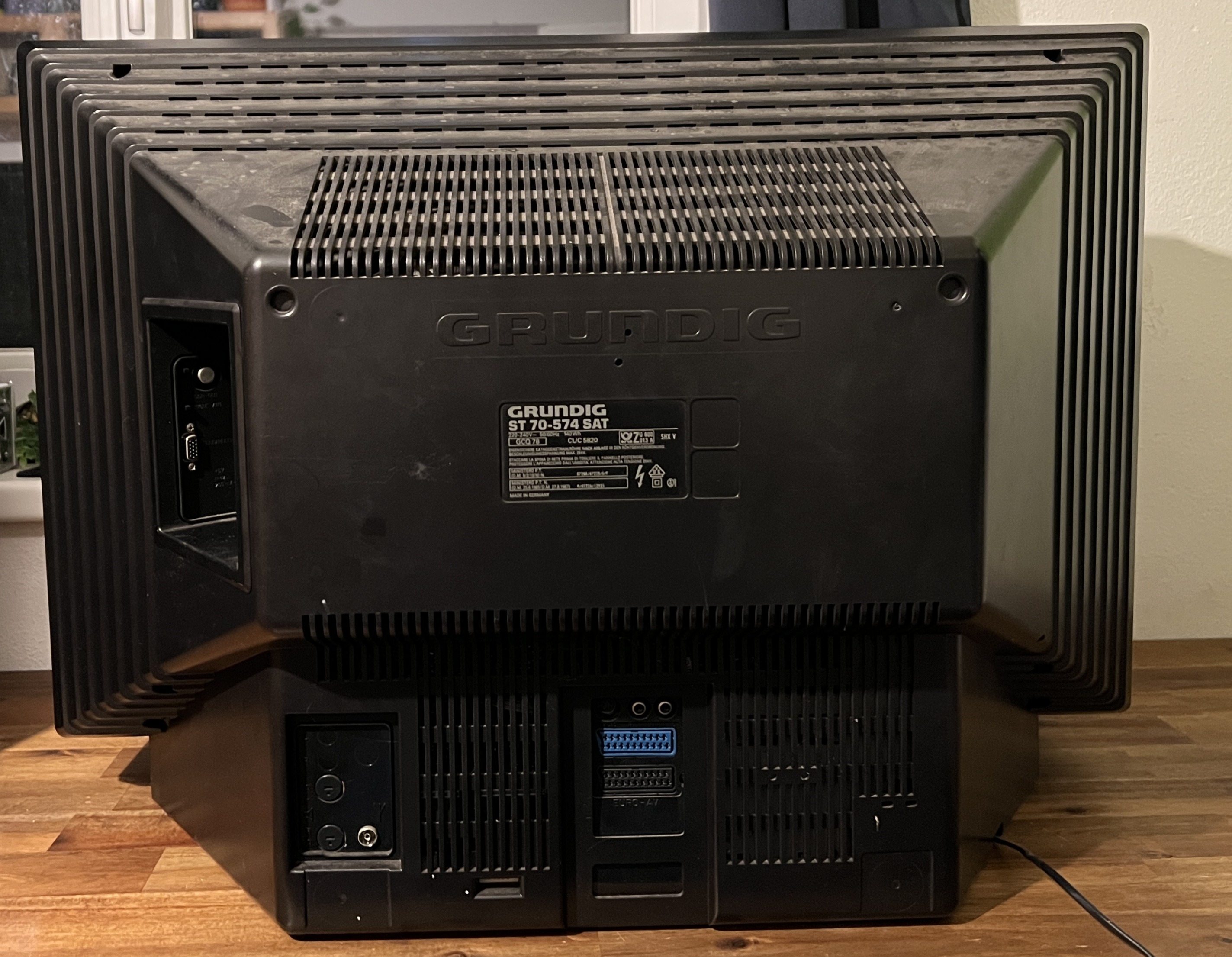

Color television receiver manufactured by Grundig. The set is designated “SAT” due to the presence of connections for a descrambler and antenna actuator. It features two SCART connectors, one of which supports RGB input, as well as an S-Video input.
Notes
The television does not provide an on-screen display (OSD).

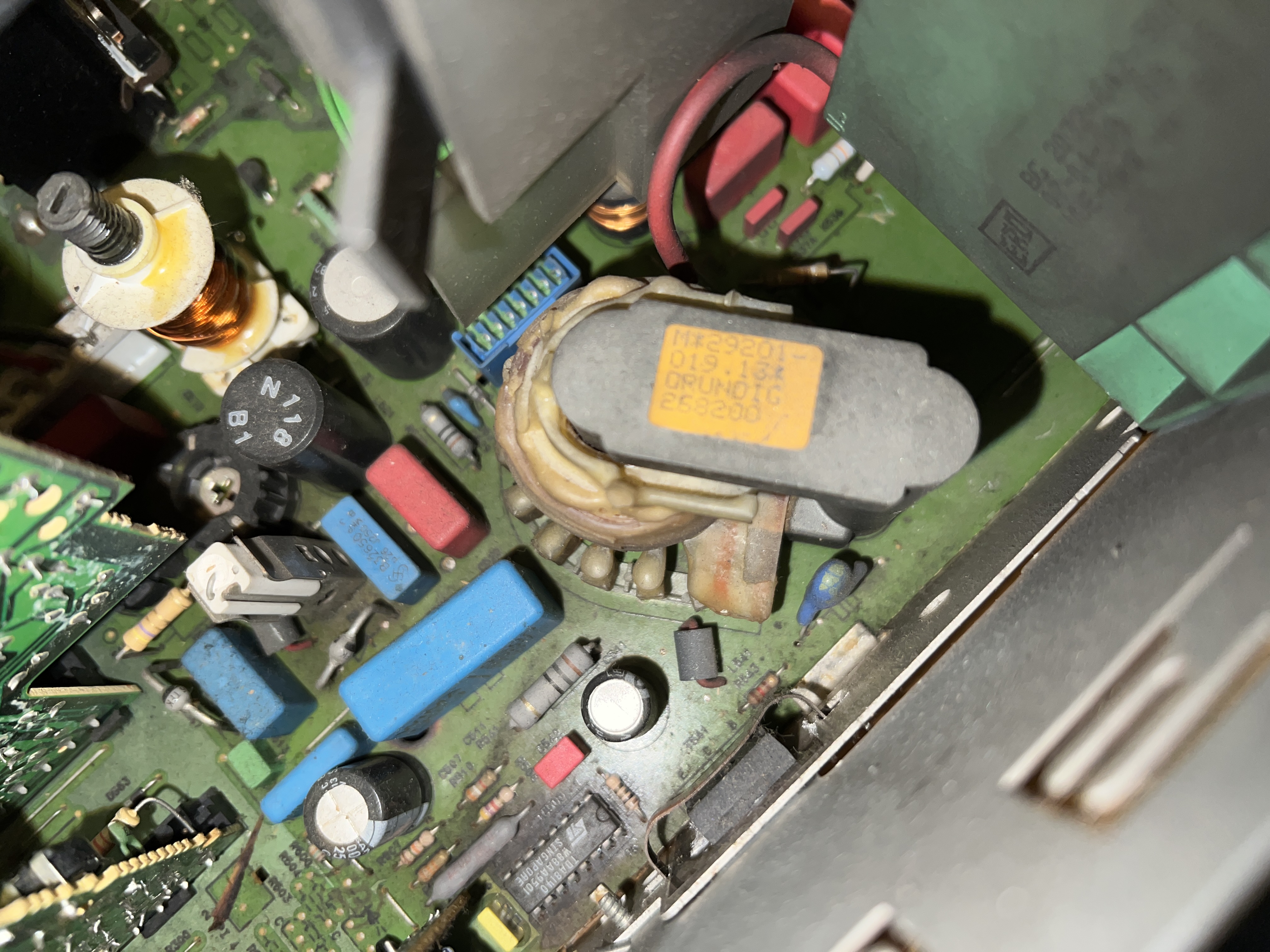

Warning: Uses RIFA suppression capacitors in the mains/power-switch area. These capacitors are known to fail catastrophically with age, often producing large amounts of dense, acrid smoke when they fail. Preventive replacement is strongly recommended before any use, even if the capacitors appear visually intact.
Gallery
| Specifications | |
|---|---|
| Brand: | Grundig |
| Manufacturer: | Grundig |

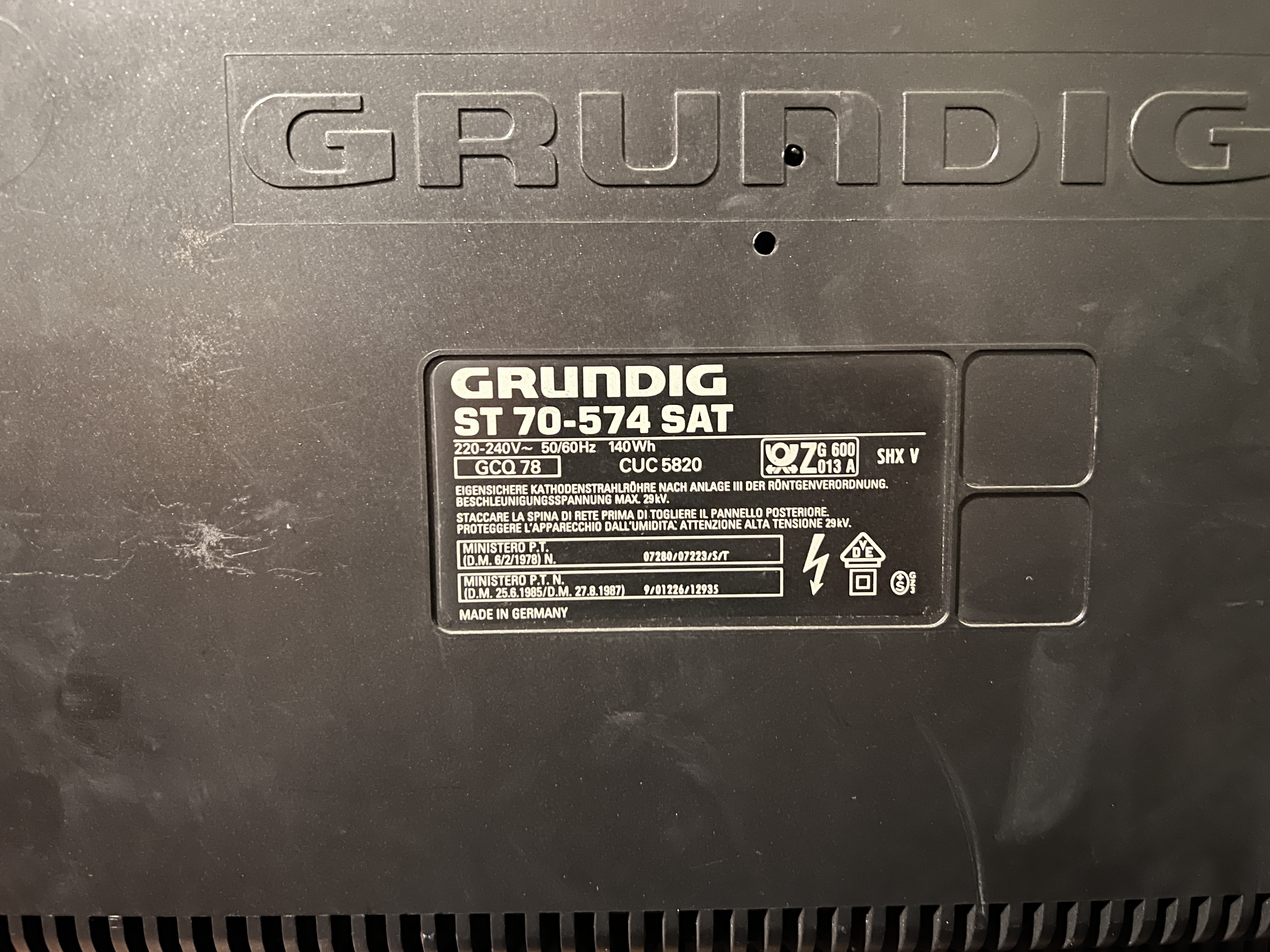

| Model: | ST 70-574 SAT |
| Series: | ST |
| Viewable Size: | 27" |
| Input Signals: | S-Video, RF, RGB |
| Sync: | Sync over Composite, Sync on Luma |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | PAL |
| Aspect: | 4:3 |
| Horz. Output Transistor: | BU508A |
| Comb Filtering: | None |

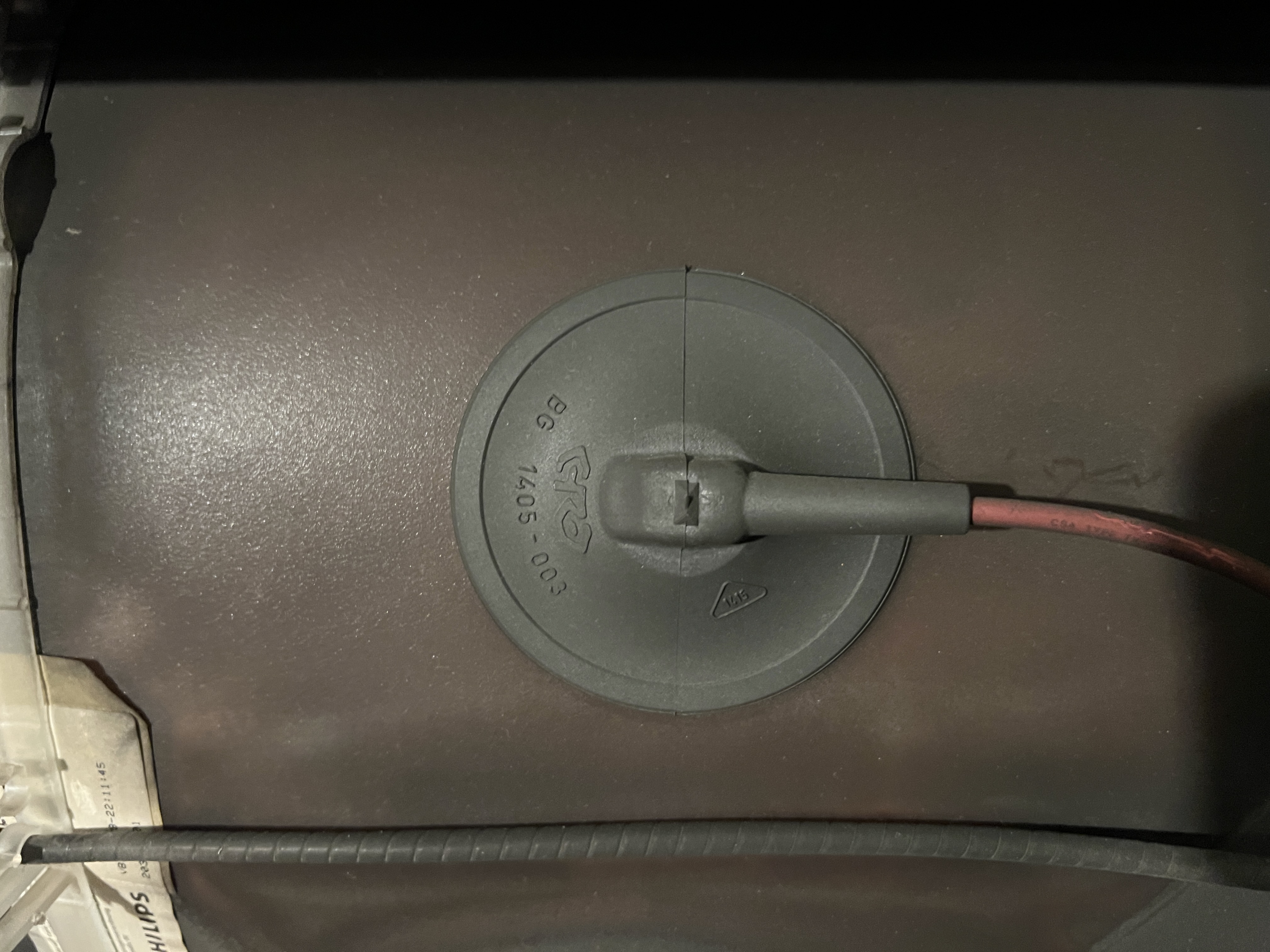

| Flyback: | ERO BG 2031-642-3001 G, 29201-019.013 |
| Focus Type: | Single |

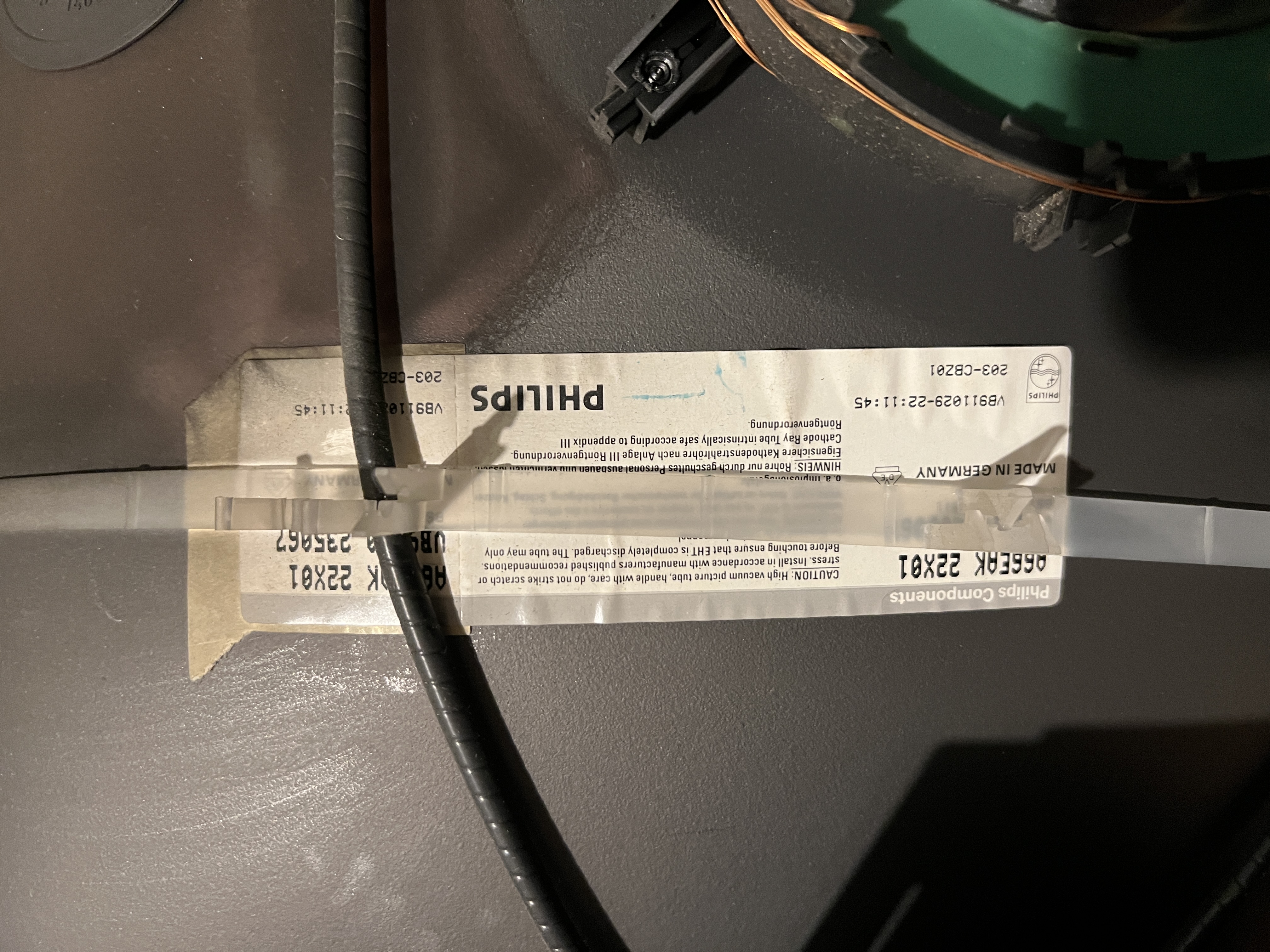

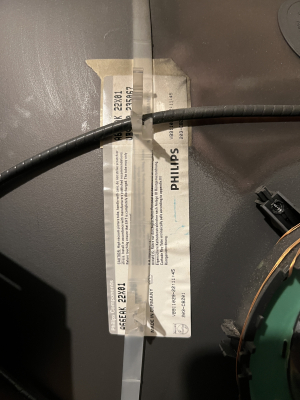

| Tube: | Philips |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Light |
| Removable Glare Film: | No |
| Speakers: | 8W x 2 |

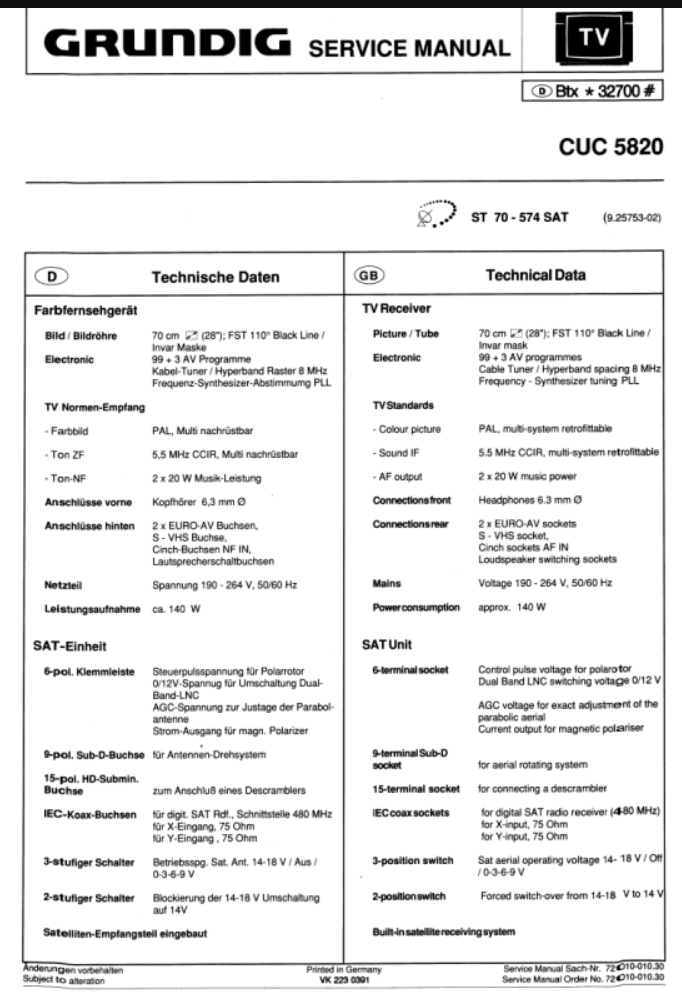

| Chassis: | CUC 5820 |
| Weight: | 78 lbs (35.4 kg) |
| Dimensions (W/H/D): |
802 x 561 x 448 mm
(31.5 x 22 x 17.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| Country of Manufacture: | Germany |
| Market: | Europe |
| Power Standard: | 240v, 220v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Community Submission |
