Summary

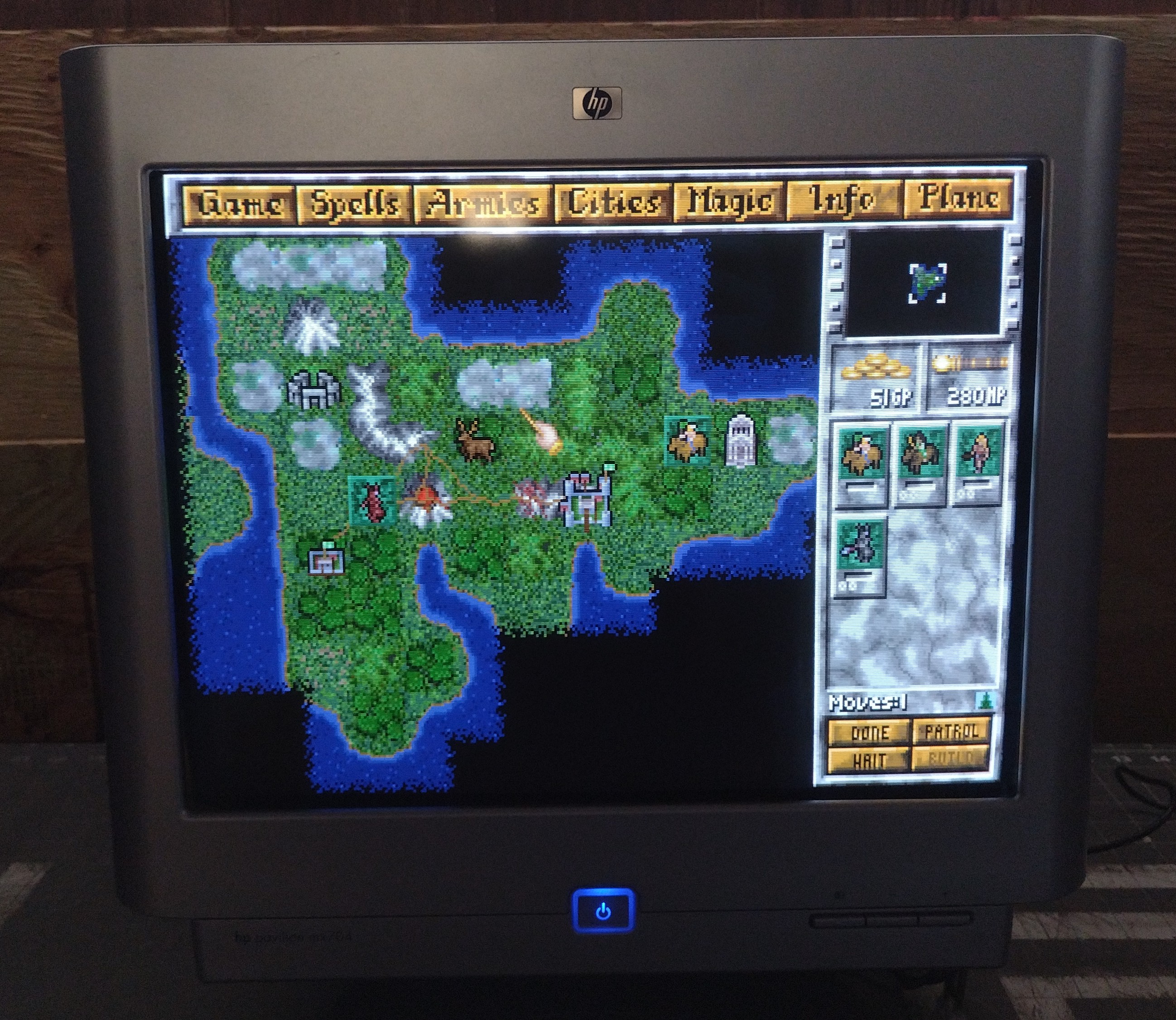

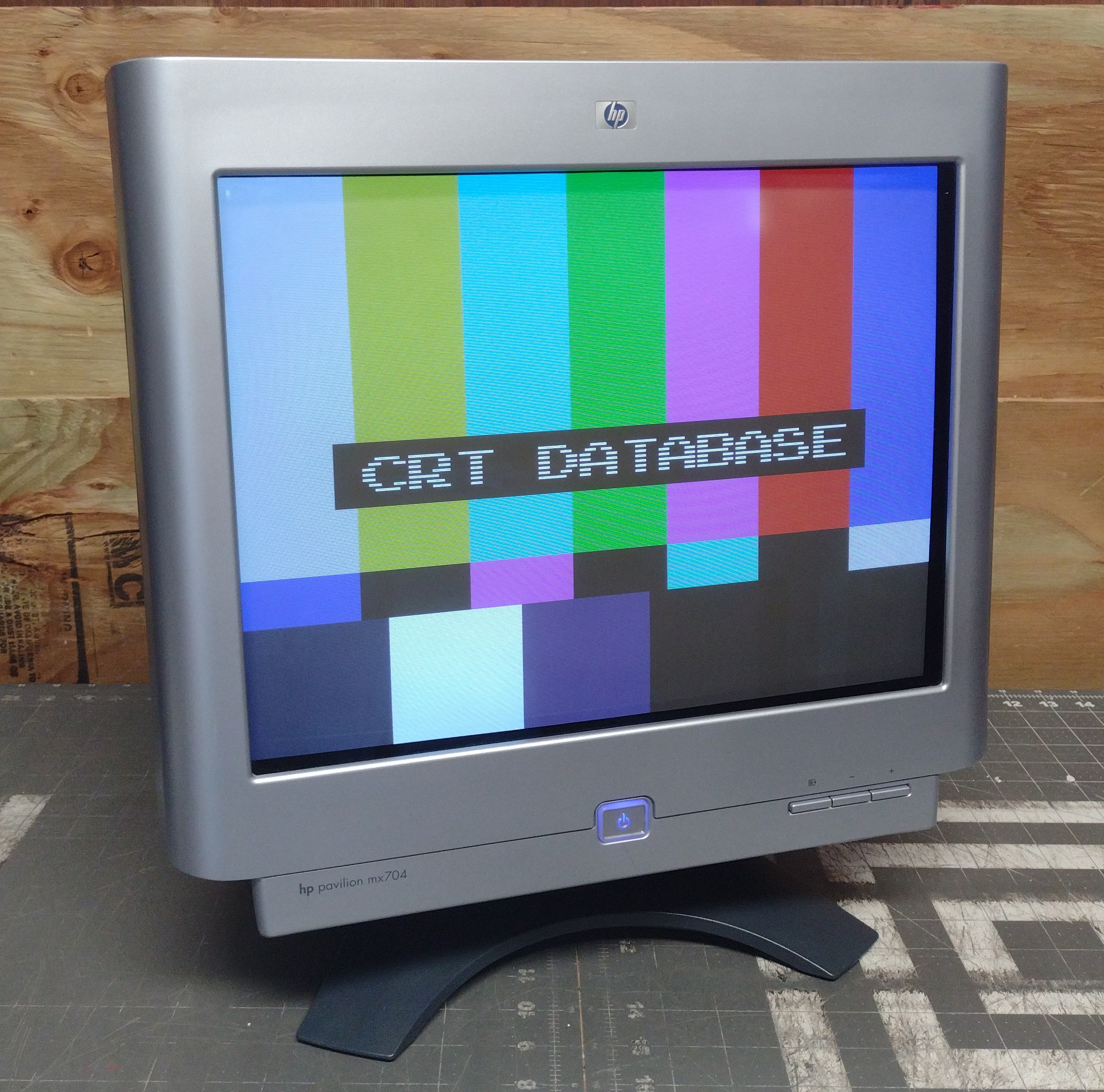

Late model 17" PC monitor, manufactured by LG Electronics and sold by Hewlett Packard. Features a flat shadow mask tube and a stylish dark blue case with a silver bezel. As with most 17" monitors of that era, it has a 70 kHz horizontal scan rate and was designed for 1024x768 at 85 Hz.
Manuals
Notes
Although not listed in the manual, this monitor will accept composite sync via the H Sync pin.

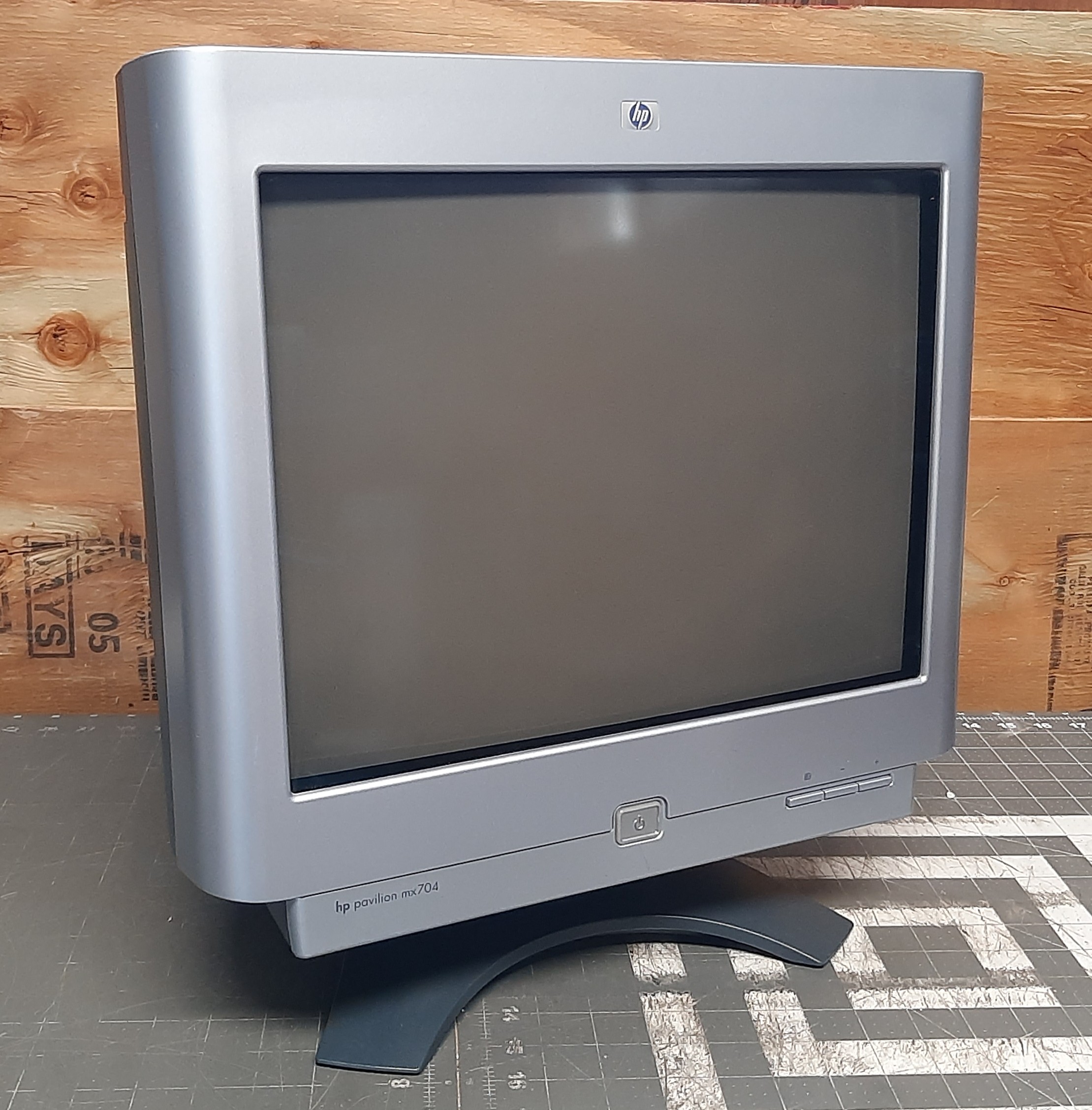

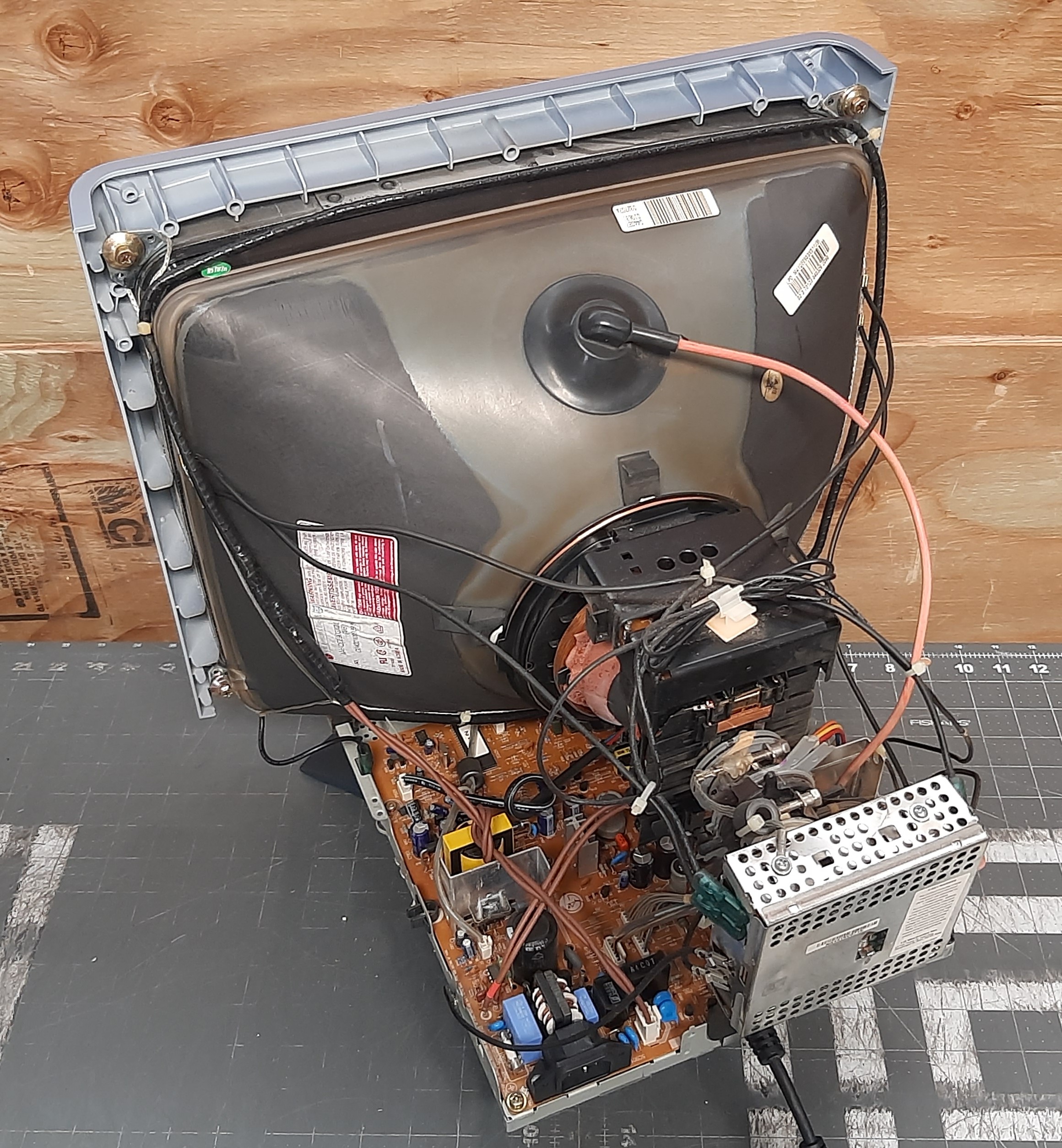

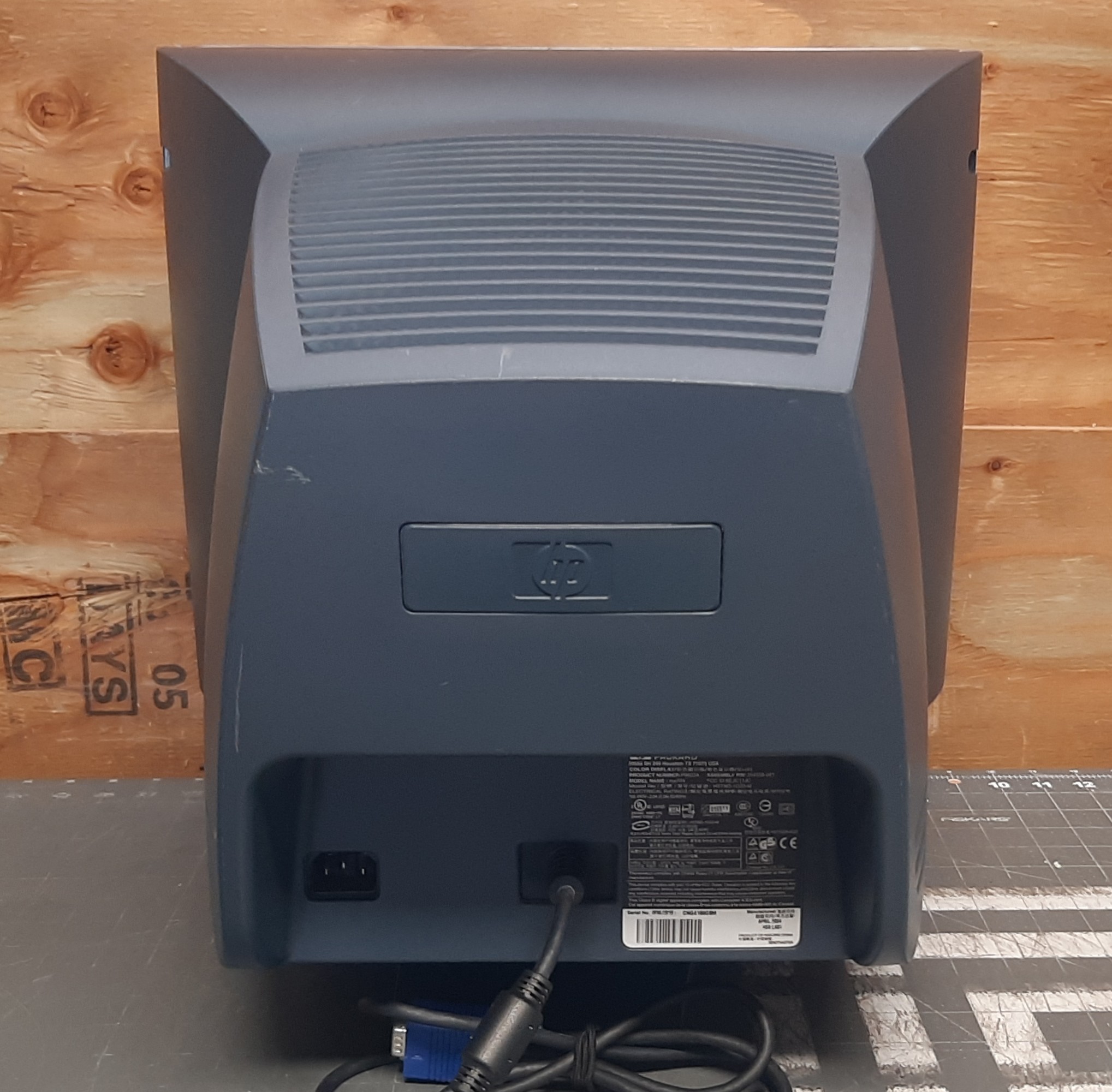

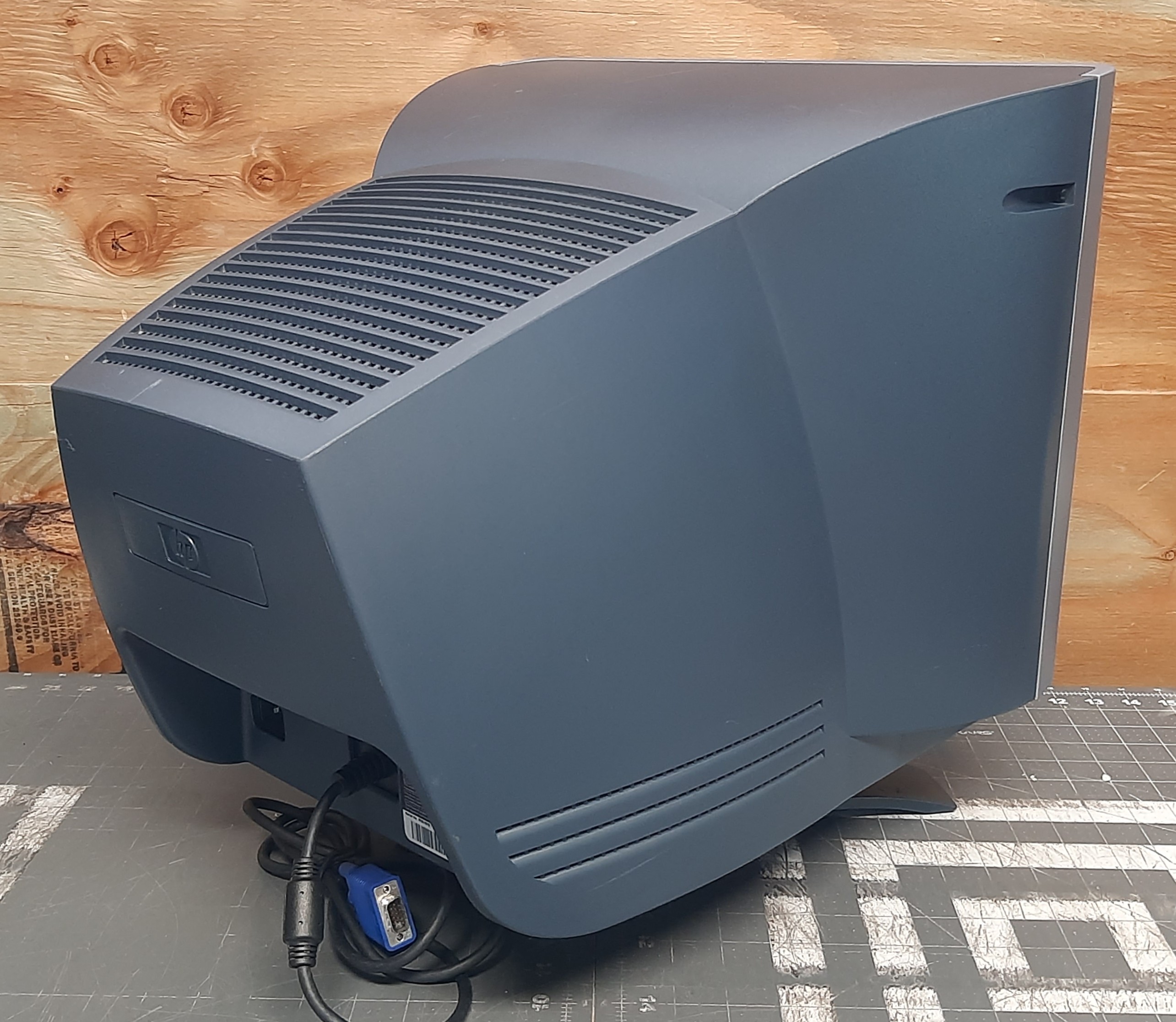

Gallery

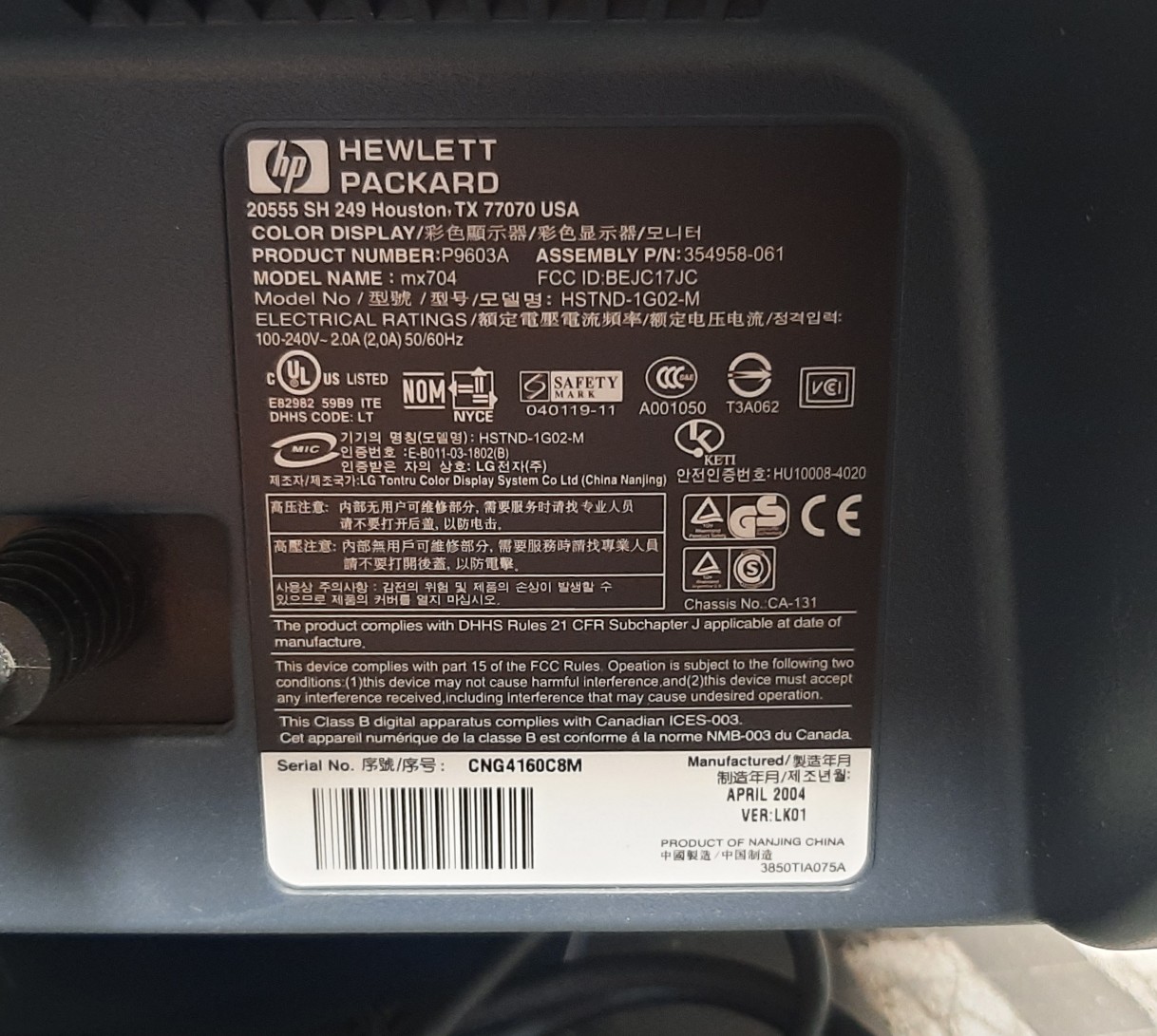

| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | LG |
| Model: | MX704 |
| Series: | Pavilion |
| Viewable Size: | 16" |
| Input Signals: | RGB |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 29 kHz, 72 kHz |
| Vertical Scan Range: | 49 Hz, 143 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Vertical Output IC: | STV9302A |
| Flyback: | 79AS762-1-F |
| Tube: | LG.Philips , M41QEE903X01 , M41QEE903X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 6150Z-7626A |
| Yoke Horz. Inductance: | 0.13278 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.749 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.105 ohm |
| Yoke Vert. Resistance: | 9.23 ohm |
| Speakers: | None |
| Chassis: | C-131 |
| Weight: | 42 lbs (19.1 kg) |
| Dimensions (W/H/D): |
455 x 470 x 475 mm
(17.9 x 18.5 x 18.7") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
