Summary

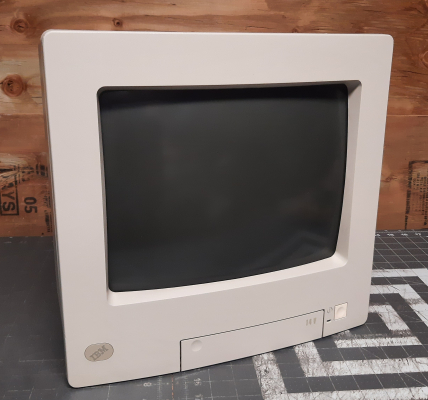

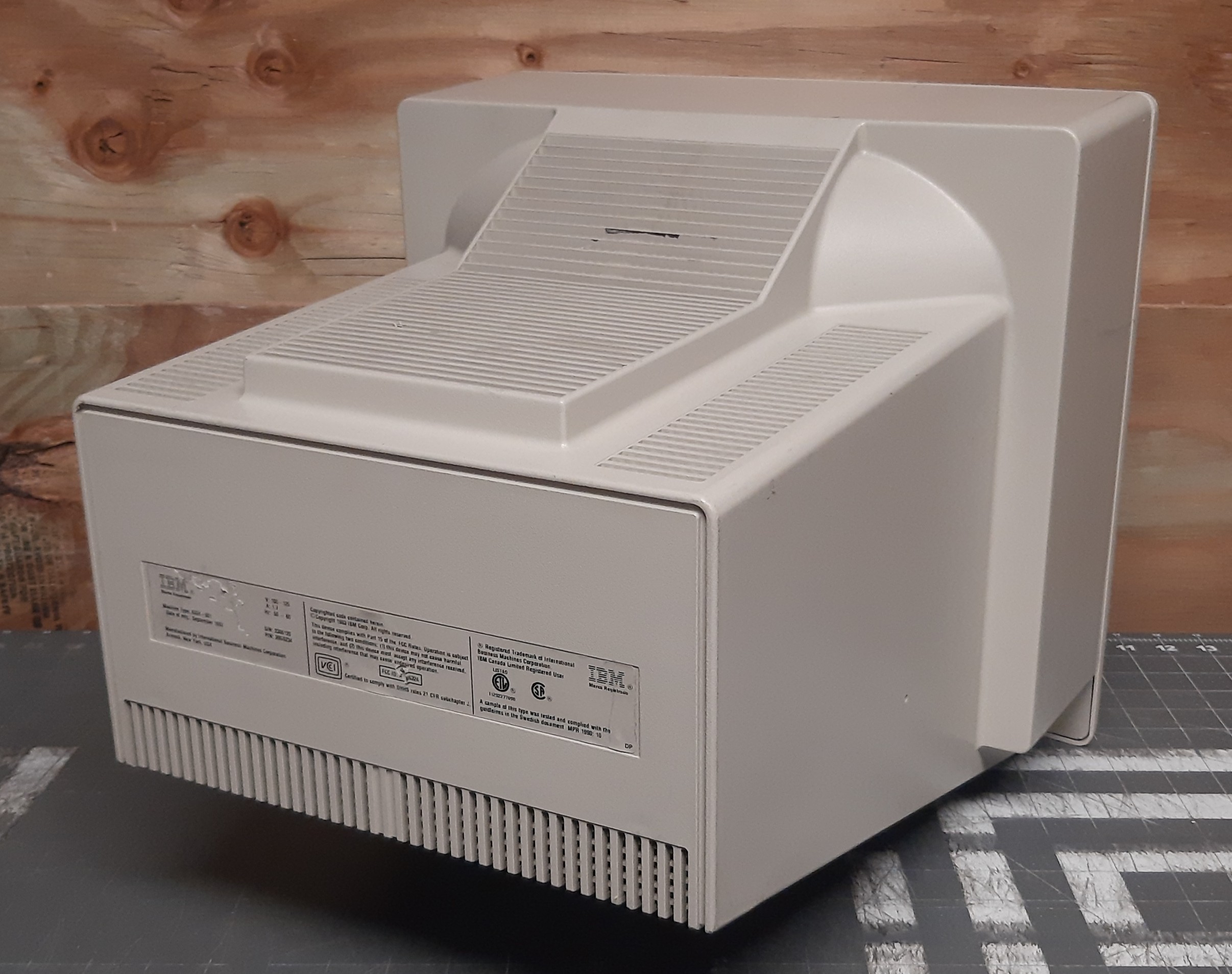

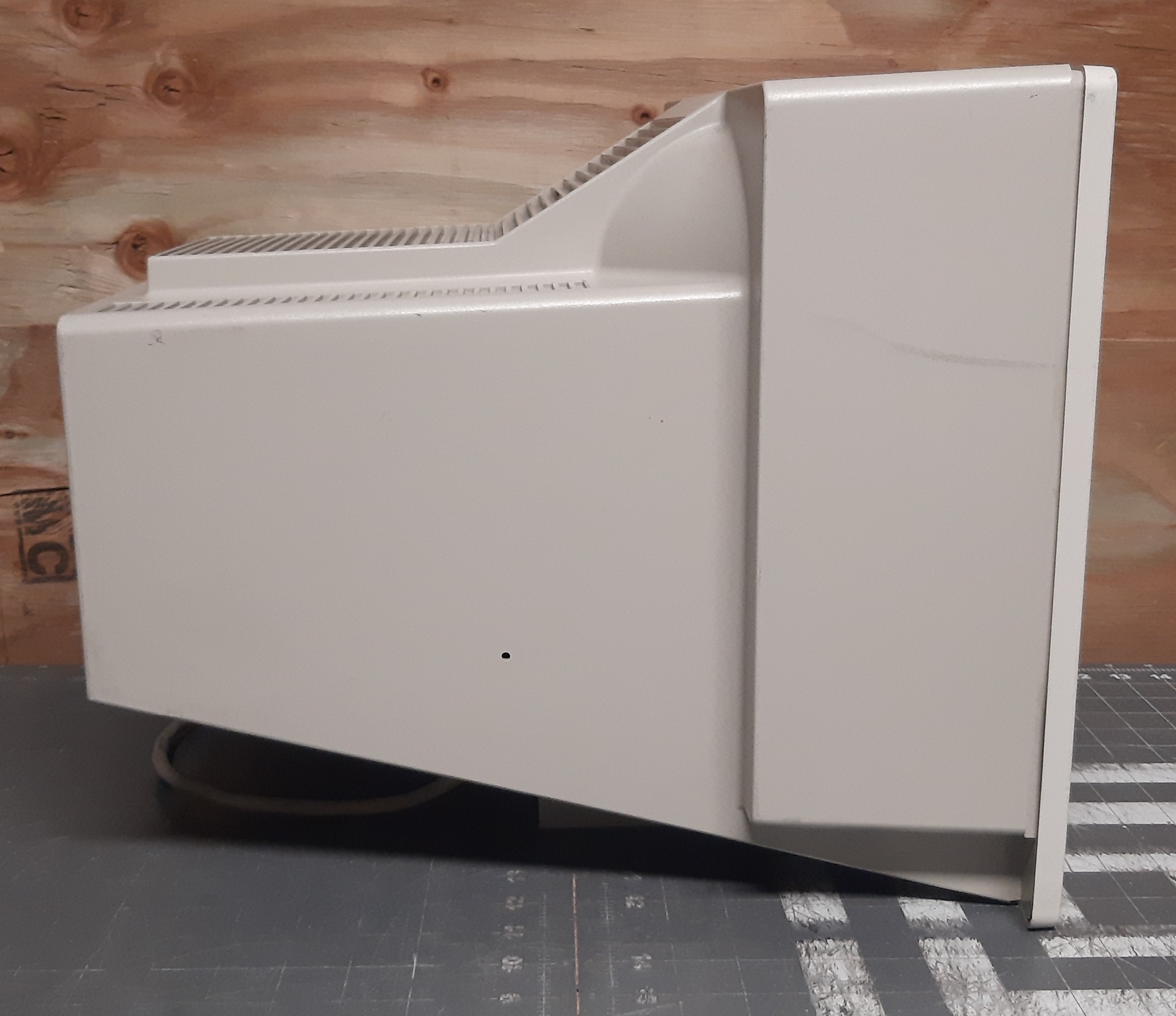

IBM's V series monitors were sold as "value" options, with the 14V billed as the successor to the PS/Valuepoint 6312. This monitor is considerably bulkier, despite having the same size viewable area. It features a sturdy plastic case and a fold-down panel for digital controls. It will display up to 64 kHz, for a resolution of 1024x768 at 75 Hz.
Manuals
Notes

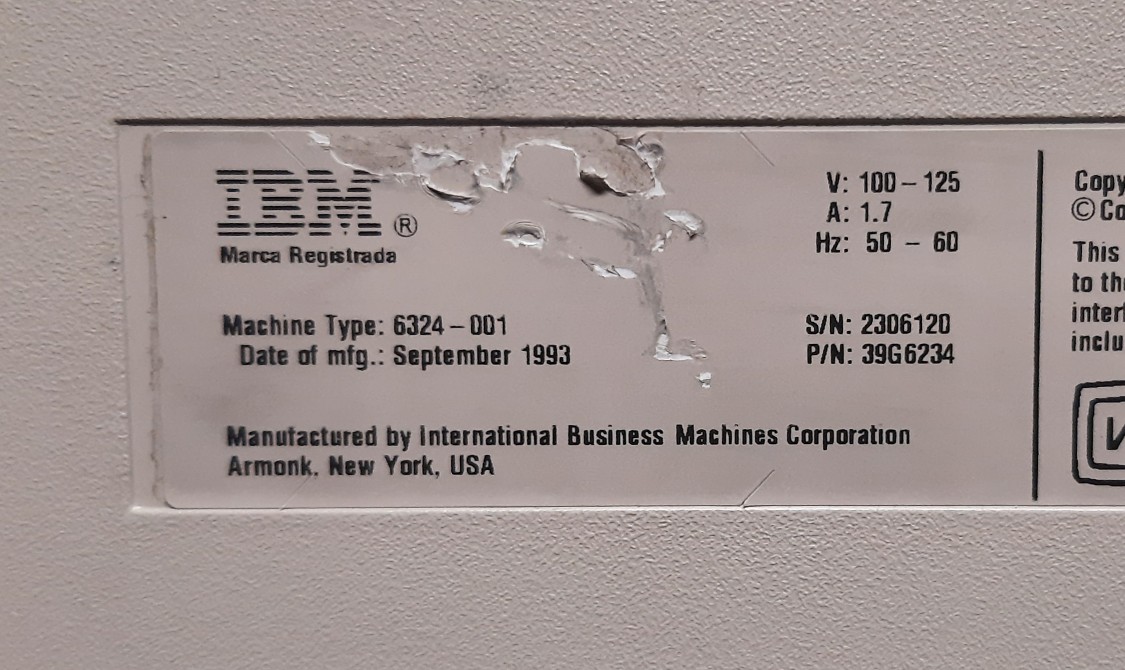

IBM's part number for this monitor is 6324-001.
Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | IBM |
| Model: | 14V |
| Series: | V |
| Viewable Size: | 13" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 64 kHz |
| Vertical Scan Range: | 50 Hz, 110 Hz |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons |
| Flyback: | ZTFJ14102B |
| Tube: | Panasonic , M34KNZ564X50 , M34KNZ564X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | MEY6934THBV |
| Yoke Horz. Inductance: | 0.18817 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.069 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.484 ohm |
| Yoke Vert. Resistance: | 7.93 ohm |
| Speakers: | None |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| MSRP: | 450 USD |
| Country of Manufacture: | USA |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Pictures |
