Summary

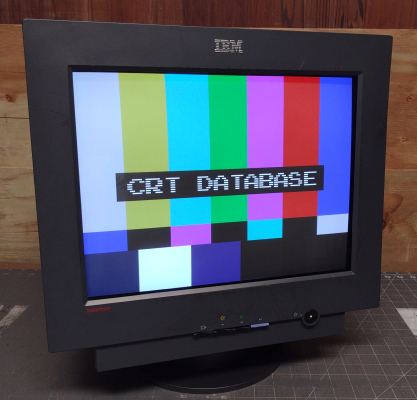

17" flat screen PC monitor, manufactured by LG and sold by IBM. It is relatively high spec for its size, and is capable of 85 kHz horizontal scan rate. This translates to a max resolution of 1800x1350 at 60 Hz, or 1024x768 at 105 Hz.
Manuals
Notes
This monitor uses the same chassis (including tube and flyback) as the LG 7550 monitor, which was also sold by HP and Compaq under that model number. The main difference appears to be a different case design and an extra face button on the IBM version.

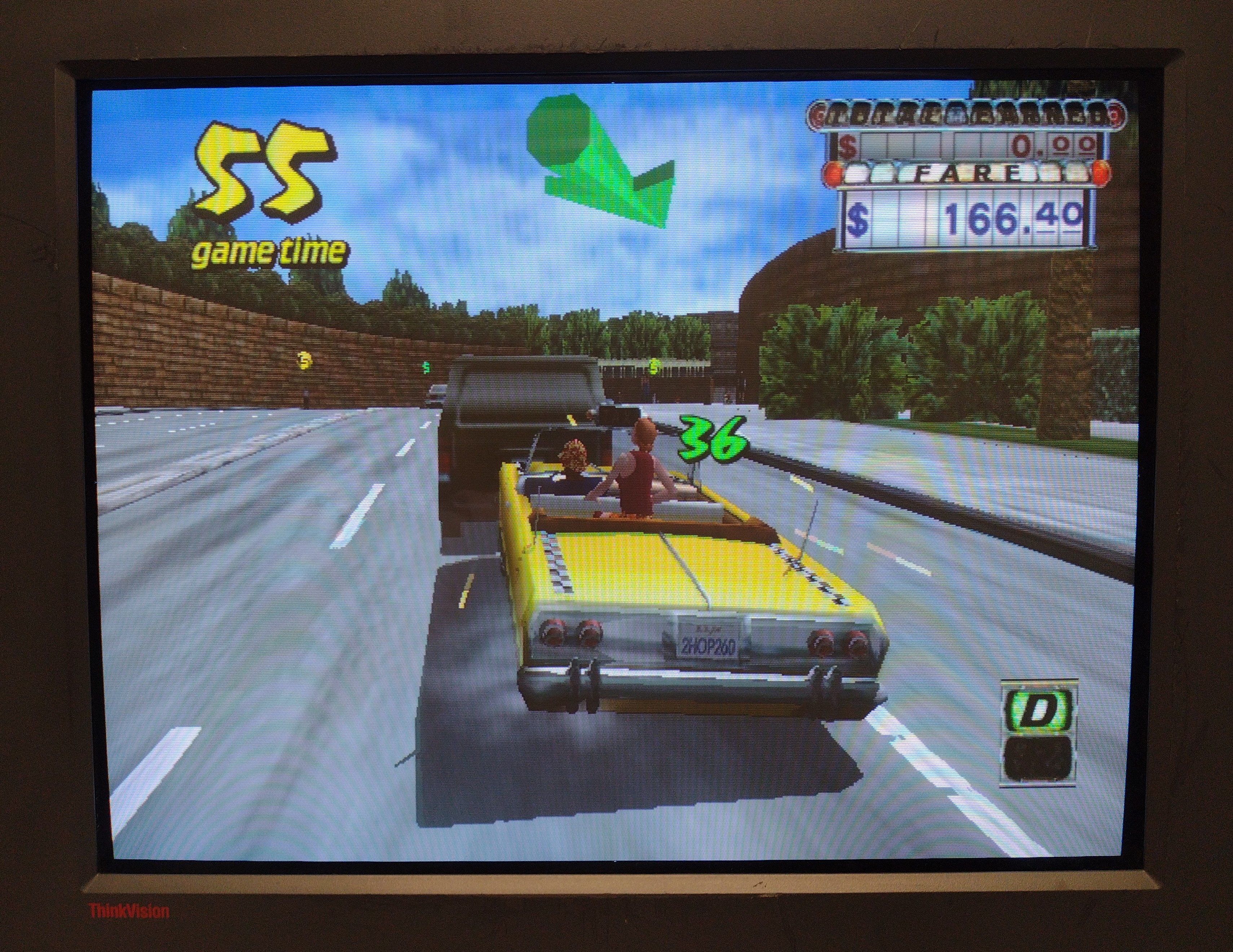

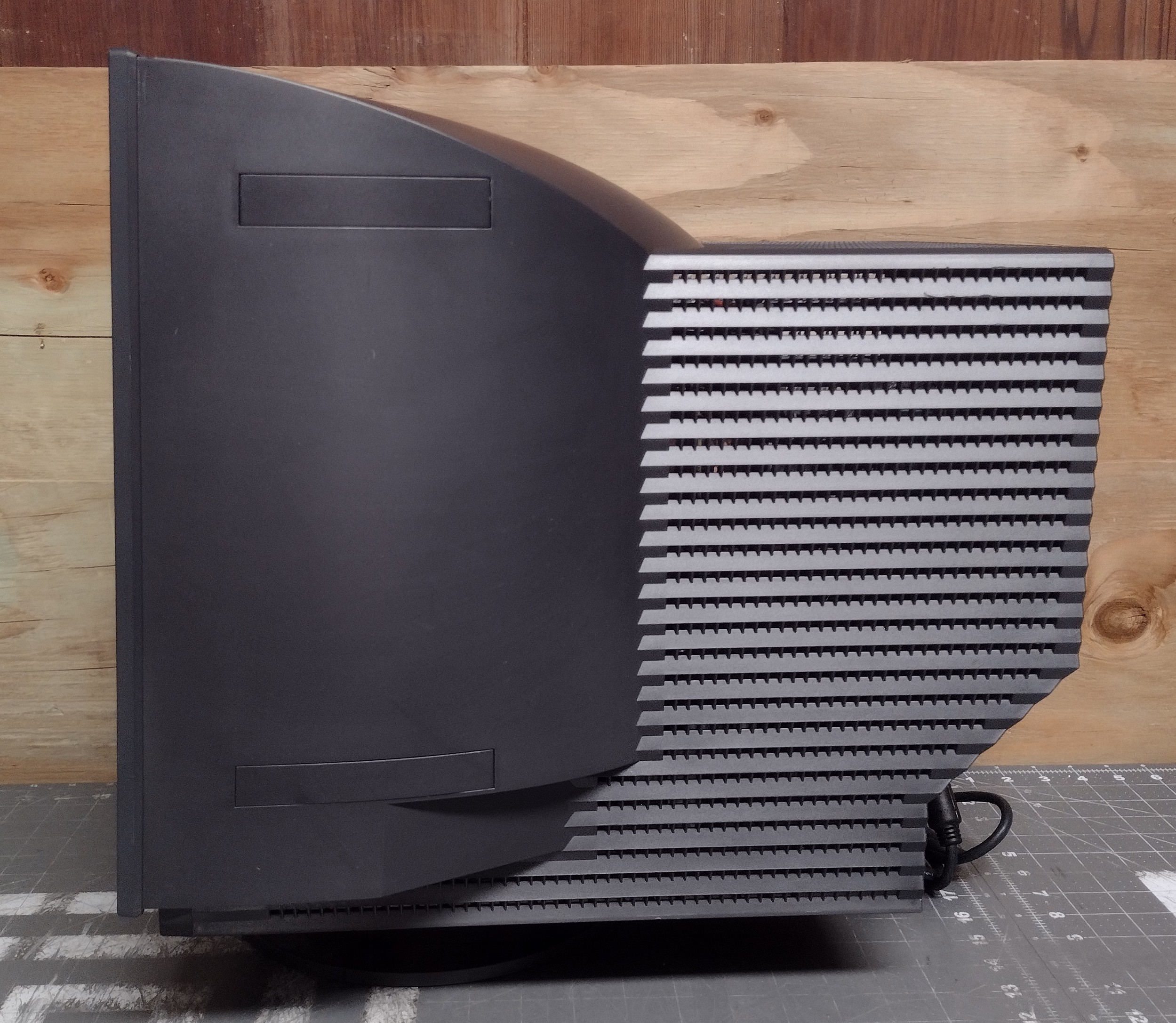

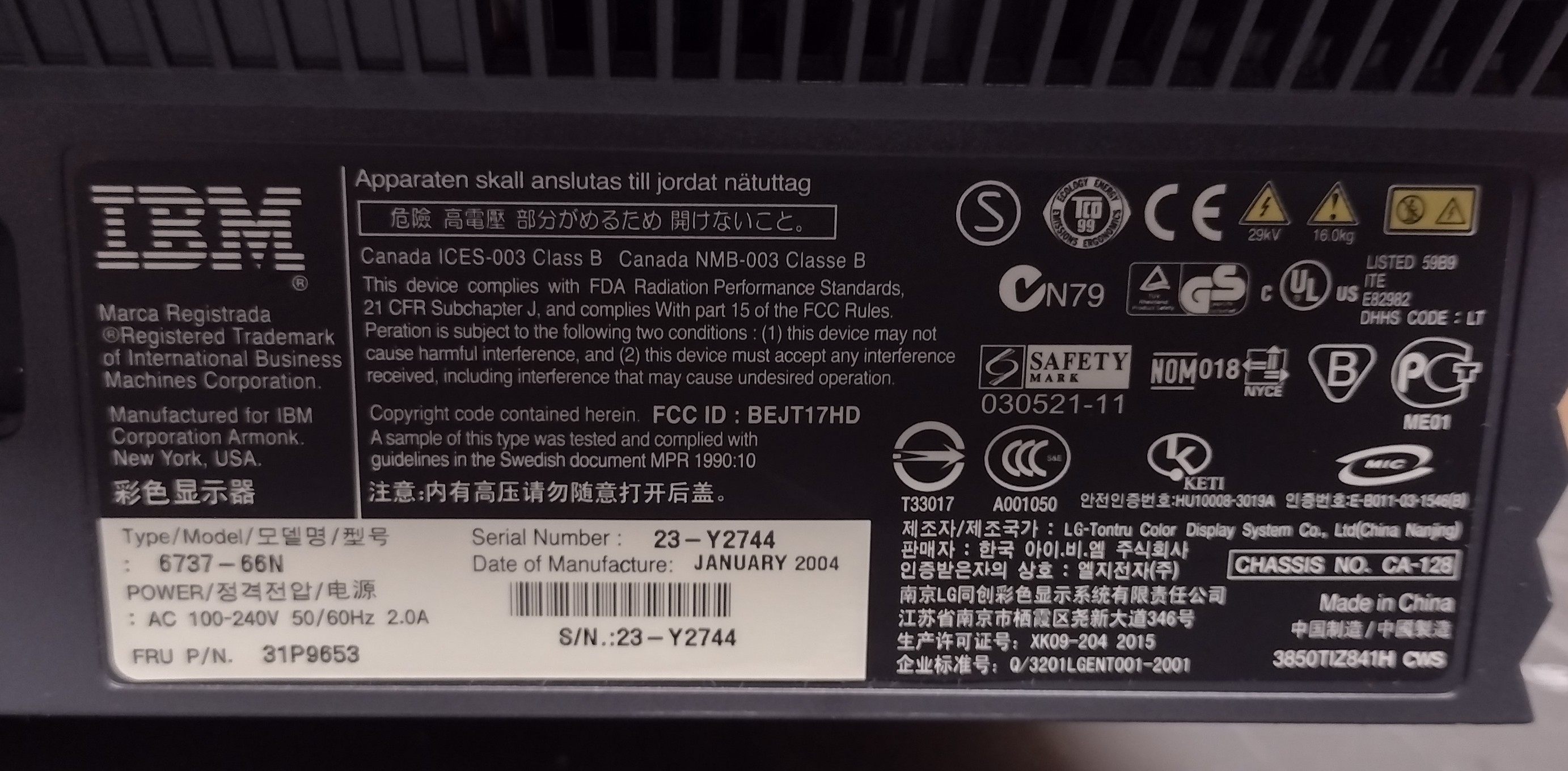

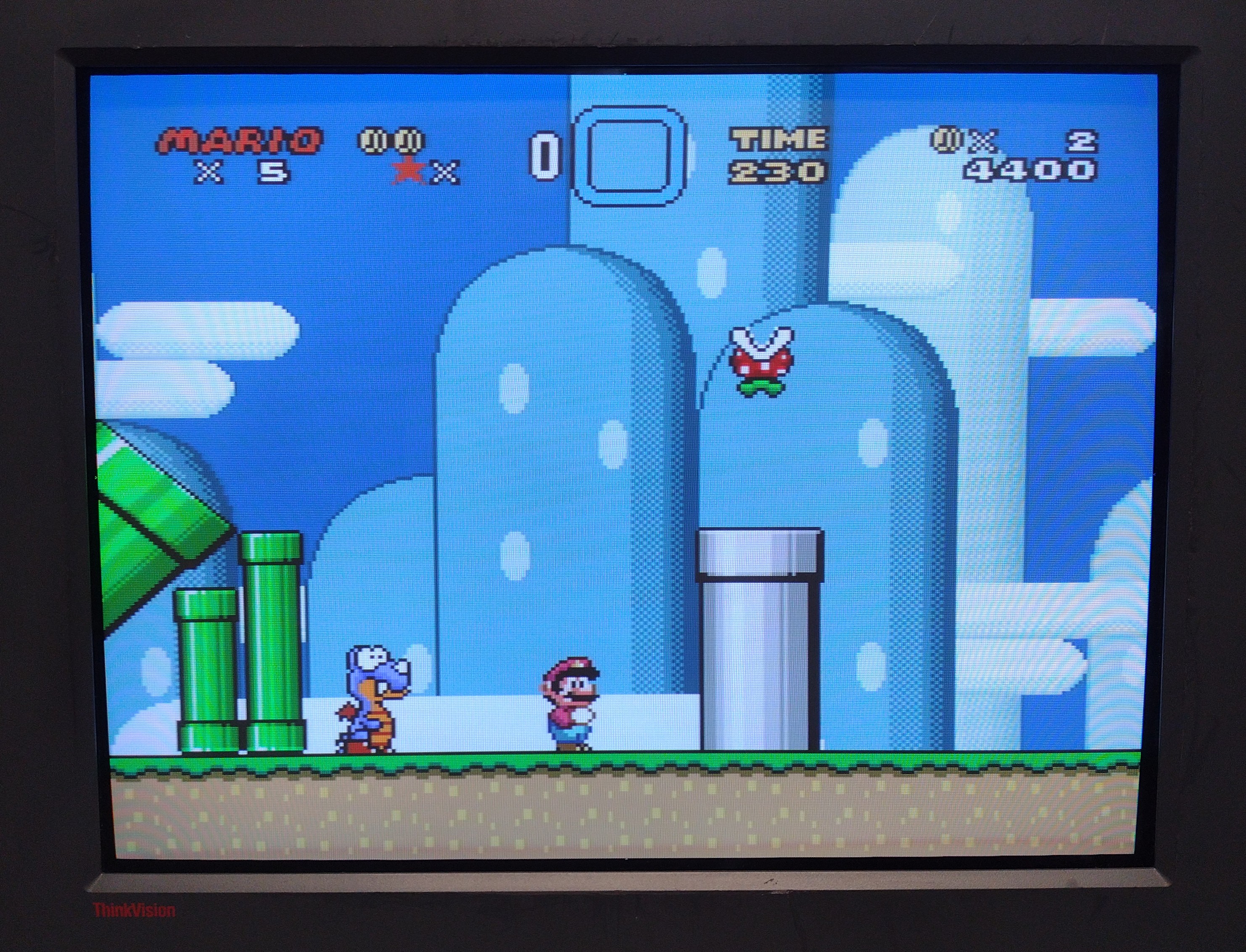

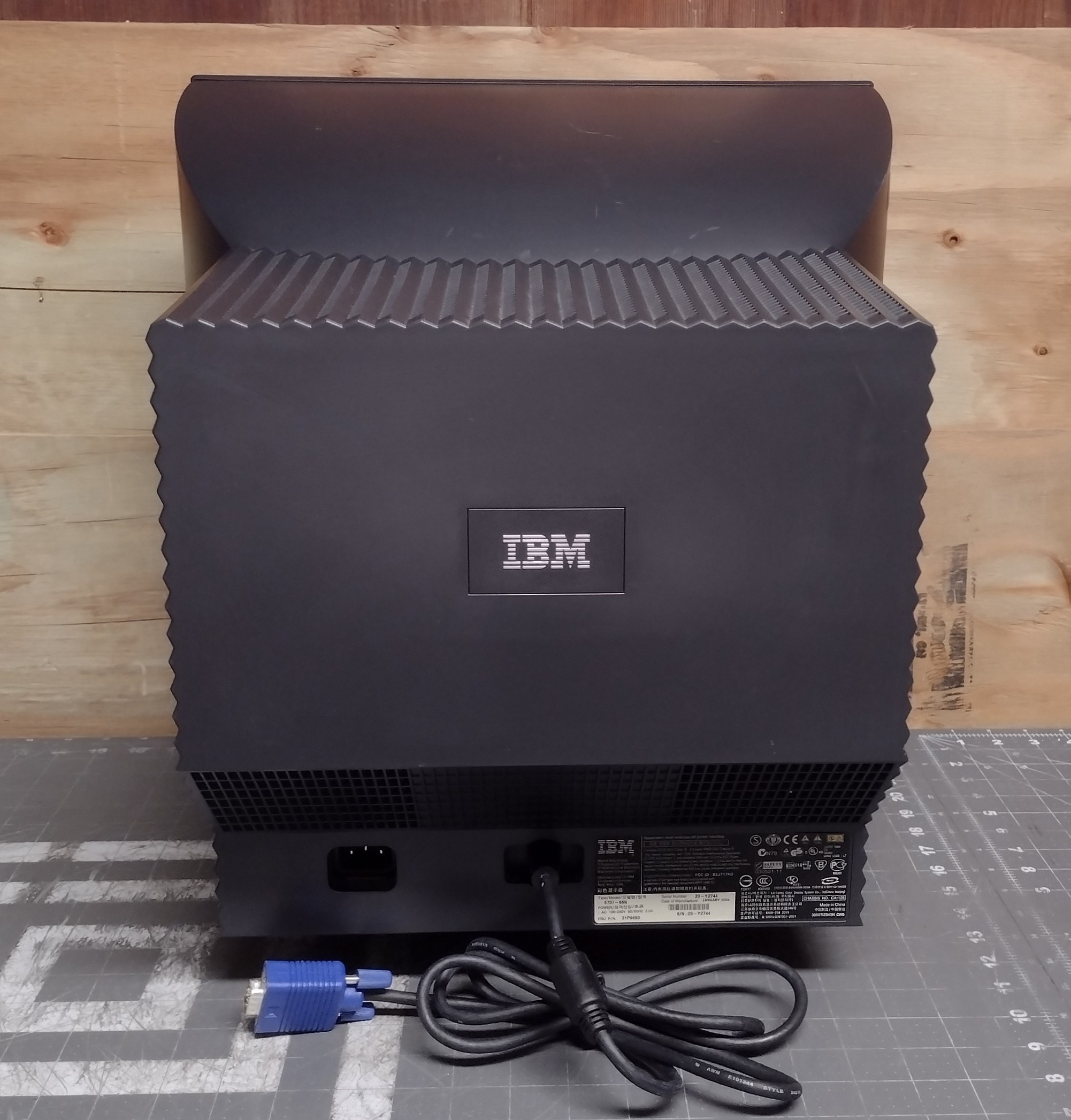

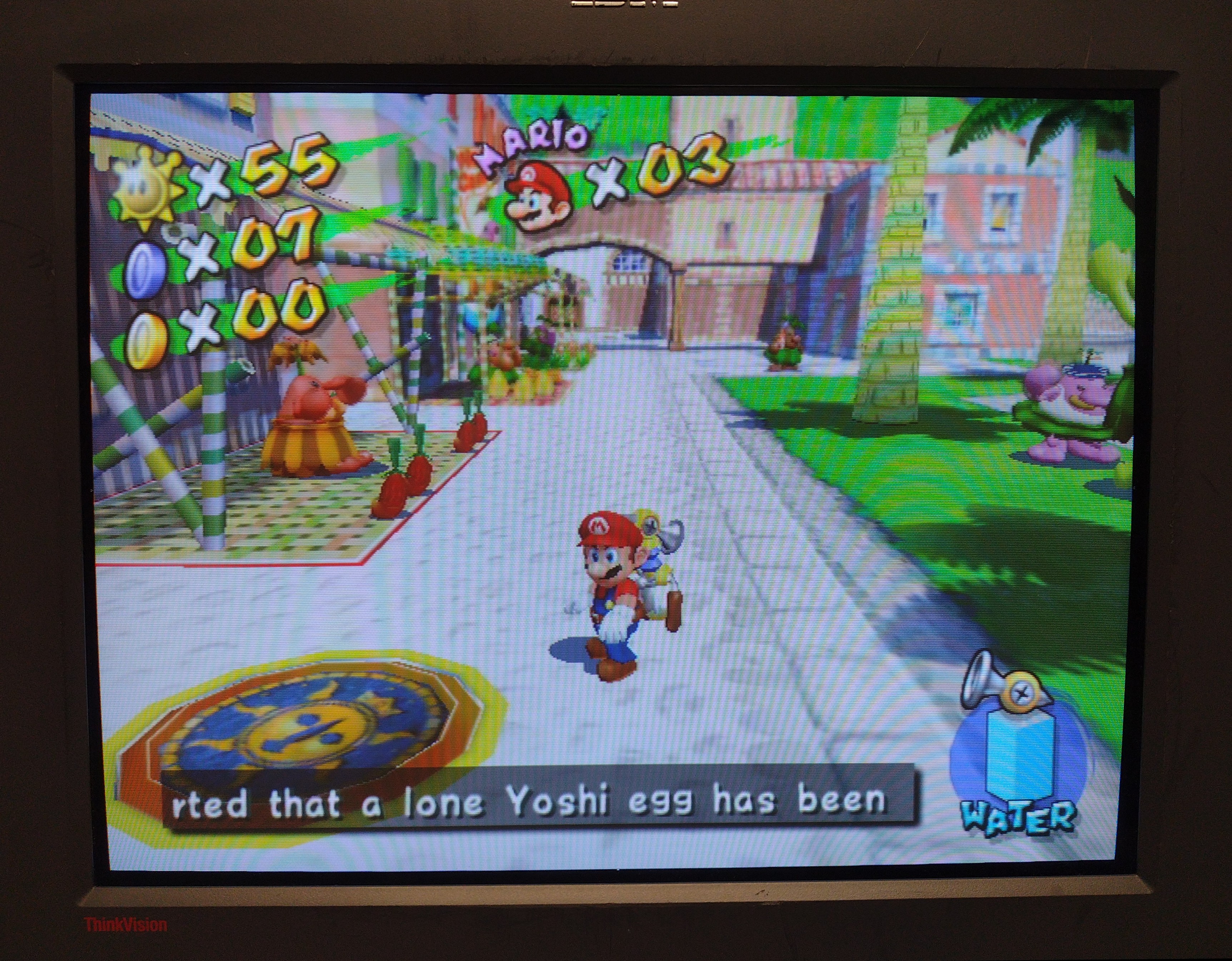

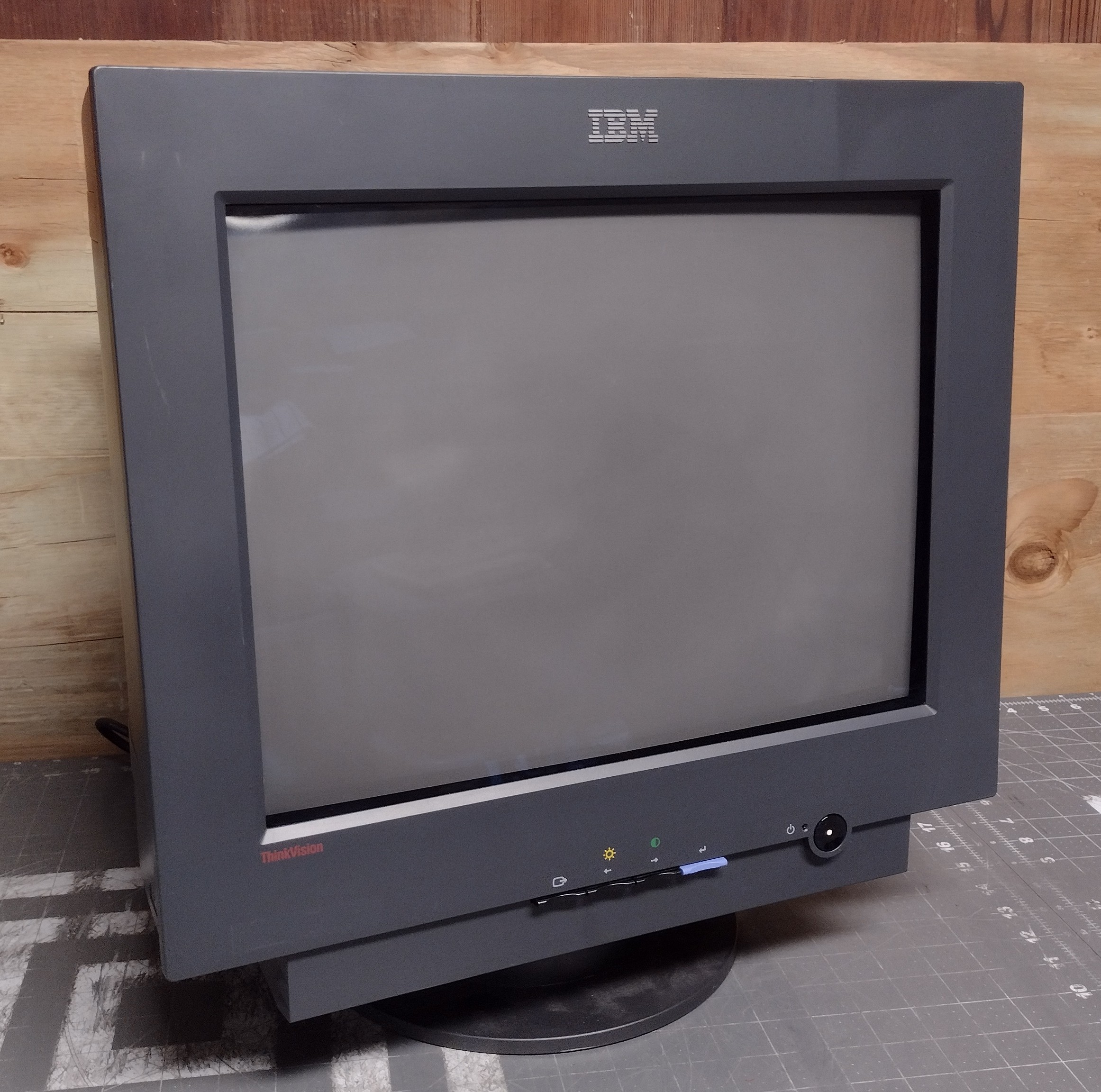

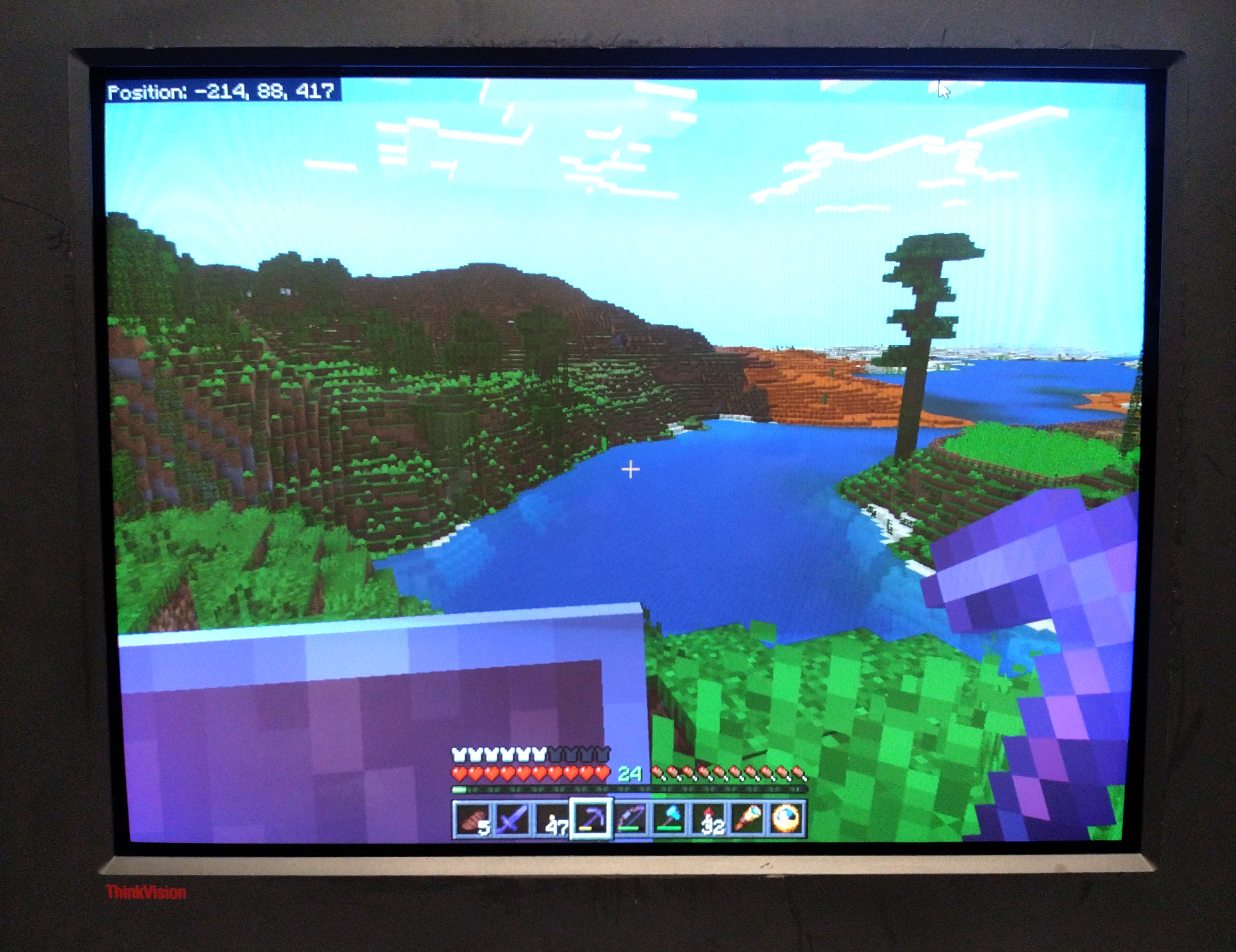

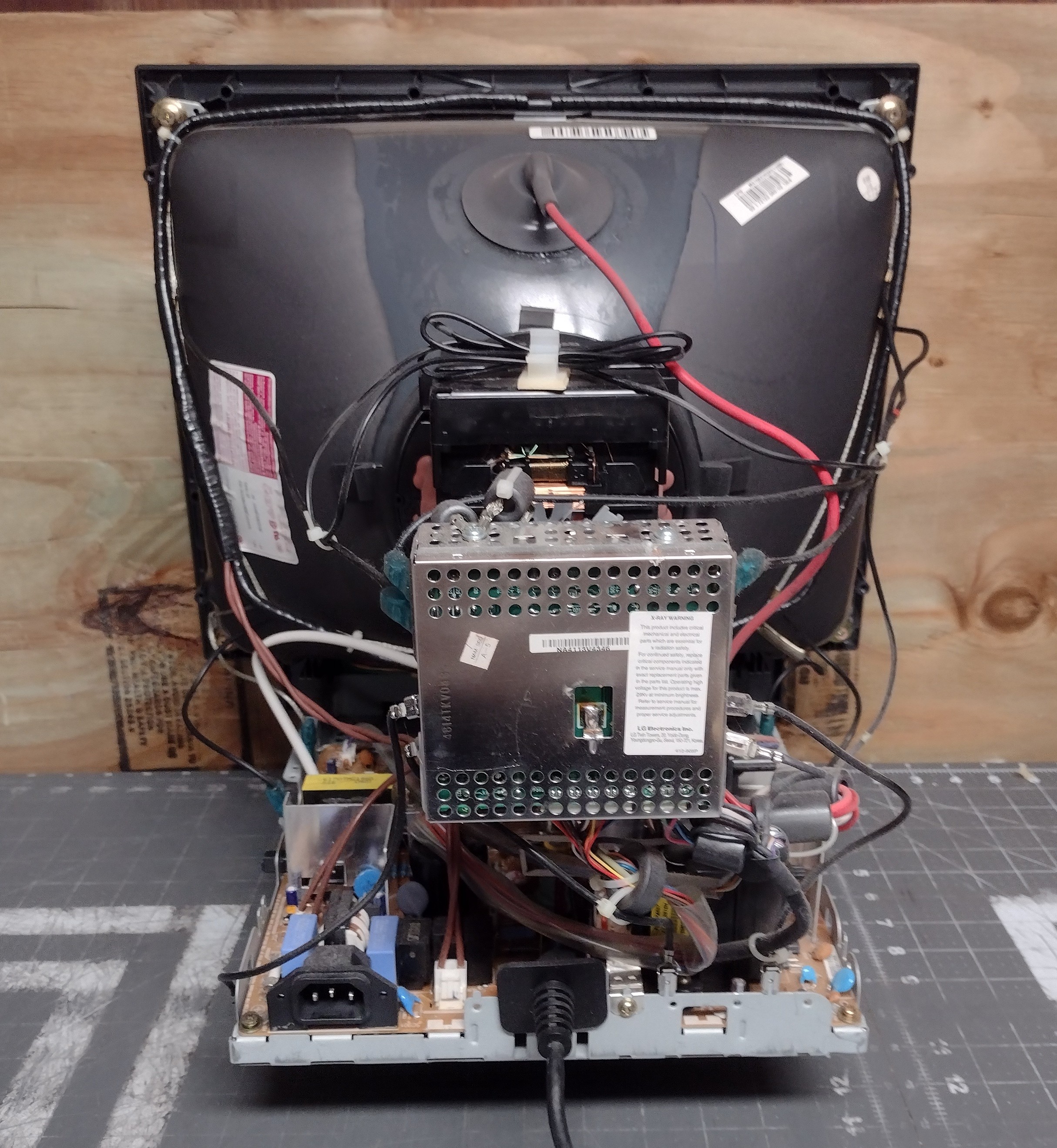

Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | LG |
| Model: | C170 |
| Series: | ThinkVision |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 30 kHz, 85 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | FQM17A007 |
| Tube: | LG.Philips , M41QEE903X01 , M41QEE903X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | 6150Z-7626A |
| Speakers: | None |
| Chassis: | CA-128 |
| Weight: | 35.3 lbs (16 kg) |
| Dimensions (W/H/D): |
414 x 430 x 420 mm
(16.3 x 16.9 x 16.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | China |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual, Needs Pictures |
