Summary
IBM's G52 is a capable 15" PC monitor. Unlike many monitors of that size, it is capable of a 69 kHs horizontal scan rate. It will display 1024x768 at 85 Hz, or 1440x1080 at 60 Hz. Manufactured by Philips, it is the predecessor to the IBM G54.
Literature
No documentation is available online at this time.
Notes

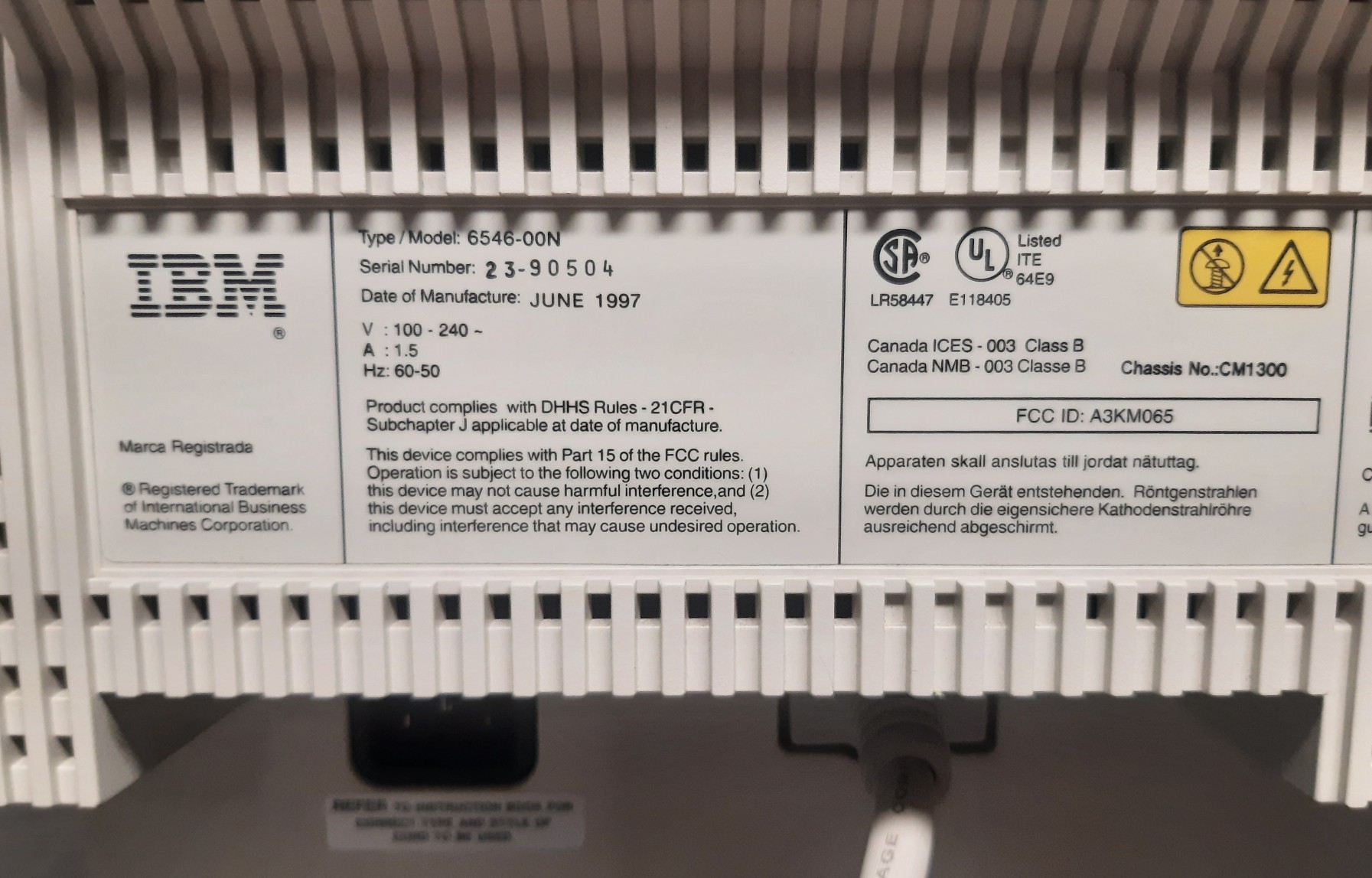

IBM's part number for the G52 is 6546-00N.
This monitor uses a unique method of menu navigation. The small blue button on the front, when pushed, extends into a knob that's attached to a rotary encoder and is used to select menu options.
This monitor was produced in both beige and black versions.
Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | Philips |
| Model: | G52 |
| Series: | G |
| Viewable Size: | 13.6" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 69 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Vertical Output IC: | TDA4860 |
| Flyback: | E17865 |
| Tube: | M36EDR320X , Philips , M36EDR320X130 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | AT1730/21308F1R |
| Yoke Horz. Inductance: | 0.17795 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.157 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.458 ohm |
| Yoke Vert. Resistance: | 6.44 ohm |
| Speakers: | None |
| Chassis: | CM1300 |
| Weight: | 30 lbs (14 kg) |
| Application: | Computer Monitor |
| Launched: | 1997 |
| Country of Manufacture: | Taiwan |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
