Ikegami PM-9-5A
Matt Ross
September 21, 2024, 10:21 pm
November 11, 2024, 5:23 am
September 21, 2024, 10:21 pm
November 11, 2024, 5:23 am
Summary

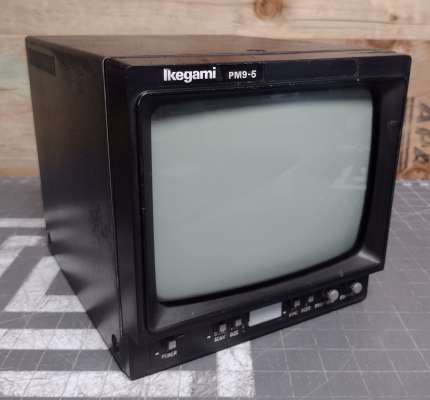

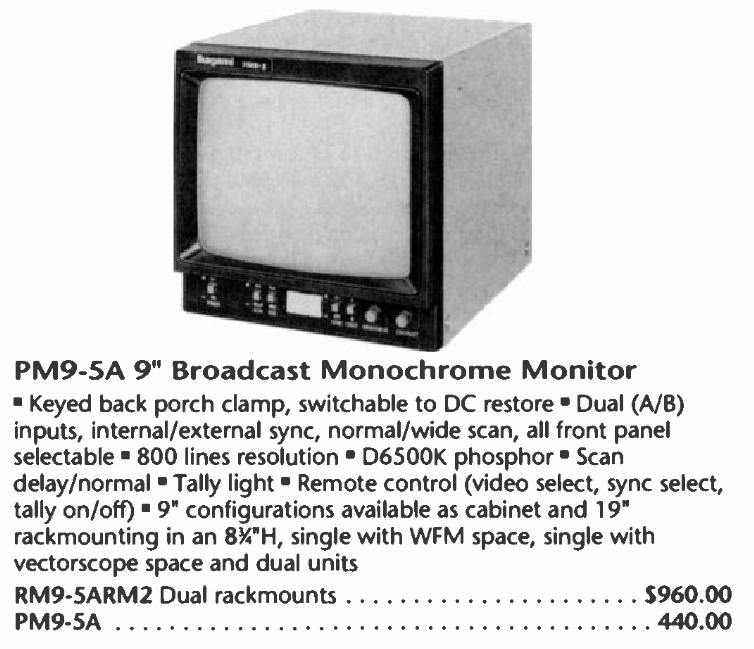

9" monochrome broadcast monitor with two video inputs. Small & lightweight, with a very clean 800 TVL picture. The predecessor to the PM-9050.
Literature
Notes
This monitor is among the few produced with an adjustable linearity coil.

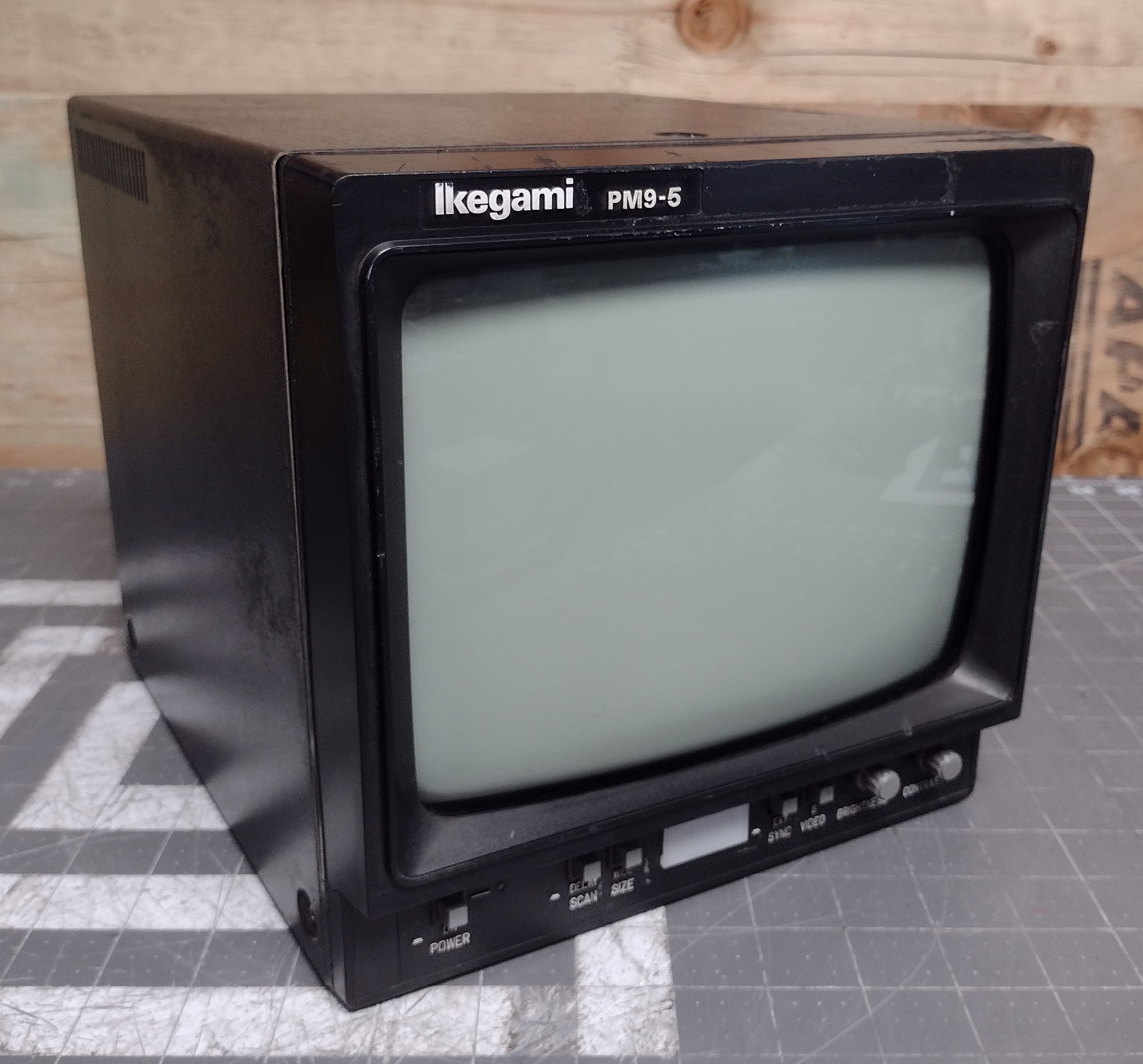

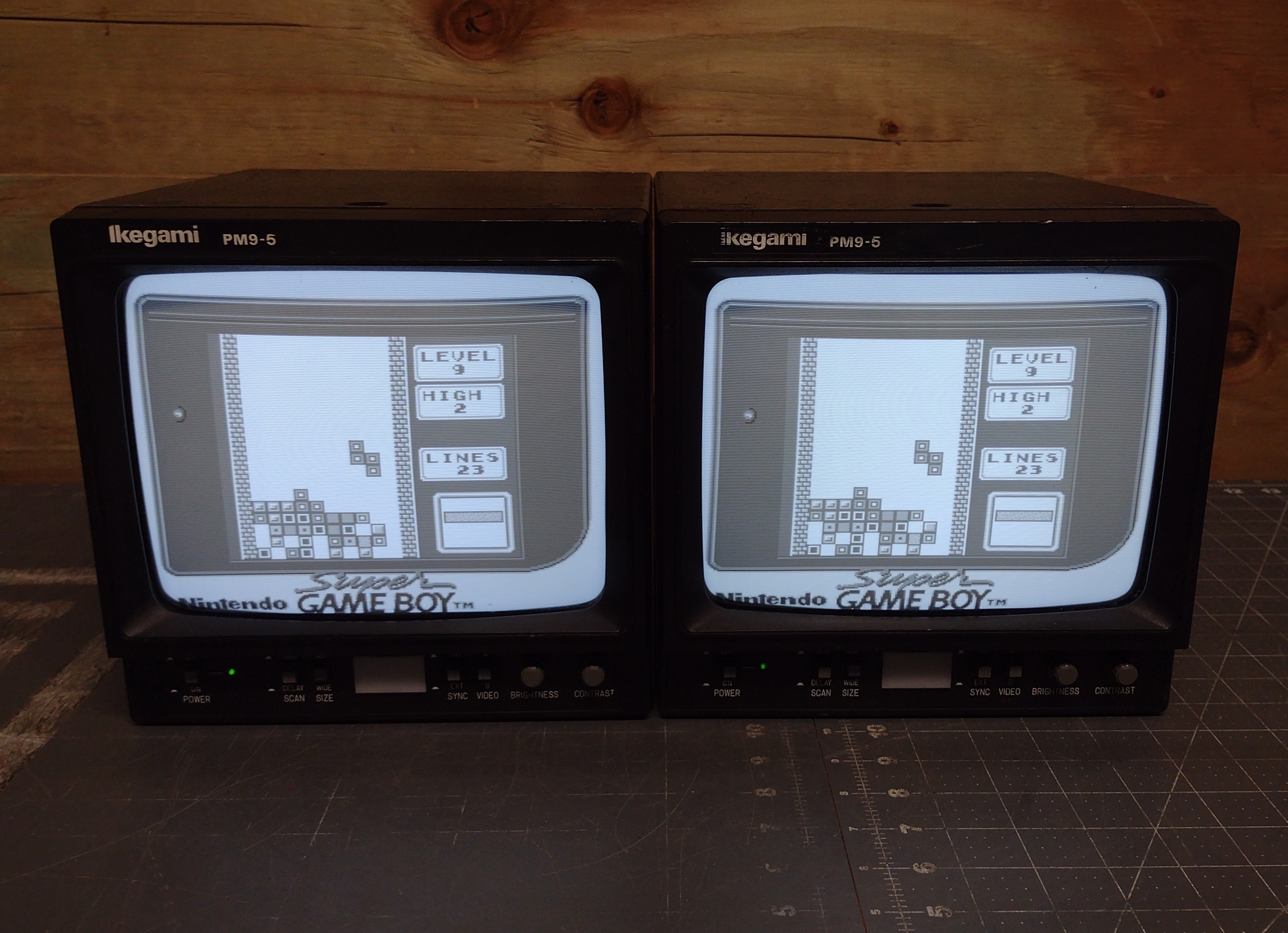

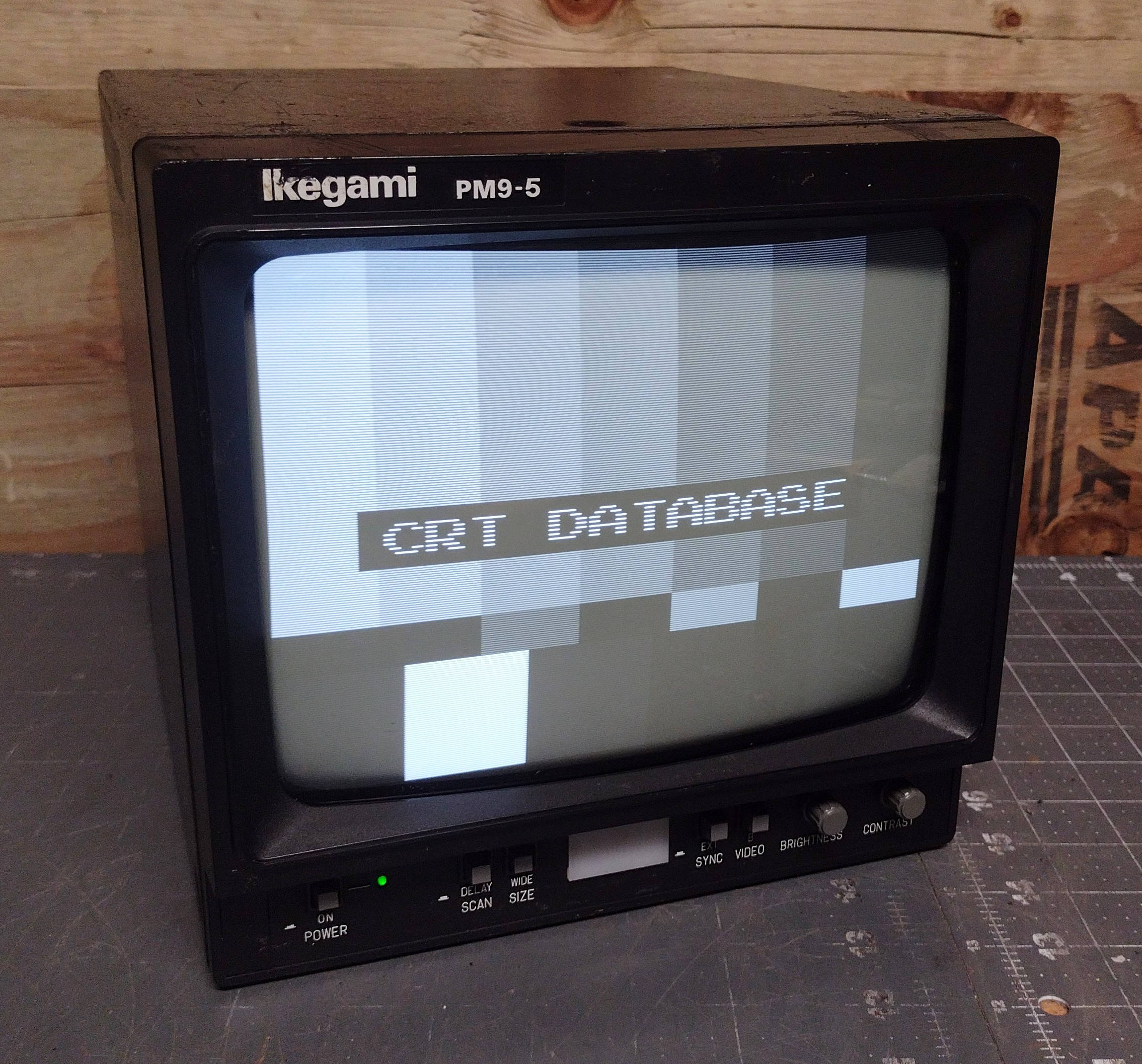

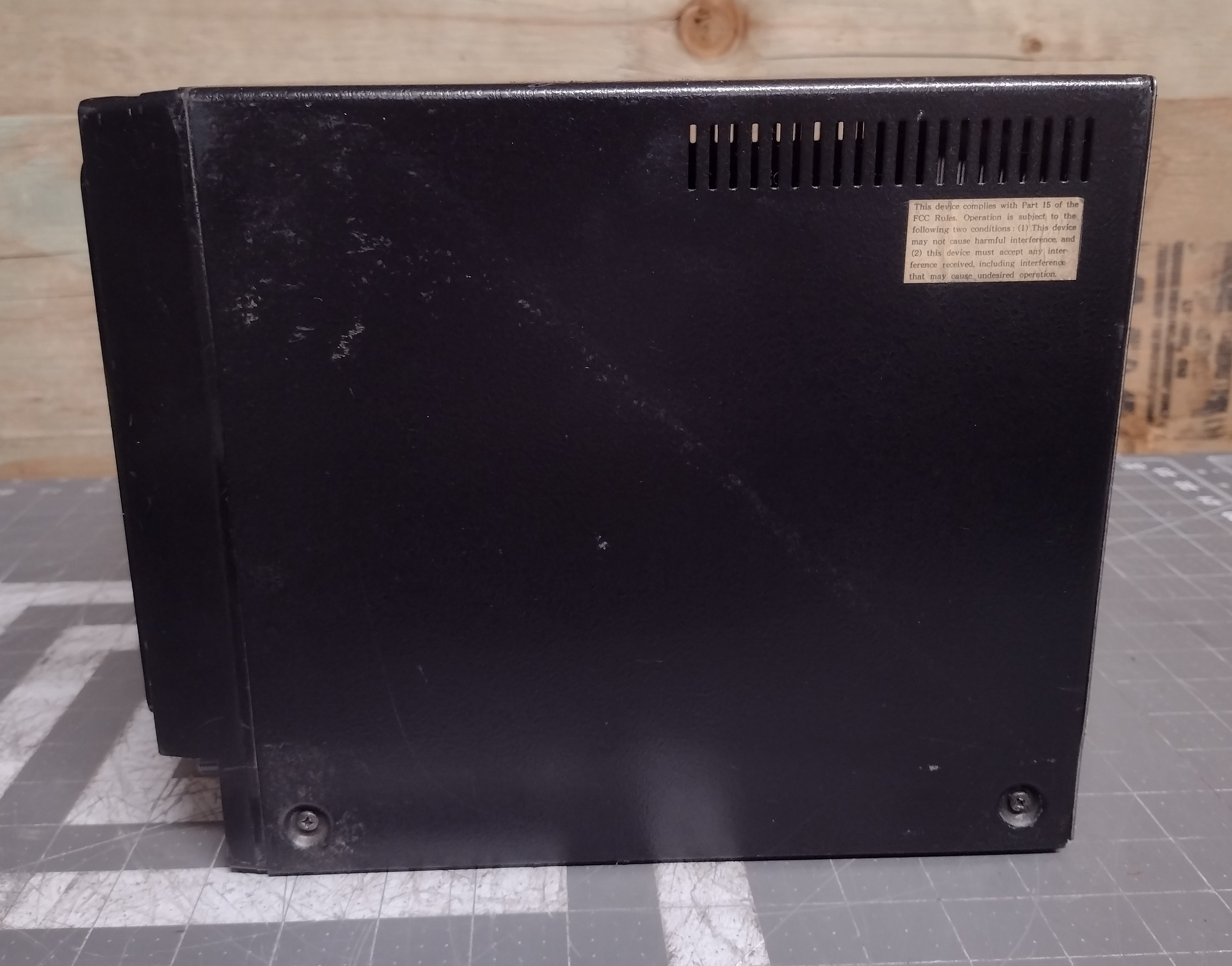

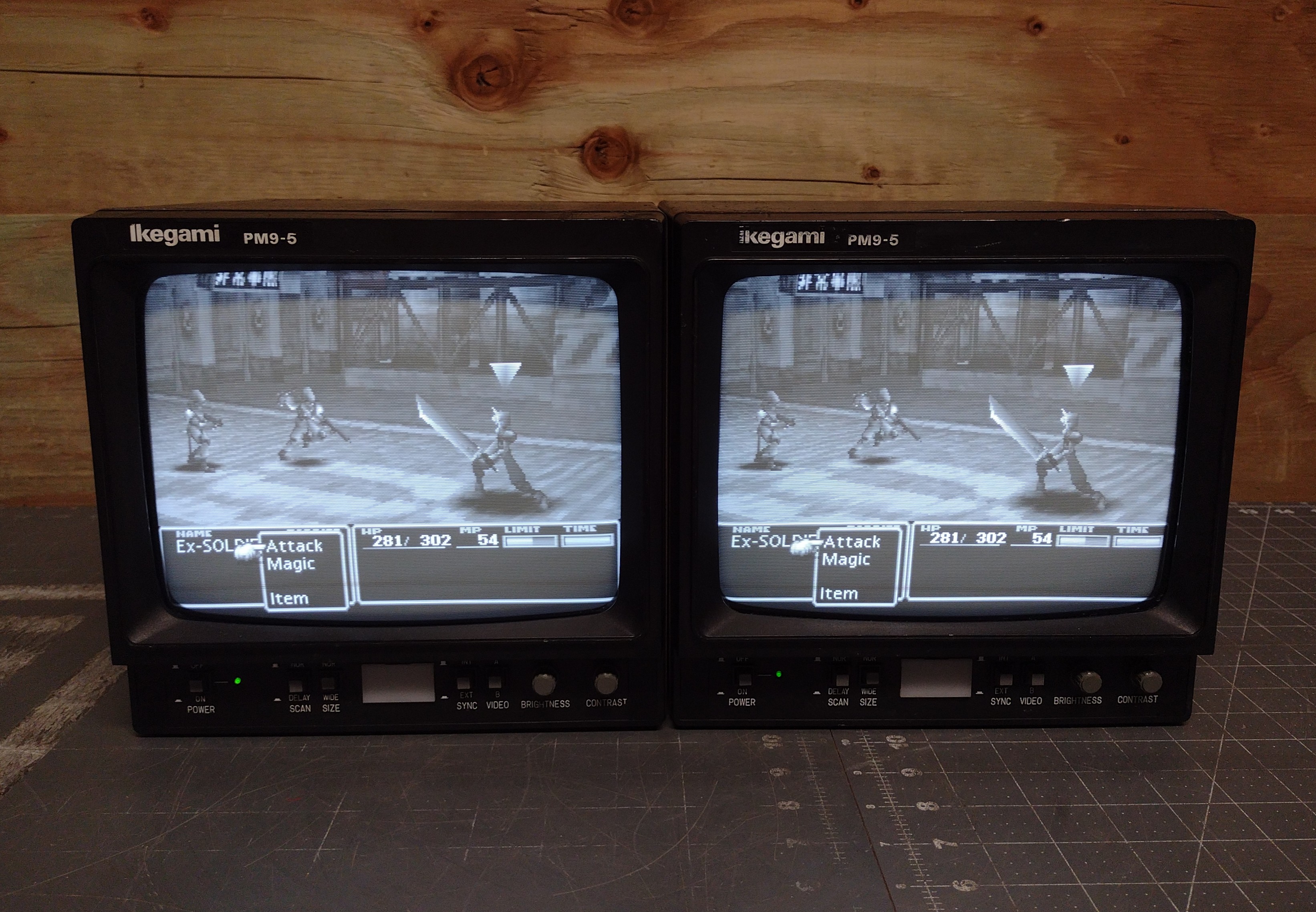

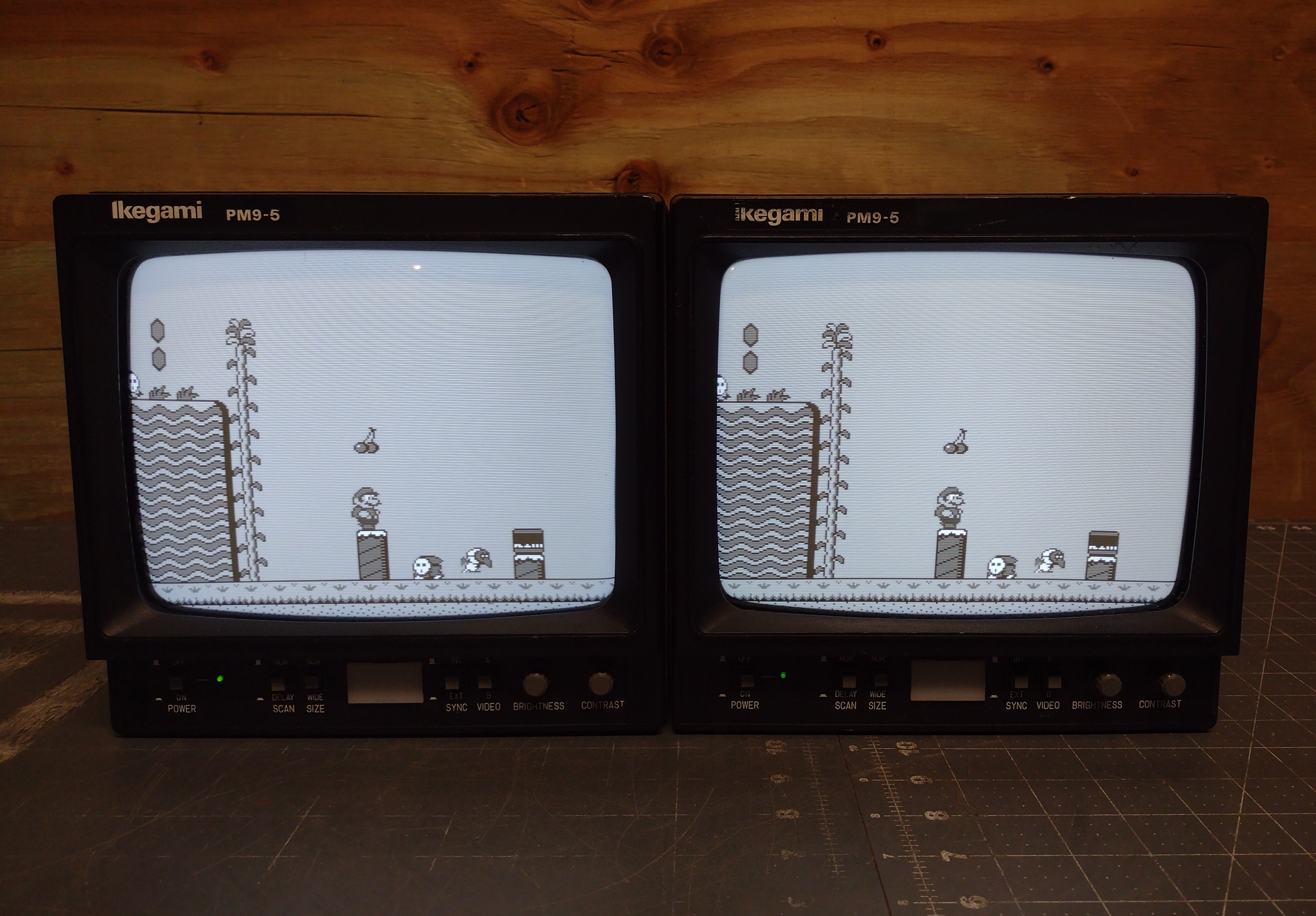

Gallery
| Specifications | |
|---|---|
| Brand: | Ikegami |
| Manufacturer: | Ikegami |
| Model: | 9-5A |
| Series: | PM |
| Viewable Size: | 9" |
| Inputs: | Composite |
| Sync: | CSYNC |
| Resolutions: | 240p, 480i |
| Linecount: | 800 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | Monochrome |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Flyback: | ST-901224 |
| Tube: | Panasonic , M22JGV05WA |
| Deflection: | 90° |
| Mask: | Monochrome Tube (no mask) |
| Tint: | Light |
| Yoke: | YS-33803 |
| Speakers: | None |
| Weight: | 13 lbs (6 kg) |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1990 |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Not Applicable |
