Summary

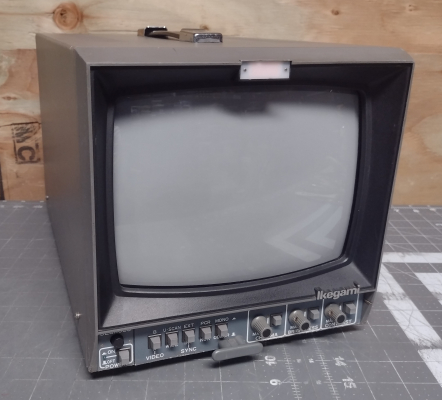

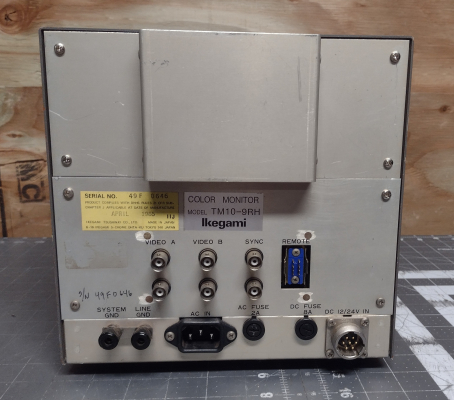

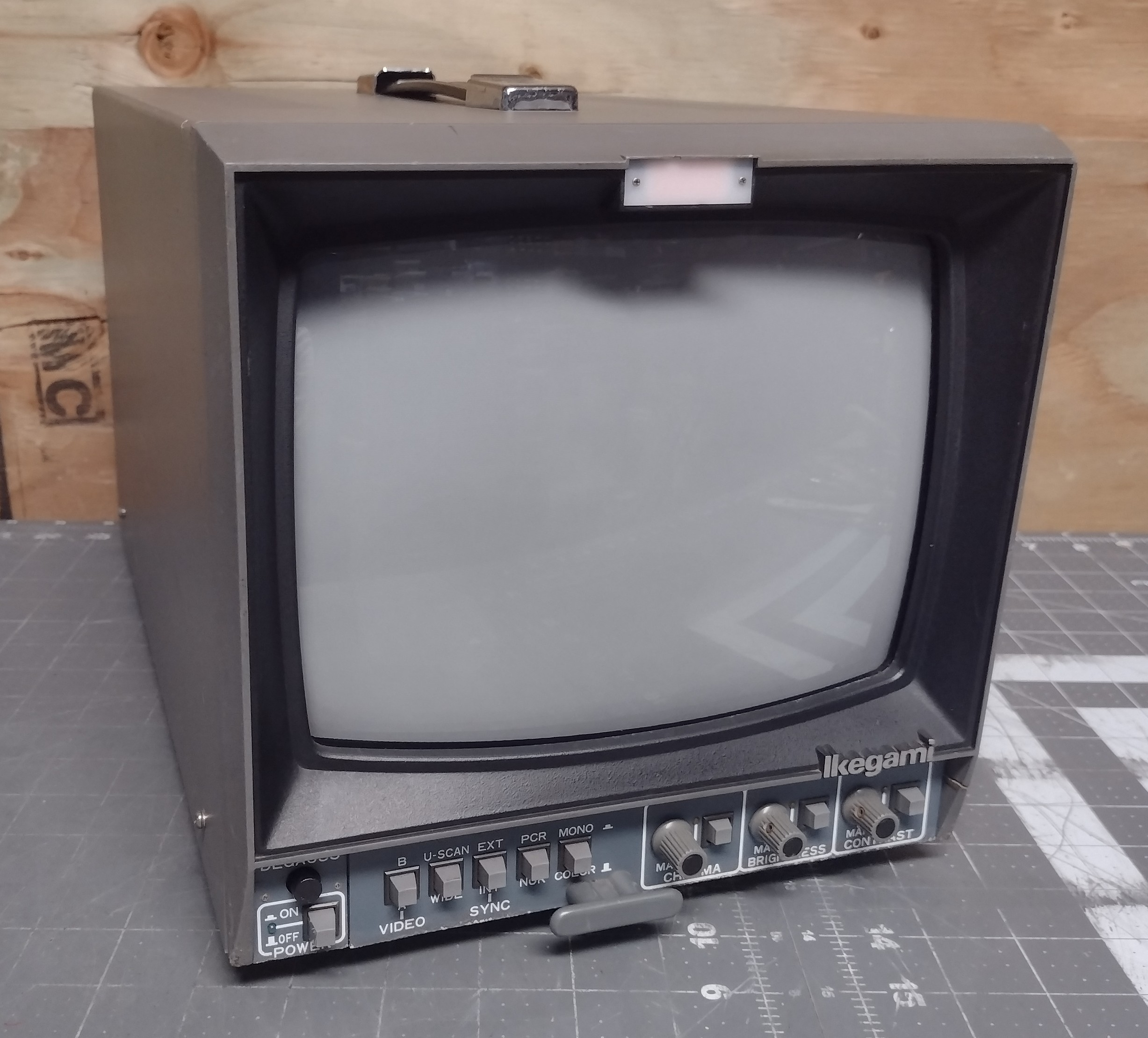

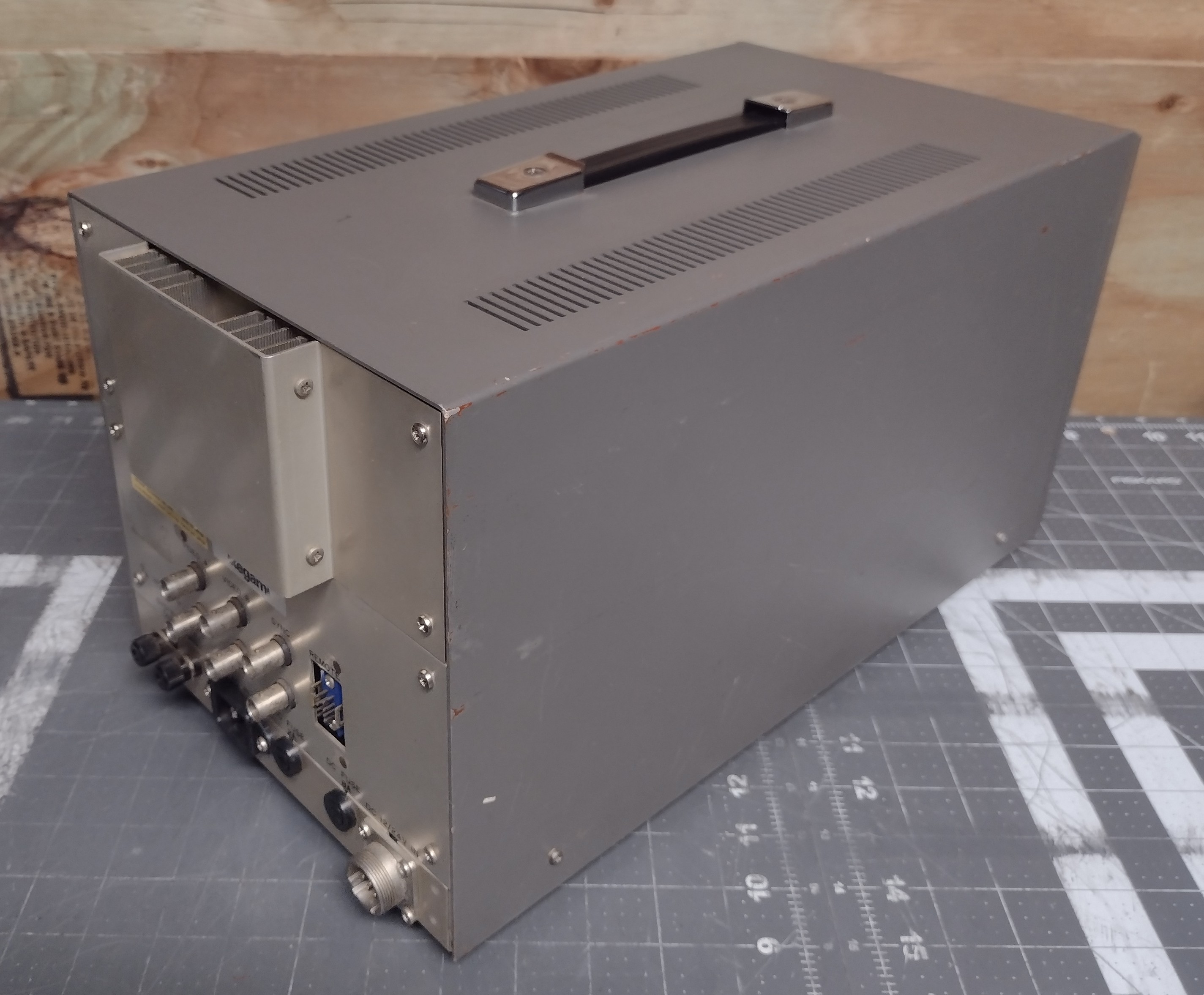

Portable 10" (9" viewable) monitor with a fine pitch shadow mask tube. Dating from the mid 1980s, it is very robust with a metal frame, a large heat sink on the power supply, and very few plastic components. Even the front bezel is made of cast metal. It accepts composite video only, and provides a very clean picture given its small size and lack of input options.

Literature

No documentation is available at this time.

Notes

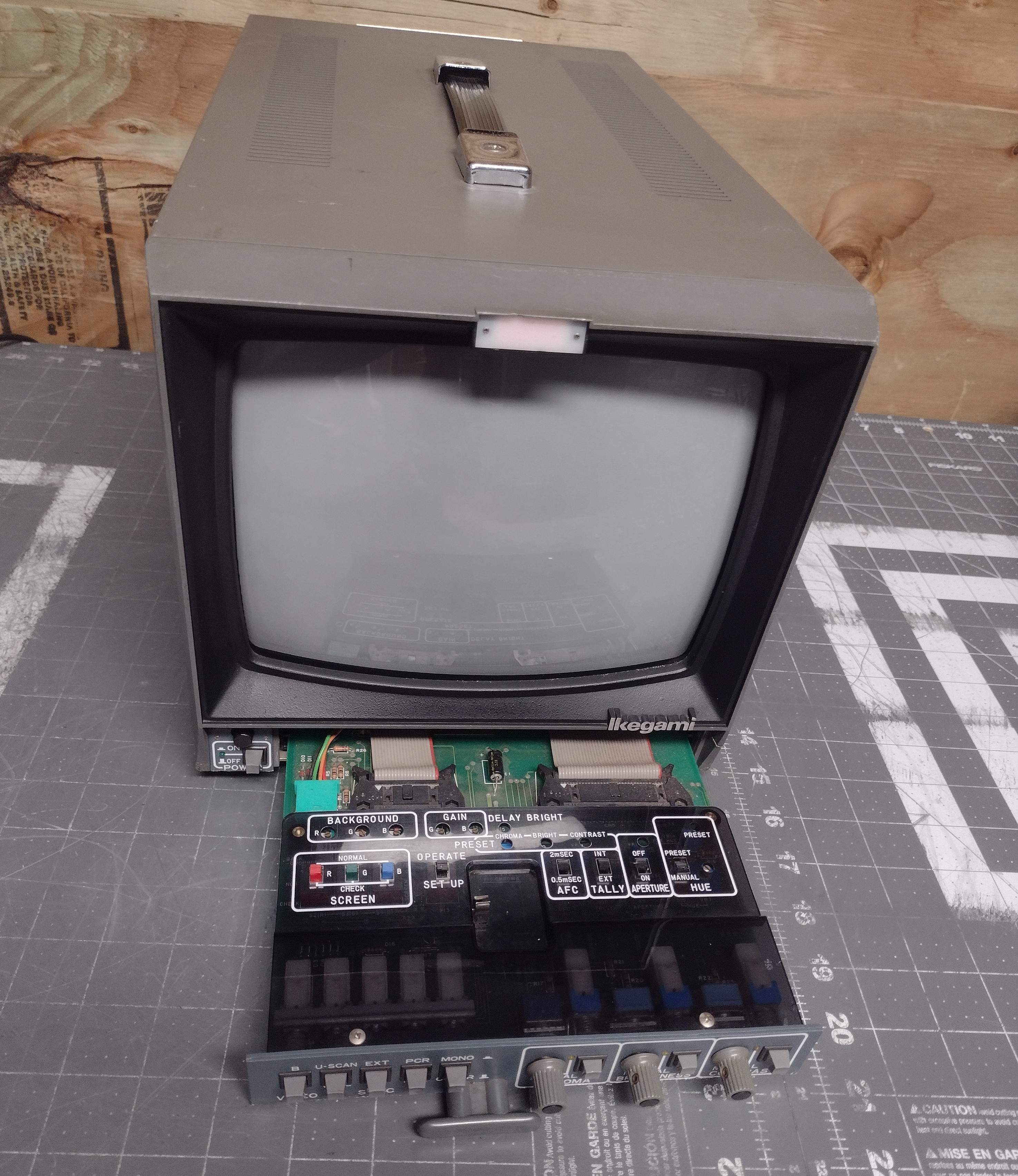

Like many other Ikegami monitors, additional picture controls can be accessed by pulling out the front panel. Originally, it came with an adjustment tool that could be stored on a plastic clip inside the front drawer.

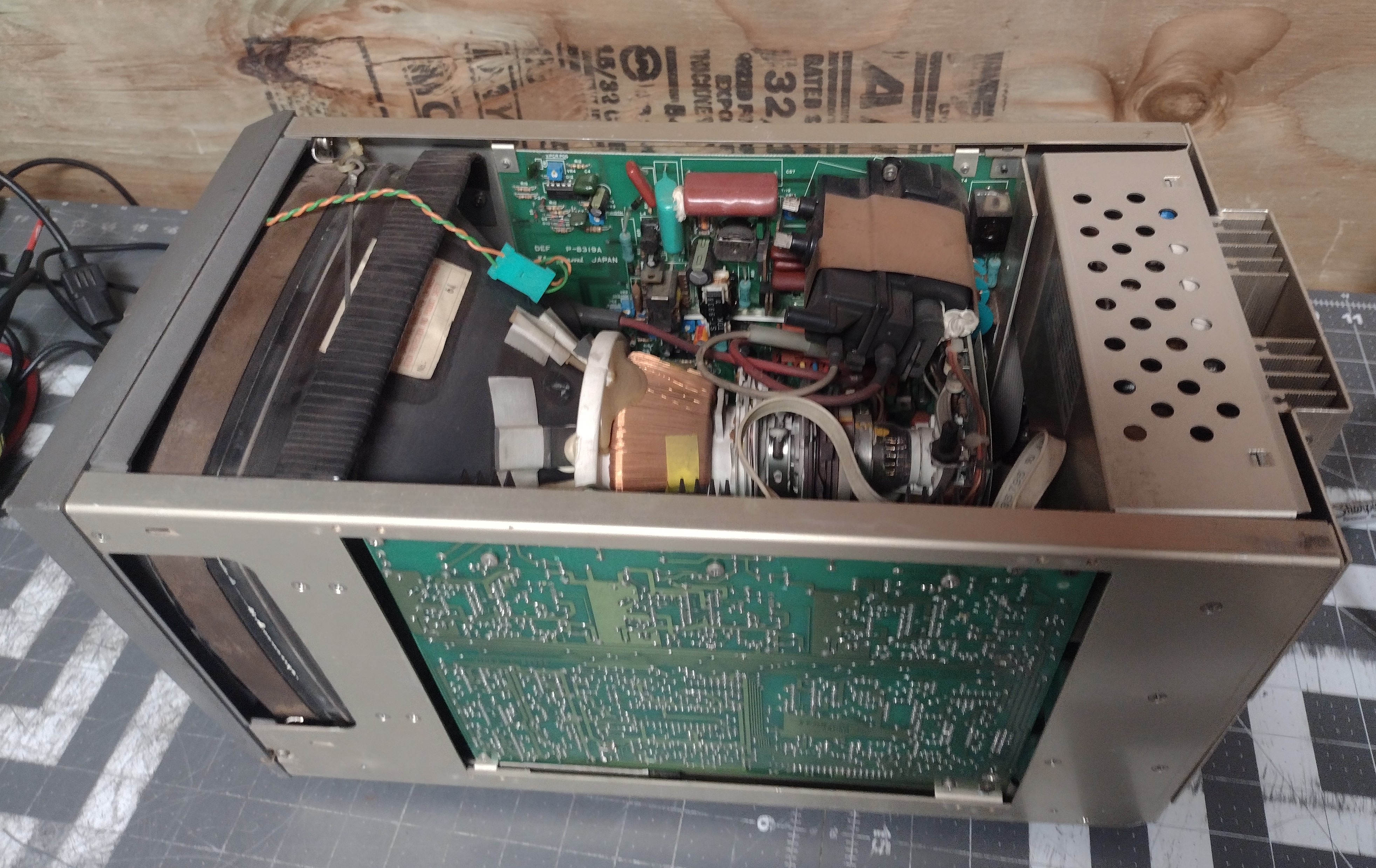

Unlike most monitors of this size, the TM10-9RH uses a 70 degree deflection tube. It uses the same tube and yoke as later Ikegami monitors, including the TM10-17RA.
