Ikegami TM9-1
Eli Krause
September 21, 2024, 10:29 pm
May 27, 2025, 1:29 pm
September 21, 2024, 10:29 pm
May 27, 2025, 1:29 pm
Summary

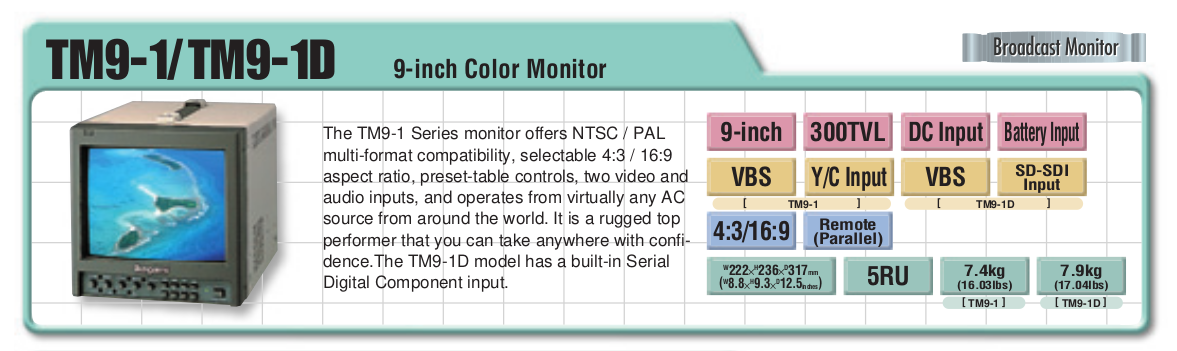

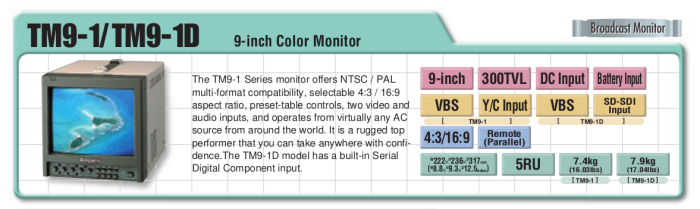

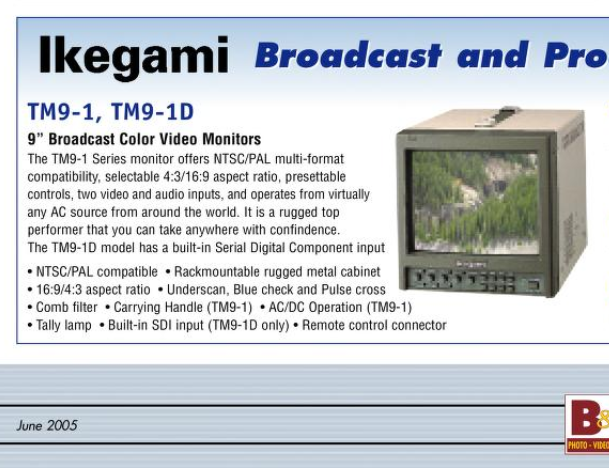

TM9-1 monitor offers NTSC/PAL multi-format compatibility, selectable 4:3/16:9 aspect ratio, presettable controls, S-Video and composite video inputs, audio inputs, and operates from virtually any AC source from around the world. It can also be powered with 12V DC. The TM9-1 is a rugged top performer that you can take anywhere with confidence.
Manuals
Media & Promo Materials
Notes
The jungle chip used on this monitor does not have RGB inputs. As this monitor is the same as the JVC TM-910SU, see that page for further documentation.
Repair Notes
- Wouldn't turn on: C919 and C929 on sub power board 2
- Vertical collapse: C416 on main board
- Uneven brightness, brighter on the left side and darker on the right side: C522 open on main board
Other capacitors that tested high ESR on the main board and neck board: C306, C310, C413, C519, C533, C613, et al.
Gallery










Specifications | |
---|---|
Brand: | Ikegami |
Manufacturer: | JVC |
Model: | TM9-1 |
Series: | TM |
Viewable Size: | 9" |
Inputs: | Composite, S-Video |
Sync: | CSYNC, Sync over Composite, Sync on Luma |
Native Resolutions: | 240p, 480i, 288p, 576i |
Linecount: | 280 TVL |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
Horz. Output Transistor: | 2SD1878-YD |
Vertical Output IC: | LA7830 |
Jungle: | Panasonic, AN5613 |
Comb Filtering: | Glass |
Flyback: | CJ28347-00B |
Focus Type: | Single |
Tube: | Panasonic , A22JWG098X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | 0.5 mm |
Tint: | Dark |
Yoke: | CE20300-00A |
Yoke Horz. Resistance: | 5.5 ohm, 5.50 ohm |
Yoke Vert. Resistance: | 15.1 ohm |
Speakers: | Mono, 1W |
Chassis: | B10 |
Weight: | 16 lbs (7.3 kg) |
Dimensions (W/H/D): |
222 x 236 x 317 mm
(8.7 x 9.3 x 12.5") |
Application: | Professional |
Cabinet Material: | Metal |
Launched: | 1998 |
MSRP: | 800 USD |
Country of Manufacture: | Thailand |
Power Standard: | 120v, 12VDC |
Mounting: | Carrying Handle, Rackable |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
