Summary

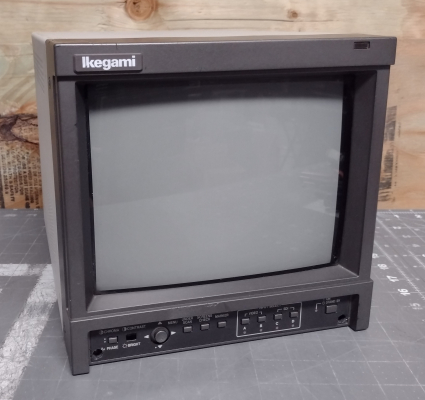

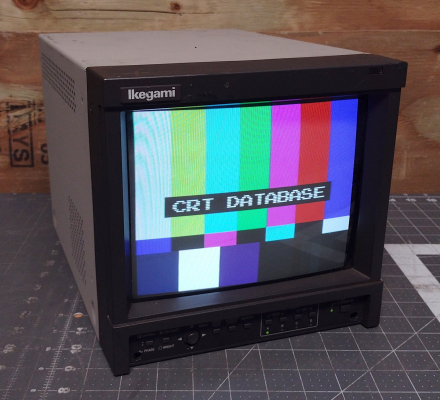

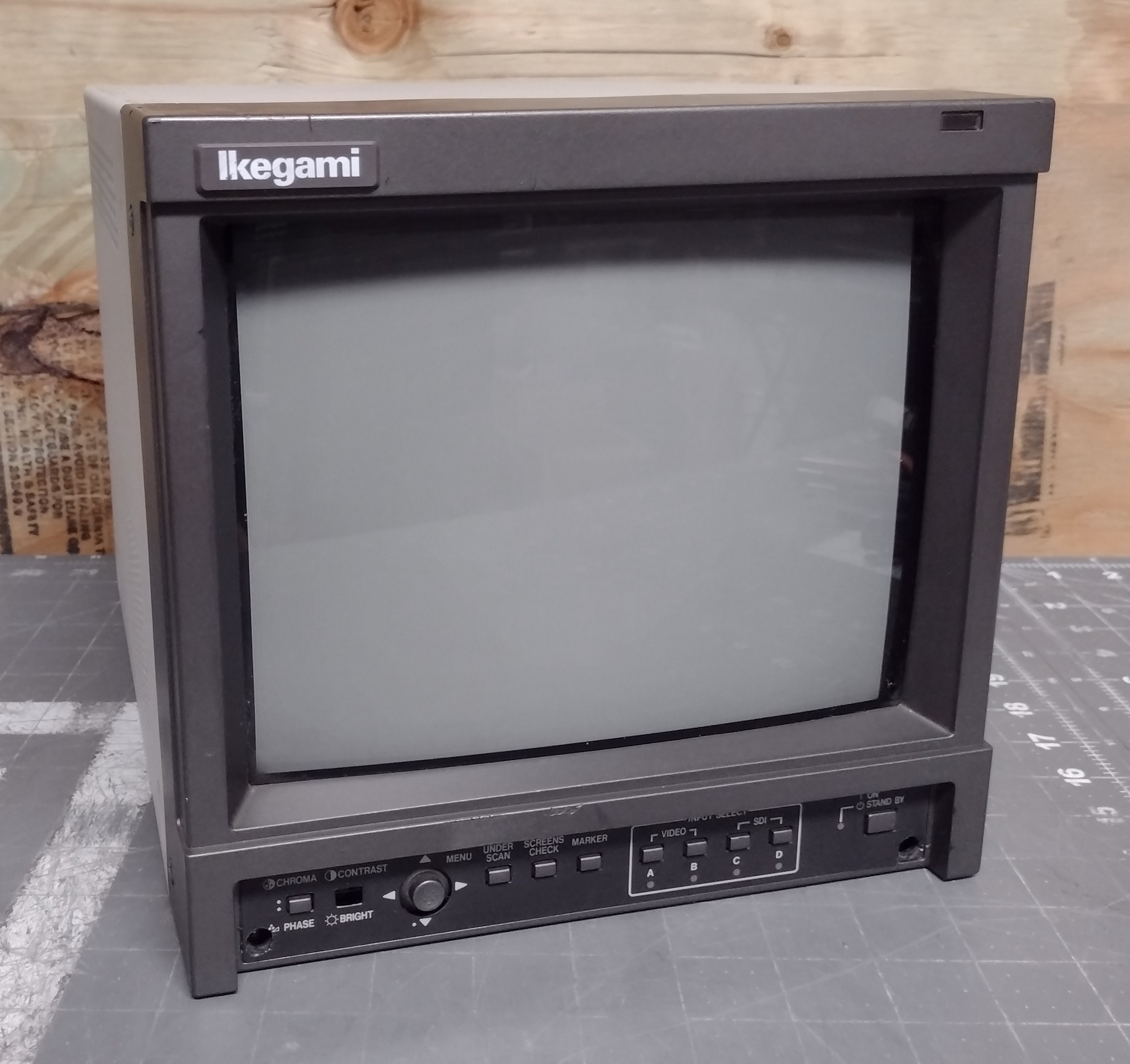

Portable 9" broadcast monitor with a low TVL slot mask tube, dual composite inputs, and a built in SDI input card.

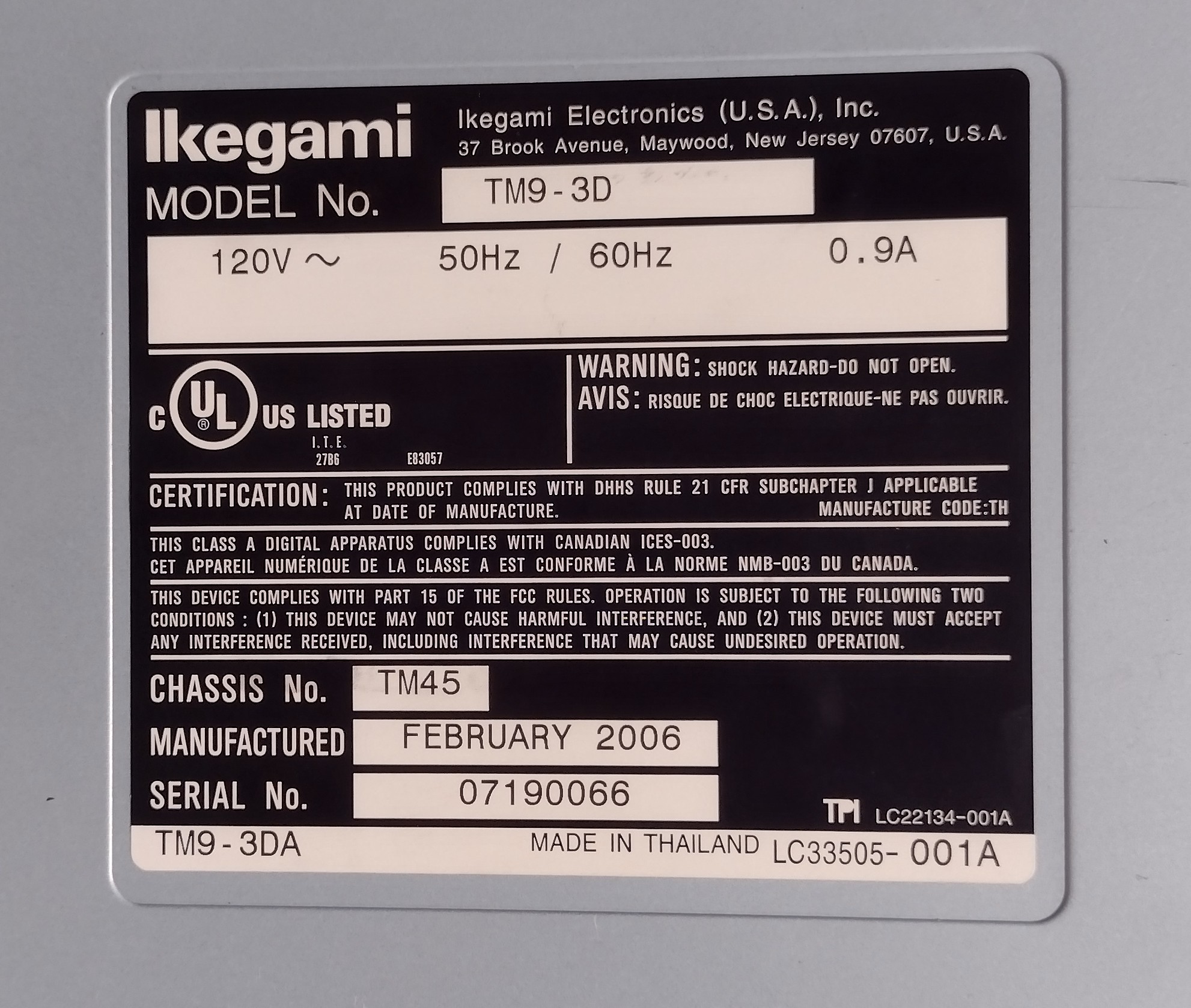

This monitor was manufactured by JVC, and is a rebranded TM-1051DG. This, in turn, is a modified version of the JVC TM-1011GU. Unlike its analog predecessor, this version has no audio or 12v power inputs.

Literature

• User Manual (JVC version)

Notes

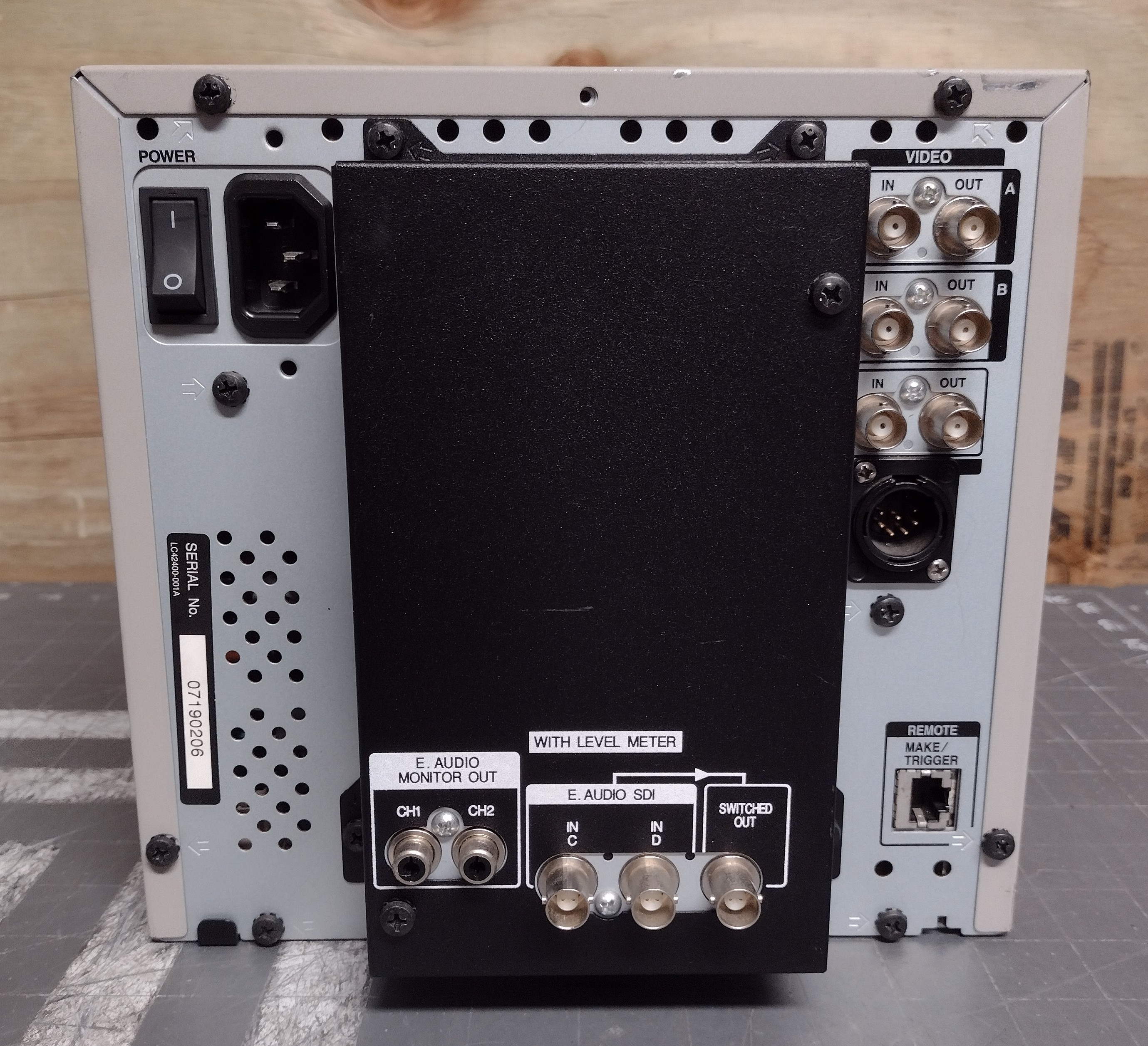

The metal enclosure on the back of the monitor contains an SDI to YPbPr converter, which provides its SDI input capability. It will function perfectly well without the SDI module; when this is removed it will give an error message when attempting to switch to SDI but will otherwise operate as normal.

Like many other JVC pro monitors, this model uses a Toshiba TA1276AN jungle chip. It should be possible to modify it for RGB input in the same way as the TM-1011G. This method was developed by Martin Hejnfelt and uses an Arduino to set brightness levels for the RGB input. Instructions can be found on the Immerhax.com website.
